Model No: 42BLF02-021

42BLF02-021 customizable micro 12V 40 watt DC brushless motor for Automotive urea pump

minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:42BLF02-021
  • Usage:Automotive urea pump
  • Type:dc brushless
  • Torque:0.13 N.M
  • Commutation:Brushless
  • Protect Feature:IP 40
  • Speed(RPM):3000±10%
  • Continuous Current(A):1.2A
  • Application:Automotive urea pump
  • Weight:0.45 kg
  • Motor length:63mm
  • Diameter:42mm
  • Winding type:Star
  • Hall effect angle:120° electrical angle
  • Insulation Resistance:100MΩ Min.500V DC
  • Dielectric Strength:600V AC 1 minute
  • Max Radial Force:28N (20mm from front flange)
  • Max Axial Force:10N
  • Certification:CE, RoHS
Product Description

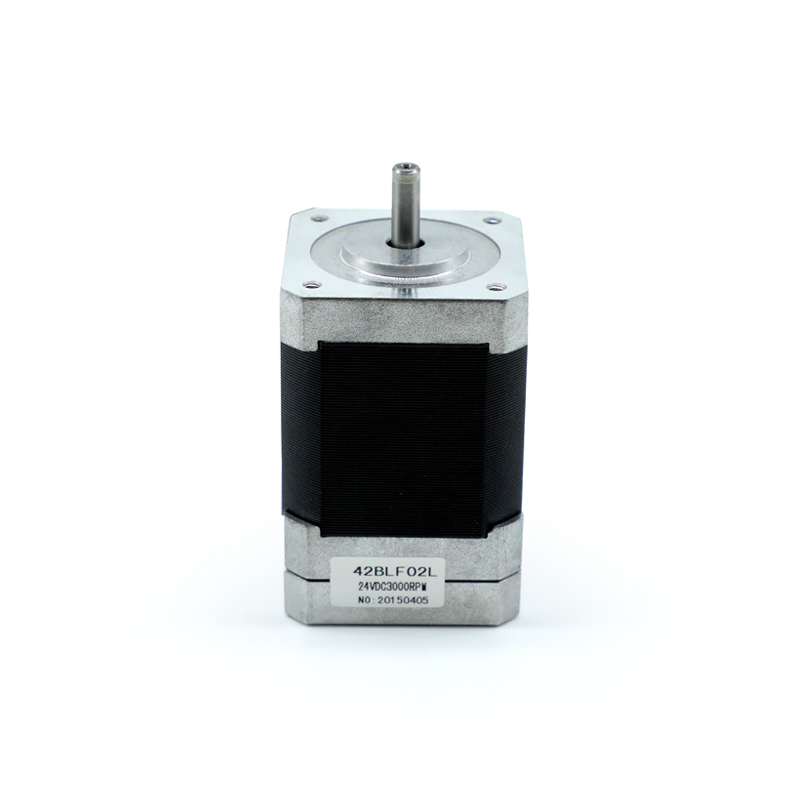

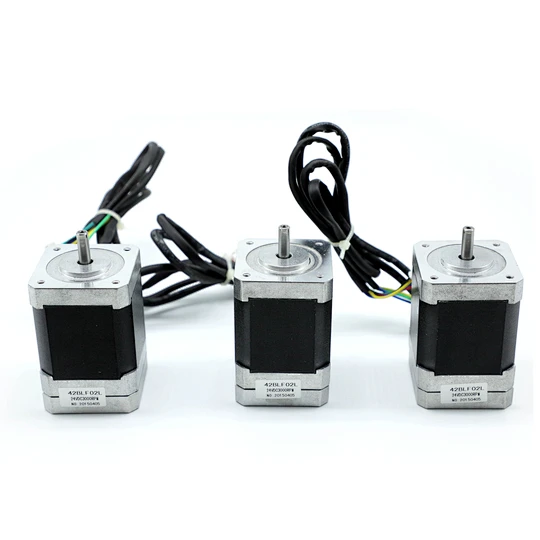

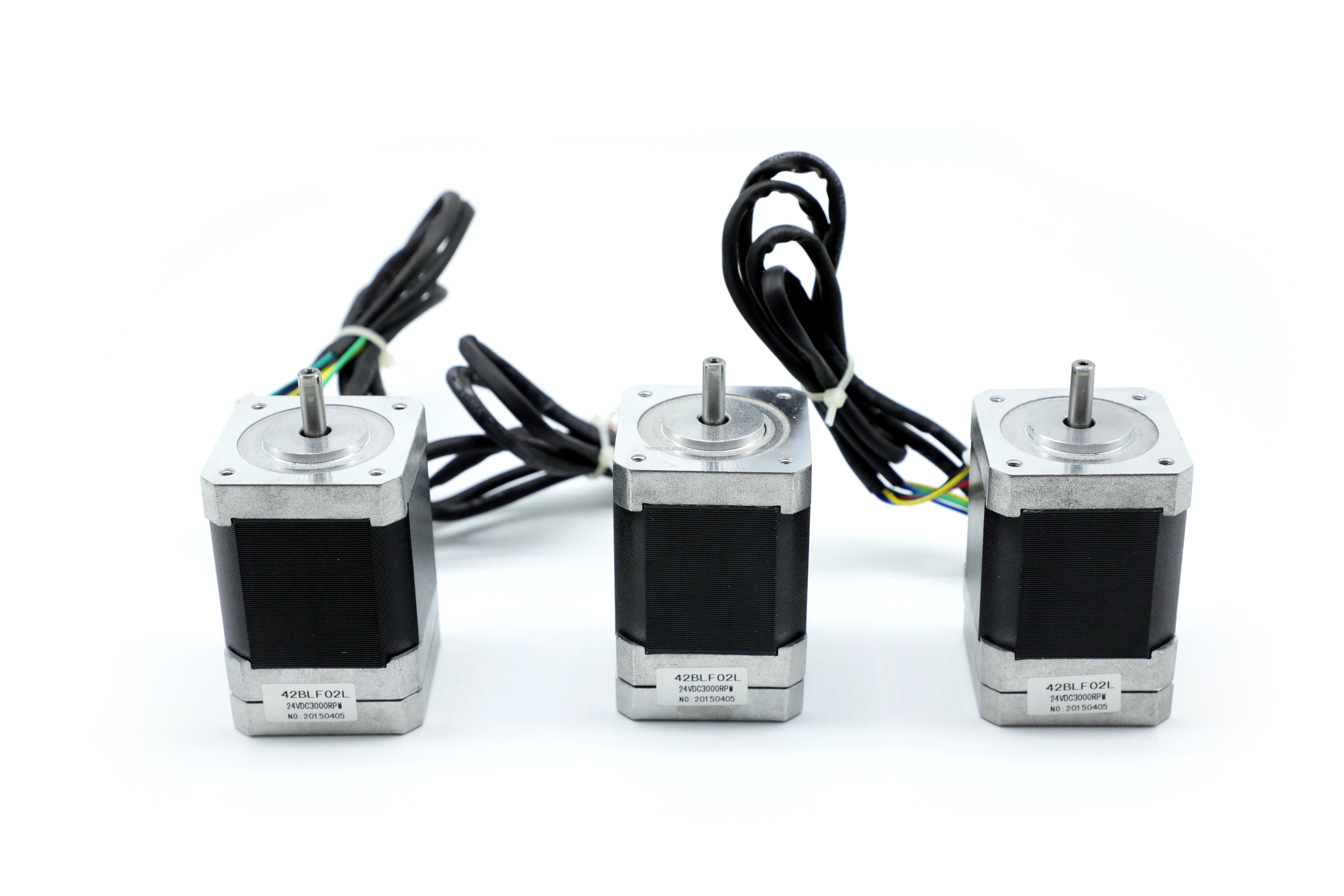

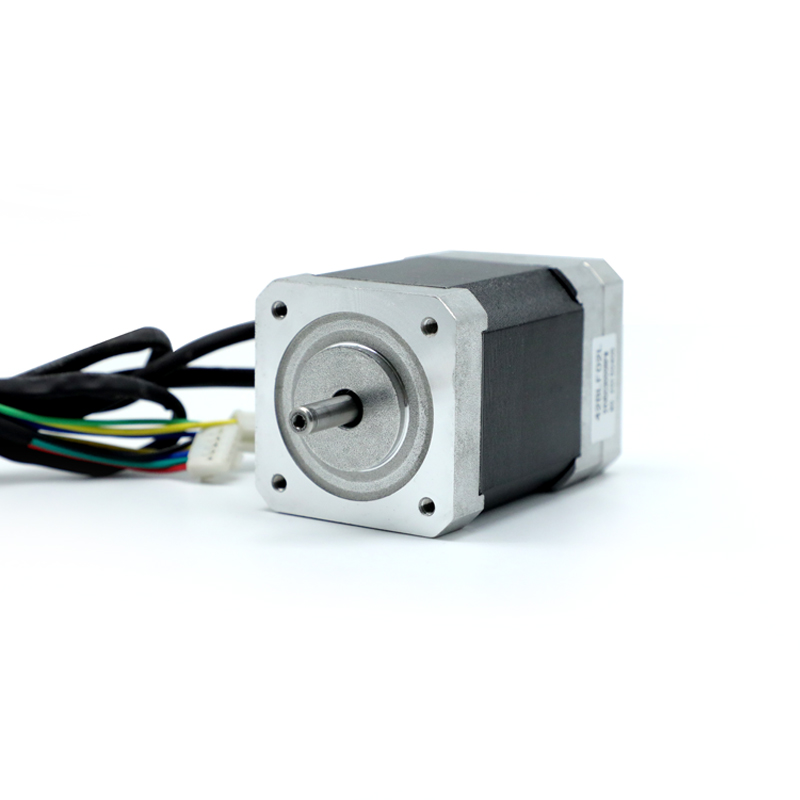

42BLF02L

Brushless DC motor
High speed
High output torque
Applied in Automotive urea pump

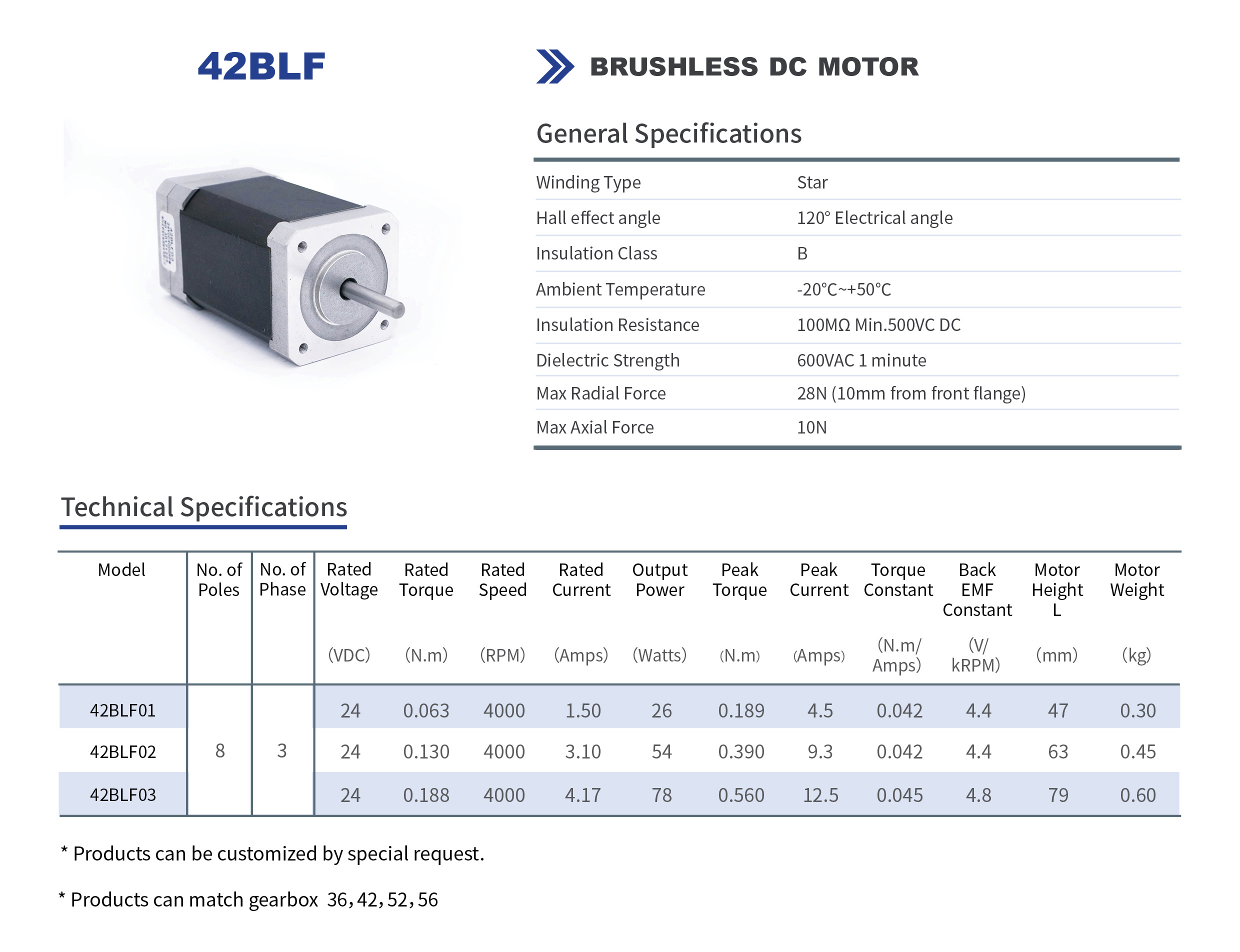

Specification
 Model
Resistance
Raeted
Speed
 Voltage
 No-load
Current
 Rated torque
Rated output power
 Torque
Constant

（OHMS）
 （RPM）
 （V）
 （A）
（N.m）
 （Watt）
 （N.m/A）
 42BLF02L
1.4
3000±10%
24
0.4
0.13
40
0.06
Wiring diagram

Products can be customized. If you have customised request, please contact us.

Product Application
Company Profile

Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

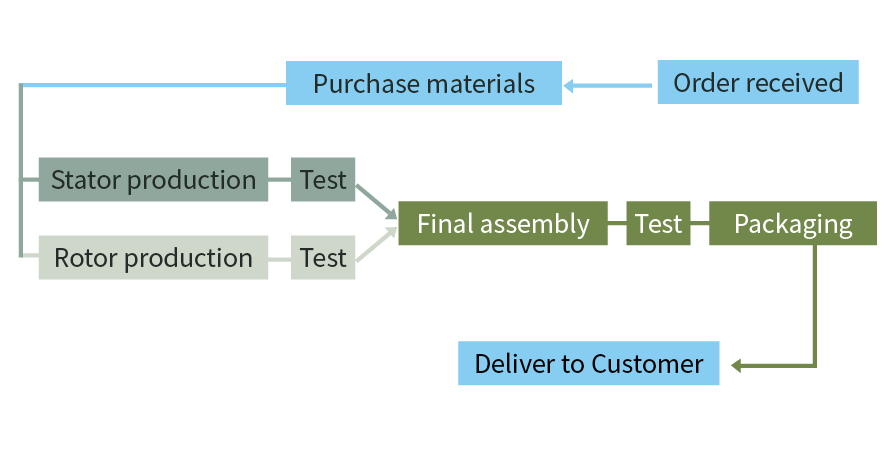

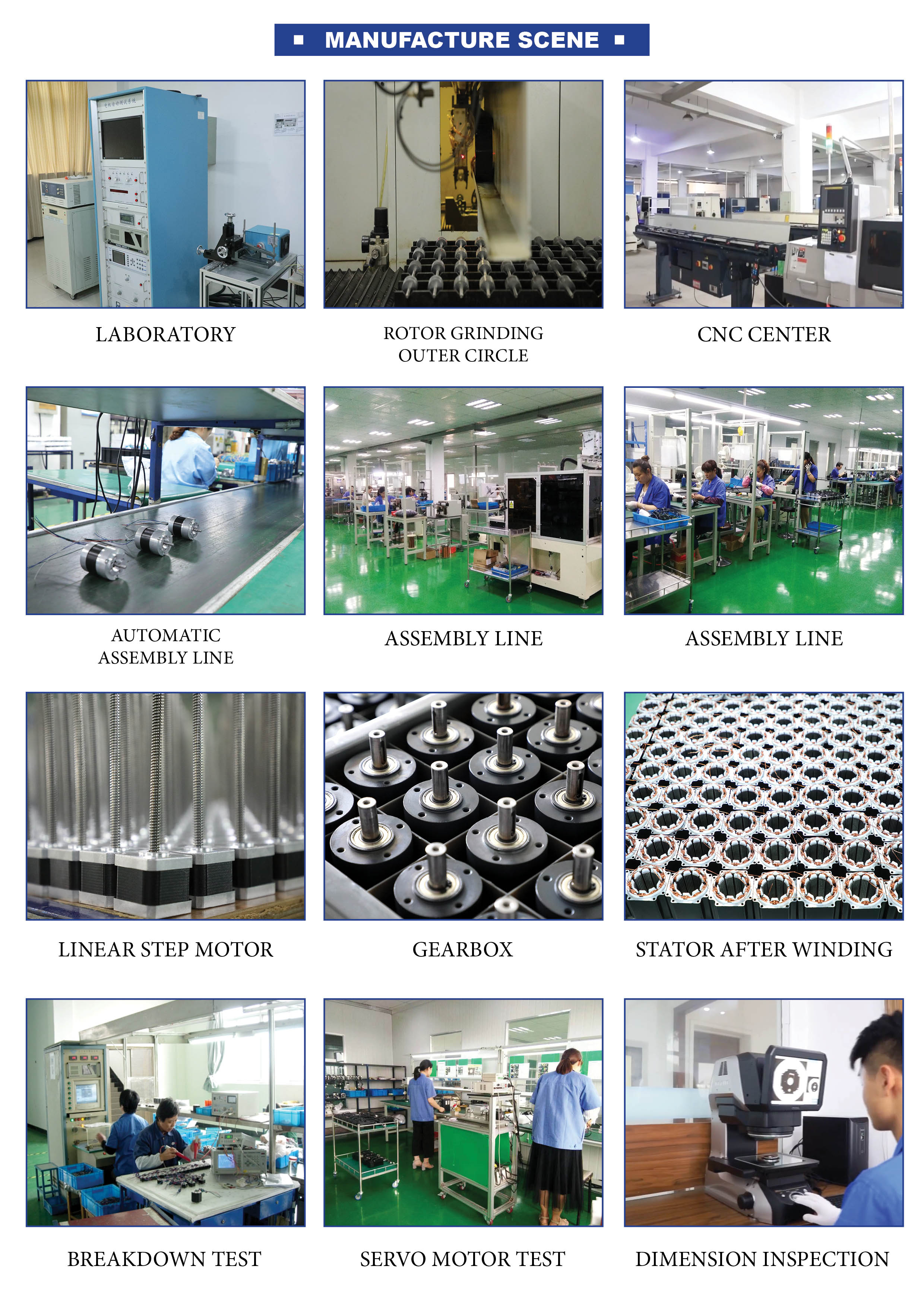

Hetai Production Process
Our advantage
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Market Range
FAQ
1.Are you factory?
Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.

2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136

4.Can I test sample?
Yes, samples and freight are charged.

5.Can I get Customized product?
Sure, all the products can be customized based in special request.

6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.

9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
