Model No: 22PG2418-BL-104K
Manufacturer customization 22mm micro DC 12v brush motor gearbox dc brush gear motor for nutrition pump
minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
- Warranty:3months-1year
- Place of Origin:Jiangsu, China
- Brand Name:Hetai
- Model Number:22PG2418-BL-104K
- Type:GEAR MOTOR
- Torque:≥0.5 NM
- Construction:Permanent Magnet
- Commutation:Brush
- Protect Feature:IP40
- Speed(RPM):91RPM
- Continuous Current(A):1.5A
- Efficiency:IE 1
- Product Name:Brush dc gearbox Motor
- Rated voltage:12V
- Ambient Temperature:-20℃-50℃
- Radial load (10mm from flange):≤35N (10mm from front flange)
- Shaft axial load:≤15N
- Reduction Ratio:104:1
- No-load speed:91±10%rpm
- No-load current:≤0.24A
- Motor length:39.6 ±0.5
- Gearbox Housing Material:powdery metallurgy
Specification
Advantage of planetary gearbox motor
Planetary Gearbox Guarantees Flexible & Reliable Power Transmission System
These gearboxes provide a wide range of power and ratio, which makes it a perfect choice for most applications of many industries.
These gearboxes provide a wide range of power and ratio, which makes it a perfect choice for most applications of many industries.
Model | 22mm Brush gear motor |
Voltage （V） | 12V |
Stall Torque with gearbox （N.M） | ≥0.5 N.m |
Speed (rpm) | 91 |
Reduction Ratio | 104:1 |
Motor SIze（mm） | 22*22*40 mm |

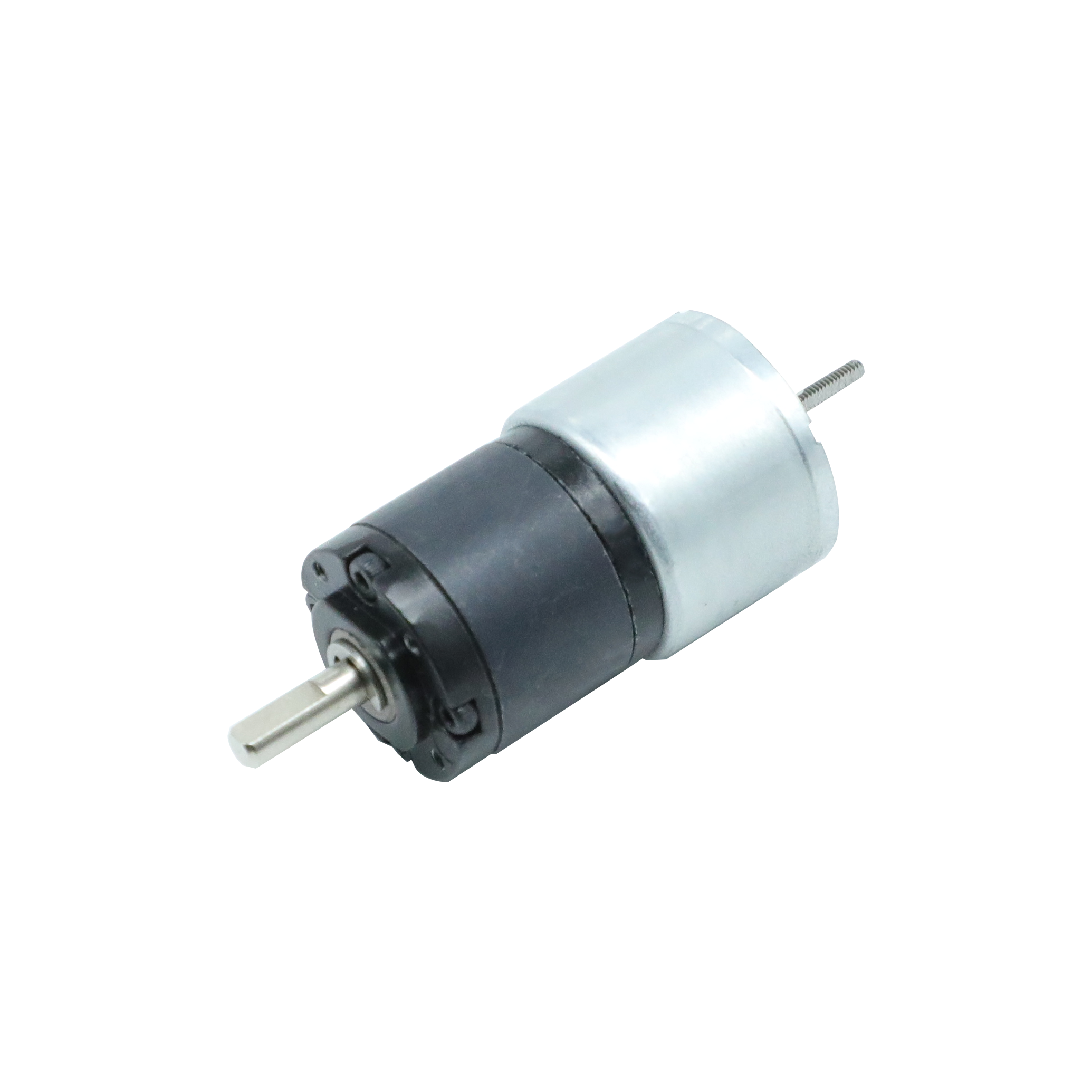

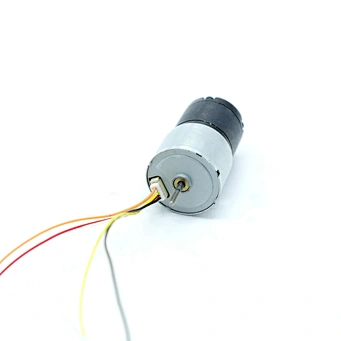

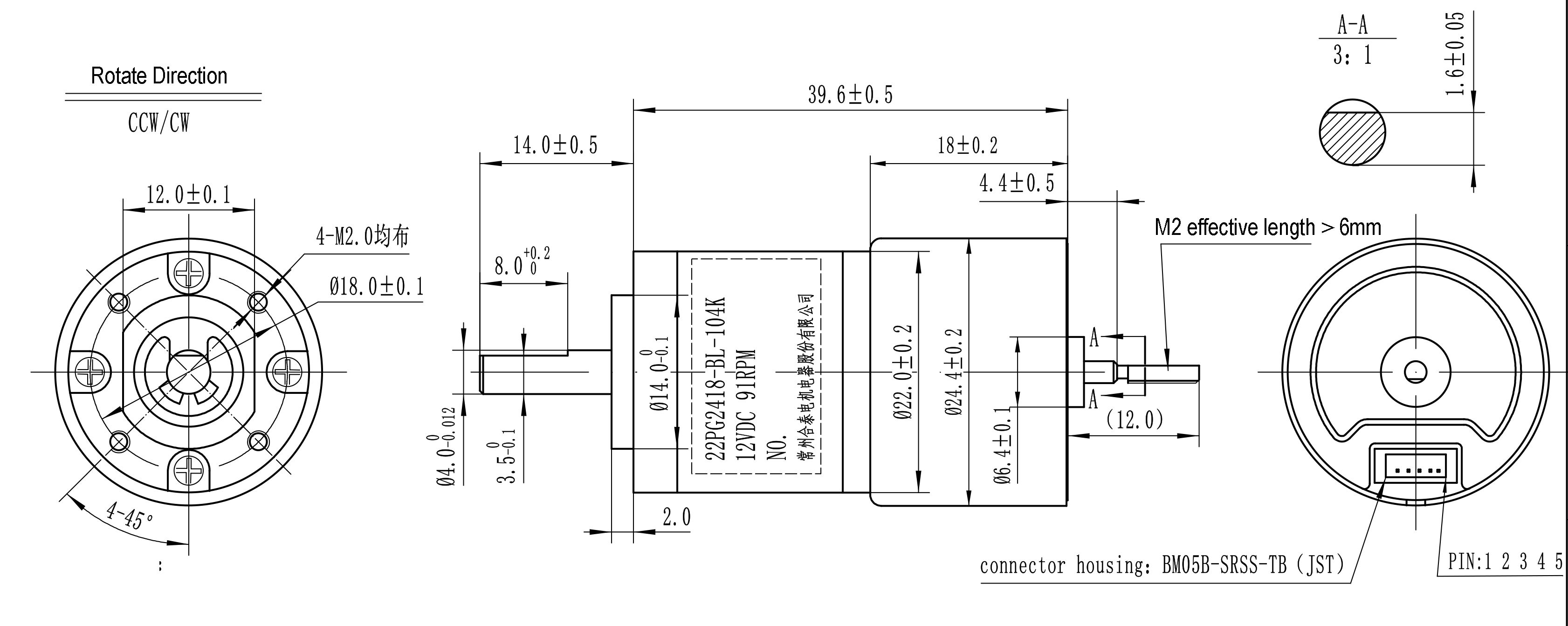

The motor 22PG2418-BL-104K has both front shaft and rear shaft. The material of the 22mm diameter gearbox is powdery metallurgy.
The planetary gearbox works with a 22mm brush motor. The reduction ratio is 1/104, the rated maximum tolerance torque of the gearbox is 0.8NM. The rated voltage is 12V.
The planetary gearbox works with a 22mm brush motor. The reduction ratio is 1/104, the rated maximum tolerance torque of the gearbox is 0.8NM. The rated voltage is 12V.
Product Application

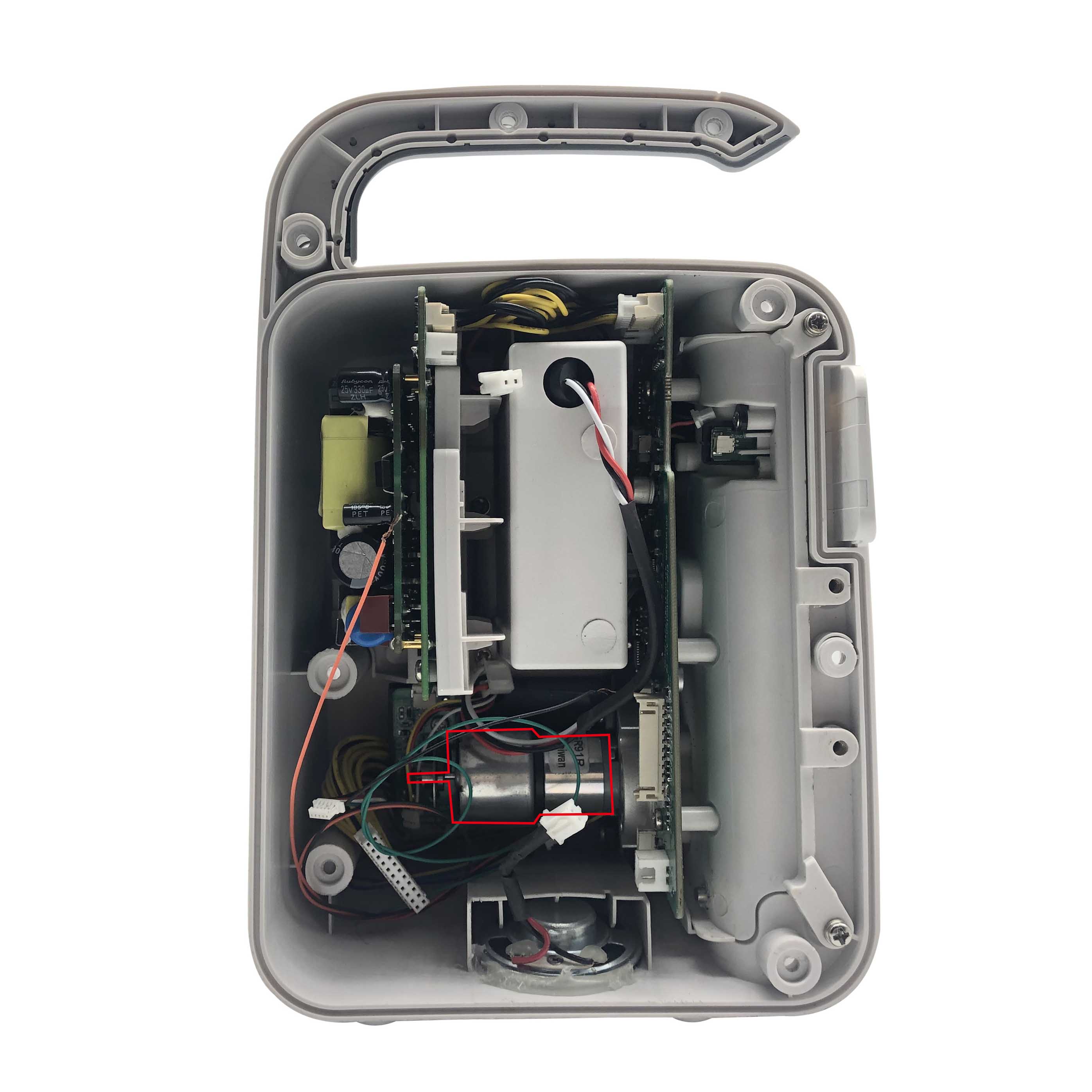

Medical Nutrition Pump
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡.Since Hetai founded in 1999, Hetai has dedicated to provide professional electrical integration design and automation strategies for customers.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer for more than 20 years.The factory has variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and individual CNC machining centers as well.

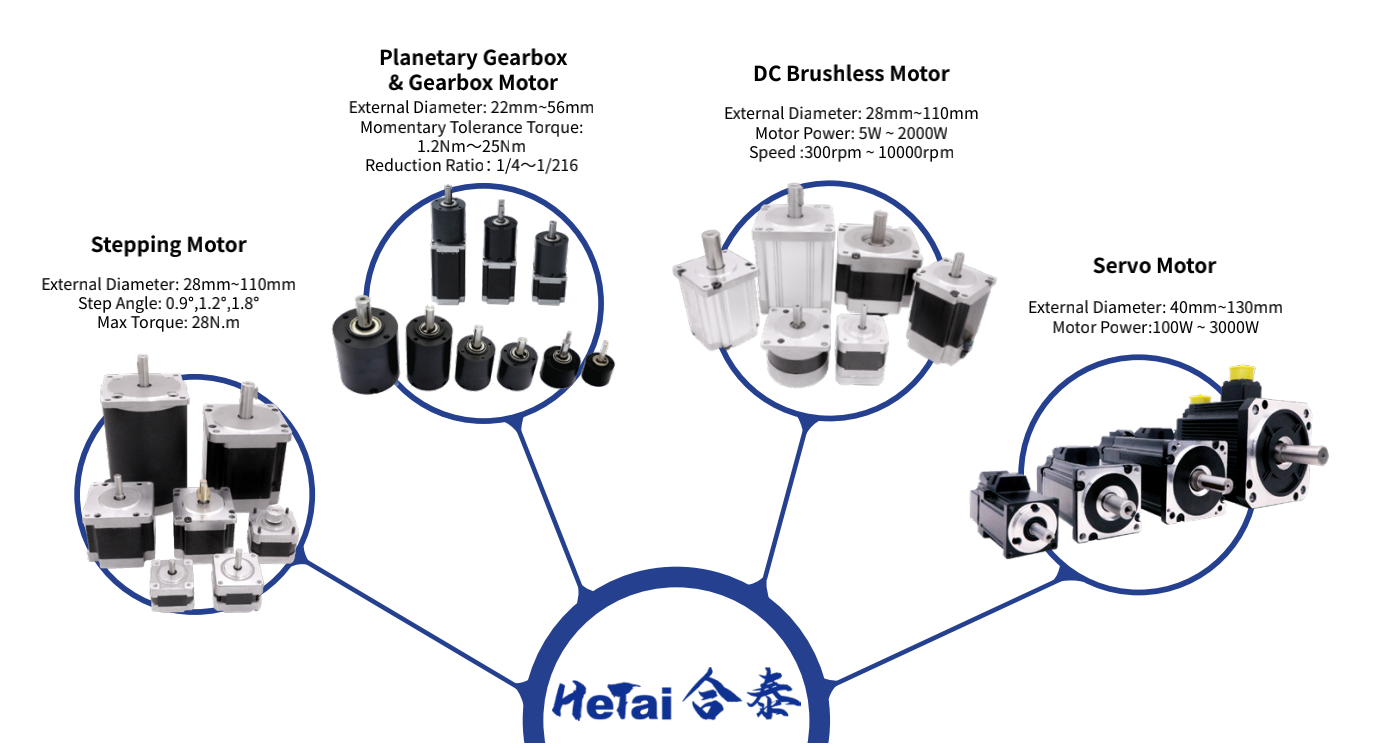

Product Range
Certificate
Quality insurance
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

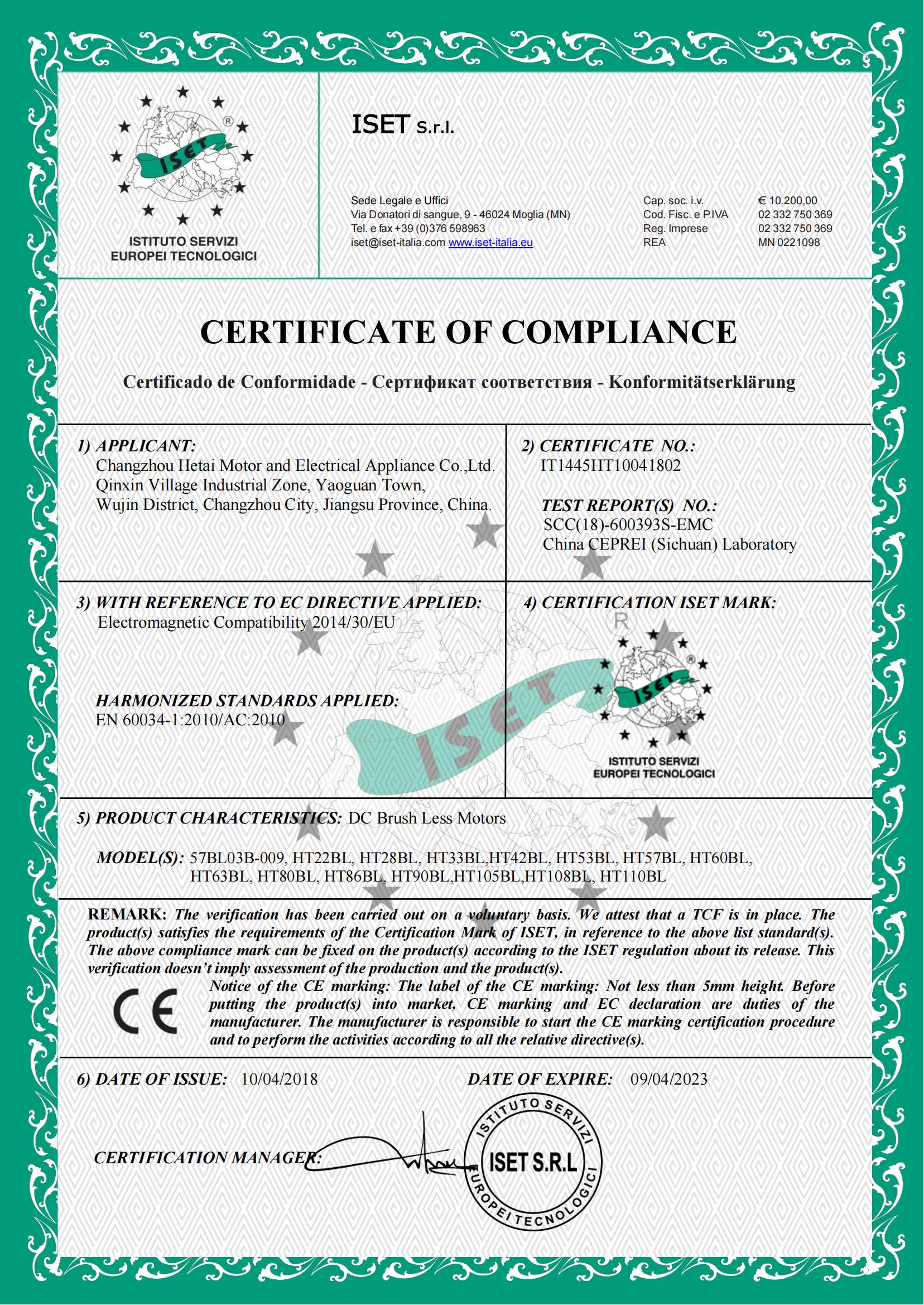

CE Of DC Brushless Motor
Date of expire:09 April 2023
CE Of Hybrid Stepping Motor
Date of expire:09 April 2023

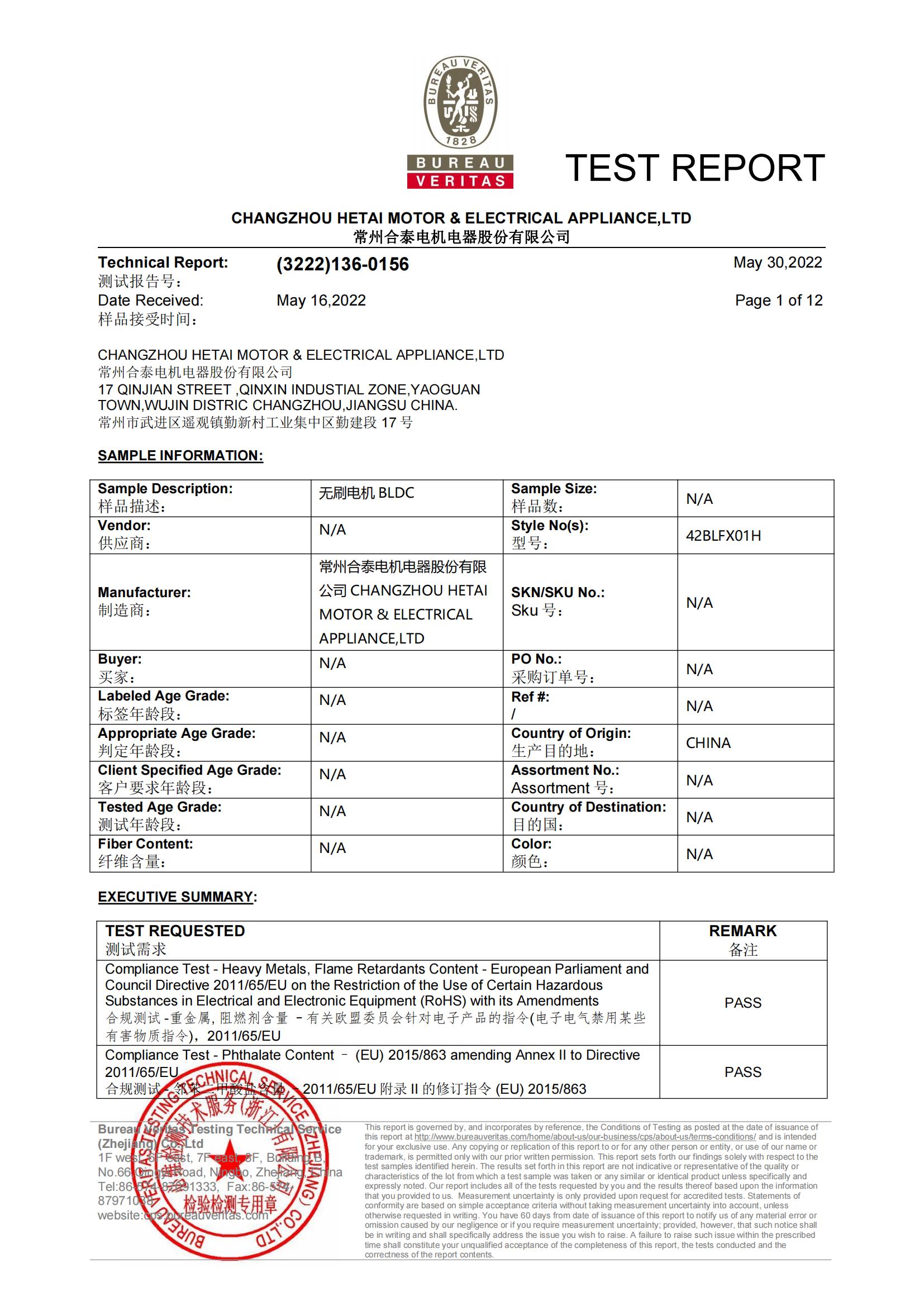

BLDC Motor ROHS report
Date: May 16, 2022

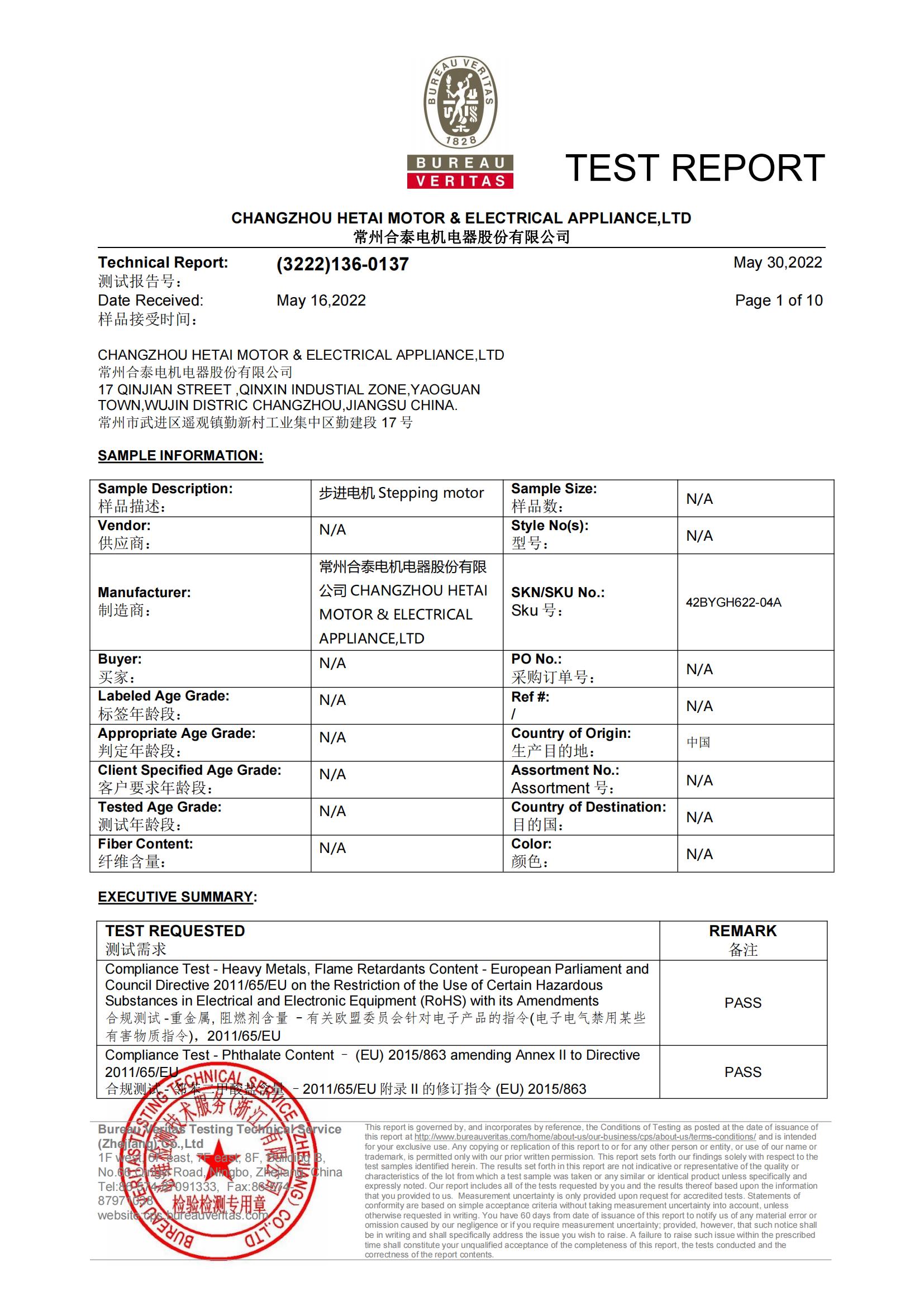

Stepper motor ROHS report
Date: May 16, 2022

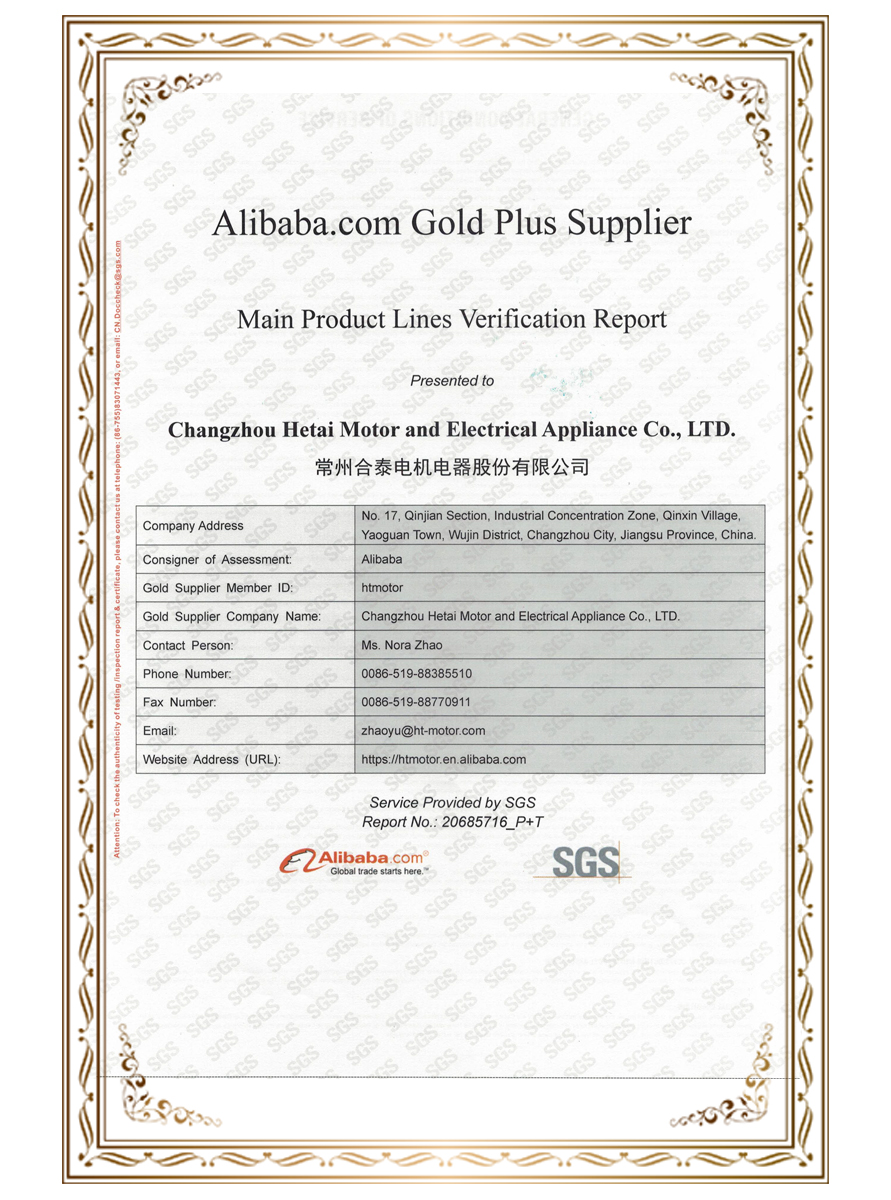

Alibaba Gold Plus Supplier
SGS Verified

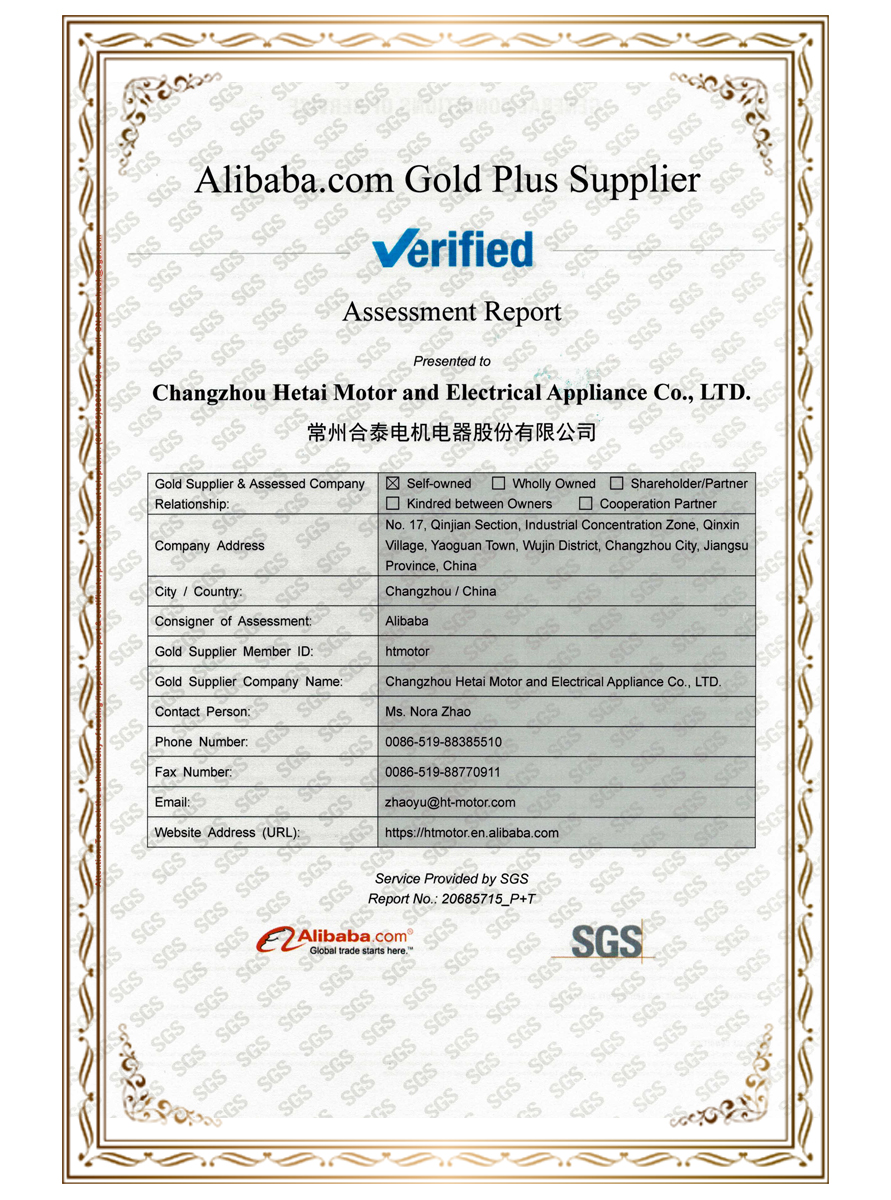

Alibaba Gold Plus Supplier
SGS Verified

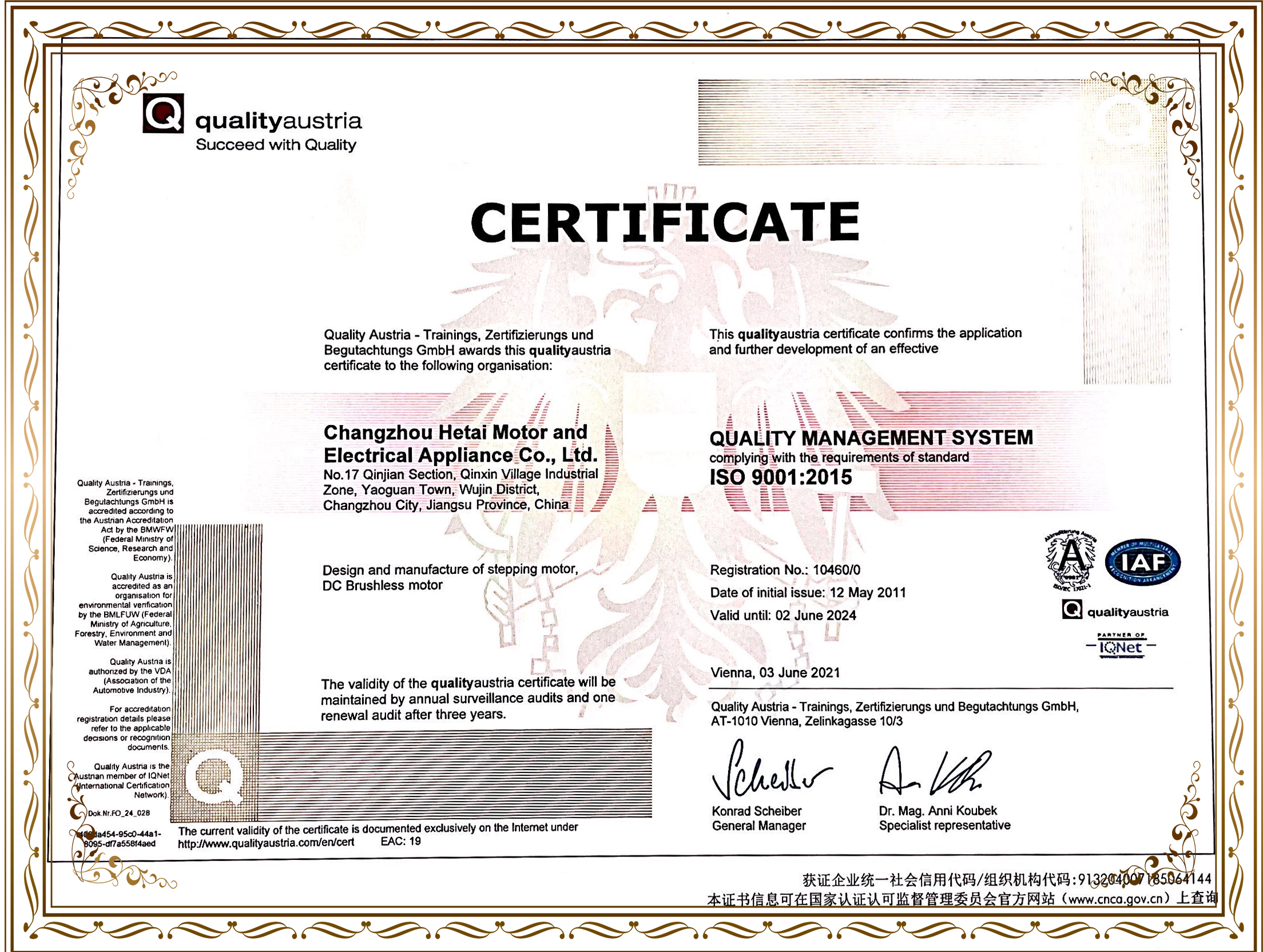

ISO 9001:2015
Valid until: 02 June 2024

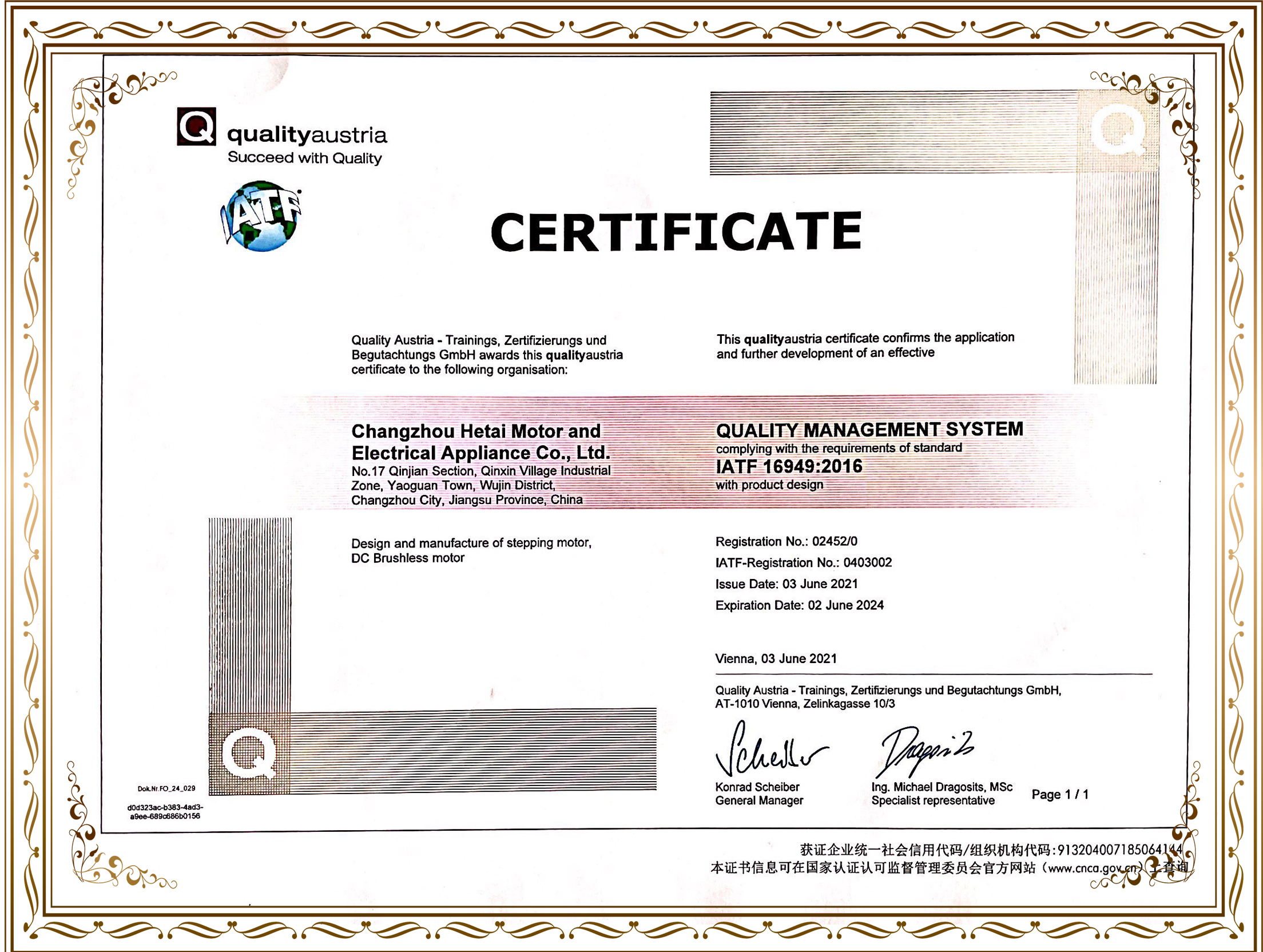

IATF 16949:2016
Valid until: 02 June 2024
Why Choose Us
Hetai can offer：
Specialised/customised design and product
Good quality products
Valuable Service
Engineering Support
Hetai has got 11 patent certificates since it founded in 1999. The strength in engineering design has offered our customer most suitable product. Our technical team includes three 10 years + experience engineers, which allow us to provide professional automation strategies for customers.
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery,intelligent logistics equipment and so on.
Find
Our team can help you find most suitable motor for the application from our vast selection of motors.
Customise
We can design and customise the performance and exterior for your specific use or assembly.
Optimise
For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.

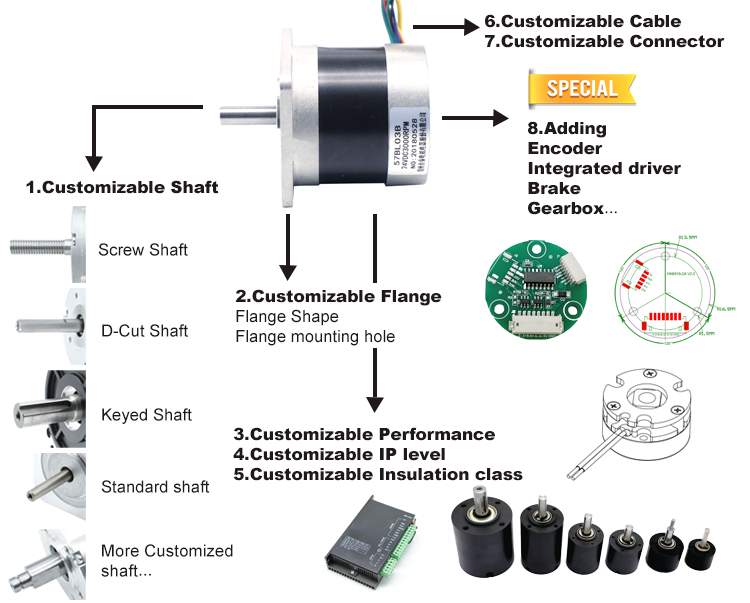

Which part of the motor can be customised?
1.Customizable Shaft
Screw Shaft/ D-Cut Shaft/ Keyed Shaft/ Standard Shaft/ More Customized Shaft
2.Customizable Flange
Flange Shape/ Flange mounting hole
3.Customizable Performance
4.Customizable IP level
5.Customizable Insulation class
6.Customizable Cable
7.Customizable Connector
8.Adding Encoder, Intergrated driver, Brake, Gearbox...

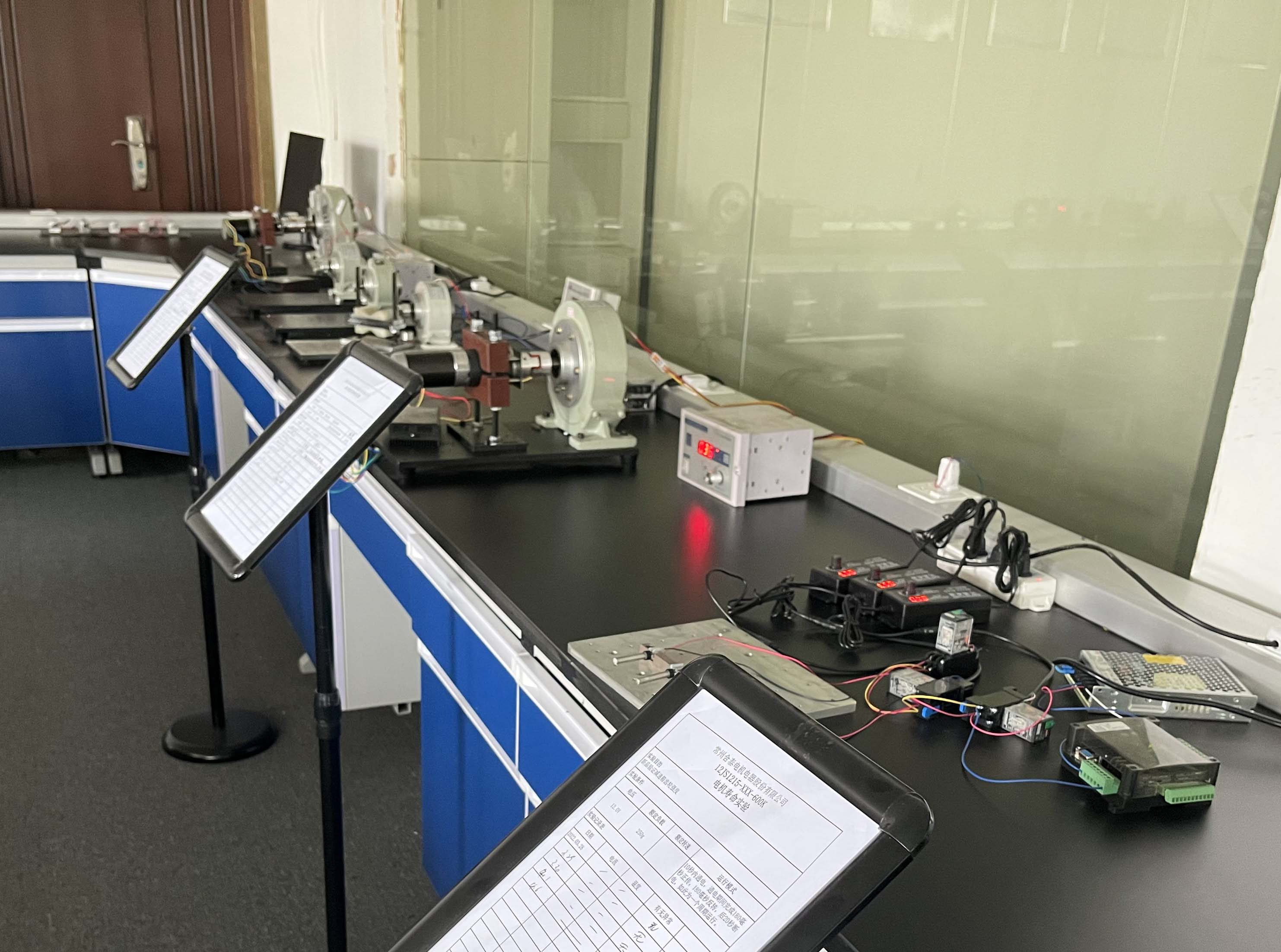

Laboratory Equipment

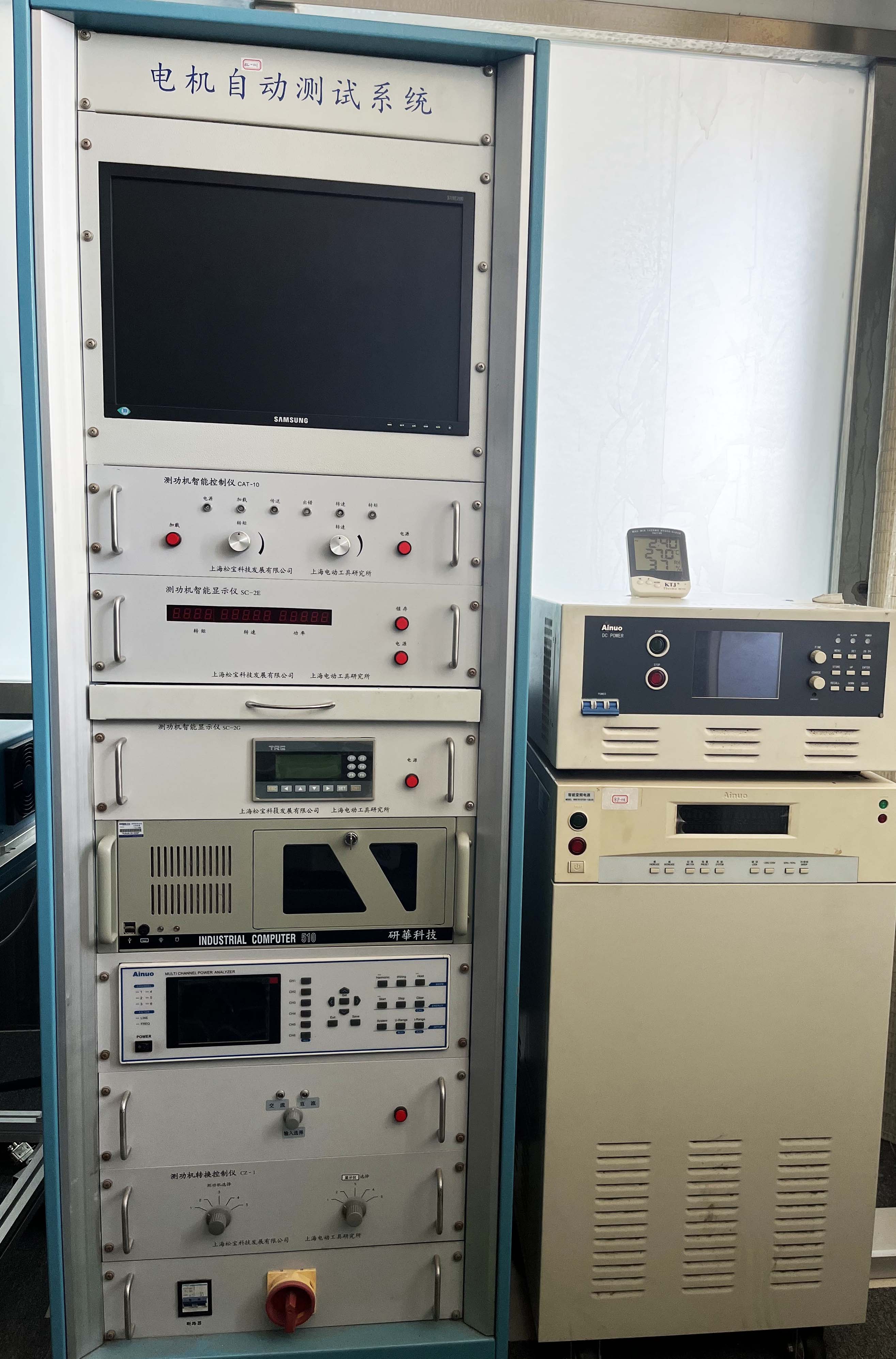

Motor automatic test system
Laboratory Equipment

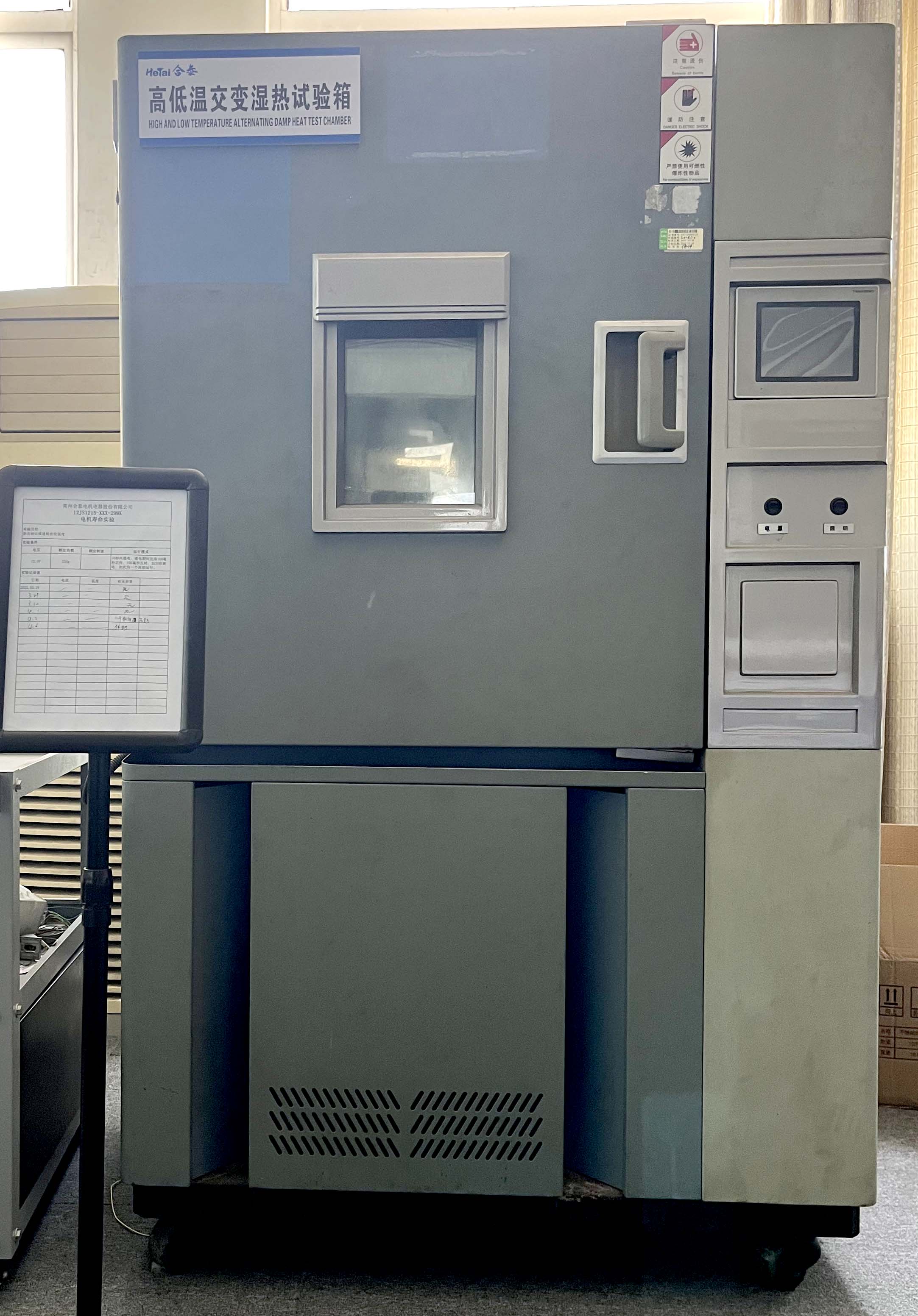

High and low temperature test chamber
Laboratory Equipment
Lifespan Test

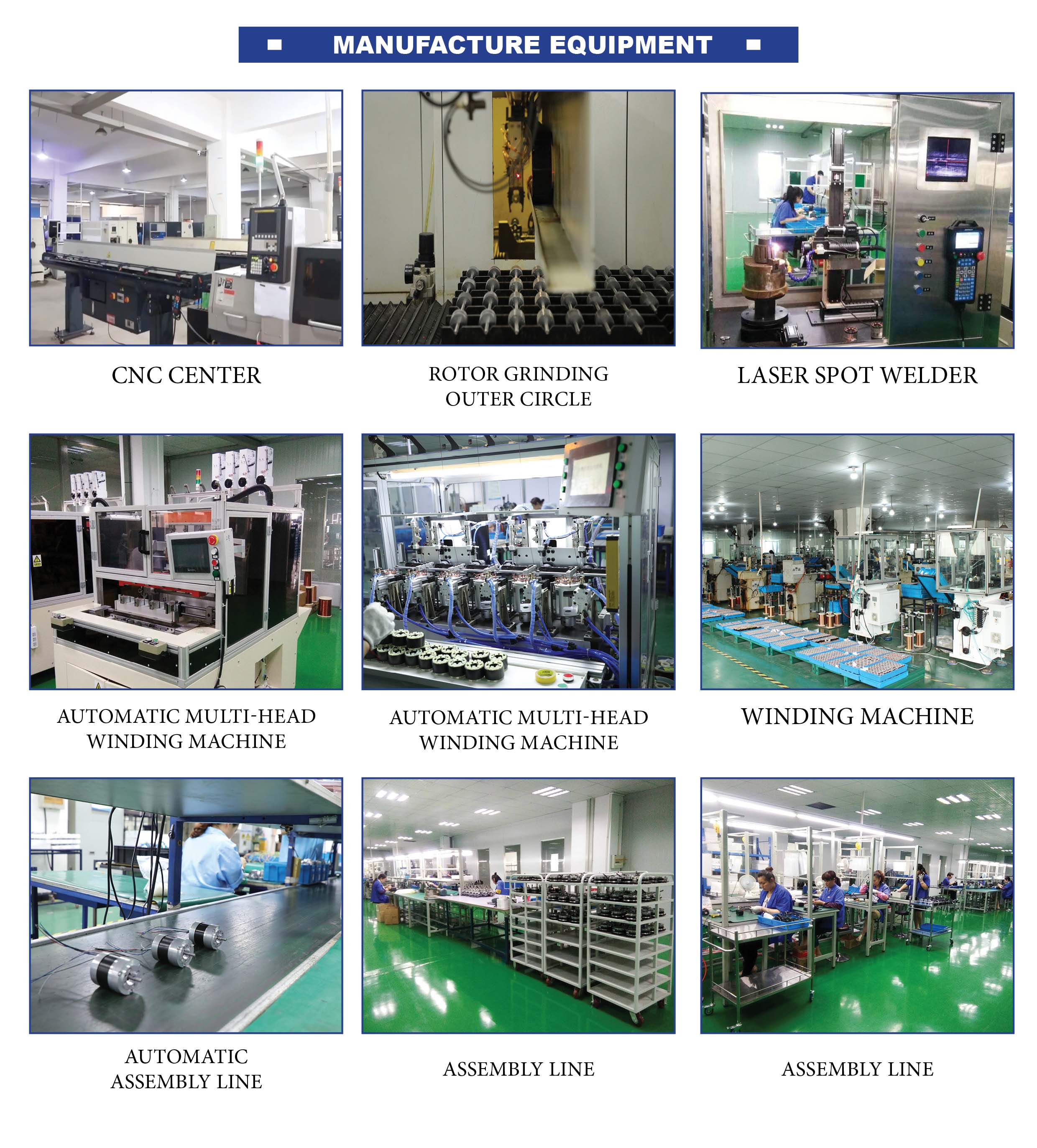

Mass Production Advantage
Large-scale production
Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.

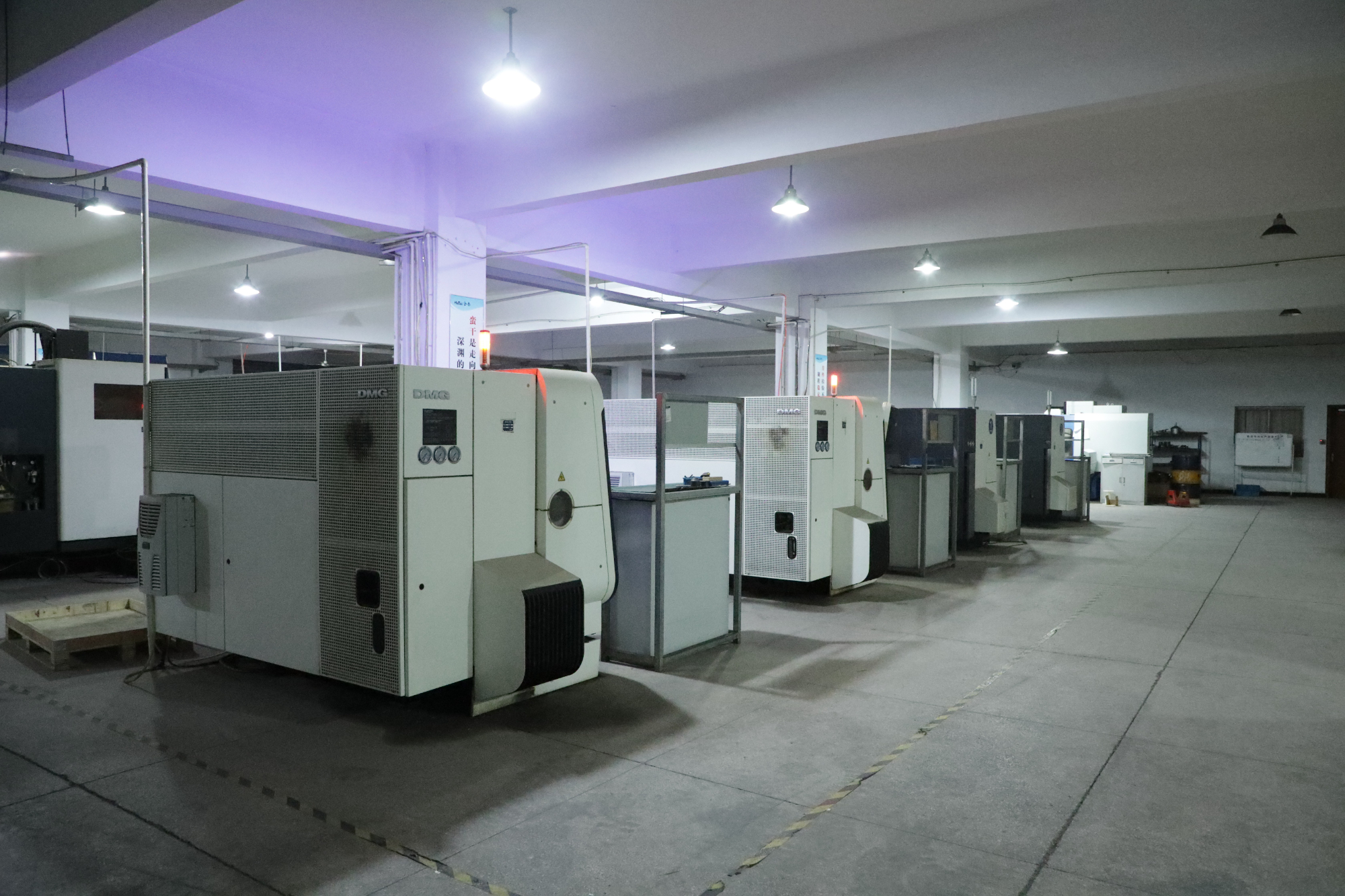

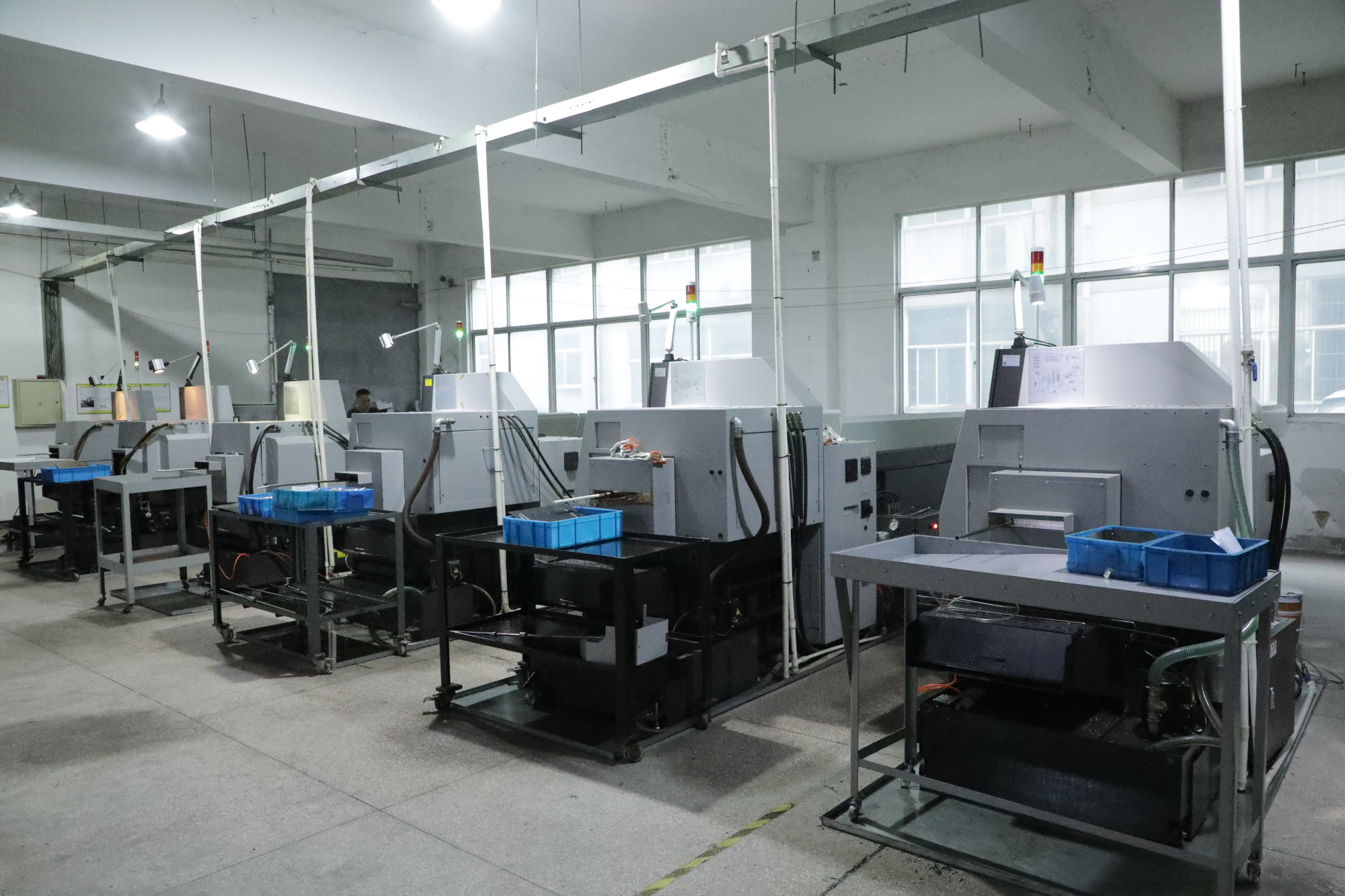

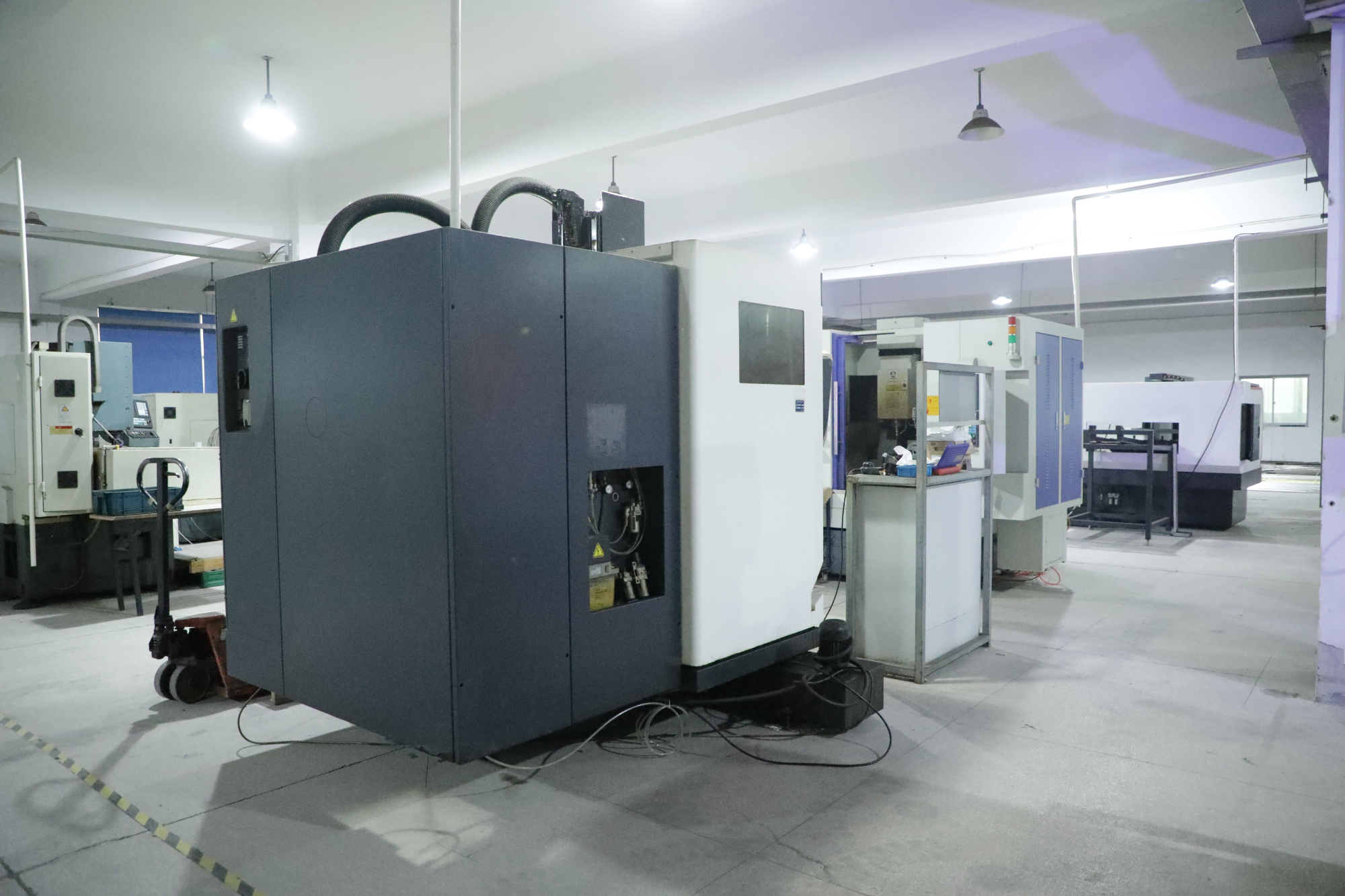

CNC CENTER
EightCNC PRECISION AUTOMATIC LATHES
CNC CENTER
Seven CNC AUTOMATIC MACHINING CENTERS
Seven CNC AUTOMATIC MACHINING CENTERS

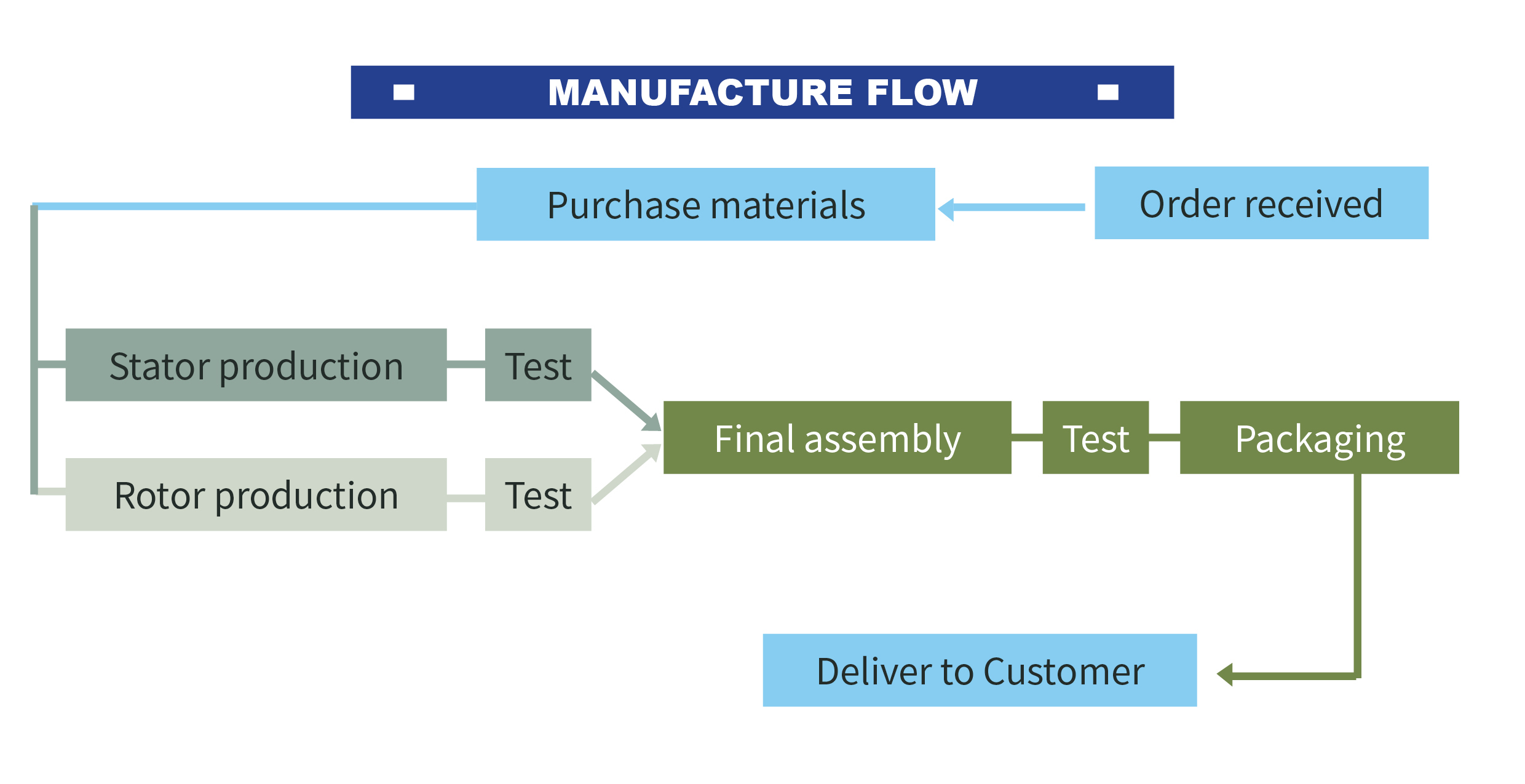

Quality Control Process

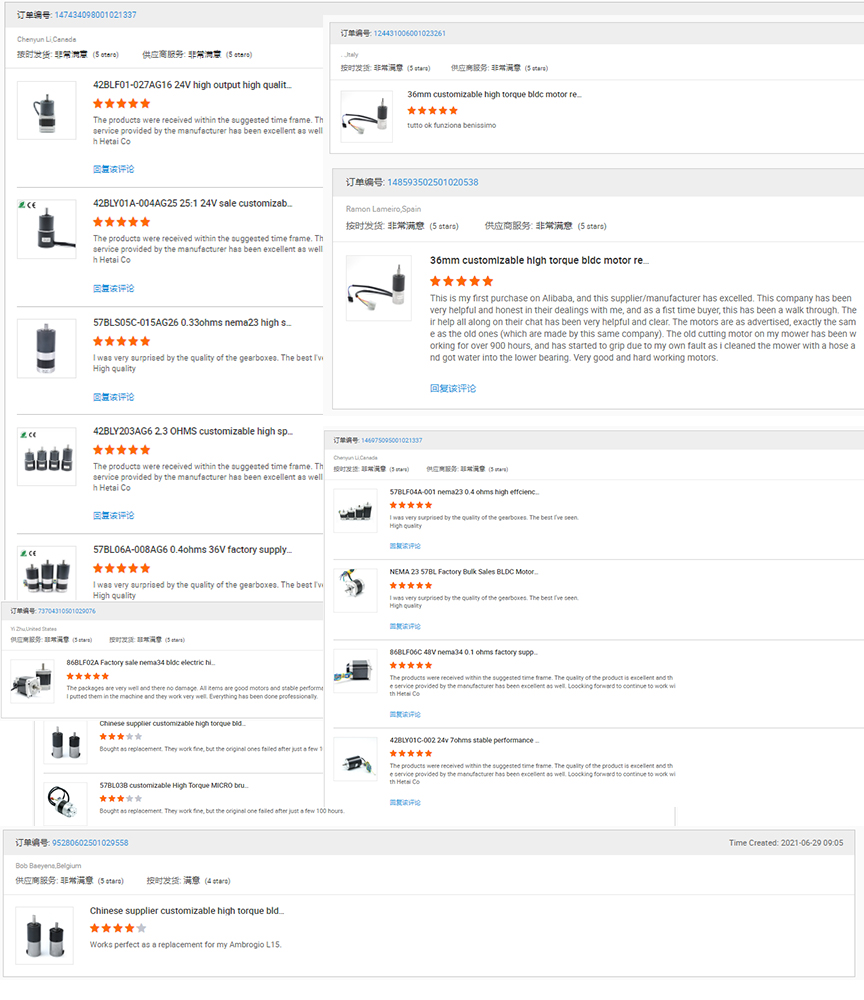

Customer Feedback
