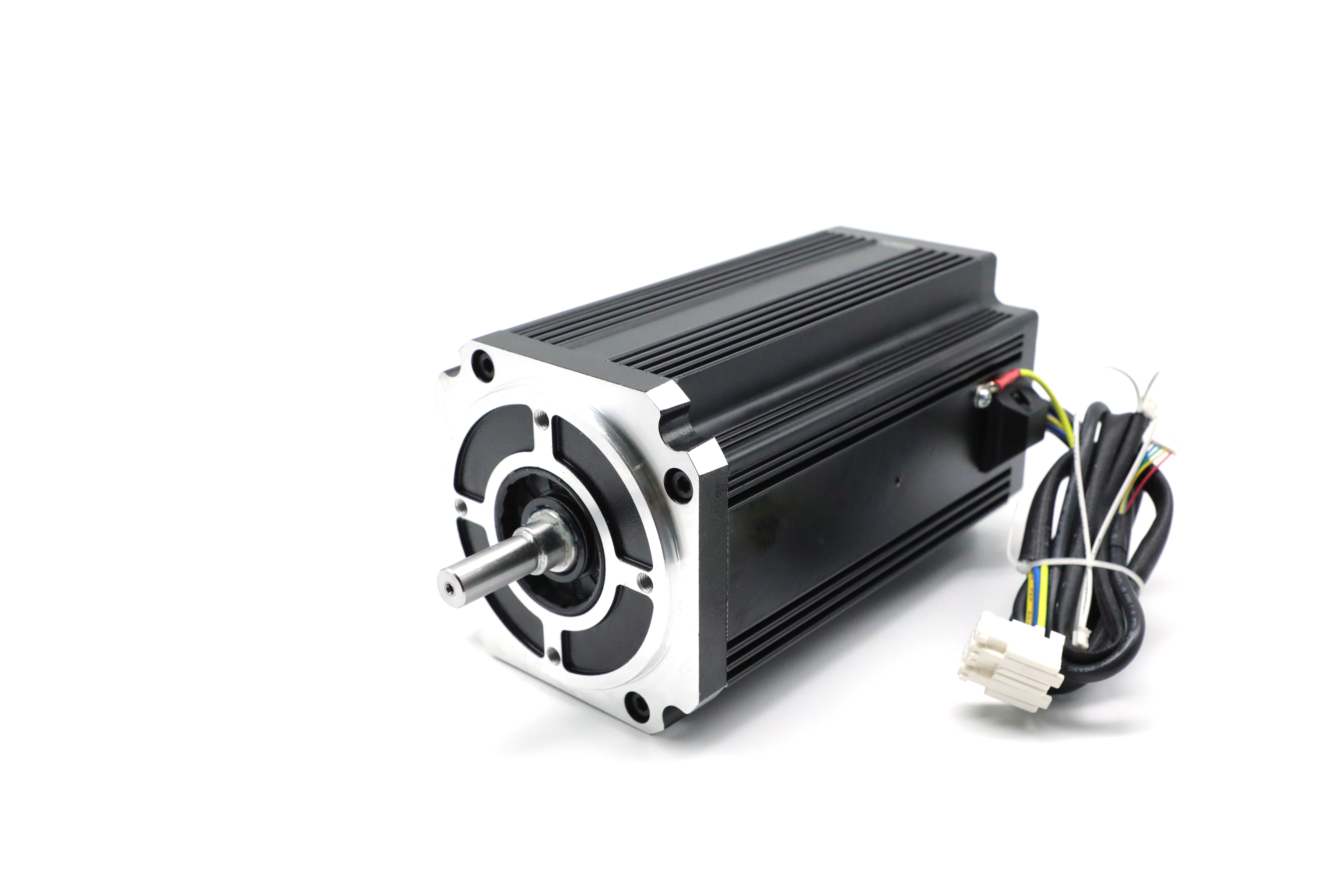

Model No: 110BLF02

110BLF02 nema 42 electric high torque brushless dc motor 1kw bldc motor

minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:110BLF02
  • Type:Micro Motor
  • Torque:4.5N.M
  • Construction:Permanent Magnet
  • Commutation:Brushless
  • Protect Feature:IP 54
  • Speed(RPM):3000
  • Continuous Current(A):6.1A
  • Efficiency:IE 1
  • Product Name:Brushless Motor
  • Dielectric Strength:1500V AC 1minute
  • Ambient Temperature:-20℃-50℃
  • Max Radial load:330N (10mm from front flange)
  • Shaft axial load:100N
  • Insulation Resistance:100MΩ Min.500V DC
  • Phase:3
  • Winding type:Star
  • Motor length:156 mm
  • Weight:5.1 kg

Product Description

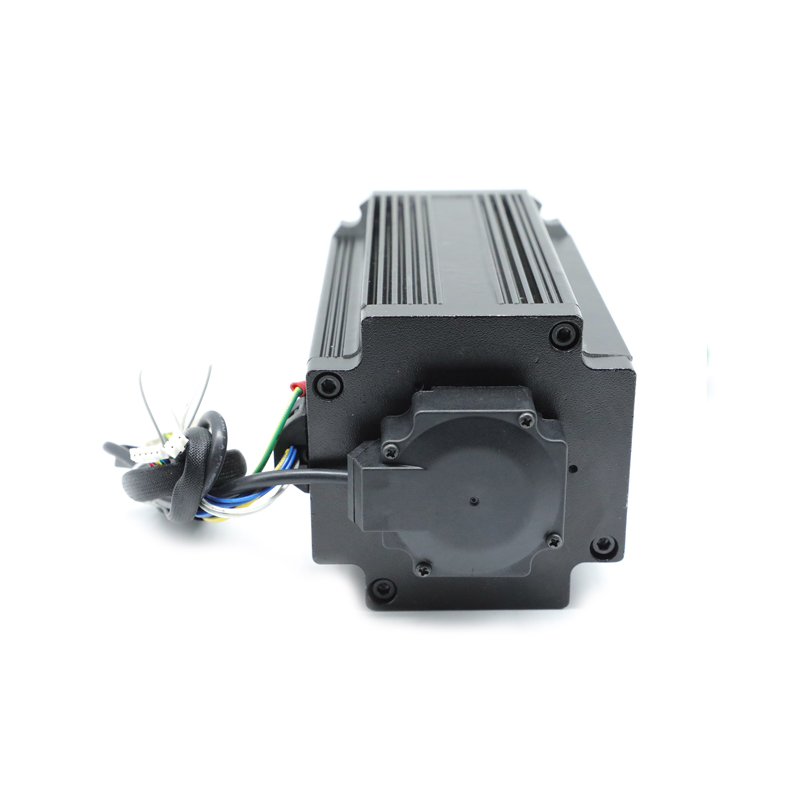

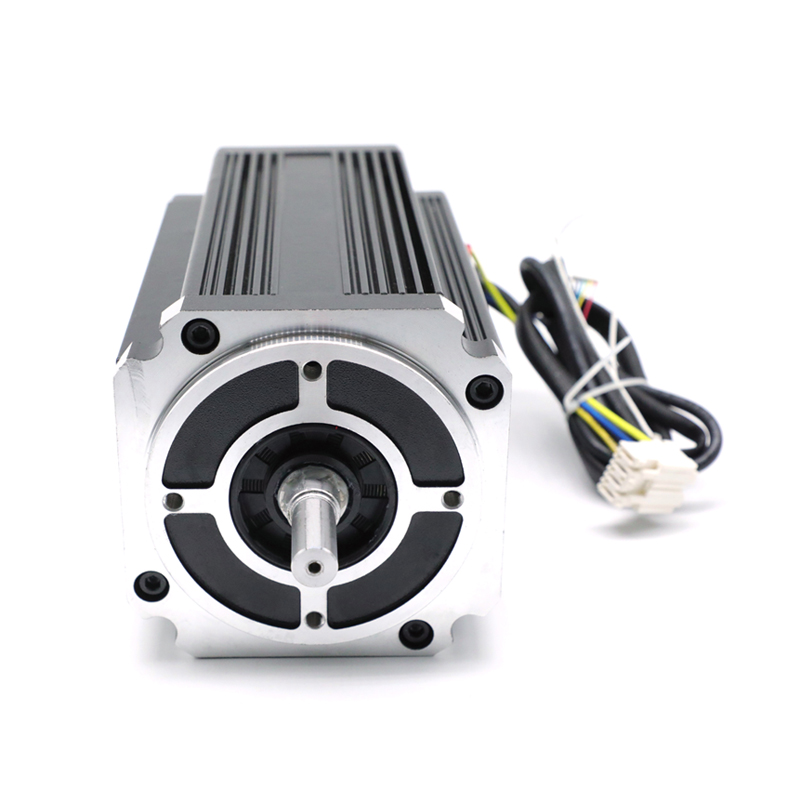

110BLF02

3 phase 8 poles Brushless DC motor
Stable performance
High output torque

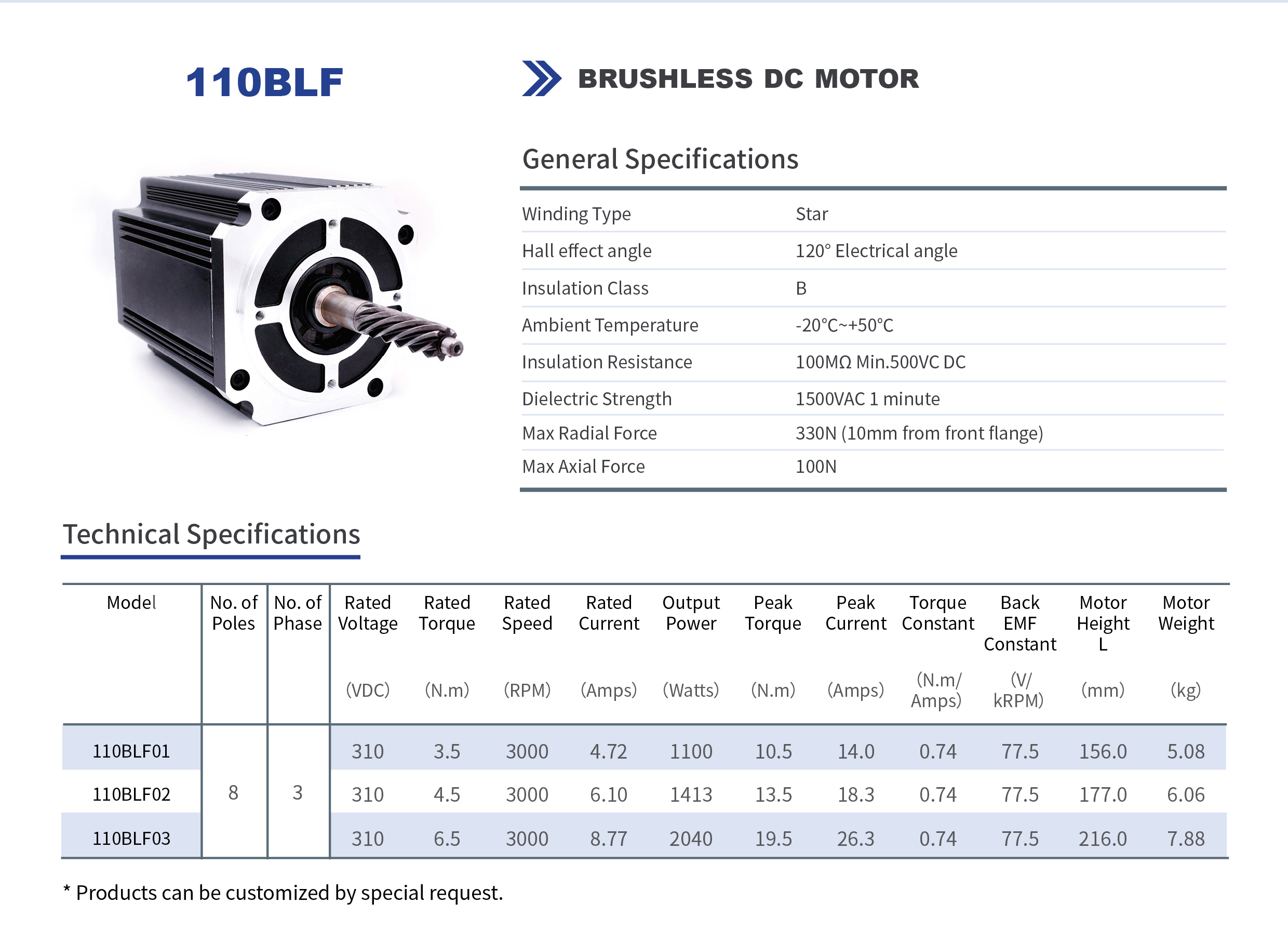

Specification


Product Name:
Brushless Motor
Dielectric Strength:
500V AC 1minute
Ambient Temperature:
-20℃~50℃
Insulation resistance:
100MΩ Min.500V DC
Hall effect angle:
120° electrical angle
Voltage(VDC):
310(VDC)
Power(W):
1413
Rated Speed(RPM):
3000
Rated torque（N.M):
4.5




Products can be customized. If you have customised request, please contact us.







Product Application




Company Profile




Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

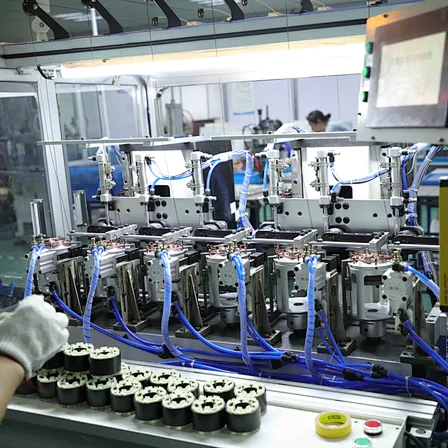

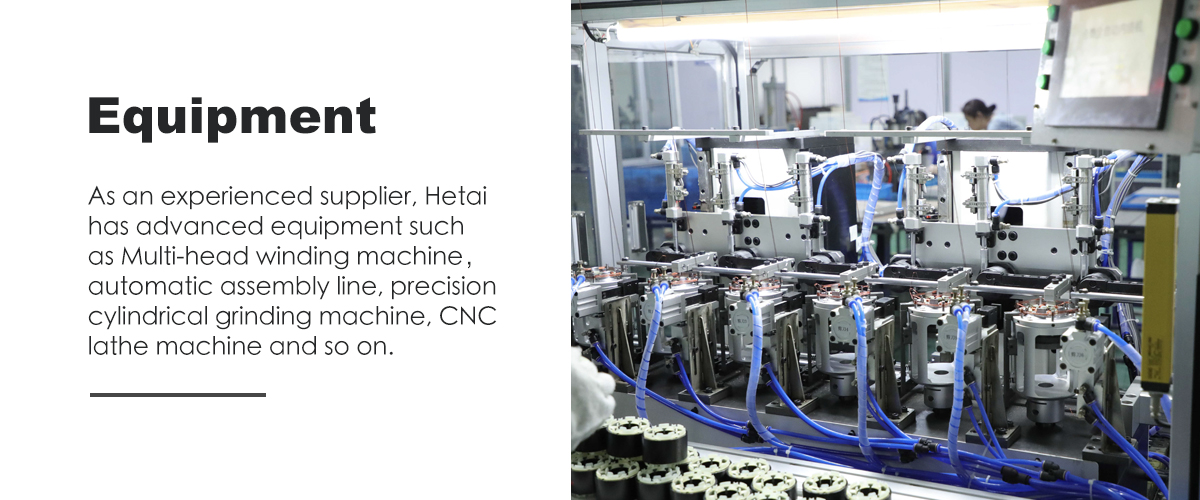

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.





Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

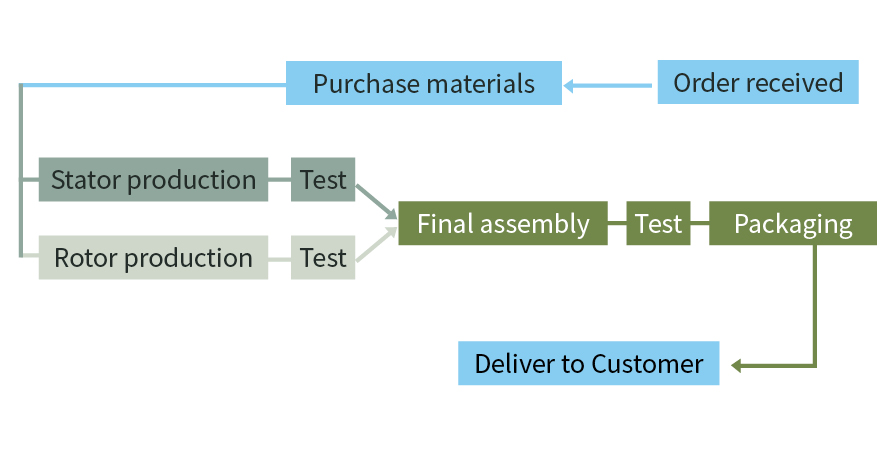

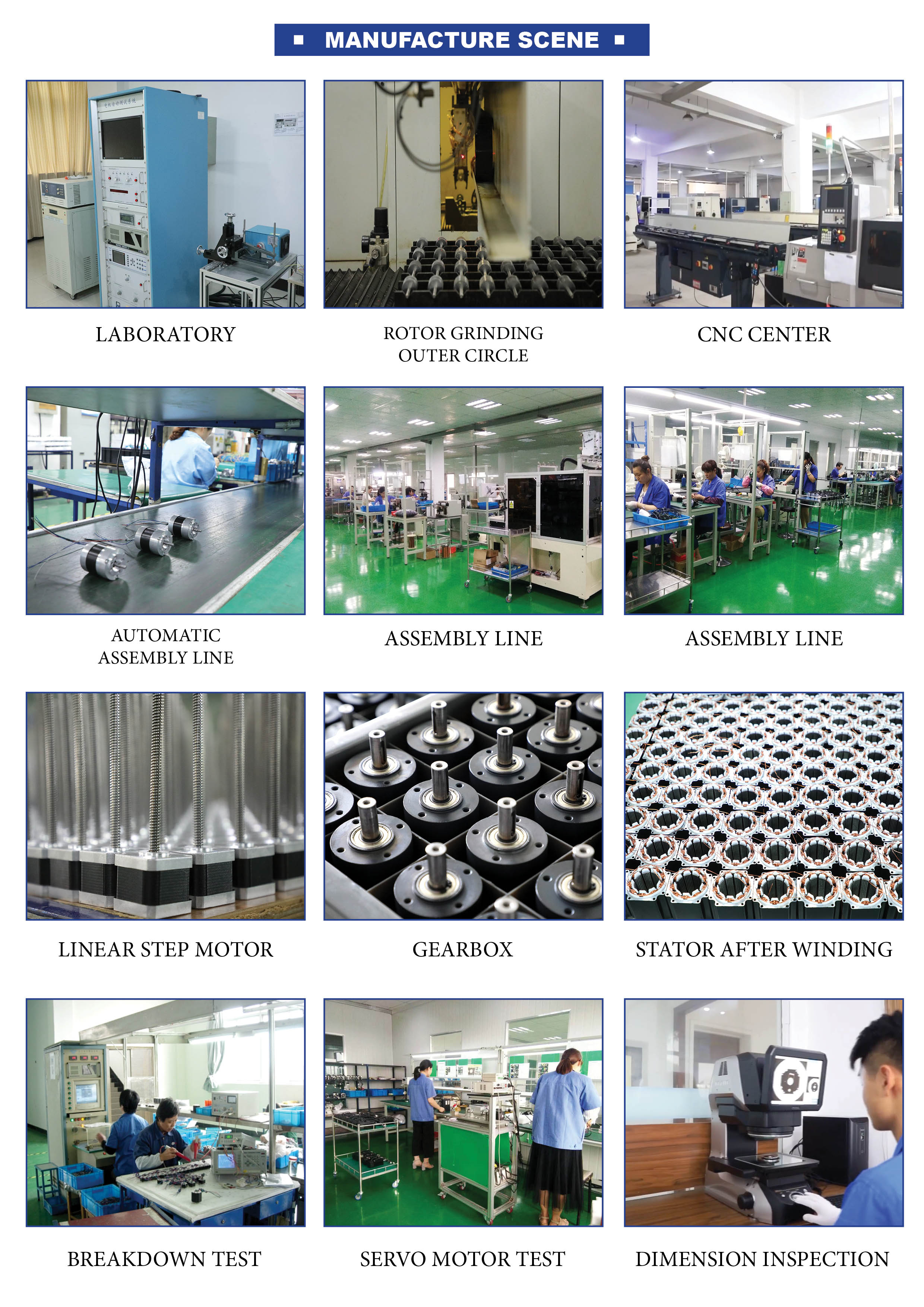

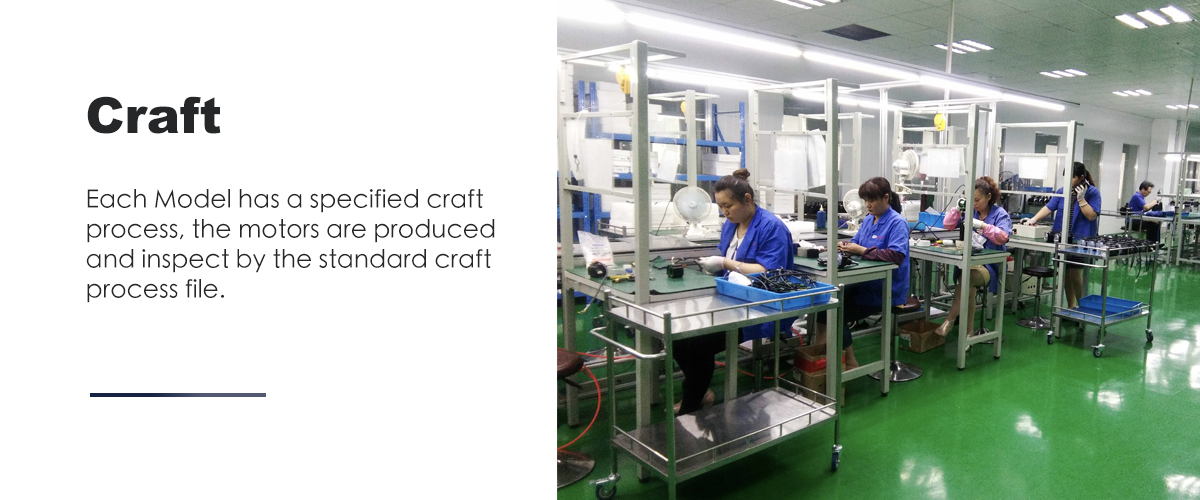

Hetai Production Process

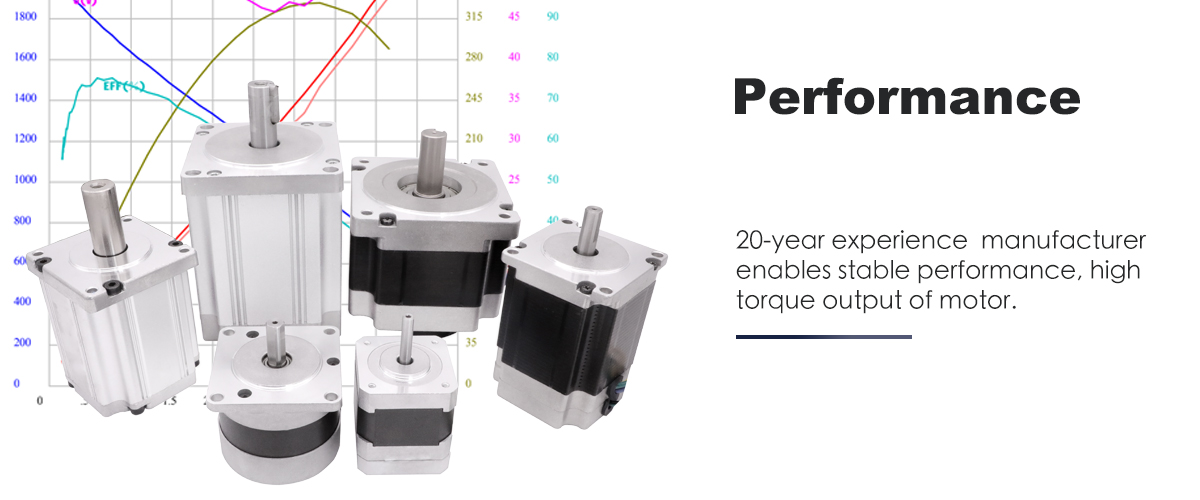

Product Advantage

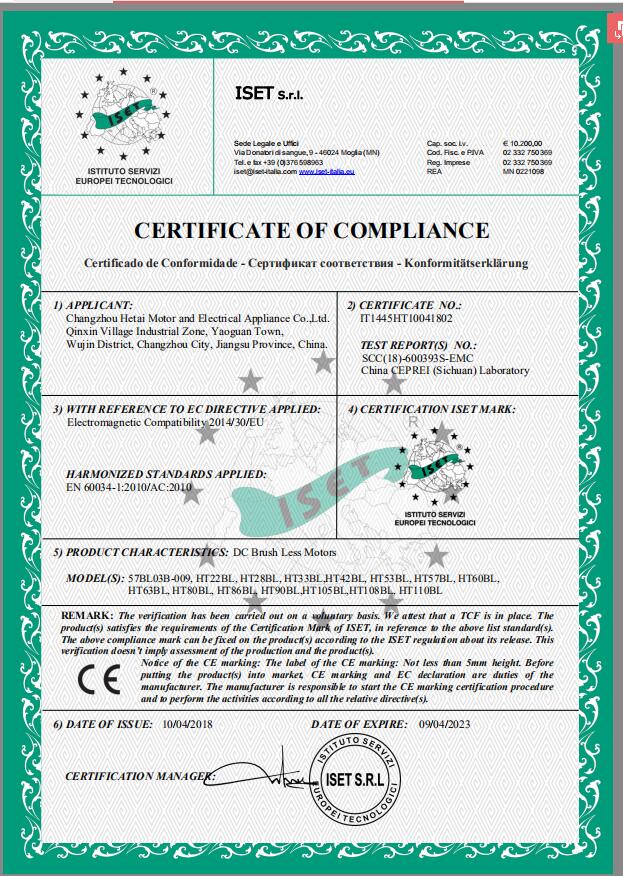

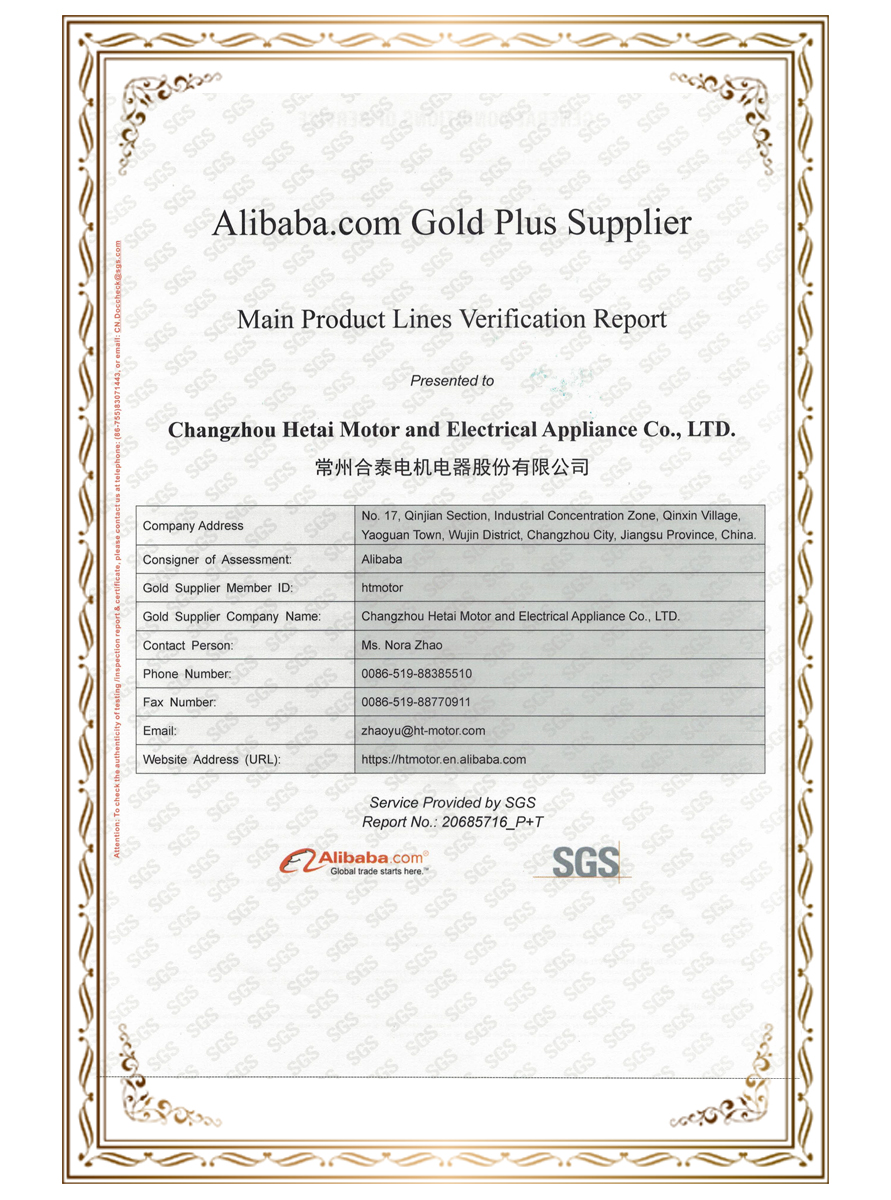

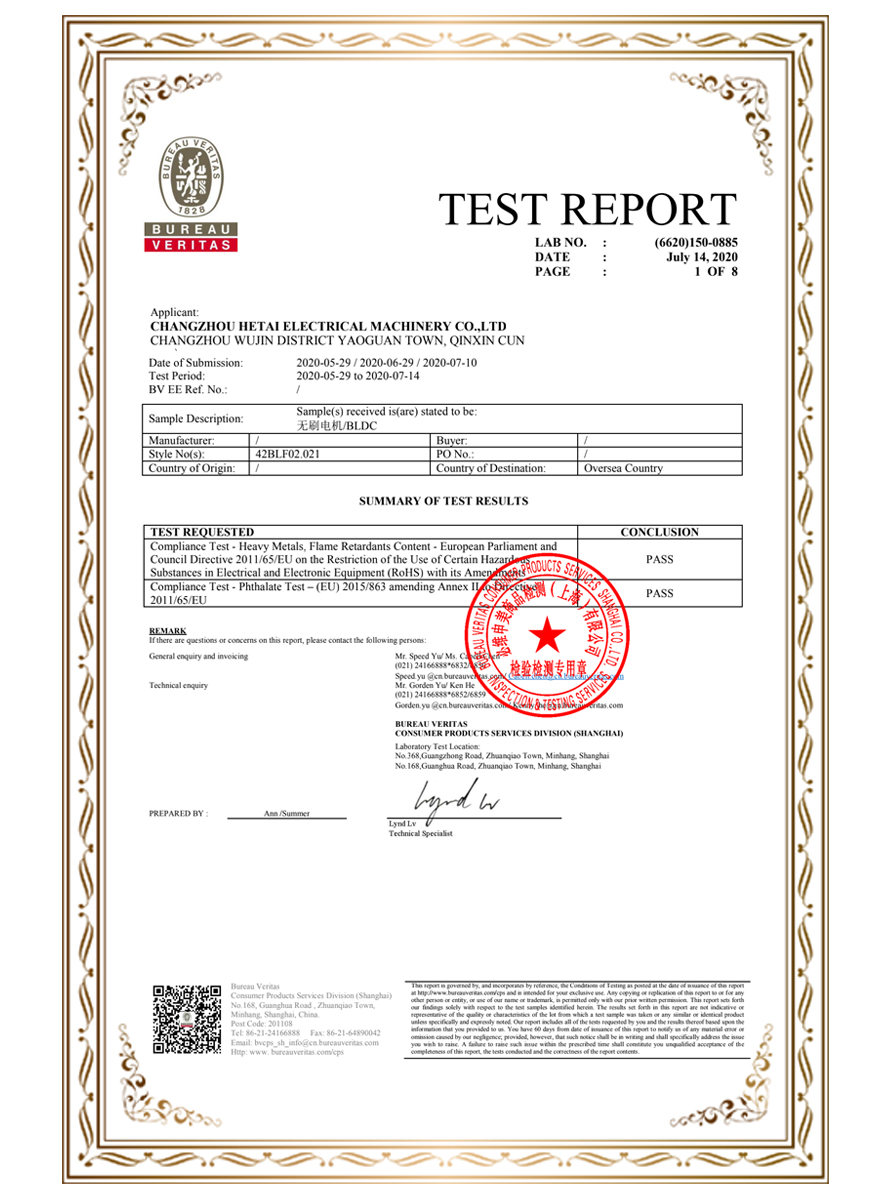

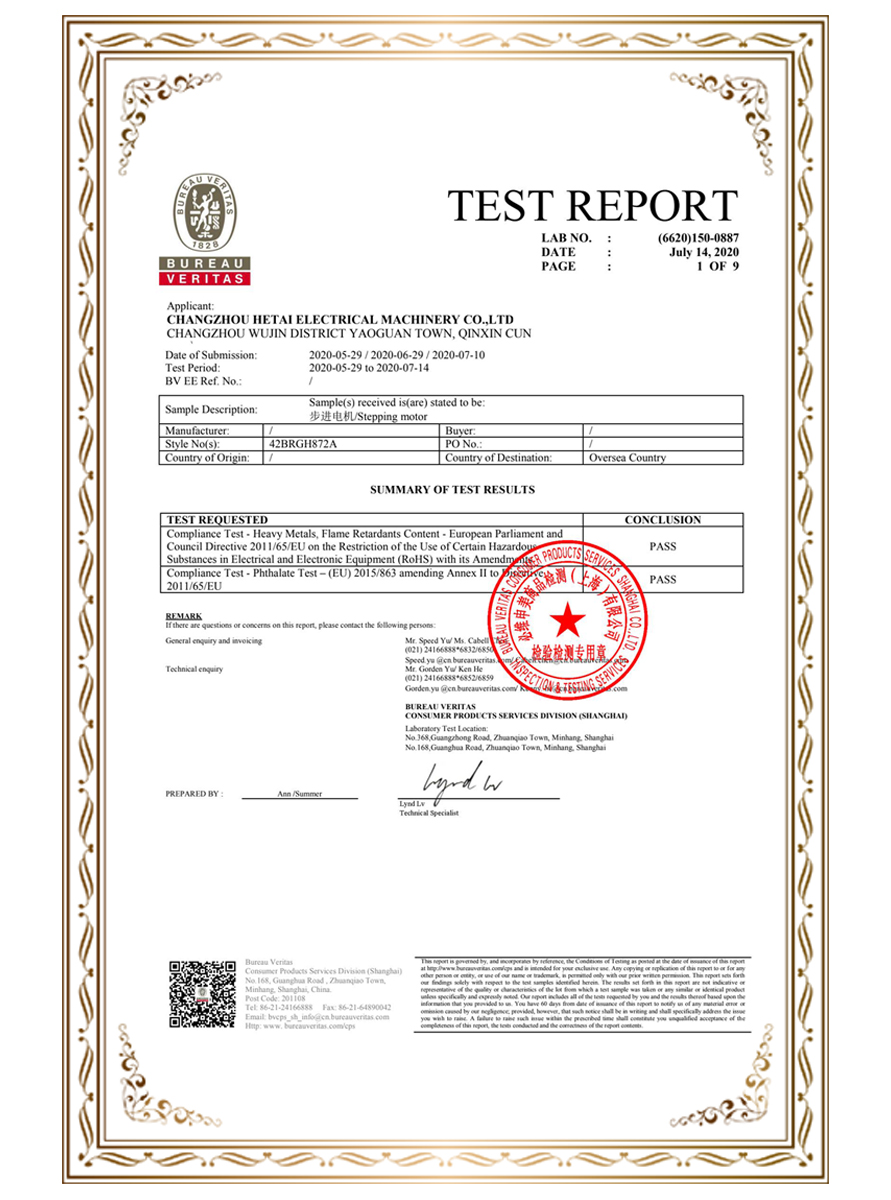

Certificate


Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service


When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.










Market Range

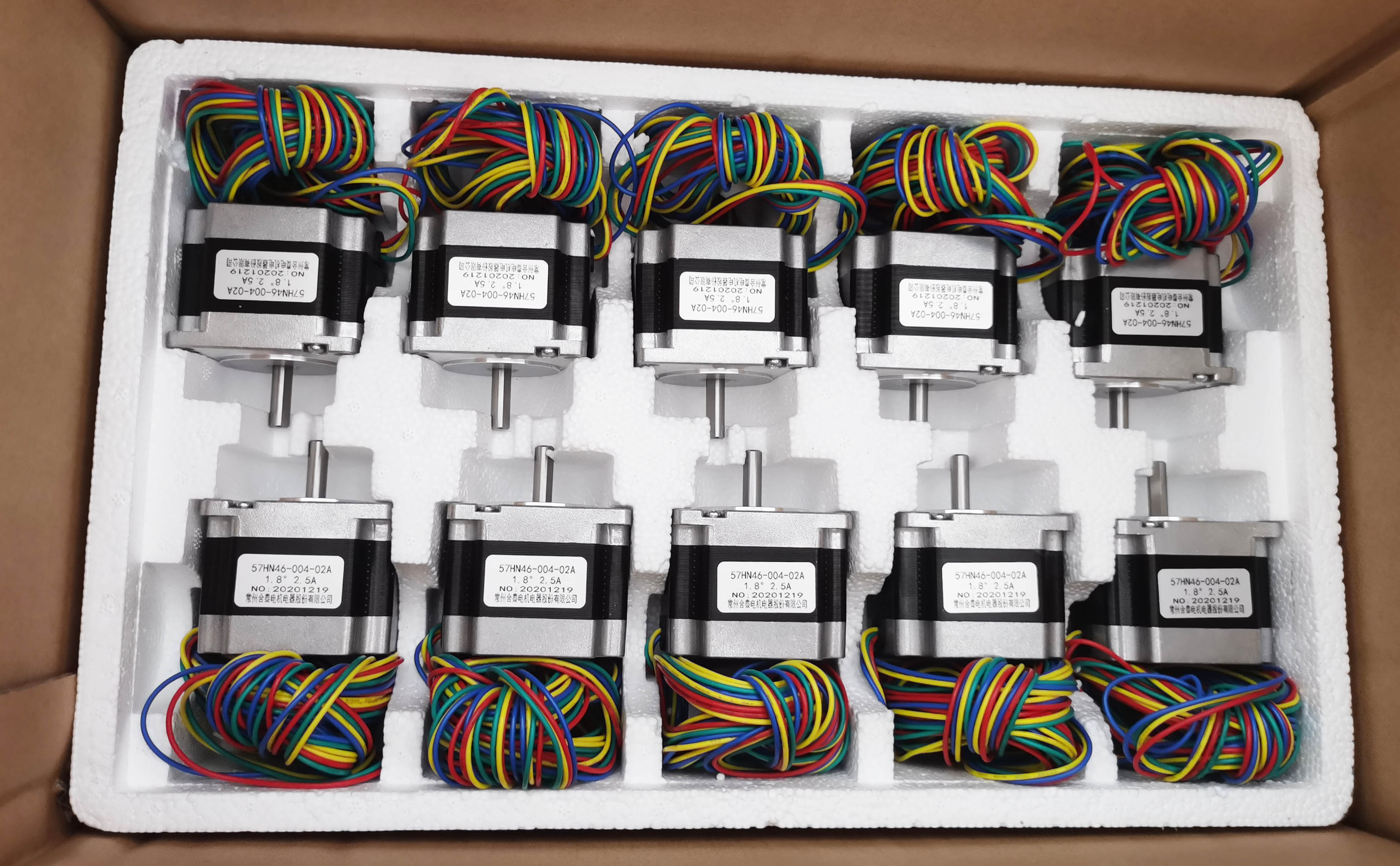

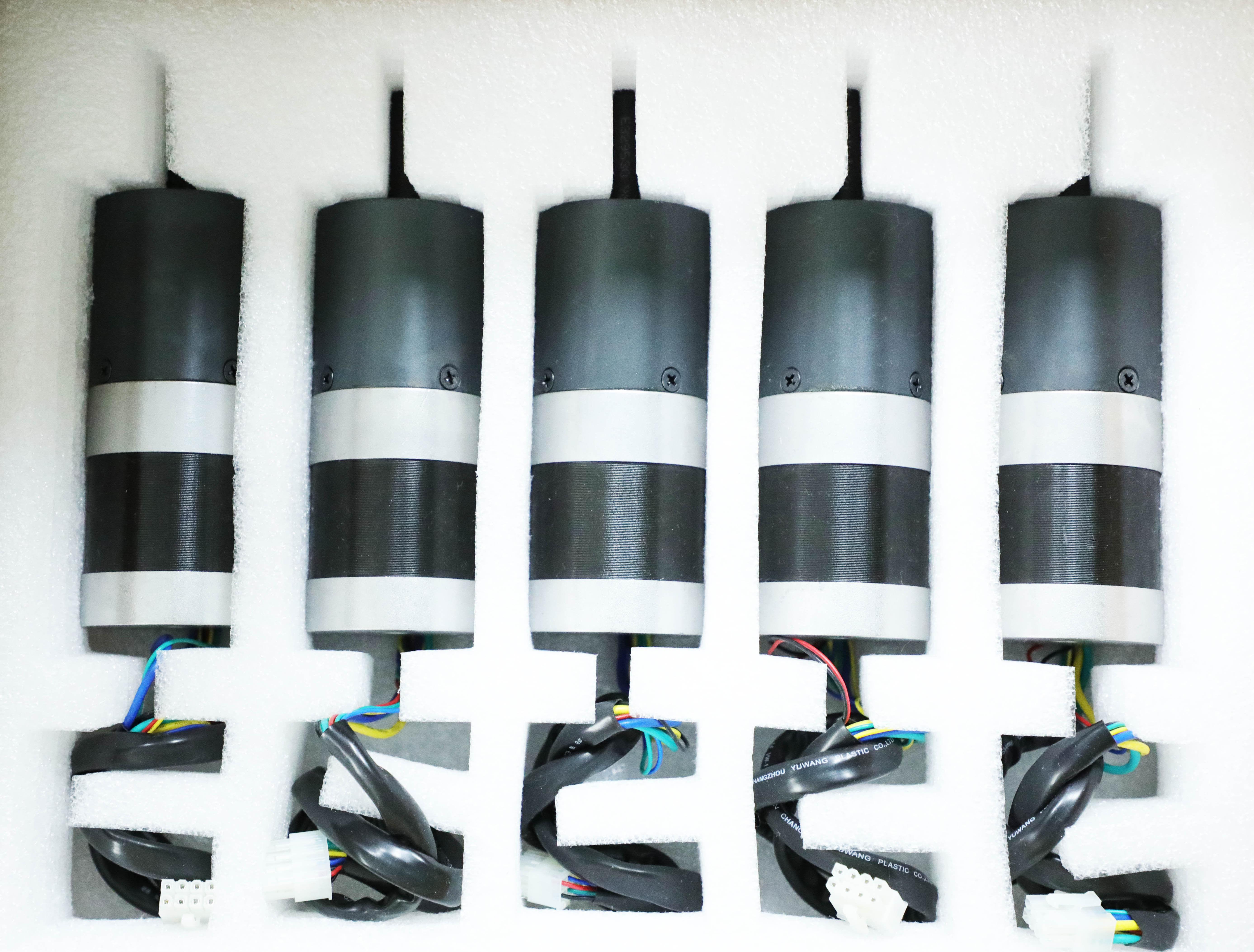

Package & Delivery
