Model No: 42BLF03

42BLF03 nema17 3 phase factory supply low noise bldc motor 24v brushless dc motor

minimum order :

1 piece

Quantity :

Contact Now

Warranty:3months-1year
Place of Origin:Jiangsu, China
Brand Name:Hetai
Model Number:42BLF03
Type:Micro Motor
Torque:0.188 N.m
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:IP40
Speed(RPM):4000 Rpm
Continuous Current(A):4.17A
Efficiency:IE 1
Product Name:Brushless Motor
Material:Multi-metal
Dielectric Strength:500V AC 1minute
No-oad speed:5000Rpm
Resistance:0.57 ohms
Shaft axial load:10N
Rated output Power:78W
Rated Speed:4000 Rpm
Rated Torque:0.188N.m
Certificate:CE ROSH ISO

Product Description

42BLF03

Brushless Dc Motor

Factory Supply Low Noise

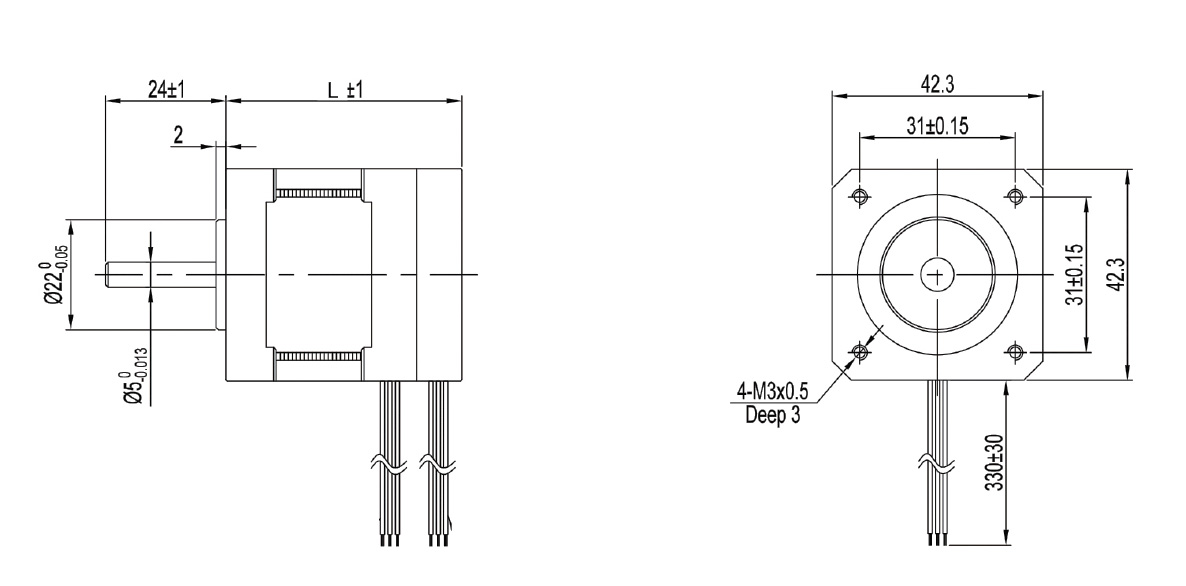

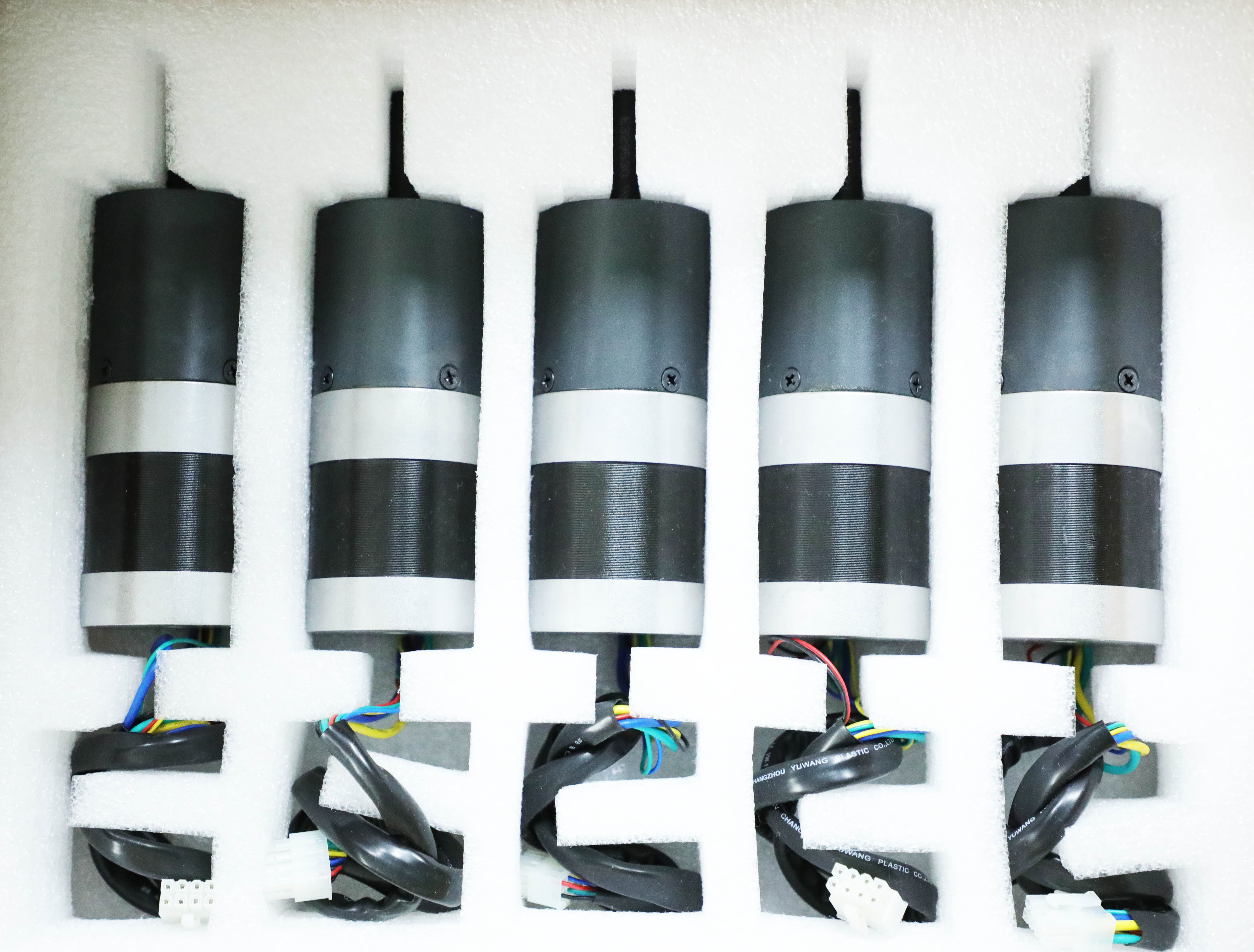

42BLF03 nema17 3 phase brushless dc motor

Specification

Product Name:	Brushless Motor
Dielectric Strength:	500V AC 1minute
Ambient Temperature:	-20℃~50℃
Insulation resistance:	100MΩ Min.500V DC
Voltage:	24(VDC)
No-load speed:	5000Rpm
No-load current:	0.8A
Rated Speed:	4000(RPM)
Rated torque:	0.188N.m

Brushless DC Motor

External Diameter: 22mm~110mm

Motor Power: 5W ~ 2000W

Speed :300rpm ~ 10000rpm

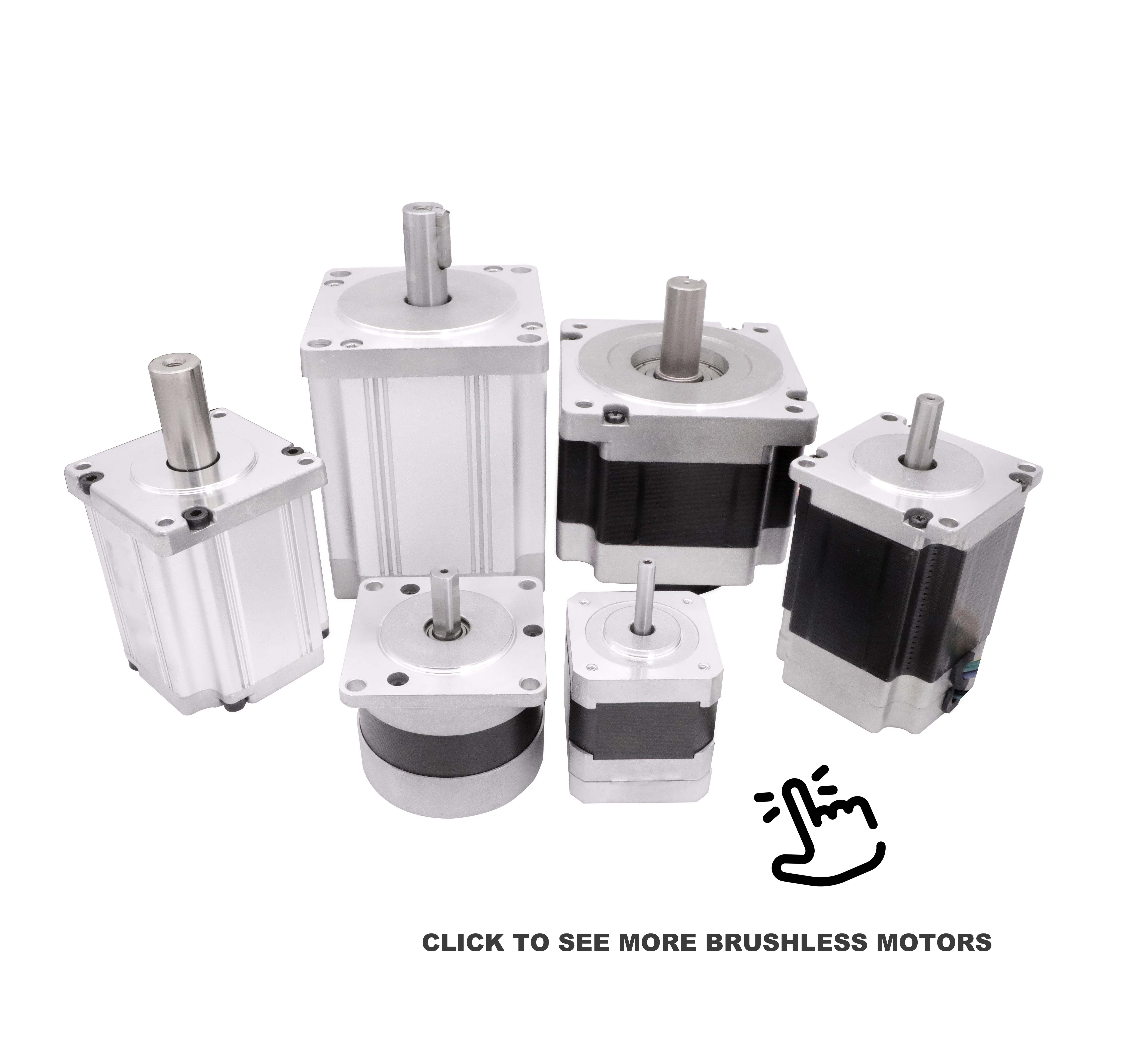

Brushless Motor Series

Company Profile

Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

Product Range

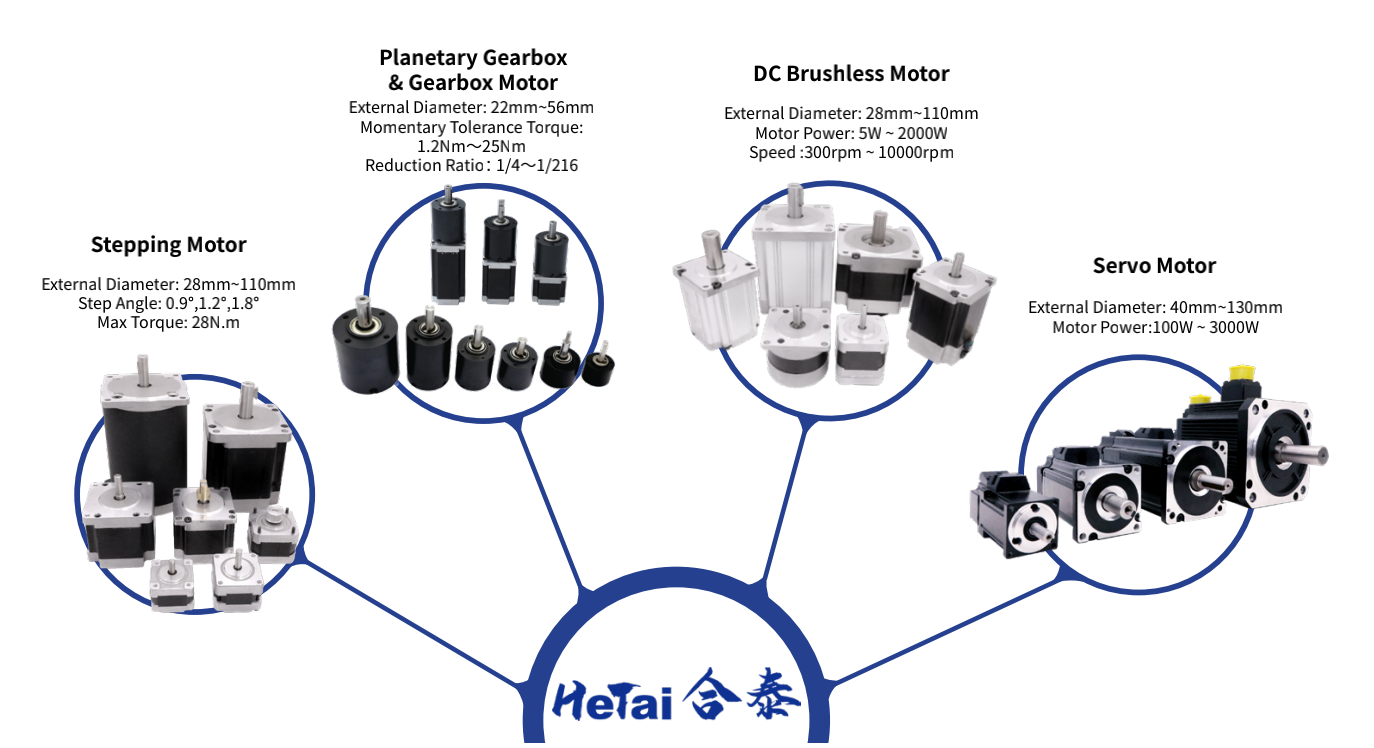

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

Certificate

Hetai can offer：

Specialised/customised design and product

Good quality products

7/24 Service

When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

CE Of DC Brushless Motor

Date of expire:09 April 2023

CE Of Hybrid Stepping Motor

Date of expire:09 April 2023

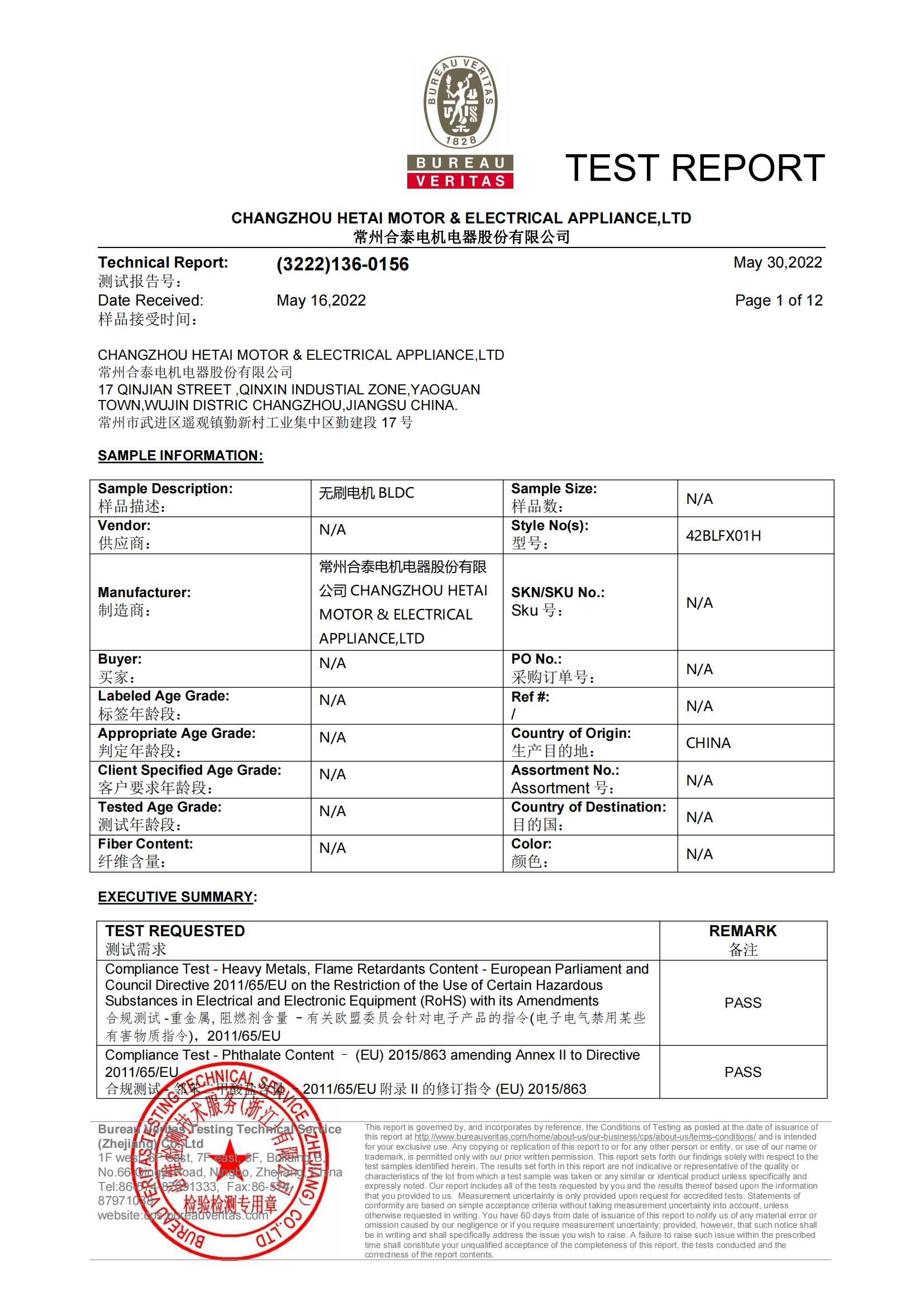

BLDC Motor ROHS report

Date: May 16, 2022

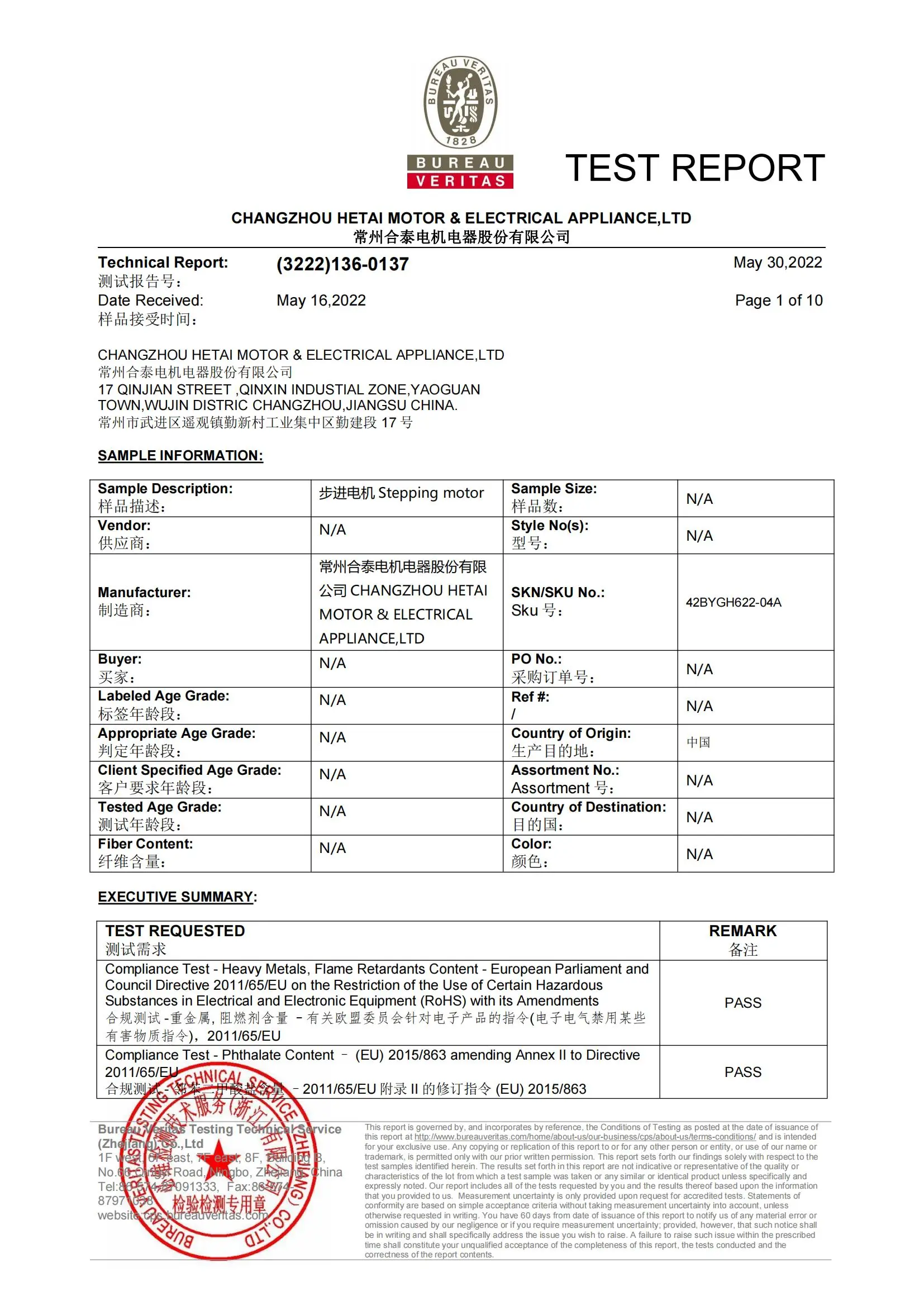

Stepper motor ROHS report

Date: May 16, 2022

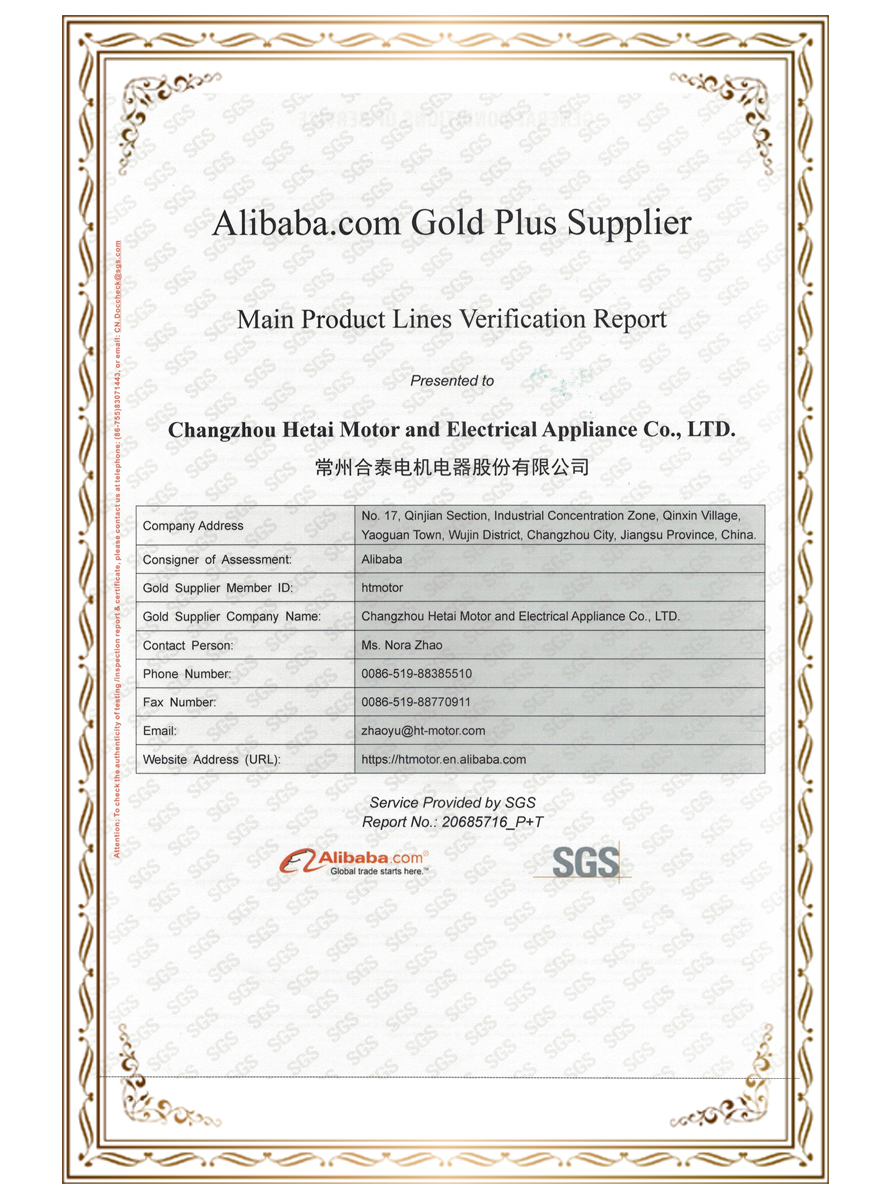

Alibaba Gold Plus Supplier

SGS Verified

Alibaba Gold Plus Supplier

SGS Verified

ISO 9001:2015

Valid until: 02 June 2024

IATF 16949:2016

Valid until: 02 June 2024

Why Choose Us

We offer you：

Engineering Support

Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.

Find

Our team can help you find most suitable motor for the application from our vast selection of motors.

Customise

We can design and customise the performance and exterior for your specific use or assembly.

Optimise

For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.

Manufacturing Support

Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.

Prototypes

1-10 pcs

Standard Batch

500-5000pcs

High Volume Batch

over 5000pcs

Large-scale production

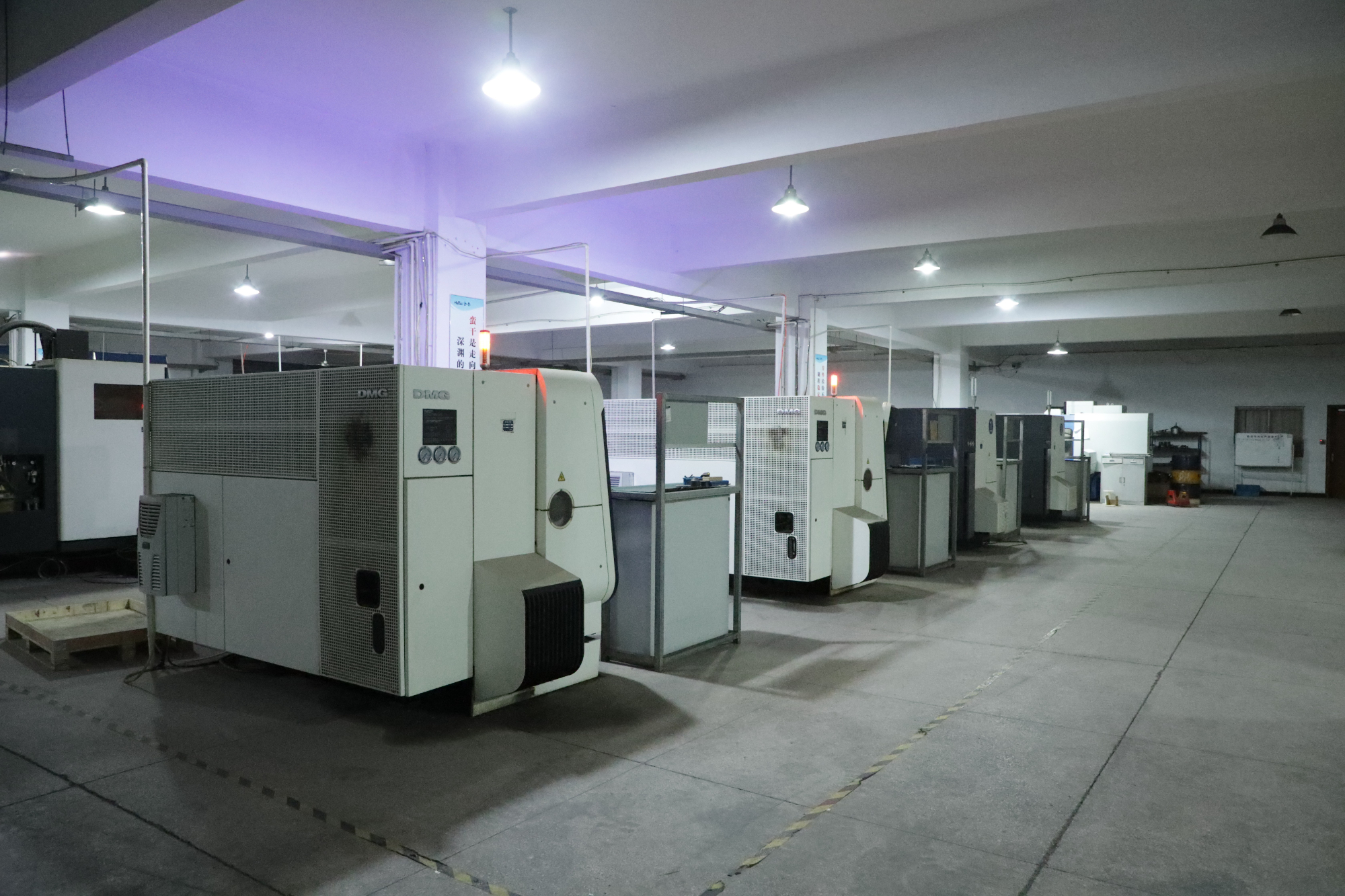

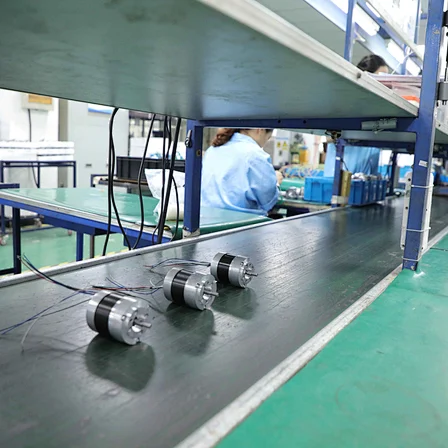

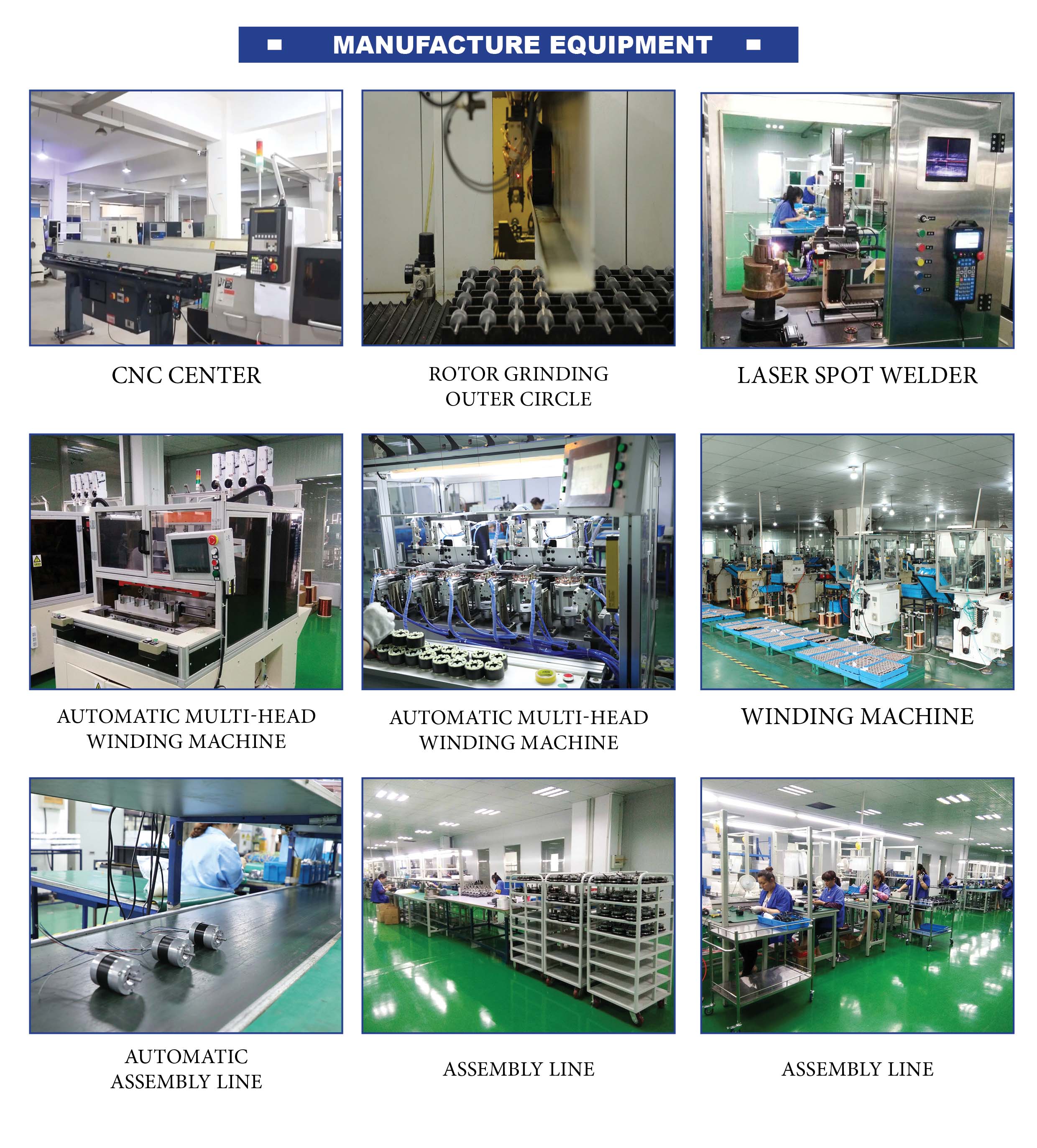

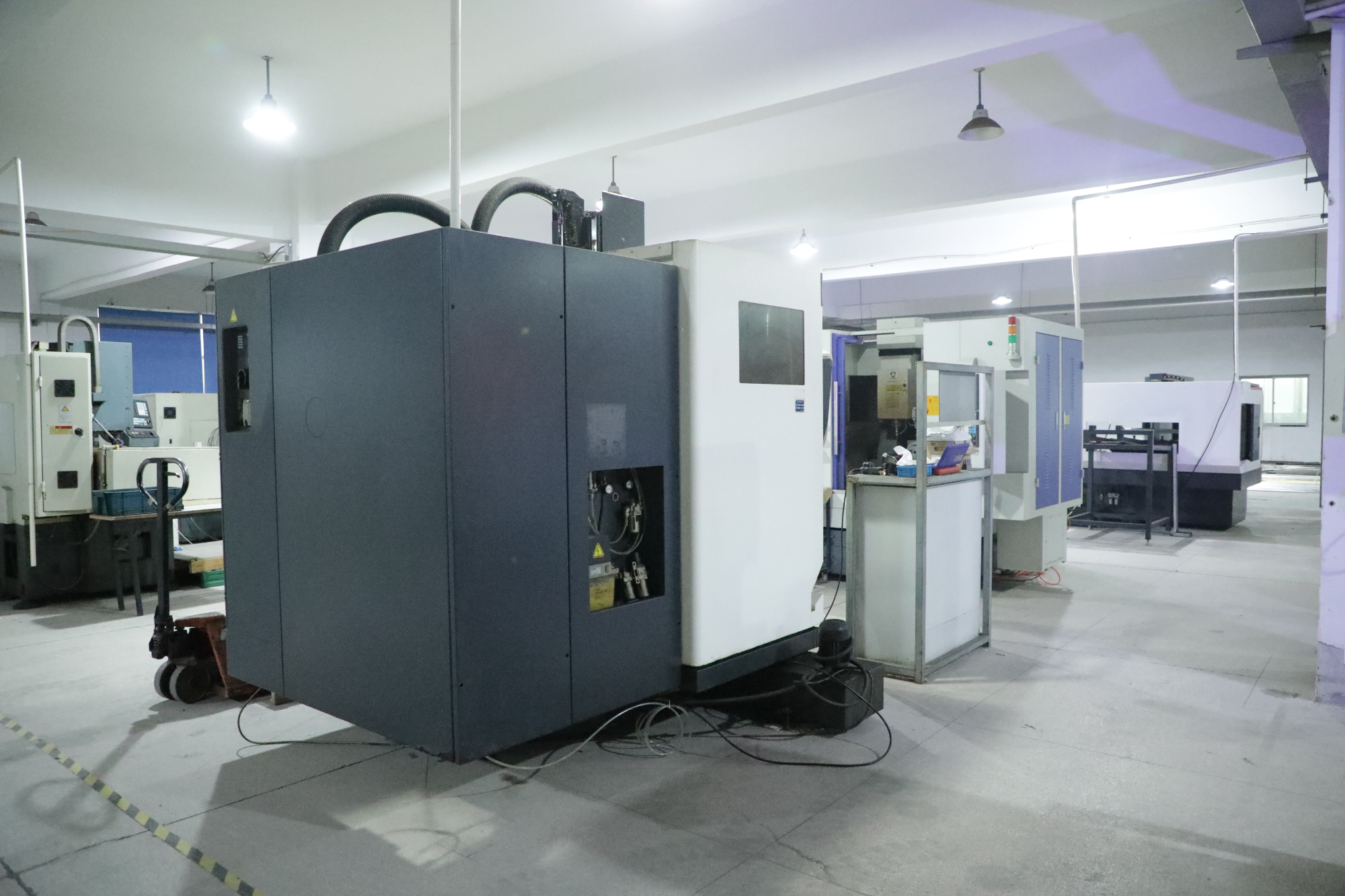

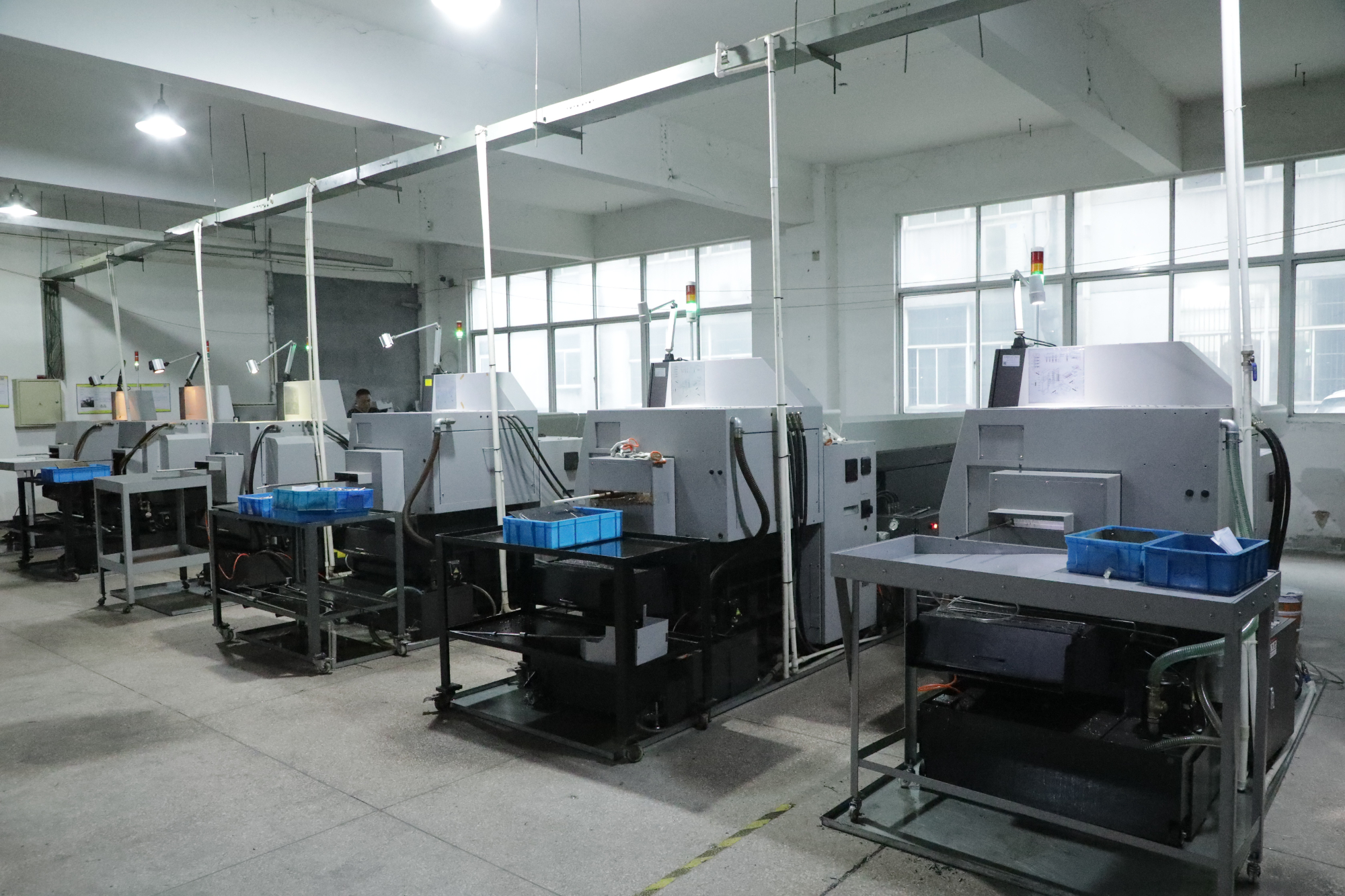

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
