Model No: 57BYGH636-89
57BYGH636-89 1.8 degree space-saving high effciency nema23 stepper motor
minimum order :
1 piece
Quantity :
- Warranty:1year
- Place of Origin:Jiangsu, China
- Brand Name:Hetai
- Model Number:57BYGH636-89
- Phase:2
- Type:Hybrid
- Current / Phase:2A
- Product Name:Integrated stepper motor
- Step angle:1.8 °
- Current:3 A
- Hoiding torque:15 Kg.cm
- Resistance:0.5 omhs
- Lead wire:4
- Induction:1.8 mH/Phase
- Max Radial Force:75N (20mm from front flange)
- Max Axial Force:15N
- Voltage:1.5V
Product Description
57BYGH636-89
Nema23 Stepper Motor
Space-saving High Effciency
57BYGH636-89 1.8 degree nema23 stepper motor
Specification
Product Name | Hybrid Stepper Moto |
Step Accuracy | ± 5% |
Dielectric Strength | 500V AC 1minute |
Ambient Temperature | -20℃~50℃ |
Insulation resistance | 100MΩ Min.500V DC |
Step Angle | 1.8° |
Lead wire | 4 |
Voltage (V) | 1.5 |
Current (A/Phase) | 3 |
Holding Torque (Kg.cm) | 15 |

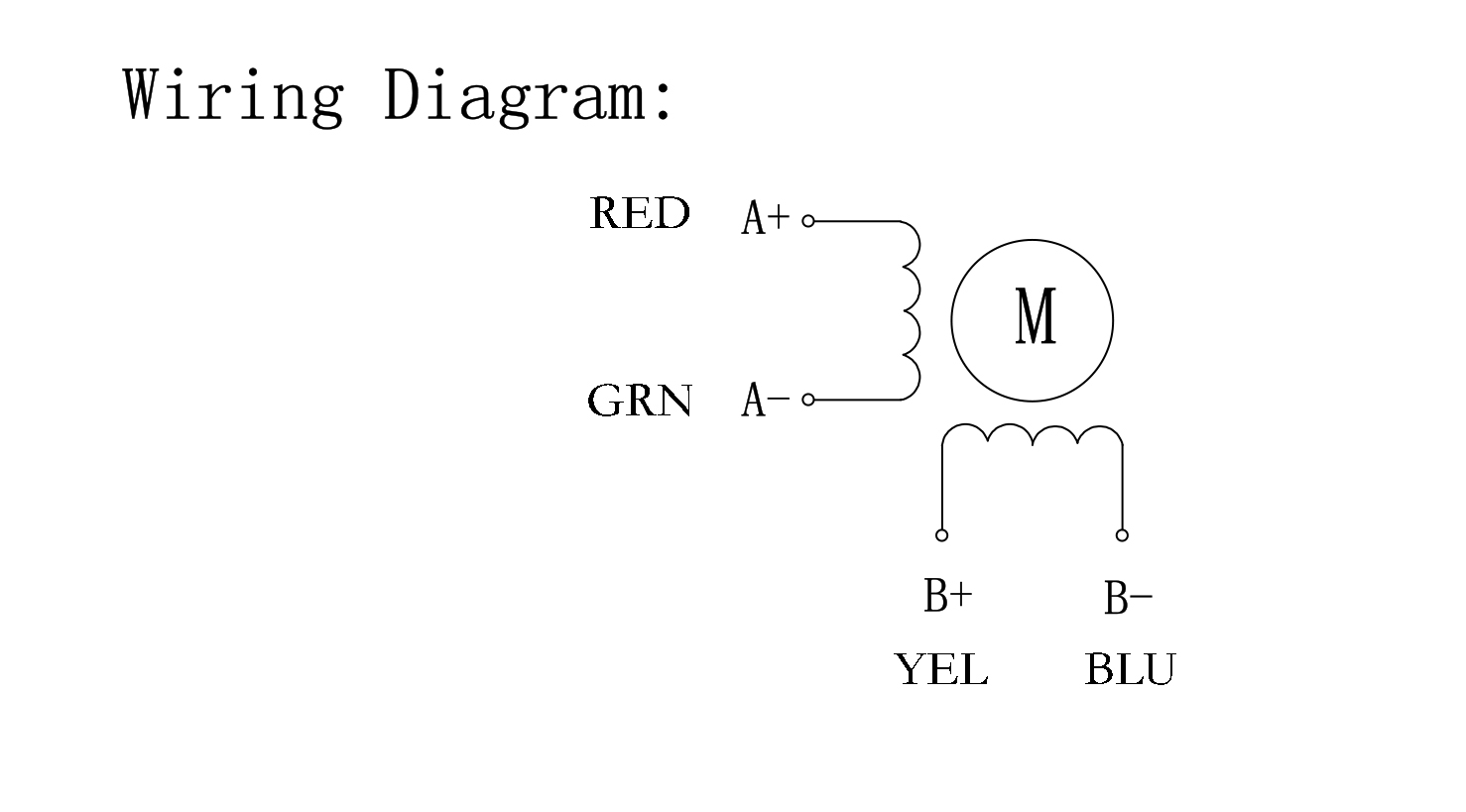

Wiring diagram
Driver Introuction
IO57 is a new digital Integrated stepper driver, which is designed by 32-bit DSP digital processing technology, variable currenttechnology and low heating technology. It has the advantages of low vibration, stable operation, low heating and high reliability.Users can set the driver through the serial port 200-51200 within the arbitrary subdivision and rated current value output, tomeet the needs of most applications. Due to the use of built-in micro-subdivision technology, even in the conditions of lowsubdivision, but also can achieve high subdivision effect, low, medium and high-speed operation is very smooth, ultra-low noise.The driver has the function of power-on auto-adaptive motor, which can automatically generate the optimal operating parameters for different motors and maximize the performance of the motor.
Characteristics of the driver
New 32 Bit DSP Technology
Low vibration, low noise, smooth operation
Built-in high-resolution and smooth filtering function
Automatic parameter power-on setting function
Variable current control greatly reduces the heat generation of the motor.
The automatic halving of current at rest
Can drive 4,6,8-wire tow-phase stepping motor
Photoelectric isolation of single-ended signal input (pulse, direction and enable)
Impulse response frequency up to 500KHz (factory default 200KHz)
The current setting is convenient and can be selected between 0.1-5.6 A
sub-set range 200-51200, higher sub-customizable
It has the protection functions of overvoltage, Undervoltage, and overcurrent.
Low vibration, low noise, smooth operation
Built-in high-resolution and smooth filtering function
Automatic parameter power-on setting function
Variable current control greatly reduces the heat generation of the motor.
The automatic halving of current at rest
Can drive 4,6,8-wire tow-phase stepping motor
Photoelectric isolation of single-ended signal input (pulse, direction and enable)
Impulse response frequency up to 500KHz (factory default 200KHz)
The current setting is convenient and can be selected between 0.1-5.6 A
sub-set range 200-51200, higher sub-customizable
It has the protection functions of overvoltage, Undervoltage, and overcurrent.
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

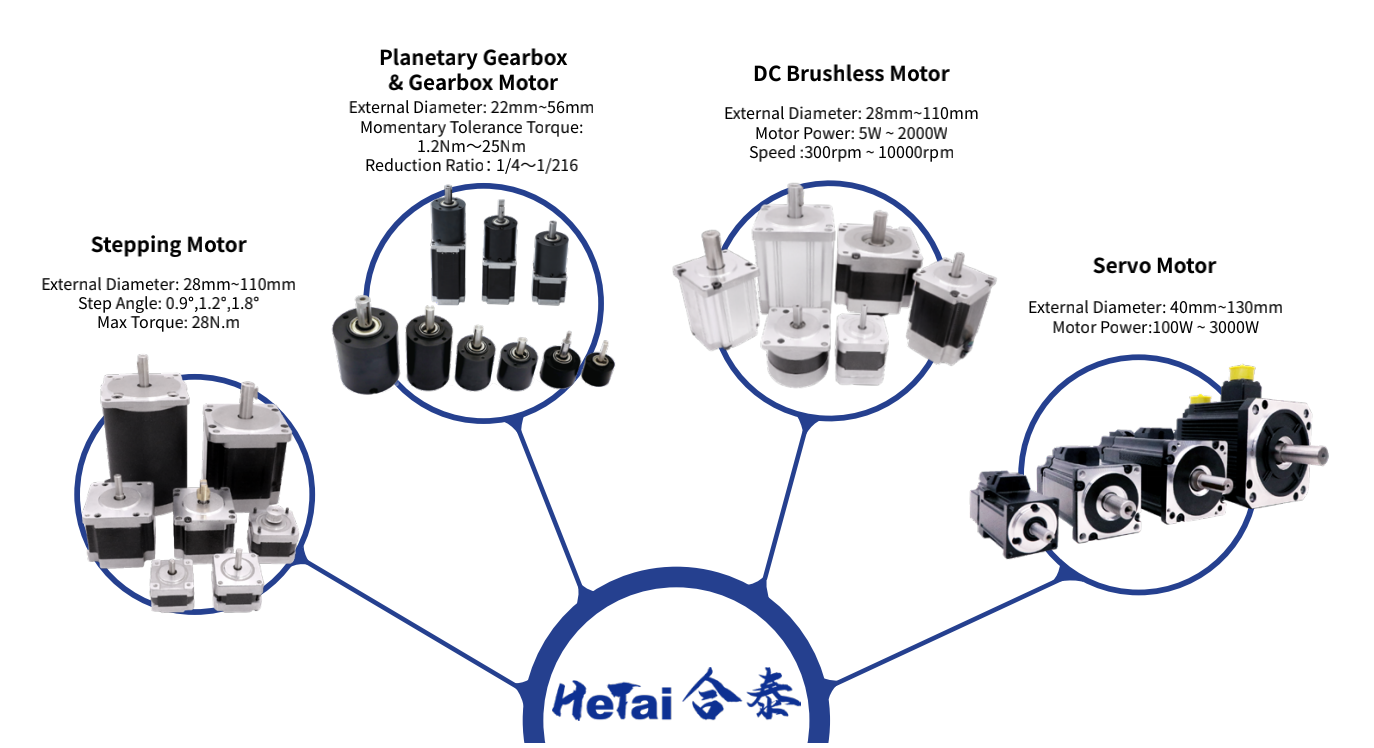

Product Range
Certificate
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Stepper motor ROHS report
Lab No. (2421)133-0096
Date: June 09, 2021
BLDC Motor ROHS report
Lab No. (2421)133-0095
Date: June 09, 2021

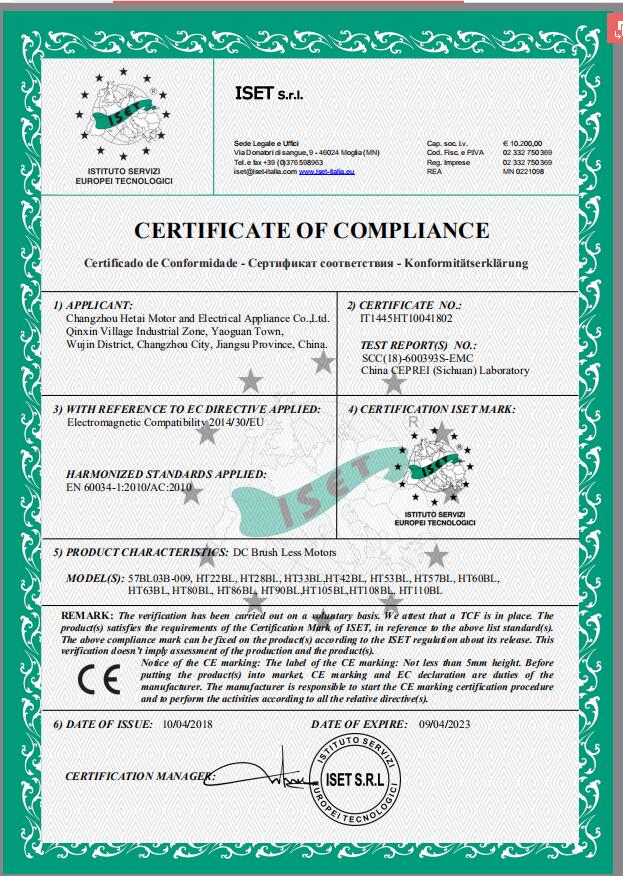

CE certificate
Certificate No. IT1445HT10041802
Test Report No: SCC(18)-600393S-EMC

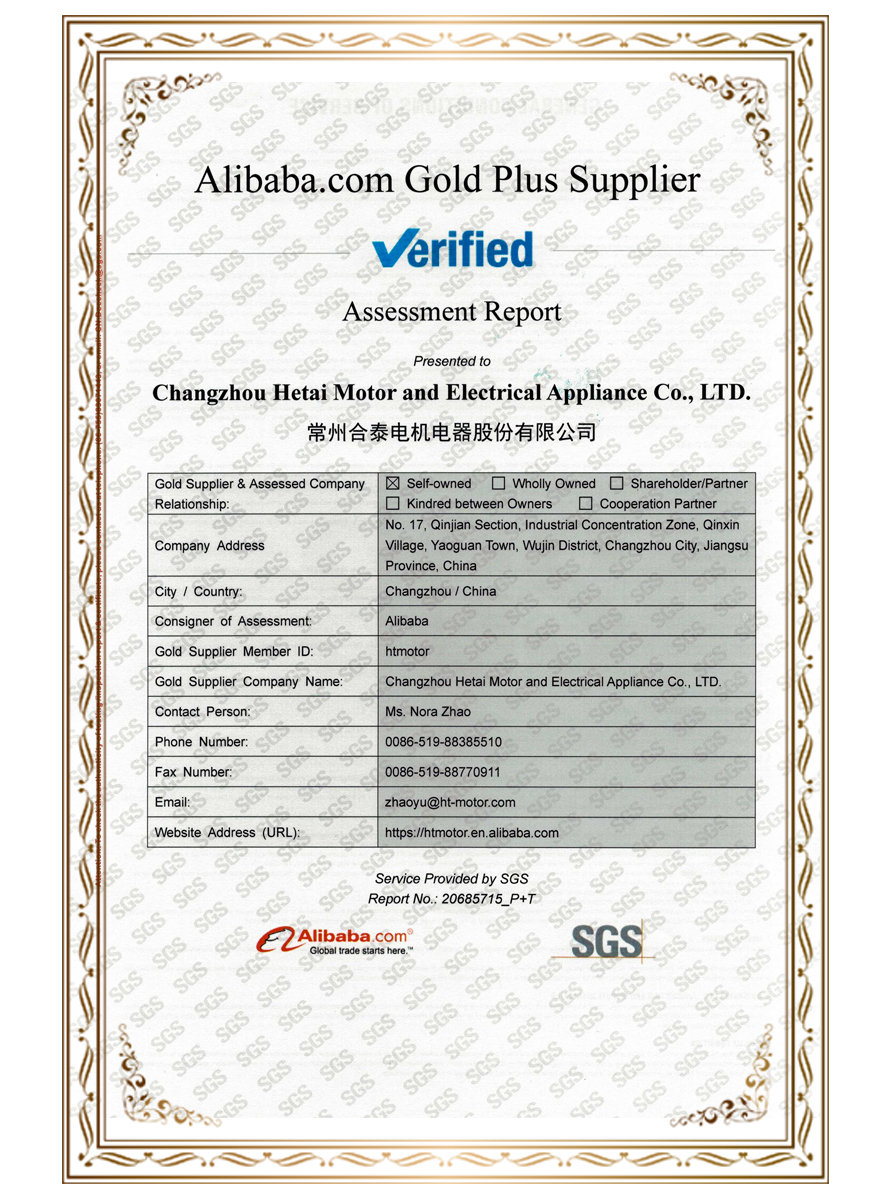

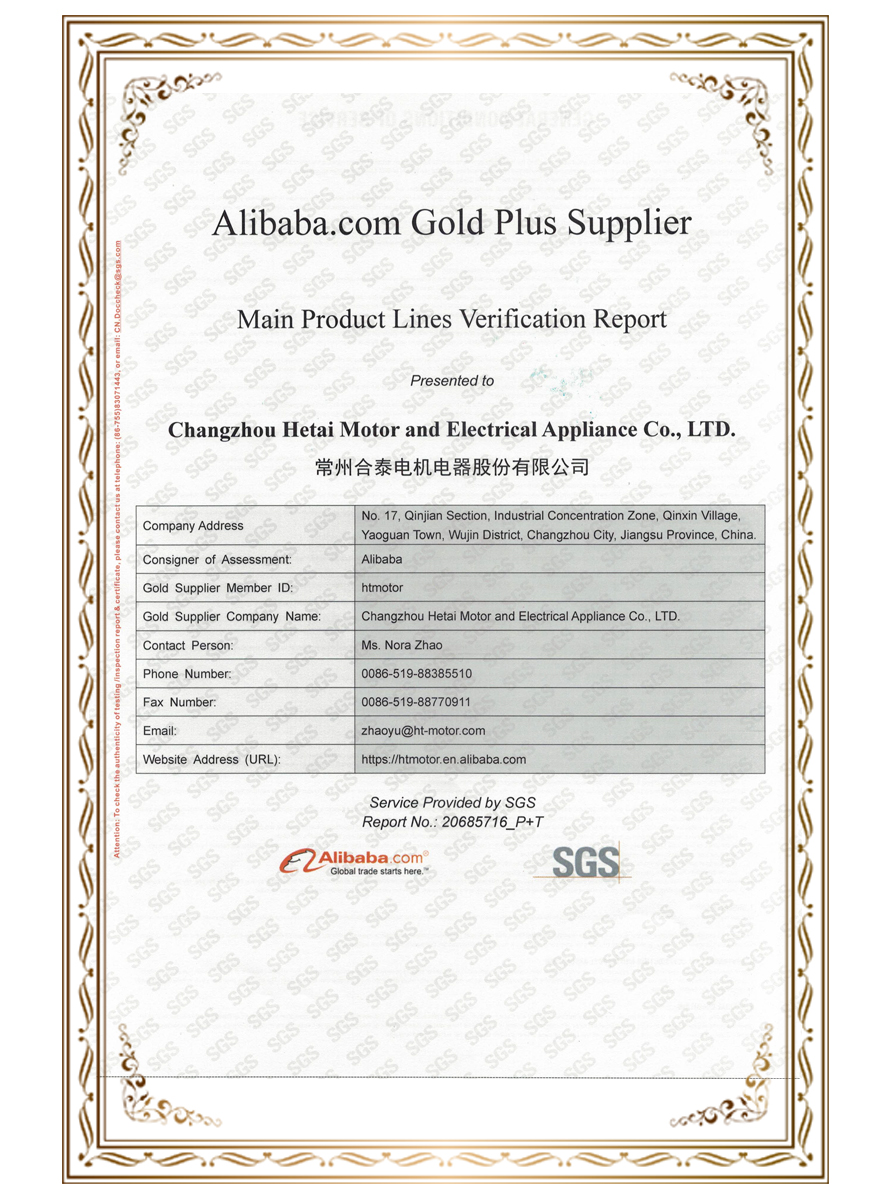

Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified
ISO 9001:2015
Registration No. 10460/0
Valid until: 02 June 2024
IATF 16949:2016
Registration No. 02452/0
Valid until: 02 June 2024
Invention patents（2 products）
※brushless servo control system and driving installation
based on BLDC motor
※a simple and high efficient hybrid stepper motor driving installation
8 utility model patents（6 products)
※a hybrid stepper motor driving installation
※a stepper motor subdivision driving installation
※brushless servo control system and driving installation based on
PM BLDC motor
※PM BLDC motor used in servo system
Why Choose Us
We offer you：
Engineering Support
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.
Find
Our team can help you find most suitable motor for the application from our vast selection of motors.
Customise
We can design and customise the performance and exterior for your specific use or assembly.
Optimise
For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.
Manufacturing Support
Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.
Prototypes
1-10 pcs
Standard Batch
500-5000pcs
High Volume Batch
over 5000pcs
Large-scale production

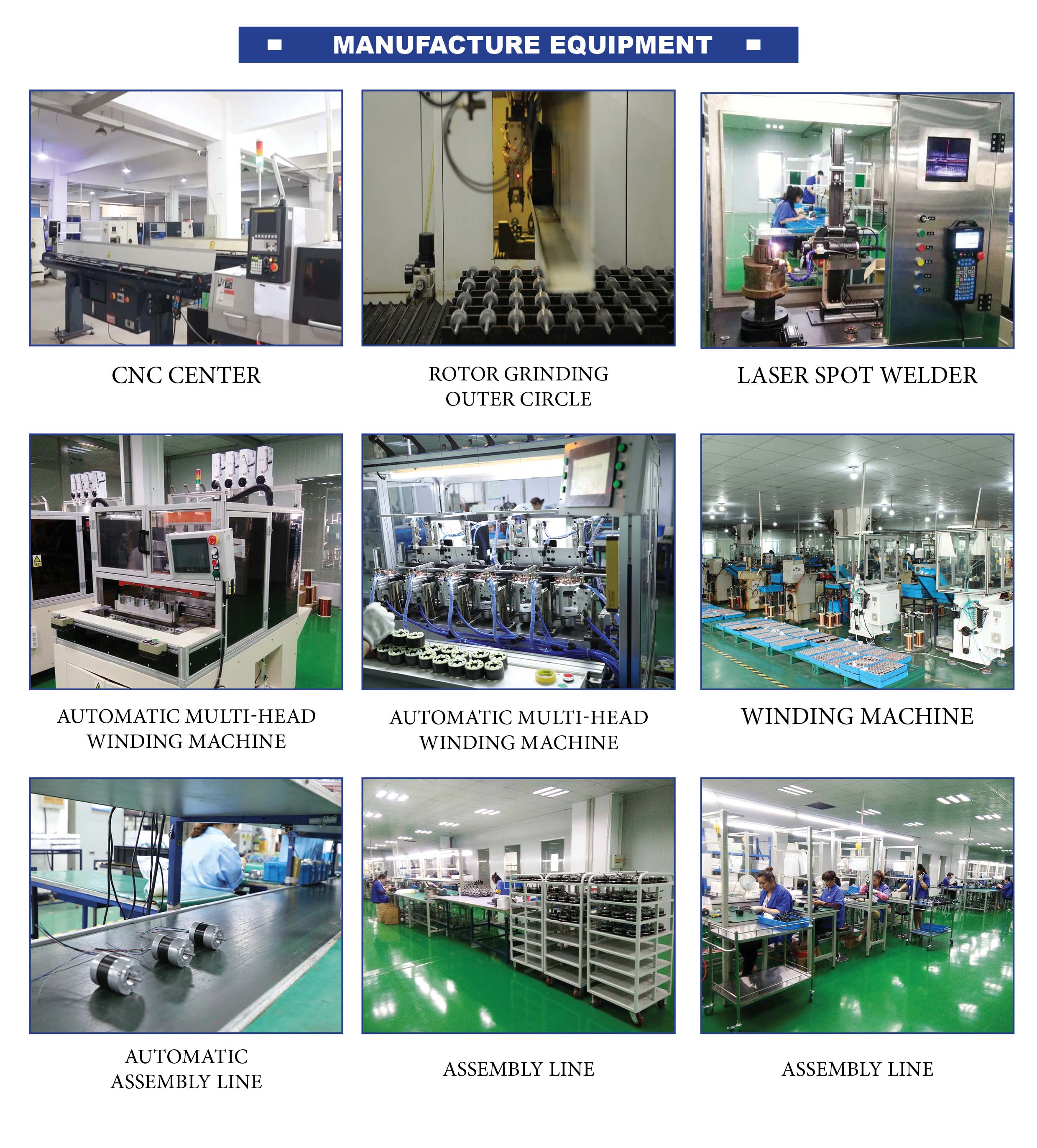

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.

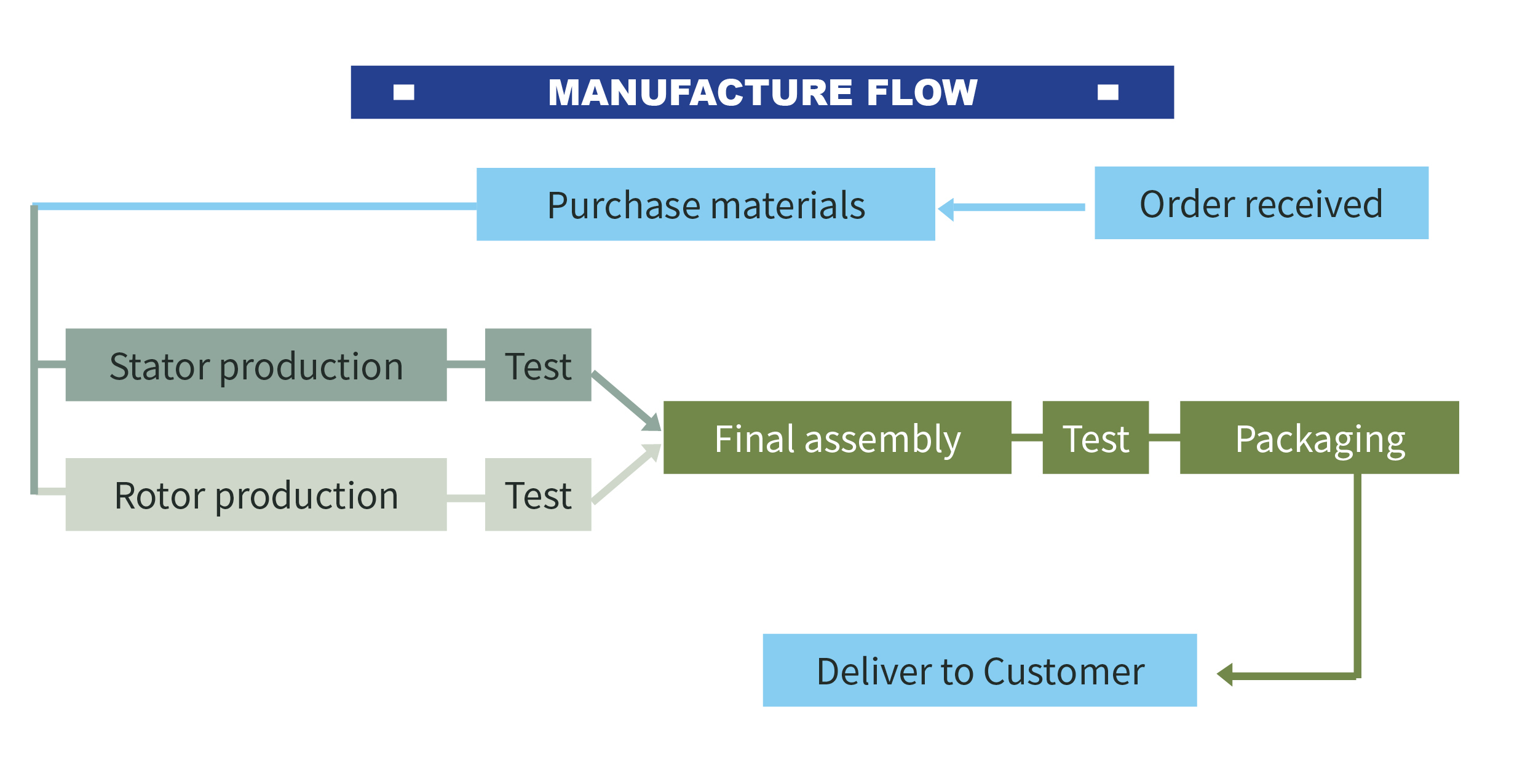

Strict Manufacture Process & Quality Control
Quality Control Process

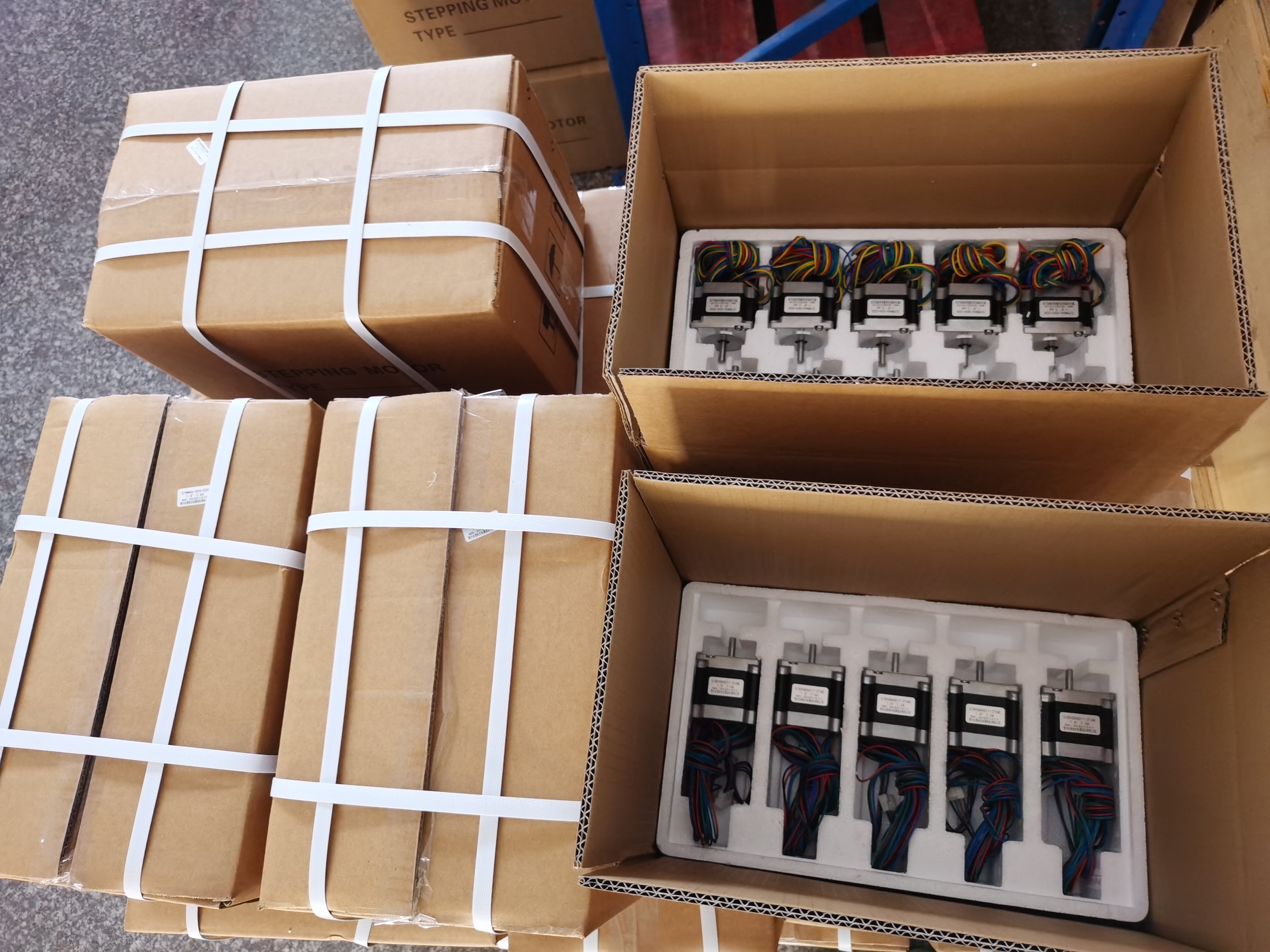

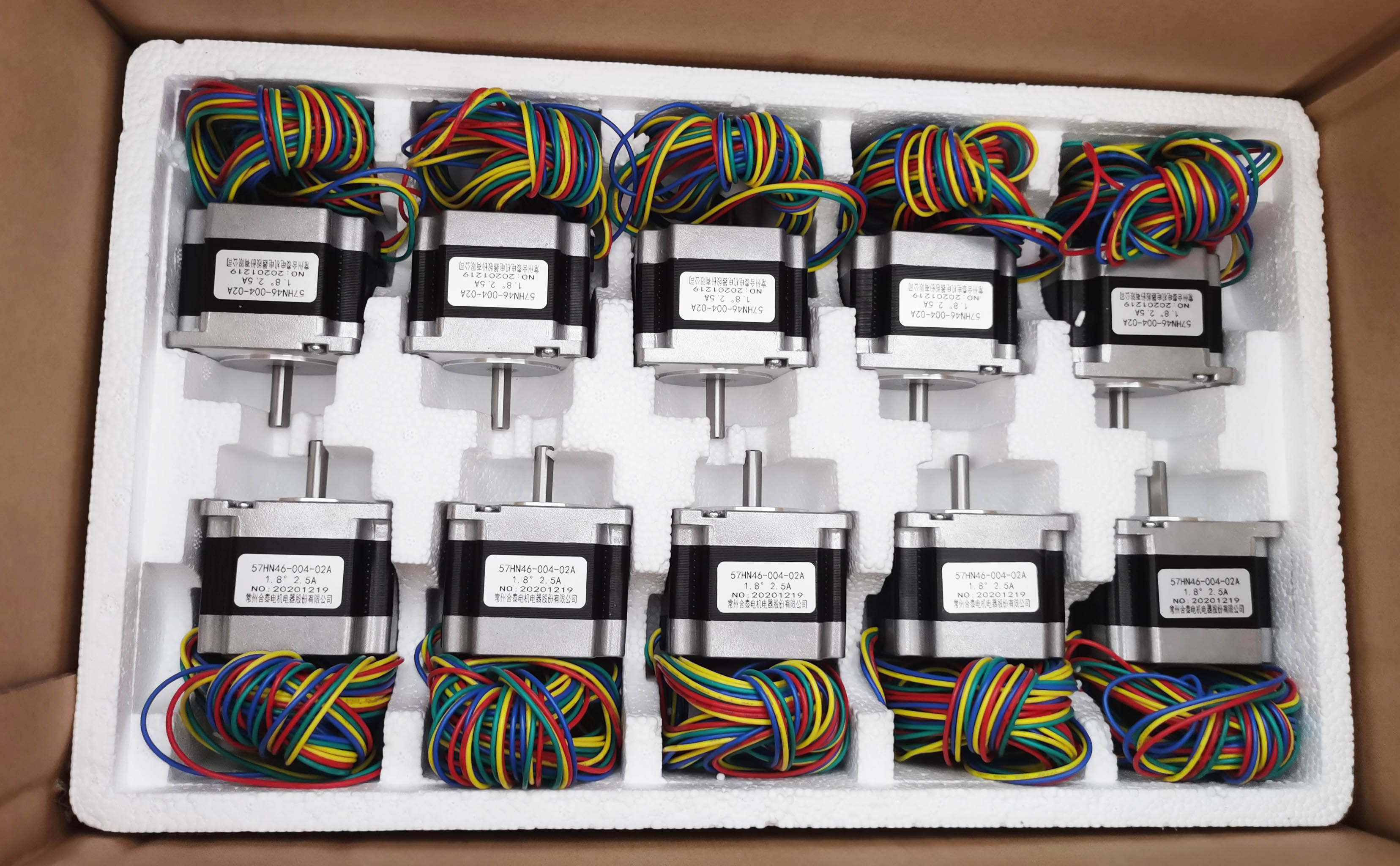

Package & Delivery
