Model No: customizable

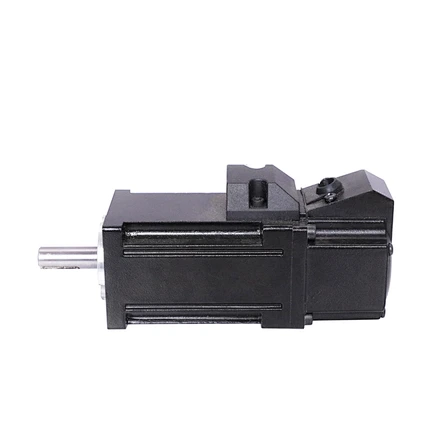

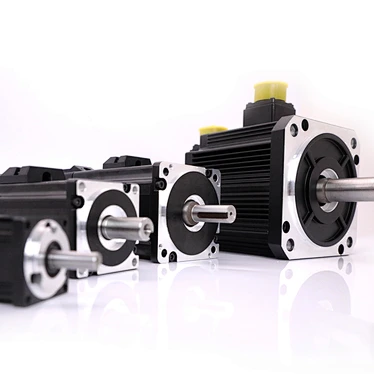

ES4004A-10D-customizable High precision EC Rosh DC 3000 rpm 100W servo motor for robots
minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
- Warranty:3months-1year
- Place of Origin:Jiangsu, China
- Brand Name:HETAI
- Model Number:customizable
- Usage:Robots
- Type:SERVO MOTOR
- Torque:0.32 N.m
- Construction:Permanent Magnet
- Commutation:Brushless
- Protect Feature:IP65, shaft sealing IP 54
- Speed(RPM):3000 RPM
- Continuous Current(A):1.2A
- Efficiency:IE 1
- Weight:0.72kg

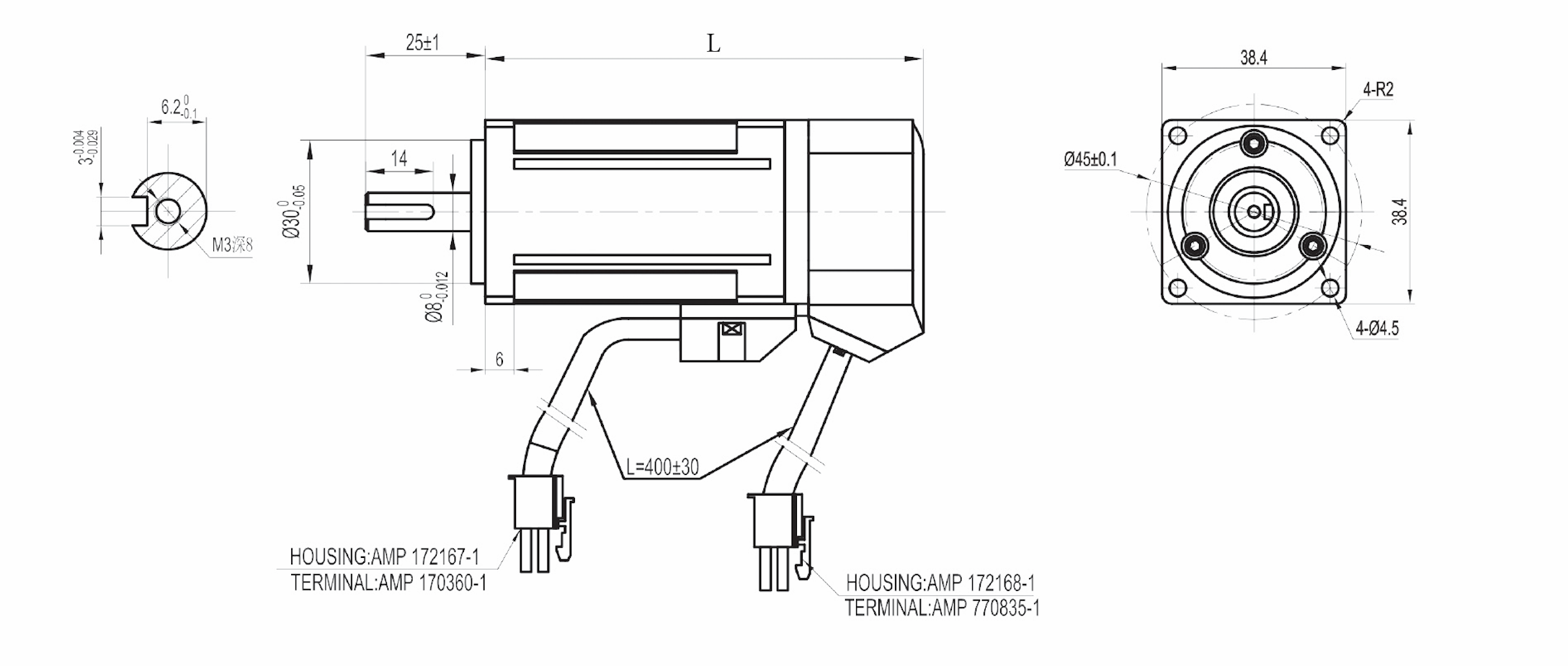

- Motor length:127mm
- Diameter:60mm
- Insulation class:F
- Protection level:IP65
- Work temperature:0℃~+55℃
- Preserve temperature:20℃~80℃
- Brake:No brake
- Encoder:Tamagawa single ring absolute value 17 bit
- Inertia:Medium Inertia

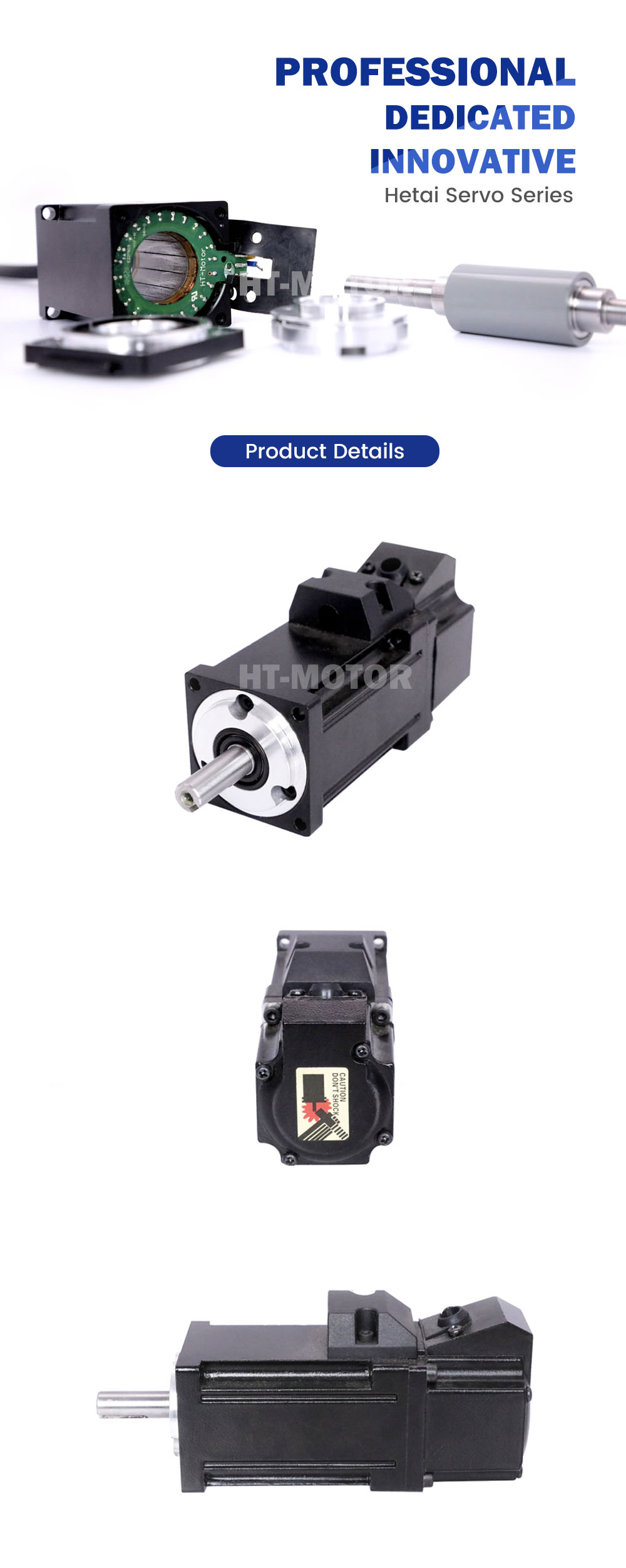

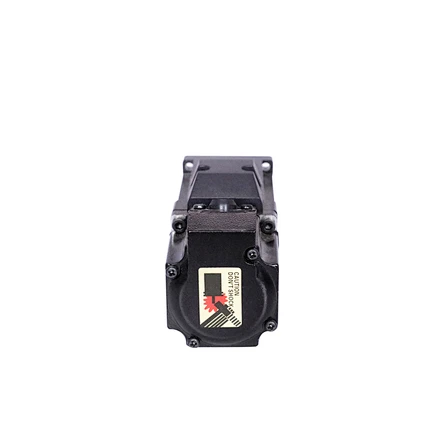

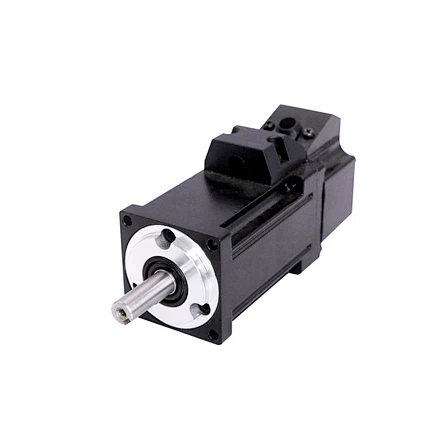

Product Description
ES4004A-10D30L1
High precision Servo motor
Precise positioning
High-efficiency output
Fearture：
Medium Inertia, with encoder, Key shaft, No brake
Specification
Model | Rated Power | Raeted Speed | Voltage | Rated Current | Rated Torque | Peak Torque | Back EMF Constant |
(W) | （RPM） | （V） | （A） | （N.m） | （N.m） | （N.m/A） | |
ES4004A-10D30L1 | 100 | 3000 | 310 | 1.2 | 0.32 | 0.96 | 16 |
Product Application
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

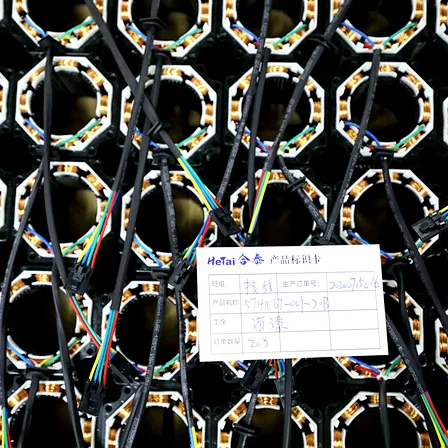

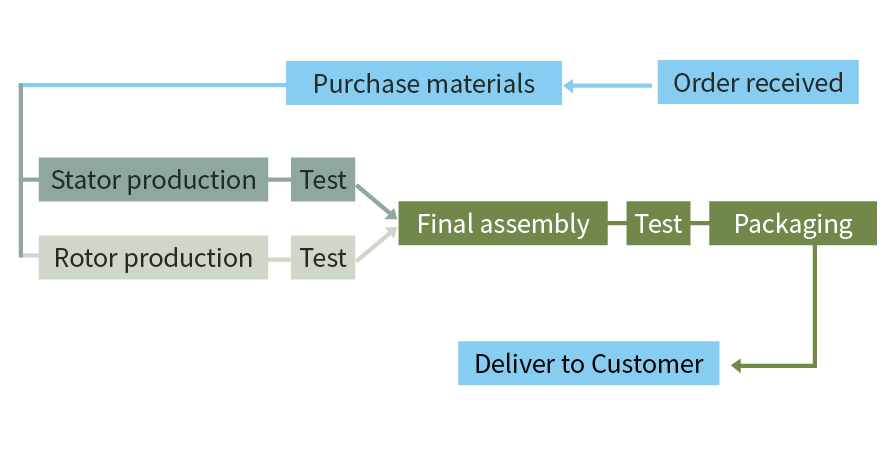

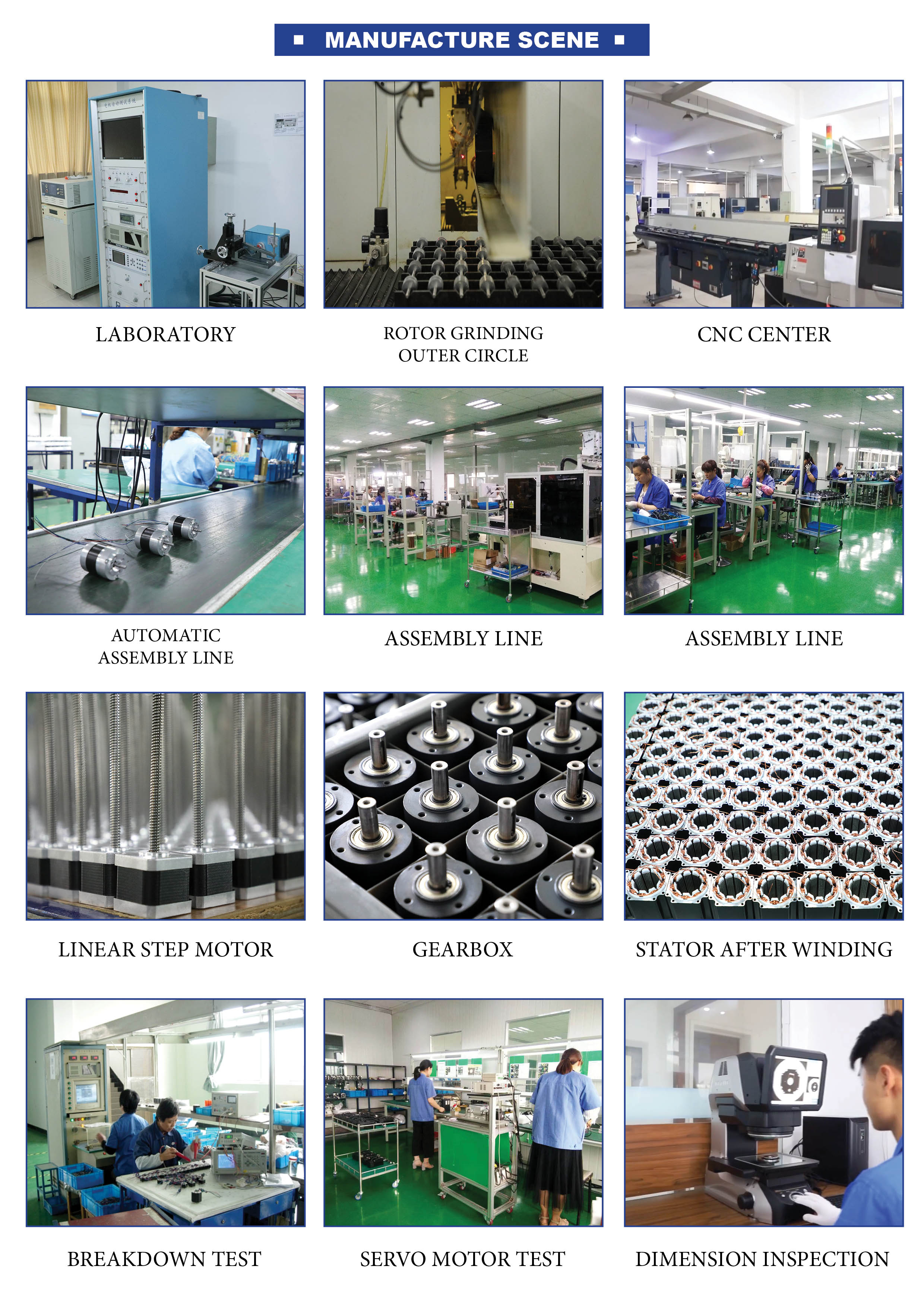

Hetai Production Process
Our advantage
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Market Range
FAQ
1.Are you factory?
Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in
China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.
2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136
4.Can I test sample?
Yes, samples and freight are charged.
5.Can I get Customized product?
Sure, all the products can be customized based in special request.
6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.
9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
