Model No: ES6005G

Hetai hot sale factory Price Servo Motor and Driver Kit For Cnc Milling Machine 100W 1.9NM

minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:ES6005G
  • Type:Micro Motor
  • Torque:1.9N.m
  • Construction:Permanent Magnet
  • Commutation:Brushless
  • Protect Feature:Totally Enclosed
  • Speed(RPM):3000 RPM
  • Continuous Current(A):16A
  • Efficiency:IE 1
  • Product Name:Servo Motor
  • Rated Voltage:48V
  • Rated Current:16A
  • Rated Speed:3000RPM
  • Rated Torque:1.9N.M
  • Maximum Torque:5.7N.M
  • Rated Power:200-600W
  • Protection Level:IP65
  • Environment Requirementg:-20℃~+55℃
  • Insulation Class:F

Product Description


ES6005G
48V Servo Motor
Factory Supply Stable Performance
ES60 3000rpm 600w factory direct supply low price dc servo motor 48v brushless servo motor


Specification


Rated Voltage（V)
48
Rated Power（W）
200
400
600
Model
ES6005G-20D30L1
ES6005G-20D30L2
ES6005G-40D30L1
ES6005G-40D30L2
ES6005G-60D30L2
Rated Current（Amps）
8
11
16
Rated Speed（RPM）
3000
3000
3000
Rated Torque（N.M）
0.64
1.27
1.90
Maximum Torque（N.M）
1.91
3.81
5.70
Torque Constant（N.M/Amps）
0.09
0.12
0.12
Rotor Moment Of Inertia（Kg.cm2）
0.42*10-4
0.67*10-4
0.95*10-4
Resistance Line-line（Ω）
0.4
0.16
0.07
Inductance Line-line（mH）
1.0
0.28
0.10


No Brake Series




With Brake Series

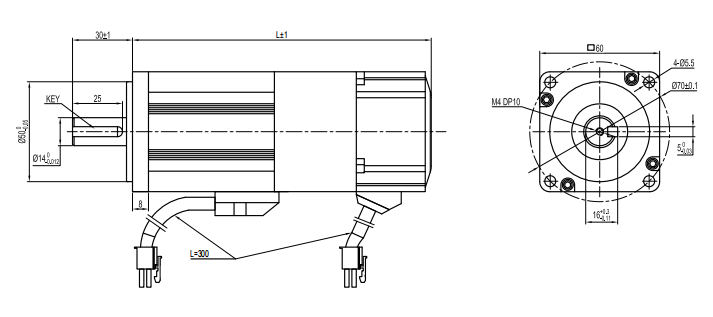

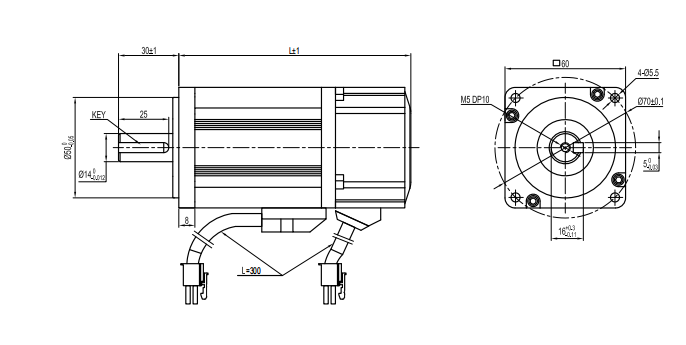

Length & Weight


Type
60

Encoder
Power

100W
200W
400W
600W
Length
（mm）
Single turn absolute value
(Tamagawa)
No Brake
91±1
101±1
121±1
141±1
With Brake
125±1
135±1
155±1
175±1
 Multi turn
absolute value
（Tamagawa）
No Brake
106±1
116±1
136±1
156±1
With Brake
140±1
150±1
170±1
190±1
Incremental 2500ppr
（Optical encoder）
No Brake
106±1
116±1
136±1
156±1

With Brake
140±1
150±1
170±1
190±1
Rotary transformer
No Brake
91±1
101±1
121±1
141±1
With Brake
125±1
135±1
155±1
175±1
Nikon multi turn absolute value
No Brake
91±1
101±1
121±1
141±1
With Brake
125±1
135±1
155±1
175±1


Type
60

Encoder
Power

100W
200W
400W
600W
Weight
（kg）
Single turn absolute value
(Tamagawa)
No Brake
0.51
1.00
1.28
2.00
With Brake
0.95
1.46
1.85
2.50
 Multi turn
absolute value
（Tamagawa）
No Brake
0.57
1.10
1.42
2.10
With Brake
1.00
1.50
1.86
2.70
Incremental 2500ppr
（Optical encoder）
No Brake
0.63
1.05
1.35
2.10

With Brake
1.00
1.25
1.80
2.70
Rotary transformer
No Brake
0.77
1.26
1.63
2.00
With Brake
1.20
1.68
2.00
2.50
Nikon multi turn absolute value
No Brake
0.50
0.85
1.23
2.00
With Brake
0.94
1.23
1.65
2.50

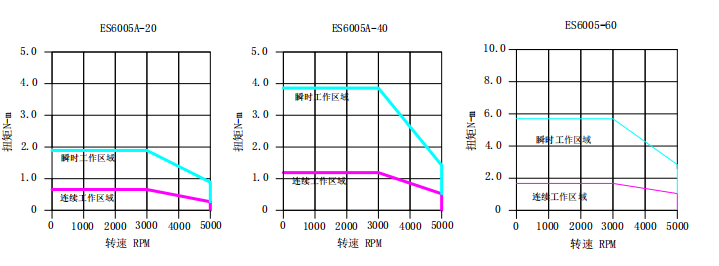

T-N Curve




Company Profile




Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.


Product Range







Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.



Certificate


Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service


When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

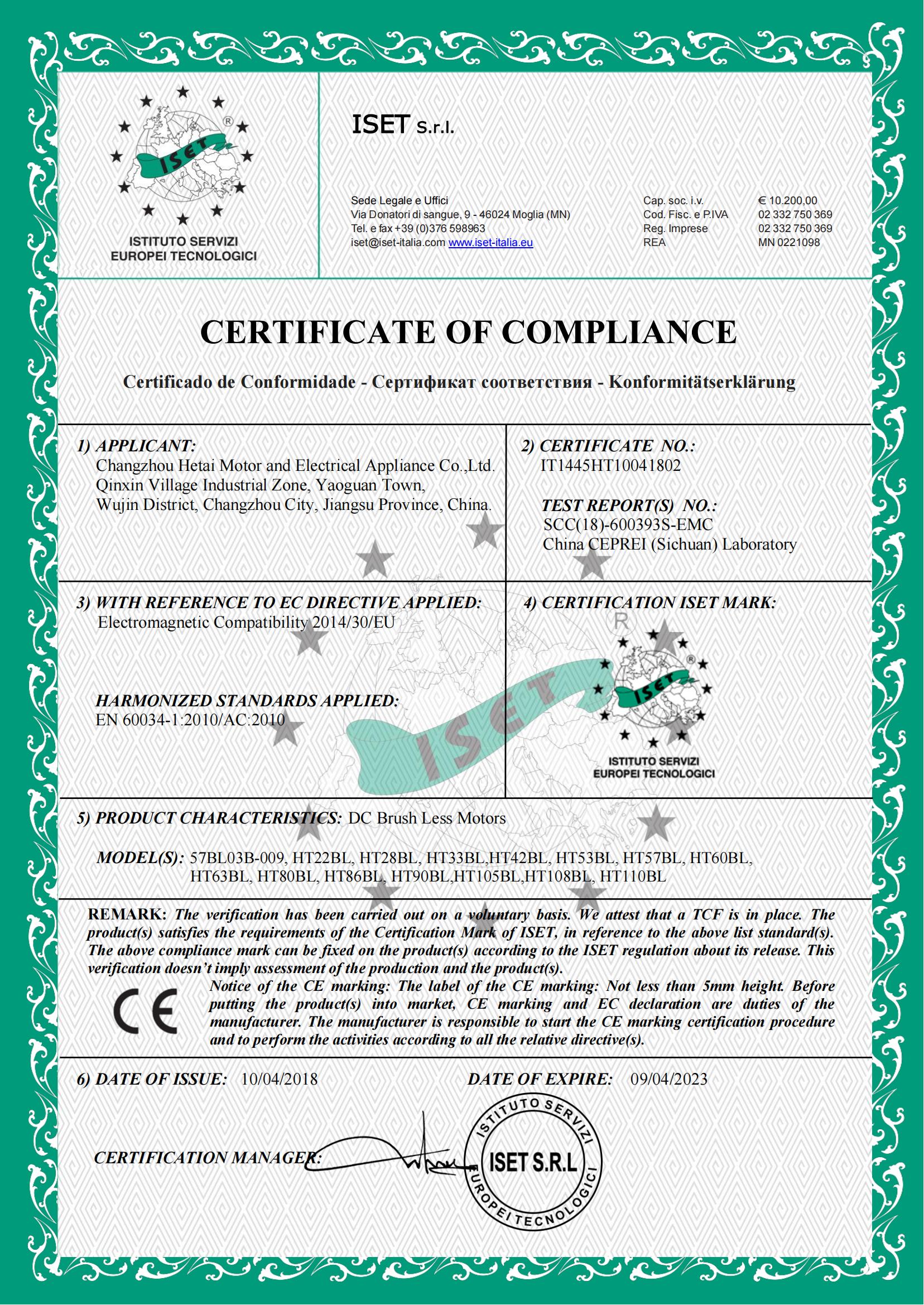

CE Of DC Brushless Motor
Date of expire:09 April 2023
CE Of Hybrid Stepping Motor
Date of expire:09 April 2023

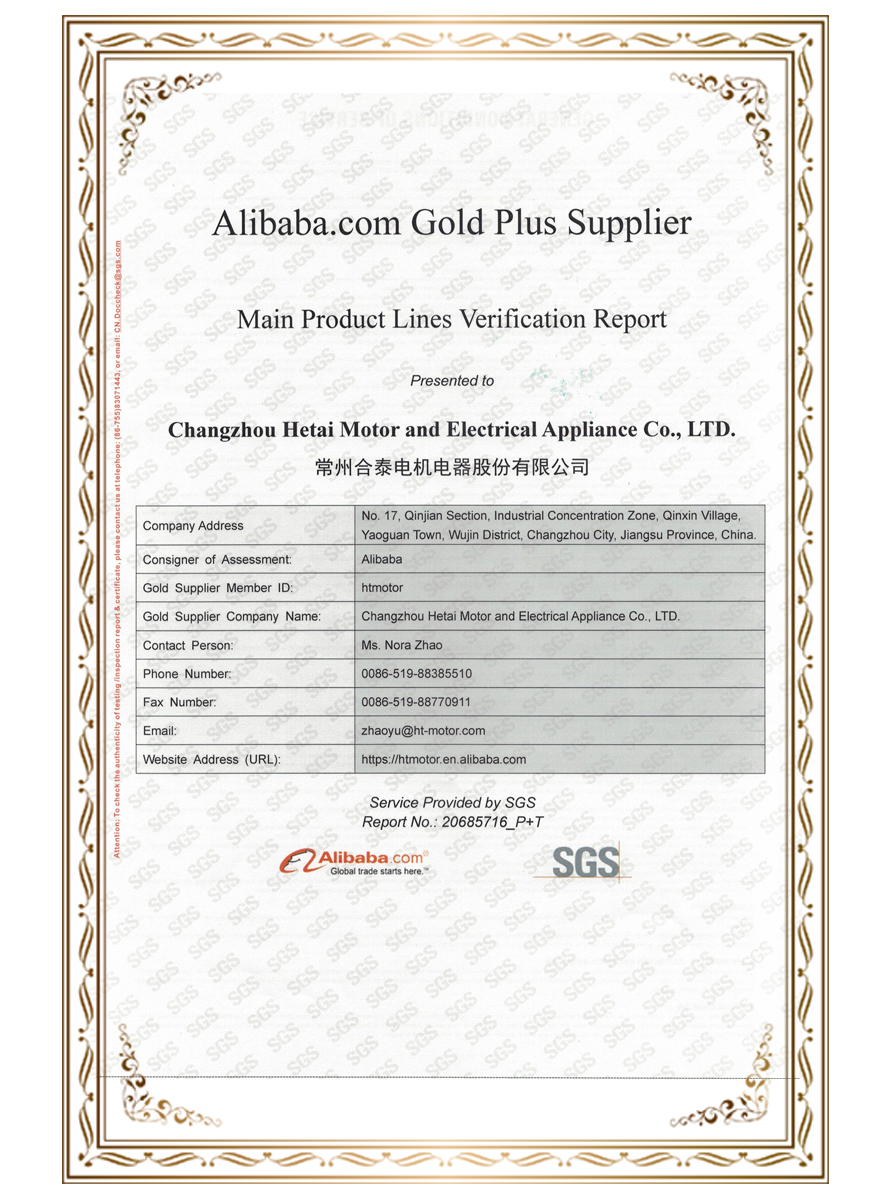

Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified




ISO 9001:2015
Valid until: 02 June 2024
IATF 16949:2016
Valid until: 02 June 2024



Experienced Servo Motor Supplier

Hetai is an experienced motor manufacturer since 1999. The specialization, scale of production has ensured to manufacture of five million motors every year.
We produces AC, DC servo motor from 40mm~130mm, power from 40W~4KW. Matching with different encoder, brake and so on.

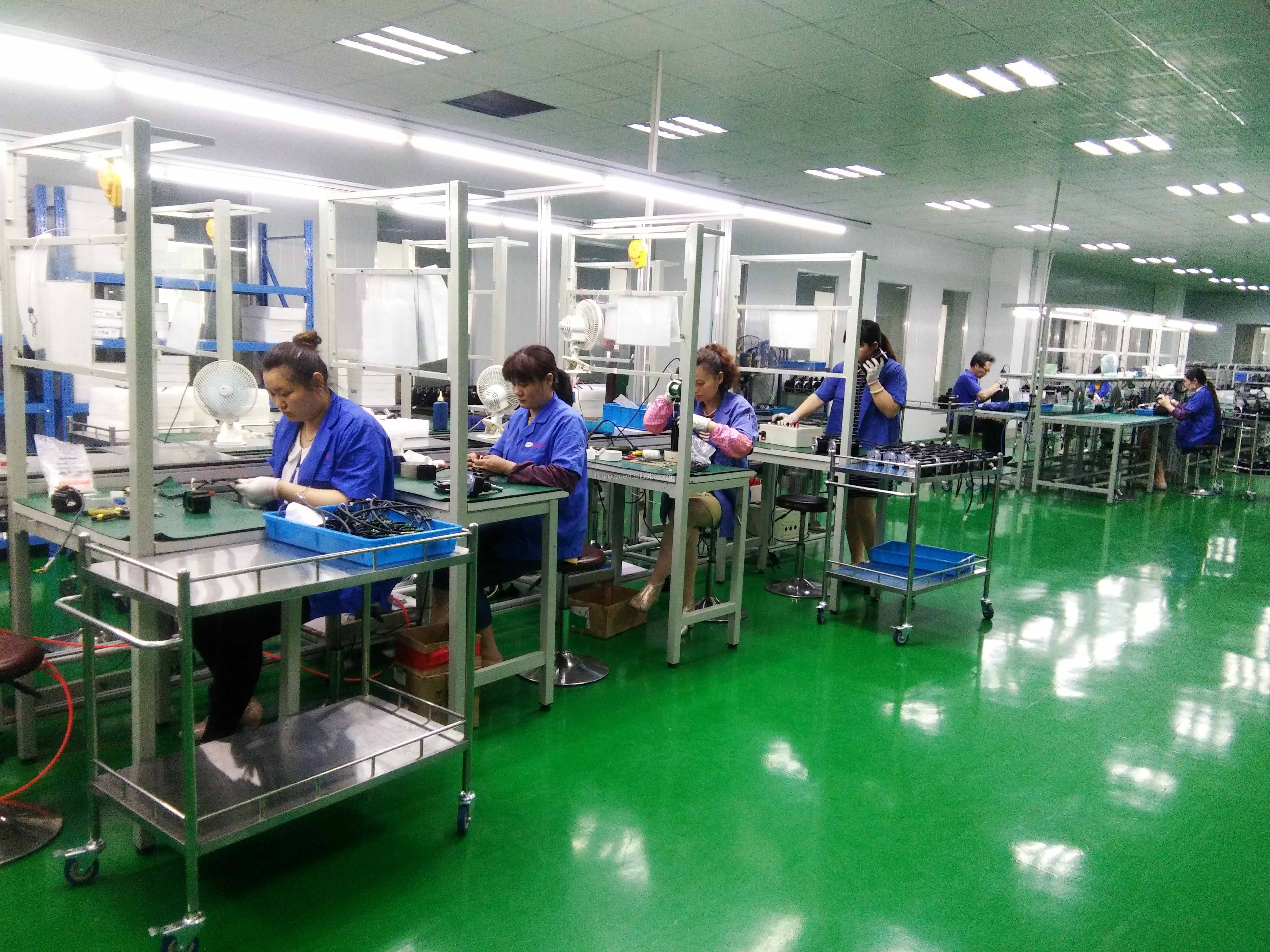

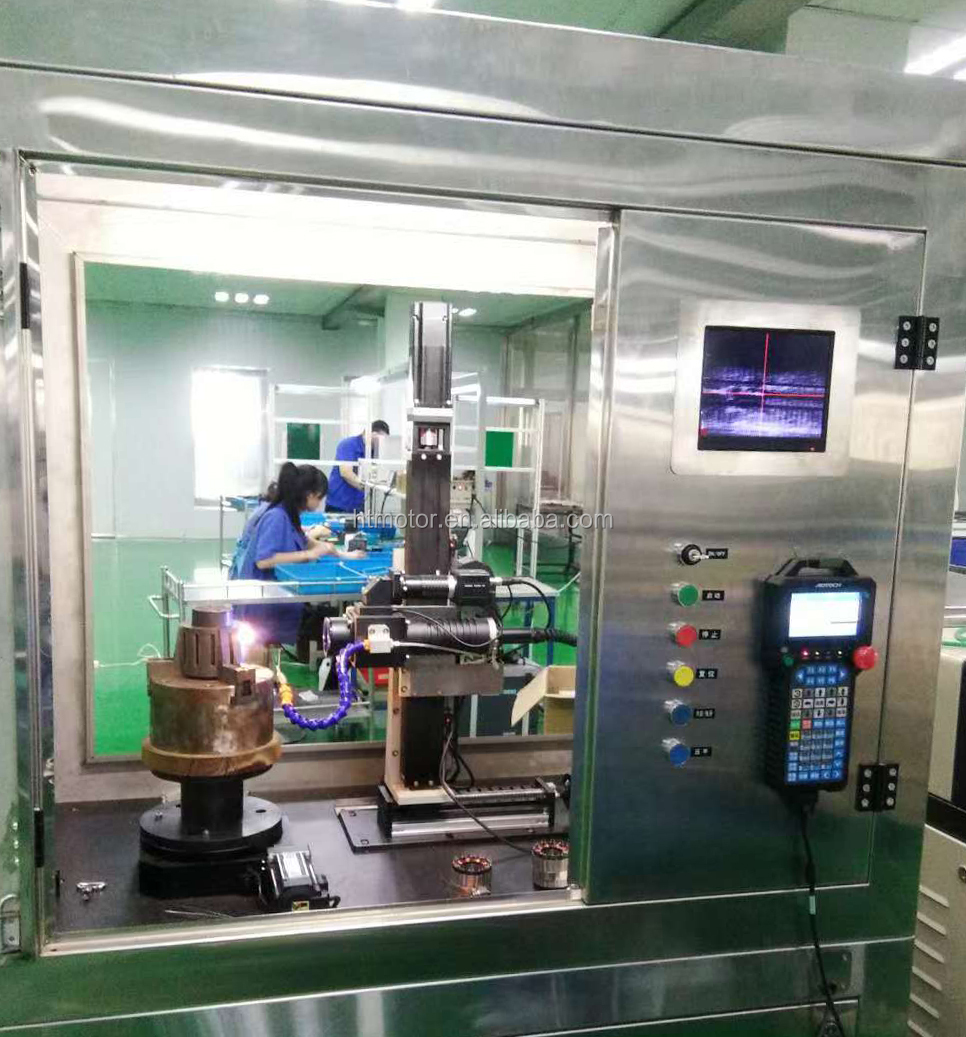

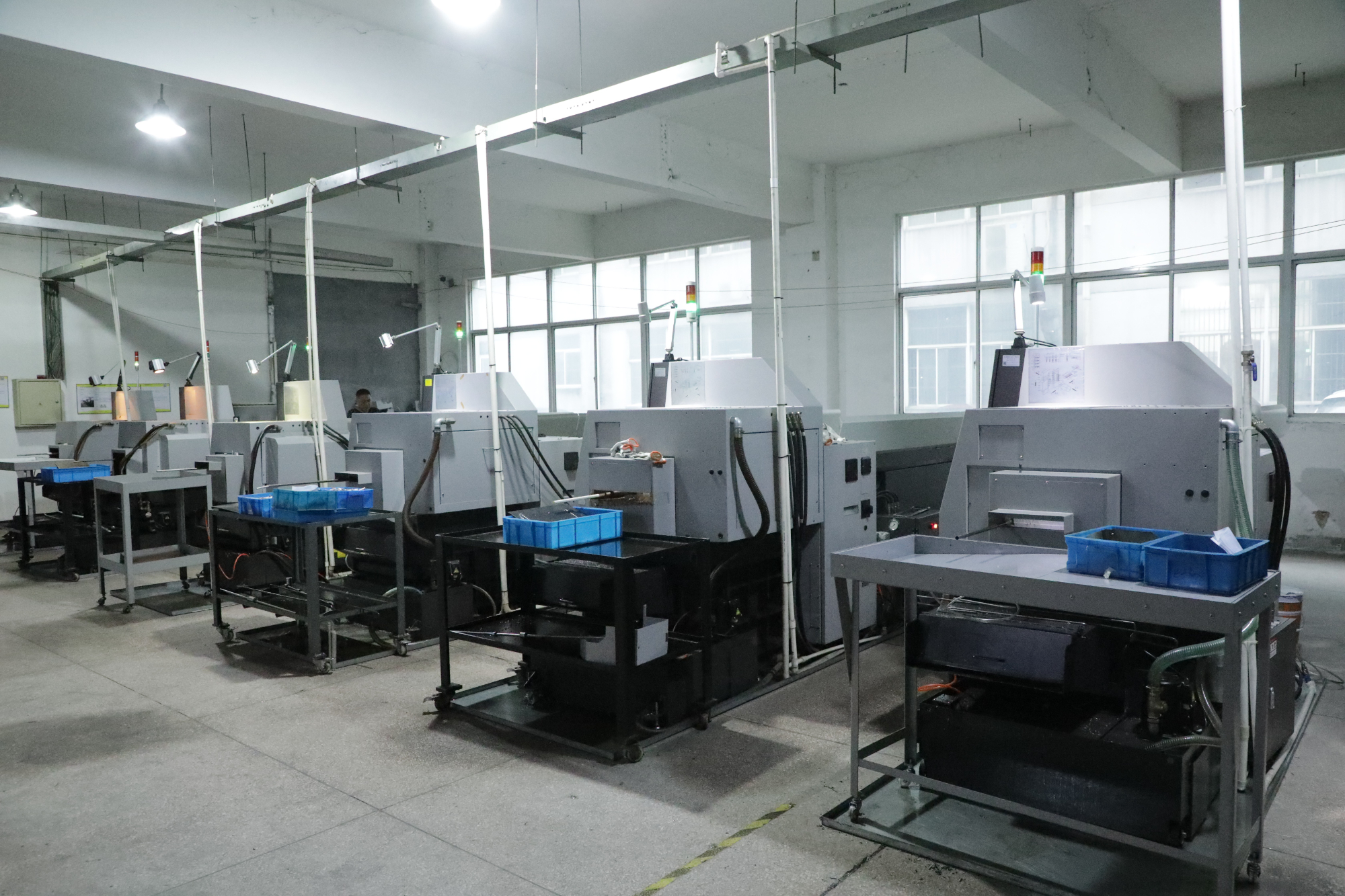

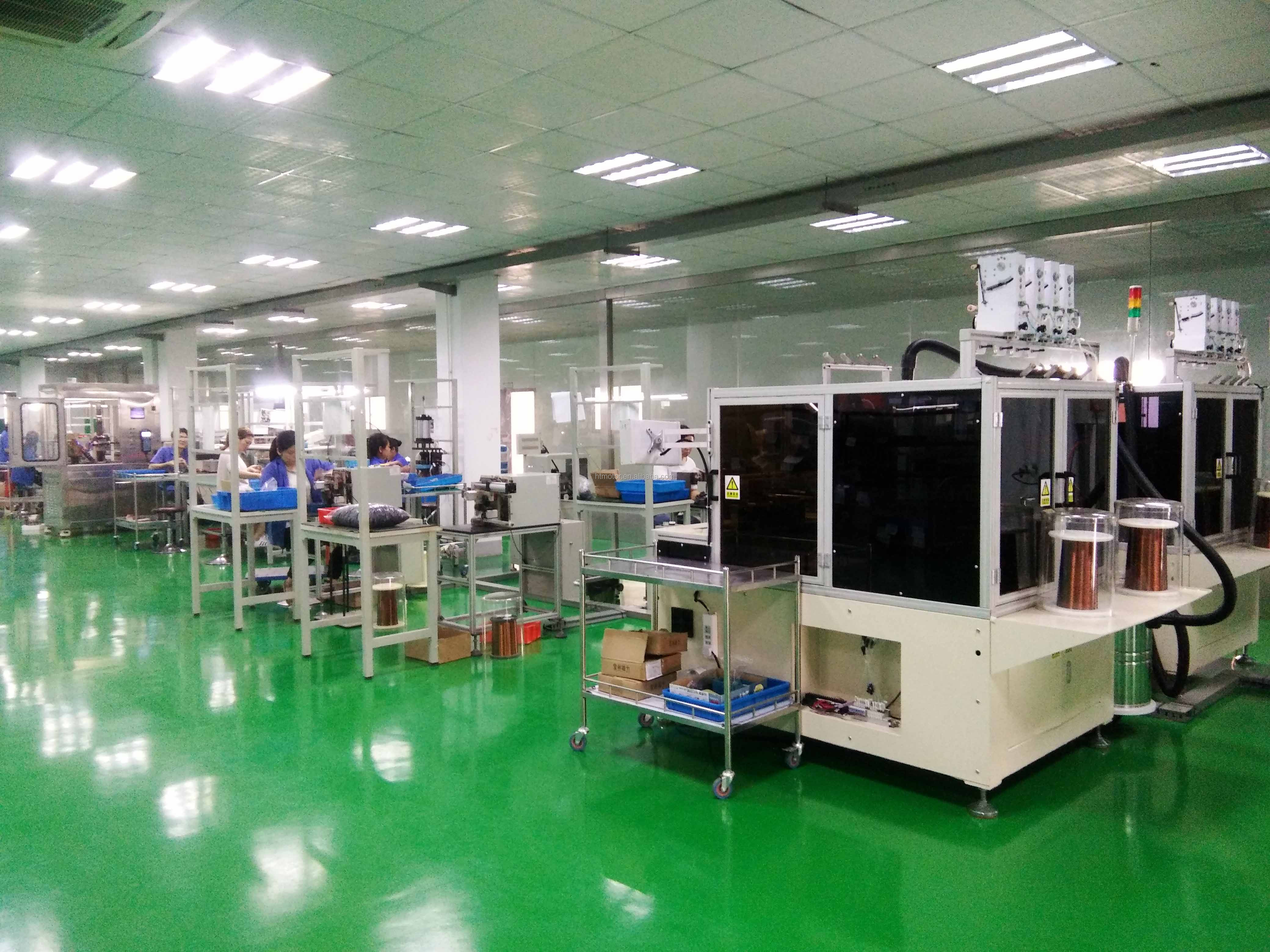

Servo Motor Assembly Line, Laser Spot Welder

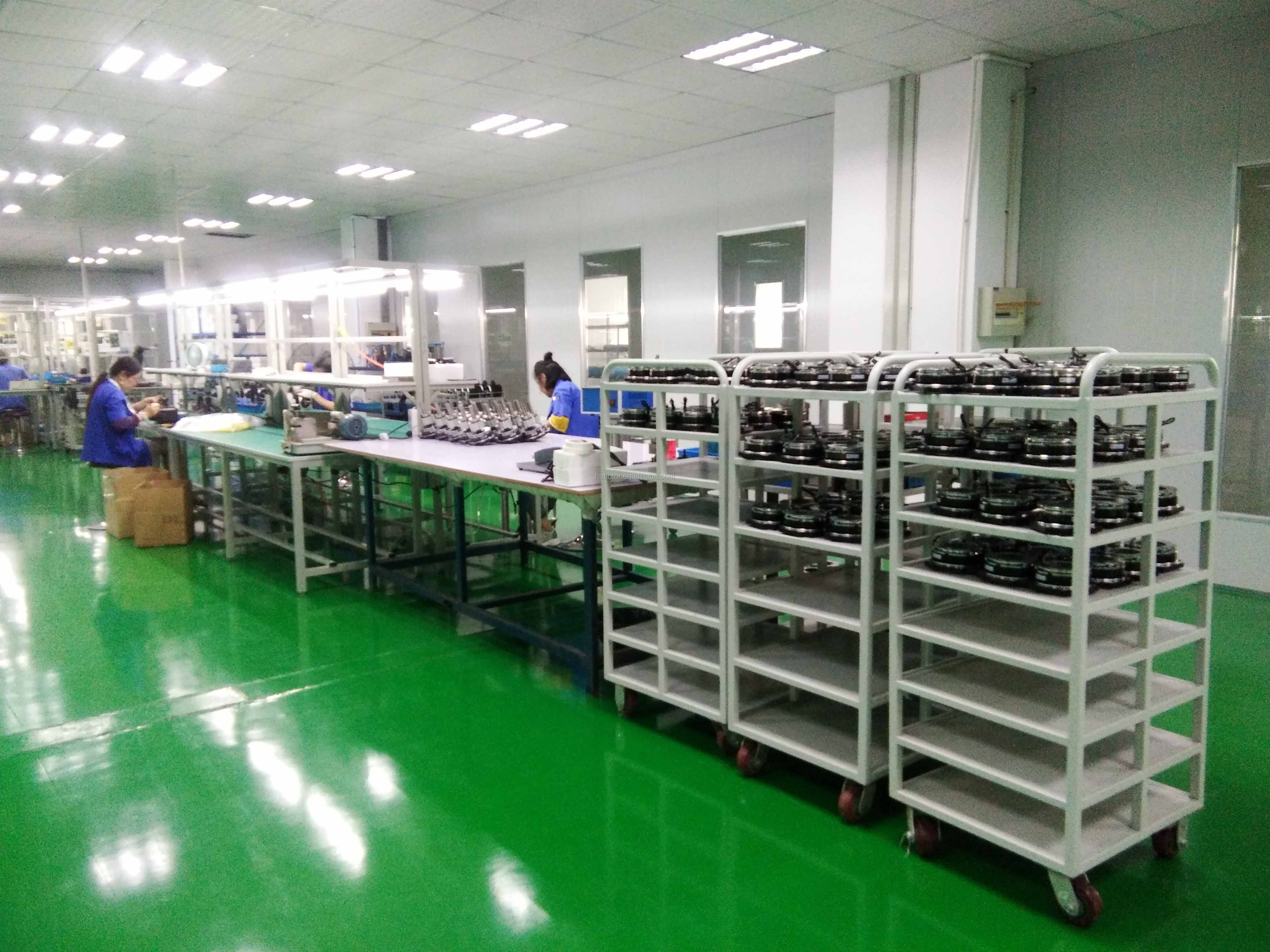

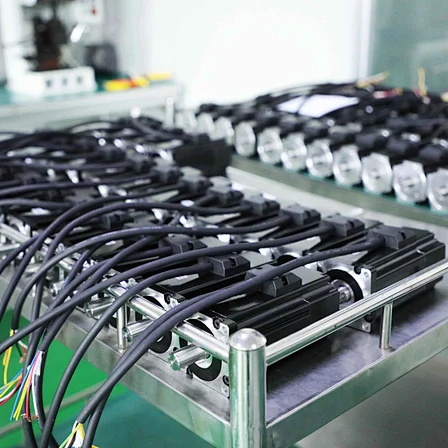

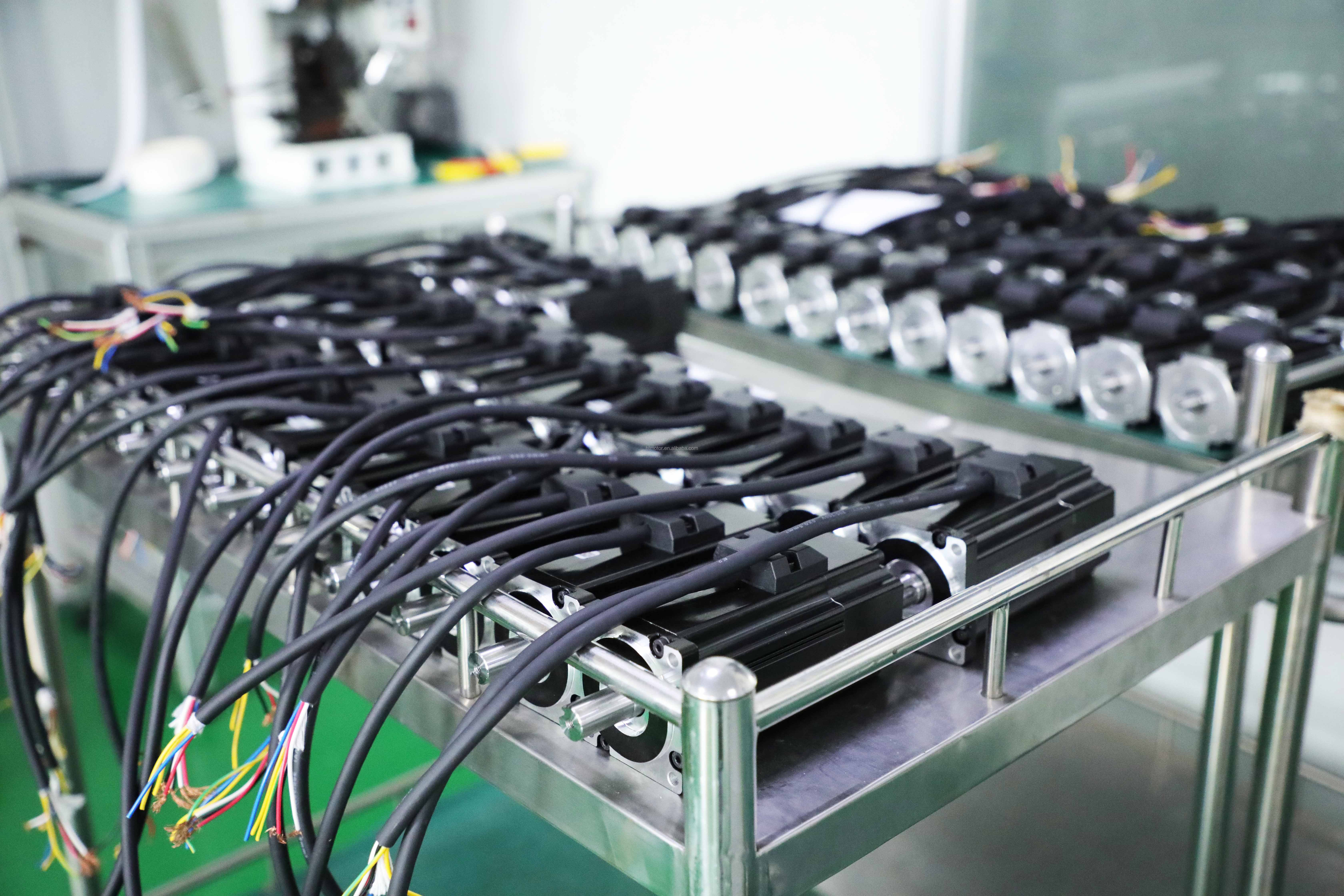

Semi-finished Products

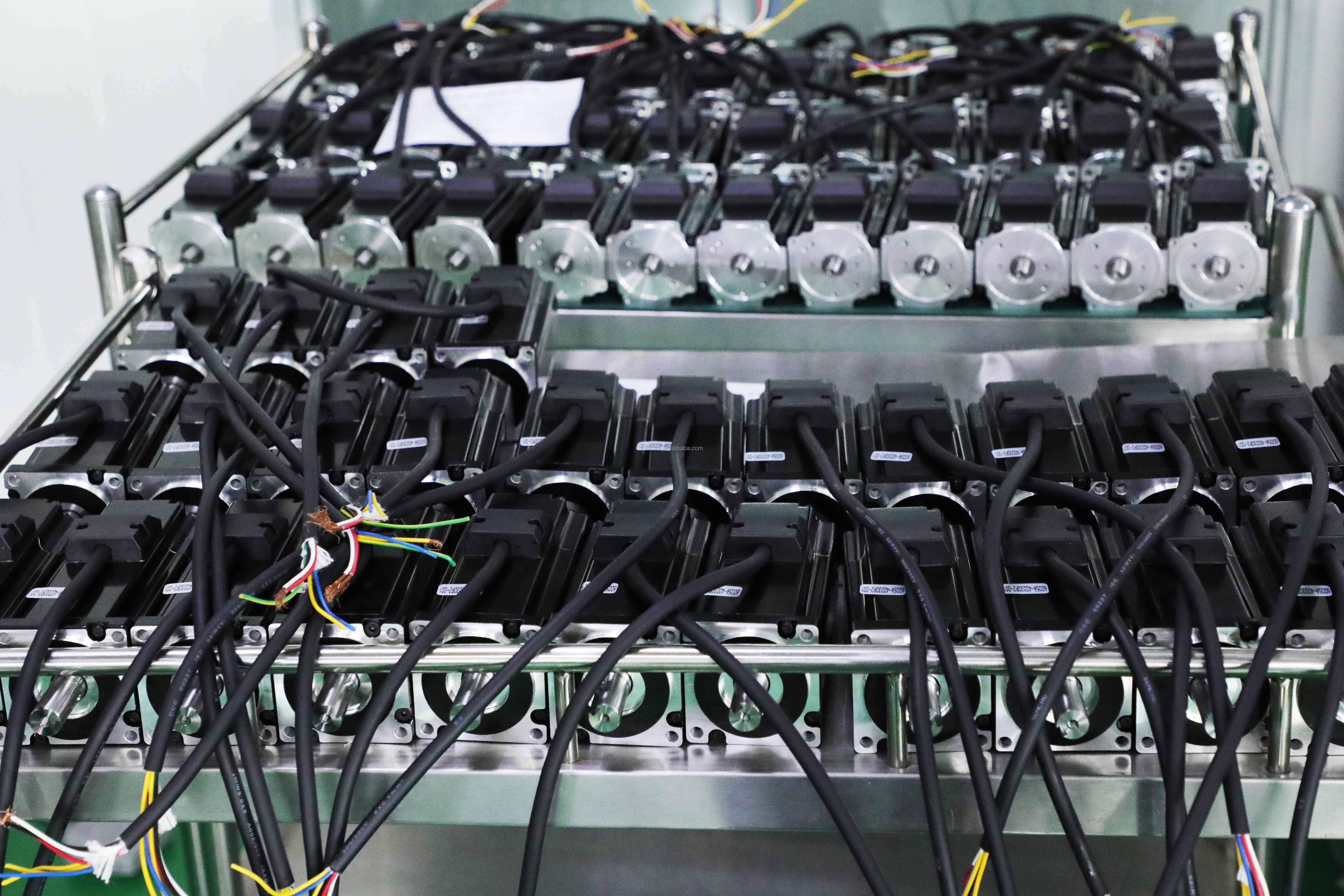

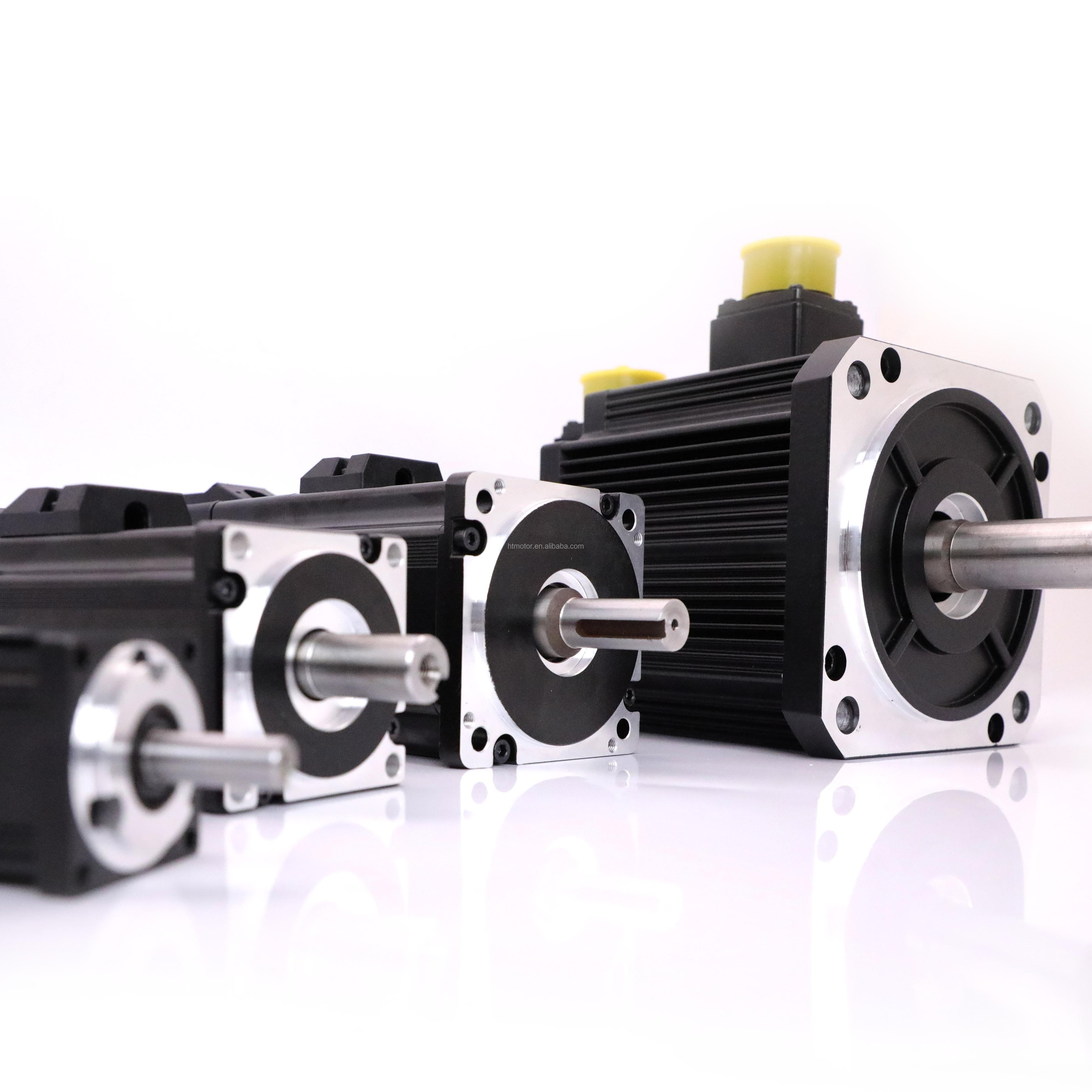

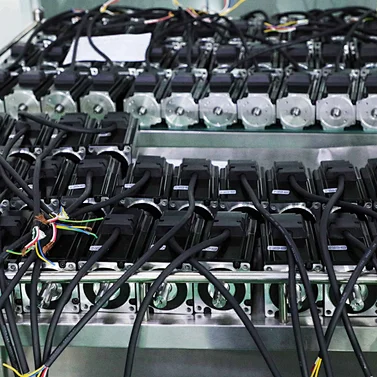

Finished Products

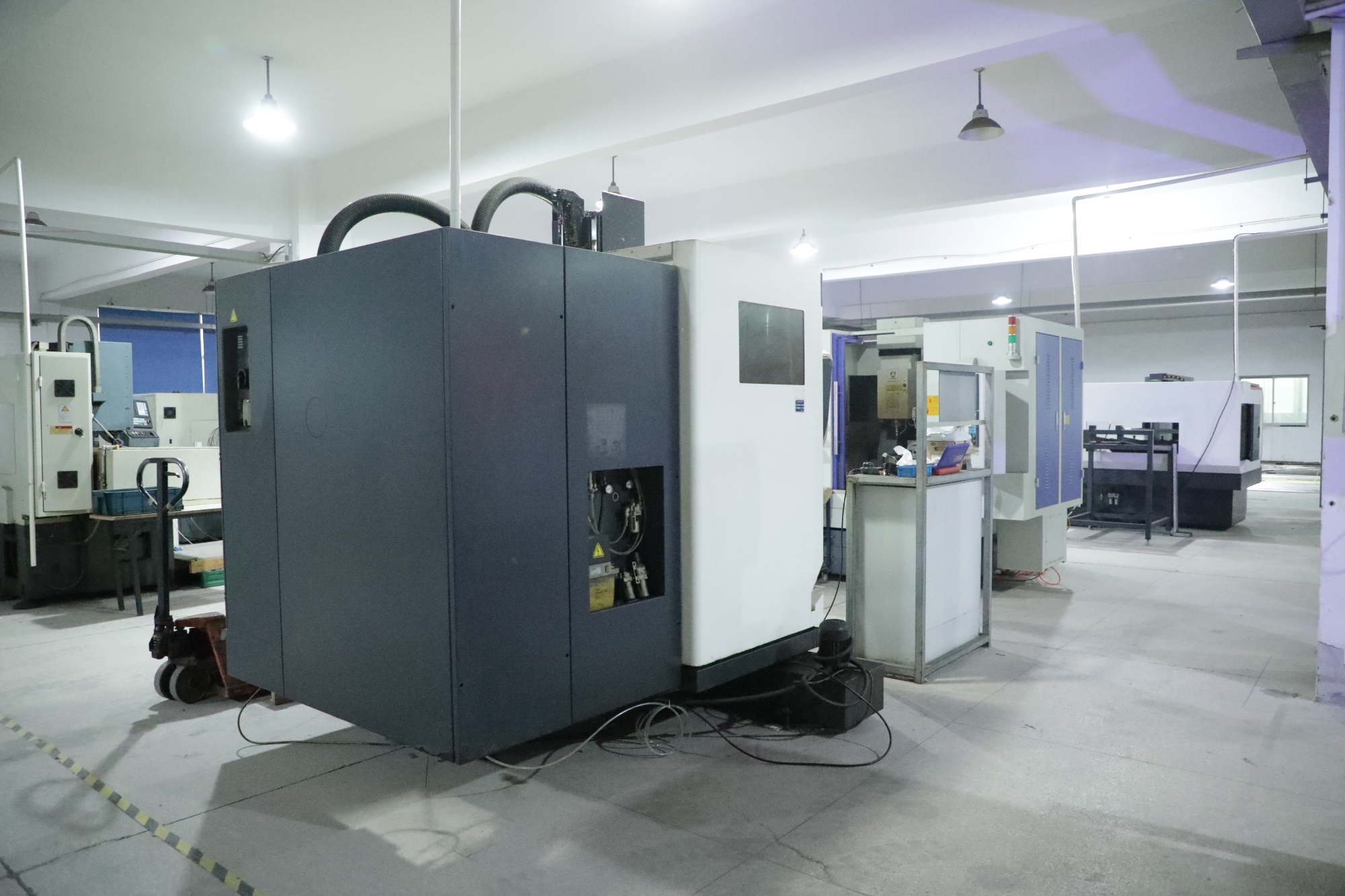

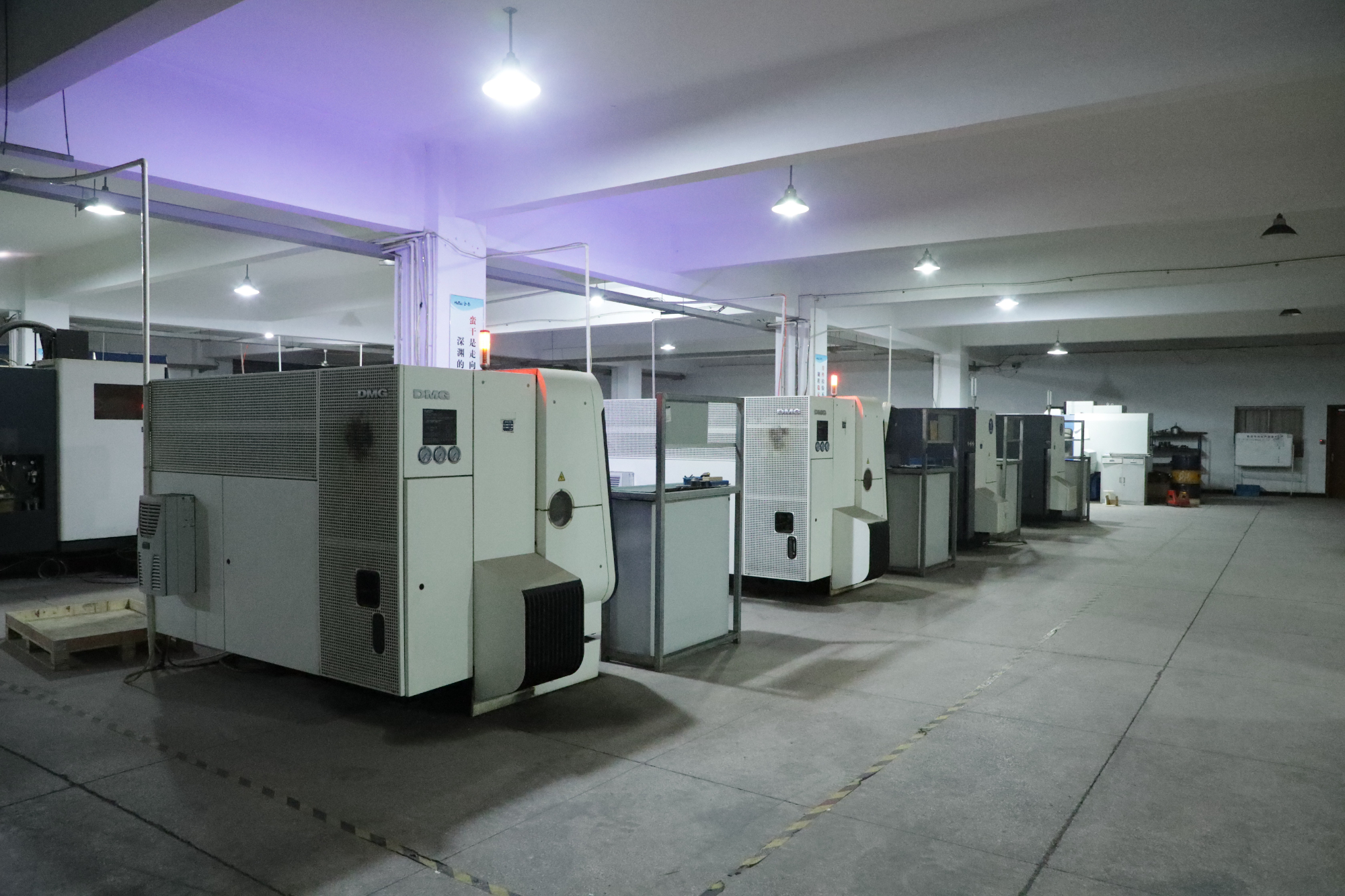

CNC Center

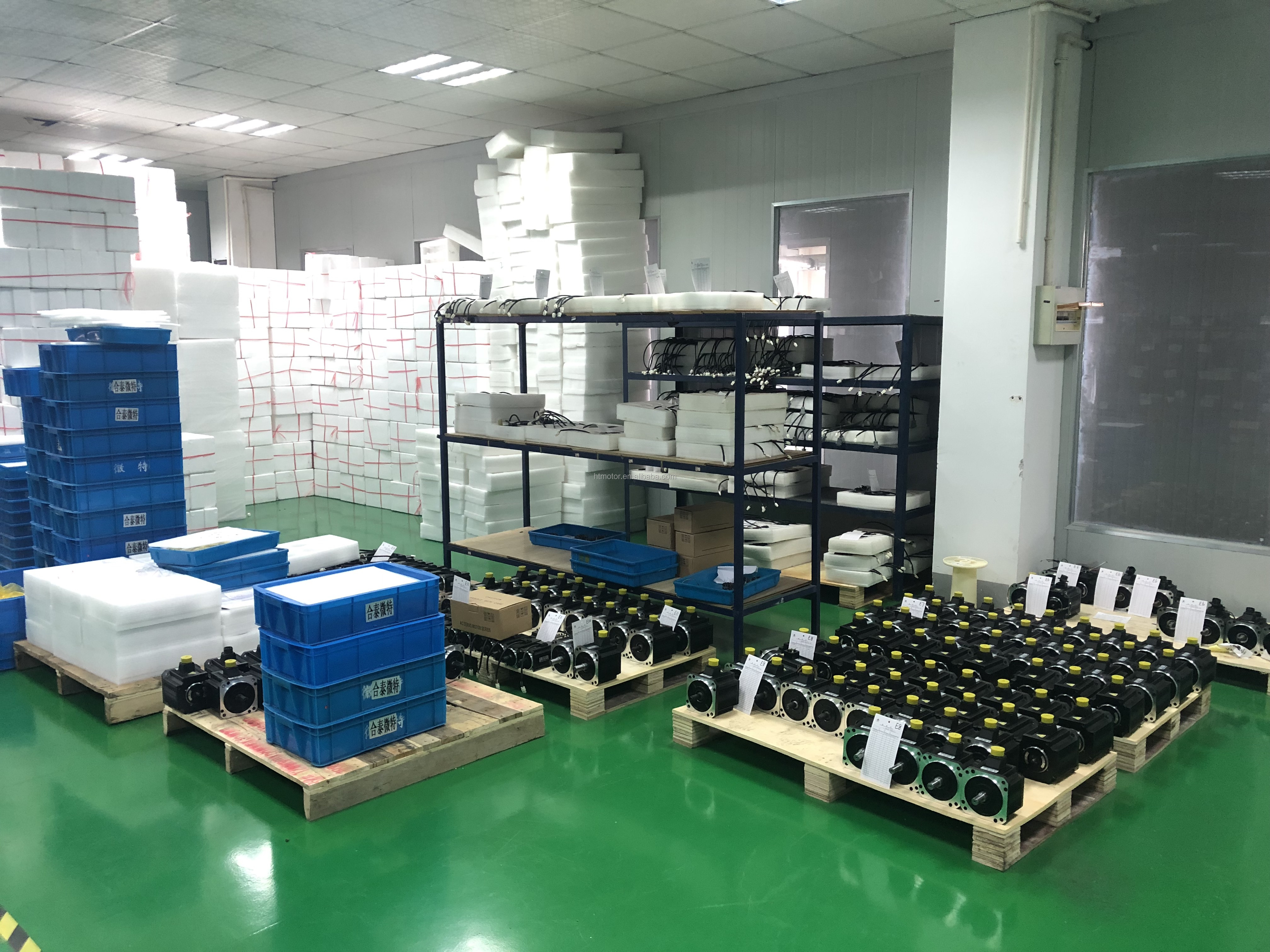

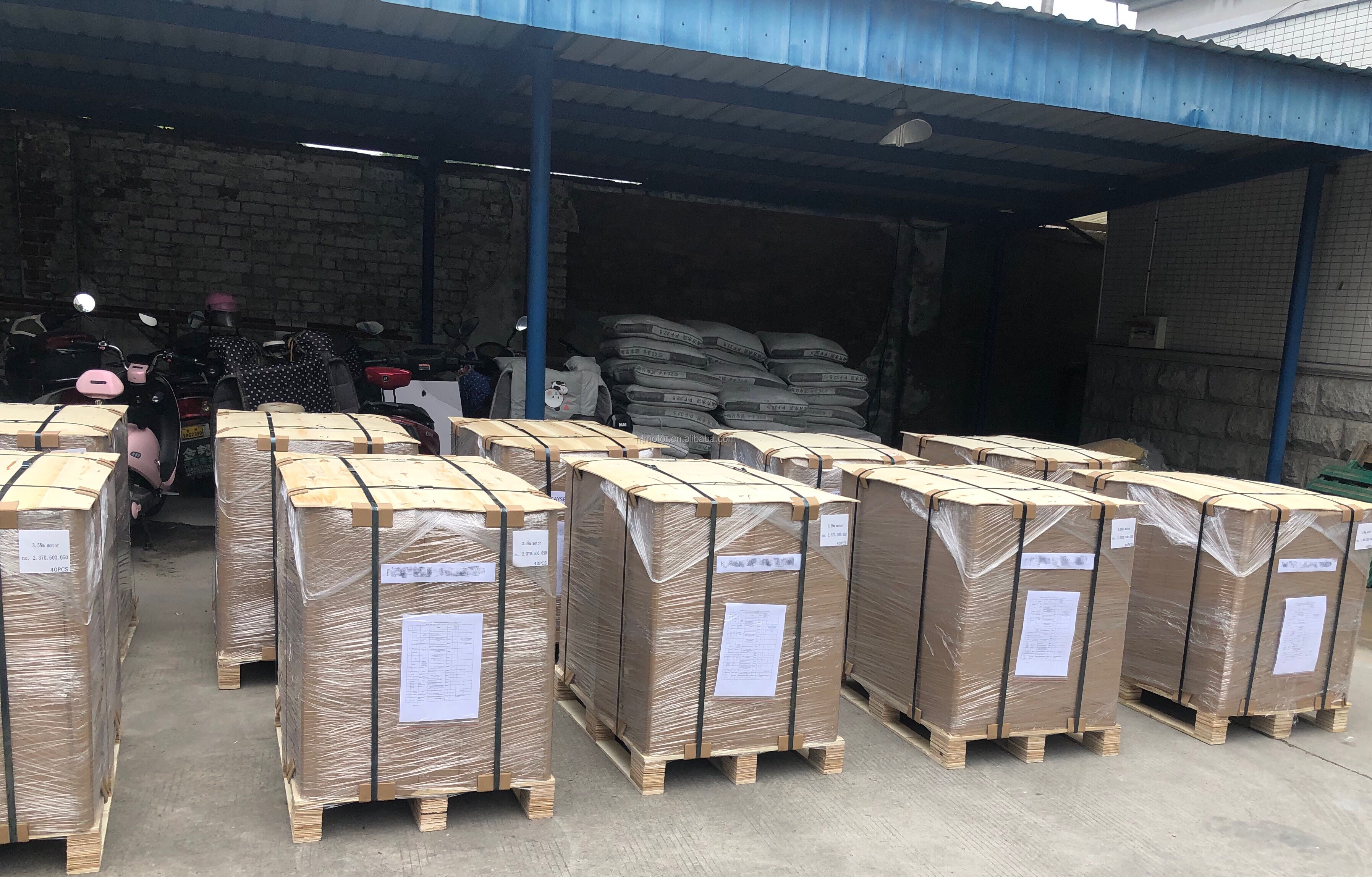

Package & Delivery
