Cnc Servo Motor Milling Machine
Cnc Servo Motor Milling Machine
Cnc Servo Motor Milling Machine
Cnc Servo Motor Milling Machine
Cnc Servo Motor Milling Machine
Cnc Servo Motor Milling Machine
Model No: ES13005G

Factory Price Servo Motor and Driver Kit For Cnc Milling Machine 1500W 2000W 3000W 9.5NM 3000RPM

minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:ES13005G
  • Type:SERVO MOTOR
  • Torque:9.5N.m
  • Construction:Permanent Magnet
  • Commutation:Brushless
  • Protect Feature:Drip-proof
  • Speed(RPM):3000 RPM
  • Continuous Current(A):83A
  • Efficiency:IE 1
  • Product Name:Servo Motor
  • Rated Voltage:48V
  • Rated Torque:9.5N.M
  • Maximum Torque:28.5N.M
  • Rated Speed:3000RPM
  • Rated Current:83A
  • Rated Power:3000W
  • Insulation Class:F
  • Protection Level:IP65
  • Environment Requirement:-20℃~+55℃

Product Description


ES13005G
48V Servo Motor
Factory Supply Stable Performance
Customizable ES130 series factory direct sale high quality 48V servo motor dc brushless servo motor


Specification


Rated Voltage（V)
48
Rated Power（W）
1500
2000
3000
Model
ES13005G-150D30M1
ES13005G-200D30M1
ES13005G-300D30M1
Rated Current（Amps）
41
58
83
Rated Speed（RPM）
3000
3000
3000
Rated Torque（N.M）
4.7
6.4
9.5
Maximum Torque（N.M）
14.1
19.2
28.5
Torque Constant（N.M/Amps）
0.115
0.115
0.115
Rotor Moment Of Inertia（Kg.cm2）
4.5*10-4
6.7*10-4
8.9*10-4
Resistance Line-line（Ω）
0.06
0.038
0.015
Inductance Line-line（mH）
0.60
0.36
0.10

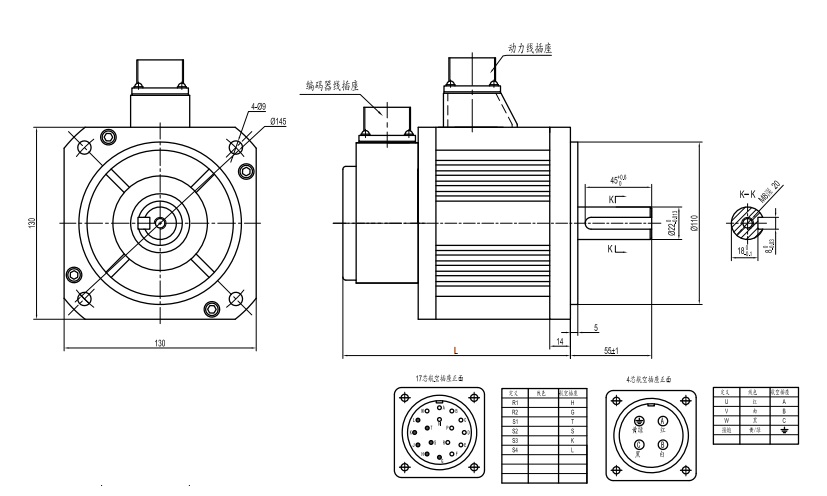

Outline




Length & Weight


Type
80
Encoder
Power
750W
1000W
Length
（mm）
Single turn absolute value(Tamagawa)
No Brake
125±1
140±1
With Brake
163±1
178±1
Multi turn
absolute value（Tamagawa）
No Brake
141±1
156±1
With Brake
179±1
194±1
Incremental 2500ppr
（Optical encoder）
No Brake
141±1
156±1
With Brake
179±
194±1
Rotary transformer
No Brake
125±1
140±1
With Brake
163±1
178±1
Nikon multi turn absolute value
No Brake
125±1
140±1
With Brake
163±1
178±1


Type
80
Encoder
Power
750W
1000W
Weight
（kg）
Single turn absolute value(Tamagawa)
No Brake
2.42
3.00
With Brake
3.50
4.00
Multi turn
absolute value（Tamagawa）
No Brake
2.42
3.00
With Brake
3.50
4.05
Incremental 2500ppr
（Optical encoder）
No Brake
2.43
3.00
With Brake
3.50
4.06
Rotary transformer
No Brake
2.63
3.20
With Brake
3.70
4.27
Nikon multi turn absolute value
No Brake
2.37
2.93
With Brake
3.43
4.00

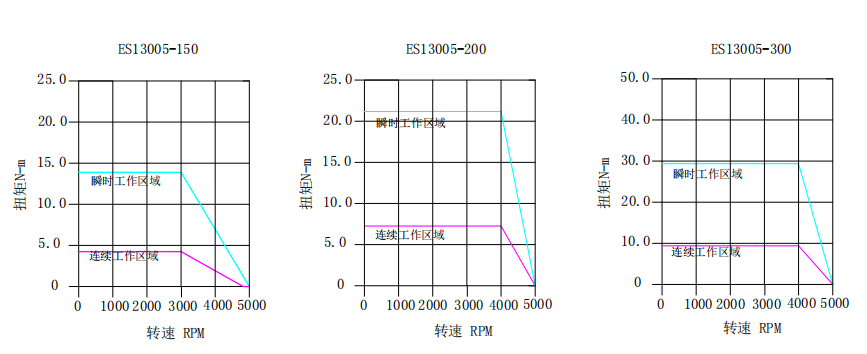

T-N Curve (3000 RPM)




Company Profile




Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

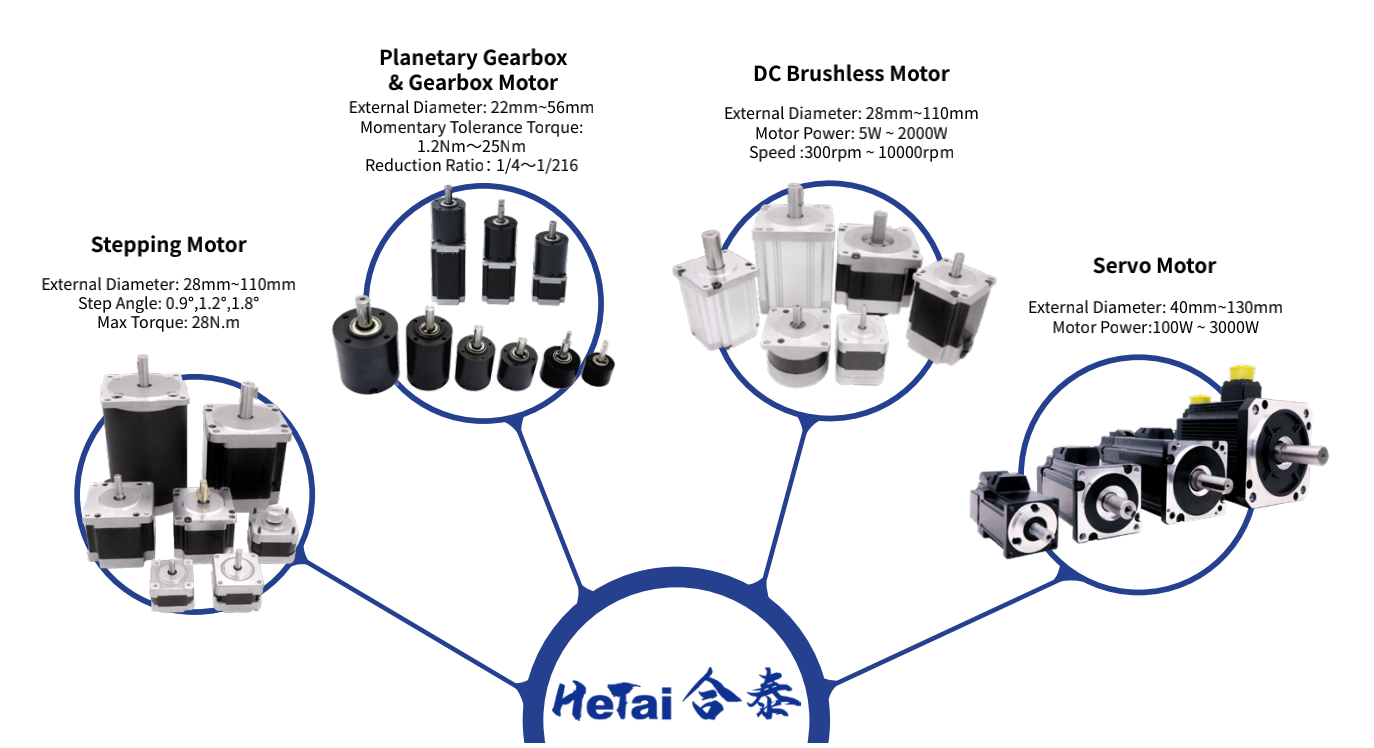

Product Range







Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.





Certificate


Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service


When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

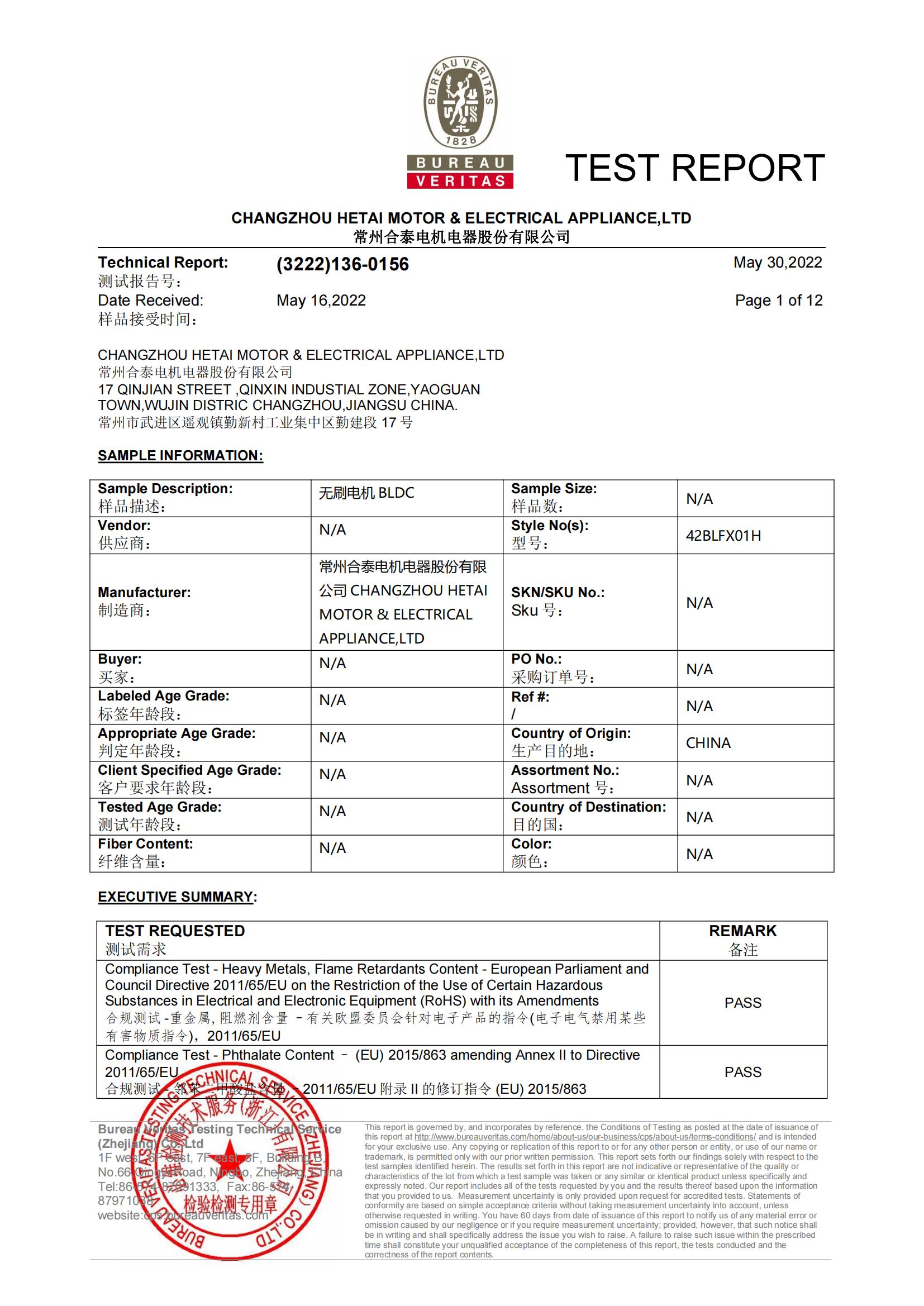

BLDC Motor ROHS report
Date: May 16, 2022

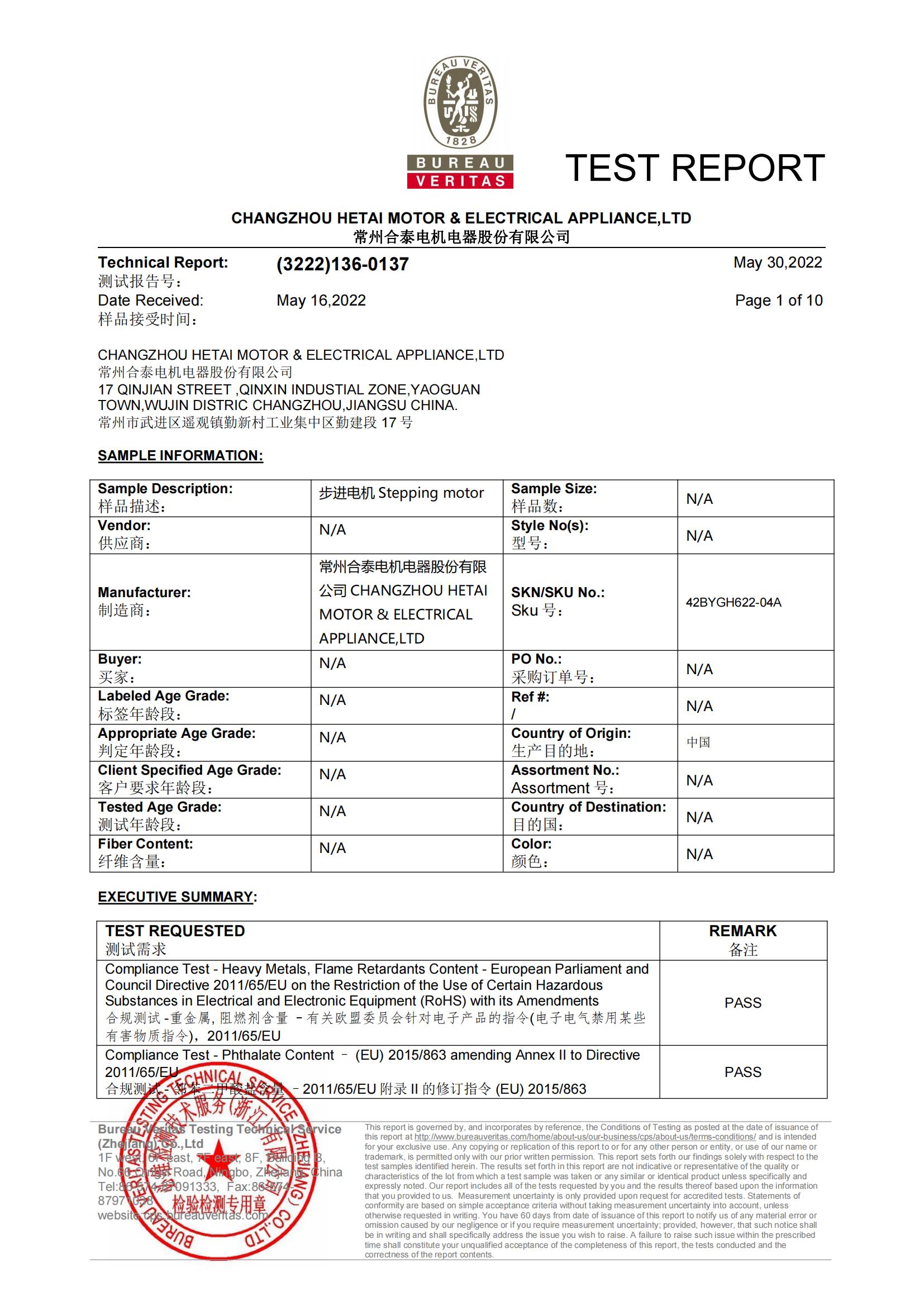

Stepper motor ROHS report
Date: May 16, 2022

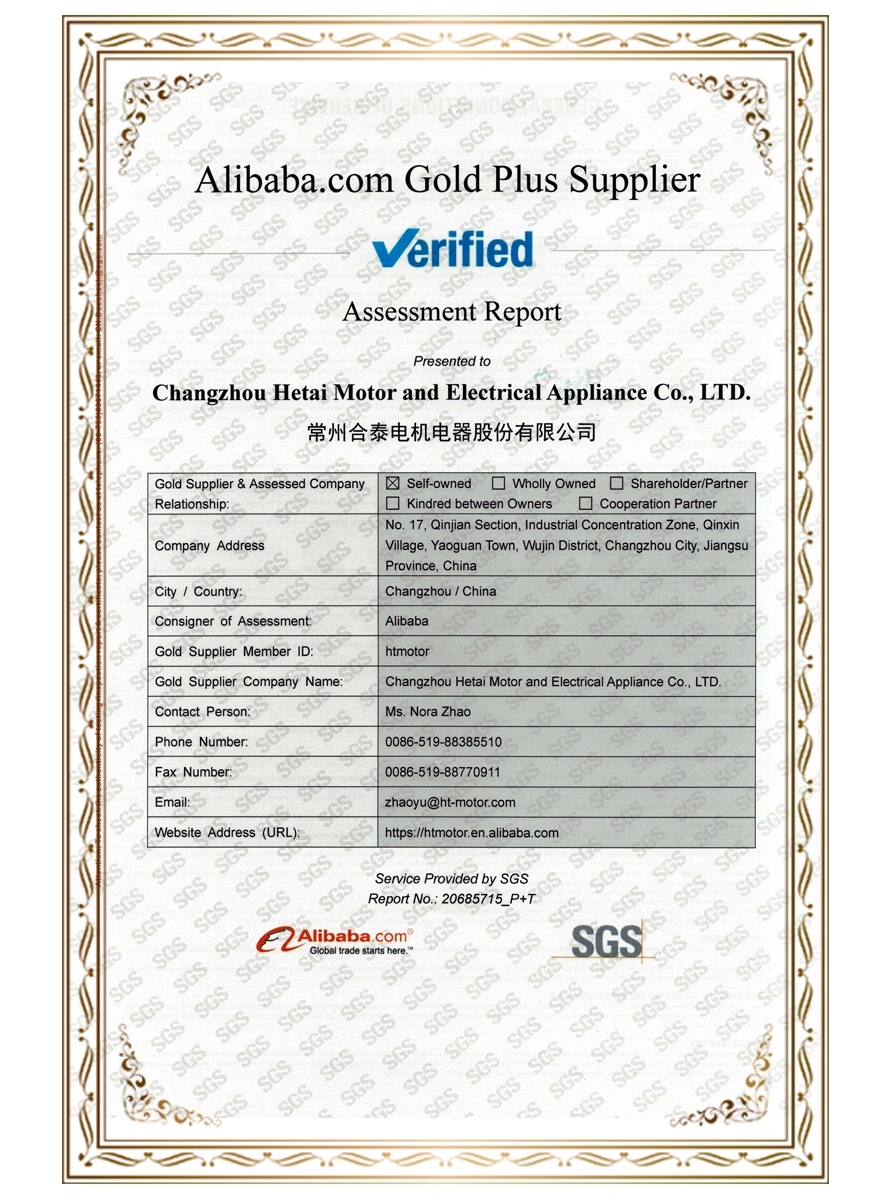

Alibaba Gold Plus Supplier
SGS Verified

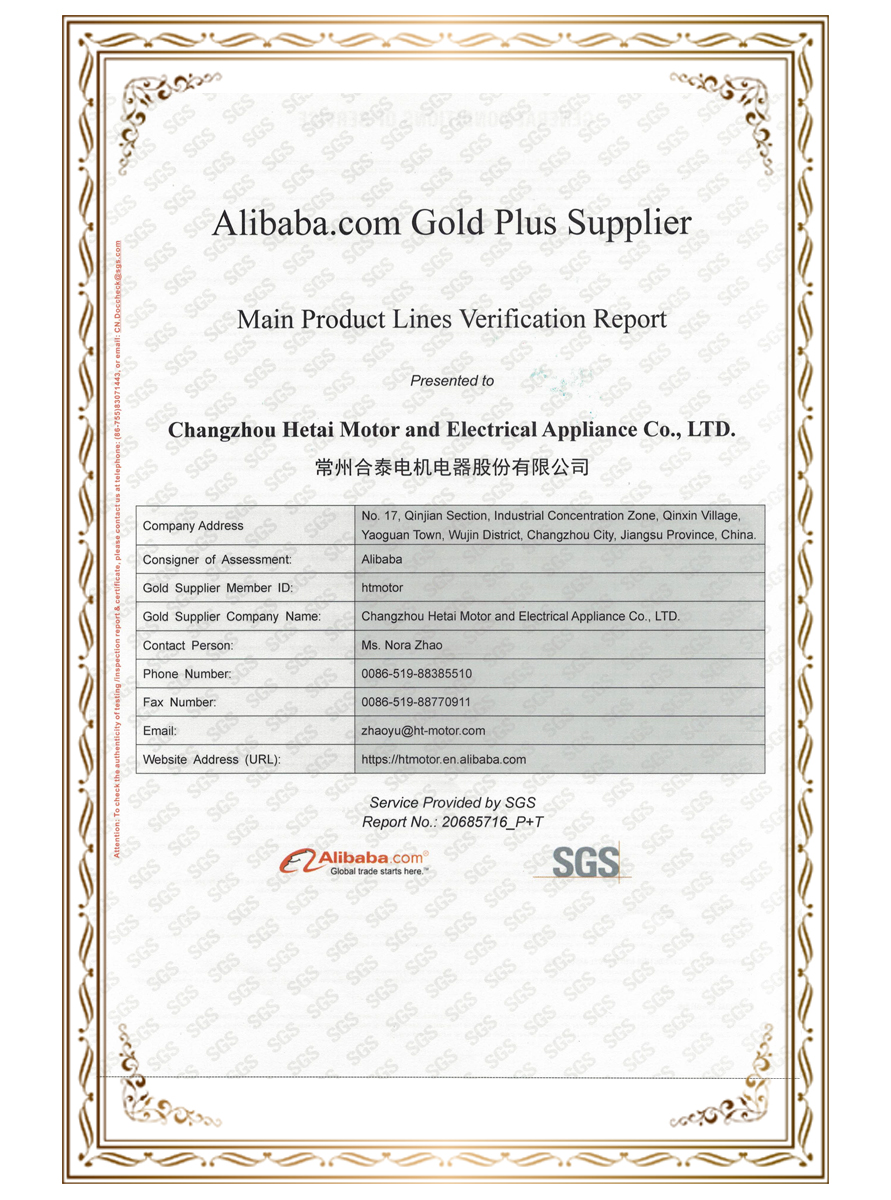

Alibaba Gold Plus Supplier
SGS Verified




ISO 9001:2015
Valid until: 02 June 2024
IATF 16949:2016
Valid until: 02 June 2024



Experienced Servo Motor Supplier

Hetai is an experienced motor manufacturer since 1999. The specialization, scale of production has ensured to manufacture of five million motors every year.

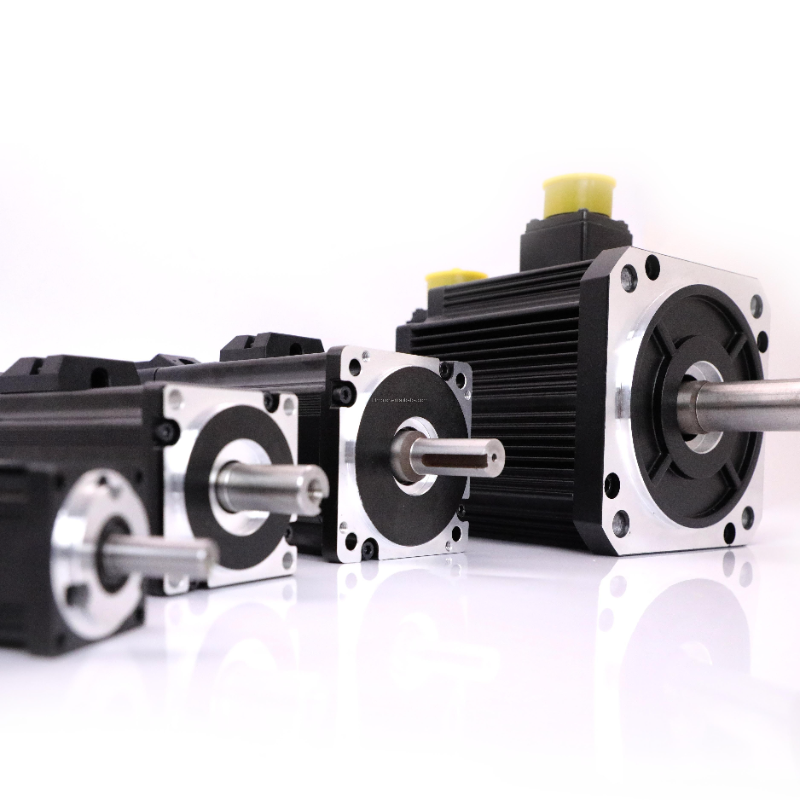

We produces AC, DC servo motor from 40mm~130mm, power from 40W~4KW. Matching with different encoder, brake and so on.

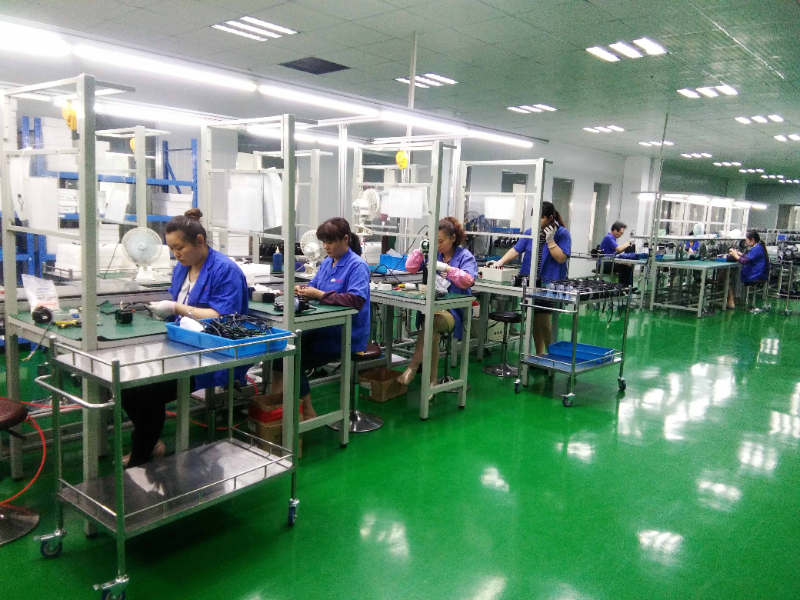

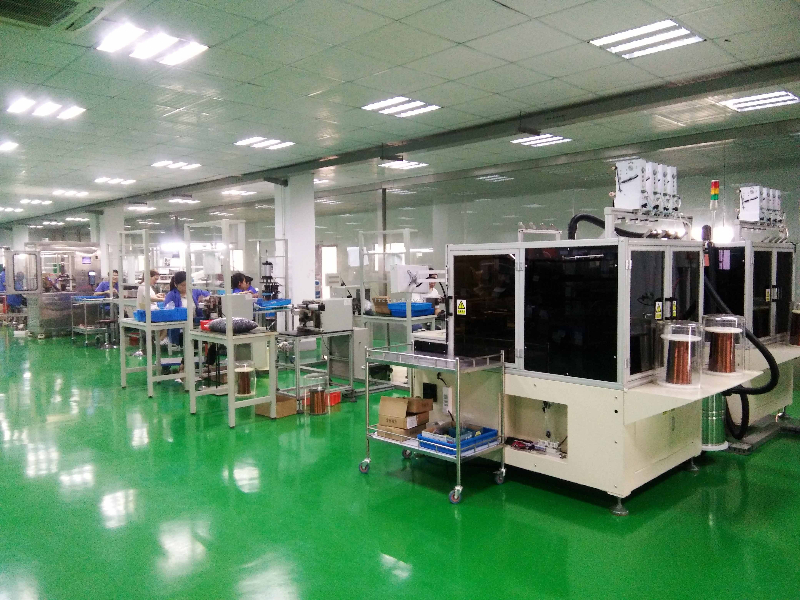

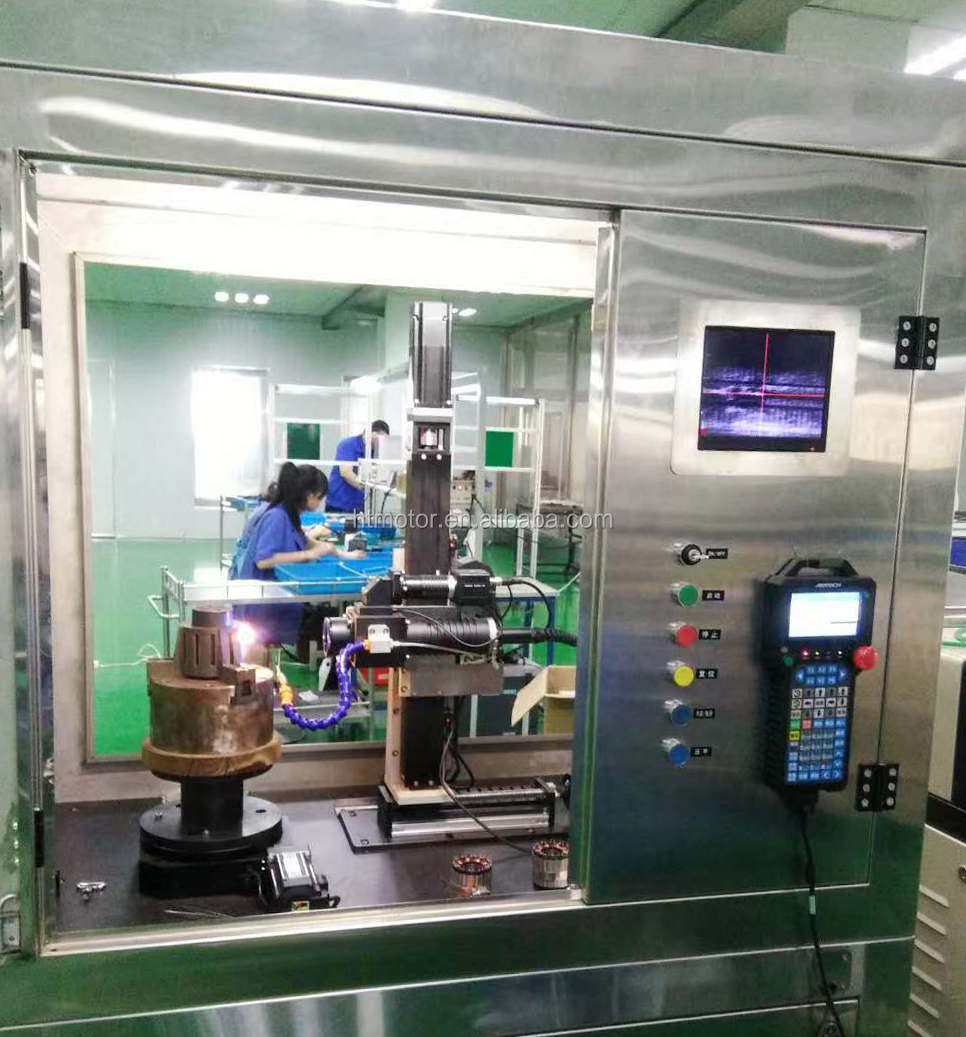

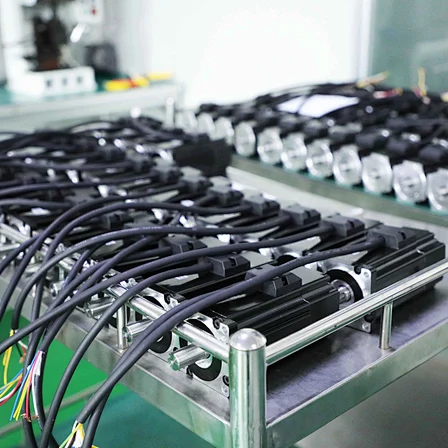

Servo Motor Assembly Line, Laser Spot Welder

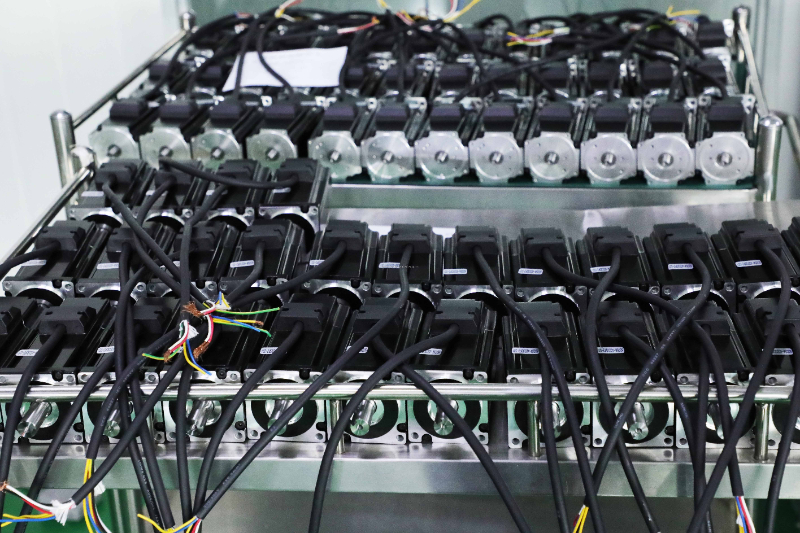

Semi-finished Products

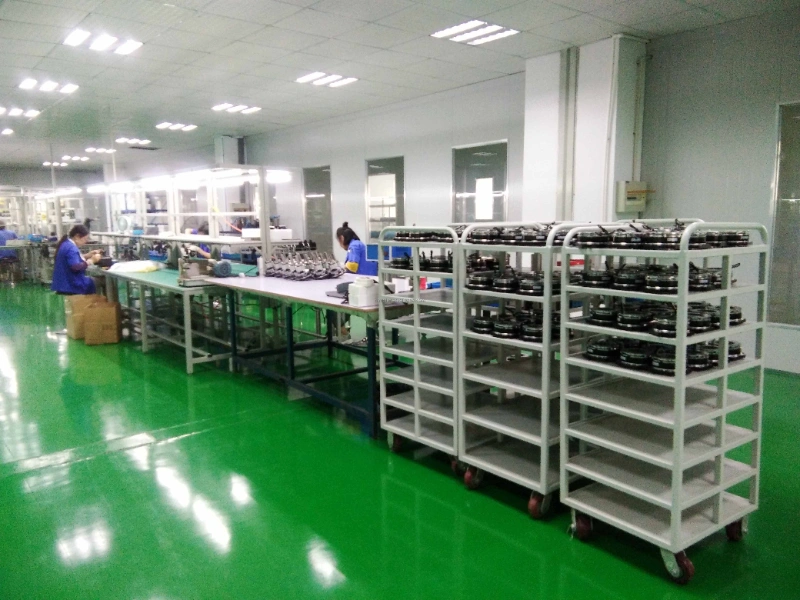

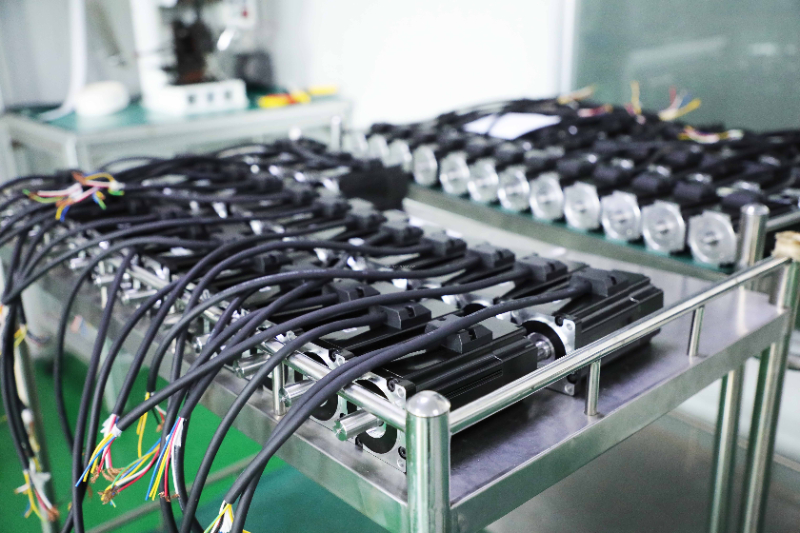

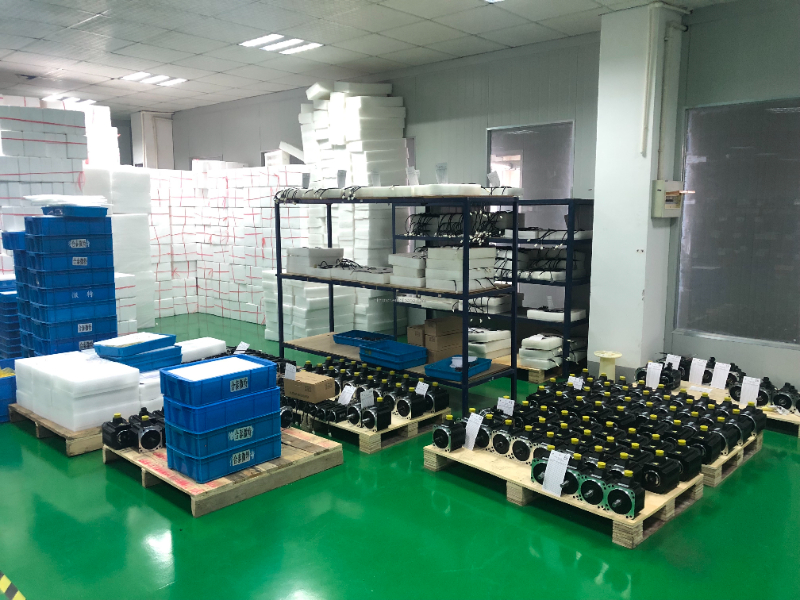

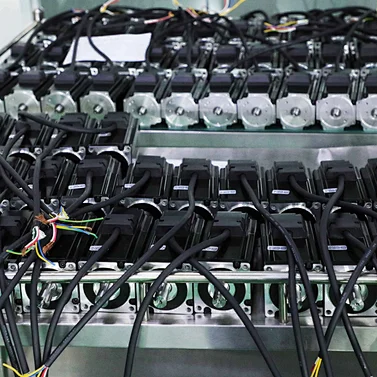

Finished Products

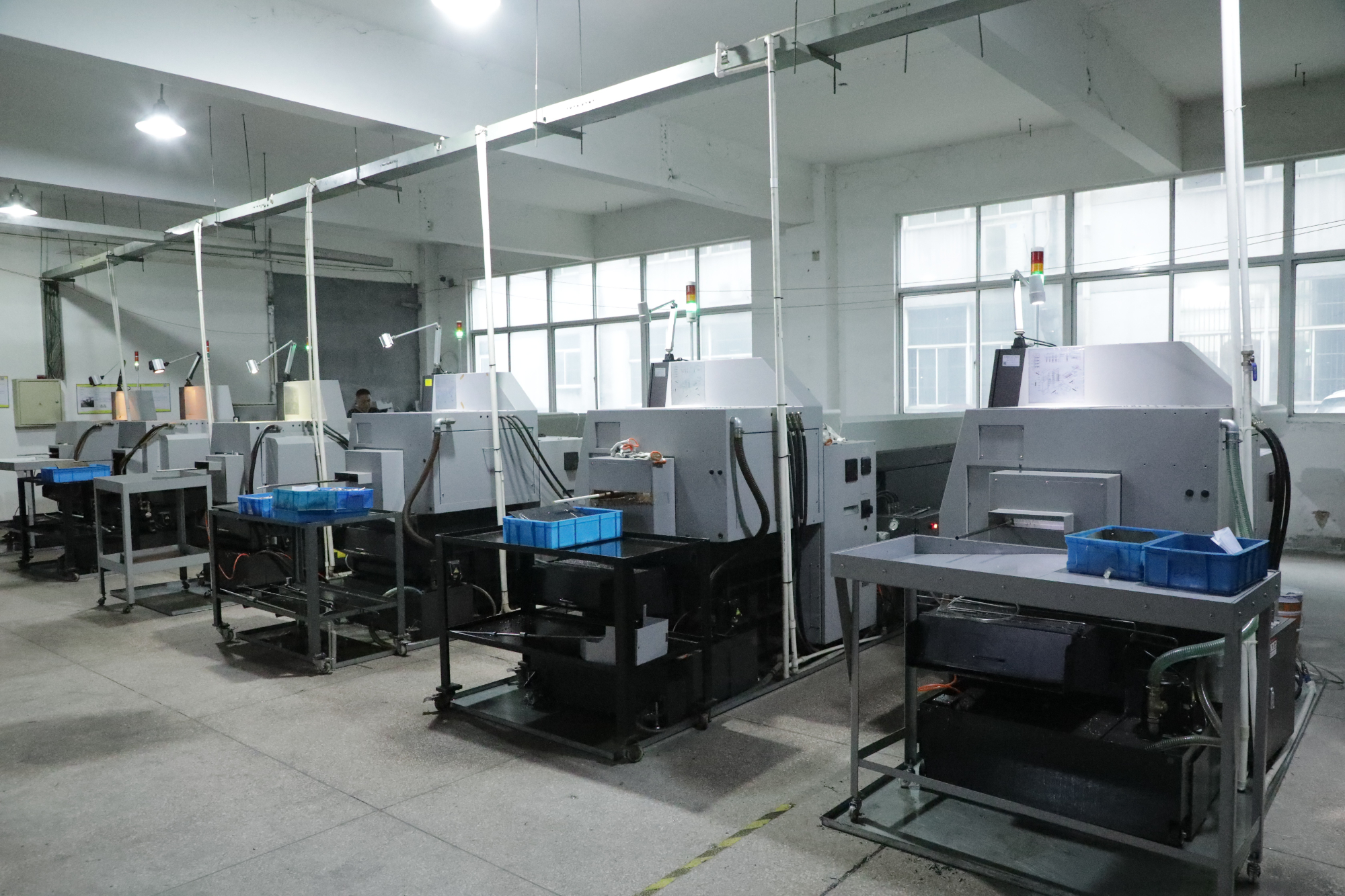

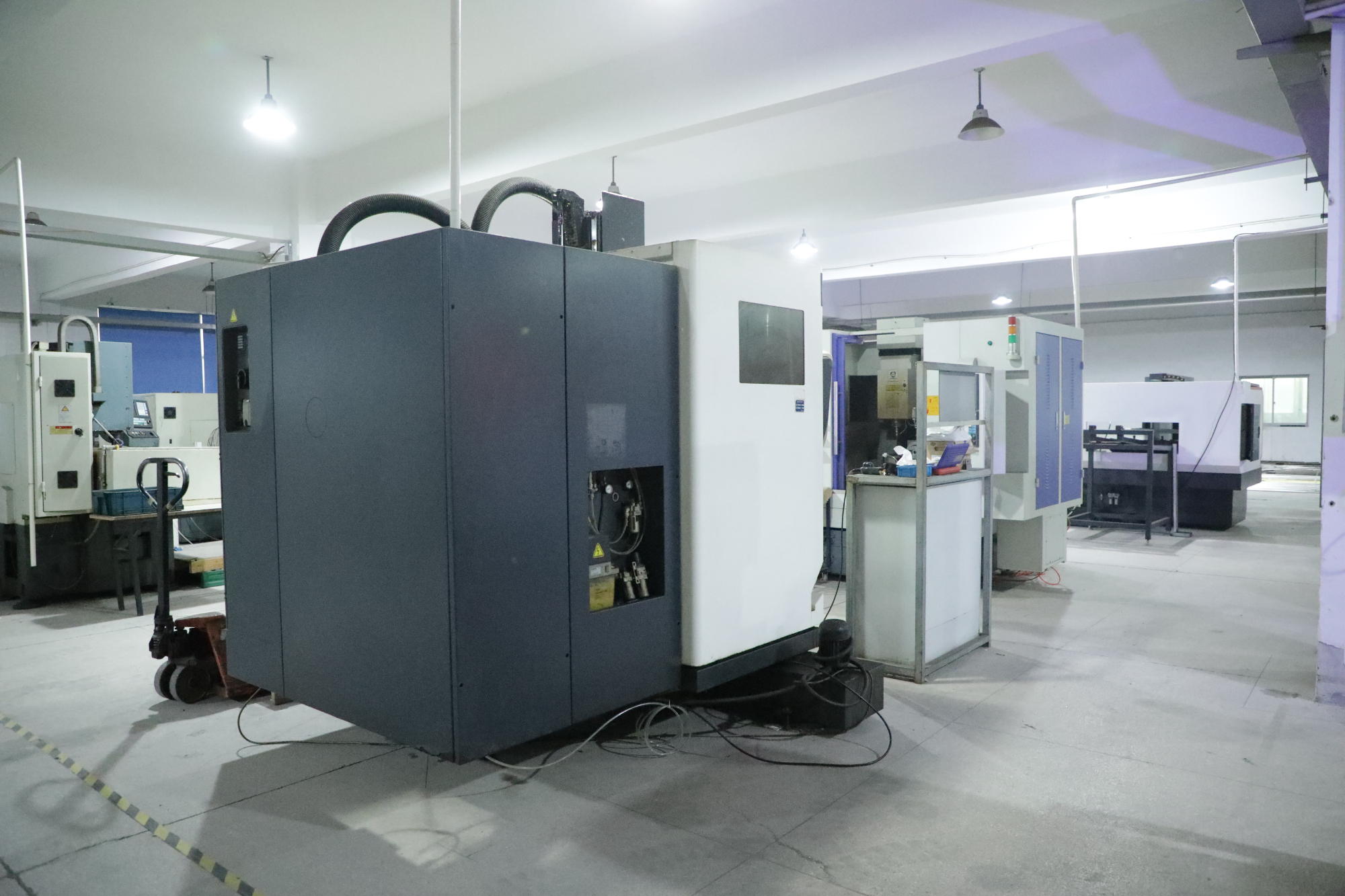

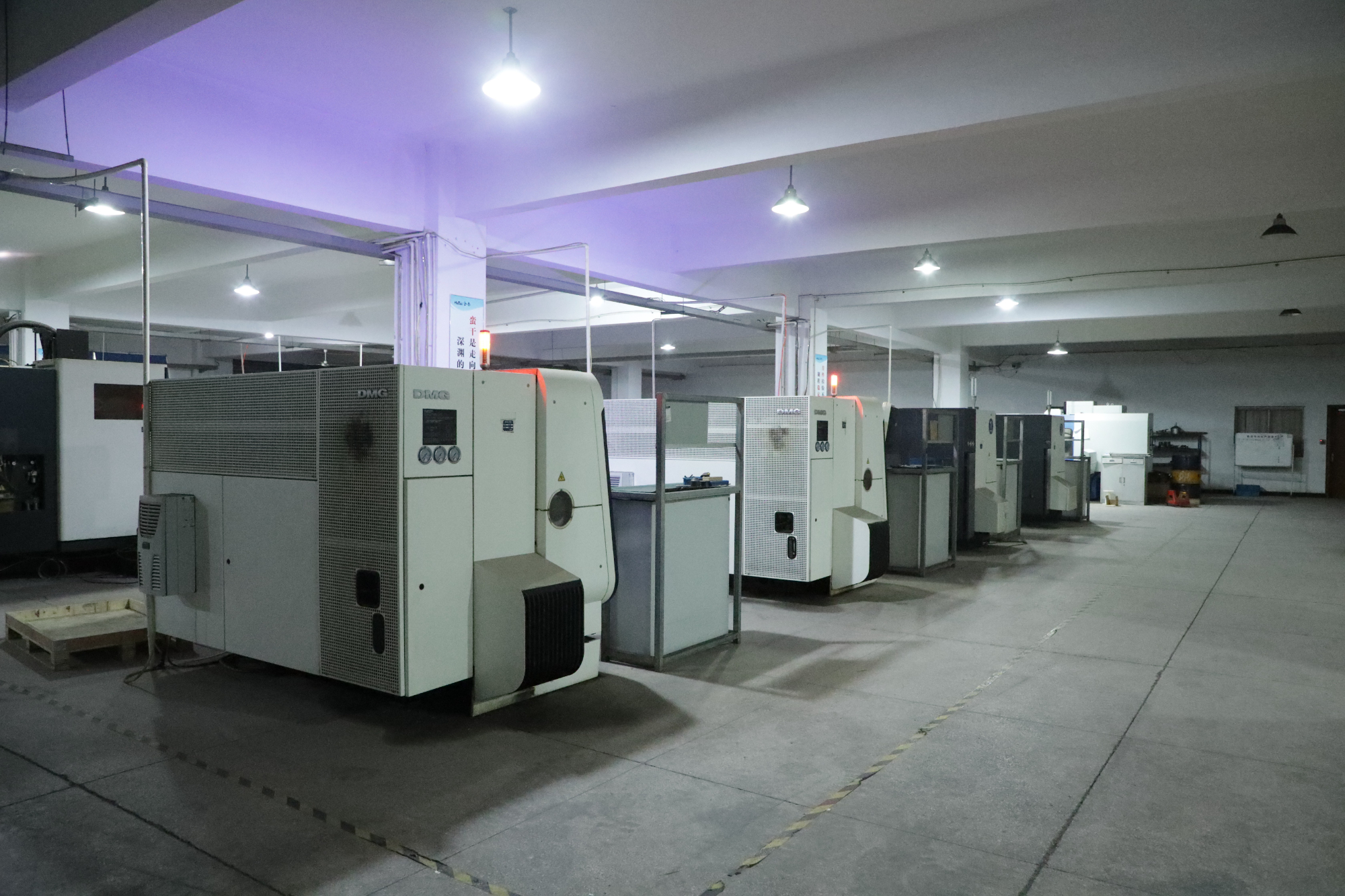

CNC Center

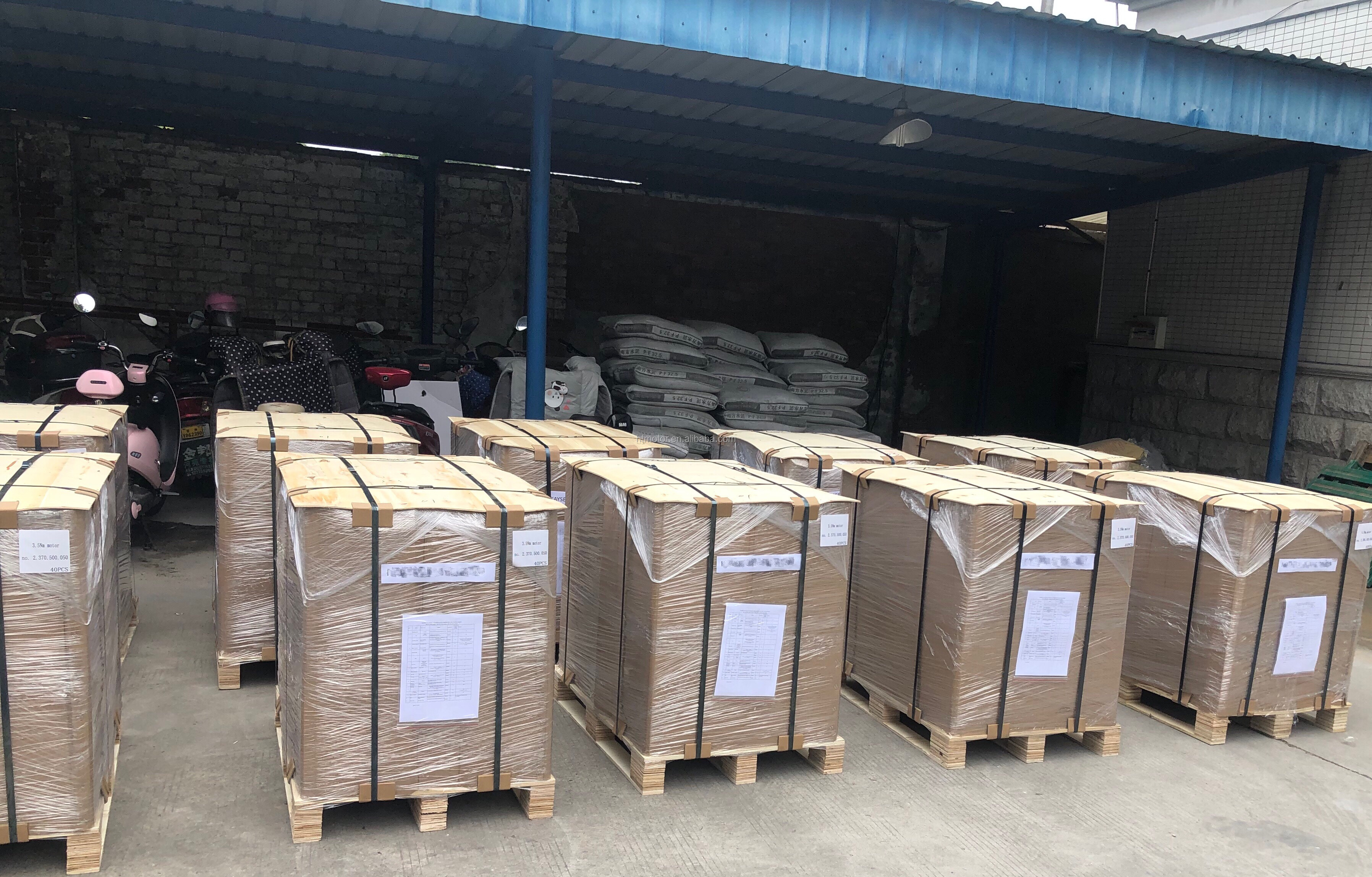

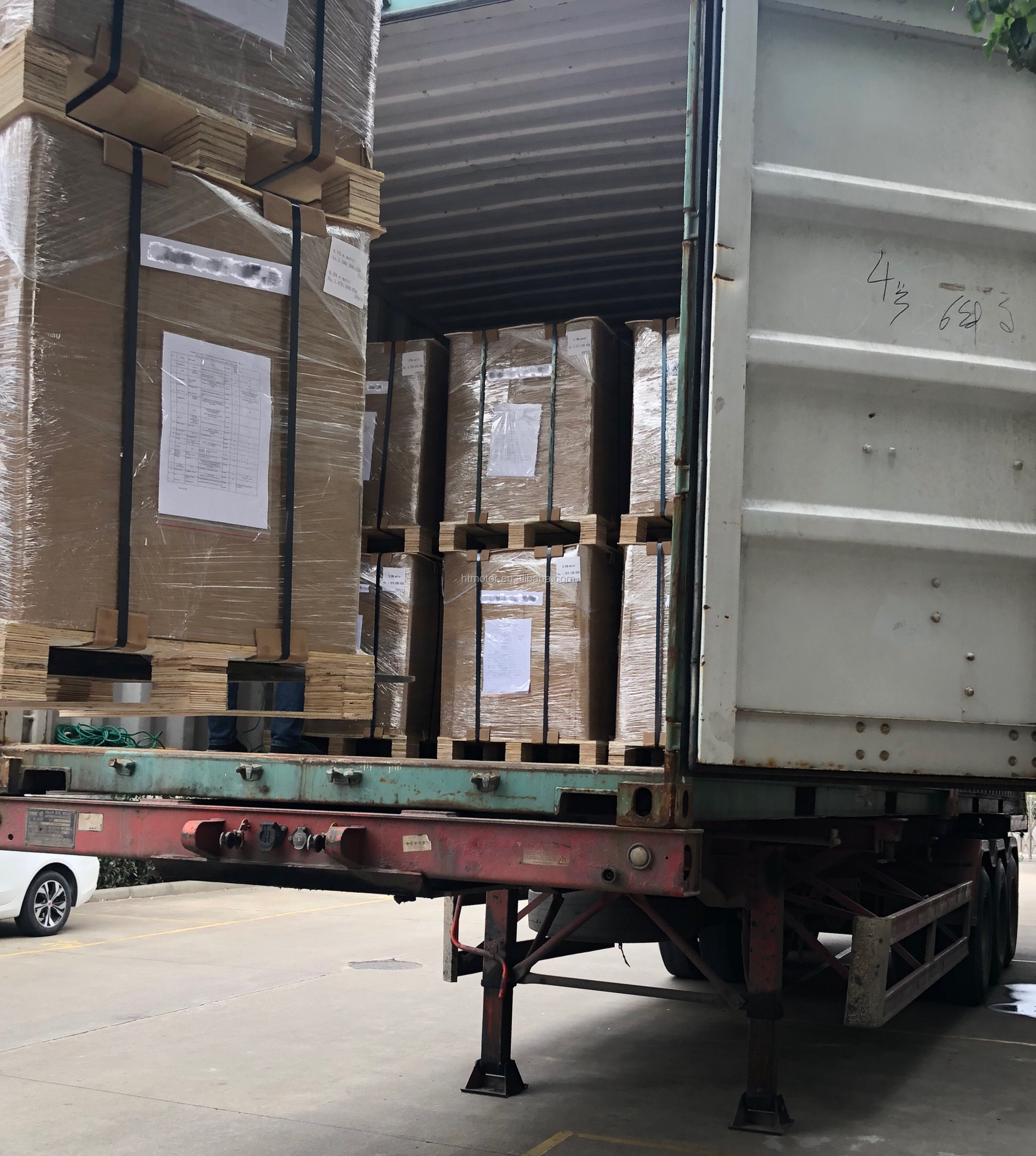

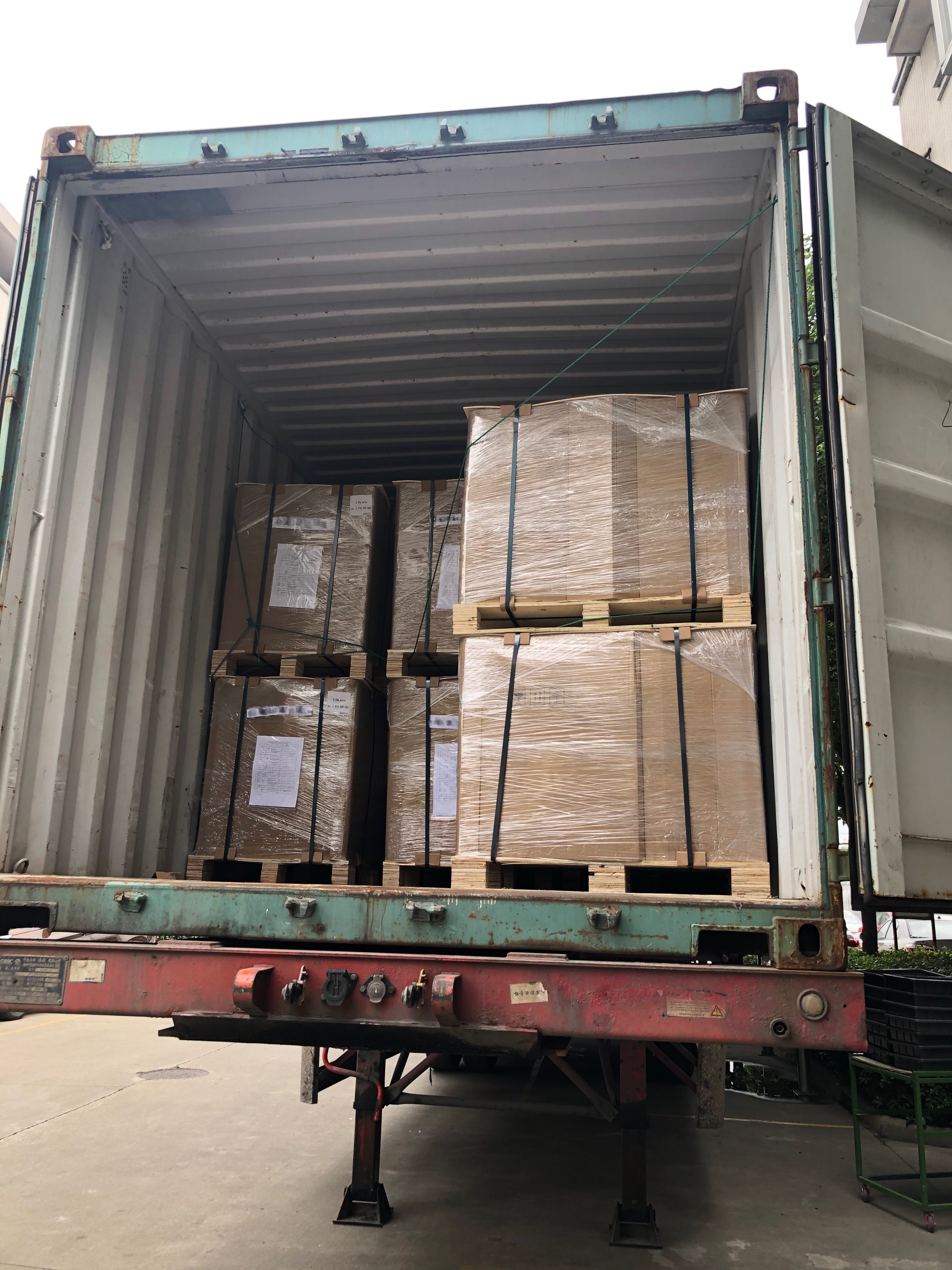

Package & Delivery
