Micro Planetary Gearbox
Micro Planetary Gearbox
Micro Planetary Gearbox
Micro Planetary Gearbox
Micro Planetary Gearbox
Micro Planetary Gearbox

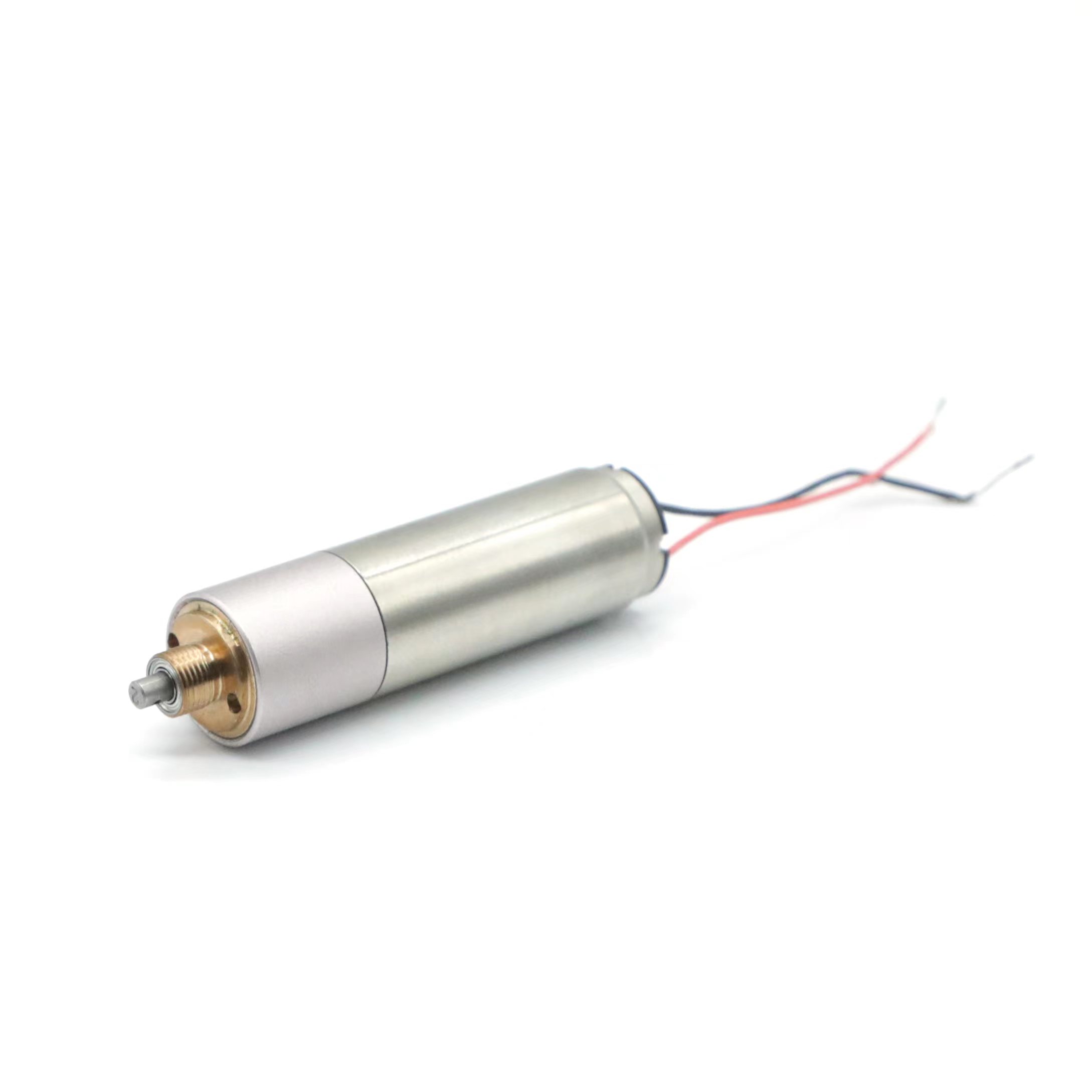

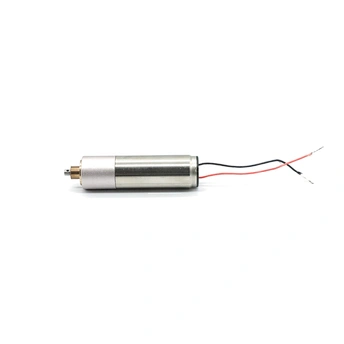

Model No: 13PG1332-03017556-16K

13PG1332-03017556-16K hot selling brush gear Hollow Cup Motor mini size high speed 1000rpm apply to Root canal therapy device

minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:13PG1332-03017556-16K
  • Type:GEAR MOTOR
  • Torque:20 g.cm
  • Construction:Permanent Magnet
  • Commutation:Brush
  • Protect Feature:IP40
  • Speed(RPM):1000RPM
  • Continuous Current(A):1300mA
  • Efficiency:IE 1
  • Product Name:Brush dc gearbox Motor
  • Rated voltage:3V
  • Rated Speed:1000±10%rpm
  • Rated torque:20g.cm
  • Starting current:≤0.8A
  • No-load speed:1094±3%rpm
  • Reduction Ratio:1:16
  • No-load current:≤130mA
  • Ambient Temperature:-20℃-50℃

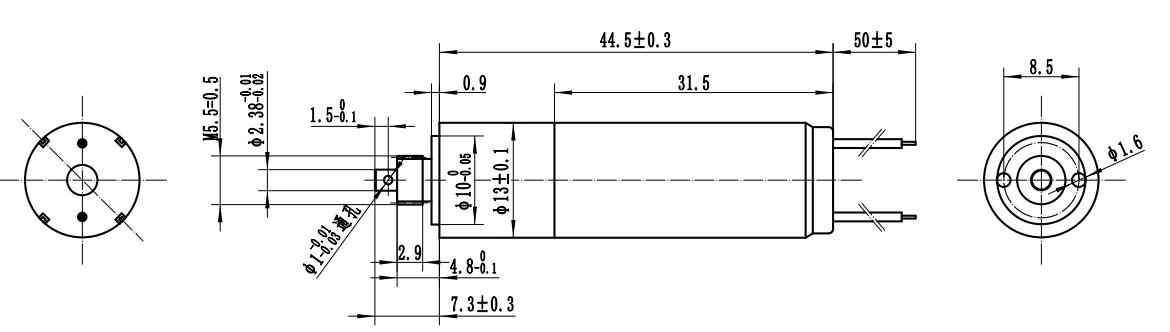

  • Motor length:44.5 ±0.5

Specification


Advantage of planetary gearbox motor
Planetary Gearbox Guarantees Flexible & Reliable Power Transmission System
These gearboxes provide a wide range of power and ratio, which makes it a perfect choice for most applications of many industries.


Model
13mm Brush gear motor
Voltage （V）
3V
Stall Torque with gearbox （g.cm）
≥20 g.cm
Speed (rpm)
1000
Reduction Ratio
1:16
 Motor SIze（mm）
13*13*44.5 mm

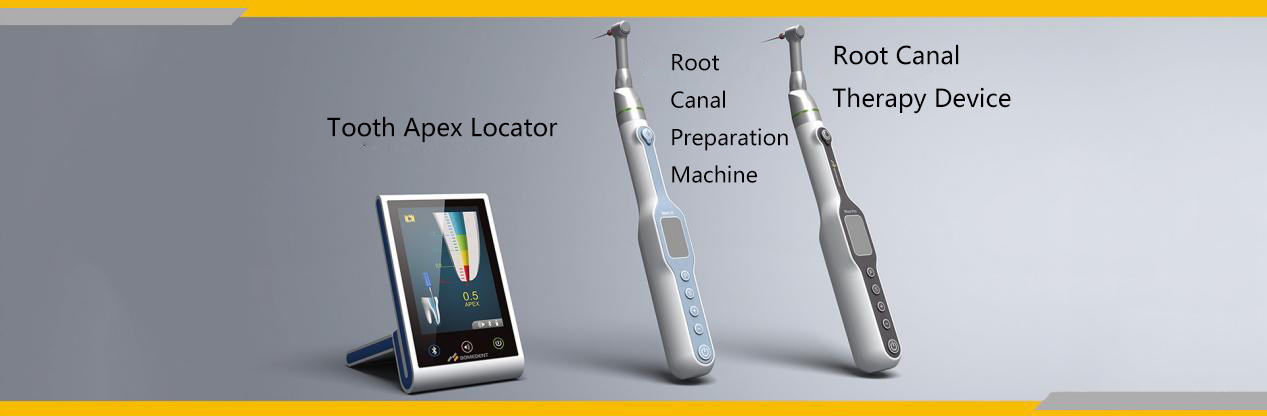

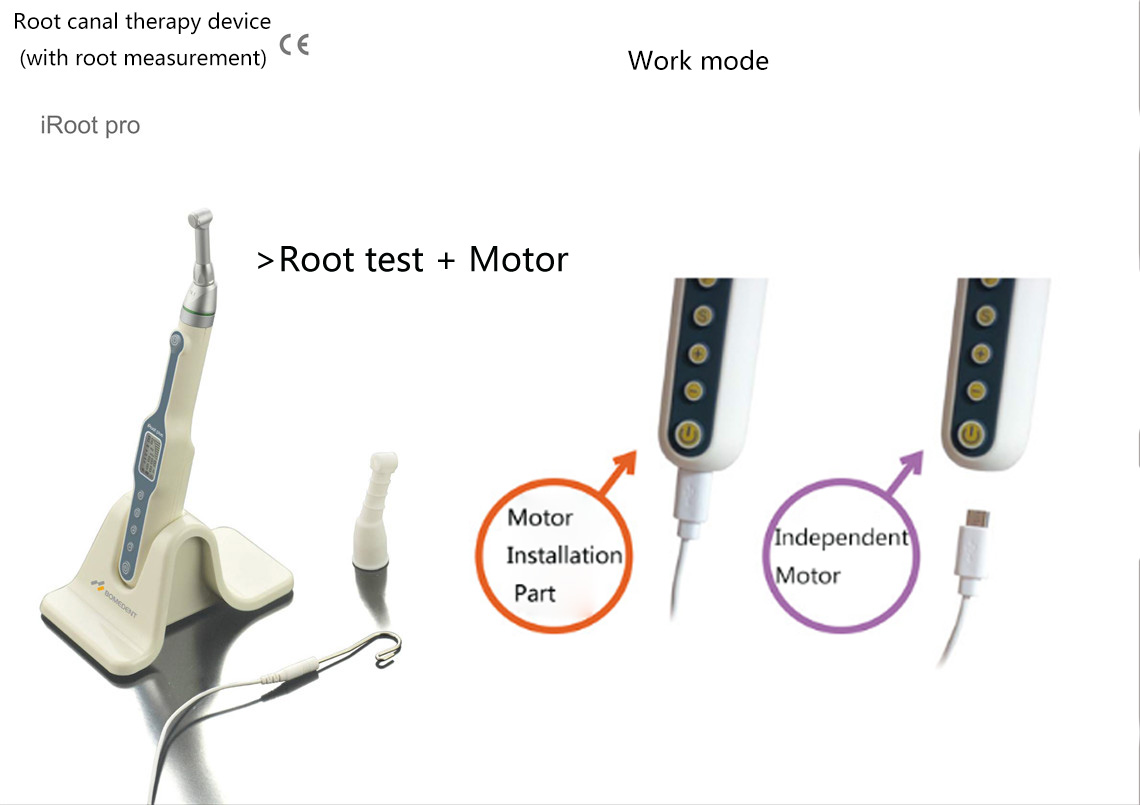

Product Application


Apply in Root Canal Therapy Equipment






Company Profile




Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡.Since Hetai founded in 1999, Hetai has dedicated to provide professional electrical integration design and automation strategies for customers.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer for more than 20 years.The factory has variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and individual CNC machining centers as well.

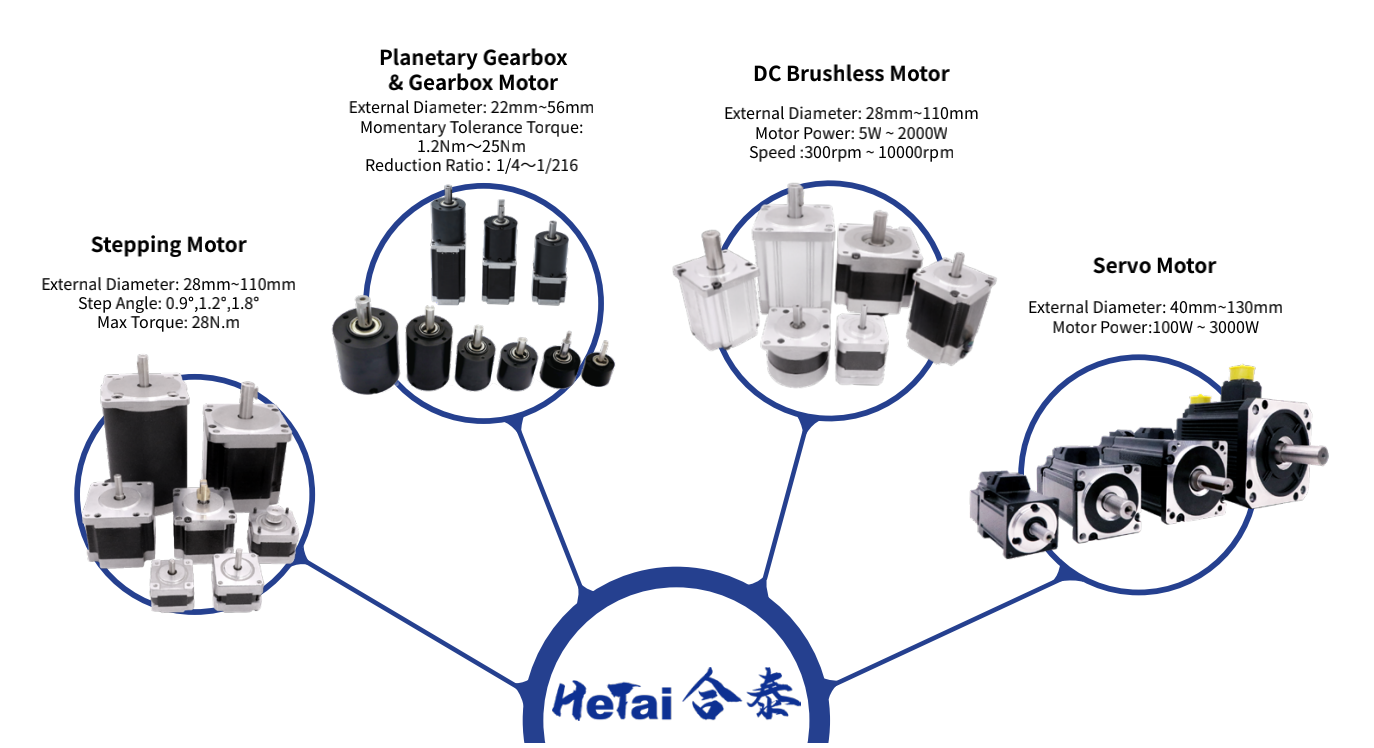

Product Range







Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.



Certificate


Quality insurance
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

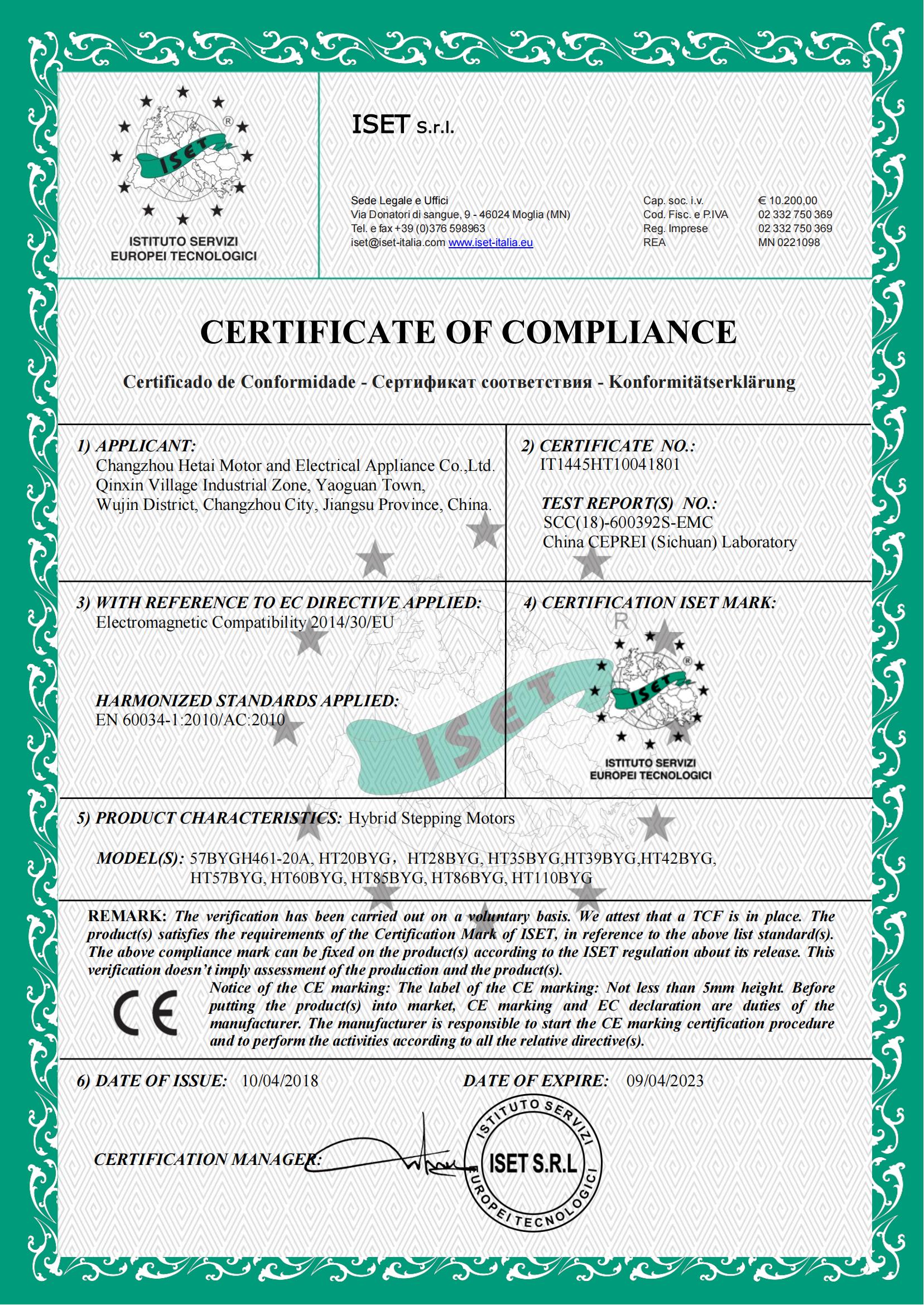

CE Of DC Brushless Motor
Date of expire:09 April 2023
CE Of Hybrid Stepping Motor
Date of expire:09 April 2023

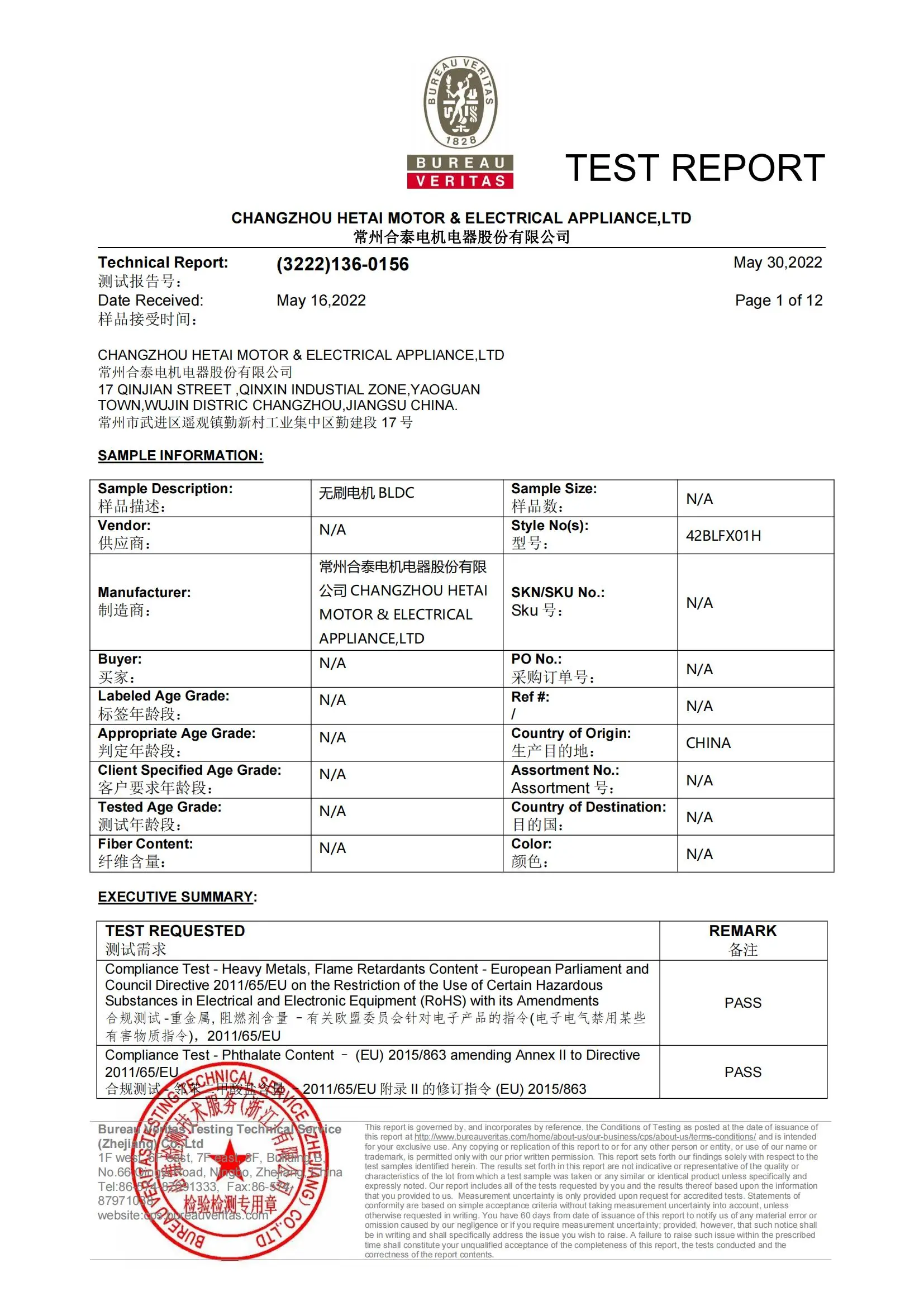

BLDC Motor ROHS report
Date: May 16, 2022

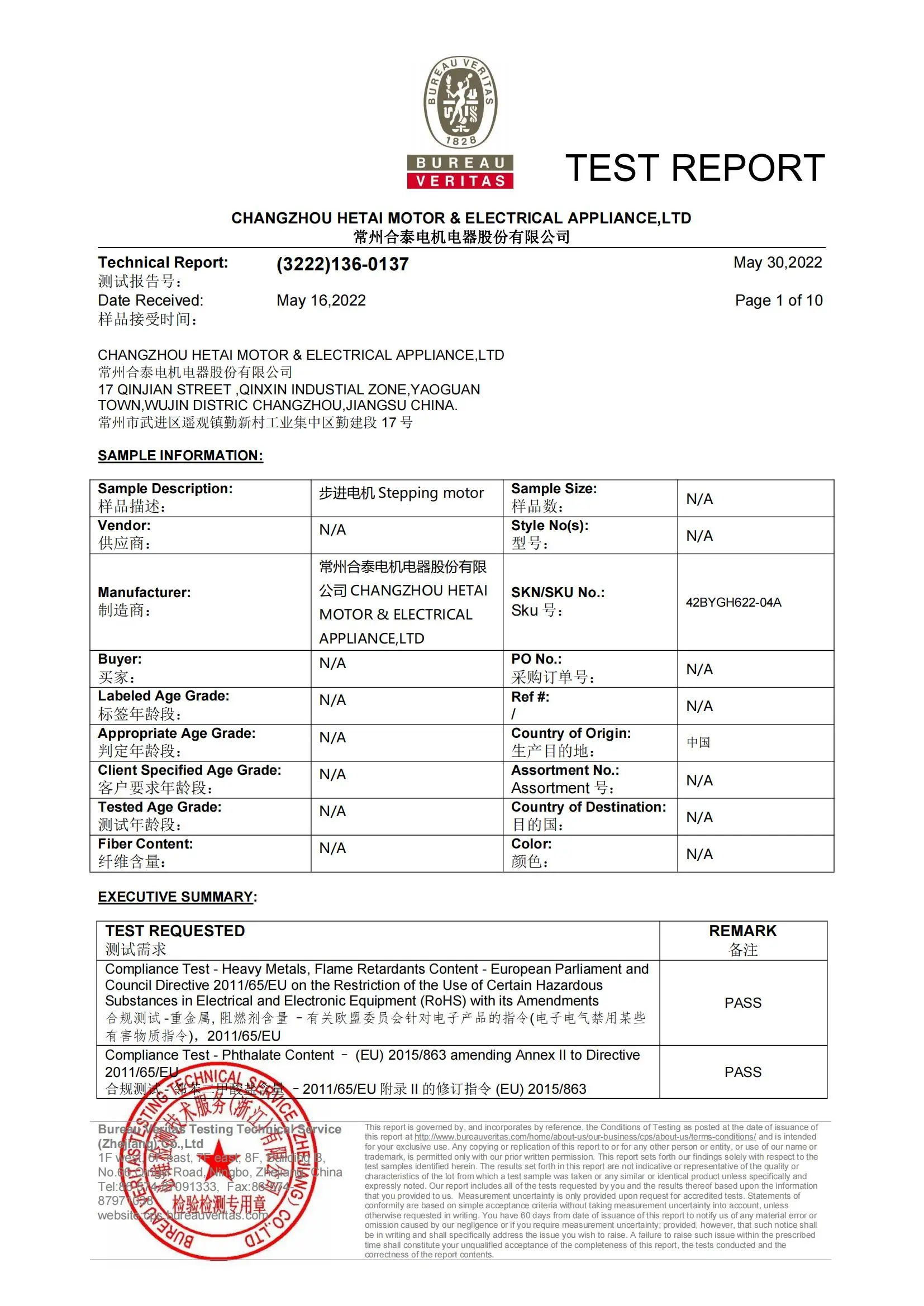

Stepper motor ROHS report
Date: May 16, 2022

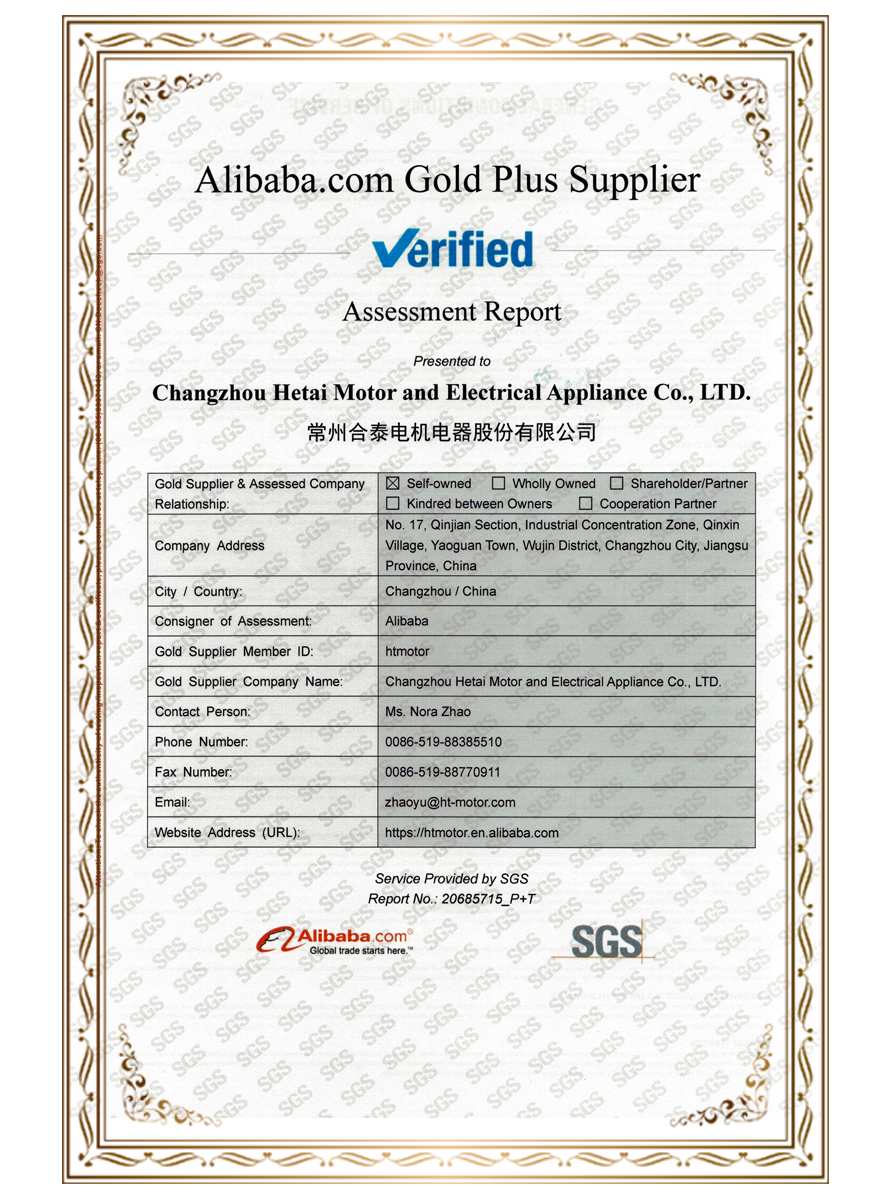

Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified

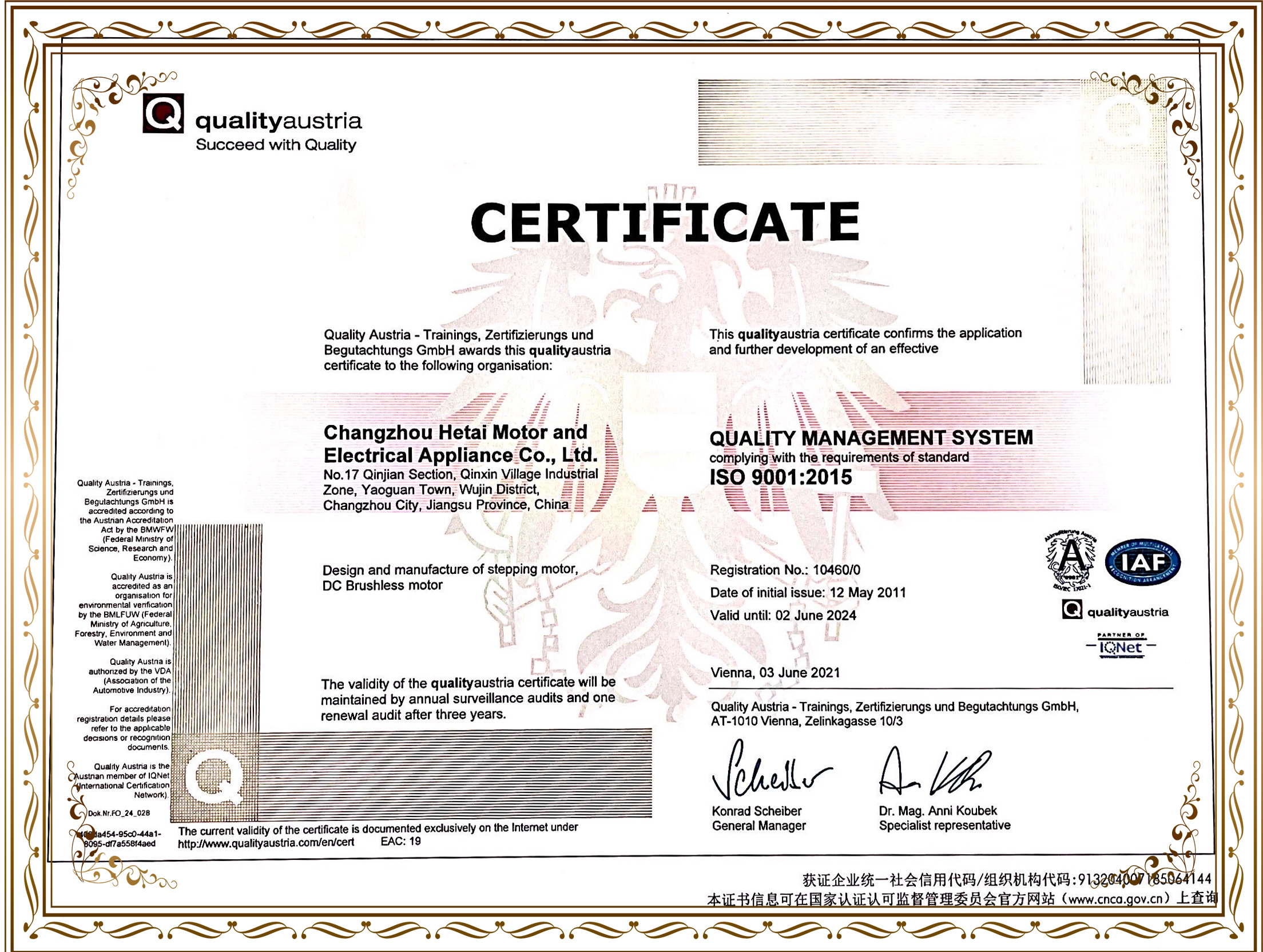

ISO 9001:2015
Valid until: 02 June 2024

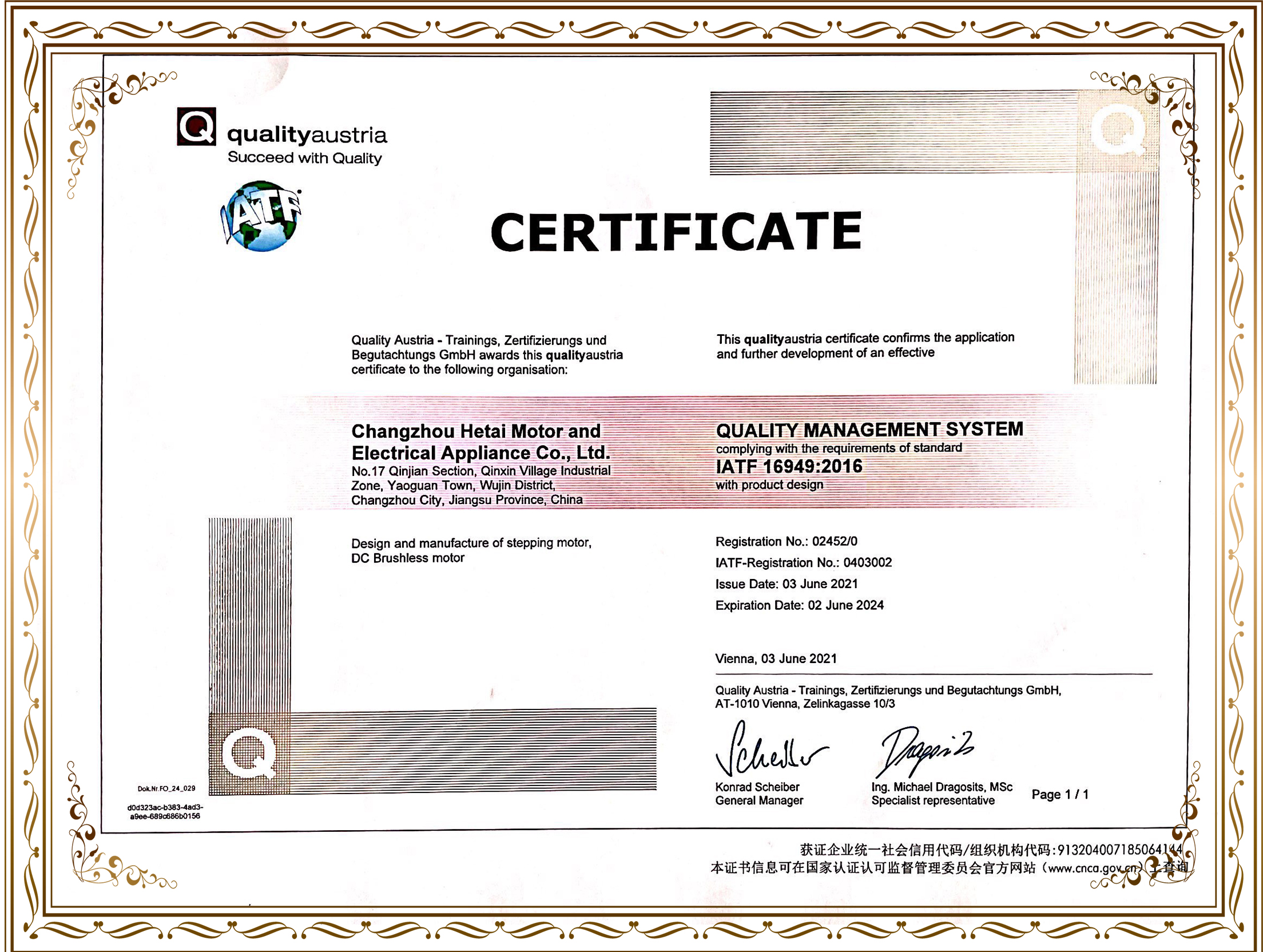

IATF 16949:2016
Valid until: 02 June 2024


Why Choose Us


Hetai can offer：
Specialised/customised design and product
Good quality products
Valuable Service




Engineering Support

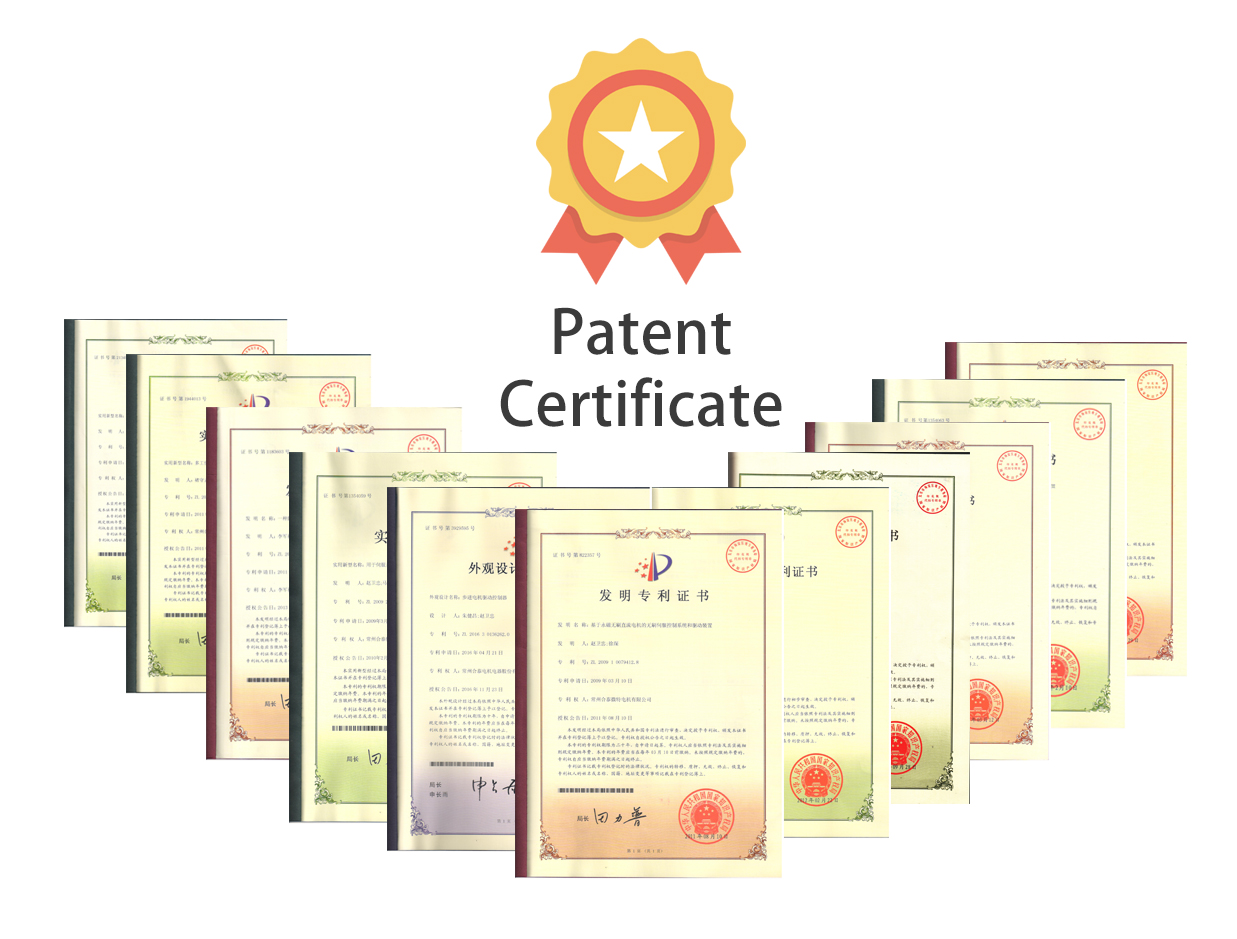

Hetai has got 11 patent certificates since it founded in 1999. The strength in engineering design has offered our customer most suitable product. Our technical team includes three 10 years + experience engineers, which allow us to provide professional automation strategies for customers.
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery,intelligent logistics equipment and so on.


Find

Our team can help you find most suitable motor for the application from our vast selection of motors.

Customise

We can design and customise the performance and exterior for your specific use or assembly.

Optimise

For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.

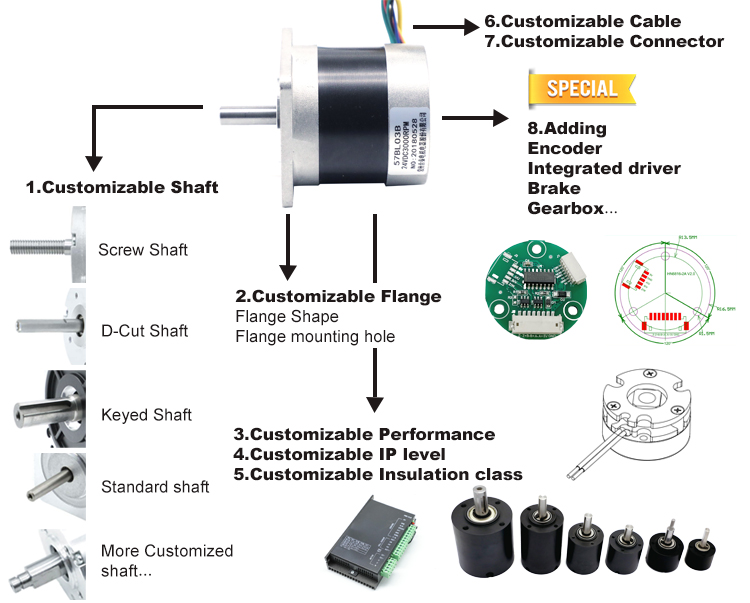

Which part of the motor can be customised?



1.Customizable Shaft
Screw Shaft/ D-Cut Shaft/ Keyed Shaft/ Standard Shaft/ More Customized Shaft
2.Customizable Flange
Flange Shape/ Flange mounting hole
3.Customizable Performance
4.Customizable IP level
5.Customizable Insulation class
6.Customizable Cable
7.Customizable Connector
8.Adding Encoder, Intergrated driver, Brake, Gearbox...

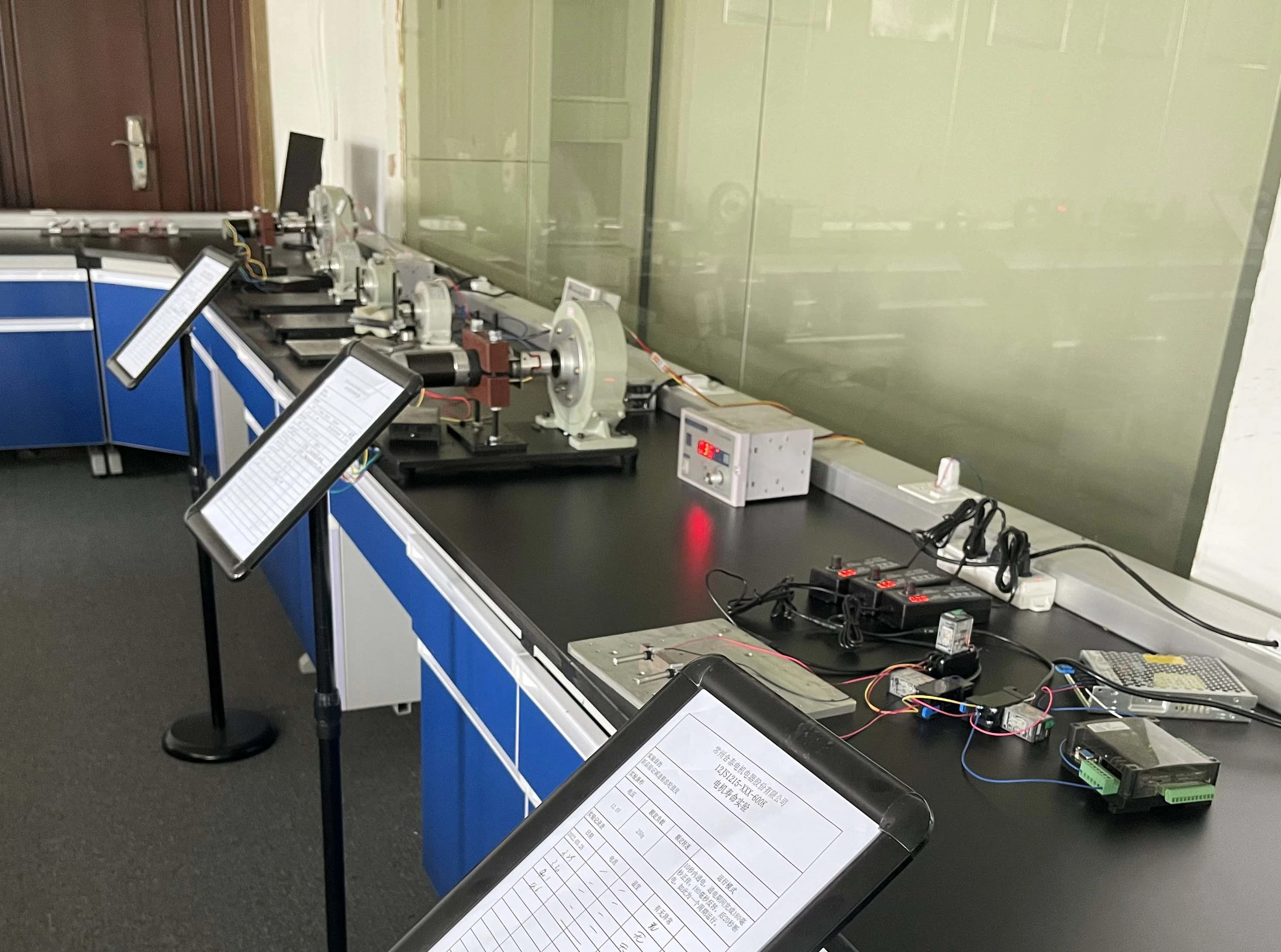

Laboratory Equipment

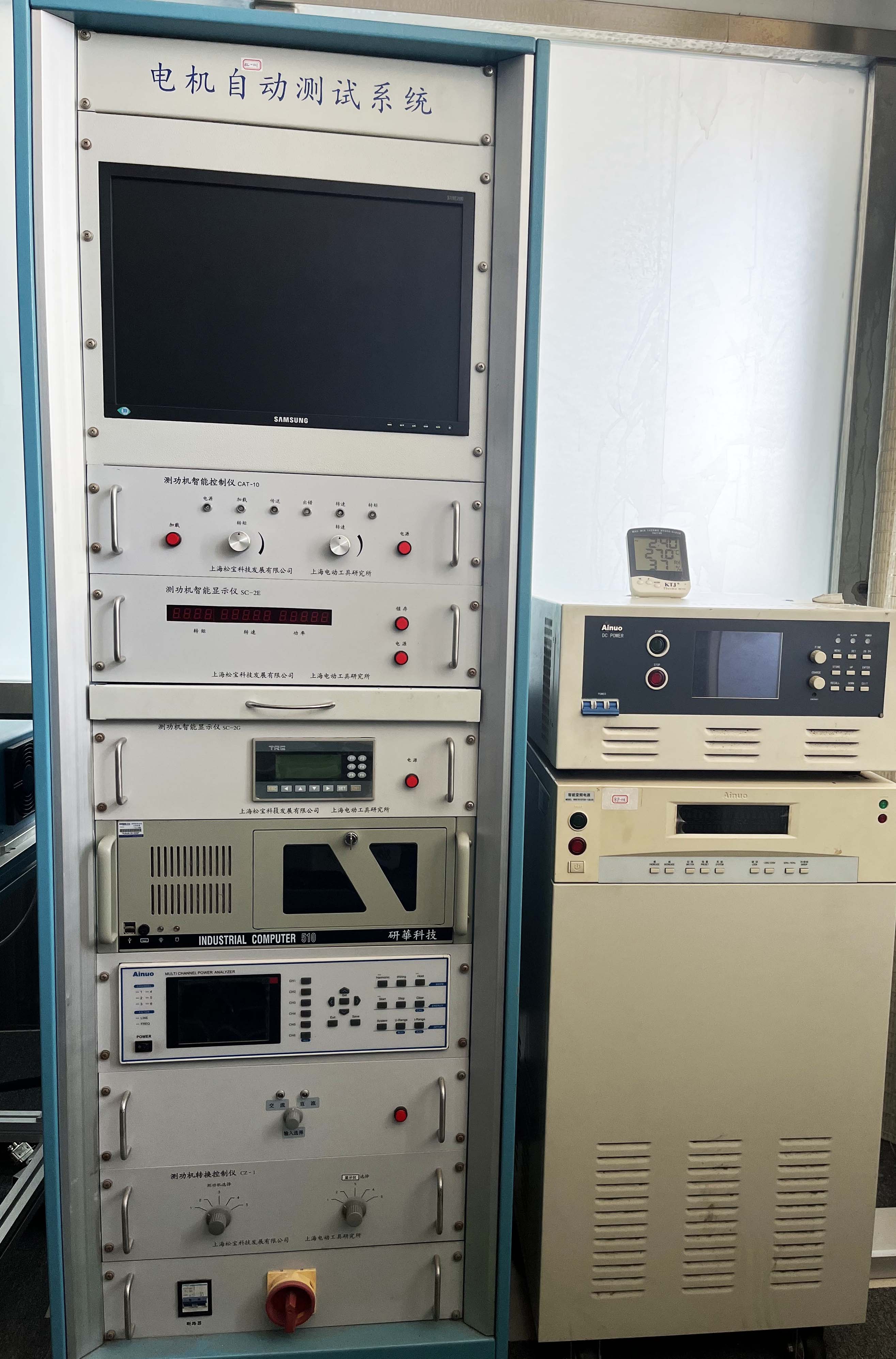

Motor automatic test system
Laboratory Equipment

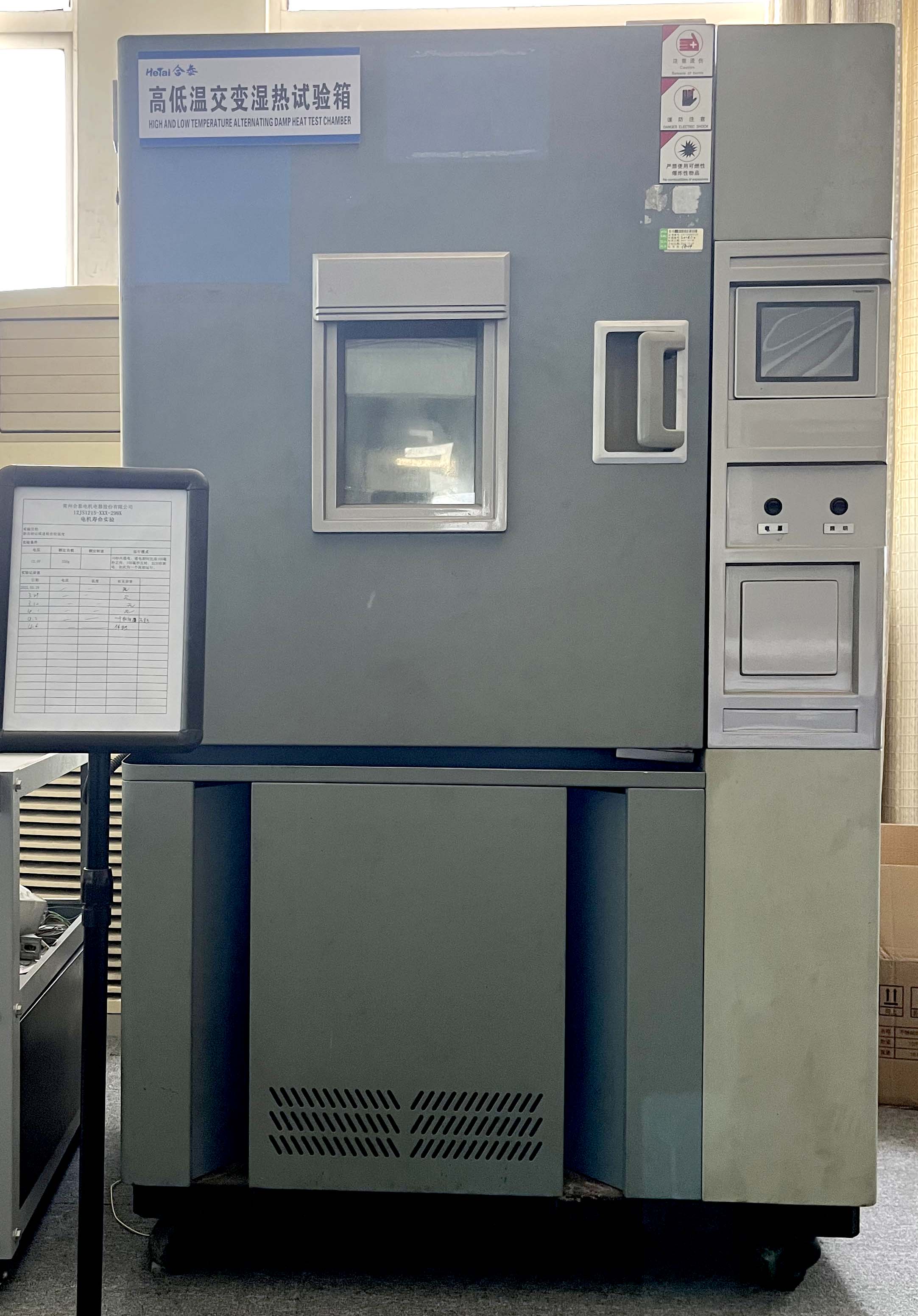

High and low temperature test chamber
Laboratory Equipment
Lifespan Test


Mass Production Advantage




Large-scale production

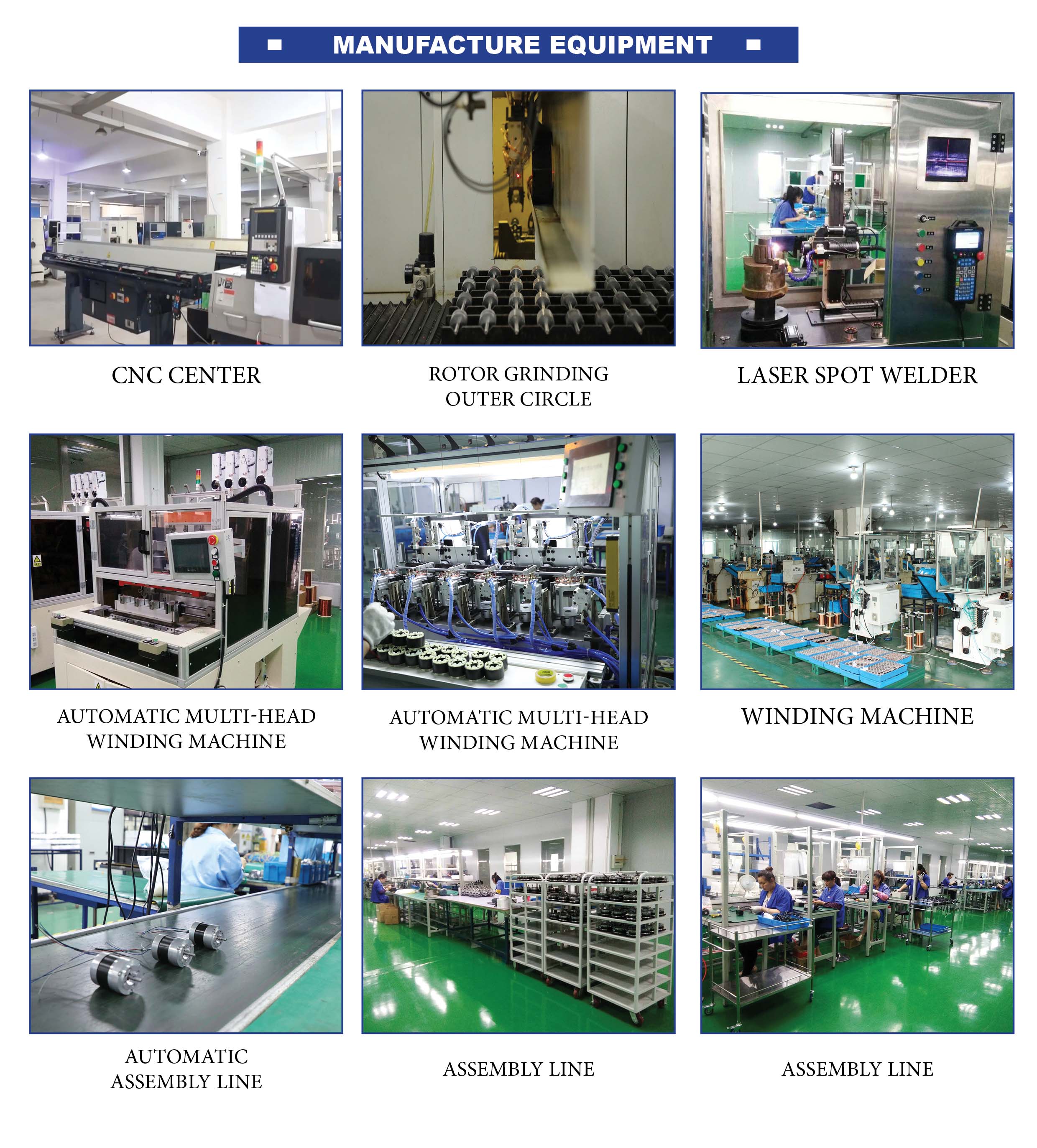

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.

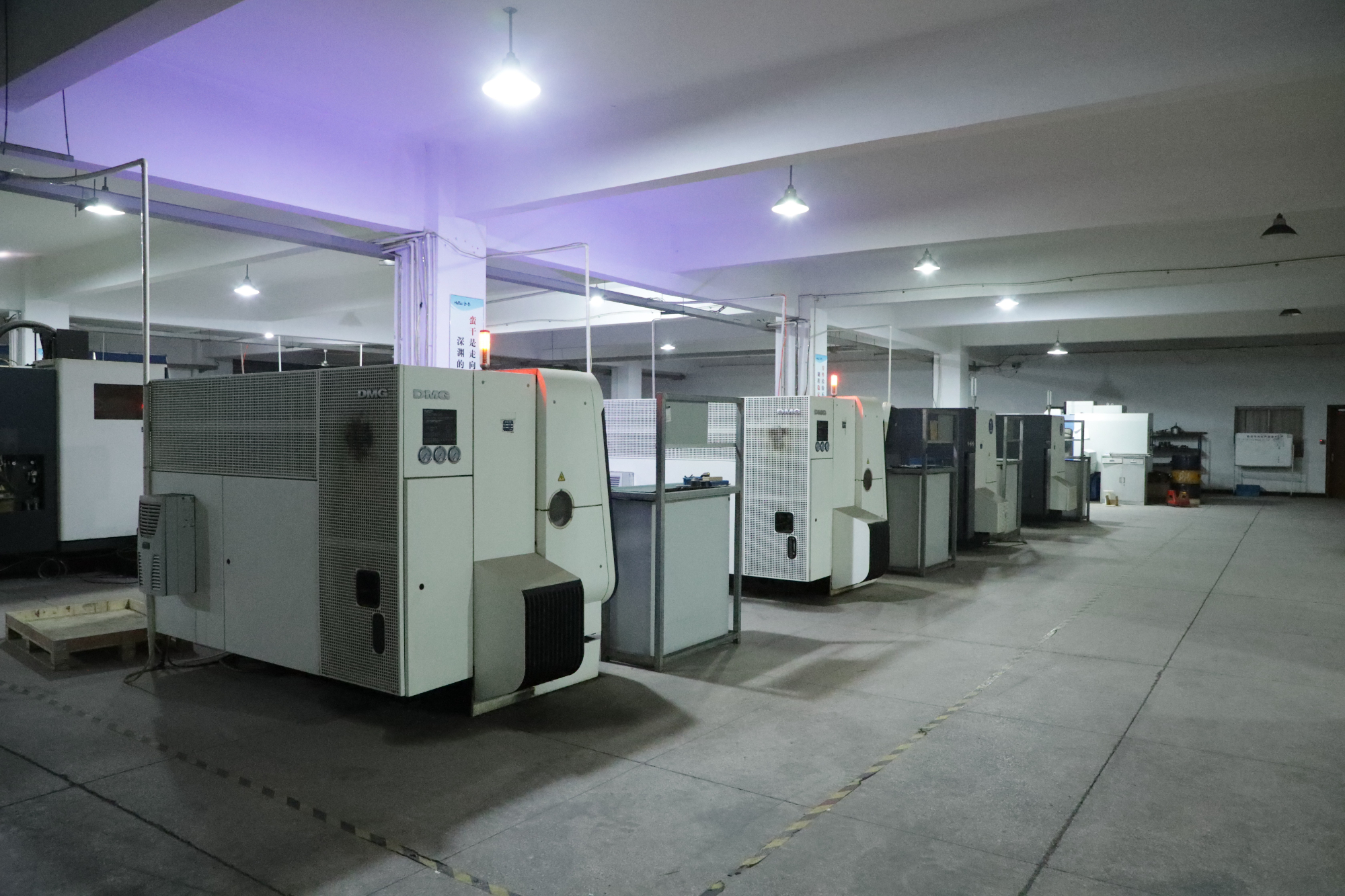

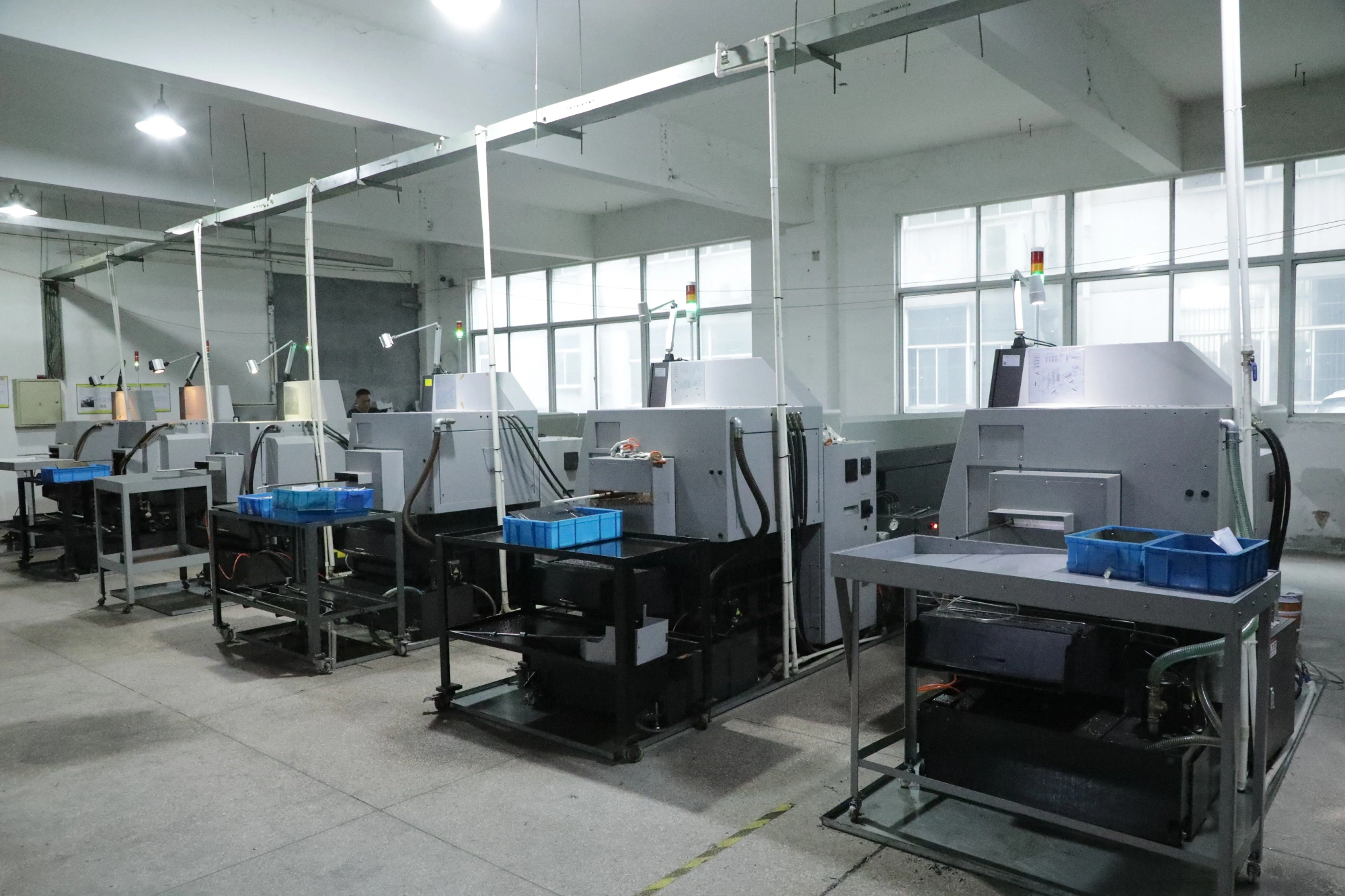

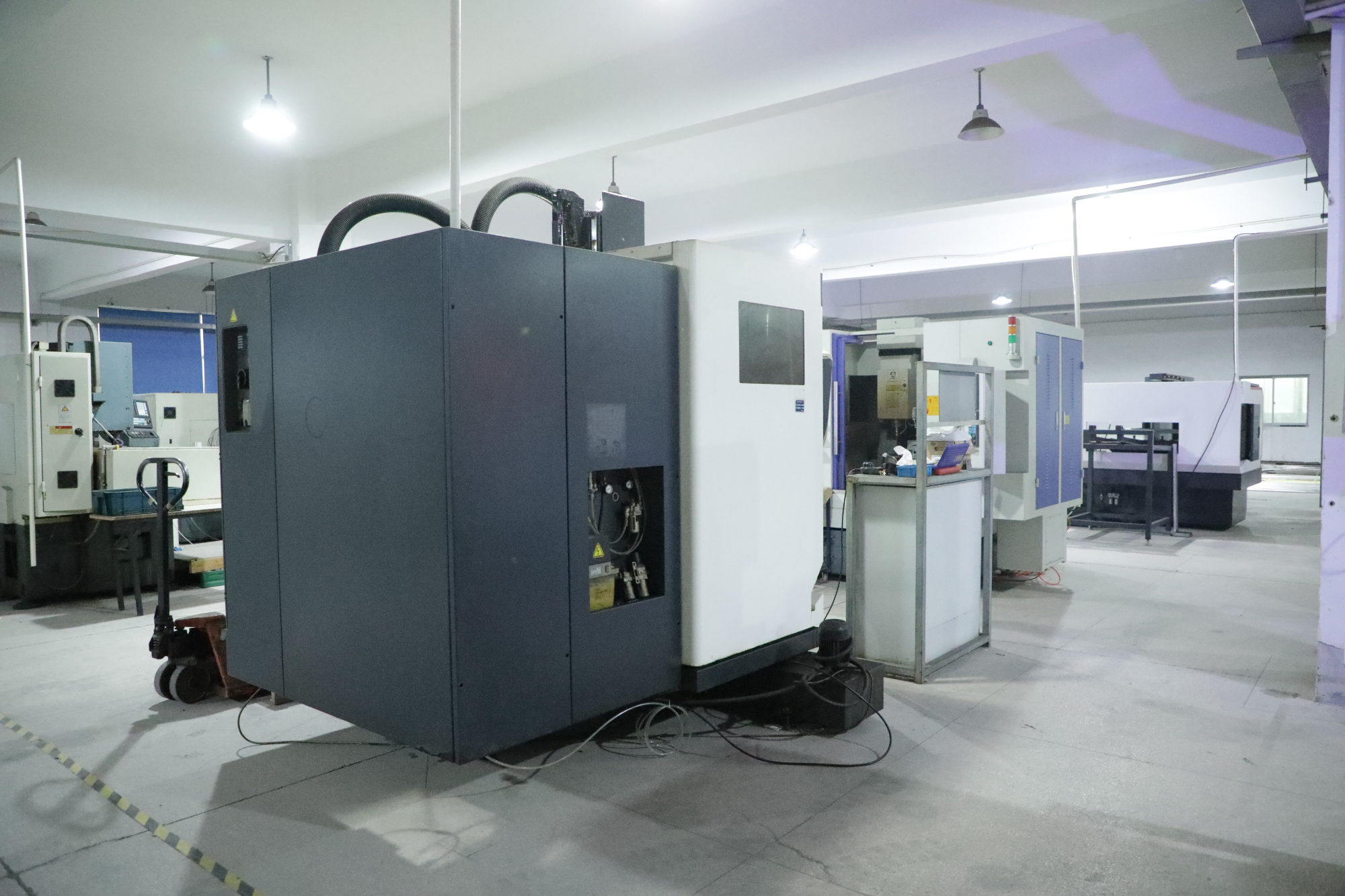

CNC CENTER
EightCNC PRECISION AUTOMATIC LATHES
CNC CENTER
Seven CNC AUTOMATIC MACHINING CENTERS
Seven CNC AUTOMATIC MACHINING CENTERS

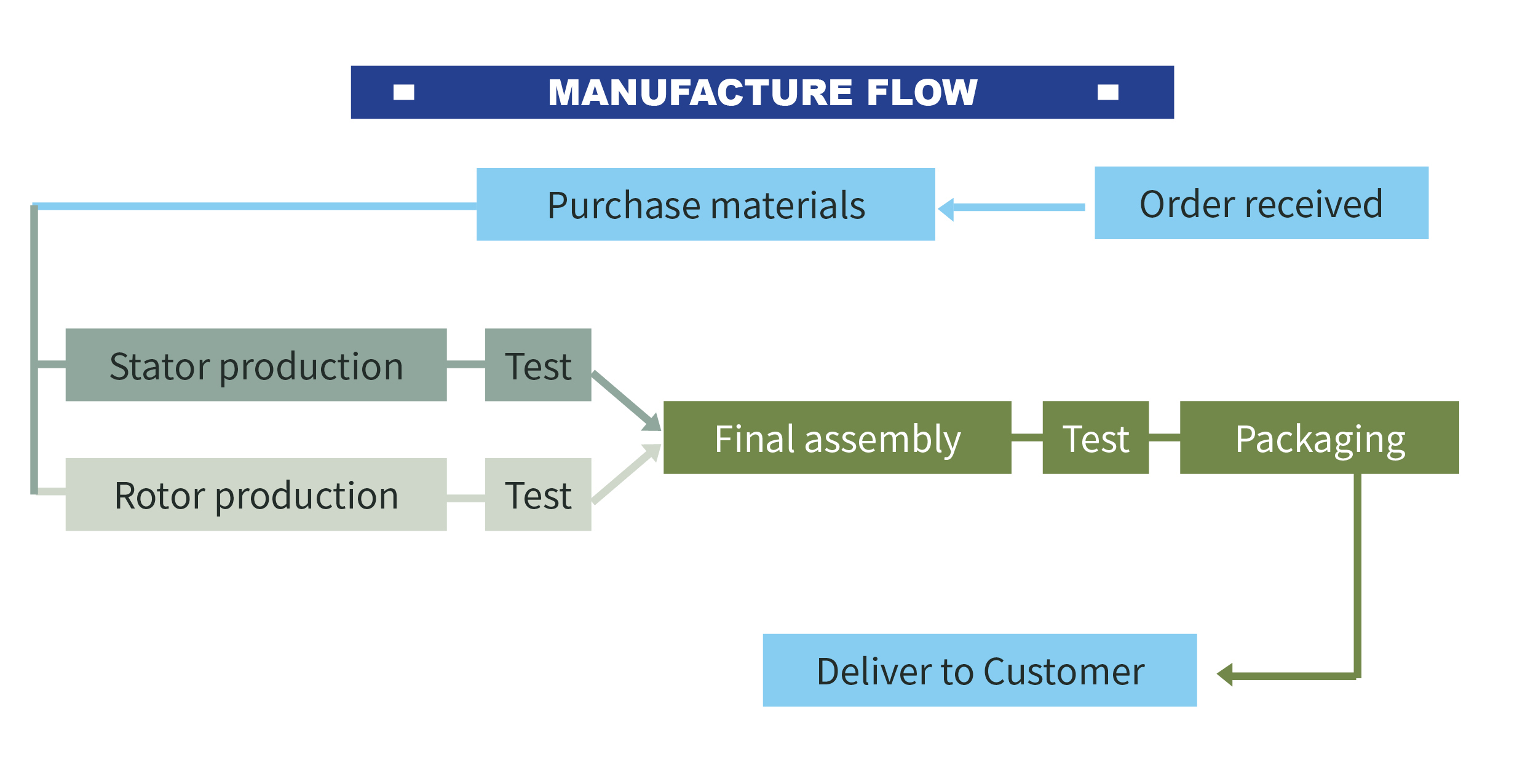

Quality Control Process

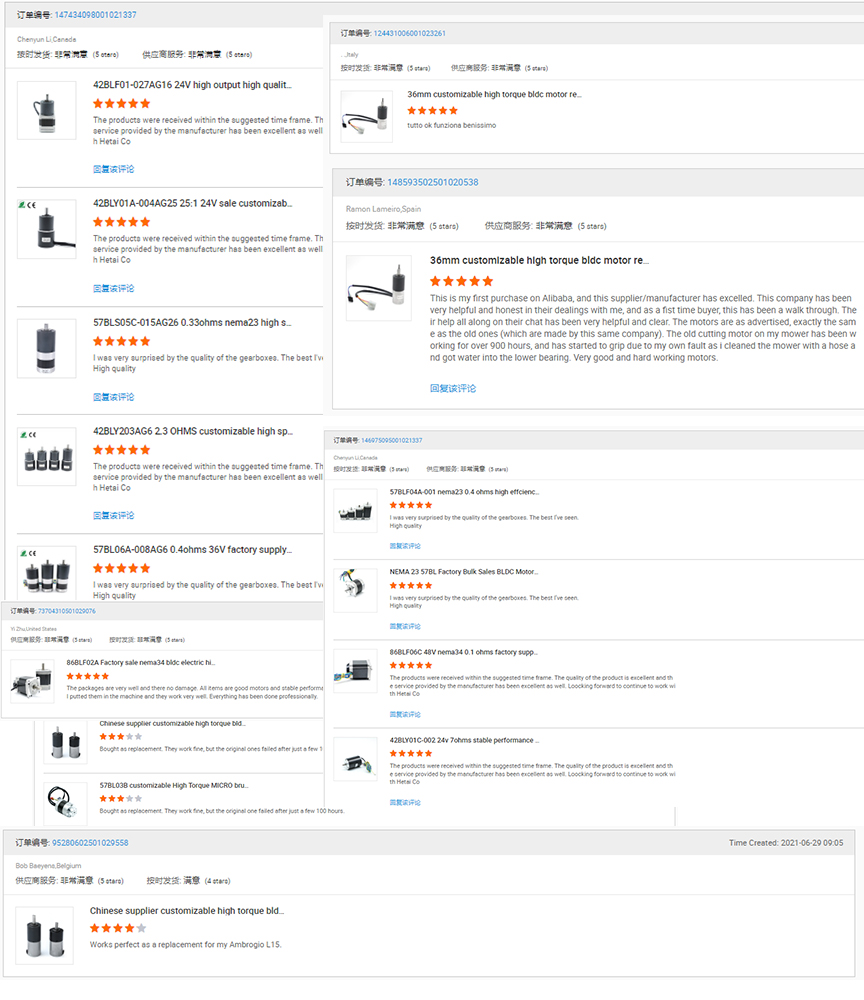

Customer Feedback
