Model No: 57BL02A
High Quality NEMA 23 57BL DC Brushless Motor 24V 34.5W 1.87A 0.11N.m 3000RPM Factory Direct Sales
minimum order :
1 piece
Quantity :
- Warranty:3months-1year
- Place of Origin:Jiangsu, China
- Brand Name:Hetai
- Model Number:57BL02A
- Usage:Home Appliance
- Type:Micro Motor
- Torque:0.11N.M
- Construction:Permanent Magnet
- Commutation:Brushless
- Protect Feature:IP40
- Speed(RPM):3000
- Continuous Current(A):1.87A
- Efficiency:IE 1
- Product Name:Brushless Motor
- Rated Torque:0.11N.M
- Rated Current:1.87A
- Insulation Resistance:100MΩ Min.500VDC
- Motor Weight:0.44Kg
- Winding Type:Star
- Insulation Class:B
- Ambient Temperature:-20℃~+50℃
- No. Of Poles:4
- No. Of Phase:3
Product Description

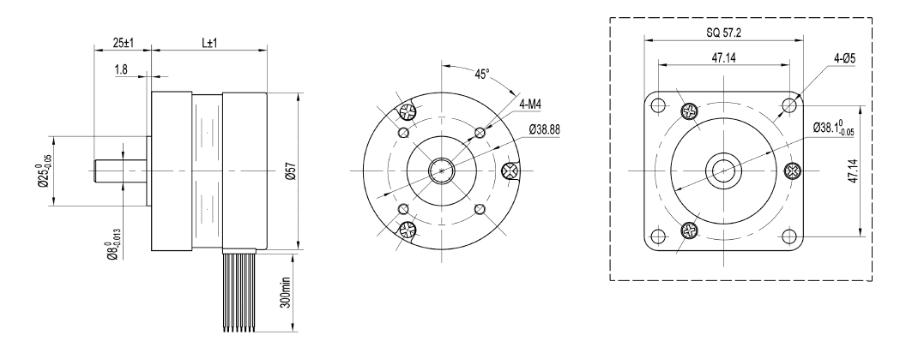

57BL02A
Brushless DC motor
High Quality NEMA 23 57BL DC Brushless Motor 24V 34.5W 1.87A 0.11N.m 3000RPM Factory Direct Sales
Specification
Product Name: | Brushless DC Motor |
Dielectric Strength: | 600V AC 1minute |
Ambient Temperature: | -20℃~50℃ |
Insulation resistance: | 100MΩ Min.500VDC |
Voltage: | 24(VDC) |
Power: | 34.5W |
Rated Speed: | 3000(RPM) |
Rated torque: | 0.11N.M |

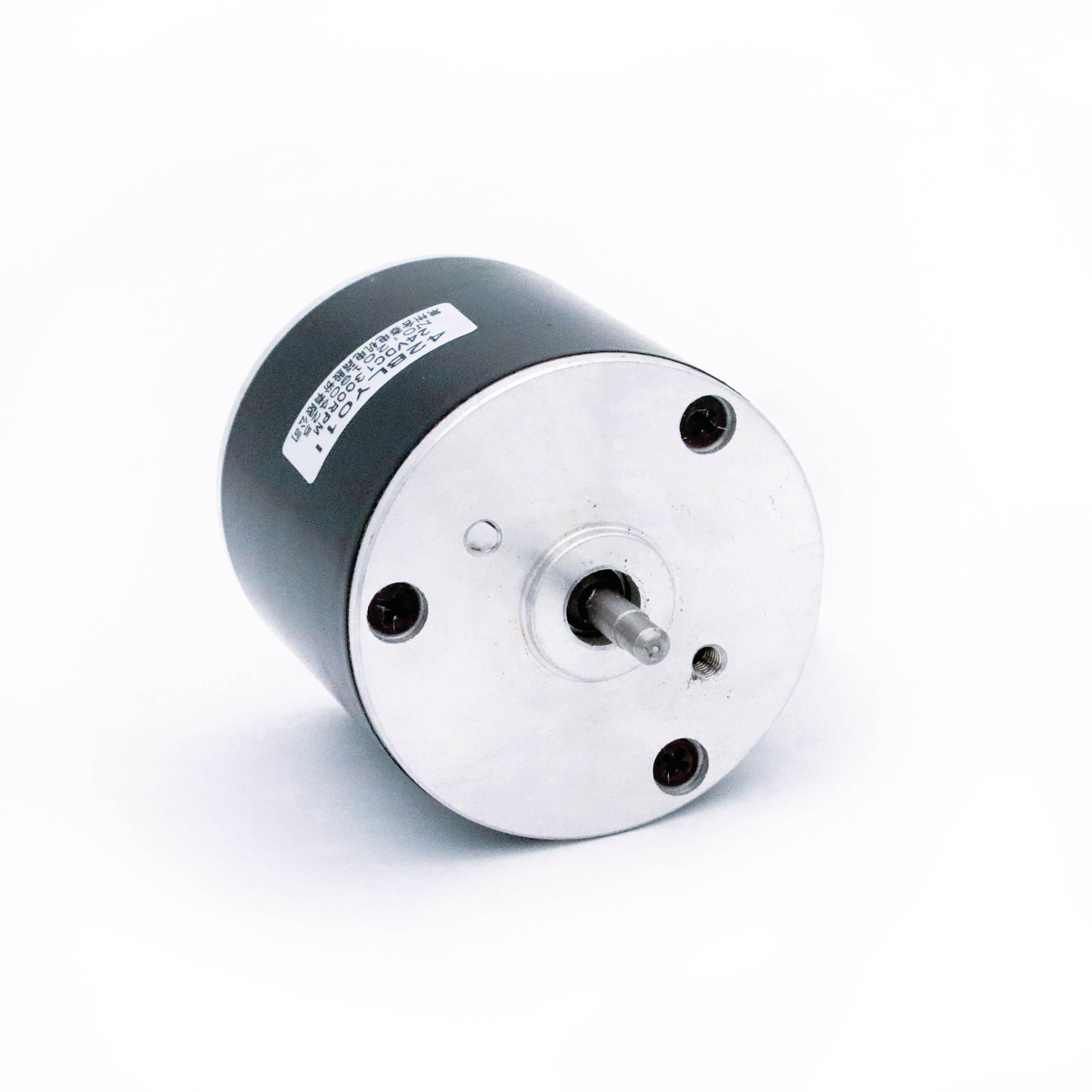

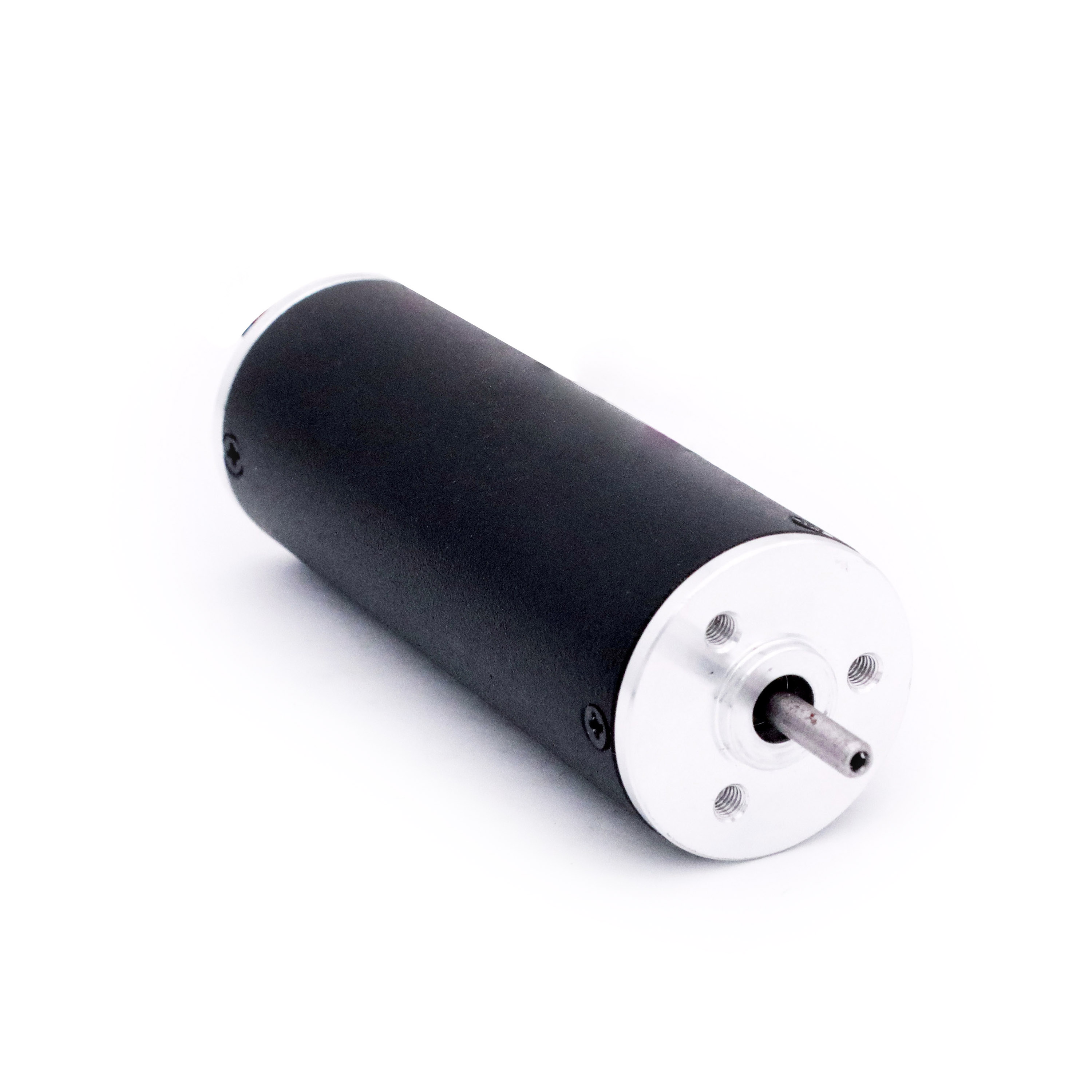

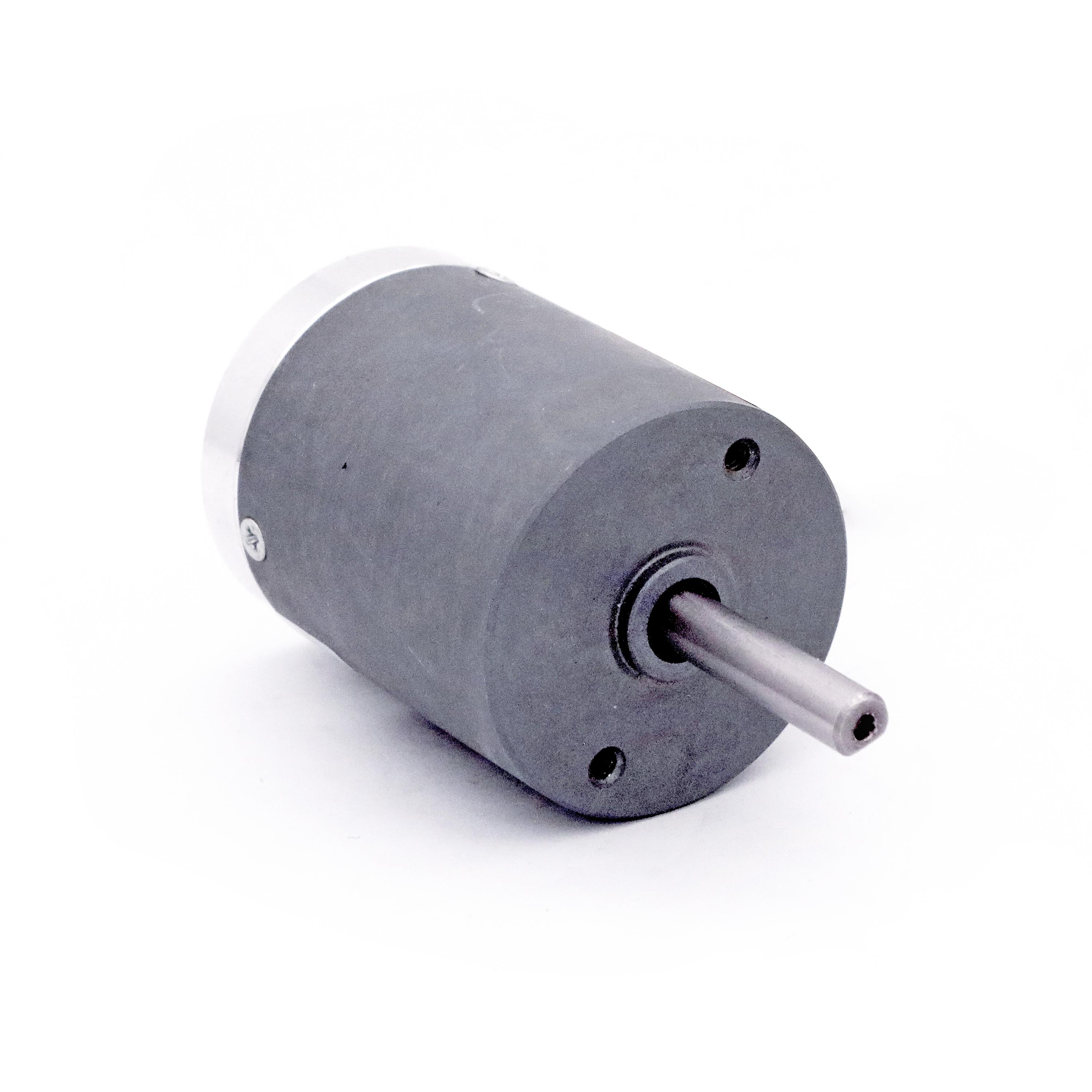

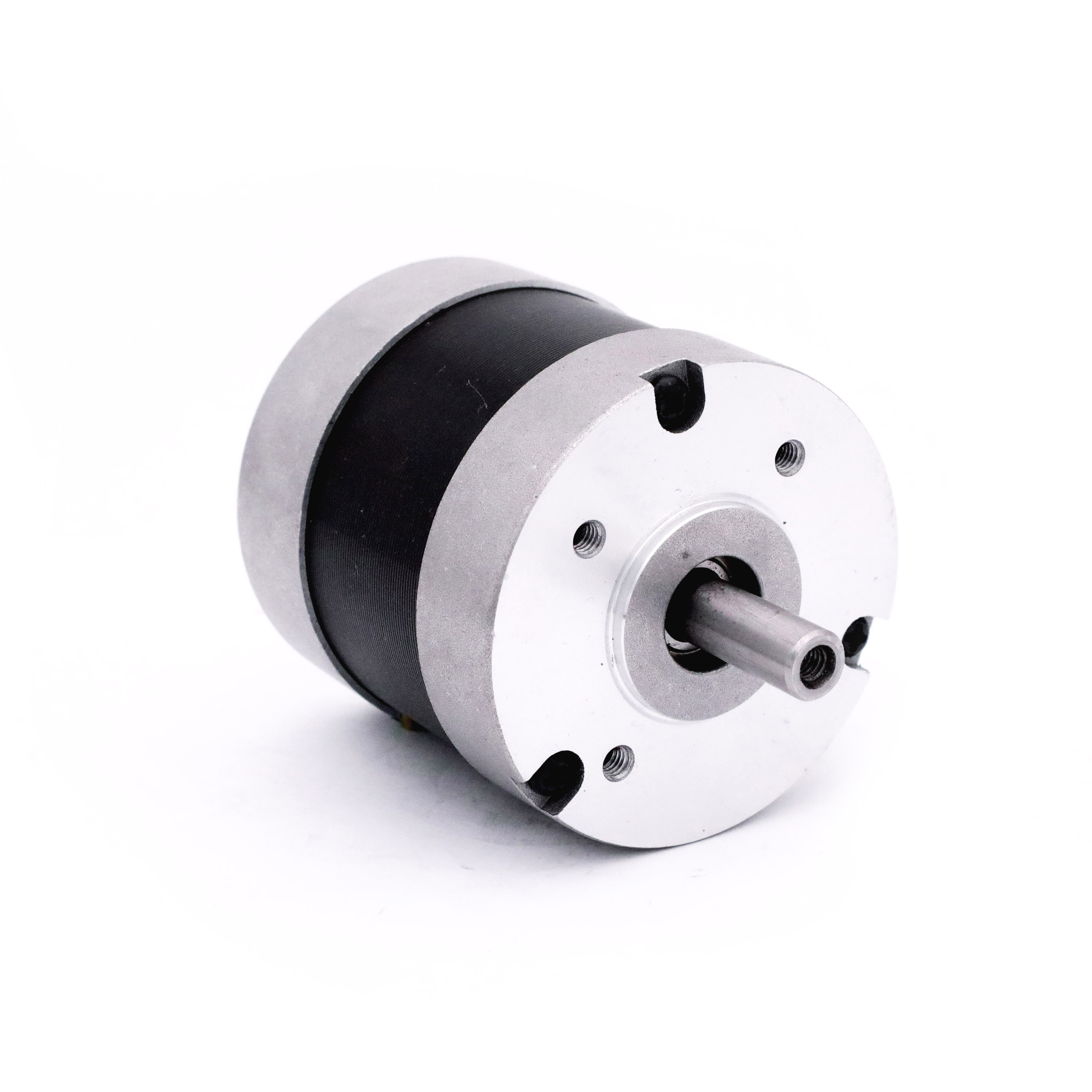

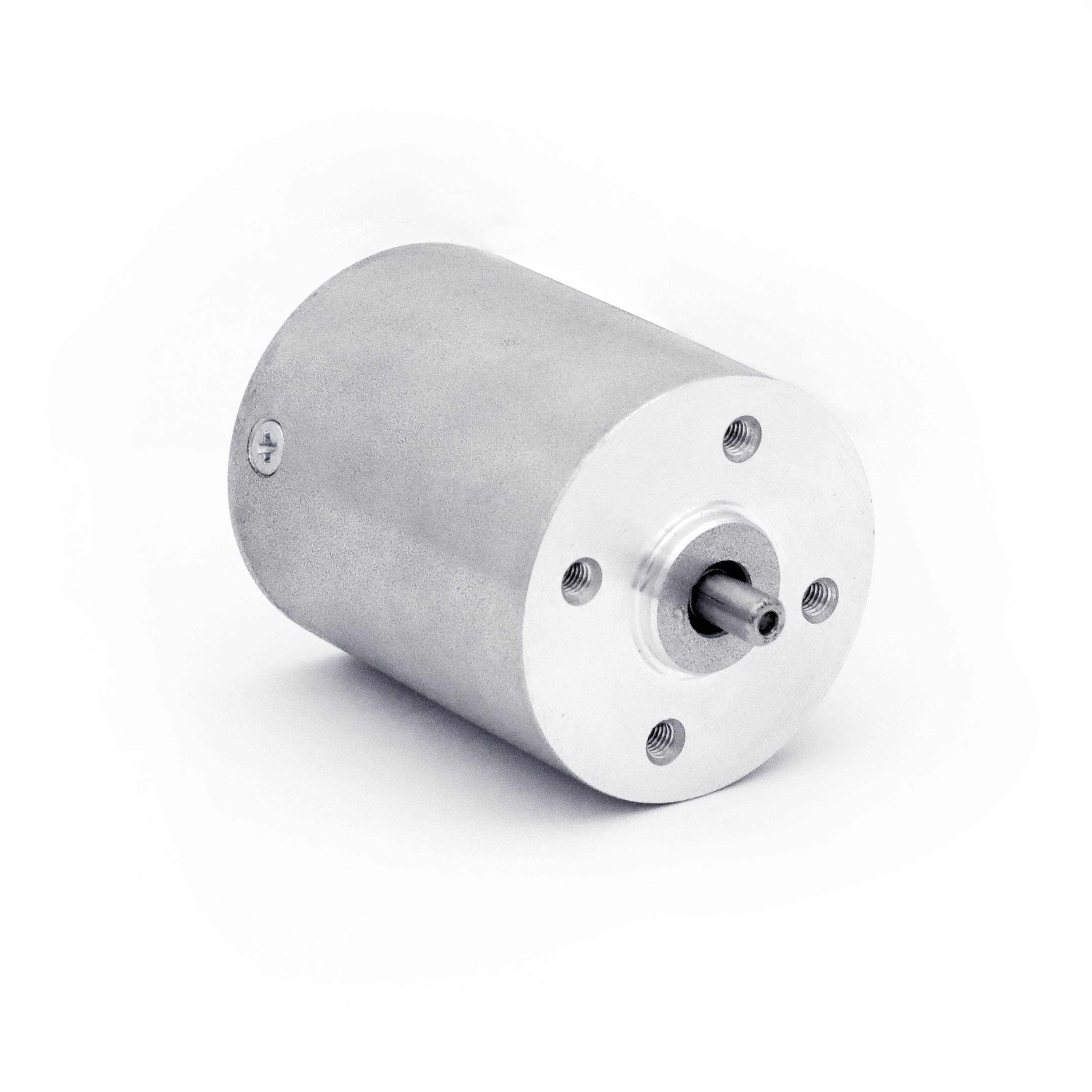

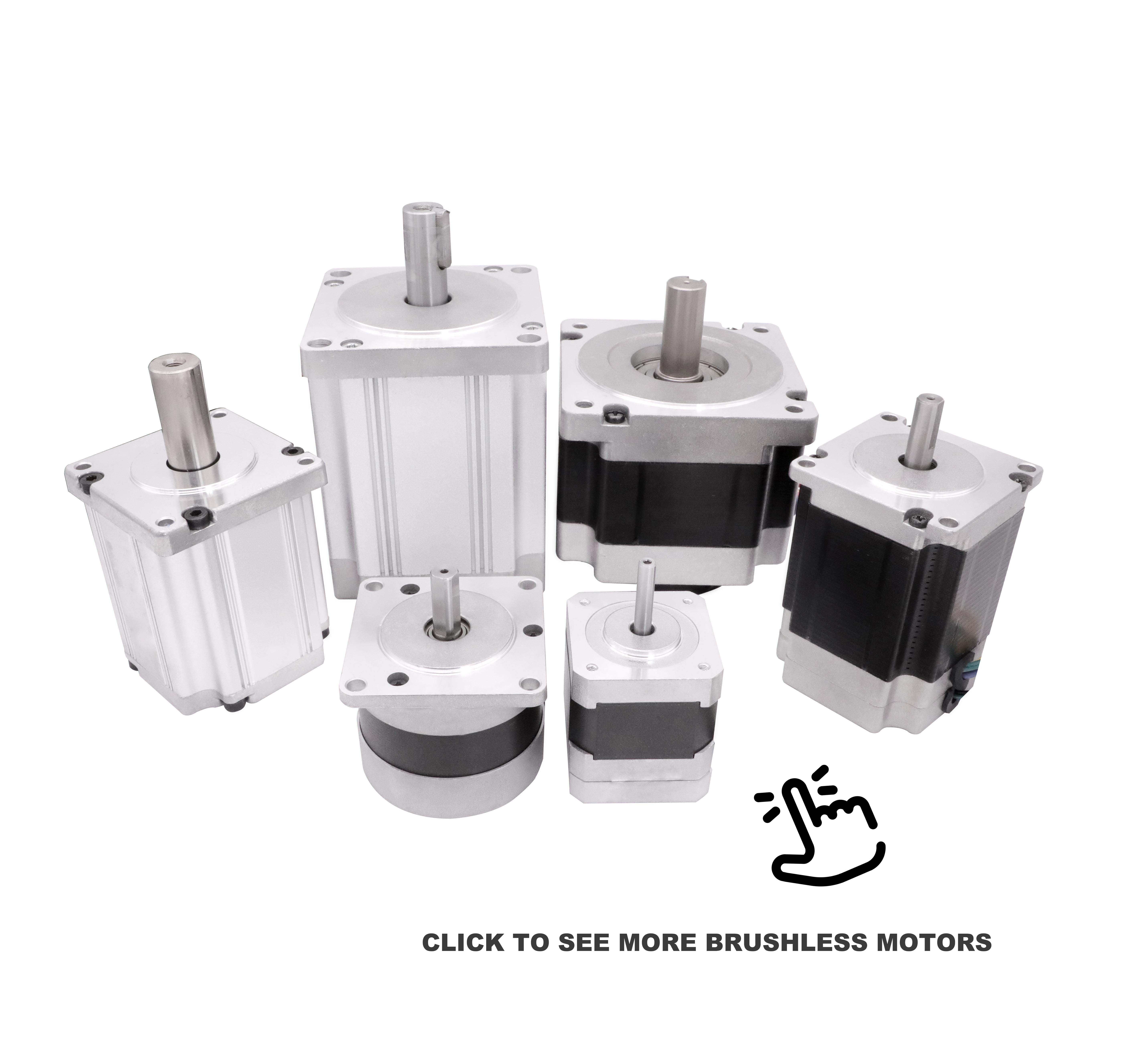

Brushless DC Motor
External Diameter: 22mm~110mm
Motor Power: 5W ~ 2000W
Speed :300rpm ~ 10000rpm
24v dc motor
22BL
NEMA 8 (0.86in, 22mm)
28BL
NEMA 11(1.10 in, 28mm)
33BL
NEMA 13 (1.30 in, 33mm)
36BL
NEMA 14 (1.42 in, 36mm)
42BLF
NEMA 17 (1.65 in, 42mm)
42BLFX
NEMA 17 (1.65 in, 42mm)
42BLY
NEMA 17 (1.65 in, 42mm)

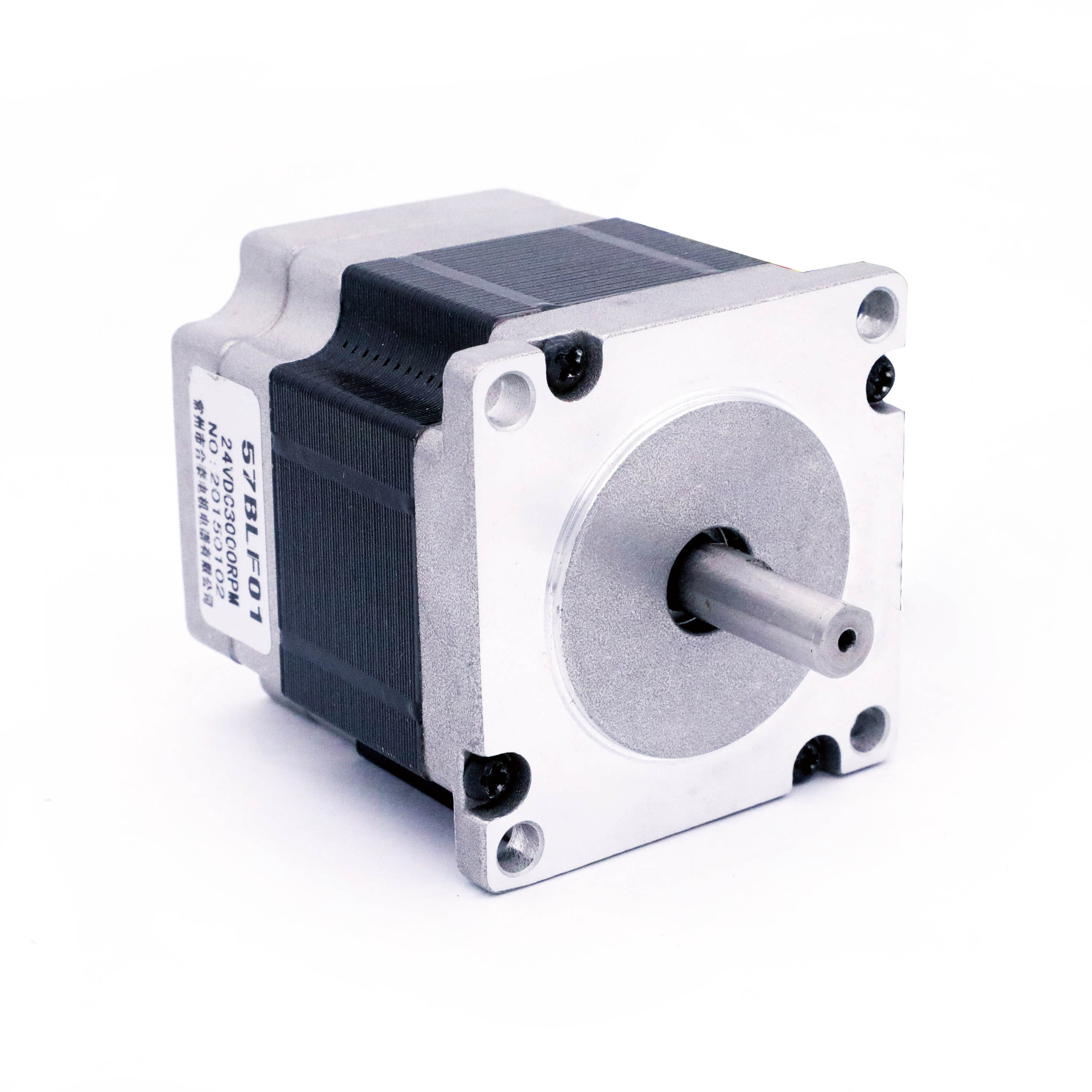

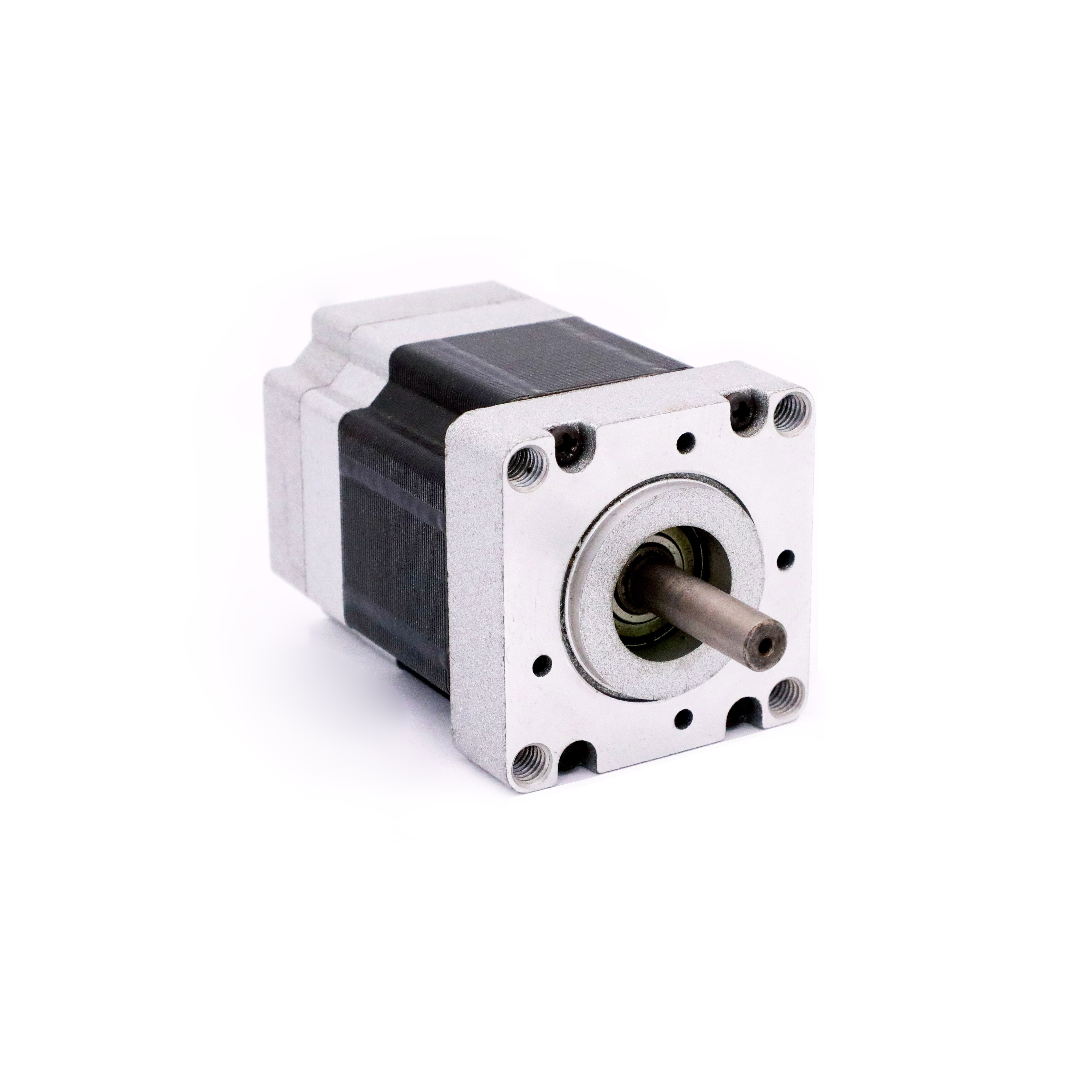

57BL
NEMA 23 (2.24 in, 57mm)
57BLF
NEMA 23 (2.24 in, 57mm)
Contact us to find out more details about 24V DC motor.
Our Advantages

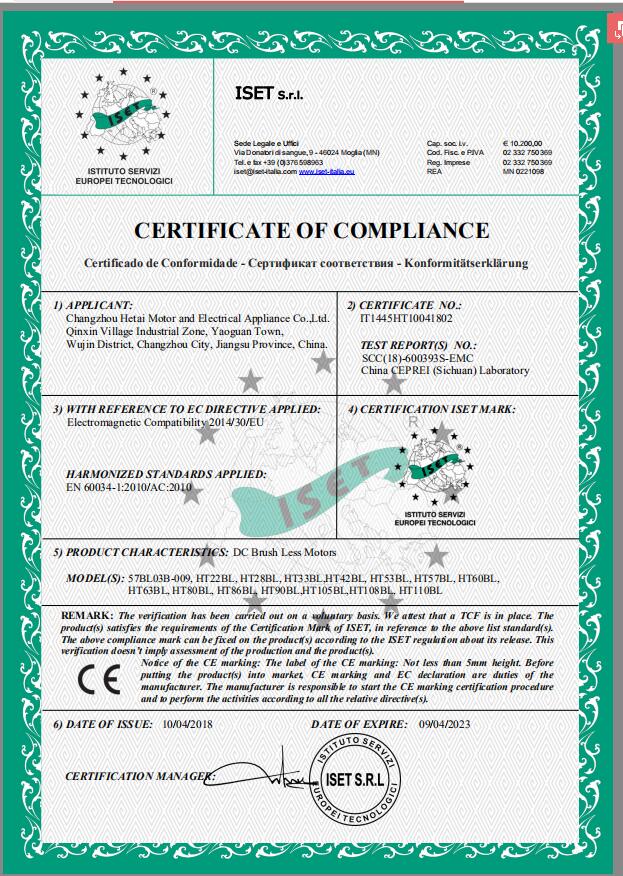

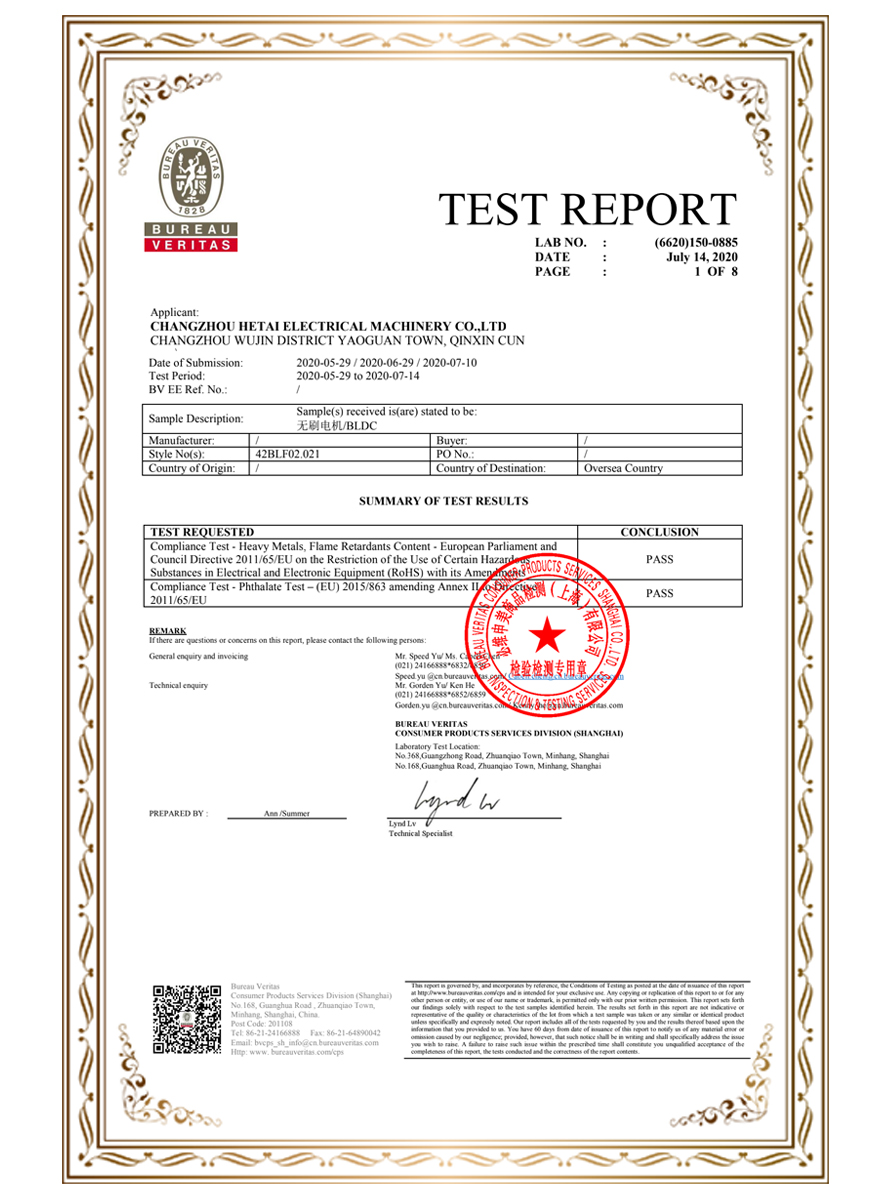

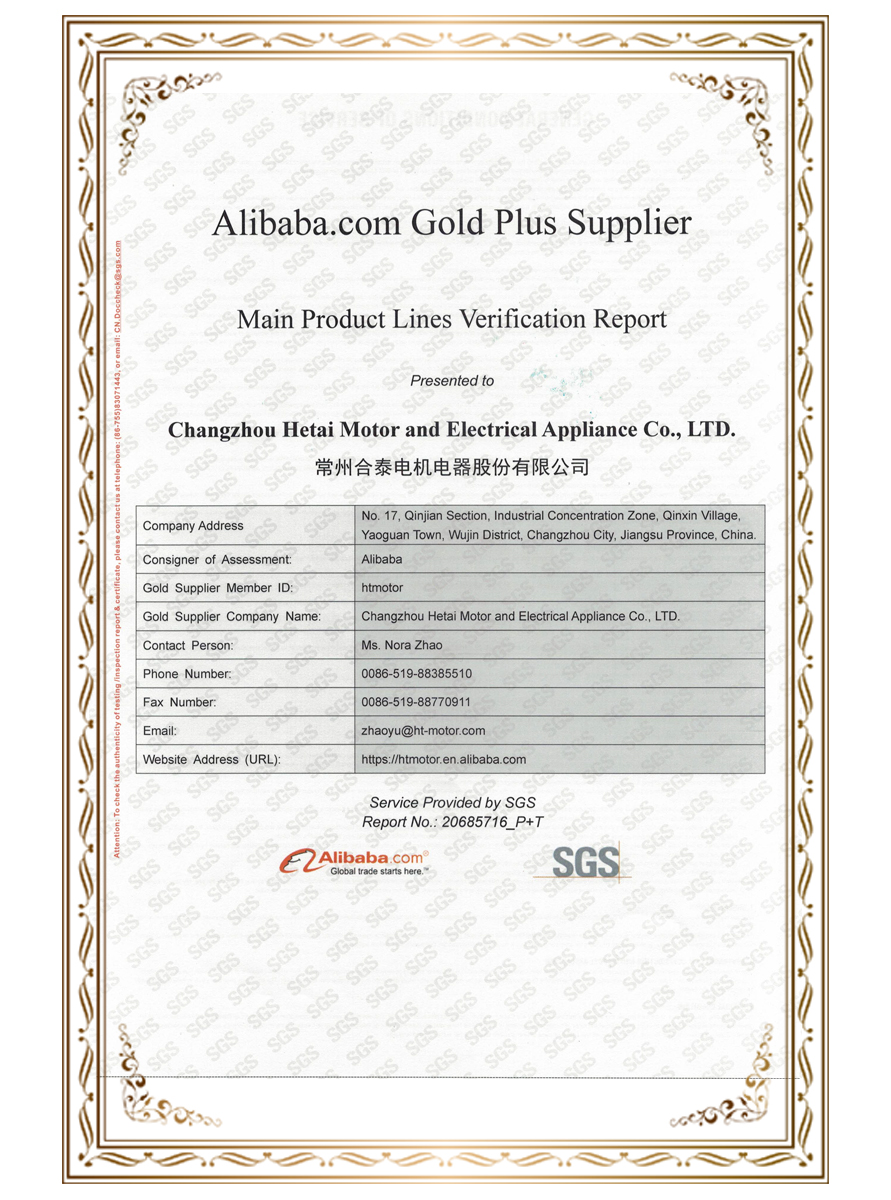

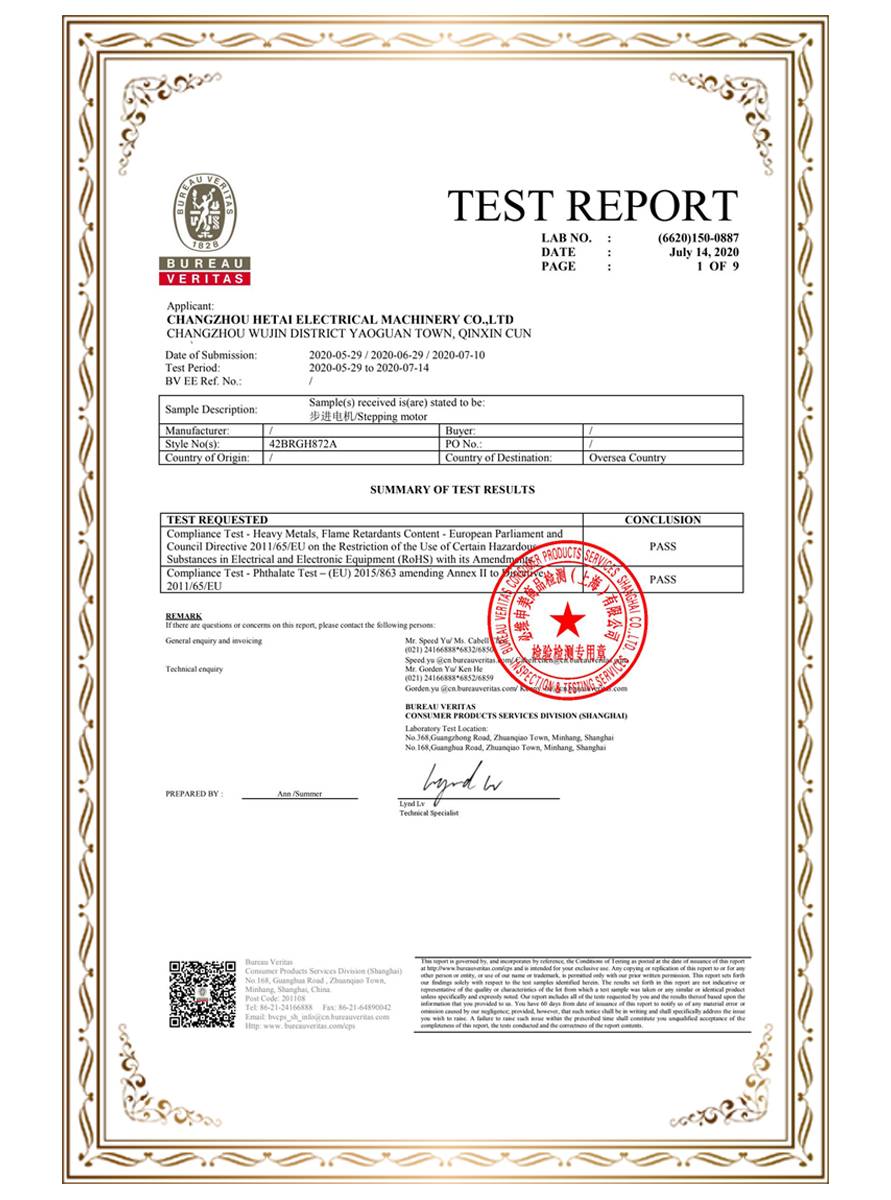

Certificate
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

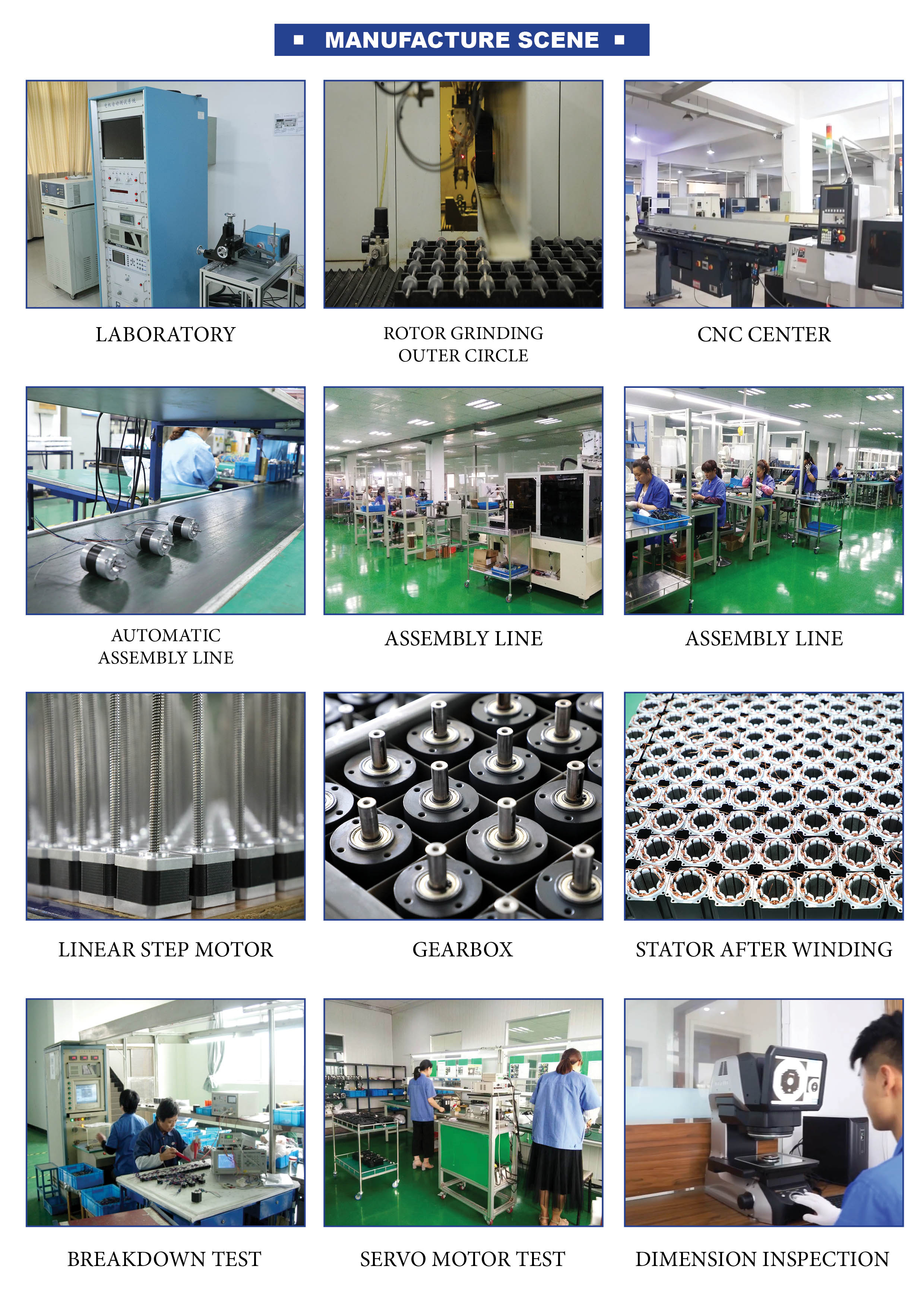

Experienced Manufacturer

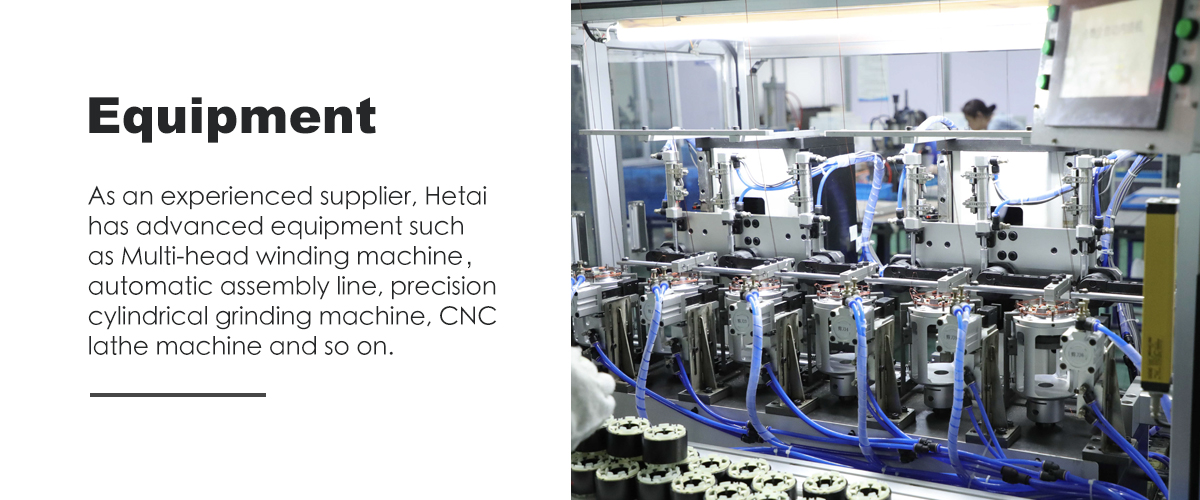

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

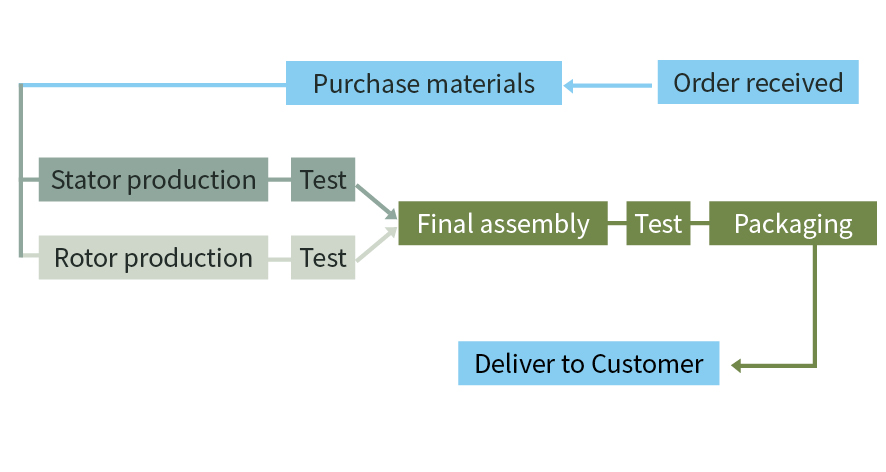

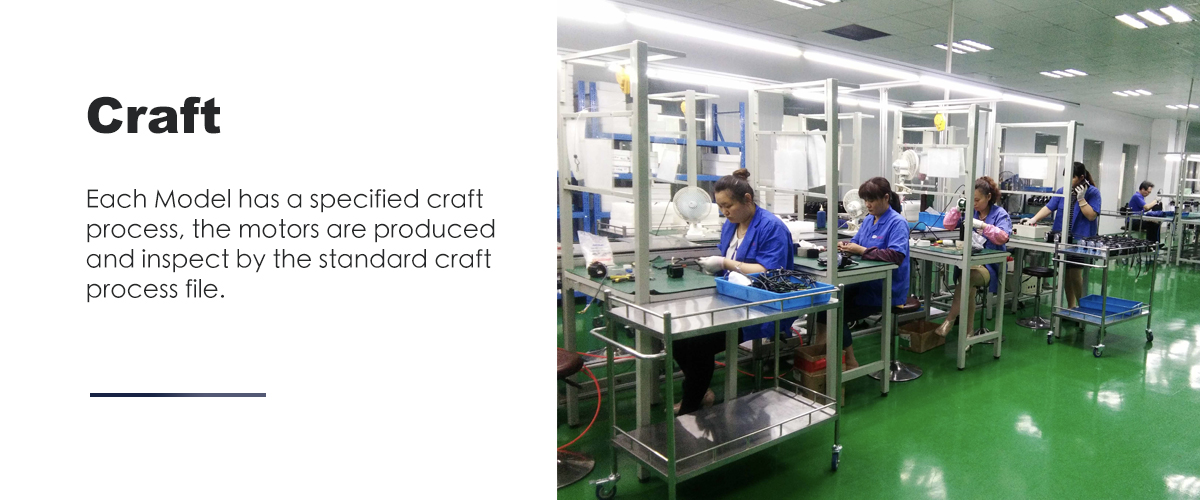

Hetai Production Process

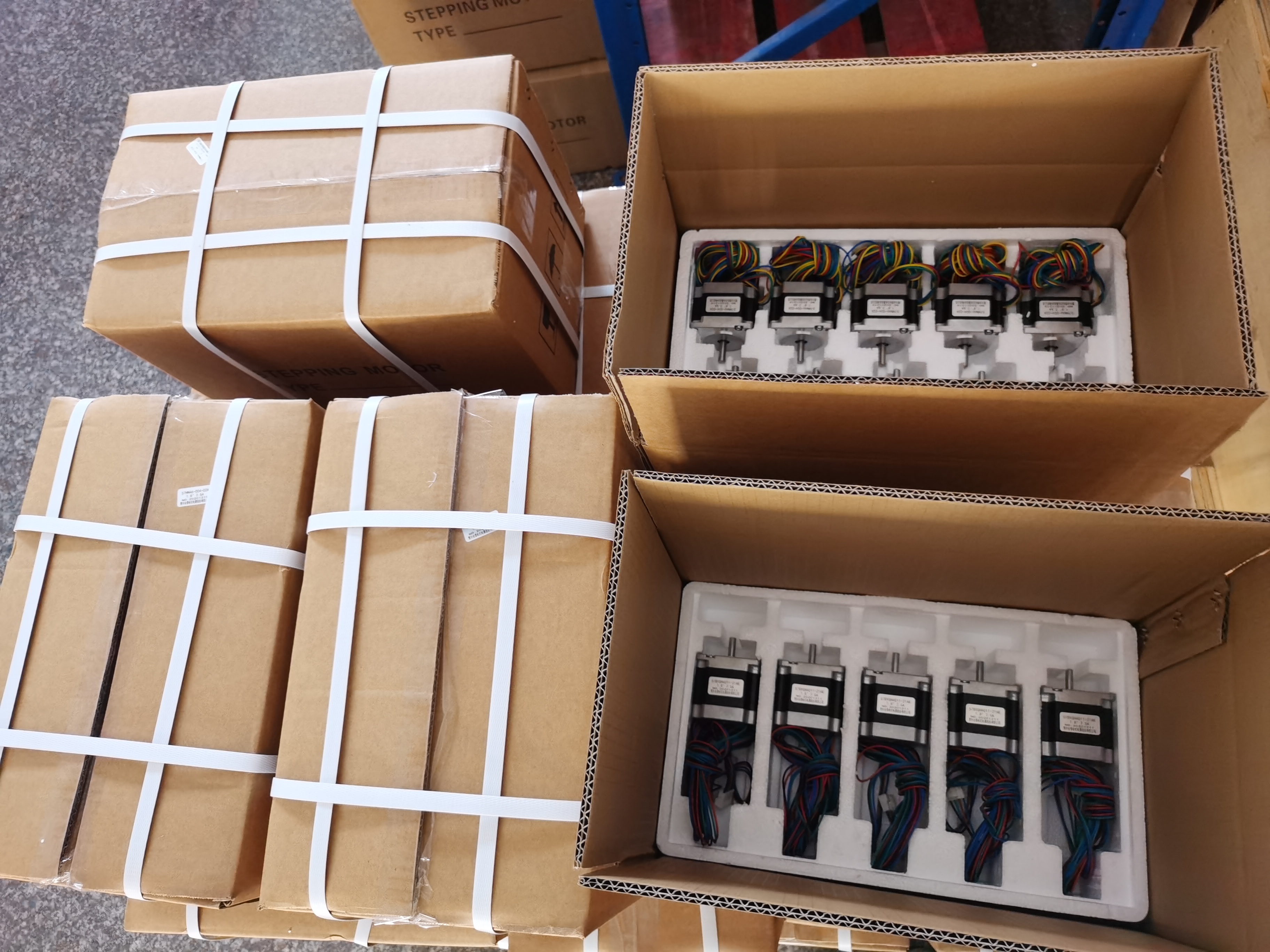

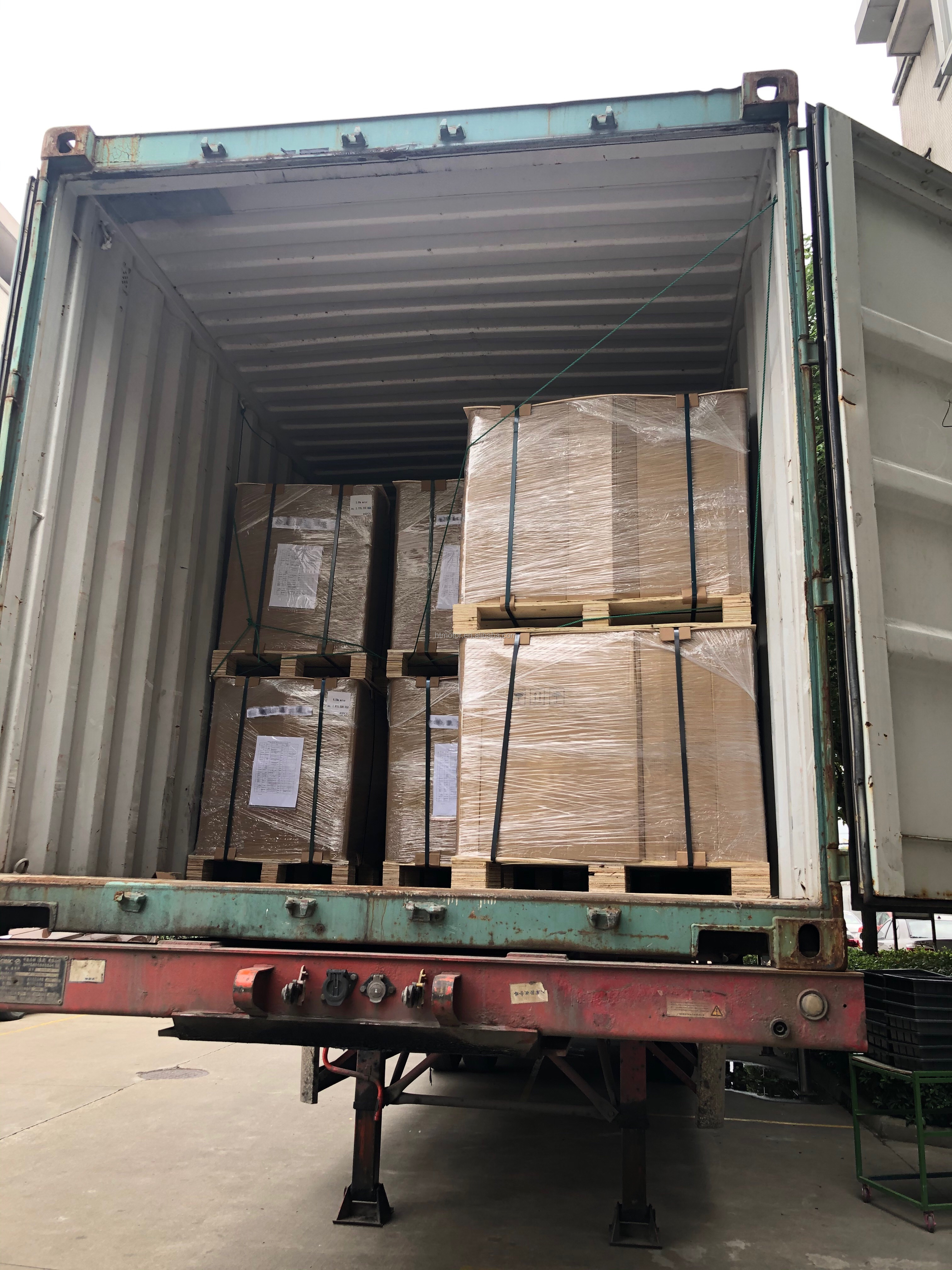

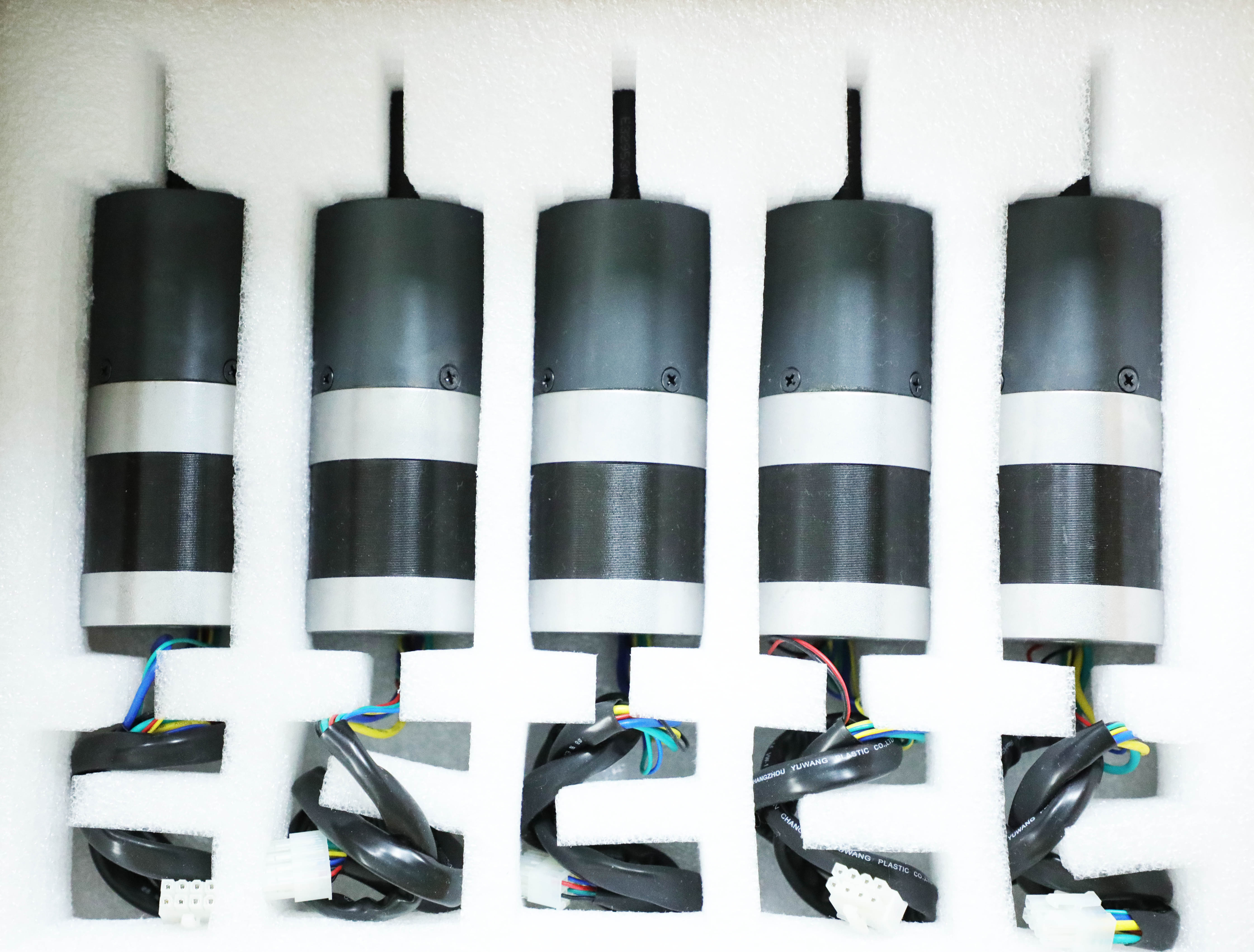

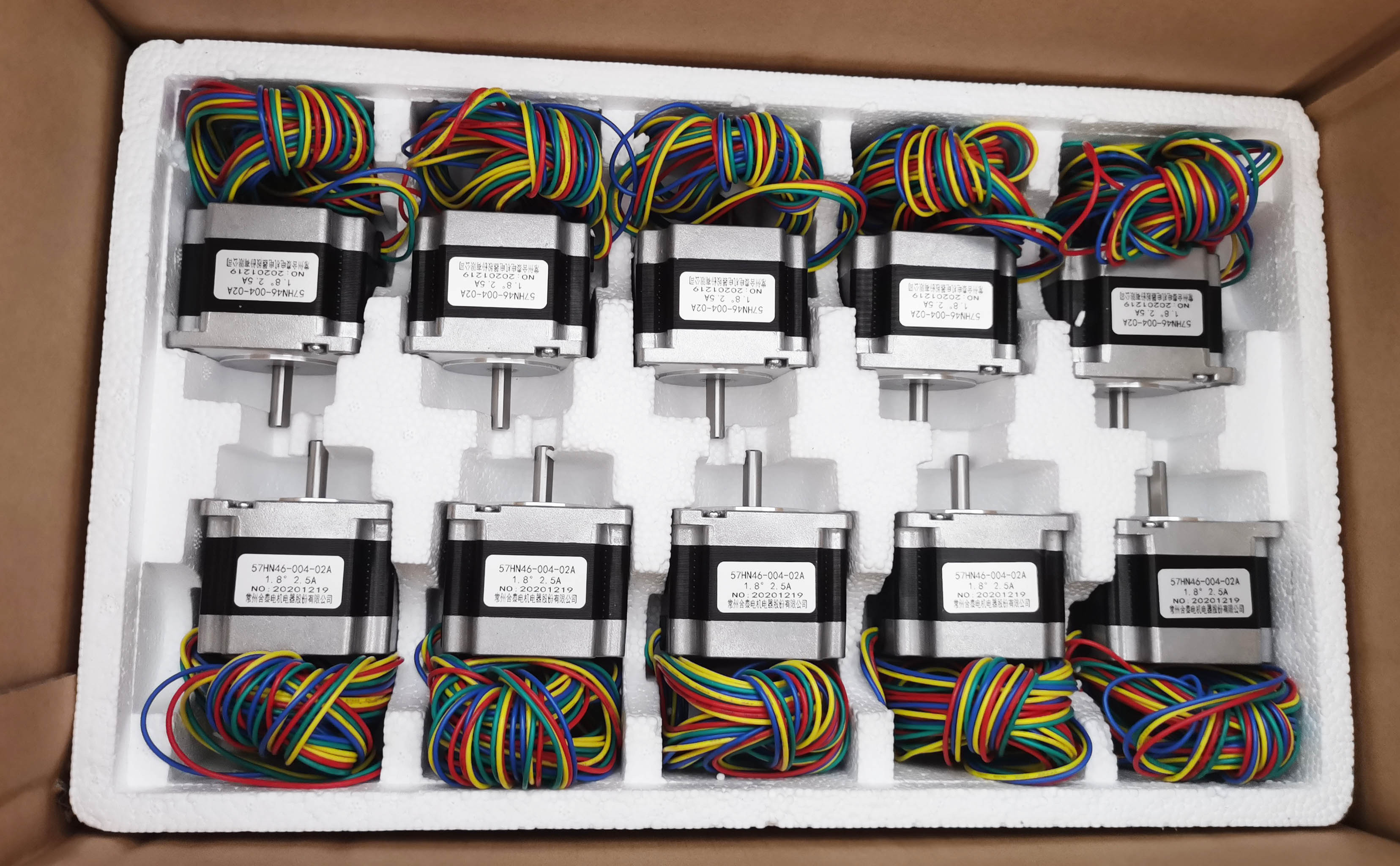

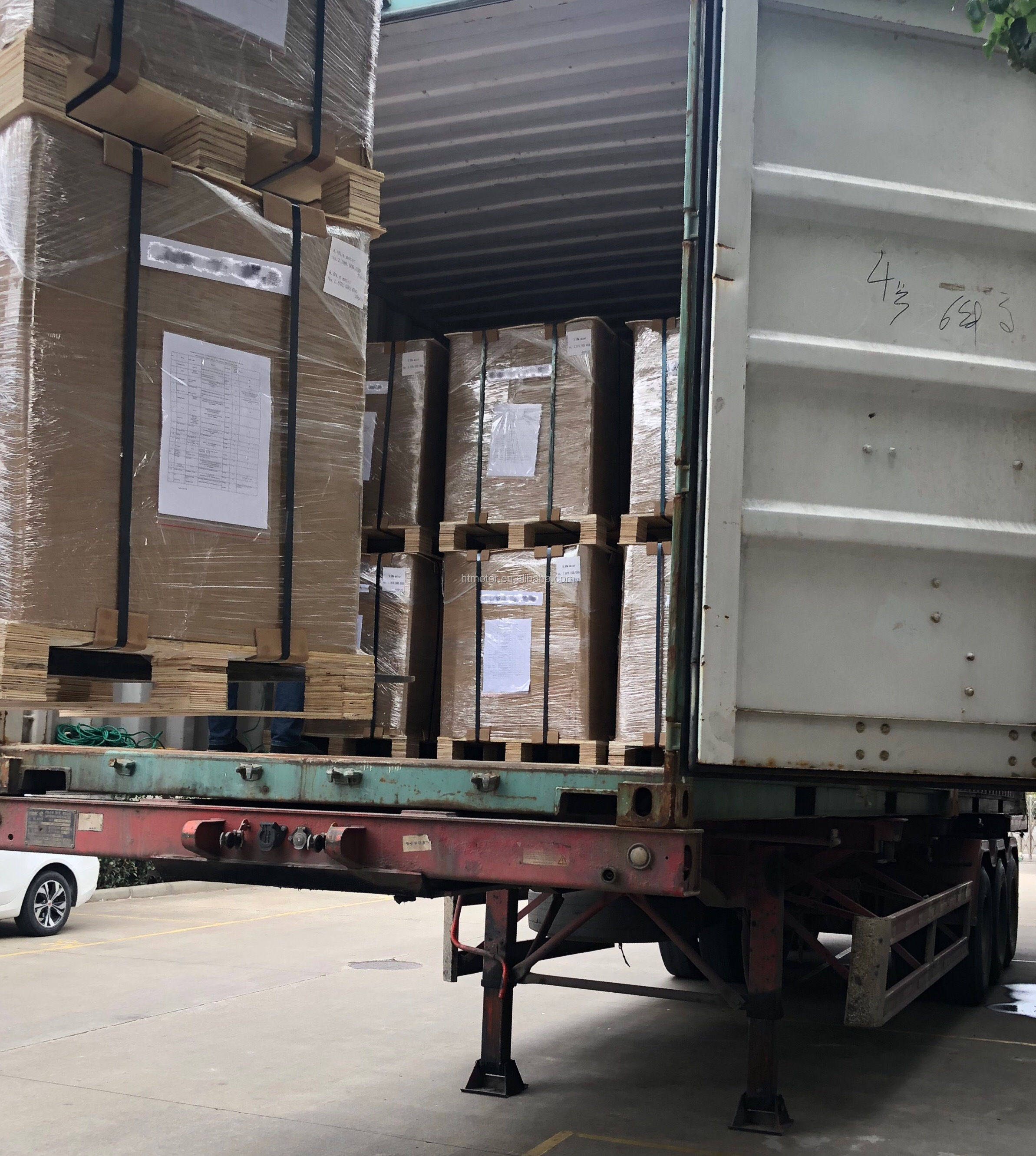

Package & Delivery
FAQ
1.Are you factory?
Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in

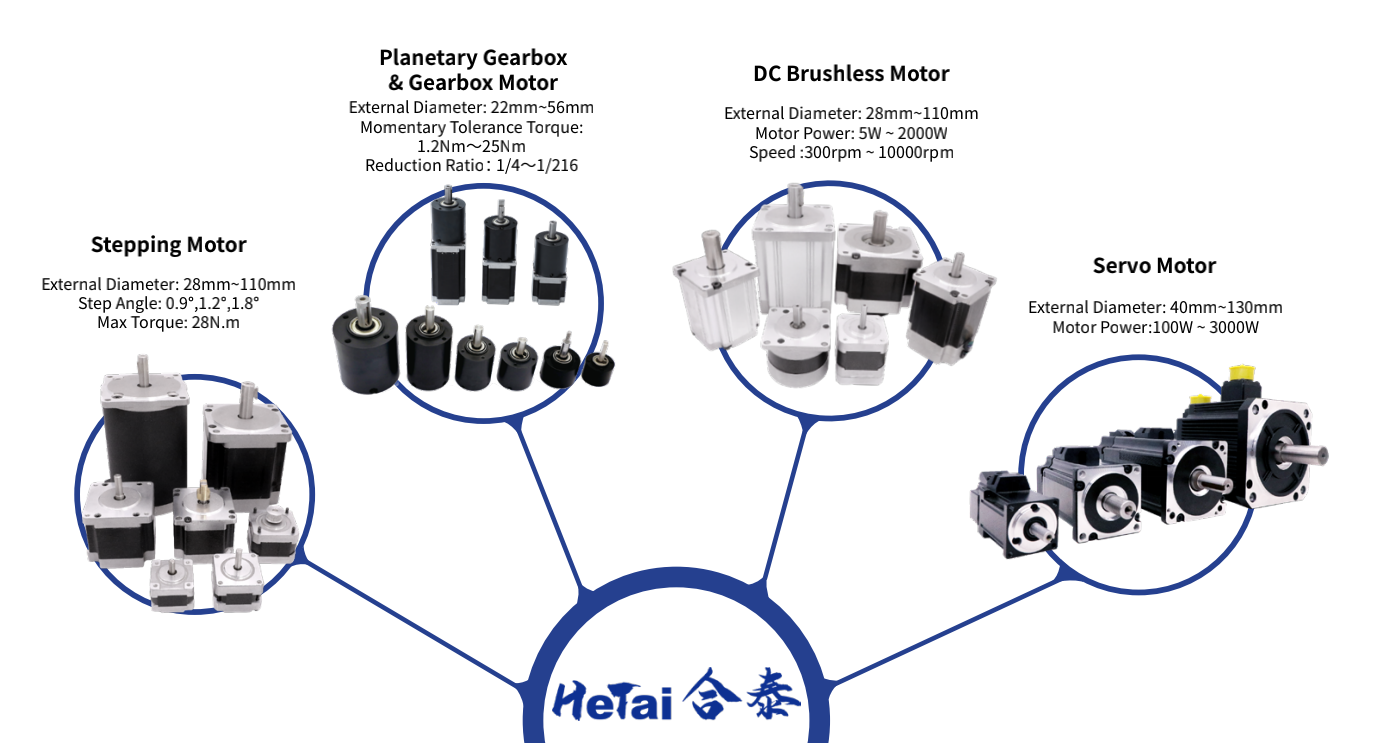

China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.
2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com 3. How can we get your catalog?
Please visit below website to download it :https://new.ht-motor.net/index.php?m=content&c=index&a=lists&catid=136
4.Can I test sample?
Yes, samples and freight are charged.
5.Can I get Customized product?
Sure, all the products can be customized based in special request.
6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.
9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
