Model No: 42BLFX02

Hetai hot sale new product 42BLFX02 nema17 brushless dc motor high torque 0.22N.m 4000rpm 24V bldc motor

minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:42BLFX02
  • Usage:hosiery machine; financial sorting machine; pump coffee machine
  • Type:Micro Motor
  • Torque:0.22 N.m
  • Construction:Permanent Magnet
  • Commutation:Brushless
  • Protect Feature:IP40
  • Speed(RPM):4000 RPM
  • Continuous Current(A):1A
  • Efficiency:IE 1
  • Product Name:Brushless Motor
  • Rated Voltage:24 VDC
  • Rated Speed:4000rpm
  • No.of Poles:8
  • No.of Phase:3
  • Rated torque:0.22N.m
  • Rated Current:1.6A
  • Power:92W
  • Resistance:0.77
  • Insulation Class:E

Product Description

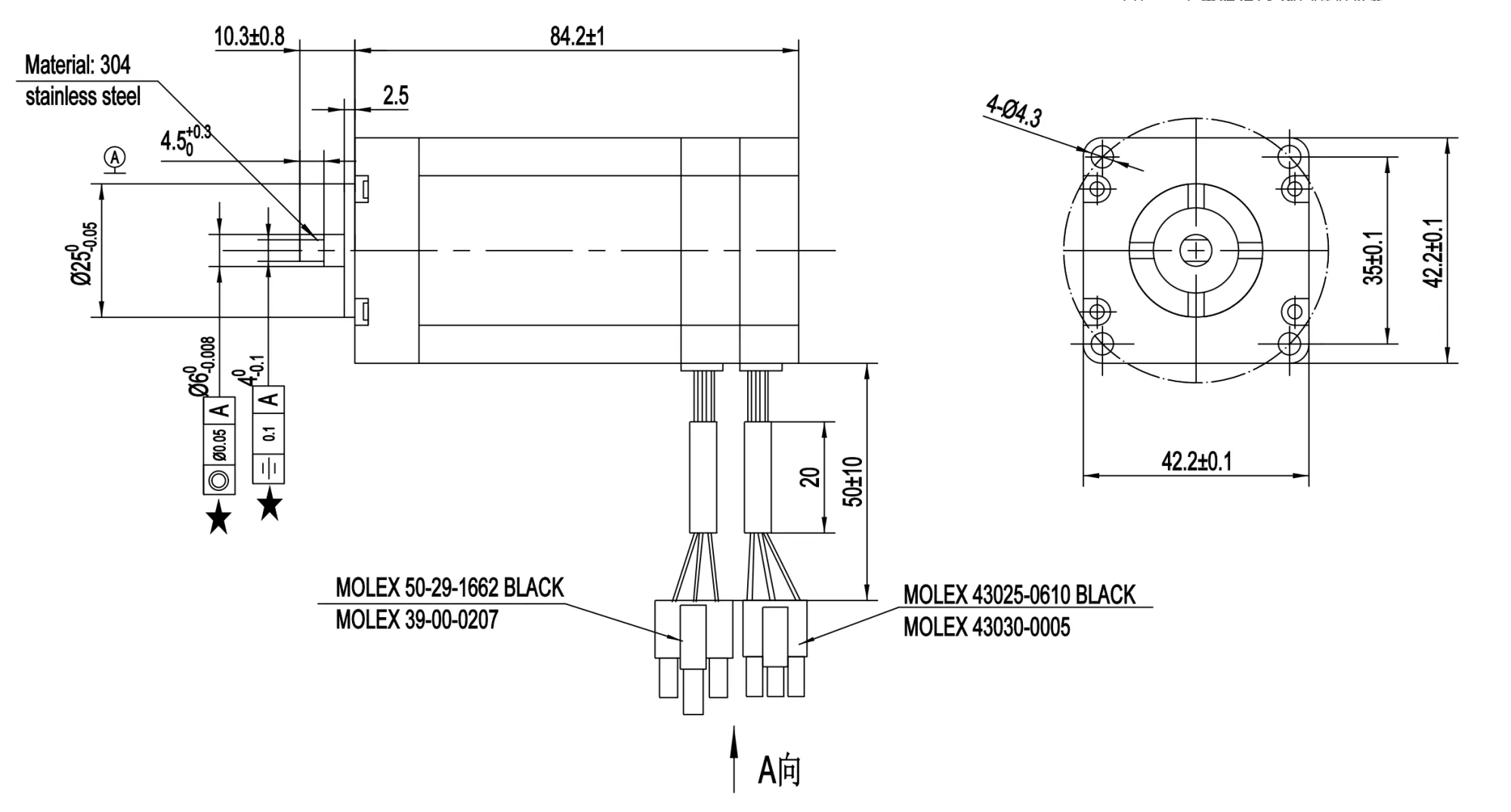

42BLFX02 High torque BLDC motor

High-efficiency, low noise, HIGHER torque output
Compact in volume, space-saving
Hetai hot sale new product 42BLFX02 nema17 brushless dc motor high torque 0.22N.m 4000rpm 24V bldc motor


Product Name:
Brushless Motor
Dielectric Strength:
500V AC 1minute
Ambient Temperature:
-20℃~50℃
Insulation resistance:
100MΩ Min.500V DC
Voltage(VDC):
24(VDC)
Power(W):
92
Rated Speed(RPM):
4000
Rated Torque（N.M):
0.22
Rated Current(A):
1

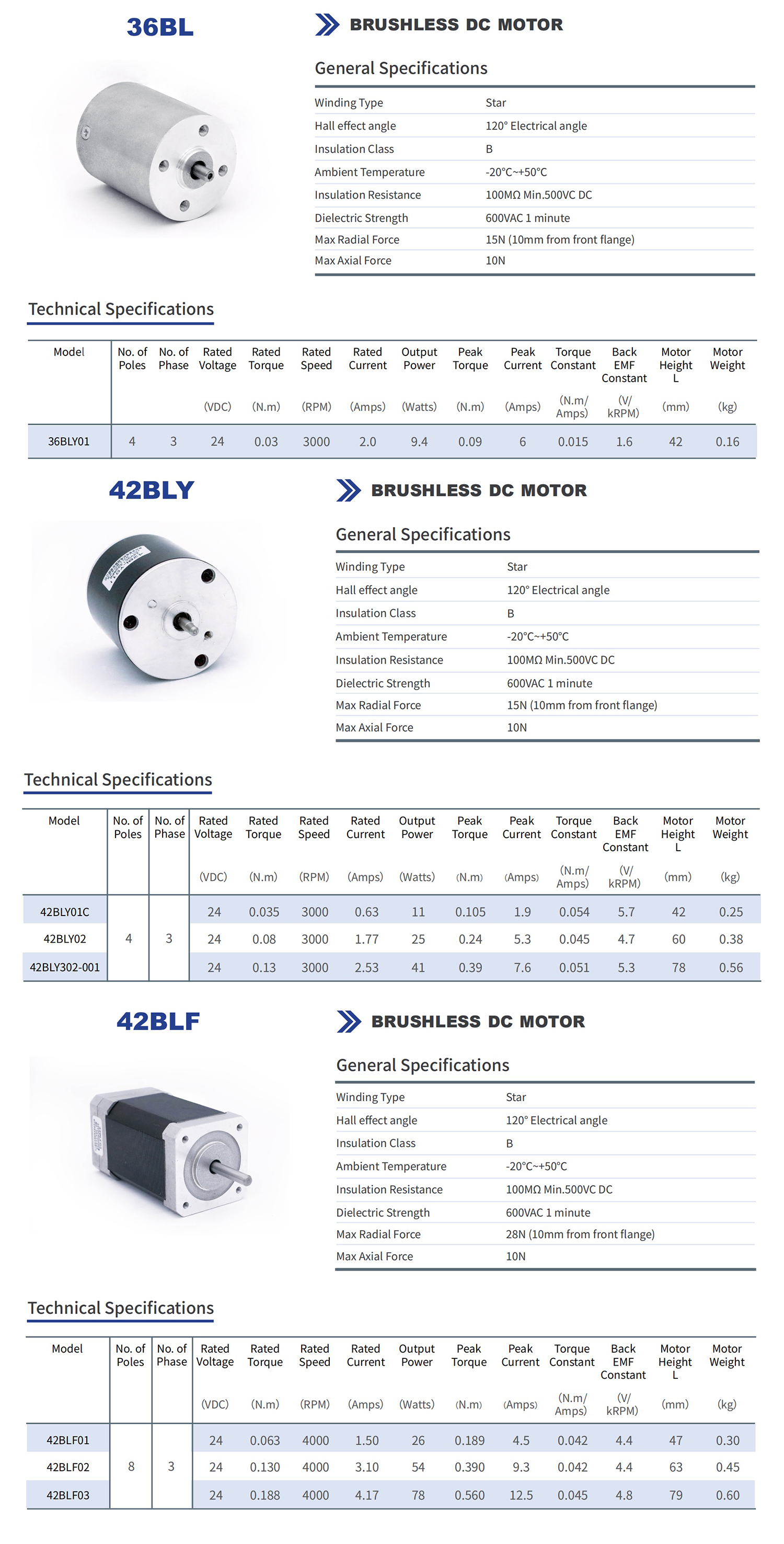

Product Introduction


Product Series
Poles No.
Rated Voltage
Rated Speed
Rated Torque
Rated Power
Motor Length
(mm)
42mm BLDC Motor
4 or 8
12/24/36/48v
4000rpm
0.063~0.25N.m
26~106w
42~100
57mm BLDC Motor
4 or 8
24/36/48v
3000rpm
0.057~0.8N.m
15~251w
42~122
80mm BLDC Motor
4
48/310v
3000rpm
0.7~1.8N.m
220~565w
105~160
86mm BLDC Motor
8
48v/310v
3000rpm
1.4~2.1N.m
440~660w
94~124
110mm BLDC Motor
8
310v
3000rpm
3.5~6.5N.m
1100~2040w
156~216
130mm BLDC Motor
10
310v
3000rpm
2.39~11.94N.m
750~2500w
115~160
Above only for standard products, products of special request can be made according to the customer request.

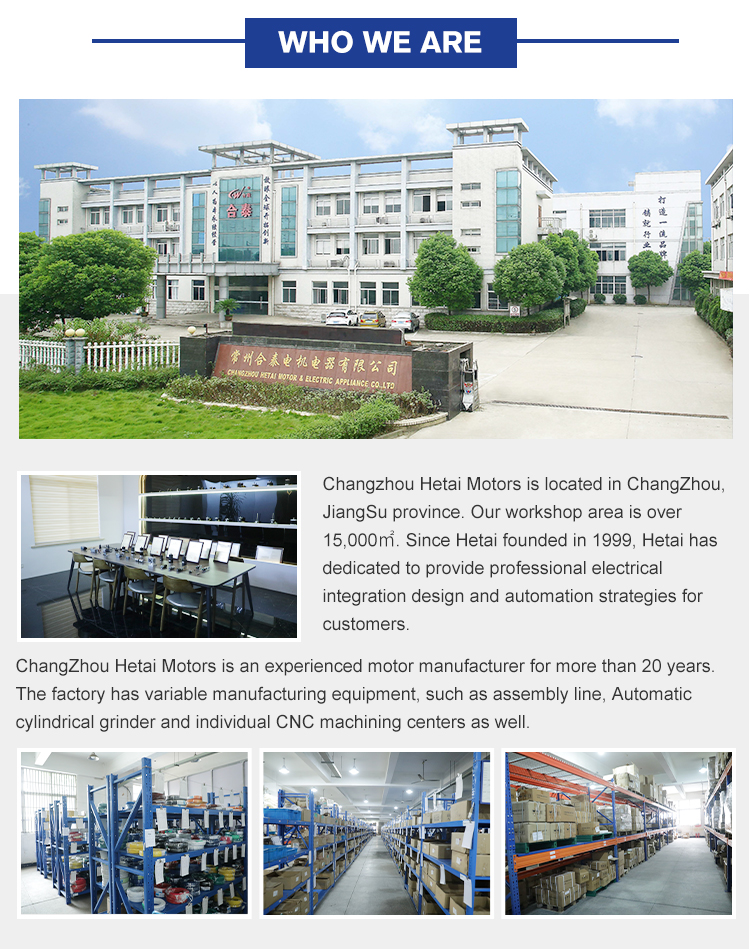

Company Profile






Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡.Since Hetai founded in 1999, Hetai has dedicated to provide professional electrical integration design and automation strategies for customers.

Experienced Manufacturer

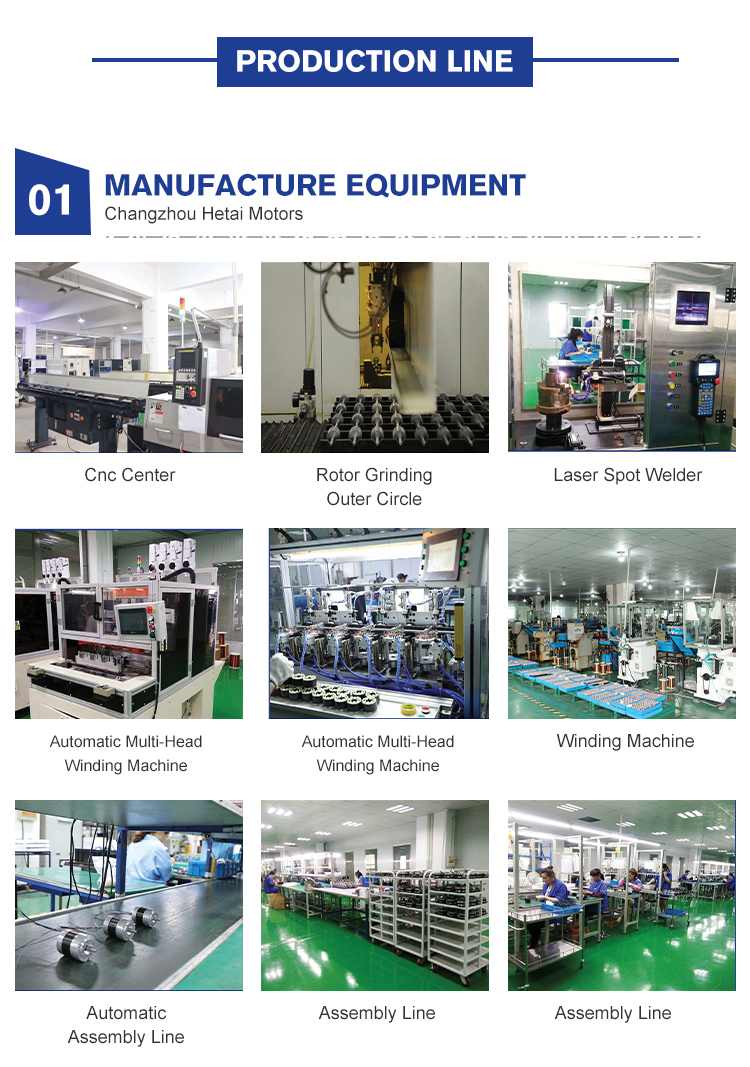

ChangZhou Hetai Motors is an experienced motor manufacturer for more than 20 years.The factory has variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and individual CNC machining centers as well.






Product Range
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.





Our advantage


Hetai can offer：
Specialised/customised design and product
Good quality products
Valuable Service


Engineering Support

Hetai has got 11 patent certificates since it founded in 1999. The strength in engineering design has offered our customer most suitable product. Our technical team includes three 10 years + experience engineers, which allow us to provide professional automation strategies for customers.

Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.


Find

Our team can help you find most suitable motor for the application from our vast selection of motors.

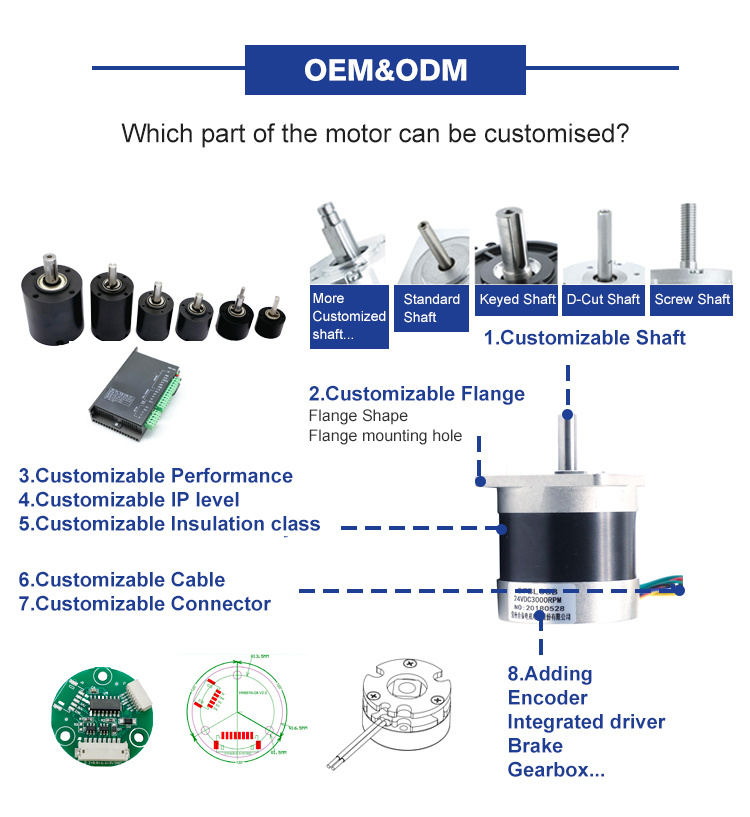

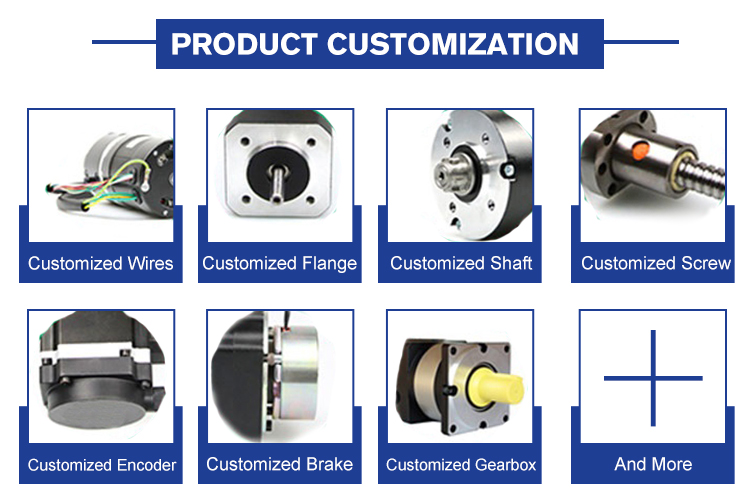

Customise

We can design and customise the performance and exterior for your specific use or assembly.

Optimise

For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.


Mass Production Advantage














1.Are you factory?
Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.

2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com

3. How can we get your catalog?
Please visit below website http://www.hetaimotor.comto download it.

4.Can I test sample?
Yes, samples and freight are charged.

5.Can I get Customized product?
Sure, all the products can be customized based in special request.

6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.

7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept

8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.

9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
