Model No: MADLT05SF

Panasonic MADLT05SF | MINAS A6S Series Servo Driver

Swifter, smarter and easier to use Powered Up compact driver
Quantity :
Contact Now

Panasonic MADLT05SF | MINAS A6S Series Servo Driver


Panasonic MADLT05SF is a high-performance servo drive with excellent response speed and control accuracy, suitable for precise control of various mechanical equipment. It adopts advanced digital control technology to realize high-speed and high-precision dynamic response, and is equipped with a variety of safety protection functions to ensure the reliability and stability of equipment operation. This drive also supports a variety of interfaces and communication protocols, which is convenient for users to carry out flexible configuration and control. All in all, Panasonic MADLT05SF is an excellent servo drive that provides strong support for the efficient operation of various types of equipment.
  • Warranty:3months-1year
  • Place of Origin:Guangdong, China
  • Brand Name:Pana
  • Part Number:MADLT05SF
  • Type:Multifunction type
  • Details: A6SF series Multifunction type (Pulse analog full-closed) with the safety function
  • Product name: MINAS A6S Series Servo Driver
  • Dimensions (W) (Unit: mm)    40
  • Dimensions (H) (Unit: mm)    150
  • Dimensions (D) (Unit: mm)    130
  • Mass (kg)    0.8

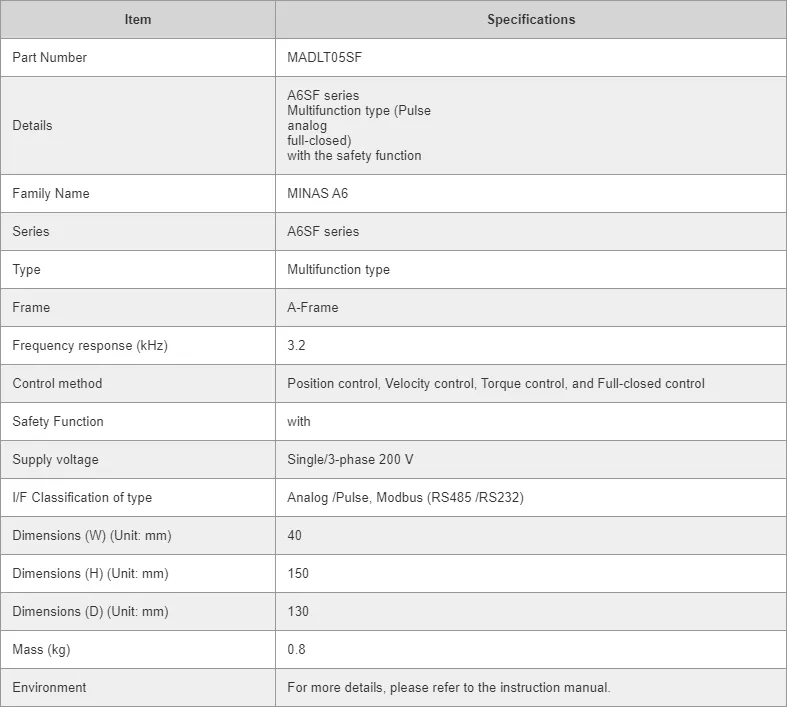

Spec Detail


Spec Detail


Brake specifications

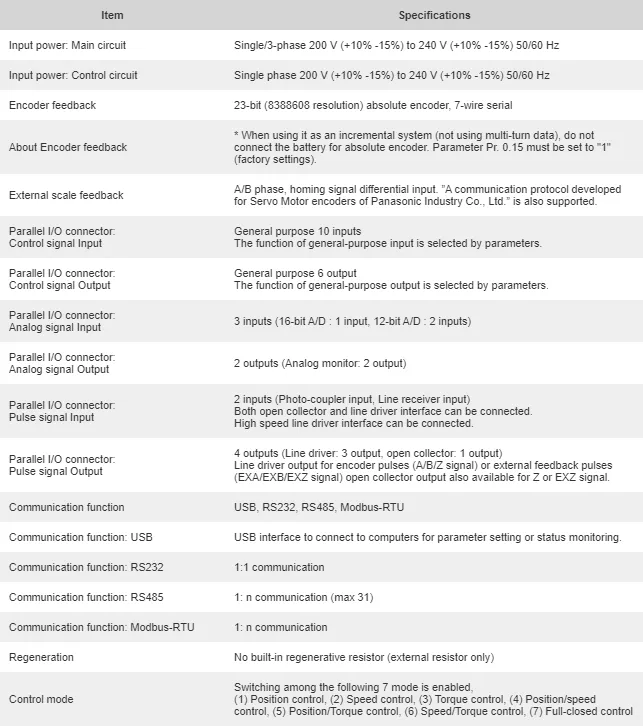

Basic Specifications

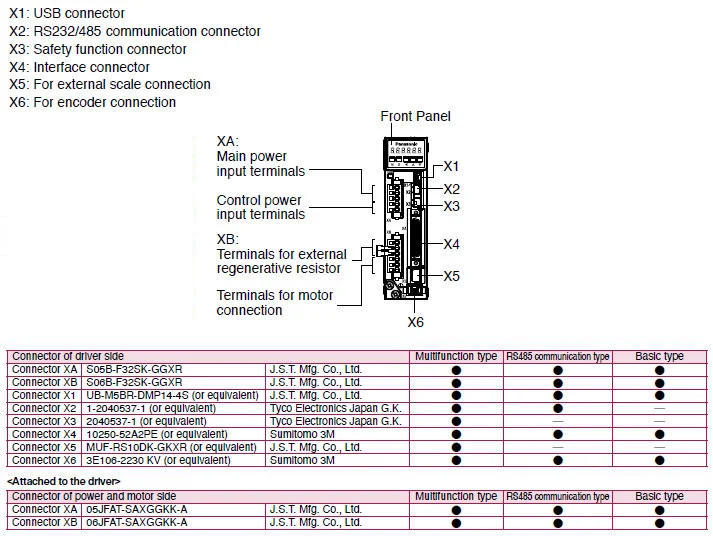

Connector specification


Connector specification

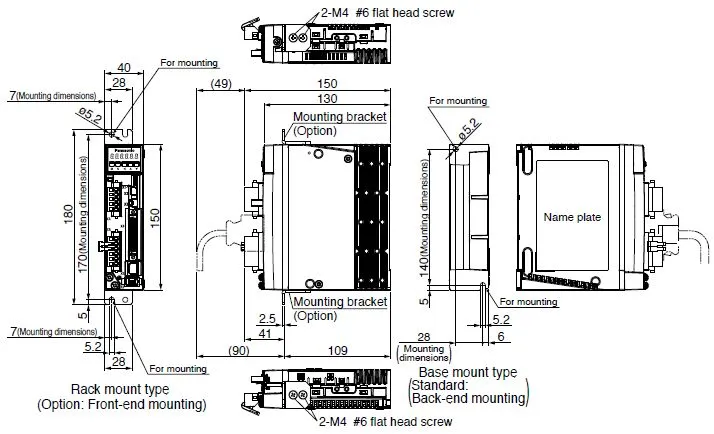

Dimensions


Dimensions
