Model No: 3TK2810-0GA02

3TK2810-0GA02

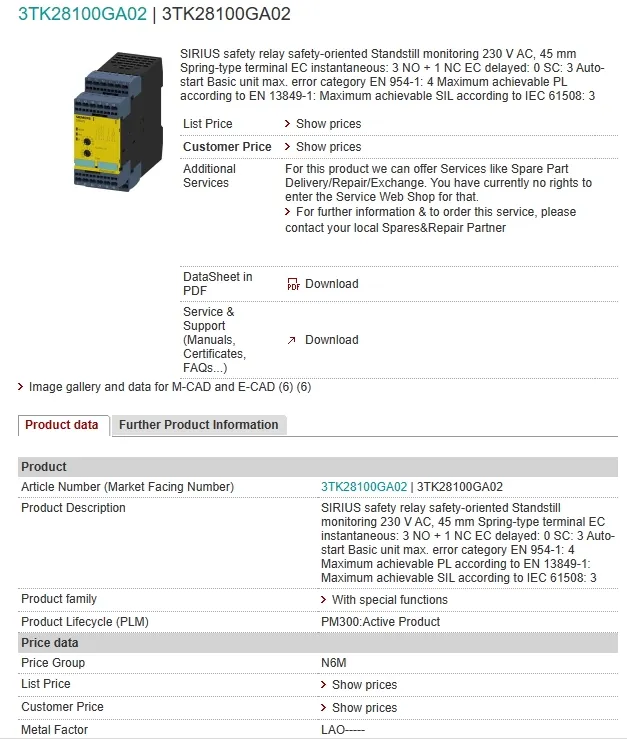

SIRIUS safety relay safety-oriented Standstill monitoring 230 V AC, 45 mm Spring-type terminal EC instantaneous: 3 NO + 1 NC EC delayed: 0 SC: 3 Auto-start Basic unit max. error category EN 954-1: 4 Maximum achievable PL according to EN 13849-1: Maximum achievable SIL according to IEC 61508: 3

minimum order :

1 piece

Quantity :

Contact Now

Siemens 3TK2810-0GA02 Standstill Monitoring with Spring Loaded Terminal

A spring-loaded terminal is an electrical connector that uses a spring mechanism to securely hold electrical wires in place. These terminals are used in a variety of electrical applications to provide a reliable and secure connection between electrical components. Spring-loaded terminals are commonly found in electronic devices, industrial equipment, and automotive applications.

The spring-loaded mechanism works by using a spring to apply pressure to the wire or connector that is inserted into the terminal. This pressure helps ensure a solid and reliable connection even in harsh environments where there may be vibrations or movement that could loosen the connection.

Spring-loaded terminals come in a variety of styles and designs to meet specific application requirements. They can be either single or multi-wire connections, with options for soldering or crimping the wires to the terminals. Some spring-loaded terminals are designed to be mounted on printed circuit boards, while others are used in panel-mounted applications.

When using standstill monitoring with spring loaded terminals, the sensors and control system are typically connected using these terminals. The spring-loaded design provides a reliable connection that is resistant to shocks and vibrations and can maintain a secure connection even in harsh environments.
