Model No: Cam Indexer
Cam Indexing Drive
A Cam Indexing Drive is a powerful technology used in manufacturing for precise and reliable motion control. It utilizes a cam mechanism to position machine components with high accuracy and repeatability.

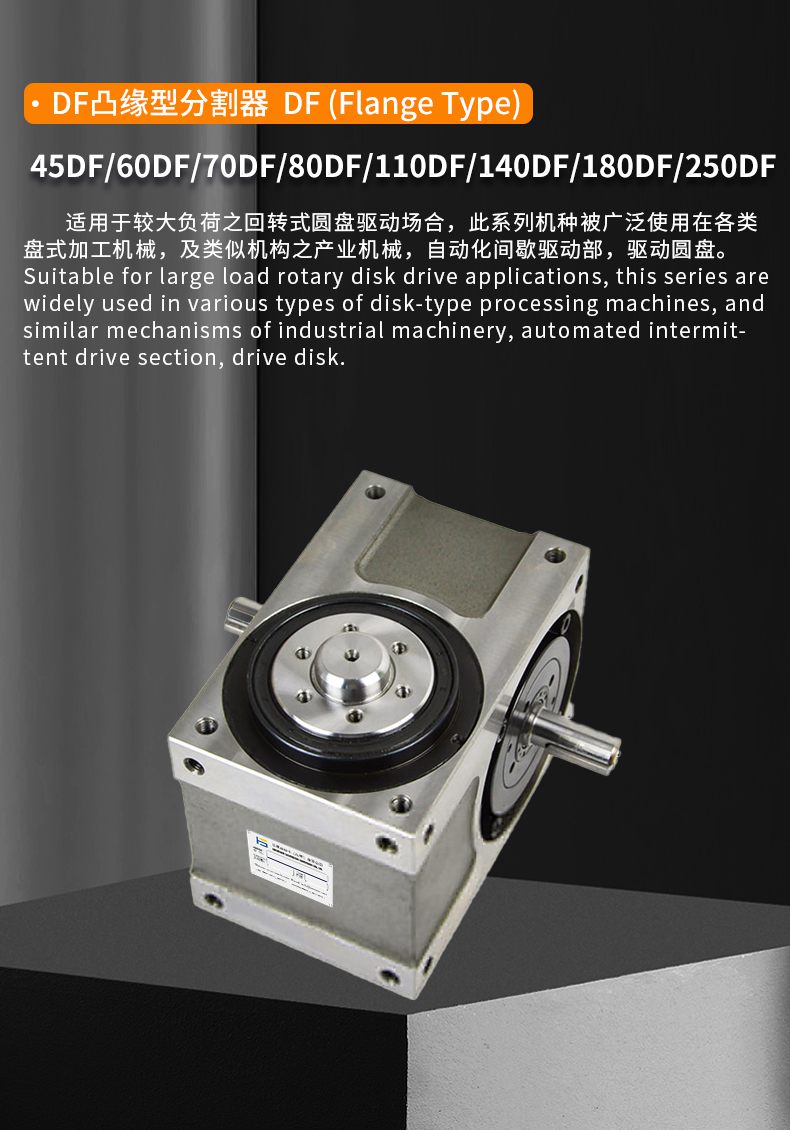

Hansheng Cam Index Drives are classified into the following six types with the configurations of the output portions: Shaft Output Model (DS), Flange Output Model (DF), Flange Shaft Output Model (DE), Table Model (DT), Ultrathin Table Model (DA), Paradex Model (PU).
We also support special dimension custom service and special cam production.
Hansheng Cam Index Drives are classified into the following six types with the configurations of the output portions: Shaft Output Model (DS), Flange Output Model (DF), Flange Shaft Output Model (DE), Table Model (DT), Ultrathin Table Model (DA), Paradex Model (PU).
We also support special dimension custom service and special cam production.
Quantity :
Cam Indexing Drive
Cam Indexing Drive is a mechanical transmission control device that works by using the shape of a cam to control the rotation of a drive shaft, thus realizing precise positioning control for each work cycle.Cam Indexing Drive is widely used in industrial automated production lines, manufacturing industries, food processing, and many other fields, which can help realize precise Cam Indexing Drives are widely used in industrial automation lines, manufacturing, food processing and other fields, helping to achieve precise position control, stable operation at high speeds and under high pressure, and high production efficiency.
The structure of Cam Indexing Drive consists of cam, output shaft, camshaft and cam rod. The drive system allows precise working position control at different angular speeds. Due to its accuracy and feasibility, the Cam Indexing Drive is often used in many areas of machine design.
The use of Cam Indexing Drives can improve both productivity and process quality. In the food processing industry, for example, it is possible to accurately divide, position and package food through fast and accurate positioning, while ensuring that no food is damaged or wasted. Cam Indexing Drive is also widely used in different industrial production fields for various automated production equipment, such as the manufacture of automobiles, motorcycles, medical equipment, etc. In short, Cam Indexing Drive can be used in a wide range of industries.
All in all, Cam Indexing Drive is a very practical, efficient and accurate mechanical control device with a wide range of applications, which brings a lot of convenience and benefits in many fields, which is an important driving force for improving production efficiency and product quality.

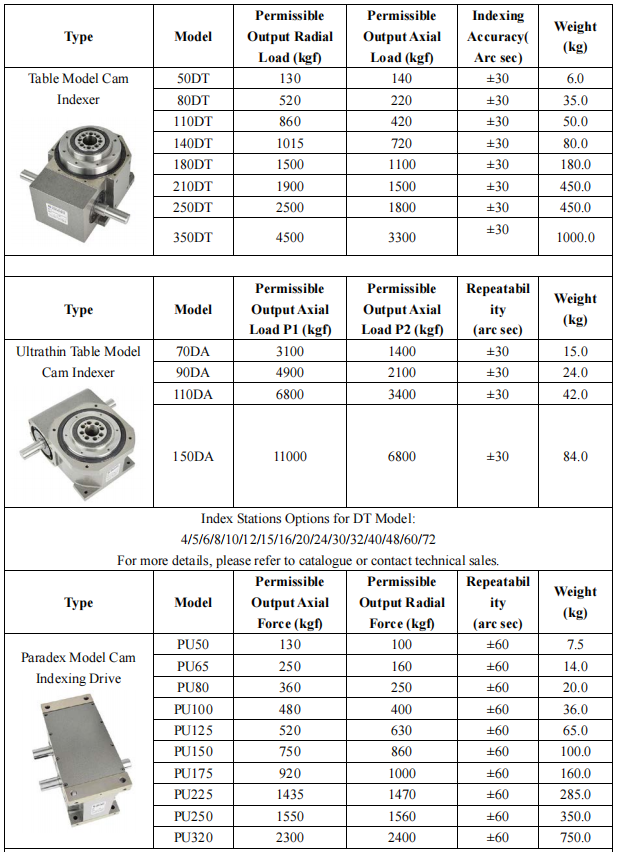

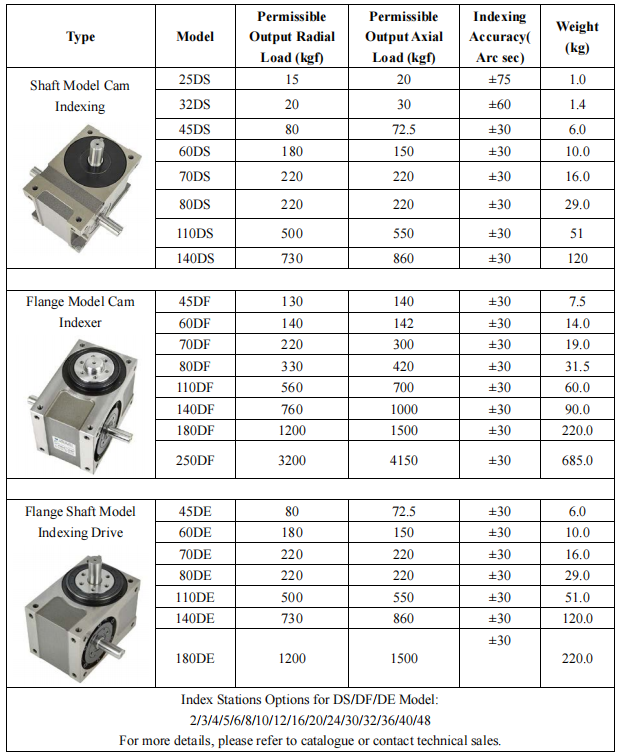

Technical Parameters
Cam Index Drives are classified into the following six types with the configurations of the output portions: Shaft Output Model (DS), Flange Output Model (DF), Flange Shaft Output Model (DE), Table Model (DT), Ultrathin Table Model (DA), Paradex Model (PU).
We also support special dimension custom service and special cam production.

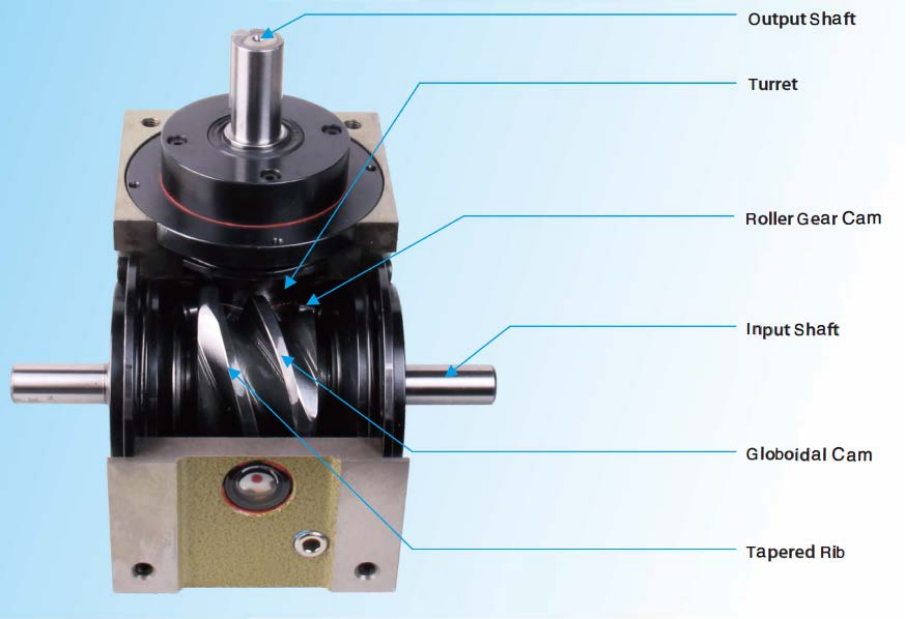

Mechanism and Structure of Hansheng Cam Indexer

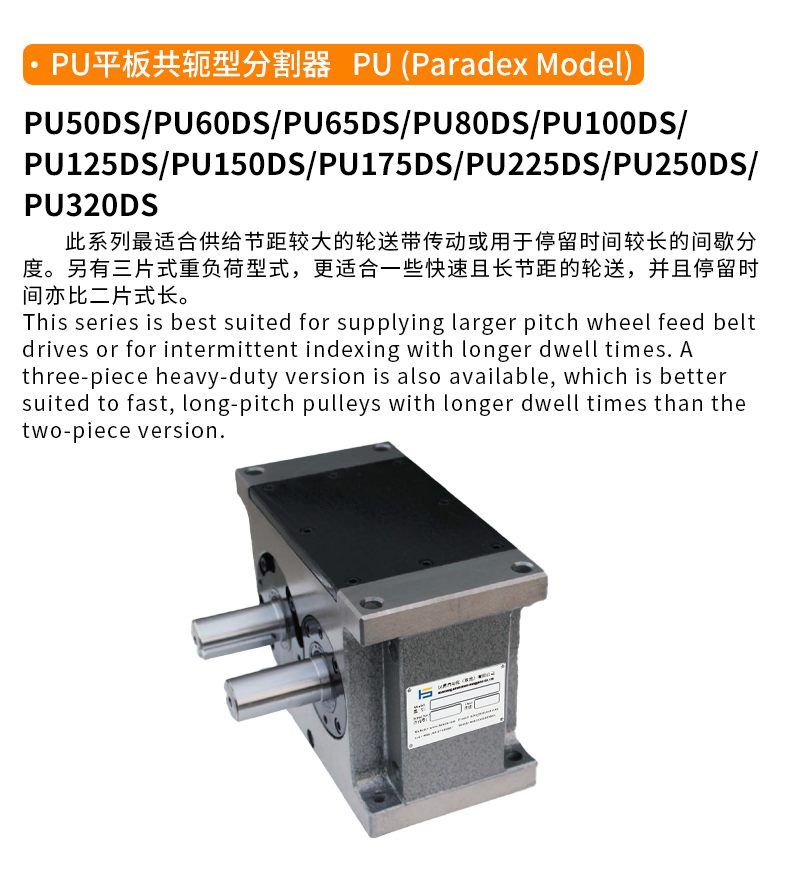

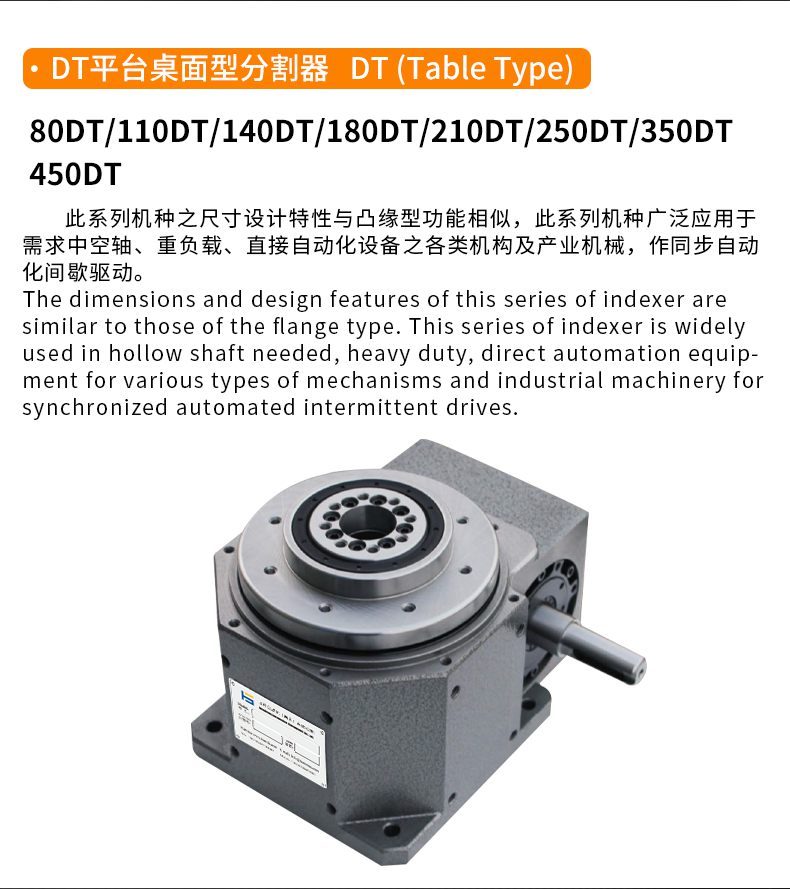

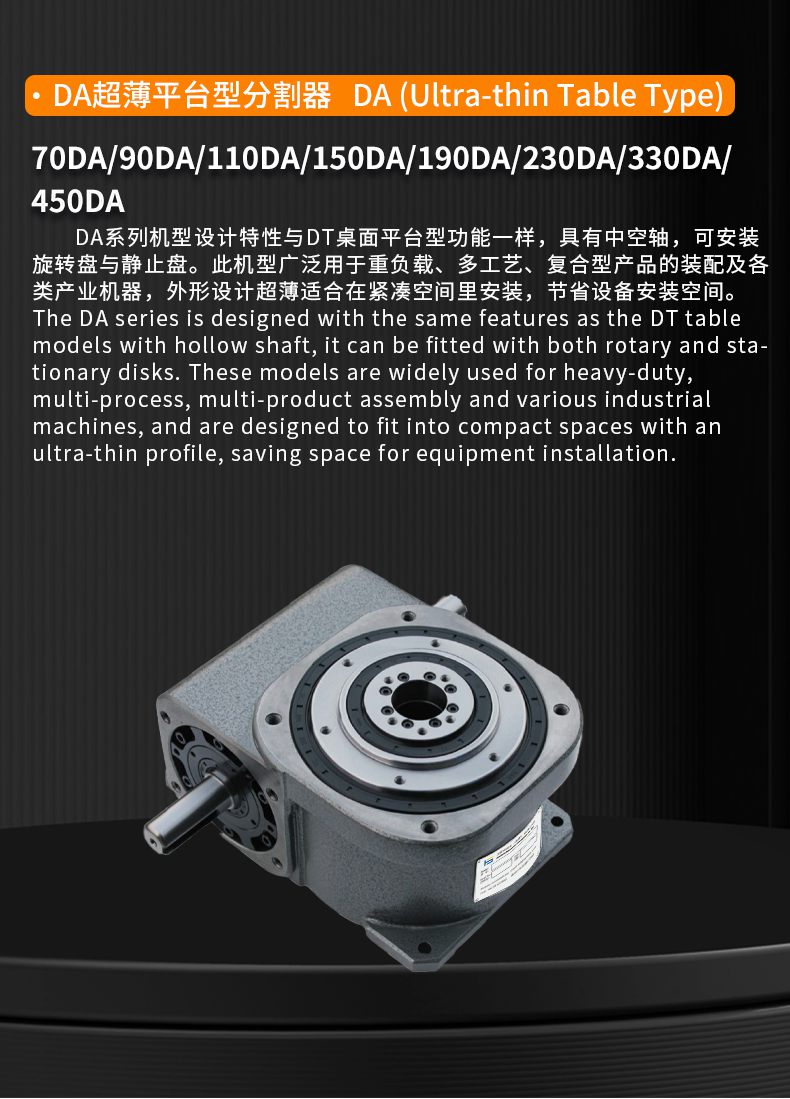

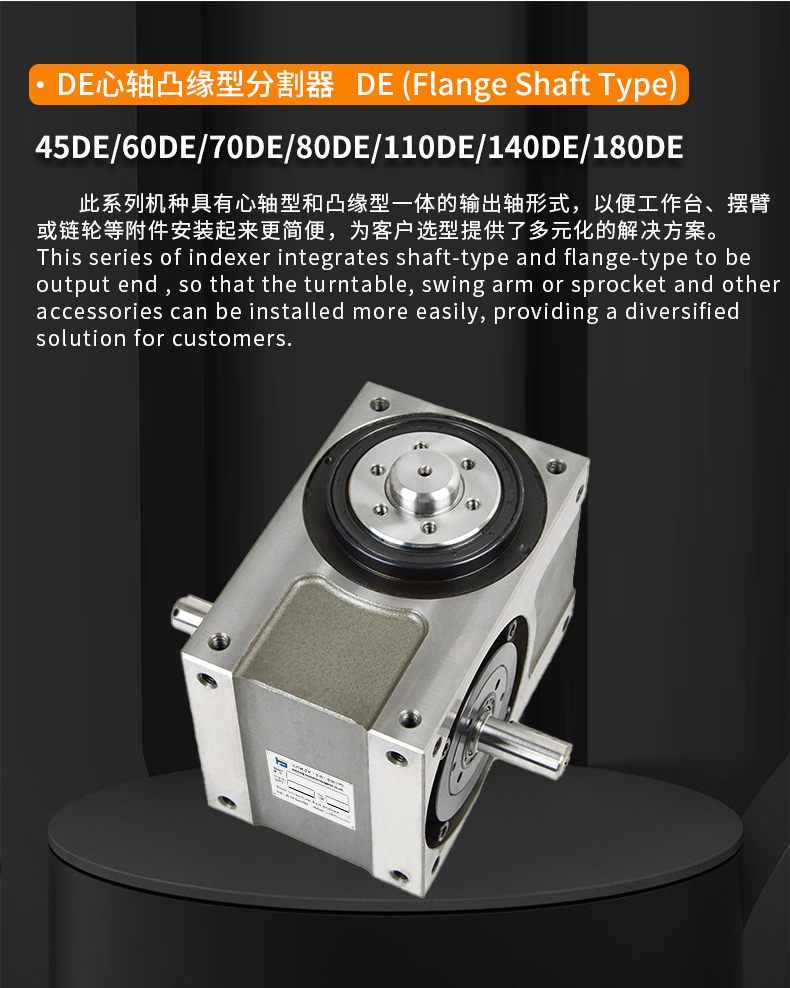

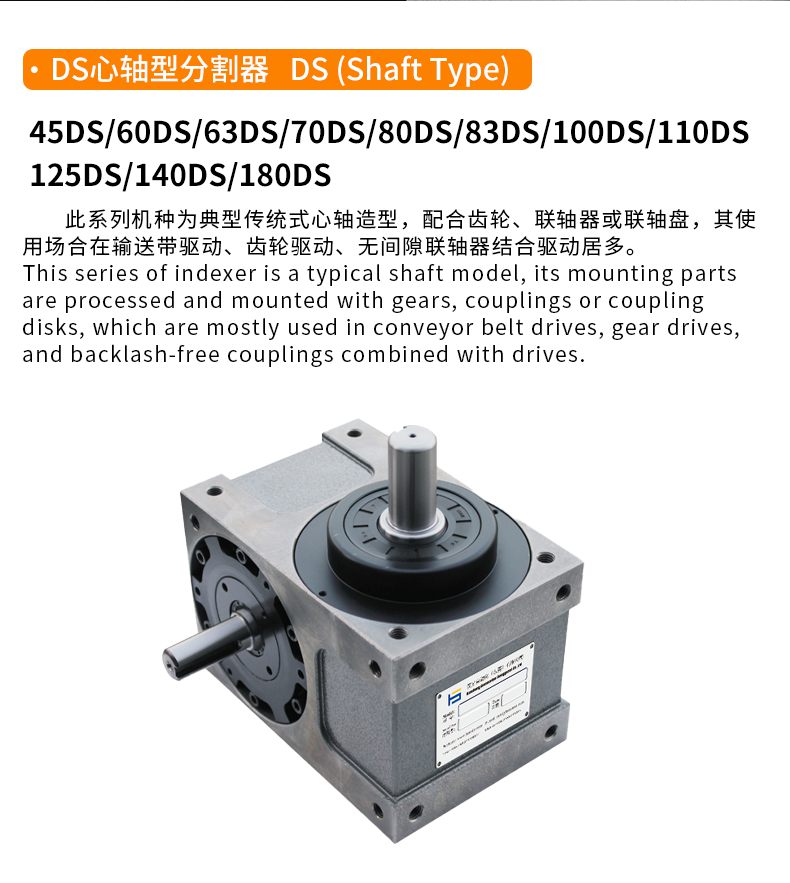

Types of Cam Indexer

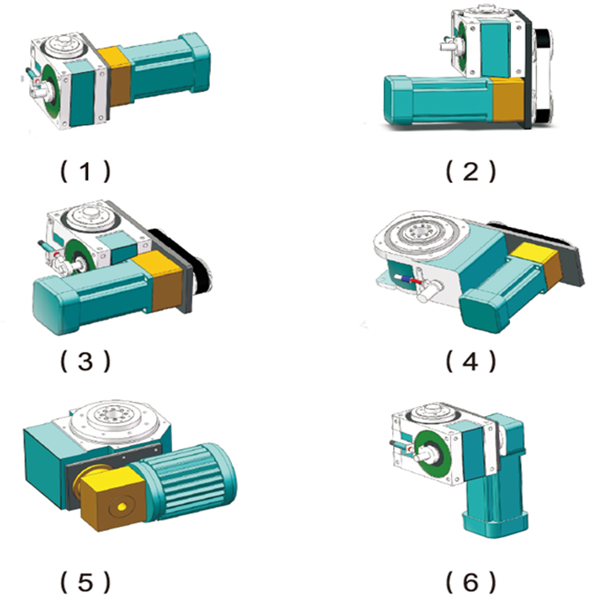

Installation Example of Indexer, Motor and Accessories
Customers

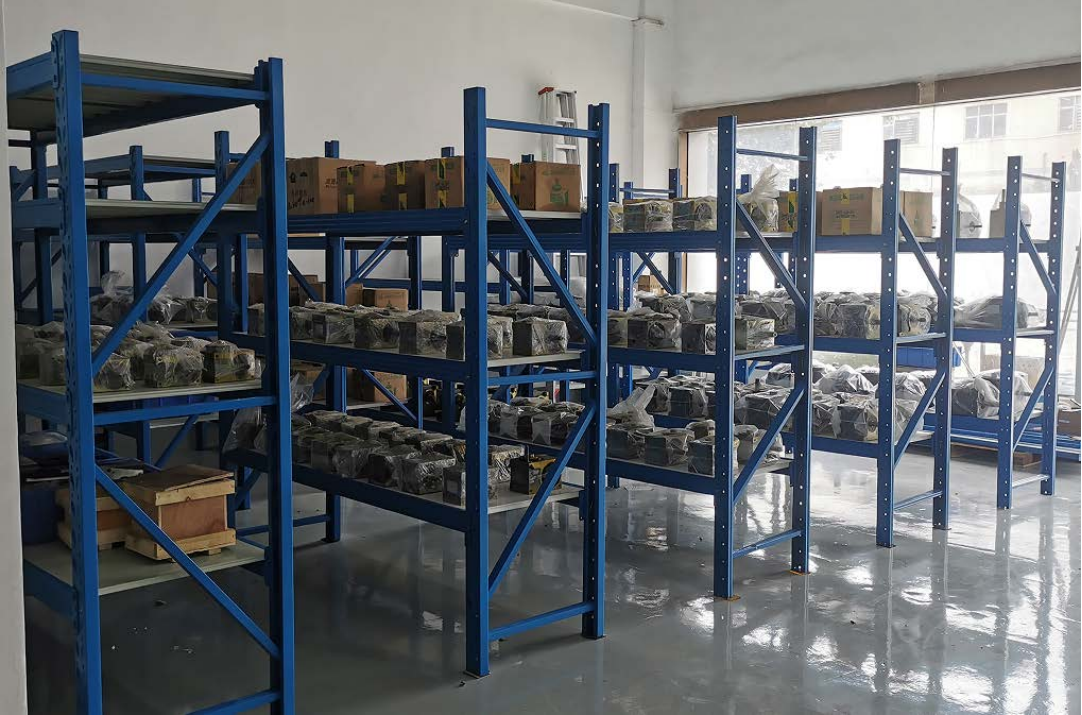

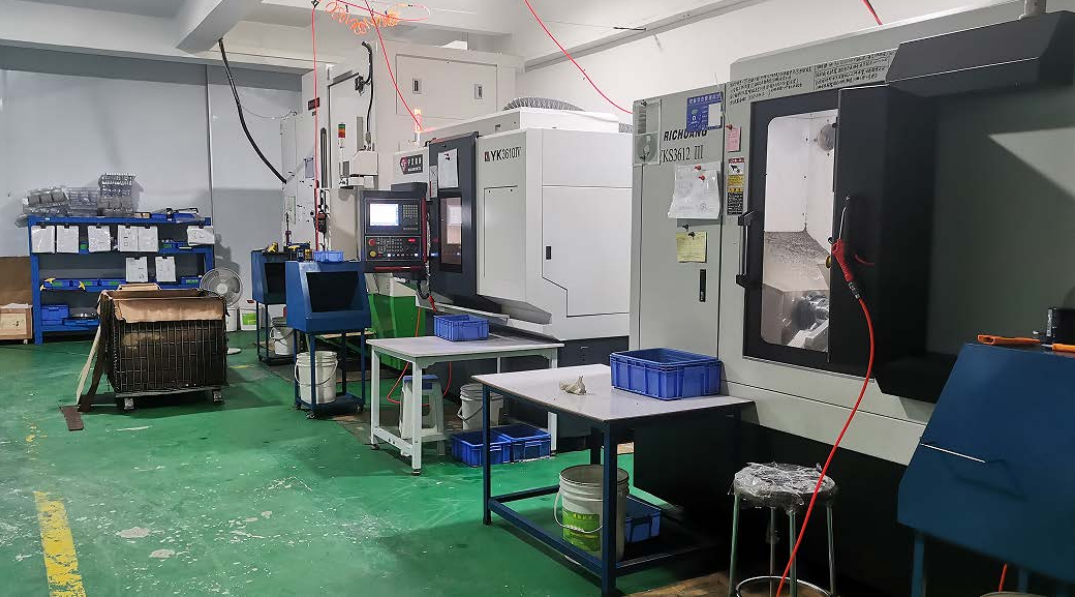

Workshop & Warehouse
FAQ
1. What is a Cam Indexing Drive?
A Cam Indexing Drive is a mechanical transmission that converts rotary motion into intermittent motion. It consists of cams, drive shafts, bearings and a motion control system. It is suitable for industrial automation fields that require high precision positioning, space saving, and improved productivity.
2. How to control the speed of Cam Indexing Drive?
Controlling the speed of Cam Indexing Drive can be realized by changing the transmission ratio of the drive system. The higher the transmission ratio, the faster the speed. In addition, the speed of the drive can be changed by adjusting the speed of the drive shaft and the geometry of the cam.
3. What are the areas of application for Cam Indexing Drives?
Cam Indexing Drives are widely used in automotive manufacturing, electronic equipment manufacturing, medical equipment, printing machinery, and other fields. For example, in the stamping process, the Cam Indexing Drive can be used to accurately locate the mold, improving efficiency and production quality.
4. What are the advantages of Cam Indexing Drive?
Cam Indexing Drive has the advantages of high precision, good stability, and can withstand high loads. It can precisely control the drive system to realize efficient production and enhance product quality and competitiveness. Meanwhile, its compact and space-saving structure makes it widely used in industrial equipment and automated production lines.
5. How to maintain Cam Indexing Drive?
To ensure the normal operation of Cam Indexing Drive, regular maintenance is required. Specific practices include regular cleaning of the equipment, checking the wear and tear of parts, replacing lubricating oil, and checking sensor signals. In case of malfunction, the damaged parts need to be repaired or replaced in time to ensure the stability and productivity of the equipment.
