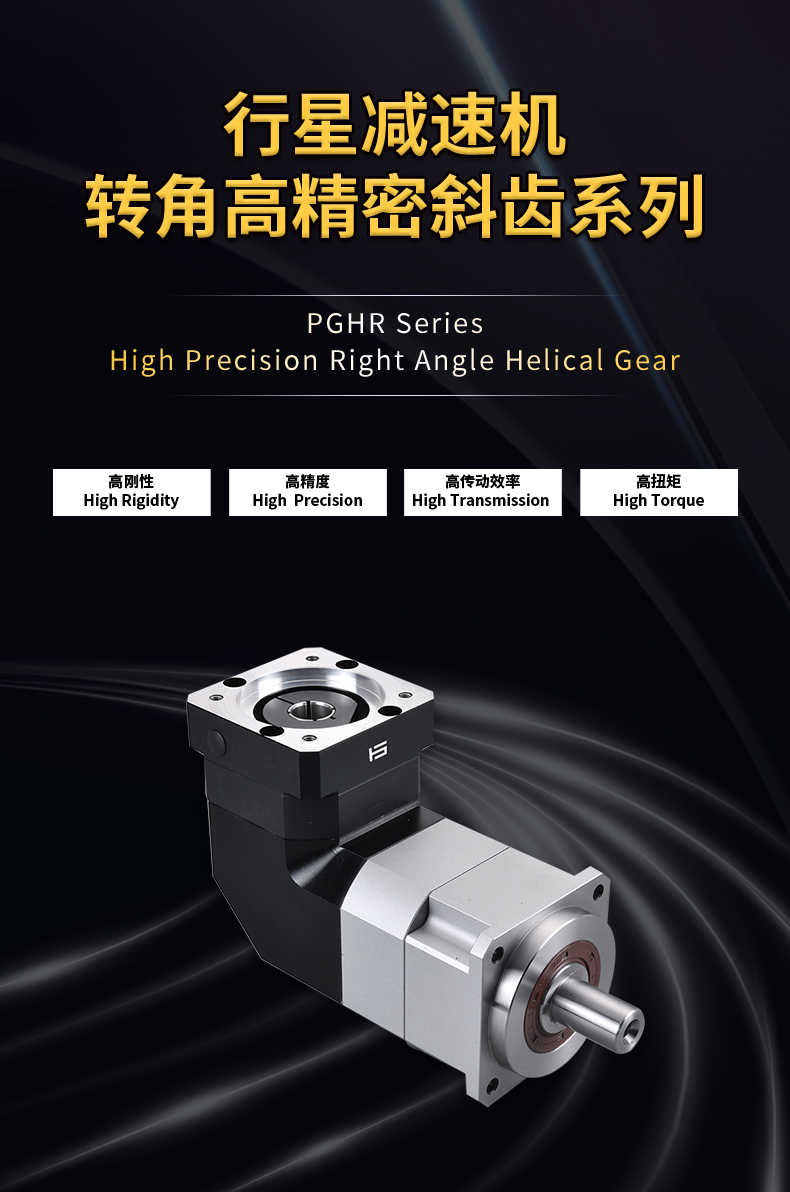

Right Angle Planetary Gearboxes
We offer high-quality Right Angle Planetary Gearboxes for your industrial needs. Our products are durable, reliable, and designed for heavy-duty applications.
Right Angle Planetary Gearboxes
Basic Information
Features | low backlash, 95% high efficiency of planetary gearboxes, high quality and maintenance free, greatly reduced inertia and vibration, specially designed overall structure for higher radial and axial loads, low noise and size, a wide range of models and gear ratios available. |
Precision Level | ultraprecise Precision, precise precision, standard precision. The smallest backlash is less than 1 arcmin. |
Available Reduction Ratios | 3, 4, 5, 7, 9, 10, 12, 14, 15, 16, 20, 25, 30, 35, 40, 50, 70, 90, 100, the user can choose the transmission ratio according to need. |
Applications | aviation industry, spaceflight, ship, radar, submarine, food machinery, medical machinery, pipe bending machine, polishing machine, paper equipment, etc. |
Models | PGHR060 / PGHR090 / PGHR115 / PGHR142 / PGHR180 / PGHR220 |

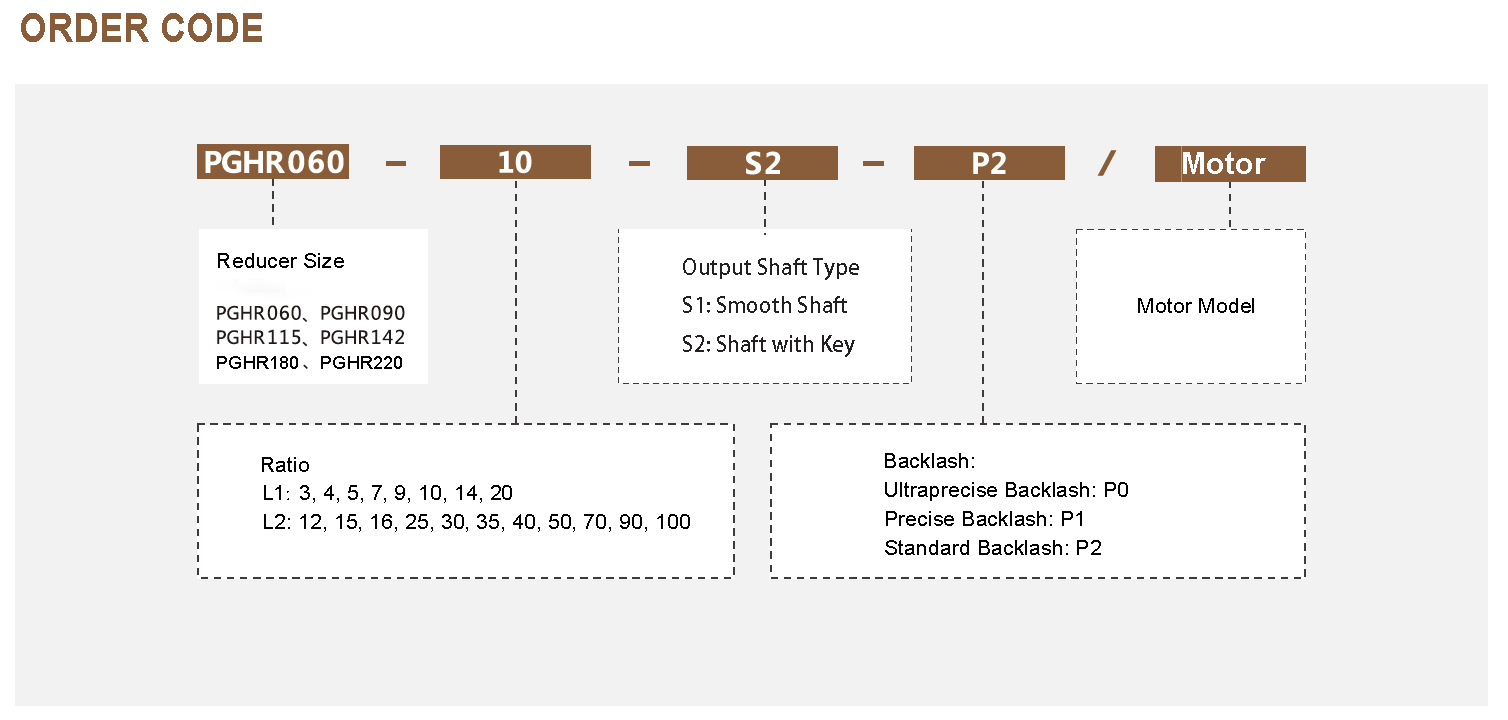

Order Code

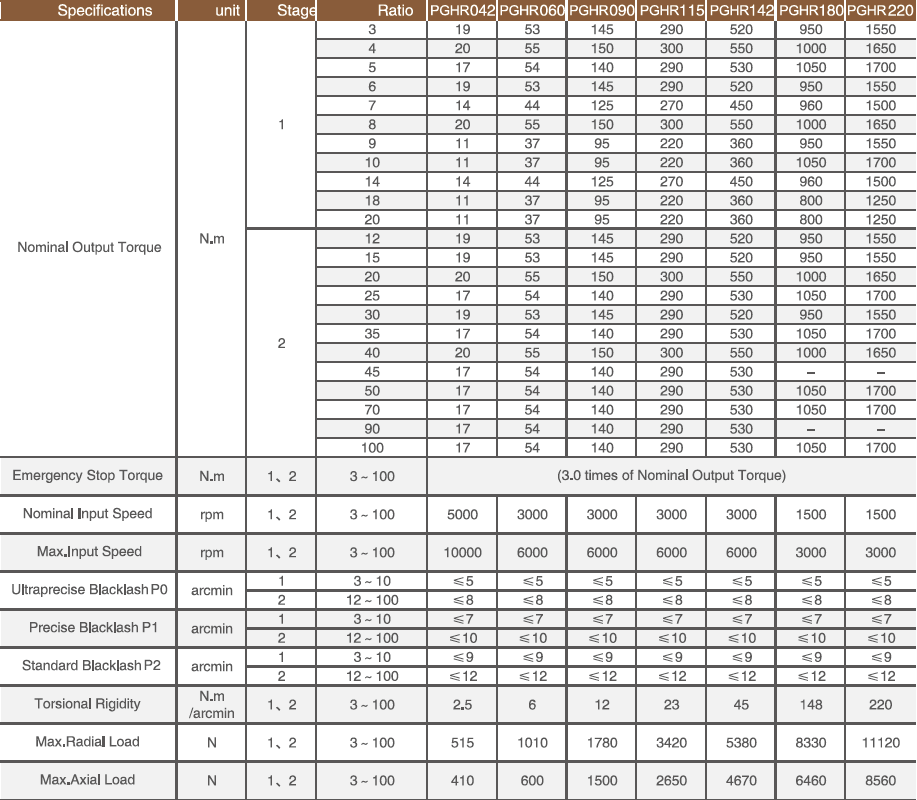

Parameters

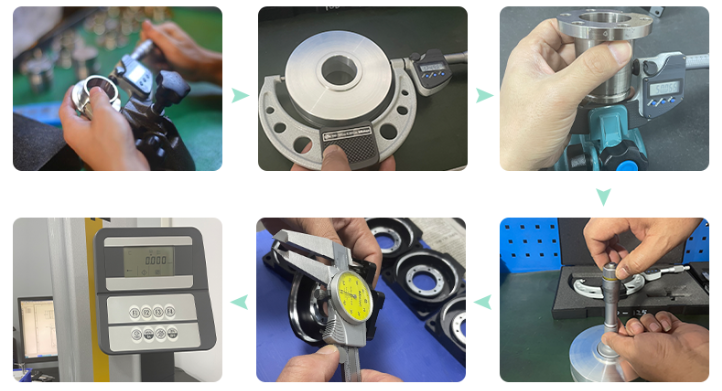

Testing
FAQ
1. What is a right-angle planetary gearbox?
The right-angle planetary gearbox is a mechanical device consisting of a set of embedded gears and planetary gears that can convert input speed and torque into different output speeds and torques. Its design feature is that the output shaft is at a right angle of 90 degrees to the input shaft, so it is also called a right-angle planetary gearbox.
2. What are the advantages of the right-angle planetary gearbox?
The right corner planetary gear box has the advantages of compact structure, high transmission efficiency, low noise, long life, and large output torque. It can be used in many industrial fields such as robots, automation equipment, power tools, and wind turbines.
3. How to choose the right angle planetary gearbox that suits you?
When selecting a right-angle planetary gearbox, the following points need to be considered: input speed and torque range, output speed and torque range, accuracy requirements, ambient temperature and humidity, noise level, axial and radial loads, etc. Additionally, factors such as weight, volume, and price need to be considered.
4. How to install and maintain the right corner planetary gearbox?
Before installing the right corner planet gear box, you need to select the appropriate installation method and installation location according to its specifications and instructions. During use and maintenance, pay attention to keeping it clean and lubricated, and regularly check the status of gears, bearings and seals to ensure the normal operation and life of the wheel box.
5. What is the difference between a right-angle planetary gearbox and a straight-tooth cylindrical gearbox?
The main difference between a right-angle planetary gearbox and a straight-tooth cylindrical gearbox is the angle between the output shaft and the input shaft. The output shaft and input shaft of the right-angle planetary gearbox are at right angles of 90 degrees, while the output shaft and input shaft of the spur-tooth cylindrical gearbox are on the same straight line. In addition, the right-angle planetary gearbox has higher transmission efficiency and lower noise levels.
