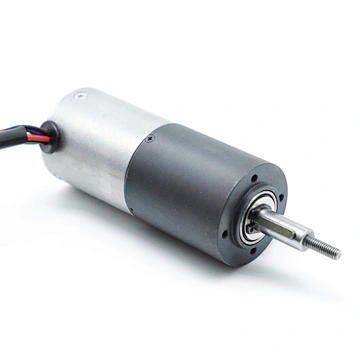

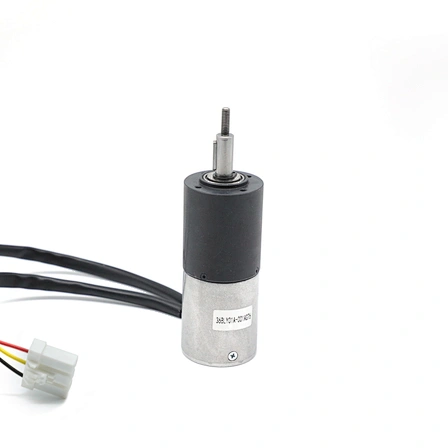

Model No: 36BLY01A-009AG94

36BLY01A-009AG94 24v 3 phase high effciency low noise bldc motor brushless

minimum order :

1 piece

Quantity :

Contact Now

Warranty:3months-1year
Place of Origin:Jiangsu, China
Brand Name:Hetai
Model Number:36BLY01A-009AG94
Type:Micro Motor
Torque:2N.m
Construction:Permanent Magnet
Commutation:Brushless
Protect Feature:IP40
Speed(RPM):78 Rpm
Continuous Current(A):0.5A
Efficiency:IE 1
Product Name:Brushless Motor
Material:Multi-metal
Dielectric Strength:500V AC 1minute
No-load speed:8900Rpm
No-load current:0.5A
Ratio:94:1
Shaft axial load:10N
Rated Speed:78Rpm
Rated Torque:2N.m
Resistance:2.4 ohms

Products Description

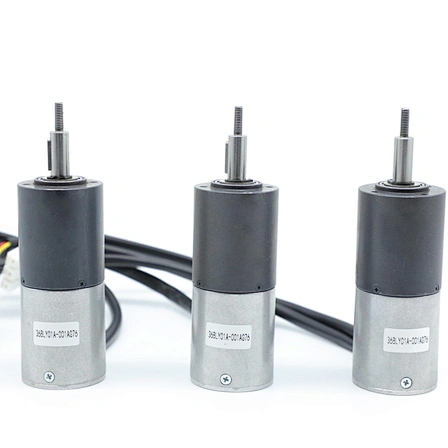

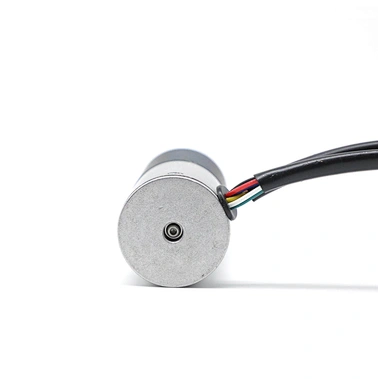

36BLY01A-009AG94

Bldc Motor Brushless

High Effciency Low Noise

36BLY01A-009AG94 24v 3 phase bldc motor brushless

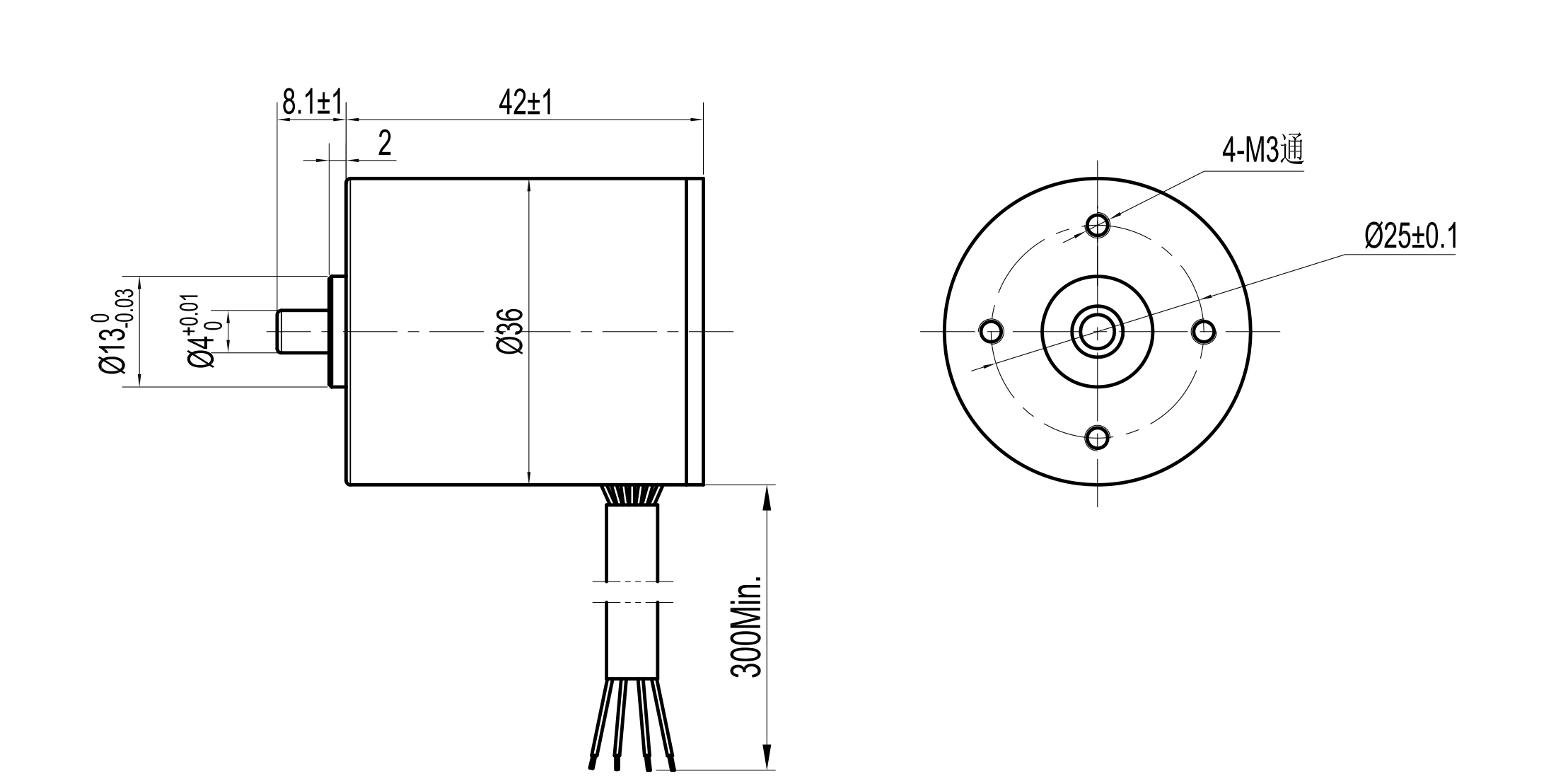

Specification

Product Name:	Brushless Motor
Model No.	36BLY01A-009AG94
Dielectric Strength:	500V AC 1minute
Ambient Temperature:	-20℃~50℃
Insulation resistance:	100MΩ Min.500V DC
Voltage:	24V
Power:	4W
Rated Speed:	78Rpm
Rated Torque:	2N.m
No-load speed:	8900Rpm
No-load current:	0.5A

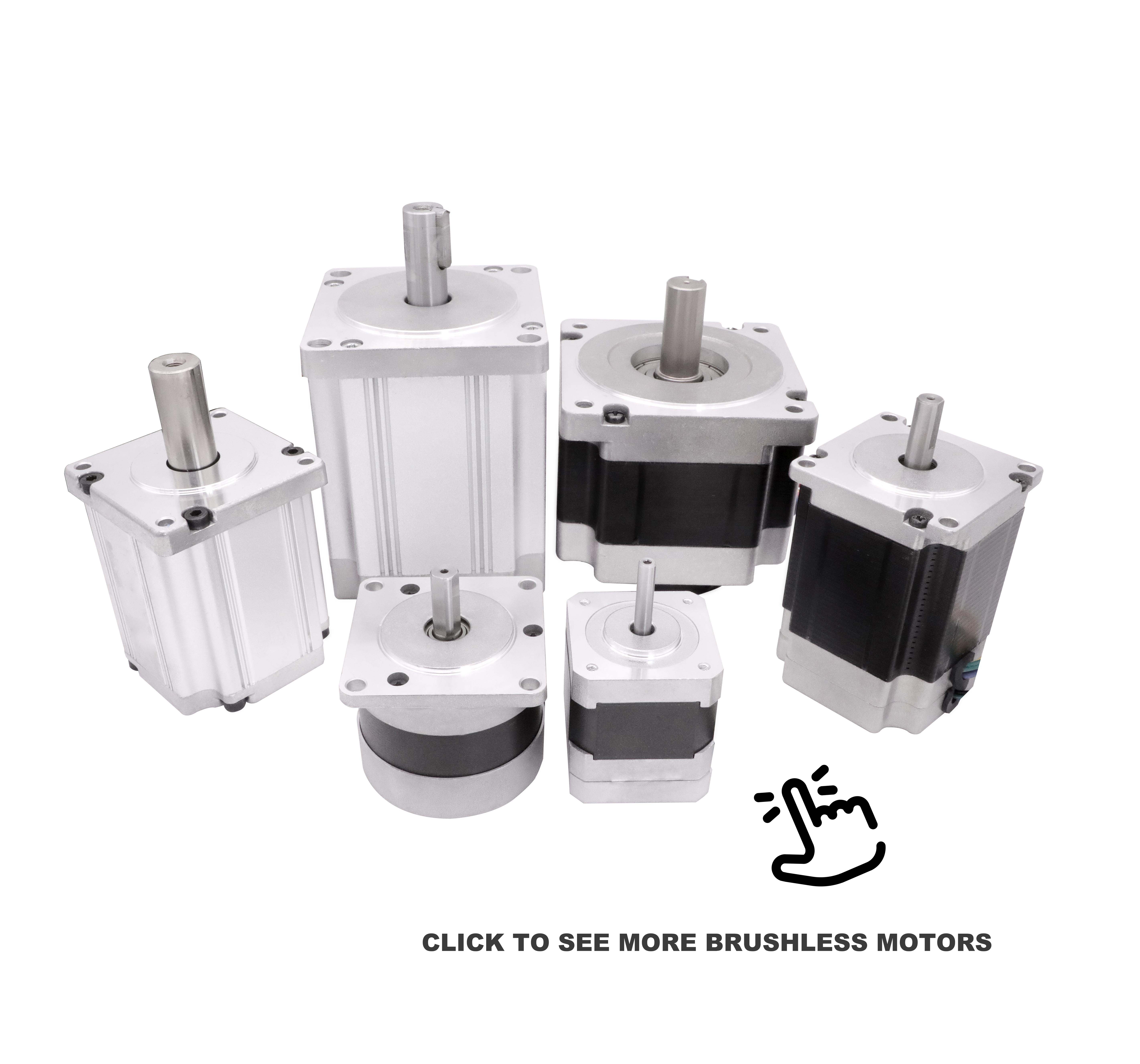

Brushless DC Motor

External Diameter: 22mm~110mm

Motor Power: 5W ~ 2000W

Speed :300rpm ~ 10000rpm

Company Profile

Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.

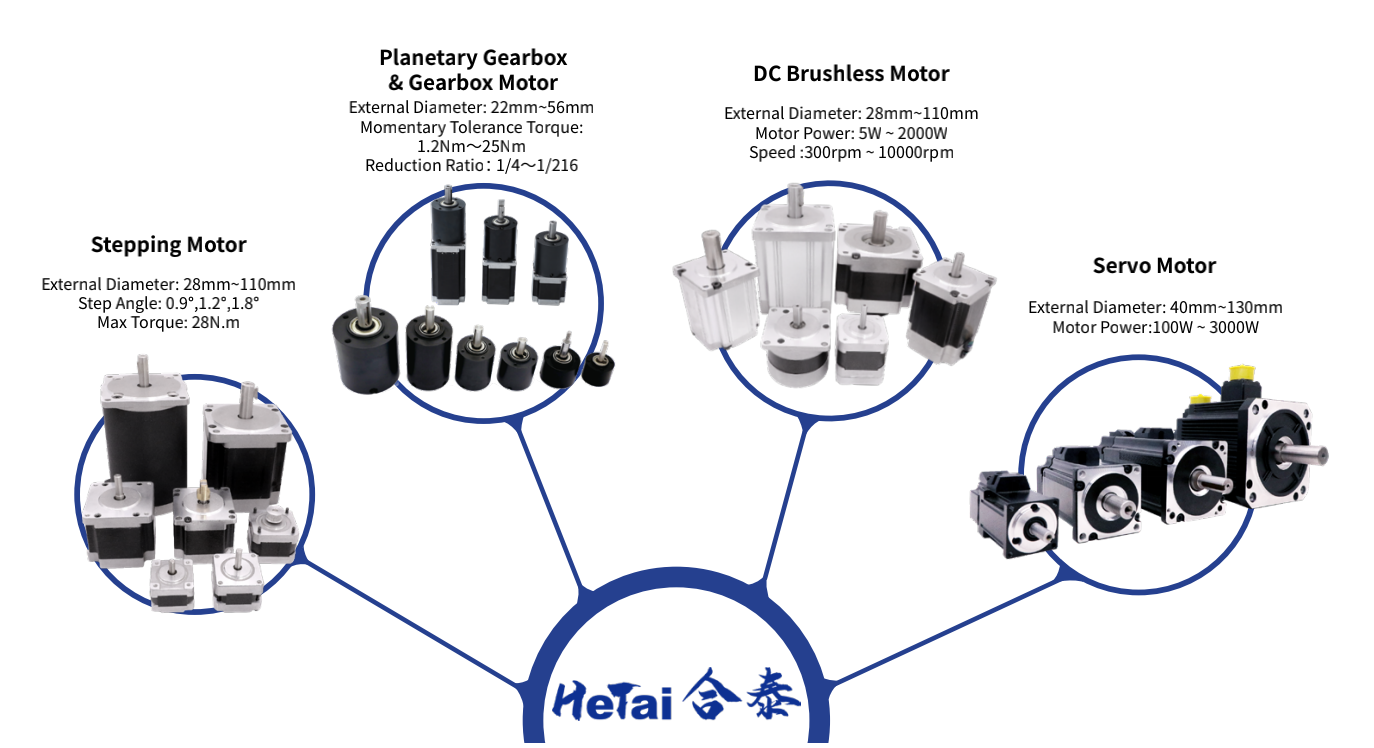

Product Range

Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

Certificate

Hetai can offer：

Specialised/customised design and product

Good quality products

7/24 Service

When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

Stepper motor ROHS report

Lab No. (2421)133-0096

Date: June 09, 2021

BLDC Motor ROHS report

Lab No. (2421)133-0095

Date: June 09, 2021

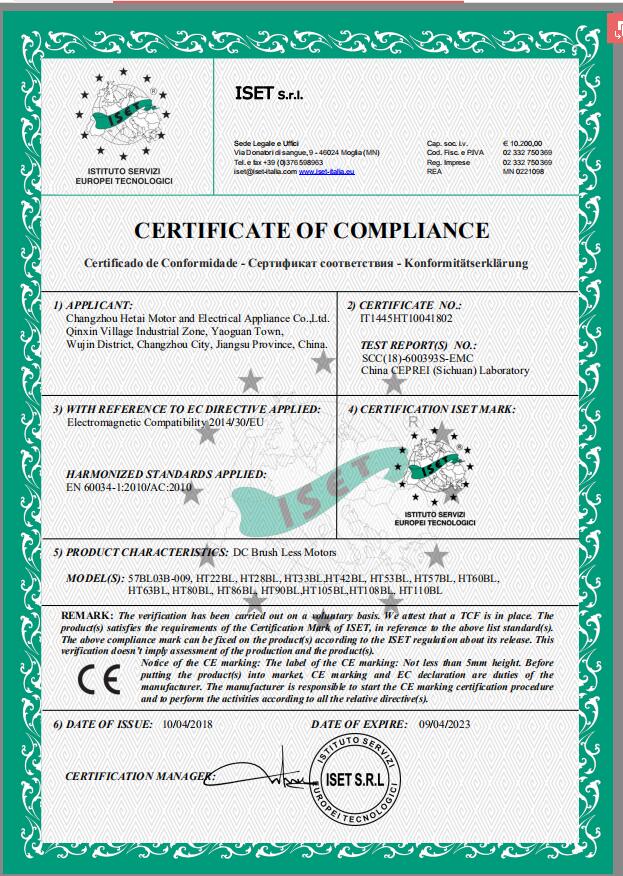

CE certificate

Certificate No. IT1445HT10041802

Test Report No: SCC(18)-600393S-EMC

Alibaba Gold Plus Supplier

SGS Verified

Alibaba Gold Plus Supplier

SGS Verified

ISO 9001:2015

Registration No. 10460/0

Valid until: 02 June 2024

IATF 16949:2016

Registration No. 02452/0

Valid until: 02 June 2024

Invention patents（2 products）

※brushless servo control system and driving installation

based on BLDC motor

※a simple and high efficient hybrid stepper motor driving installation

8 utility model patents（6 products)

※a hybrid stepper motor driving installation

※a stepper motor subdivision driving installation

※brushless servo control system and driving installation based on

PM BLDC motor

※PM BLDC motor used in servo system

Why Choose Us

We offer you：

Engineering Support

Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.

Find

Our team can help you find most suitable motor for the application from our vast selection of motors.

Customise

We can design and customise the performance and exterior for your specific use or assembly.

Optimise

For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.

Manufacturing Support

Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.

Prototypes

1-10 pcs

Standard Batch

500-5000pcs

High Volume Batch

over 5000pcs

Large-scale production

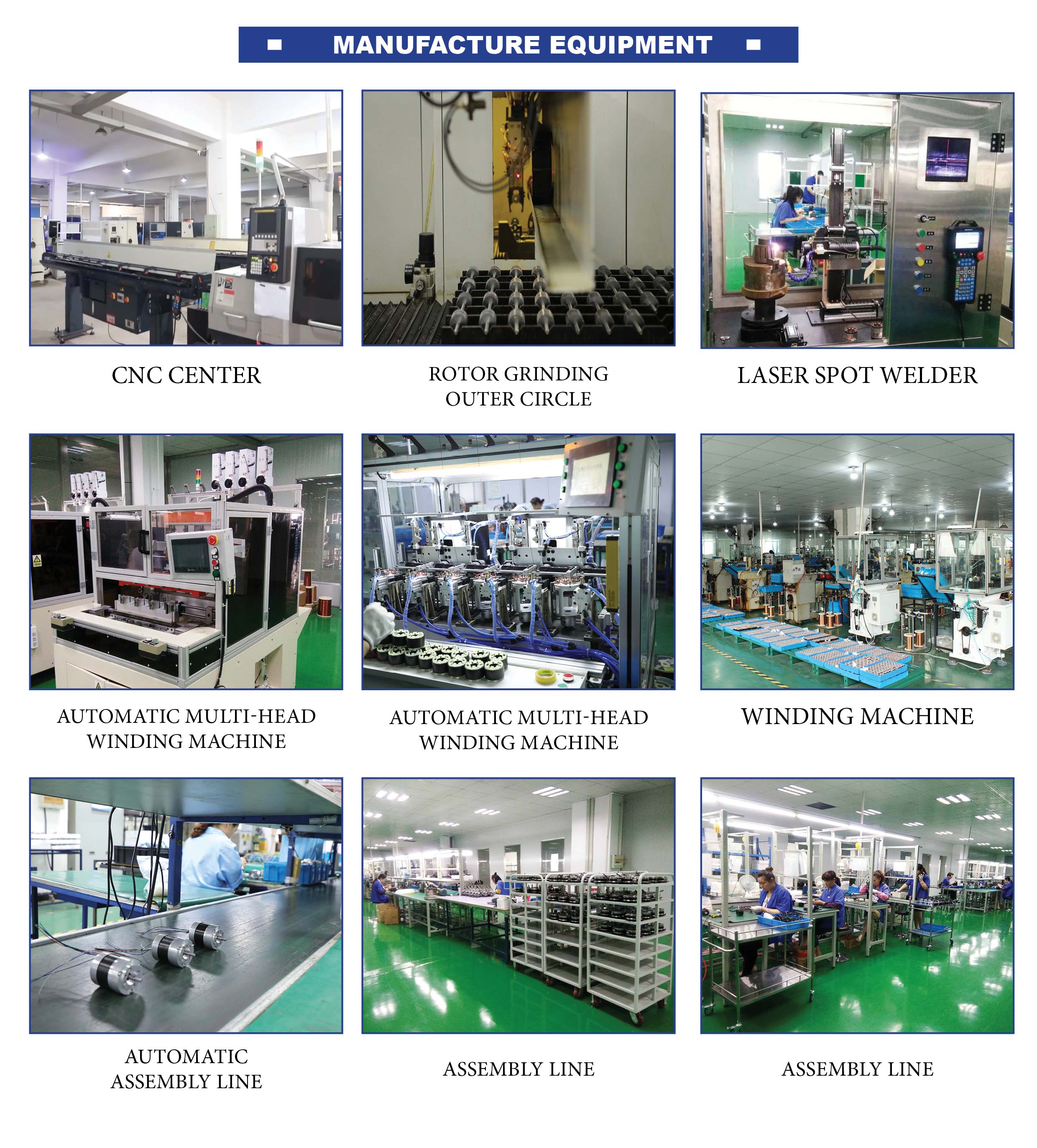

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
