Model No: 36BLY01A
36BLY01A 12v 3 phase series High Quality china made bldc brushless dc motor
minimum order :
1 piece
Quantity :
- Warranty:3months-1year
- Place of Origin:Jiangsu, China
- Brand Name:Hetai
- Model Number:36BLY01A
- Type:Micro Motor
- Torque:0.01N
- Construction:Permanent Magnet
- Commutation:Brushless
- Protect Feature:IP40
- Speed(RPM):3900
- Continuous Current(A):0.1A
- Efficiency:IE 1
- Product Name:Brushless Motor
- Material:Multi-metal
- Dielectric Strength:500V AC 1minute
- Ambient Temperature:-20℃-51℃
- Insulation resistance:100MΩ Min.500V DC
- Ratio:94:1
- Shaft axial load:10N
- Rated Speed:3900 Rpm
- Rated Torque:0.01N.m
- Mass:0.16kg
Products Description

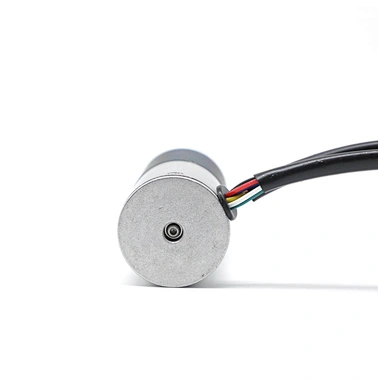

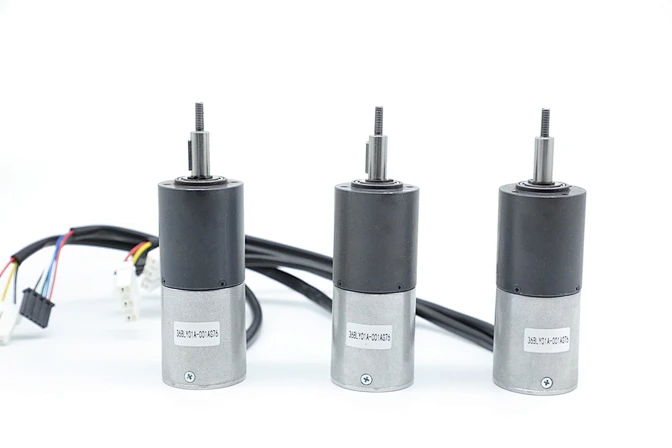

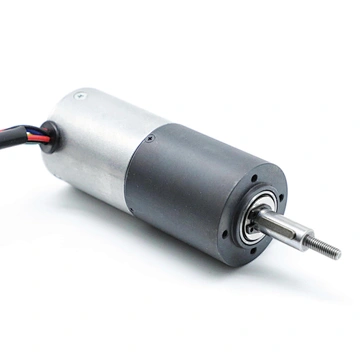

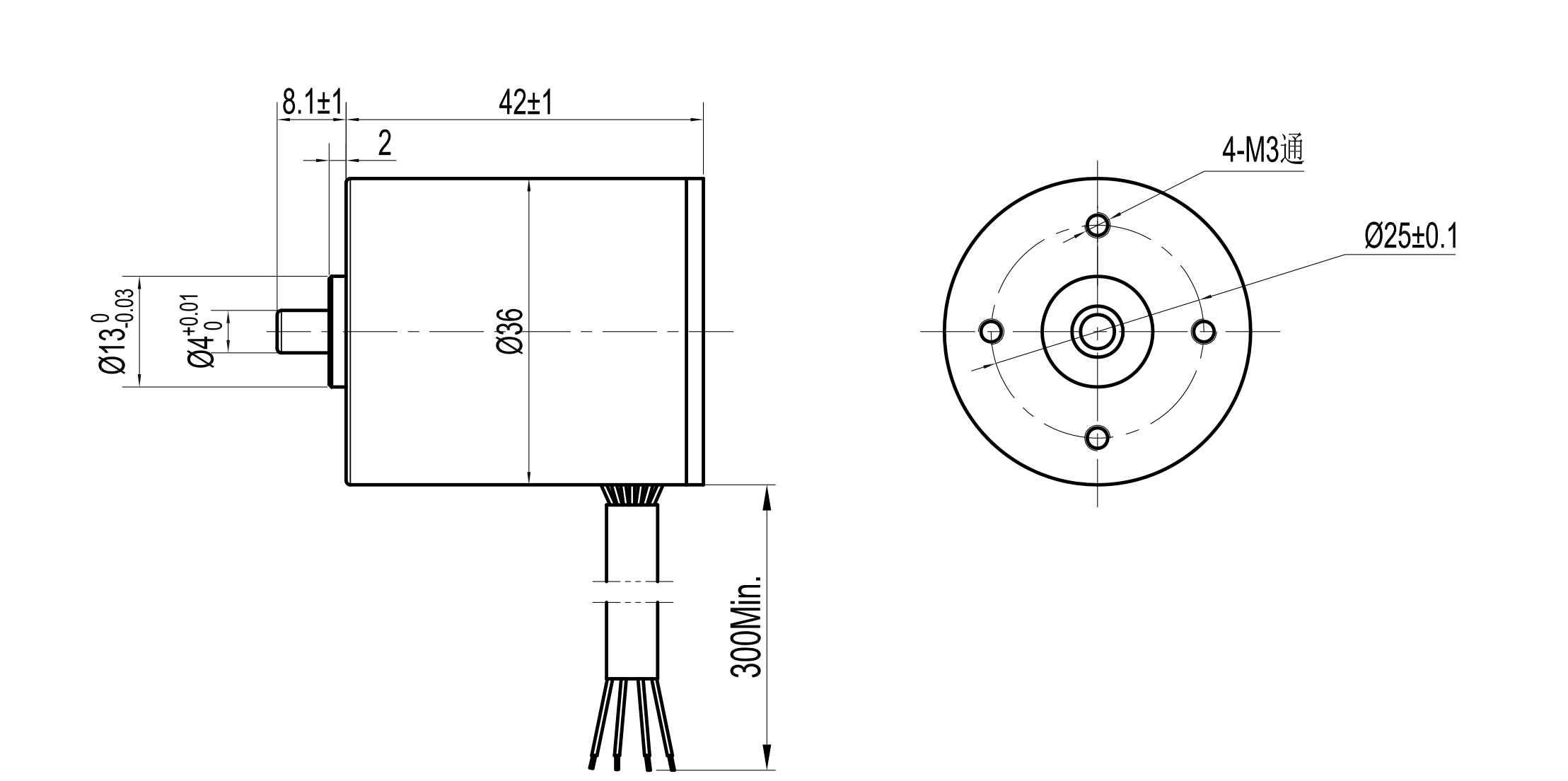

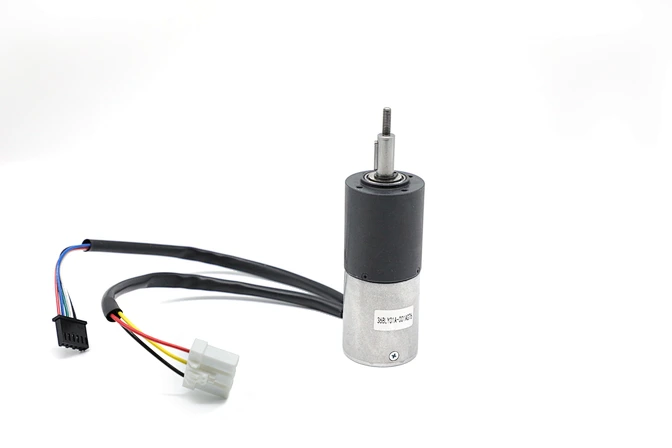

36BLY01A
Bldc Brushless Dc Motor
High Quality China Made
36BLY01A 12v 3 phase series bldc brushless dc motor
Specification
Product Name: | Brushless Motor |
Model No. | 36BLY01A-XX |
Dielectric Strength: | 500V AC 1minute |
Ambient Temperature: | -20℃~50℃ |
Insulation resistance: | 100MΩ Min.500V DC |
Voltage: | 12/24(VDC) |
Power: | 4W |
Rated Speed: | 3900(RPM) |
Rated Torque: | 0.01N.m |

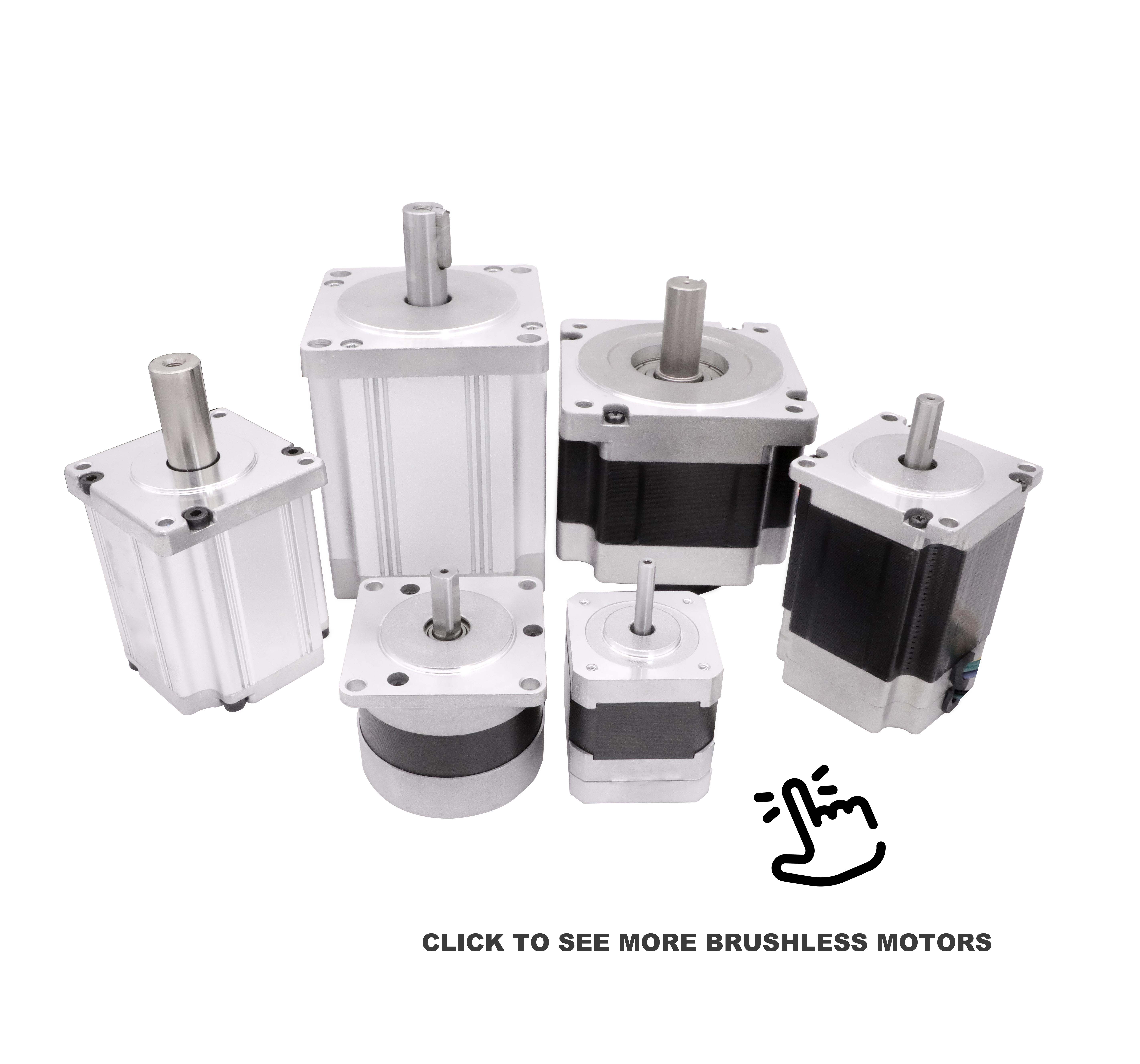

Brushless DC Motor
External Diameter: 22mm~110mm
Motor Power: 5W ~ 2000W
Speed :300rpm ~ 10000rpm
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.
Product Range
Certificate
Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
Stepper motor ROHS report
Lab No. (2421)133-0096
Date: June 09, 2021
BLDC Motor ROHS report
Lab No. (2421)133-0095
Date: June 09, 2021

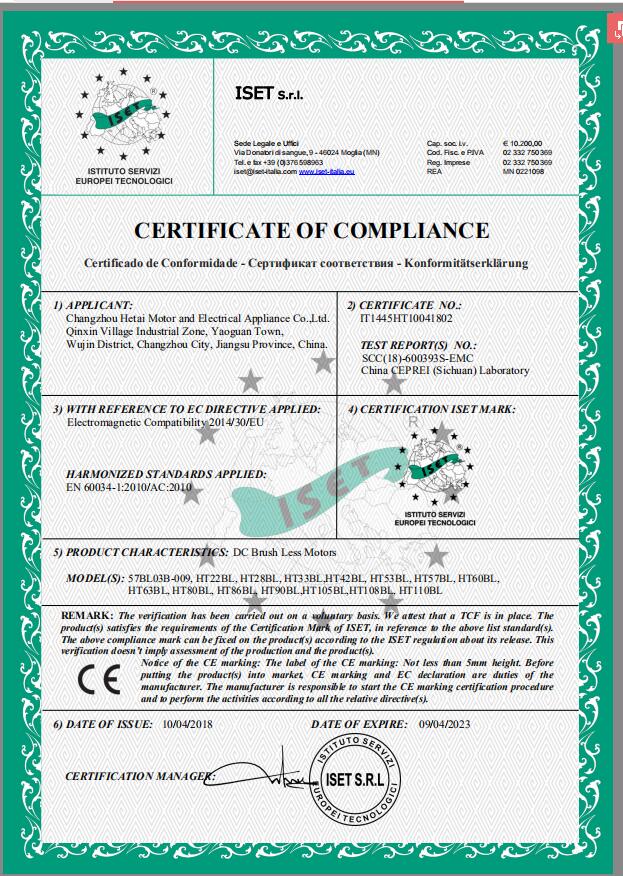

CE certificate
Certificate No. IT1445HT10041802
Test Report No: SCC(18)-600393S-EMC

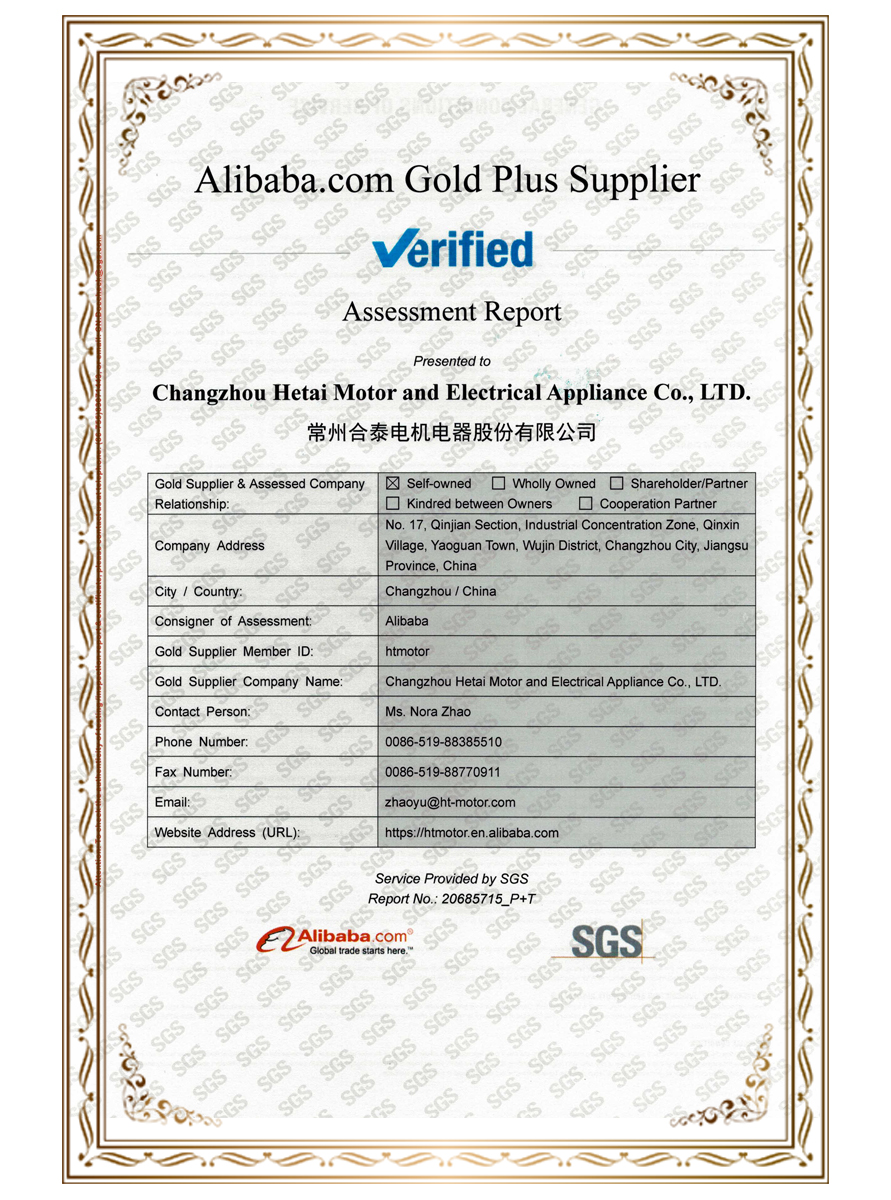

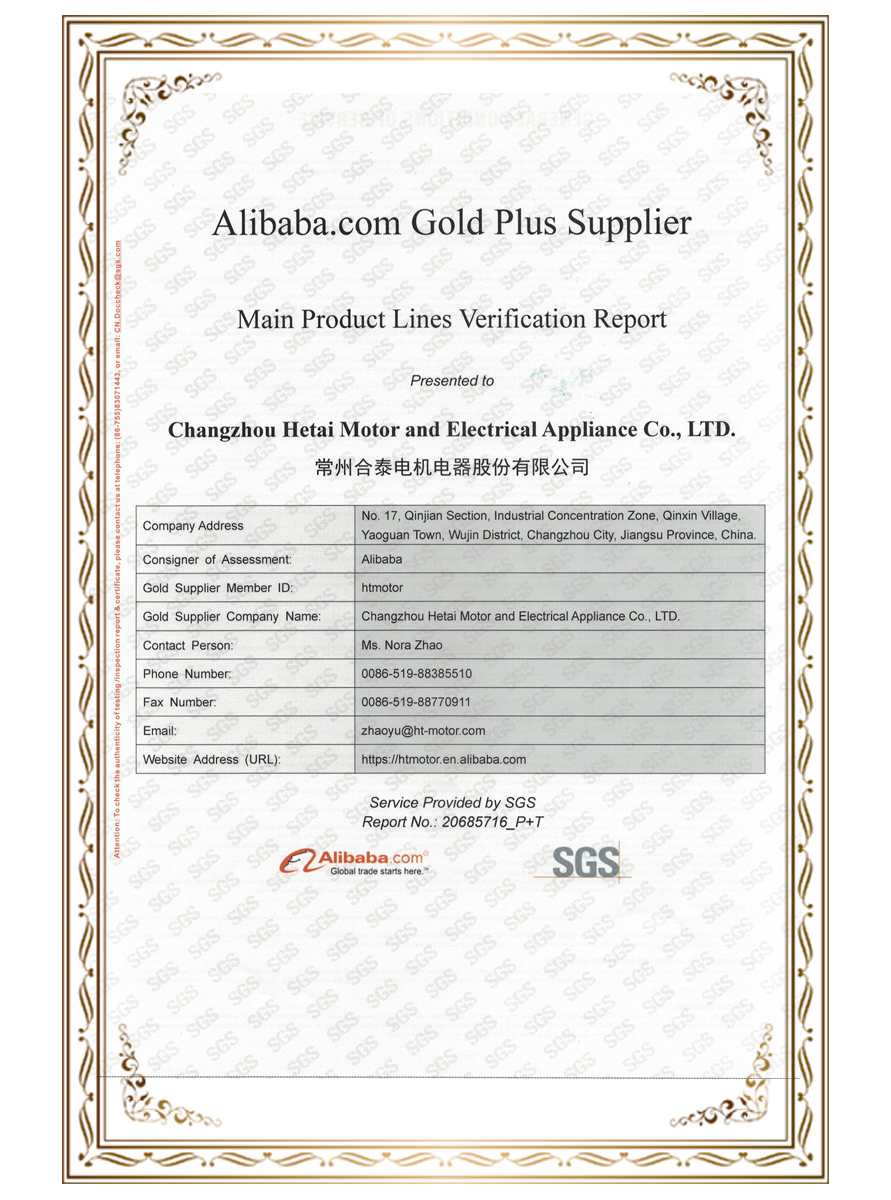

Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified
ISO 9001:2015
Registration No. 10460/0
Valid until: 02 June 2024
IATF 16949:2016
Registration No. 02452/0
Valid until: 02 June 2024
Invention patents（2 products）
※brushless servo control system and driving installation
based on BLDC motor
※a simple and high efficient hybrid stepper motor driving installation
8 utility model patents（6 products)
※a hybrid stepper motor driving installation
※a stepper motor subdivision driving installation
※brushless servo control system and driving installation based on
PM BLDC motor
※PM BLDC motor used in servo system
Why Choose Us
We offer you：
Engineering Support
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.
Find
Our team can help you find most suitable motor for the application from our vast selection of motors.
Customise
We can design and customise the performance and exterior for your specific use or assembly.
Optimise
For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.
Manufacturing Support
Regardless of the volume of the order, we will provide the same service. Our engineering team is able to provide you with quick and accurate prototypes based on your custom requirements.
Prototypes
1-10 pcs
Standard Batch
500-5000pcs
High Volume Batch
over 5000pcs
Large-scale production

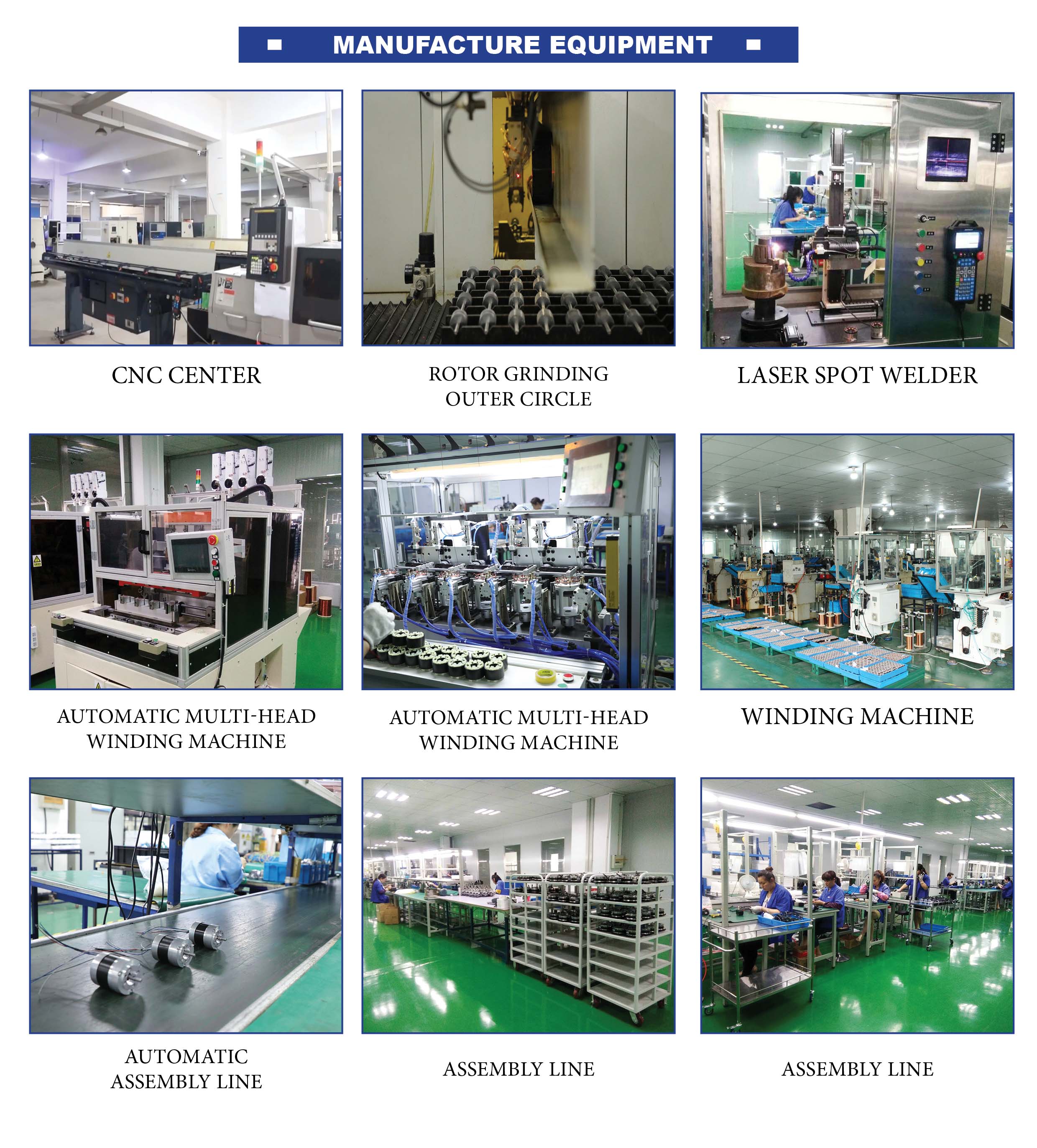

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.

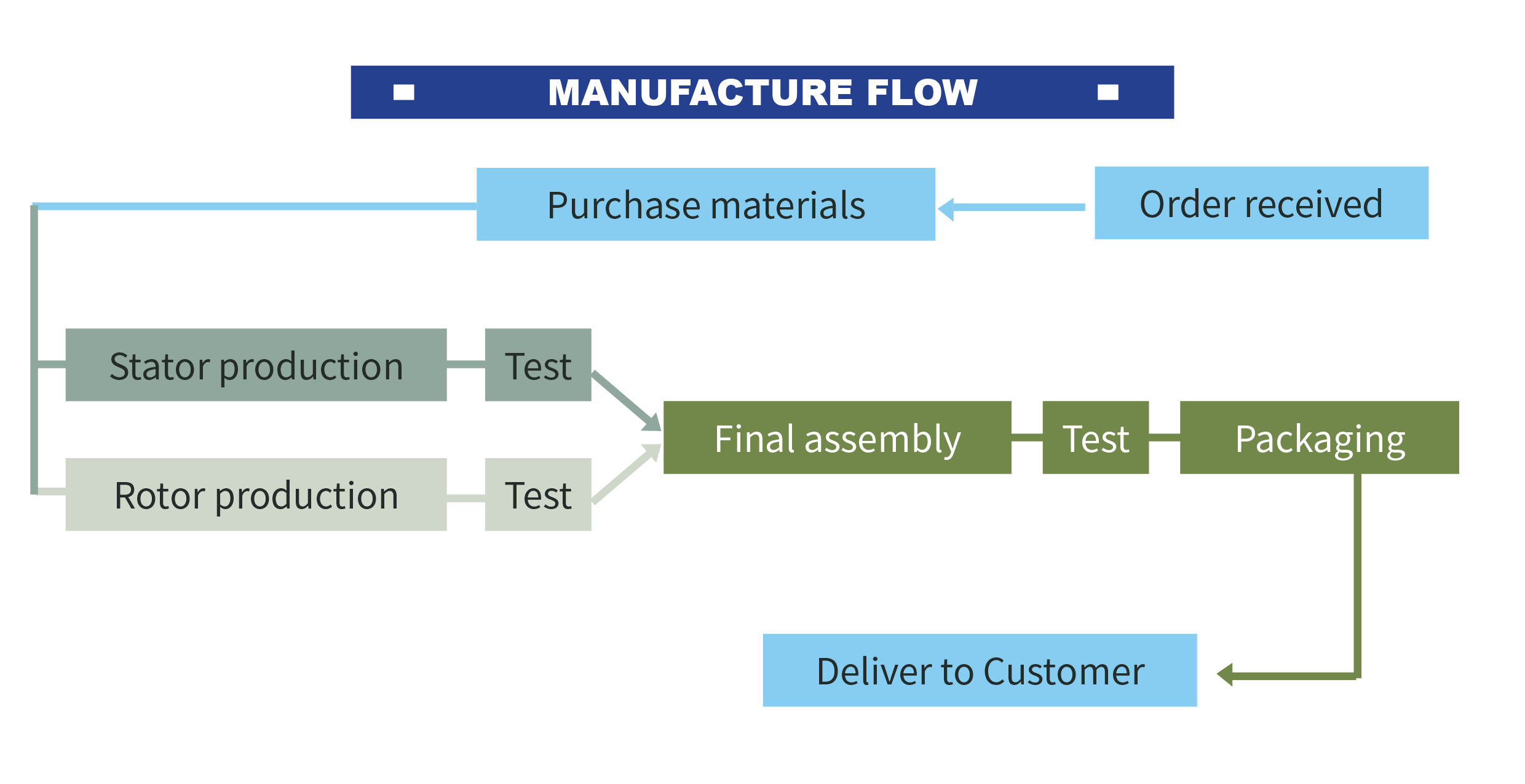

Strict Manufacture Process & Quality Control
Quality Control Process

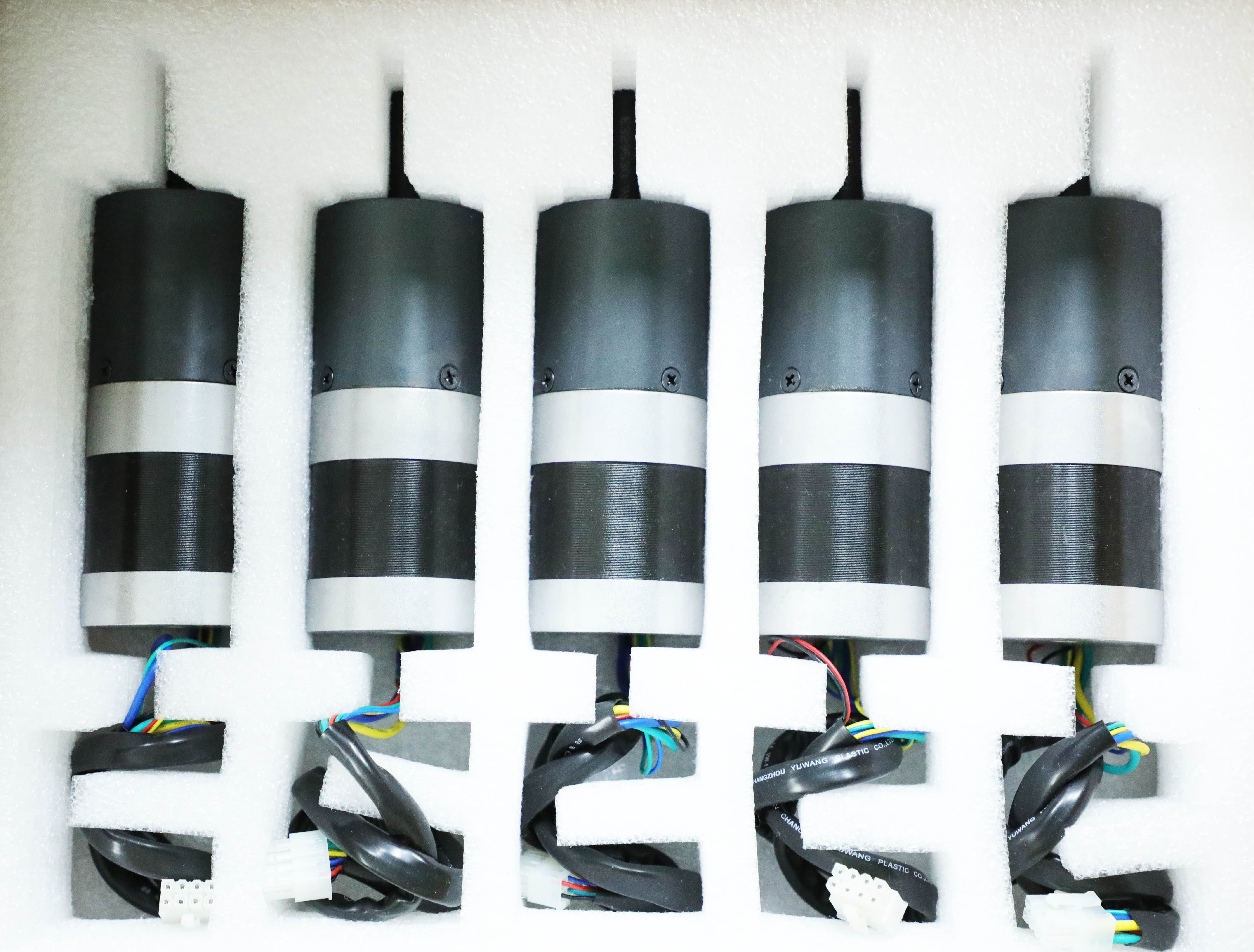

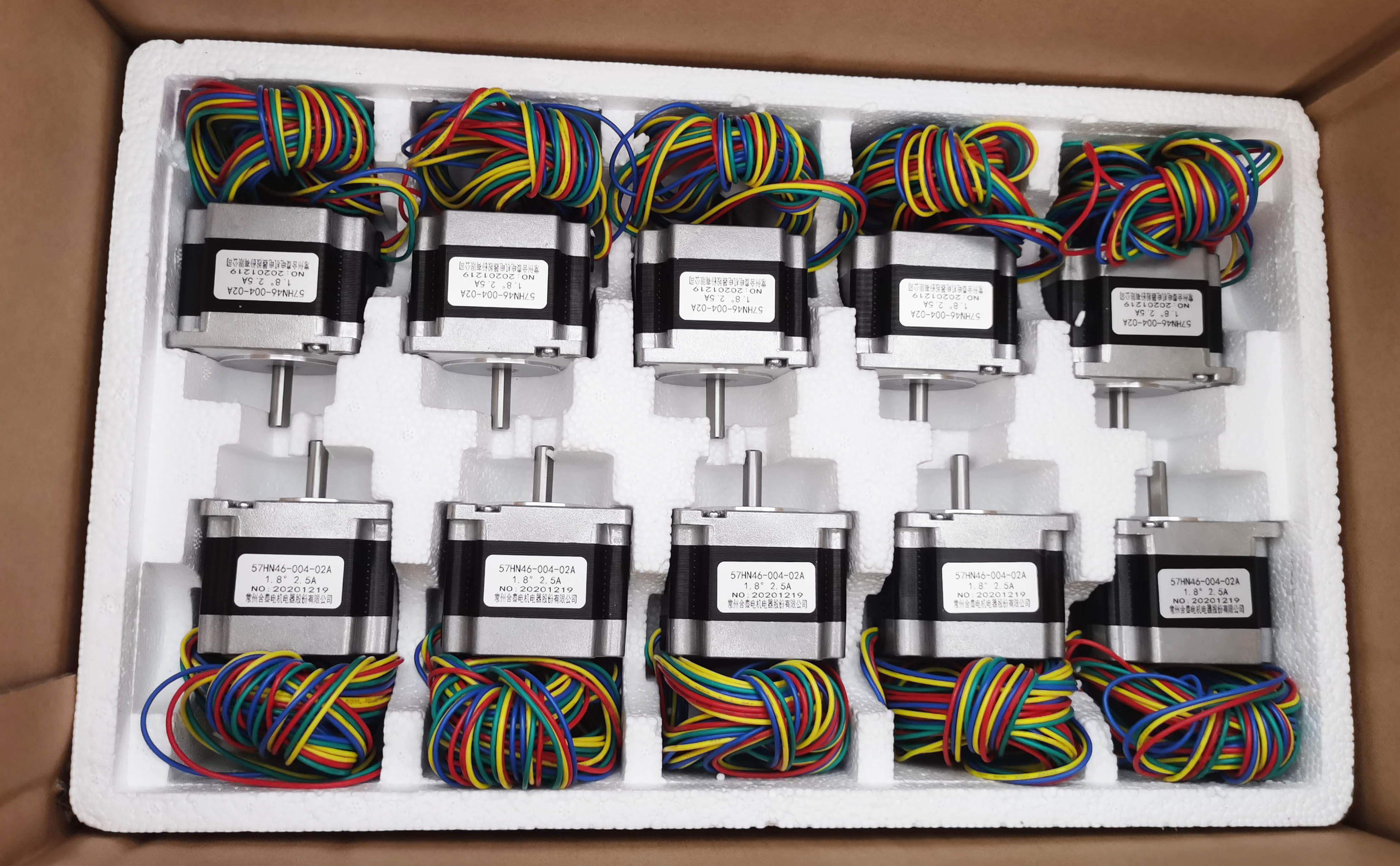

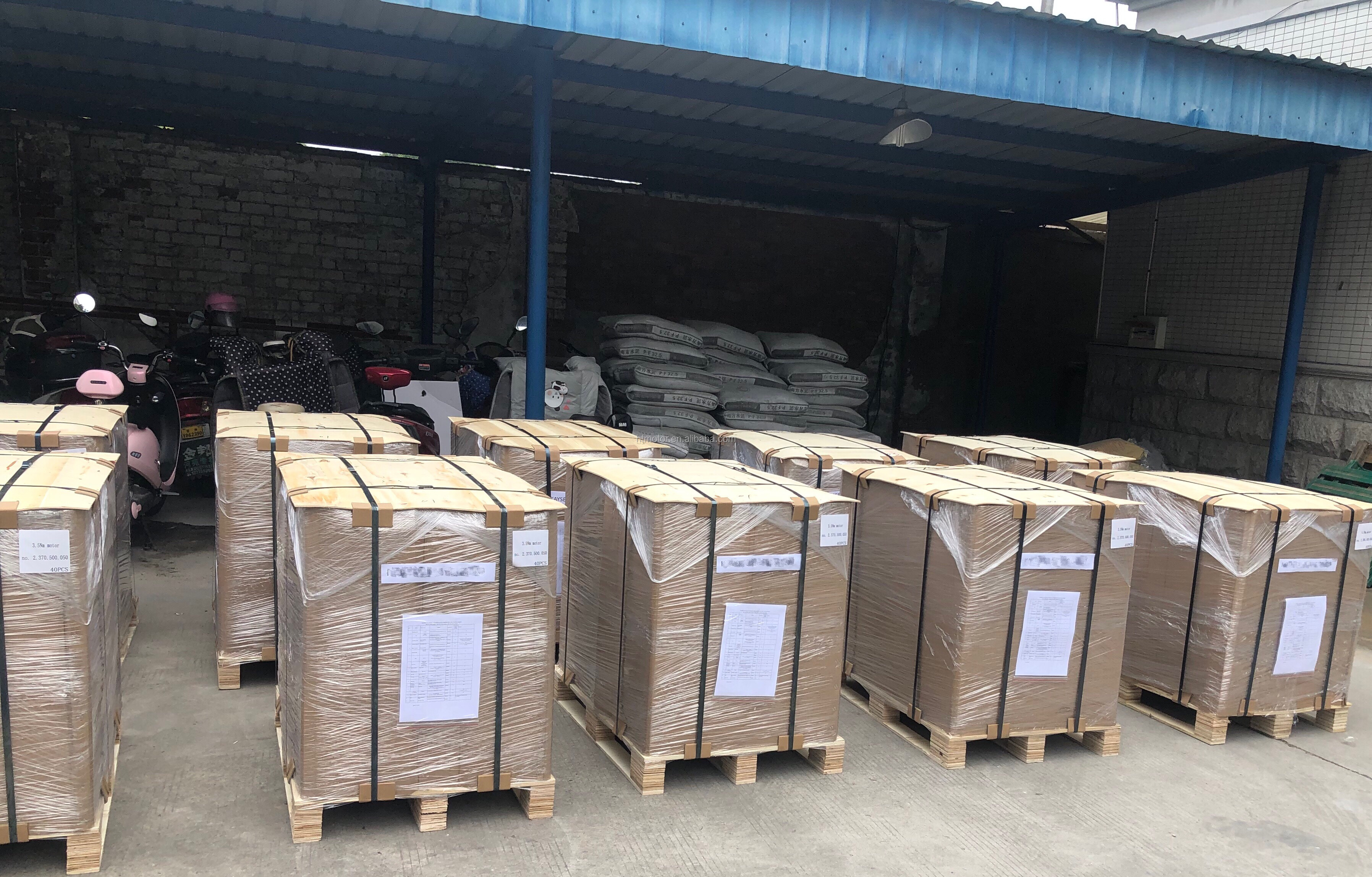

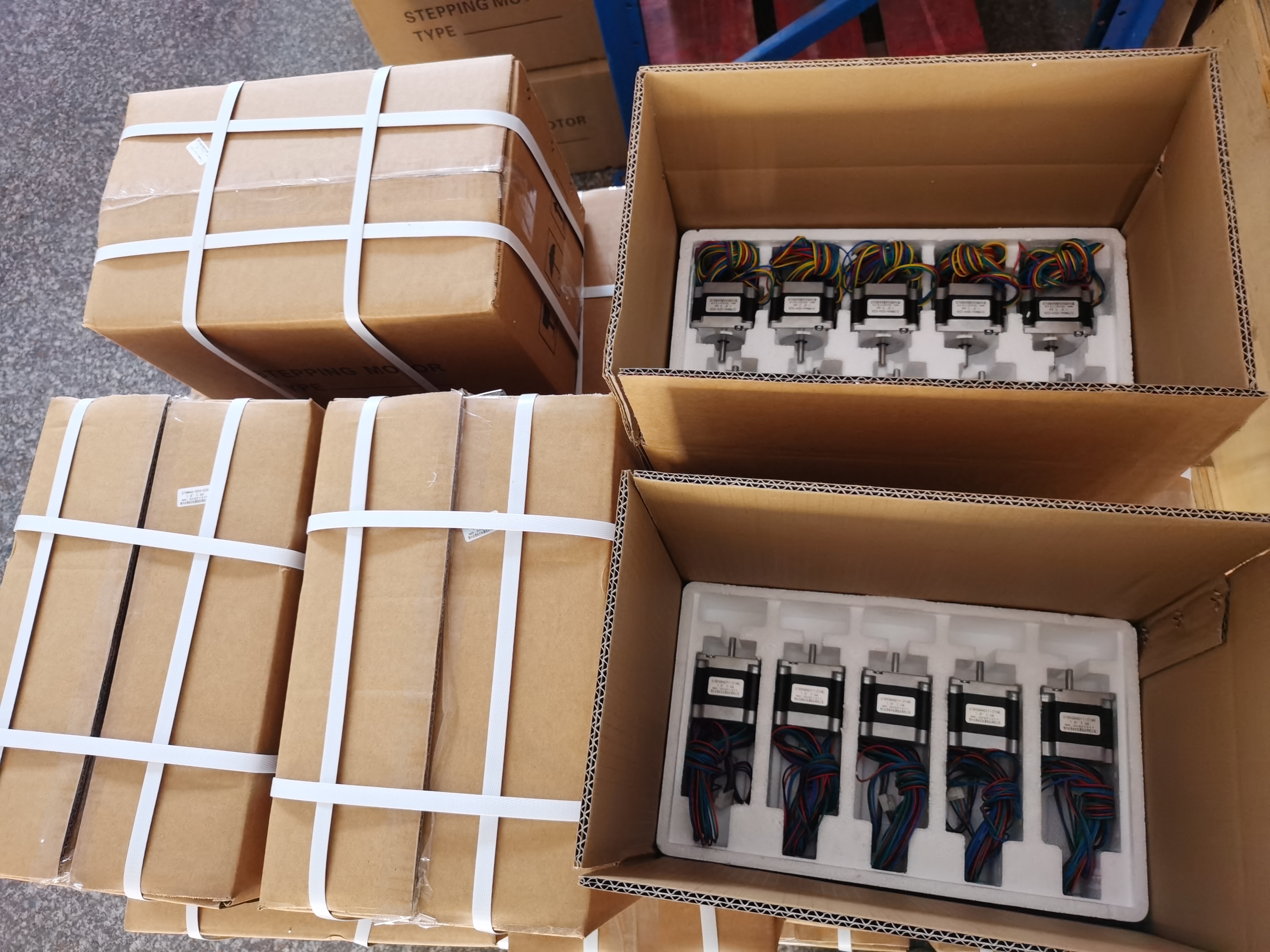

Package & Delivery
