Model No: ES13005G

ES130 series 2000w factory direct sale high power dc servo motor 48v brushless servo motor

minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:ES13005G
  • Type:SERVO MOTOR
  • Torque:9.5N.m
  • Construction:Permanent Magnet
  • Commutation:Brushless
  • Protect Feature:Totally Enclosed
  • Speed(RPM):2000 RPM
  • Continuous Current(A):63A
  • Efficiency:IE 1
  • Product Name:Servo Motor
  • Rated Voltage:48V
  • Rated Current:63A
  • Rated Speed:2000RPM
  • Rated Torque:9.5N.M
  • Maximum Torque:28.5N.M
  • Rated Power:2000W
  • Environment Requirementg:-20℃~+55℃
  • Insulation Class:F
  • Protection Level:IP65

Product Description


ES8005K-75S30M1
24V Servo Motor
Factory Supply Stable Performance
ES80 series 750w factory supply high power micro servo motor 24v brushless servo motor


Specification


Rated Voltage（V)
48
Rated Power（W）
1000
1500
2000
Model
ES13005G-100D20M1
ES13005G-150D20M1
ES13005G-200D20M1
Rated Current（Amps）
31
48
63
Rated Speed（RPM）
2000
2000
2000
Rated Torque（N.M）
4.7
7.2
9.5
Maximum Torque（N.M）
14.1
21.6
28.5
Torque Constant（N.M/Amps）
0.15
0.15
0.15
Rotor Moment Of Inertia（Kg.cm2）
4.5*10-4
6.7*10-4
8.9*10-4
Resistance Line-line（Ω）
0.1
0.05
0.03
Inductance Line-line（mH）
1.0
0.60
0.3

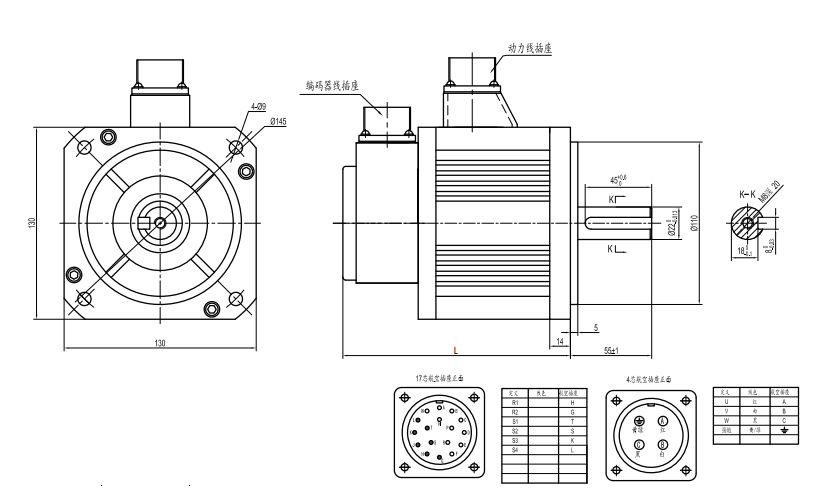

Length & Weight


Type
130
Encoder
Power
1000W
1500W
2000W
Length
（mm）
Multi turn
absolute value（Tamagawa）
No Brake
144±1
157±1
171±1


With Brake
183±1
196±1
210±1

Rotary transformer
No Brake
144±1
157±1
171±1


With Brake
183±1
196±1
210±1

Incremental 2500ppr
（Optical encoder）
No Brake
144±1
157±1
171±1


With Brake
183±1
196±1
210±1


Type
130
Encoder
Power
1000W
1500W
2000W
Weight
（kg）
Multi turn
absolute value（Tamagawa）
No Brake
5.0
6.1
7.2


With Brake
7.3
8.4
9.5

Rotary transformer
No Brake
5.2
6.3
7.4


With Brake
7.4
8.6
9.7

Incremental 2500ppr
（Optical encoder）
No Brake
5.0
6.1
7.2


With Brake
7.3
8.4
9.5

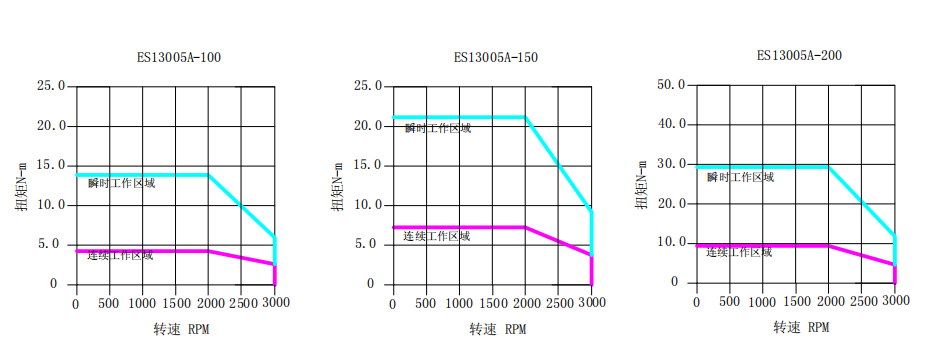

T-N Curve




Company Profile




Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡. Since Hetai founded in 1999, the specialization, scale of production has ensured to manufacture five million motors every year.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer. For more than 20 years, Hetai dedicates to provide professional electrical integration design and automation strategies for customers. We have variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and CNC machining centers as well.


Product Range







Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.



Certificate


Hetai can offer：
Specialised/customised design and product
Good quality products
7/24 Service


When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.

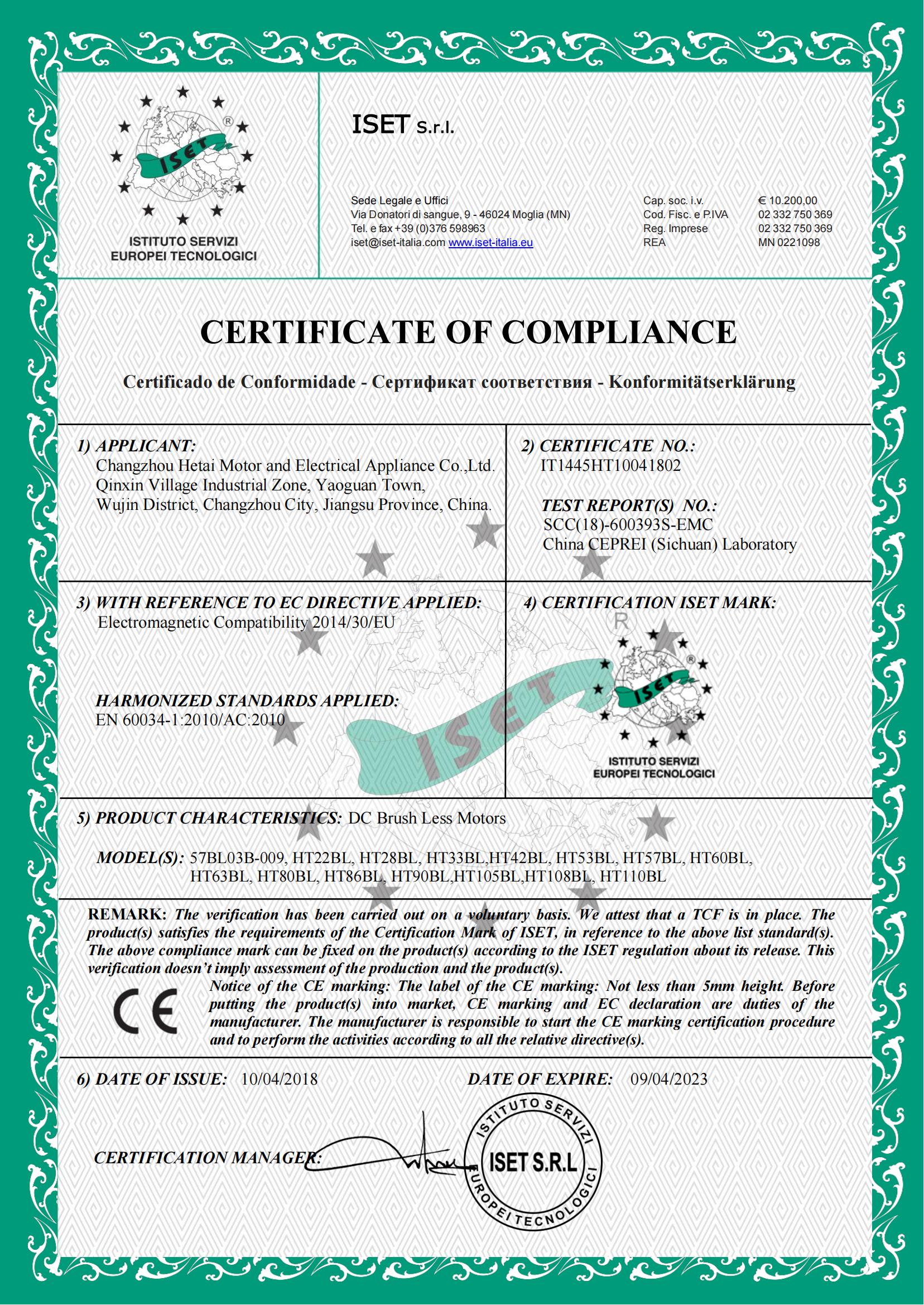

CE Of DC Brushless Motor
Date of expire:09 April 2023
CE Of Hybrid Stepping Motor
Date of expire:09 April 2023

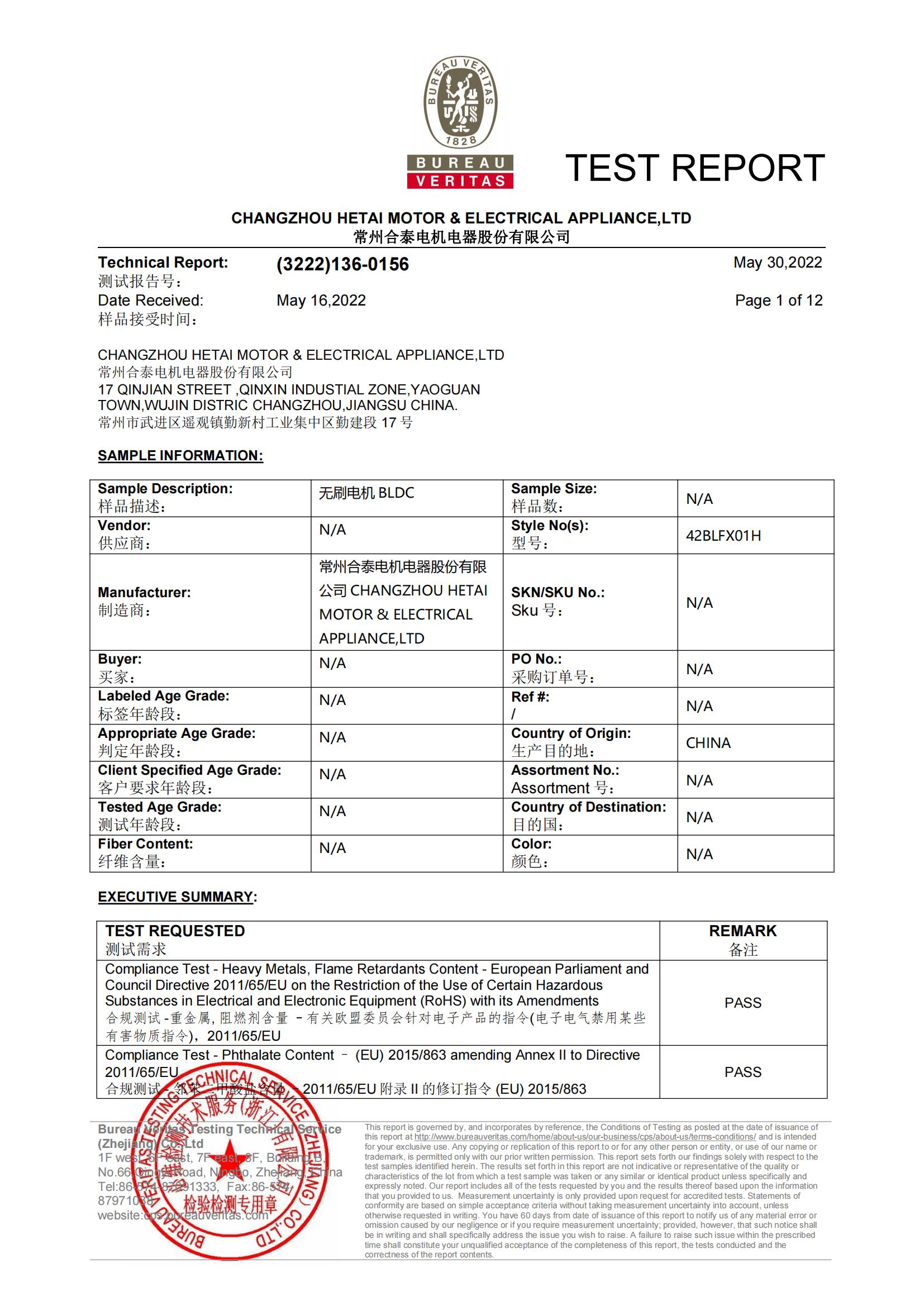

BLDC Motor ROHS report
Date: May 16, 2022

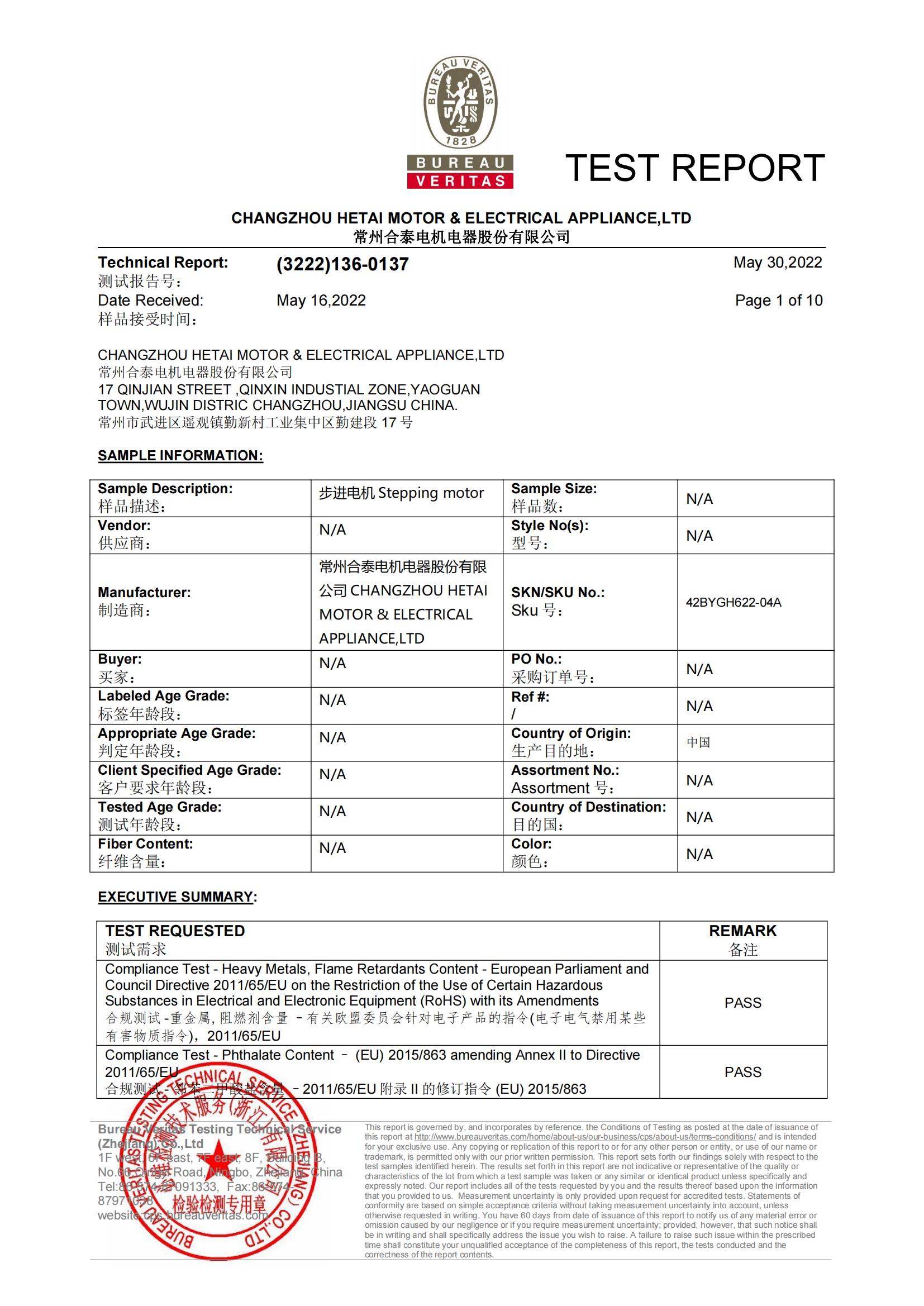

Stepper motor ROHS report
Date: May 16, 2022

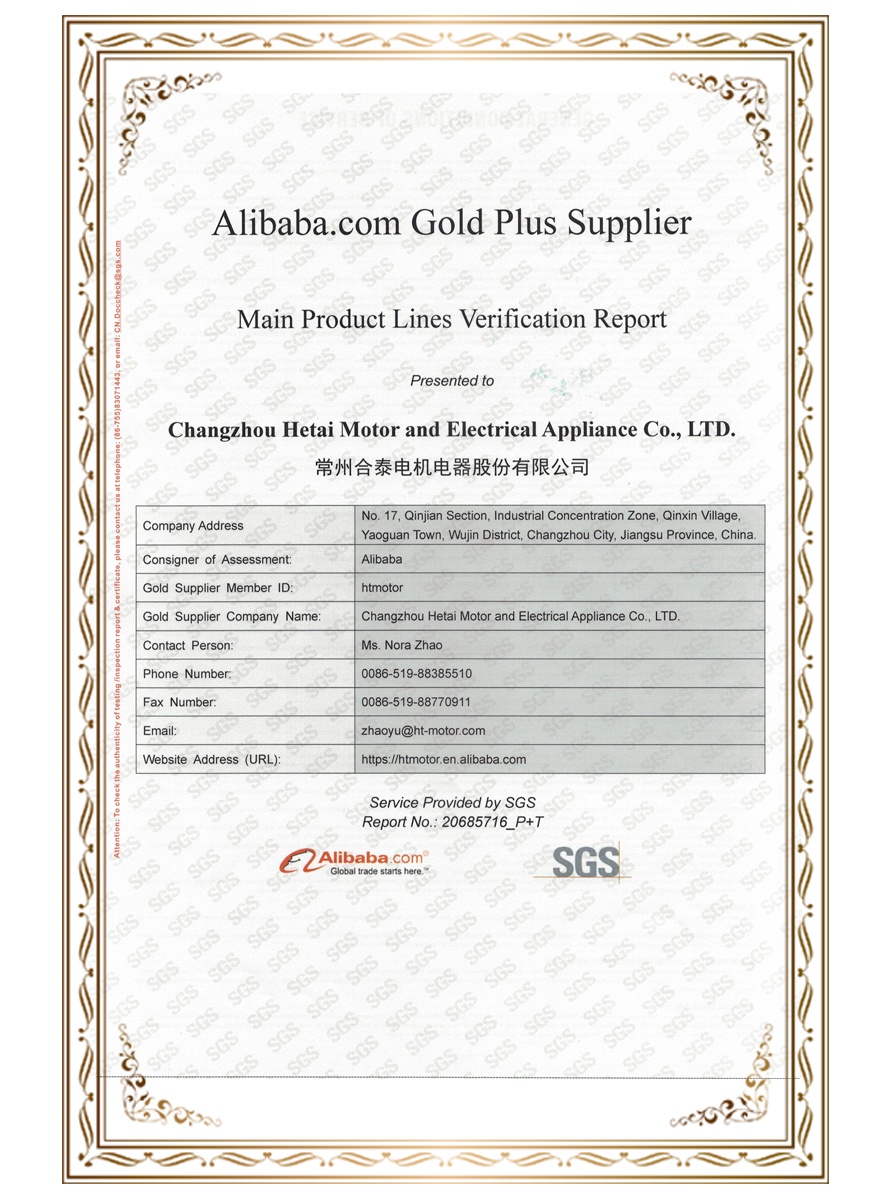

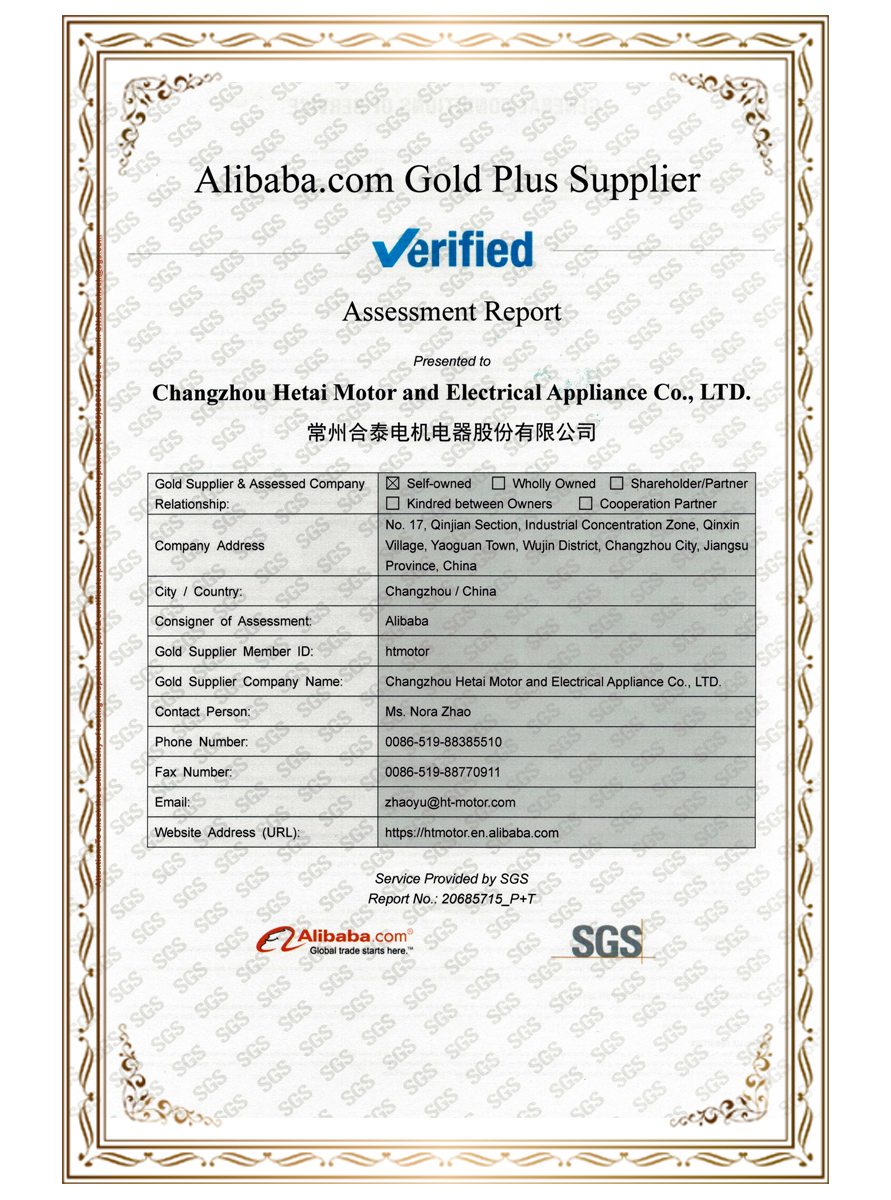

Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified

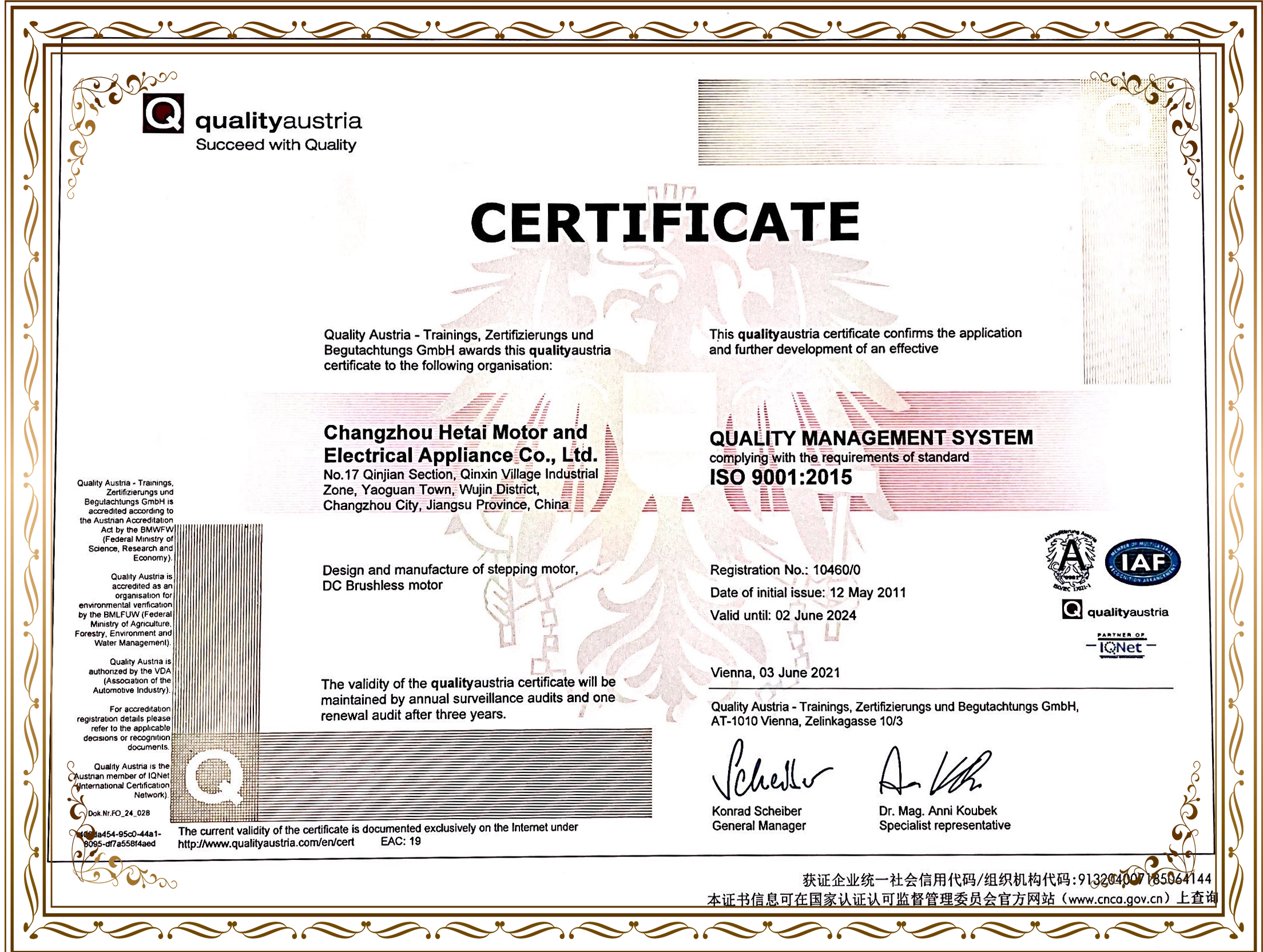

ISO 9001:2015
Valid until: 02 June 2024
IATF 16949:2016
Valid until: 02 June 2024



Experienced Servo Motor Supplier

Hetai is an experienced motor manufacturer since 1999. The specialization, scale of production has ensured to manufacture of five million motors every year.

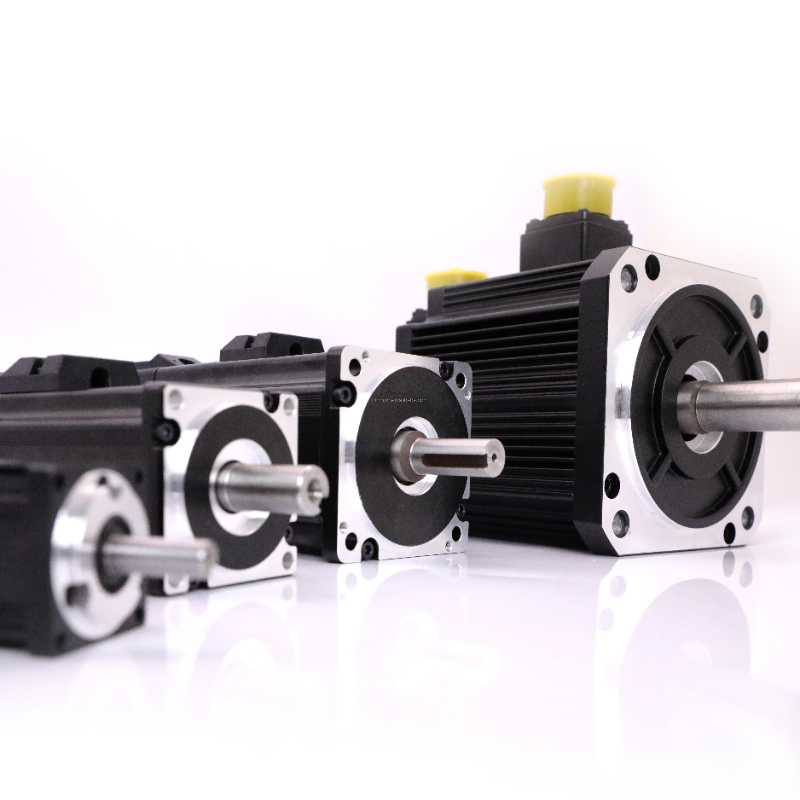

We produces AC, DC servo motor from 40mm~130mm, power from 40W~4KW. Matching with different encoder, brake and so on.

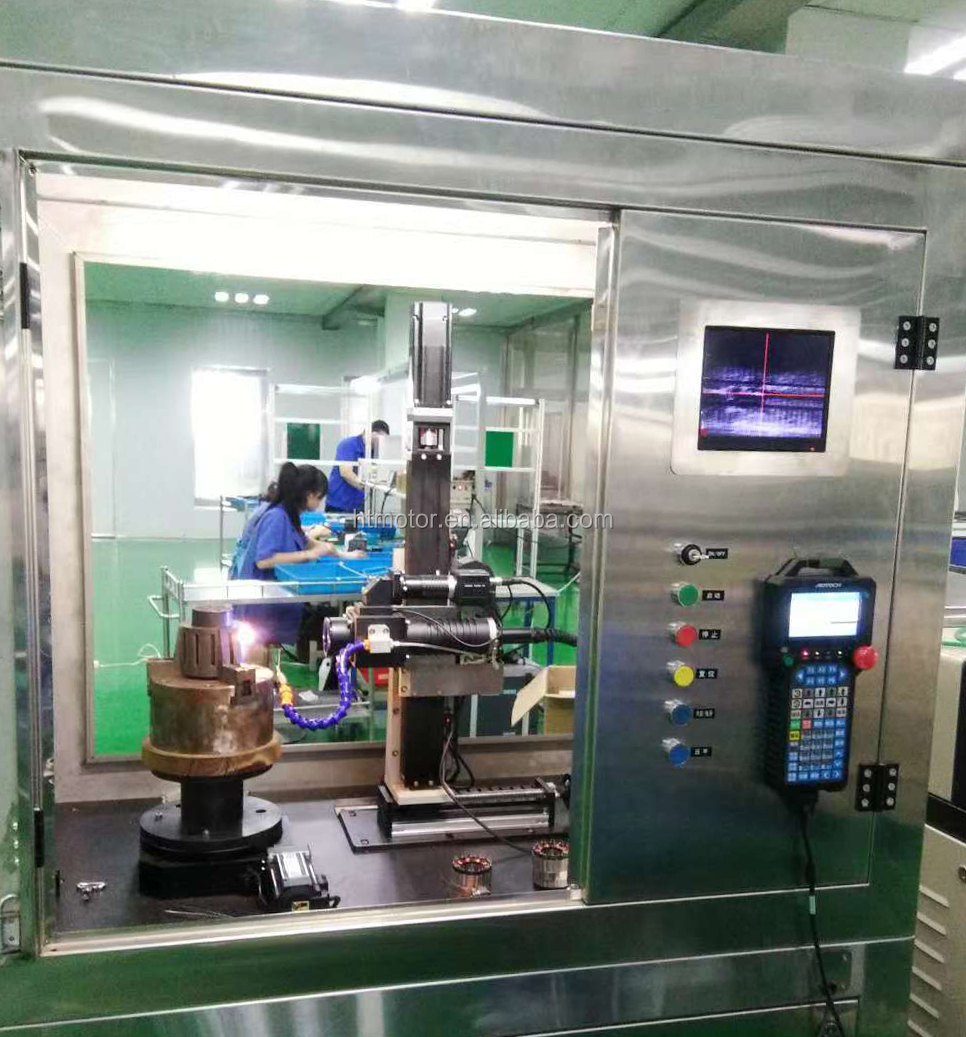

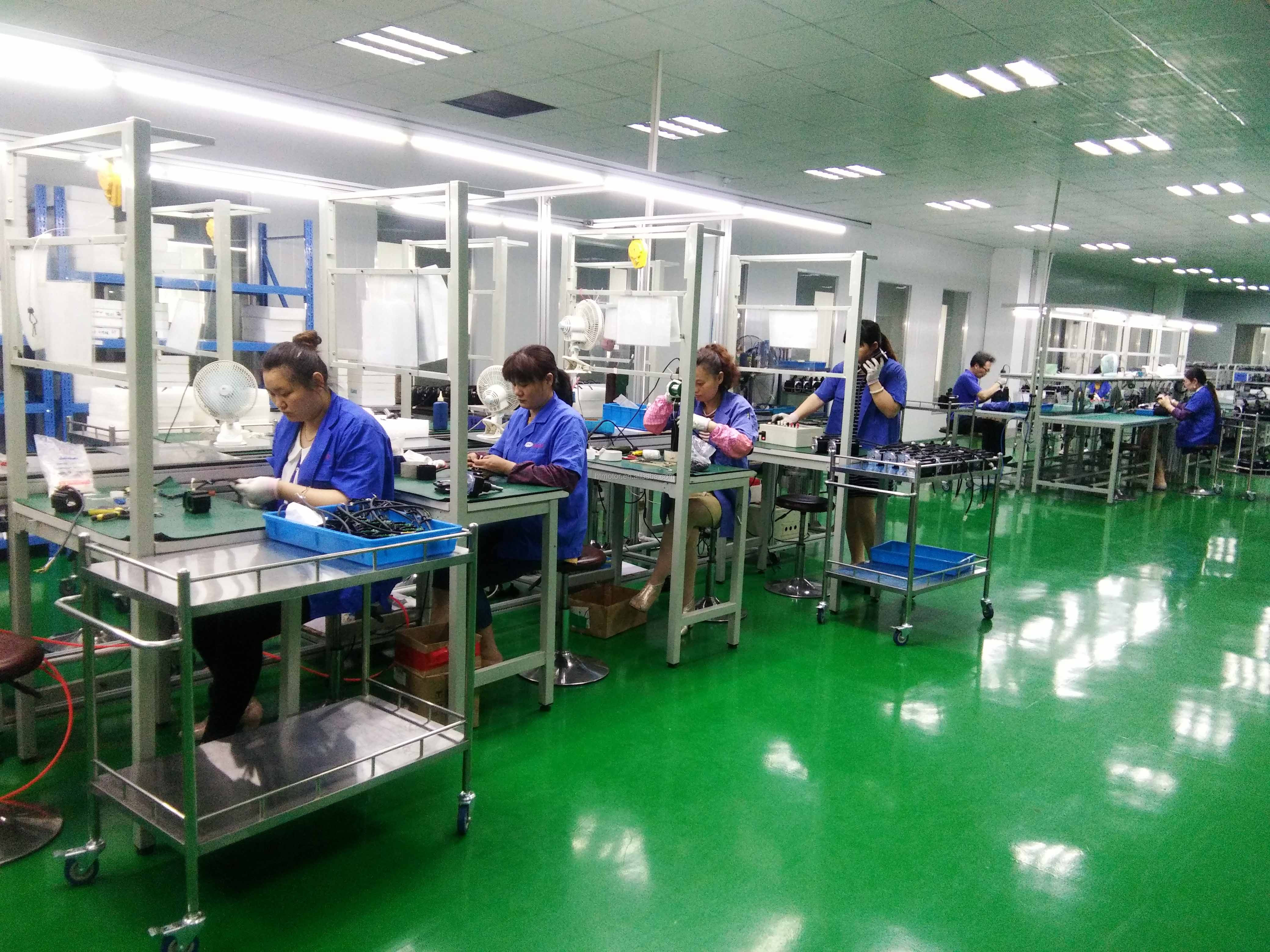

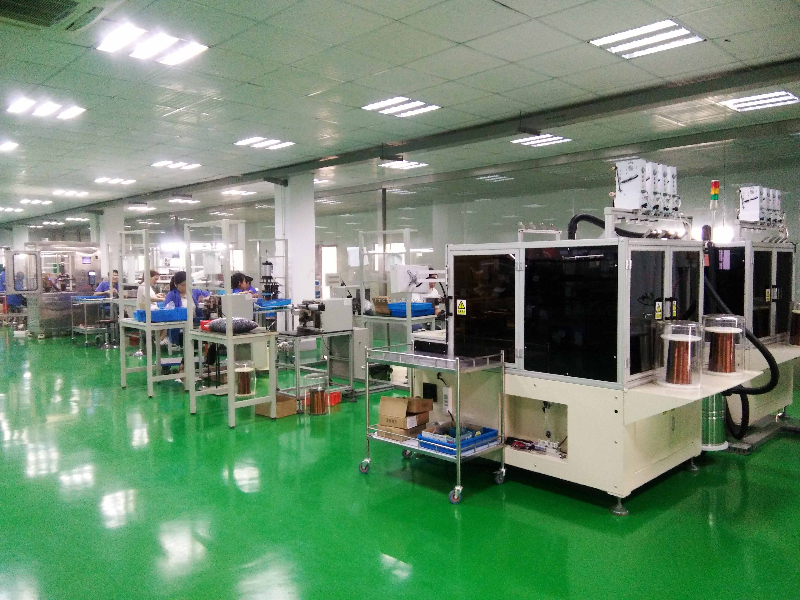

Servo Motor Assembly Line, Laser Spot Welder

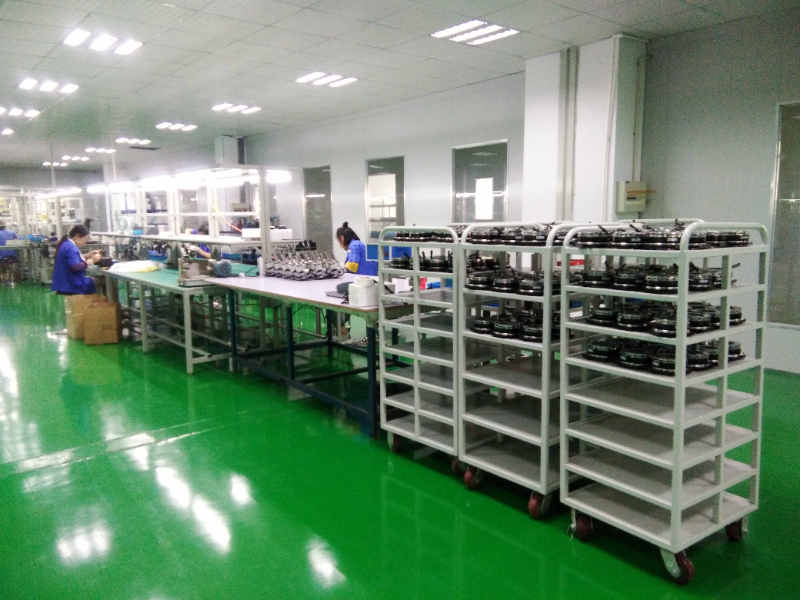

Semi-finished Products

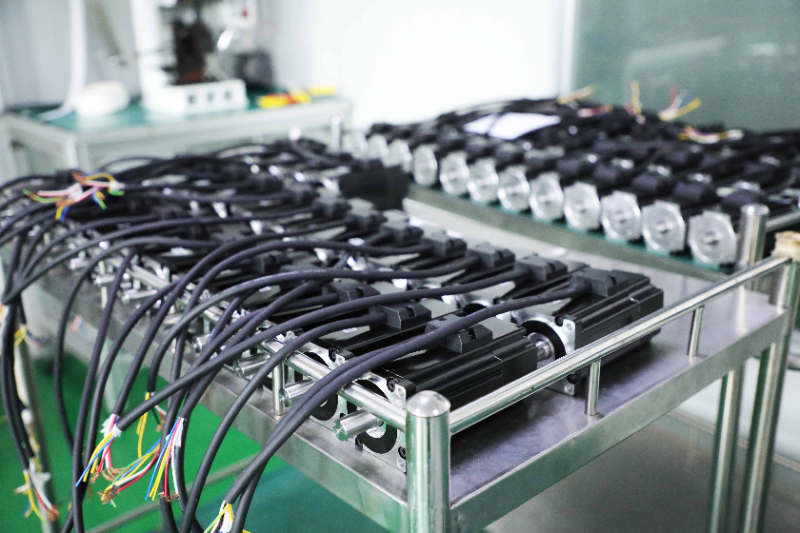

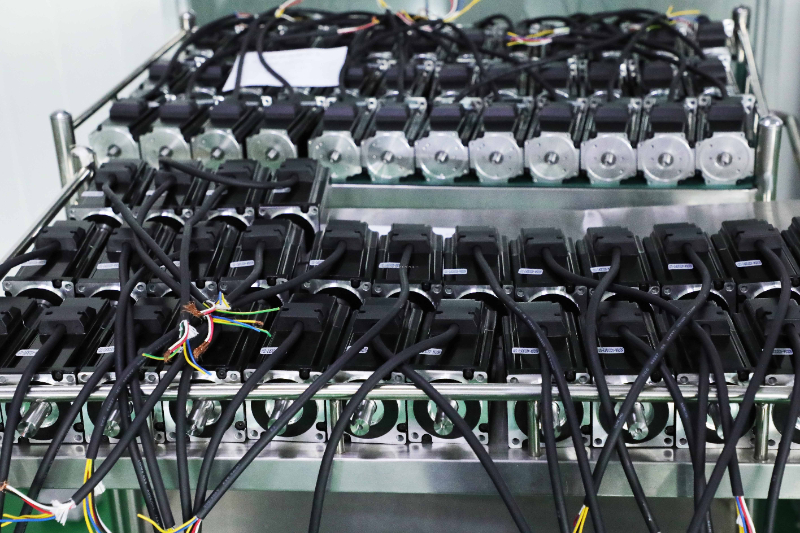

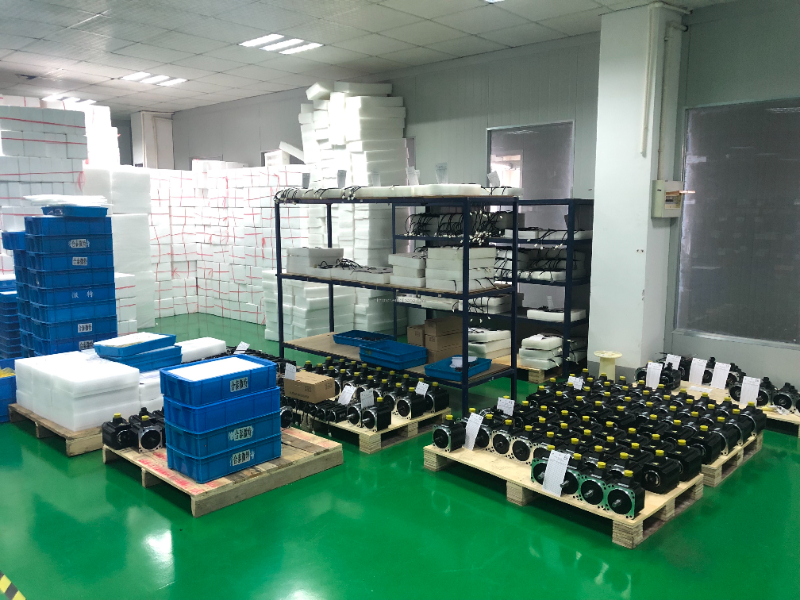

Finished Products

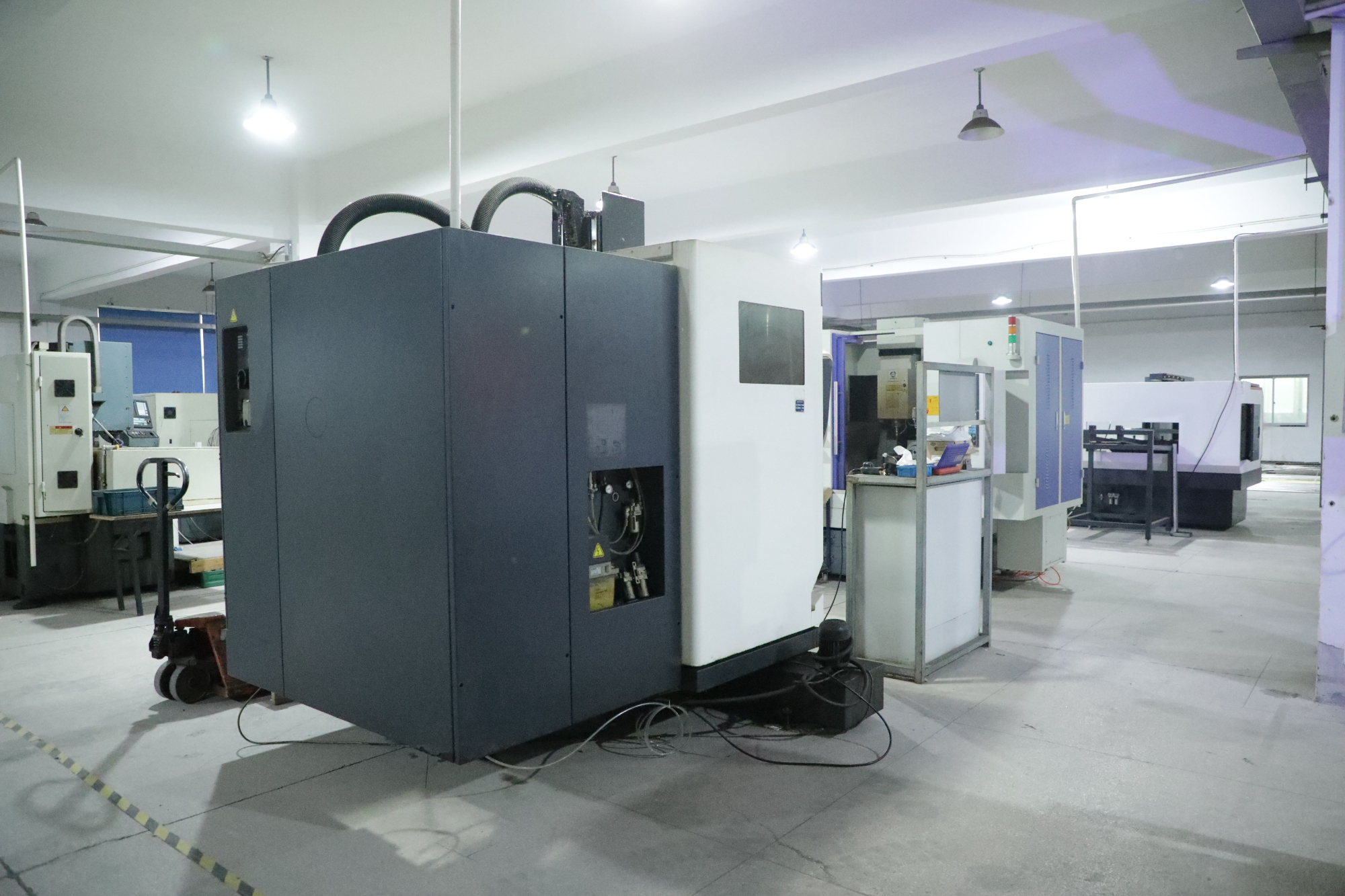

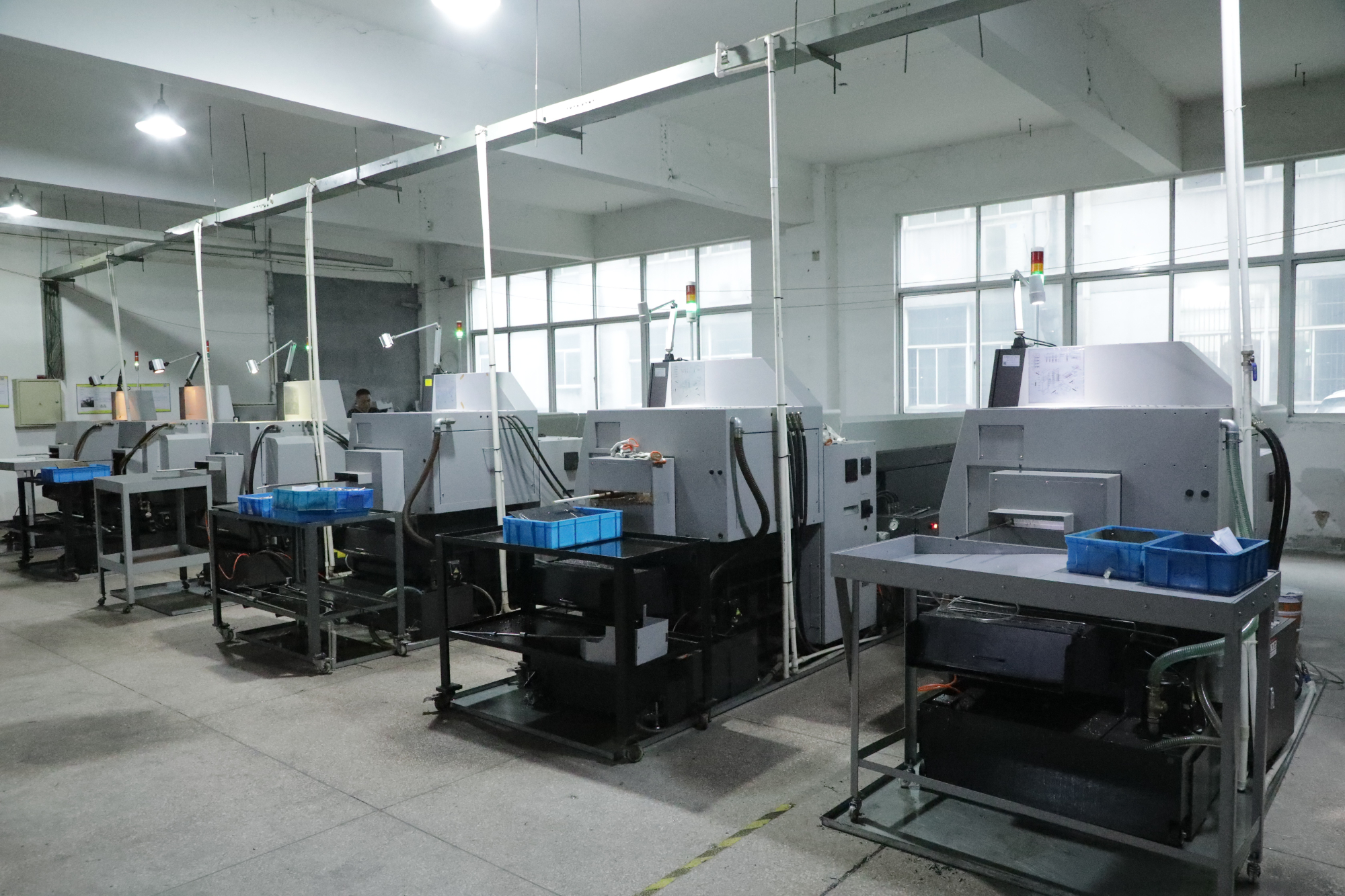

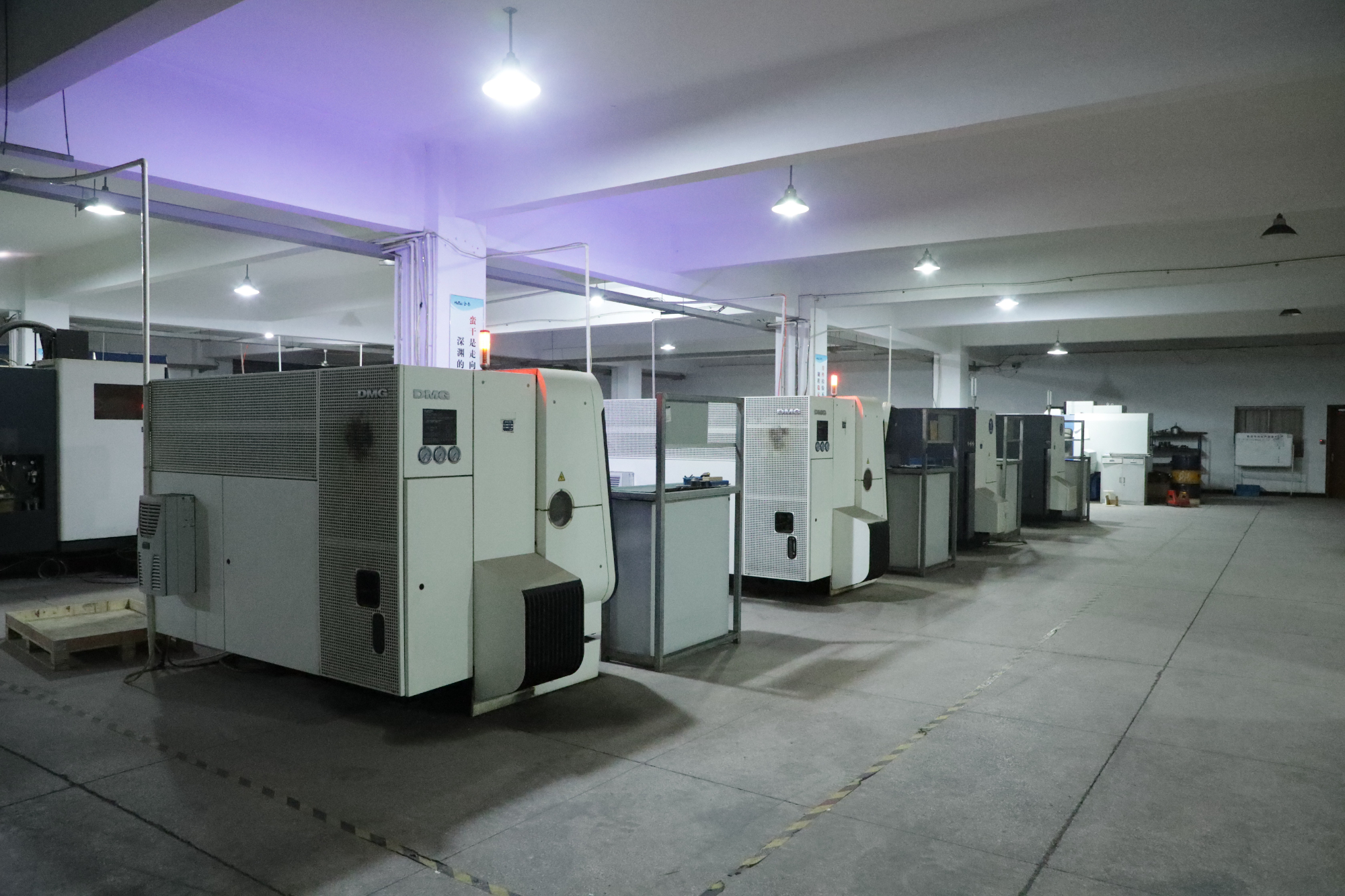

CNC Center




Package & Delivery
