Model No: MSMD012G1V
Panasonic MSMD012G1V | MINAS A5 Family Servo Motor
10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz, Low inertia, Lead wire type, IP65
minimum order :
1 set
Country of Origin :
Singapore / China
Quantity :
Panasonic MSMD012G1V | MINAS A5 Family Servo Motor
The Panasonic MSMD012G1V is a high quality electric motor. This motor adopts advanced technology to achieve stable and efficient operation. Among other things, its internal structure utilizes a number of patented technologies to effectively control noise and vibration at high speeds and under high loads, thus greatly improving comfort.
In addition, the Panasonic MSMD012G1V is characterized by high precision and reliability. Many technical aspects such as axial gap and exact pole position are precisely controlled to ensure efficient and stable operation in practice. Moreover, the design of its circuit board and line interface is very user-friendly. This not only provides users with a greater choice of options, but also makes the commissioning and maintenance of the motor very easy and convenient.
All in all, Panasonic MSMD012G1V is a high-quality electric motor with excellent performance, high precision and high reliability, which has a wide range of applications and market prospects, and is an unrivaled quality choice for both corporate and individual customers. We believe that it will play a bigger and bigger role in various fields in the future and bring more convenient and comfortable product experience to our customers.
- Warranty:3 months
- Place of Origin:Guangdong, China
- Brand Name:Panasonic
- Model Number:MSMD012G1V
- Type:SERVO MOTOR
- Frequency:50/60Hz
- Phase:Single-phase
- Protect Feature:Drip-proof
- AC Voltage:208-230 / 240 V
- Efficiency:IE 1

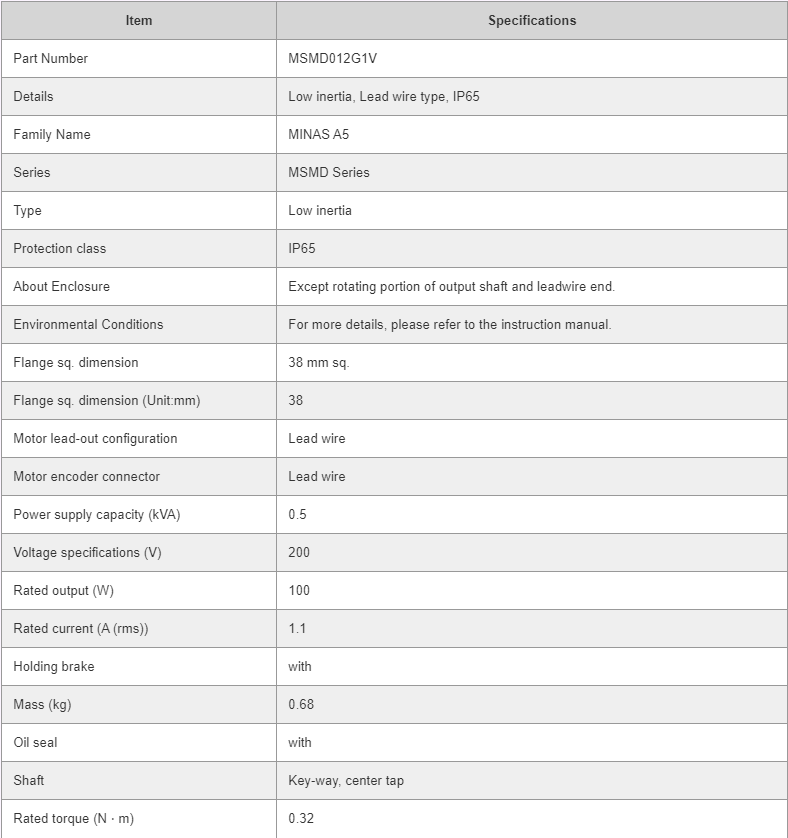

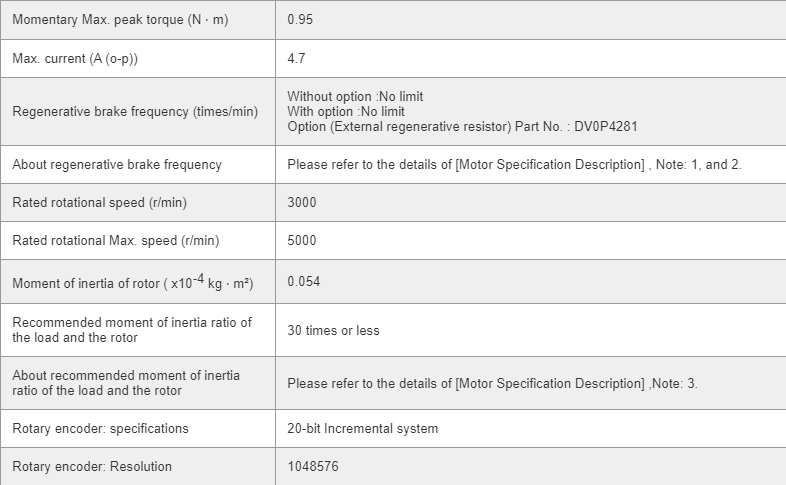

Spec Detail

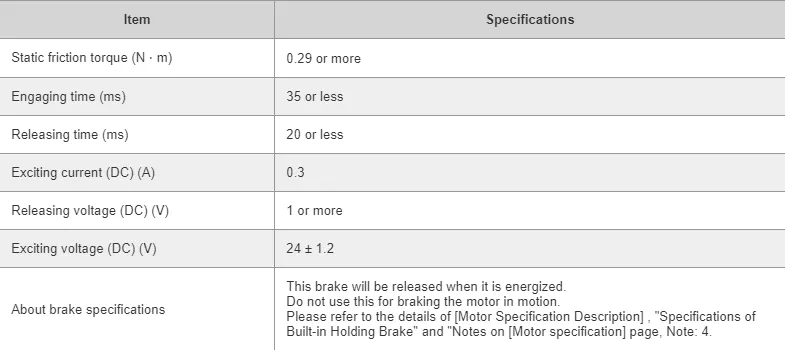

Brake specifications

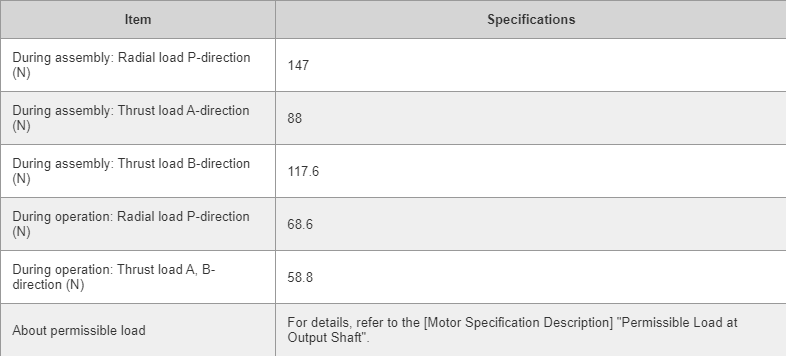

Permissible load

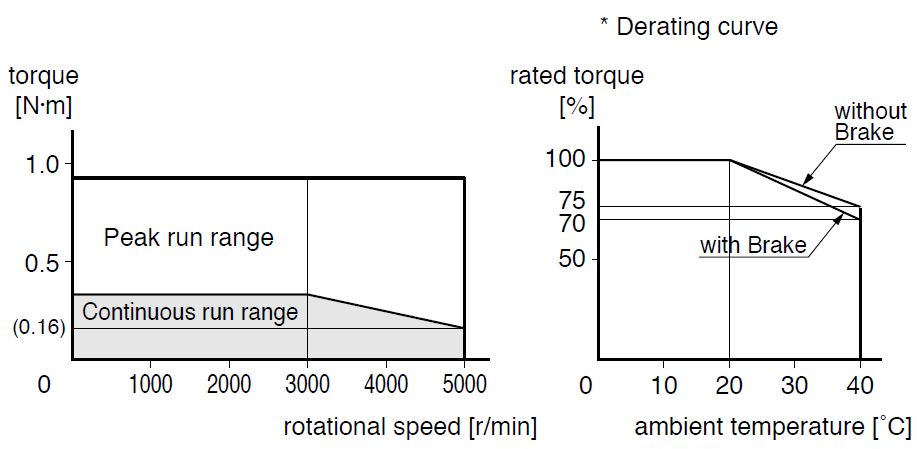

Torque charactristics

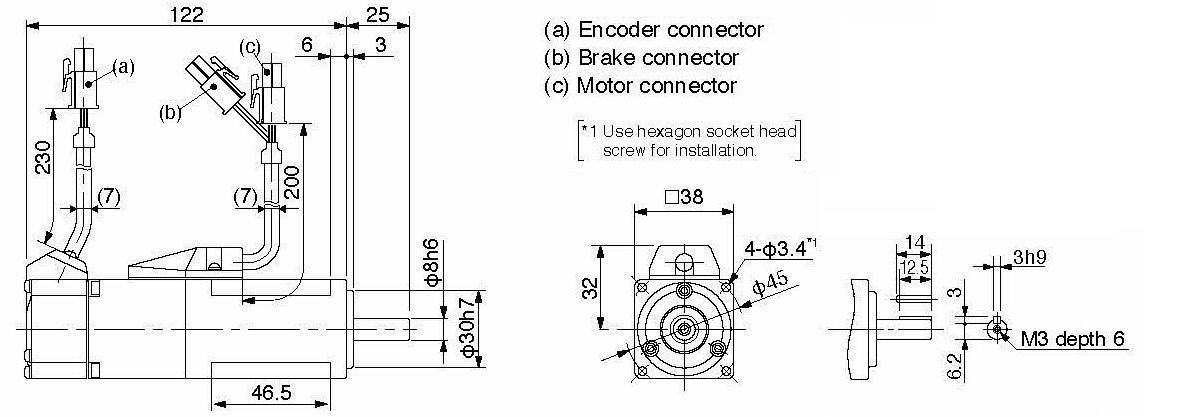

Dimensions
Warehouse
Packing & Delivery
FAQ
Q1: What are the benefits of using the Panasonic MSMD012G1V motor?
A1: The Panasonic MSMD012G1V motor has numerous benefits, including high precision, efficient operation, and high reliability. It is designed to provide high torque density and exceptional performance for a wide range of industrial applications. Its compact design and low noise operation also make it an ideal choice for various applications.
Q2: How does the Panasonic MSMD012G1V motor help enhance production efficiency?
A2: The Panasonic MSMD012G1V motor is highly efficient, which means it can help reduce energy consumption and costs, thereby improving production efficiency. It also features a quick response time, which results in faster start-up and shutdown times, and reduced cycle times.
Q3: What applications is the Panasonic MSMD012G1V motor suited for?
A3: The Panasonic MSMD012G1V motor is well-suited for use in a wide range of applications, including factory automation, packaging machines, printing machines, and robotics. Its excellent performance, high precision, and reliability make it an ideal choice for demanding industrial environments.
Overall, the Panasonic MSMD012G1V motor is a reliable, efficient, and high-performance motor that can help enhance production efficiency in a wide range of industrial applications. It is a great investment for businesses looking to improve their production processes and achieve better results.
