Model No: MDME302GCH

Panasonic MDME302GCH | MINAS A5 Family Servo Motor

10 W to 7.5 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 20 bit incremental・17 bit Absolute/Incremental encoder, Frequency response 2.3 kHz Middle inertia, Connector type, IP65
minimum order :
1 piece
Country of Origin :
Singapore or China
Quantity :
Contact Now

Panasonic MDME302GCH | MINAS A5 Family Servo Motor


Panasonic MINAS A5 is a series of high performance and reliable servo motors which are widely used in automated production. This series of servo motors adopts advanced brushless AC motor technology, which has the advantages of high speed, high accuracy, high stiffness, low noise and low vibration, etc. The servo driver of the MINAS A5 series is also very powerful, which can provide the maximum current control to ensure that the servo motors can run stably.

The servo motors in this series offer a variety of features and advantages. First, they offer very high precision and stability to meet the needs of a wide range of complex motions. Second, they provide high speed and high torque performance, which allows them to excel in fast movements and under high loads. In addition, this series of servo motors also adopts digital control technology, which allows for finer control and monitoring.

MINAS A5 series servo motors also have a variety of application scenarios, including machine tools, printing, textile, food, packaging and other industries. Their high reliability and excellent performance make them an indispensable part of automation applications. Many companies are willing to choose MINAS A5 series servo motors to improve productivity and product quality.

In short, Panasonic MINAS A5 series servo motors are one of the most advanced automation devices. Their high accuracy, high speed and high reliability make them the best choice for various automation applications. If you are considering upgrading your production line with servo motors, the MINAS A5 series is definitely recommended.
  • Warranty:3months-1year
  • Place of Origin:Guangdong, China
  • Brand Name:Japan Pana
  • Model Number:MDME302GCH
  • Type:SERVO MOTOR
  • Frequency:50/60Hz
  • Phase:Three-phase
  • Protect Feature:Totally Enclosed
  • AC Voltage:208-230 / 240 V
  • Efficiency:IE 1
  • Power:0.09KW-5.5KW

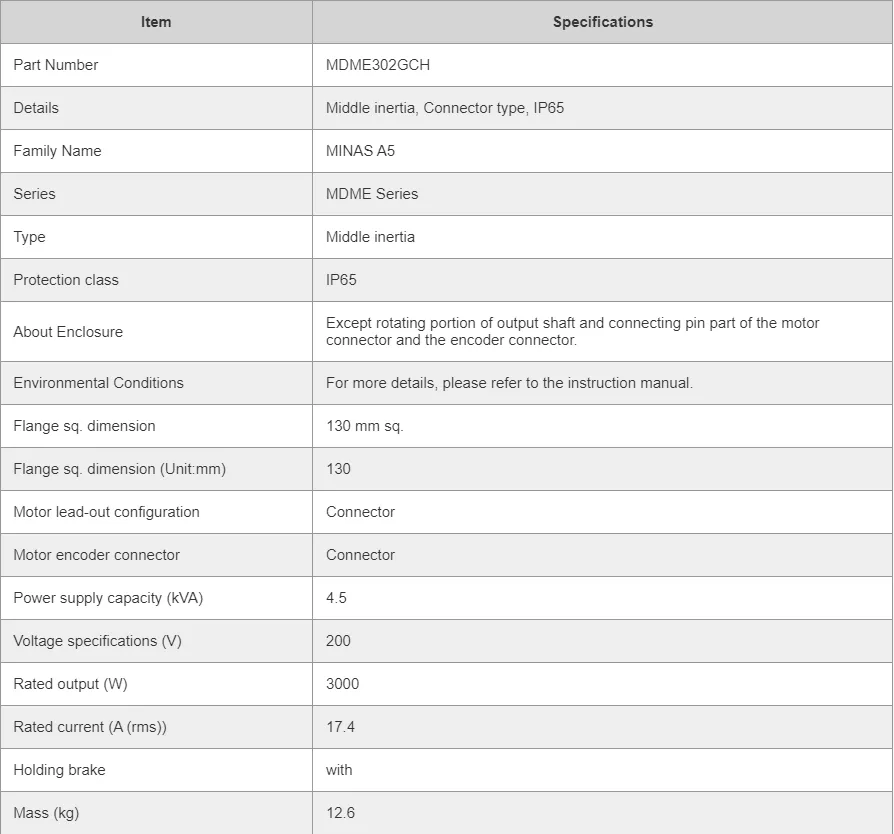

Spec Detail

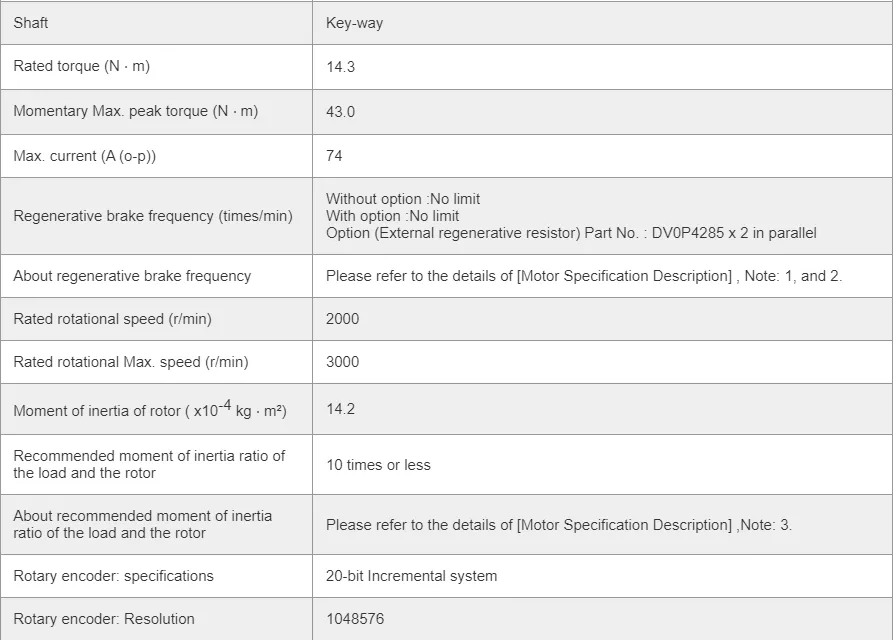

Spec Detail
Spec Detail

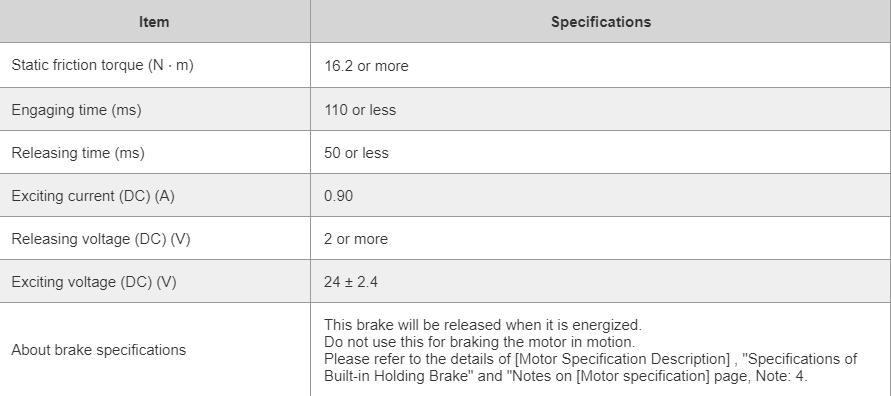

Brake specifications


Basic Specifications

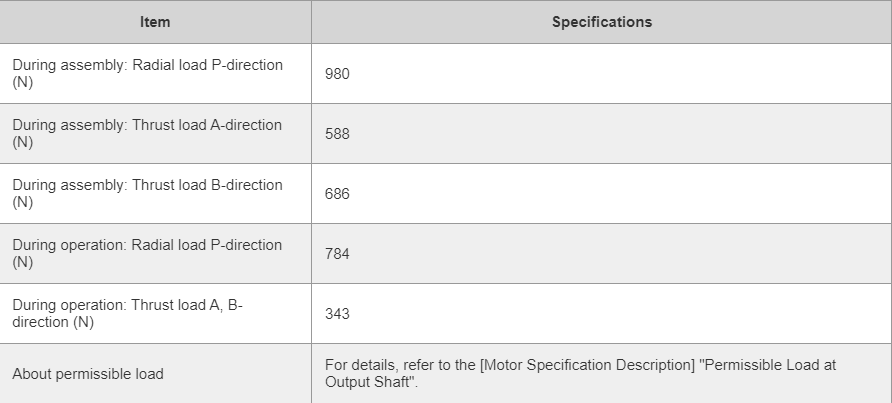

Permissible load


Permissible load

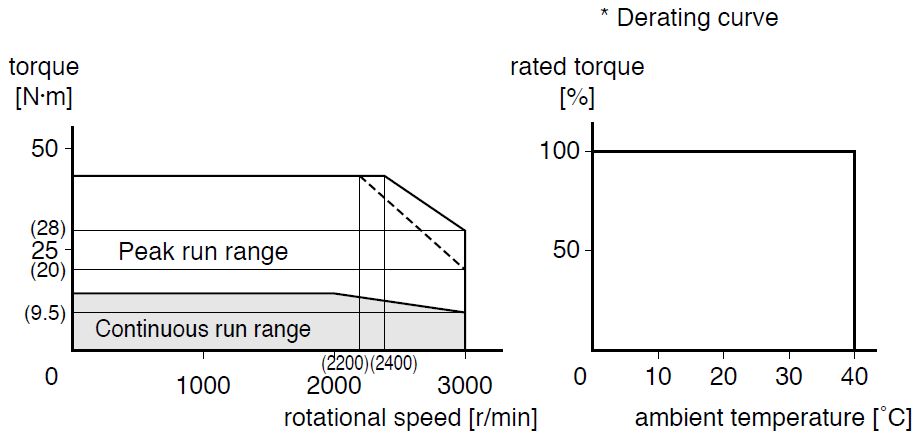

Torque charactristics


Torque charactristics

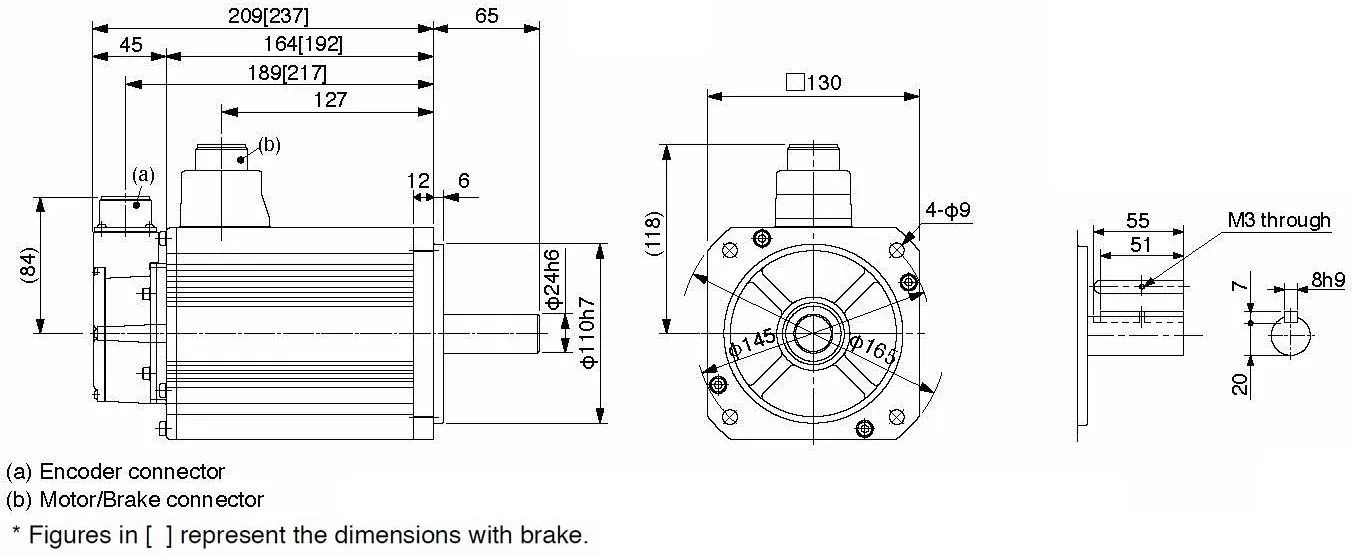

Dimensions


Dimensions


Warehouse



Warehouse             Warehouse


Packing & Delivery



Packing & Delivery

FAQ


Q1: How can I achieve high precision and stable motion control with the Panasonic MINAS A5 servo motor?

A1: The MINAS A5 servo motor is designed with advanced features such as high-resolution absolute position detection, high-speed response, and advanced control algorithms. This combination ensures high-precision positioning and stable motion control, even in dynamic and complex applications. Additionally, the motor's vibration suppression technology helps to reduce mechanical resonance, leading to even smoother operation.

Q2: What is the lifespan of the Panasonic MINAS A5 servo motor?

A2: The MINAS A5 servo motor is built with high-quality components to ensure long-lasting and reliable performance. The motor has a durable design that can withstand harsh and demanding environments, and its maintenance-free operation helps to reduce downtime and increase productivity. With proper installation and maintenance, the MINAS A5 servo motor can provide many years of trouble-free operation.

Q3: How can I ensure optimal performance and efficiency with the Panasonic MINAS A5 servo motor?

A3: To ensure optimal performance and efficiency of the MINAS A5 servo motor, it is important to follow the manufacturer's guidelines for installation, programming, and maintenance. This can help to prevent premature wear and tear, improve energy efficiency, and extend the lifespan of the motor. Additionally, using compatible accessories and software can help to optimize the motor's performance and achieve the desired results.
