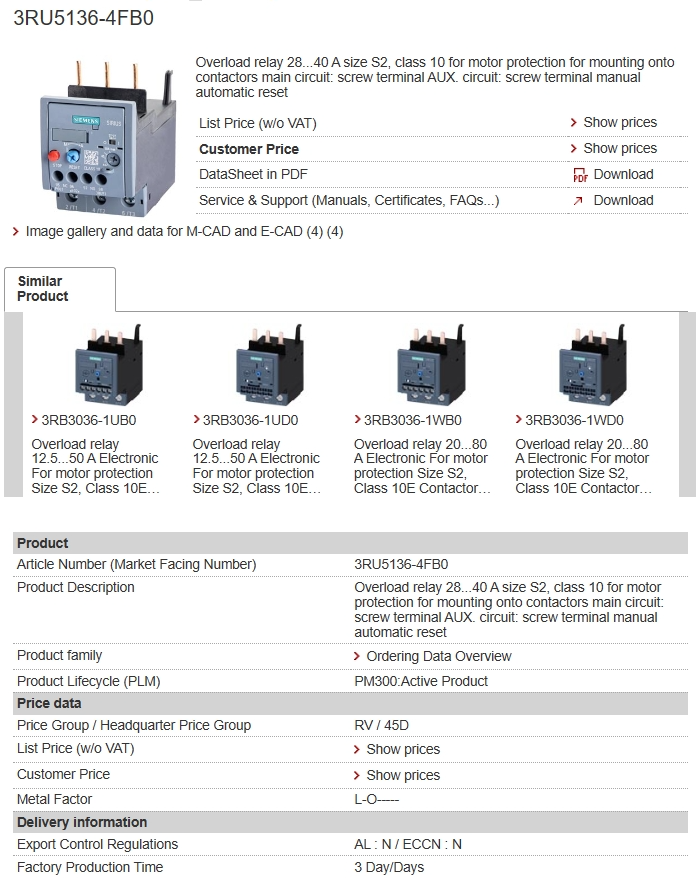

An overload relay is a type of protective device that is used to protect a motor from damage caused by excessive current. It works by monitoring the current flowing through a motor and tripping a circuit breaker or contactor if the current exceeds a preset limit.

The overload relay is installed in the motor control circuit between the power source and the motor, and it operates based on the amount of current flowing through the motor. When the current exceeds the set limit, the overload relay will trip and interrupt the power to the motor, which will stop it from running. This protects the motor from overheating, which can cause damage such as burned windings or insulation.

Overload relays come in different types and configurations, such as thermal overload relays and electronic overload relays. Thermal overload relays use a bi-metallic strip that bends when it is heated by the current flowing through it. Electronic overload relays use electronic sensors to measure the current flowing through the motor.

In summary, overload relays are essential for motor protection and can help prevent costly motor damage or downtime caused by overheating and excessive current.
