Model No: HRT/HRTZ/HRM

Hollow Rotary Actuator

Hansheng can provide a complete range of hollow rotary actuators. The hollow rotary actuator has a hollow rotary table combined with closed-loop and open-loop motors. Hansheng combines a hollow rotary table with servo and stepping motors. The actuator has an internal reduction mechanism to realize high output drive. We can customize it according to customer's needs and provide you with a variety of solutions.

Quantity :

Contact Now

Discover the benefits of using a Hollow Rotary Actuator for precise and efficient motion control. Improve your automation process with this innovative technology.

Hollow Rotary Actuator

Hansheng's Hollow Rotary Table can be easily combined with any servo motor or stepper motor to create a flexible and precise hollow rotary actuator. The drive gears on this hollow rotary table are ground to ensure repeatability and can achieve precise five arc minutes.

One of the outstanding features of our hollow rotary tables is their hollow design. The second is the flexibility of the motion behavior.If you need a solution for precise movements in manufacturing processes, Hansheng's products make a versatile solution for a wide range of industrial applications thanks to their high loading capacity, where heavy loads can be placed directly on the platform, so come and contact us to work out a perfect solution for you!

Model introduction

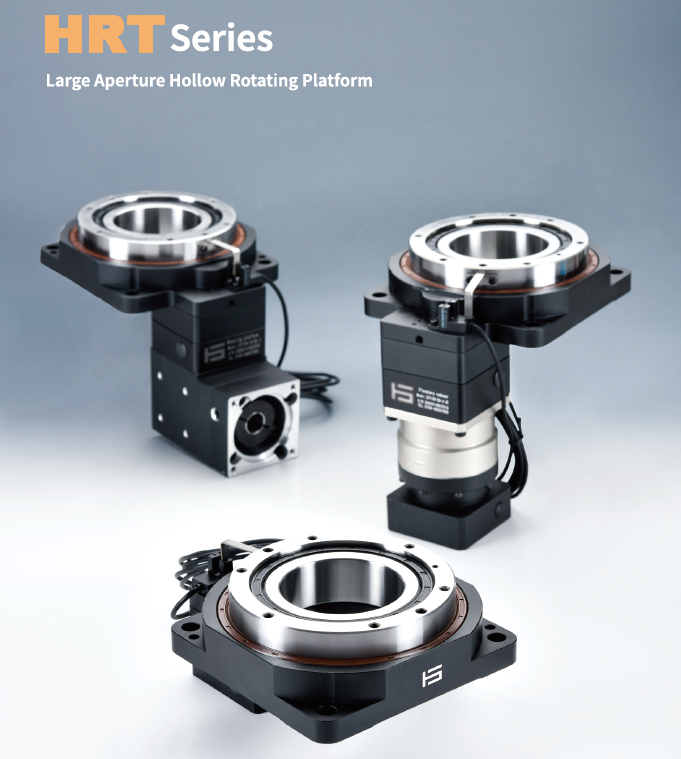

Series	Large Aperture Hollow Rotary Table
Model	HRT62	HRT85/HRT85RL/RY/RZ(JS)	HRT130/HRT130RL/RY/RZ(JS)	HRT200/HRT200RL/RY/RZ(JS)	HRT280
Ratio	5,10	5, 10, 20, 25, 50	10, 18, 20, 50	10, 18, 20,50	10
Rated Output Torque（N.m）	5,4	15, 18, 23, 28	28, 35, 40	50, 55, 70	130
Adapted Motors	100W AC Servo Motor，42 Stepper Motor	200W~400W AC Servo Motor / 57-60 Stepper Motor	200W~400W AC Servo Motor / 57-60 Stepper Motor	750W AC Servo Motor，86 Stepper Motor	1000W AC Servo Motor
Maximum Output Torque（N.m）	3 Times rated torque
Positioning Accuracy (arc-min)	≤2	≤1 / ≤3	≤1 / ≤3	≤1 / ≤3	≤1
Transmission Efficiency (%)	95	95 / 90	95 / 90	95 / 90	95
Hollow Aperture	28mm	33mm	62mm	100mm	150mm
Bearing Structure	Cross roller bearing
Allowable Axial Load（N）	230	500	2000	4000	8000
Allowable Moment of Inertia（N.m）	5	10	50	100	200
Designed Load	7/5kg	28/20kg	45/30kg	75/55kg	130kg

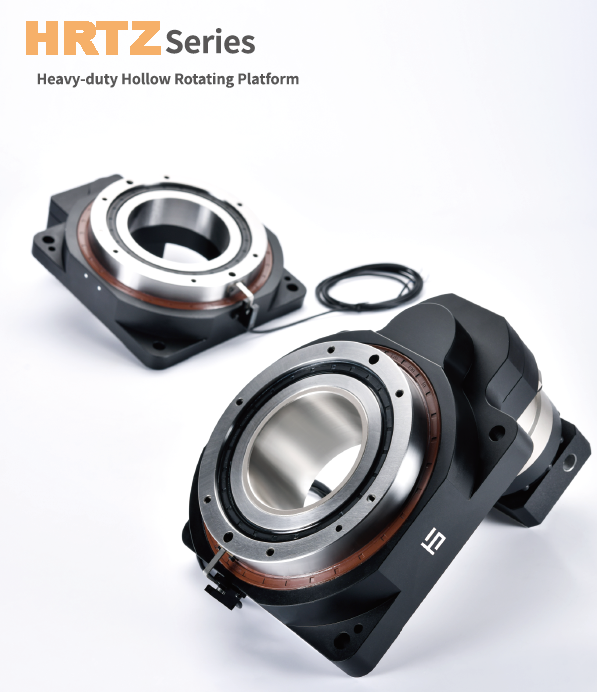

Series	Heavy Duty Hollow Rotary Table
Model	HRTZ200						HRTZ280
(L1, one stage)
Ratio	20	25		35		50	20	25		35		50
Rated Output Torque（N.m）	330	350		310		280	650	680		620		575
Transmission Efficiency (%)	95						95
Positioning Accuracy (arc-min)	≤2						≤2
Photo (L2, two stages)
Ratio	100	200	250		350	500	100	200	250		350		500
Rated Output Torque（N.m）	350	350	350		310	280	680	680	680		620		575
Transmission Efficiency (%)	90						90
Positioning Accuracy (arc-min)	≤4						≤4
Matched Servo Motor (W)	750-1000						1000-3000
Matched Step Motor	86-110						110-130
Hollow Aperture	90 mm						135 mm
Maximum Output Torque（N.m）	3 Times rated torque
Allowable Axial Load (N)	6000						13000
Allowable Moment of Inertia（N.m）	200						400
Designed Load	200kg						400kg

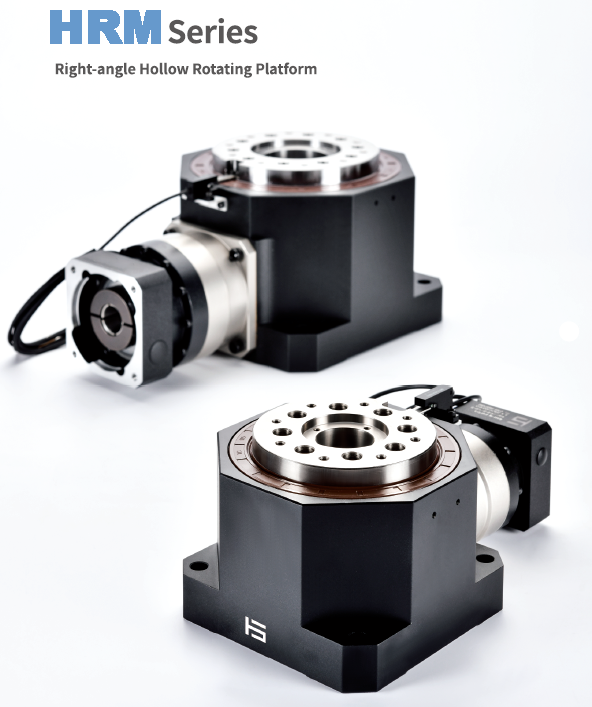

Series	Right Angle Hollow Rotary Table
Model	HRM130	HRM180	HRM260
Ratio	15, 21, 30, 60, 75, 105, 120, 150, 210, 300	15, 21, 30, 60, 75, 105, 120, 150, 210, 300	15, 21, 30, 60, 75, 105, 120, 150, 210, 300
Rated Output Torque	105, 130, 150	360, 400, 430	2200, 2650, 2950
Maximum Output Torque（N.m）	3 Times rated torque
Positioning Accuracy (arc-min)	≤2 / ≤4	≤2 / ≤4	≤2 / ≤4
Matched Motor	200-400W Servo, 57 Stepper Motor	750-1500W Servo, 86/110 Stepper Motor	2000-5000W Servo, 130-150 Stepper Motor
Transmission Efficiency (%)	95 / 90	95 / 90
Hollow Aperture	30 mm	50 mm	50 mm
Bearing Structure	Cross roller bearing
Allowable Axial Load (N)	7300	13500	29600
Allowable Moment of Inertia（N.m）	7300	13500	29600
Designed Load	50kg	150kg	1000kg
Weight	7/7.6kg	17/19kg	46/52kg

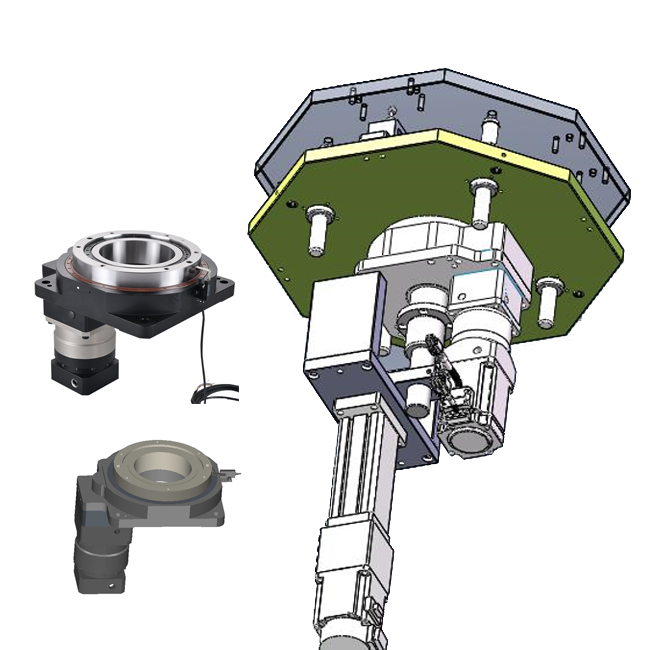

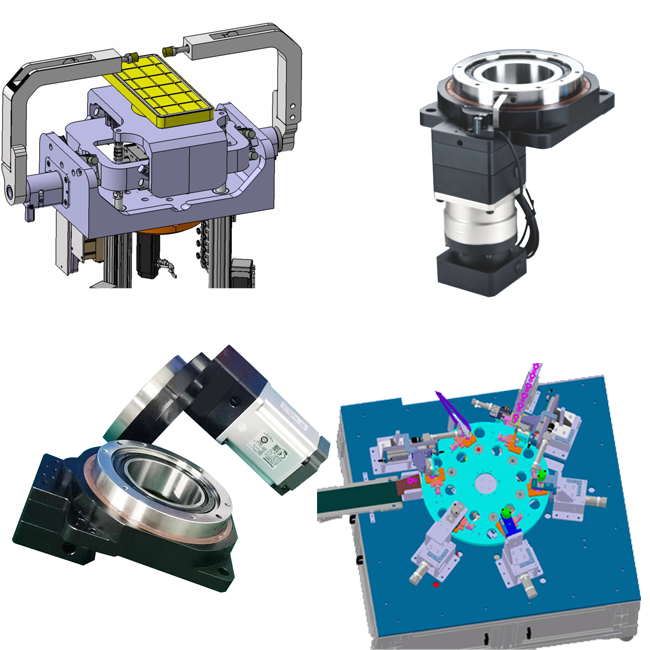

Application

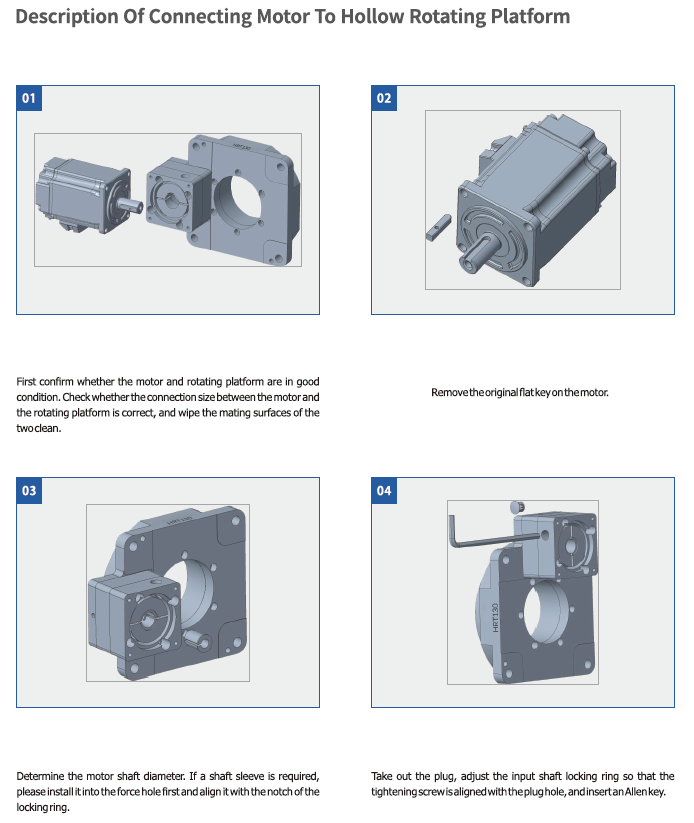

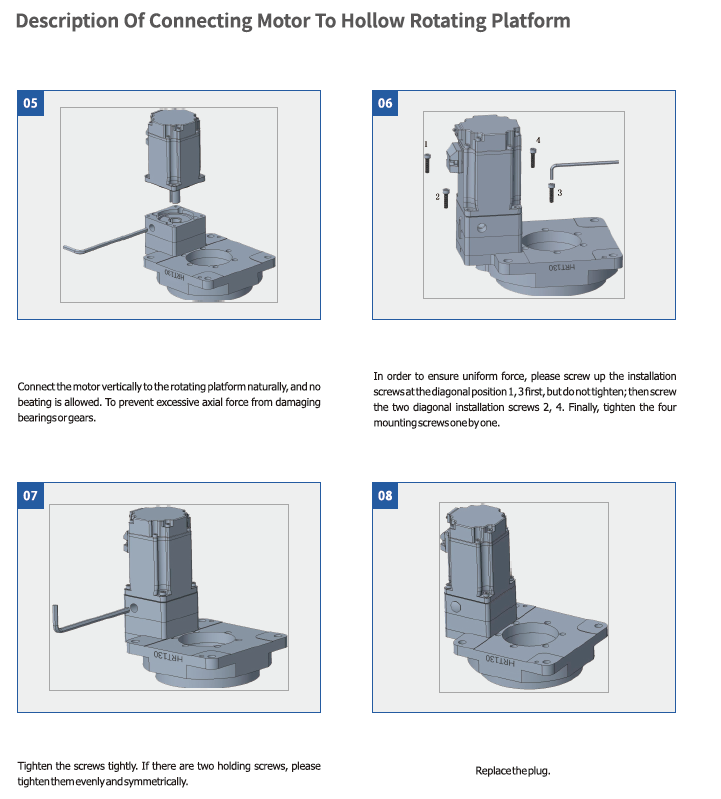

Description Of Connecting Motor To Hollow Rotating Platform

FAQ

1. What is a hollow rotary actuator?

The hollow rotary actuator is a mechatronic device with the characteristics of large torque, high precision and low noise. It is used to realize automatic control and adjustment and is widely used in fields such as robots and automated production lines.

2. What is the working principle of hollow rotary actuator?

The hollow rotary actuator is composed of a motor, reducer, encoder and controller to convert electrical energy into mechanical energy, provide torque and angle control, and can achieve 360-degree unlimited rotation. It is suitable for applications that require a hollow shaft.

3. What are the advantages of hollow rotary actuators?

The hollow rotary actuator has the advantages of small size, good symmetry, high reliability, and easy installation. At the same time, due to its hollow design, it can be combined with sensors, gas-liquid control, line control, etc. to achieve more complex automatic control and adjust.

4. What are the application fields of hollow rotary actuators?

Hollow rotary actuators are suitable for use in robots, automated production lines, digital production lines, intelligent warehousing equipment and other fields to control robotic arms, material transportation, material sorting, etc.

5. What should we pay attention to when using hollow rotary actuators?

When using a hollow rotary actuator, it needs to be installed, debugged and maintained correctly to avoid failure and damage. At the same time, it is also necessary to follow the equipment operating specifications and take corresponding measures to ensure safe use.
