Model No: HANS-3

Hollow Rotating Platform

Hollow Rotating Platform is an innovative display device that can realize 360-degree rotating display of various products.

minimum order :

1 box

Quantity :

Contact Now

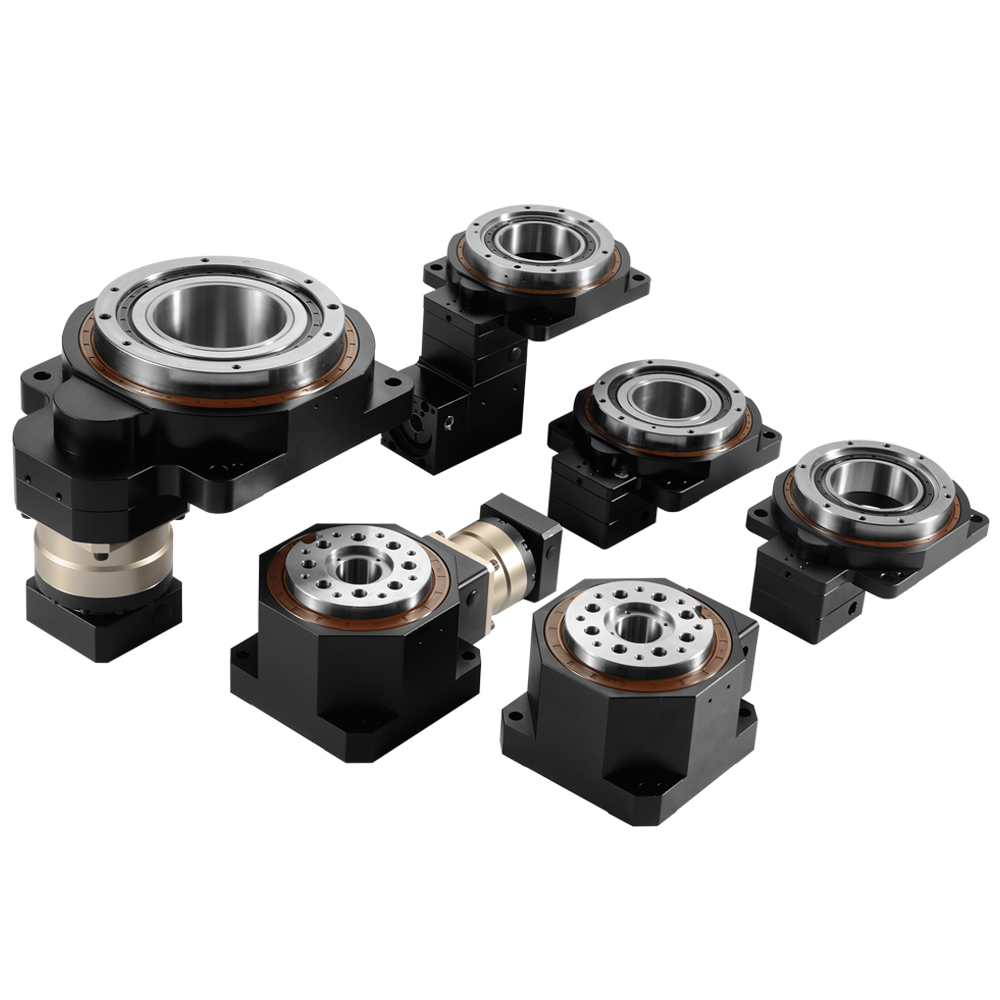

Hollow Rotating Platform

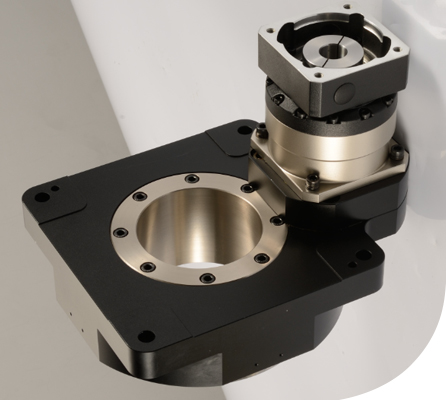

The Hollow Rotating Platform is an advanced rotating platform designed with practicality and high safety in mind. The platform has a hollow central part, allowing equipment such as robots to pass through the center, saving space and improving the efficiency of platform use. In addition, the rotary platform also has a highly reliable transmission system and smooth movement, ensuring the safety and stability of the equipment.

Warranty:1 years
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Weight (KG):20 KG
Gearing Arrangement:Planetary
Output Torque:48.3-22920N.m
Input Speed:1000-1500rpm
Output Speed:17-136rpm
Place of Origin:Guangdong, China

Product Feature

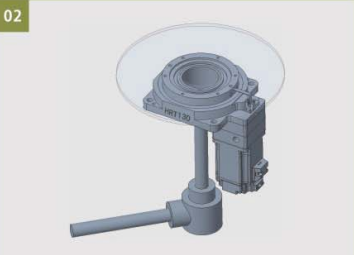

Hollow structure

The tumtable of the hollow rotating platform is a hollow structure, and the motor is connected to the side, which is convenient for the instailation of the gas pipe and the wire in the jig. Same as the divider and the DD motor, the heavy objects can be directly fxed on the platform for transmission. In addition, our company successfully devekoped the right-ange hollow rotating platforms, which effetively solved the problem of insufficient installation space caused by the previous limited height and space.

Processing technology

The main body of hollow rotating platform is made of aluminum alloy and processed by high-precision CNC to ensure the accuracy of each part. The gear adopts the process of carburizing heat treatment and grinding. After processing, it can reach the gear accuracy of grade 5, and its surface hardness can reach 58-62HRC. After the product is assembled, another grinding process will be carried out to ensure that the parallelism and perpendicularity of the end face reaches within a trace of runout.

The motor of any configuration, arbitrarily selected ratio

Hollow rotating platform can flexibly change the size of the interface by customizing the flange and input shaft hole, which is suitable for connecting servo motors and stepping motors of any brand. The market standard speed ratio is very single. The ratio is produced by the ratio of the input gear to the output gear. Through the design of multi-stage gear transmission, our company has achieved multiple speed ratios on the same turntable, and our company has the characteristics of greater torque capacity under the same speed ratio.

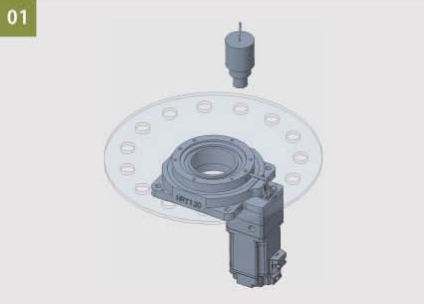

High repeat positioning accuracy

The precision level of some gears of hollow rotating platform reaches level 4, which makes the hollow return of the hollowrotating platform extremely small, and our company uses the design of adjustable gear center distance to compensate for the error generated during assembly. The repeat positioning accuracy can reach 10 arc seconds. the following.

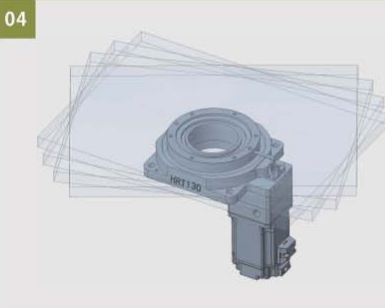

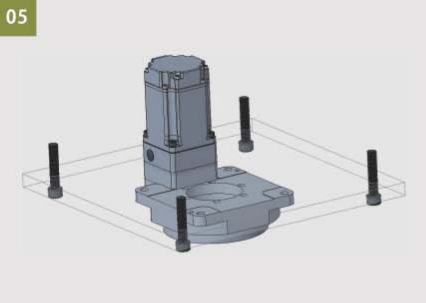

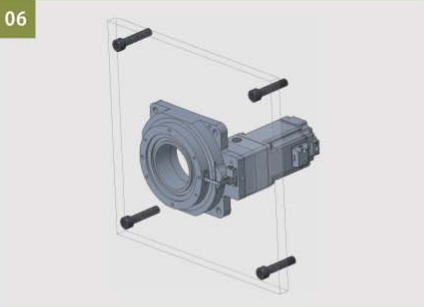

Suitable for multiple working conditions

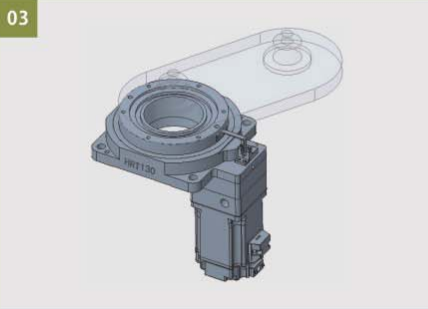

Taking into account the lateral force when the product is in use, our design adopts cross-roller bearings, and there is ananti-overturning stability ring in the middle. In order to better bear the lateral load during use. According to. the workingconditions of side mounting, hoisting and large overturning force, our company separately designed a BRTZ series heavy-duty hollow rotating platform reducer.

Direct connection-save design time

The working table and mechanical arm of the device can be directly installed on the hollow rotating platform turntable. Comparedwith the use of belt pulleys and other mechanical parts, it can reduce the man-hours and costs of mechanism design, partsallocation, and belt state adjustment

Details Images

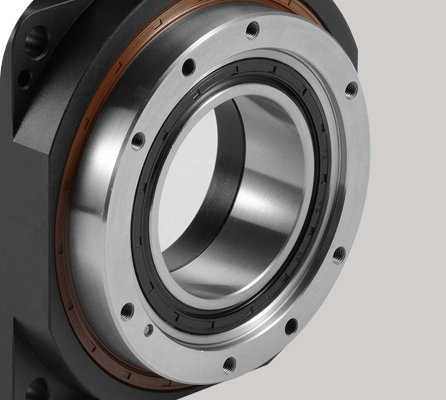

Anti-overturning stability ring

With anti-overturning stability ring, can greatly enhance the overturning moment to effectively solve the load problems such as side loading and hoisting

* Strengthen the heavy load type design
