Model No: 57BL06-055

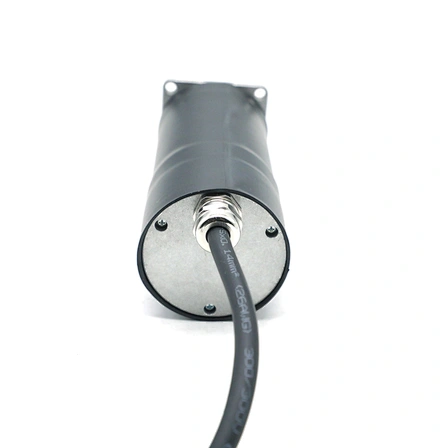

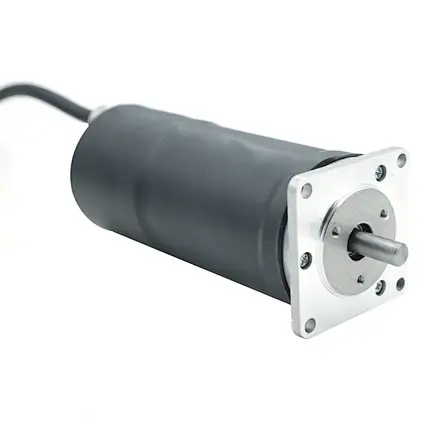

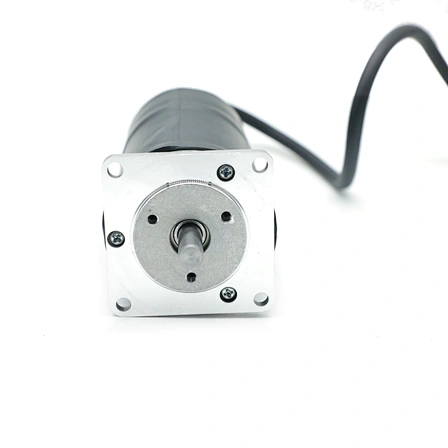

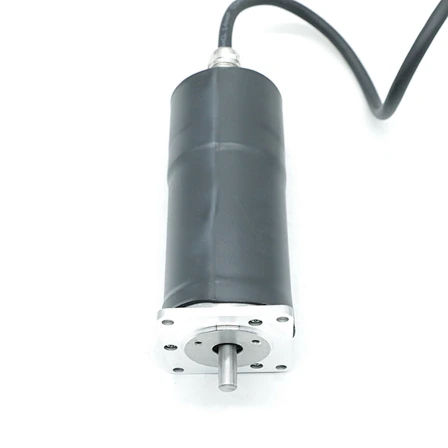

Hetai 57BL06-055 China factory direct IP54 Dustproof and waterproof brushless motor

minimum order :
1 piece
Country of Origin :
Shanghai
Quantity :
Contact Now
  • Warranty:3months-1year
  • Place of Origin:Jiangsu, China
  • Brand Name:Hetai
  • Model Number:57BL06-055
  • Usage:Automatic robot
  • Type:Brushless Motor
  • Torque:0.44 N.M
  • Construction:Permanent Magnet
  • Commutation:Brushless
  • Protect Feature:Drip-proof
  • Speed(RPM):3000 ±300 RPM
  • Continuous Current(A):1.3 A
  • Efficiency:IE 1
  • Product Name:DC Brushless gearbox motor
  • Resistance:0.3 OHMS
  • Rated Voltage:24v 36v 48v
  • No-load Speed:4500 Rpm
  • Rated Speed:3000 Rpm
  • No-load current:1.3 Amps Max
  • Rated torque:0.44 N.M
  • Back EMF Constant:6.6V/kRPM
  • Torque Constant:0.063 N.m/A
  • Insulation Class:B

Products Description

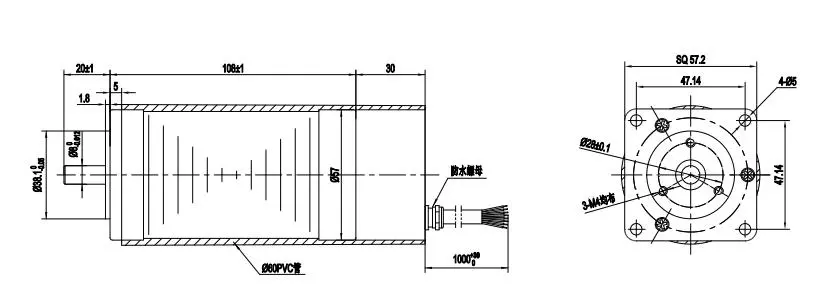

57BL06-055

Brushless dc motor
IP 54
-Hot selling 57BL06-055 China factory direct IP54 Dustproof and waterproof high performance
-Protected against intrusion of splashing water
-Protected against intrusion of splashed water from all directions


Specification


Product Name:
Brushless Motor
Dielectric Strength:
500V AC 1minute
Ambient Temperature:
-20℃~50℃
Insulation resistance:
100MΩ Min.500V DC
Voltage(VDC):
24(VDC)
Power(W):
138
Rated Speed(RPM):
3000
Rated Torque（N.M):
0.44
Rated Current(A):
1.3






Product Series
Poles No.
Rated Voltage
Rated Speed
Rated Torque
Rated Power
Motor Length
(mm)
42mm BLDC Motor
4 or 8
12/24/36/48v
4000rpm
0.063~0.25N.m
26~106w
42~100
57mm BLDC Motor
4 or 8
24/36/48v
3000rpm
0.057~0.8N.m
15~251w
42~122
80mm BLDC Motor
4
48/310v
3000rpm
0.7~1.8N.m
220~565w
105~160
86mm BLDC Motor
8
48v/310v
3000rpm
1.4~2.1N.m
440~660w
94~124
110mm BLDC Motor
8
310v
3000rpm
3.5~6.5N.m
1100~2040w
156~216
130mm BLDC Motor
10
310v
3000rpm
2.39~11.94N.m
750~2500w
115~160
Above only for standard products, products of special request can be made according to the customer request.








Company Profile




Changzhou Hetai Motors

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡.Since Hetai founded in 1999, Hetai has dedicated to provide professional electrical integration design and automation strategies for customers.

Experienced Manufacturer

ChangZhou Hetai Motors is an experienced motor manufacturer for more than 20 years.The factory has variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and individual CNC machining centers as well.

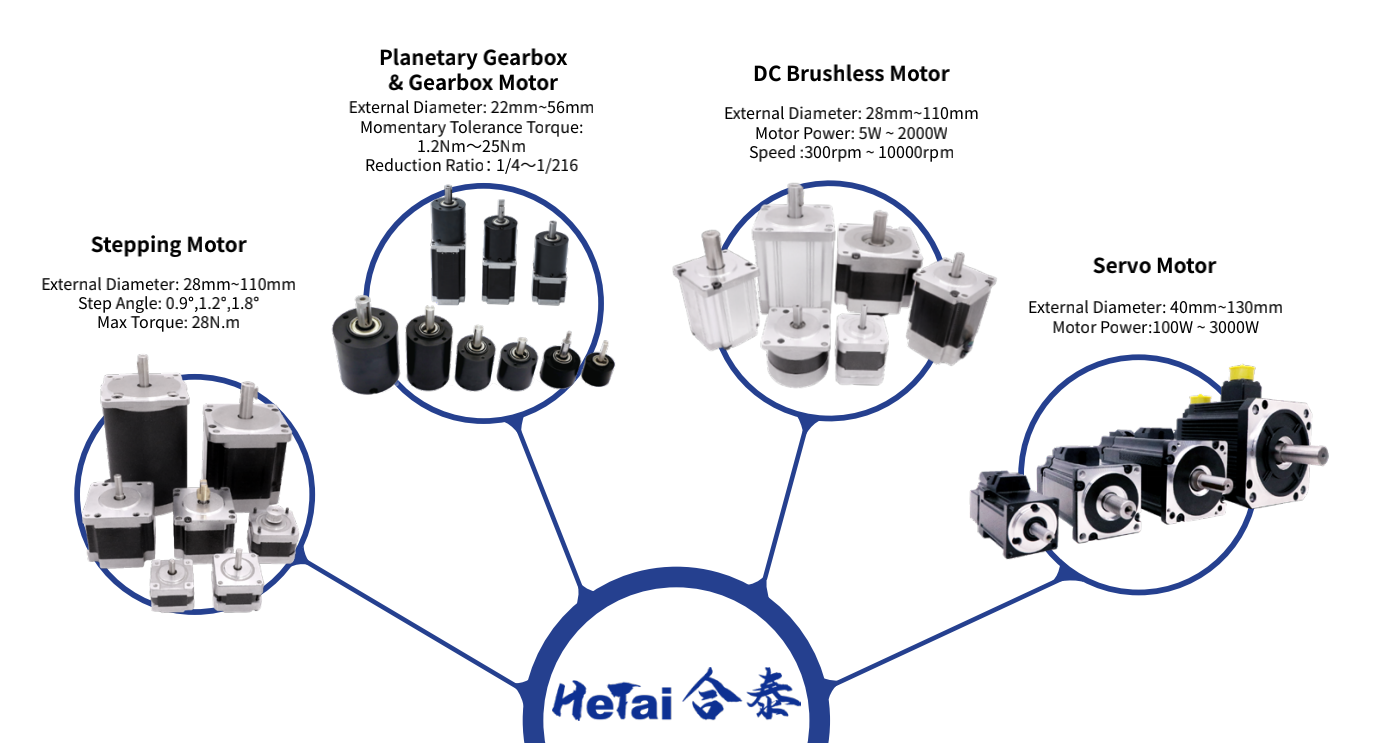

Product Range







Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.



Certificate


Quality insurance
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.


CE Of DC Brushless Motor
Date of expire:09 April 2023

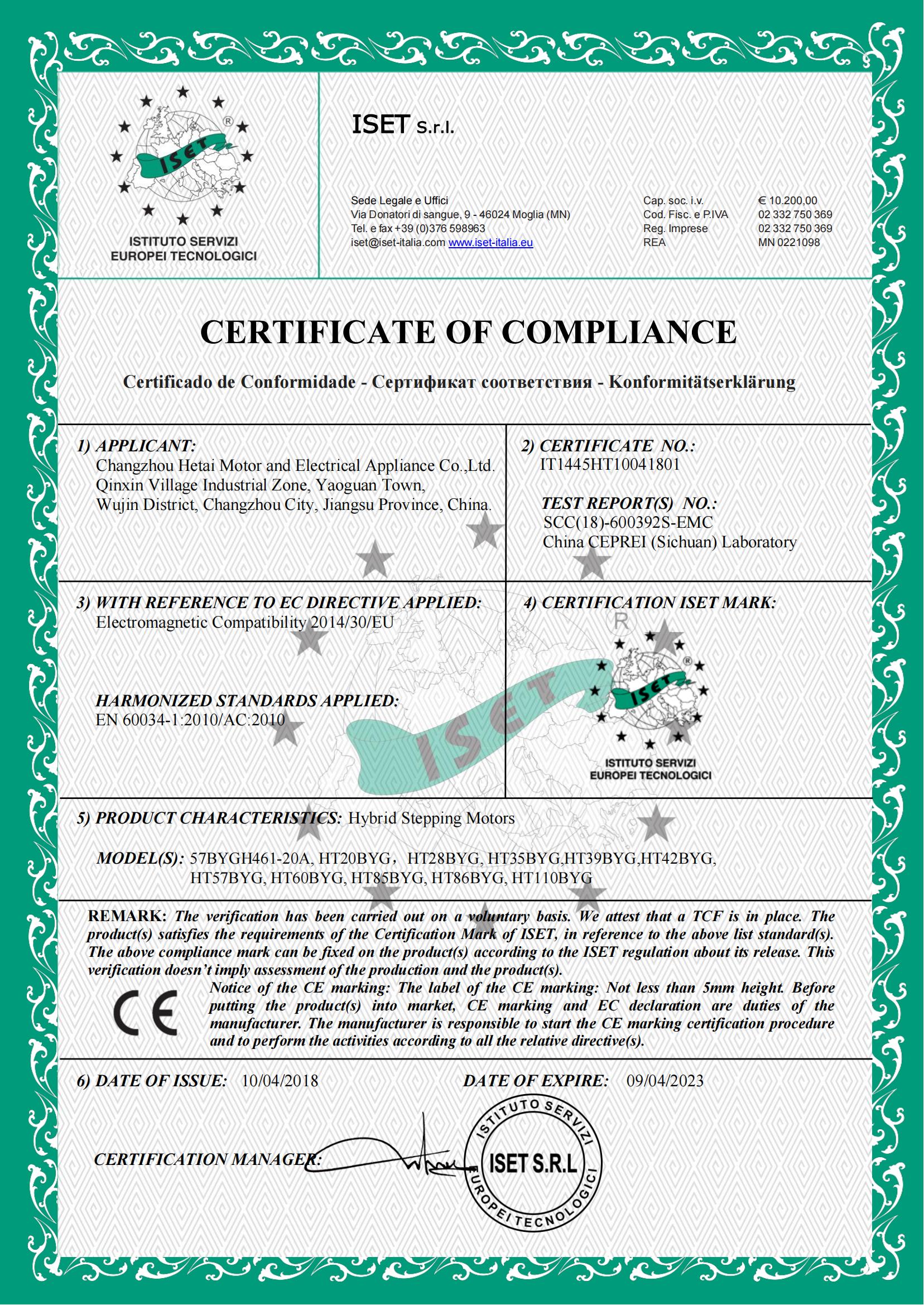

CE Of Hybrid Stepping Motor
Date of expire:09 April 2023

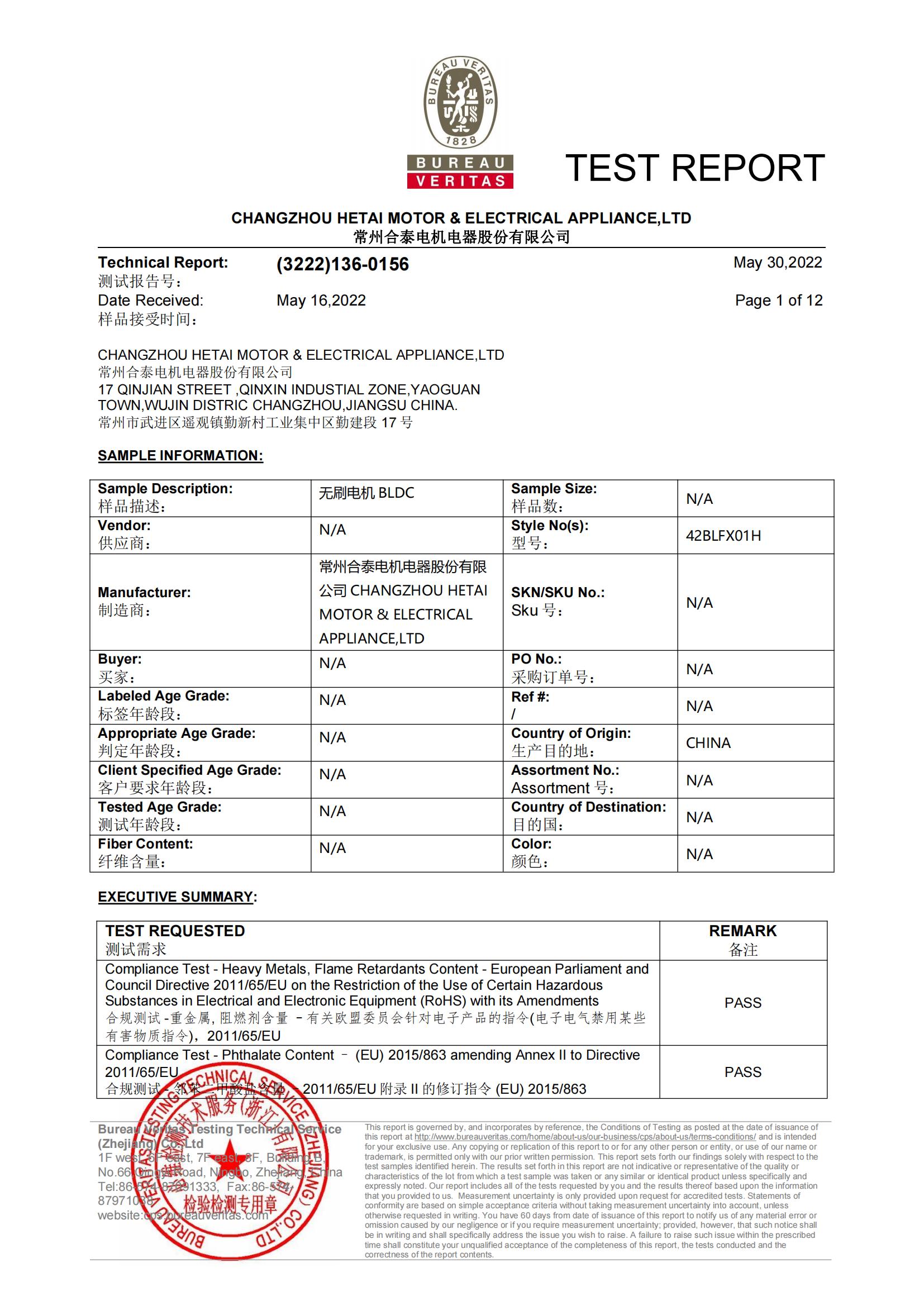

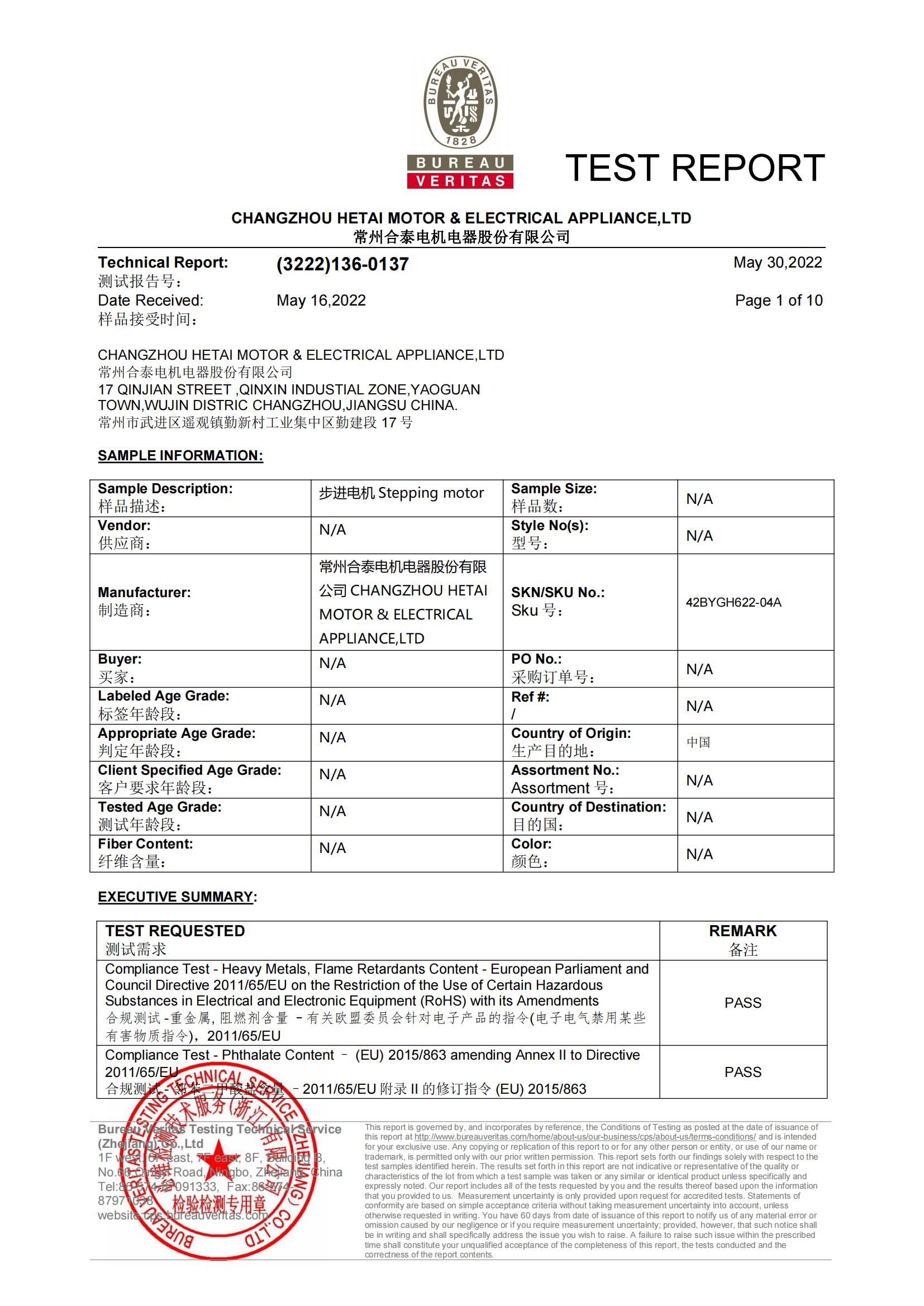

BLDC Motor ROHS report
Stepper motor ROHS report

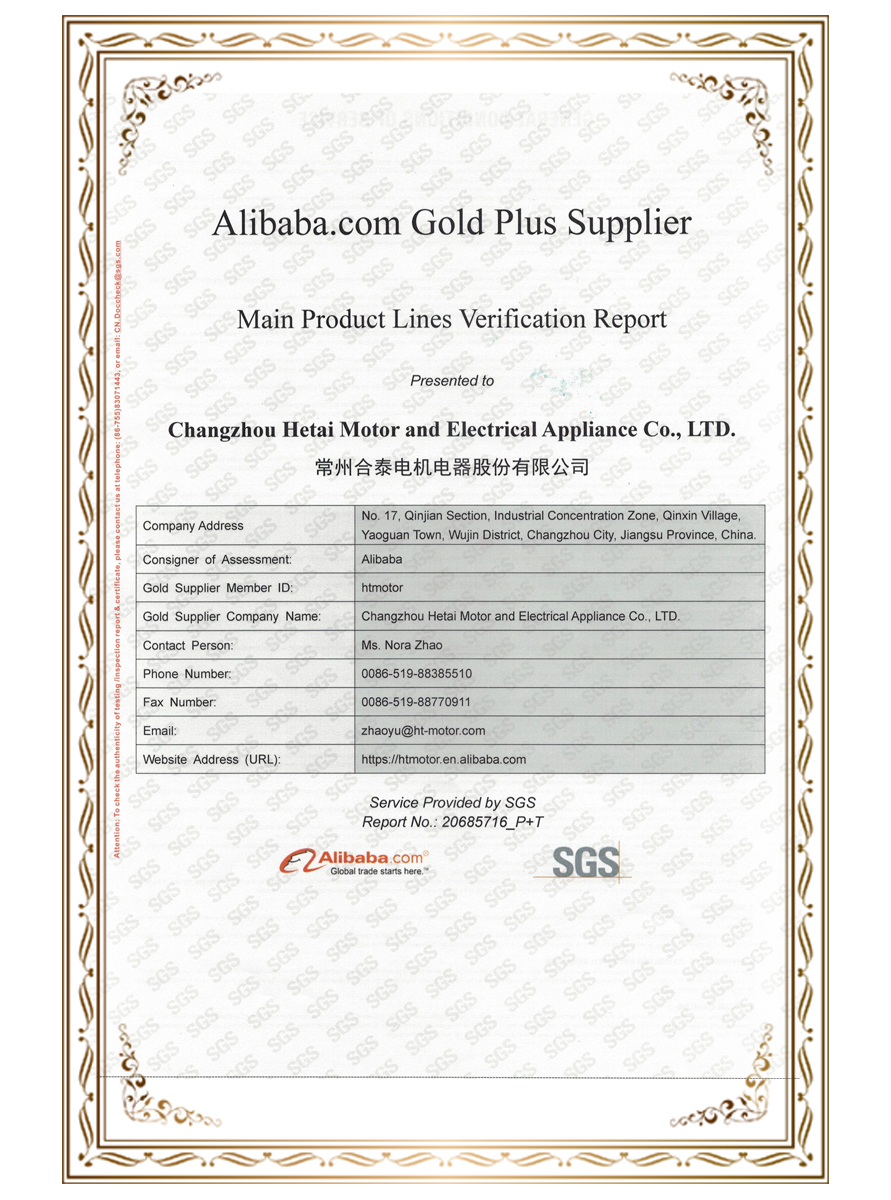

Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified




ISO 9001:2015
Valid until: 02 June 2024

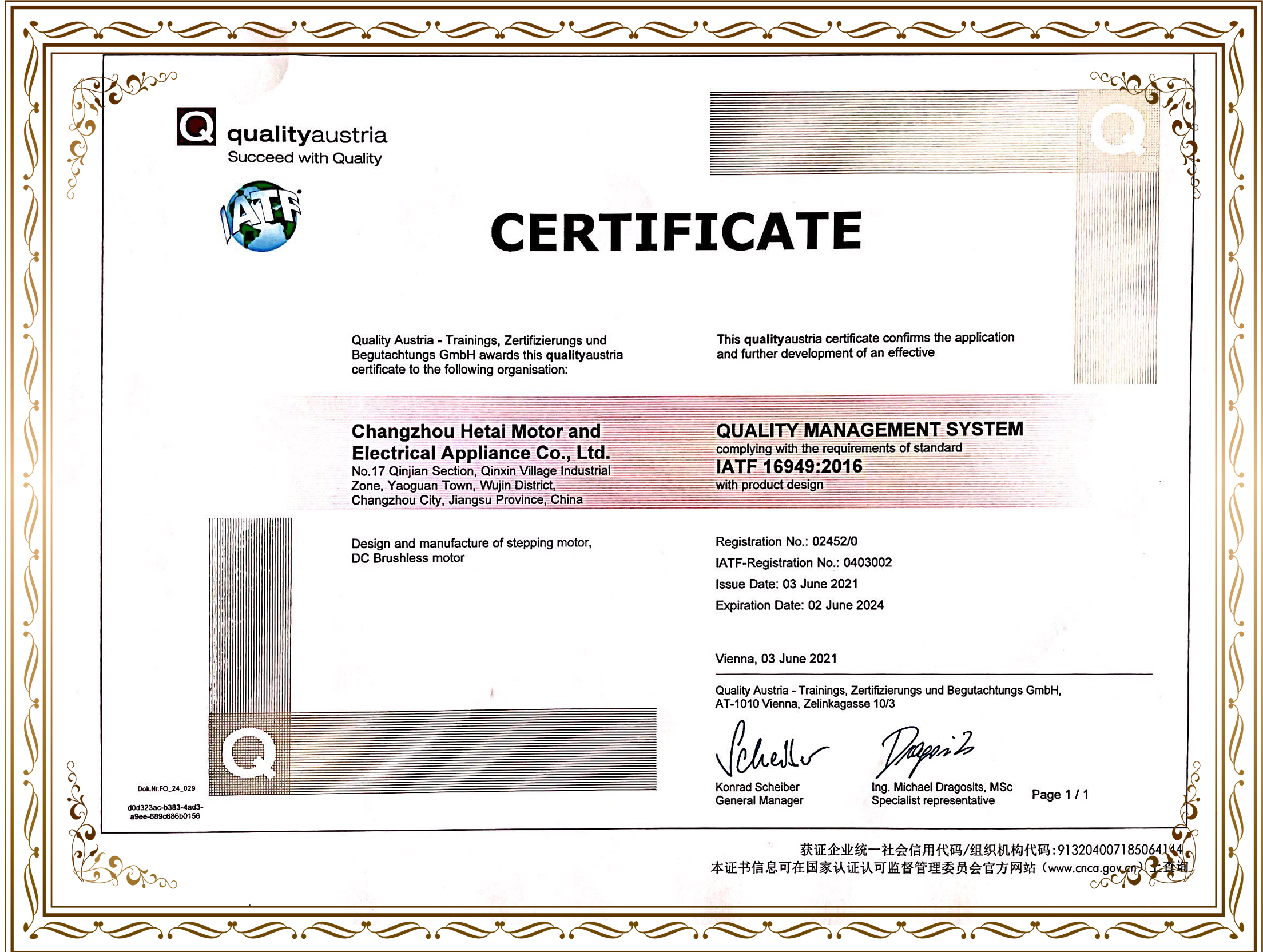

IATF 16949:2016
Valid until: 02 June 2024


Why Choose Us


Hetai can offer：
Specialised/customised design and product
Good quality products
Valuable Service




Engineering Support

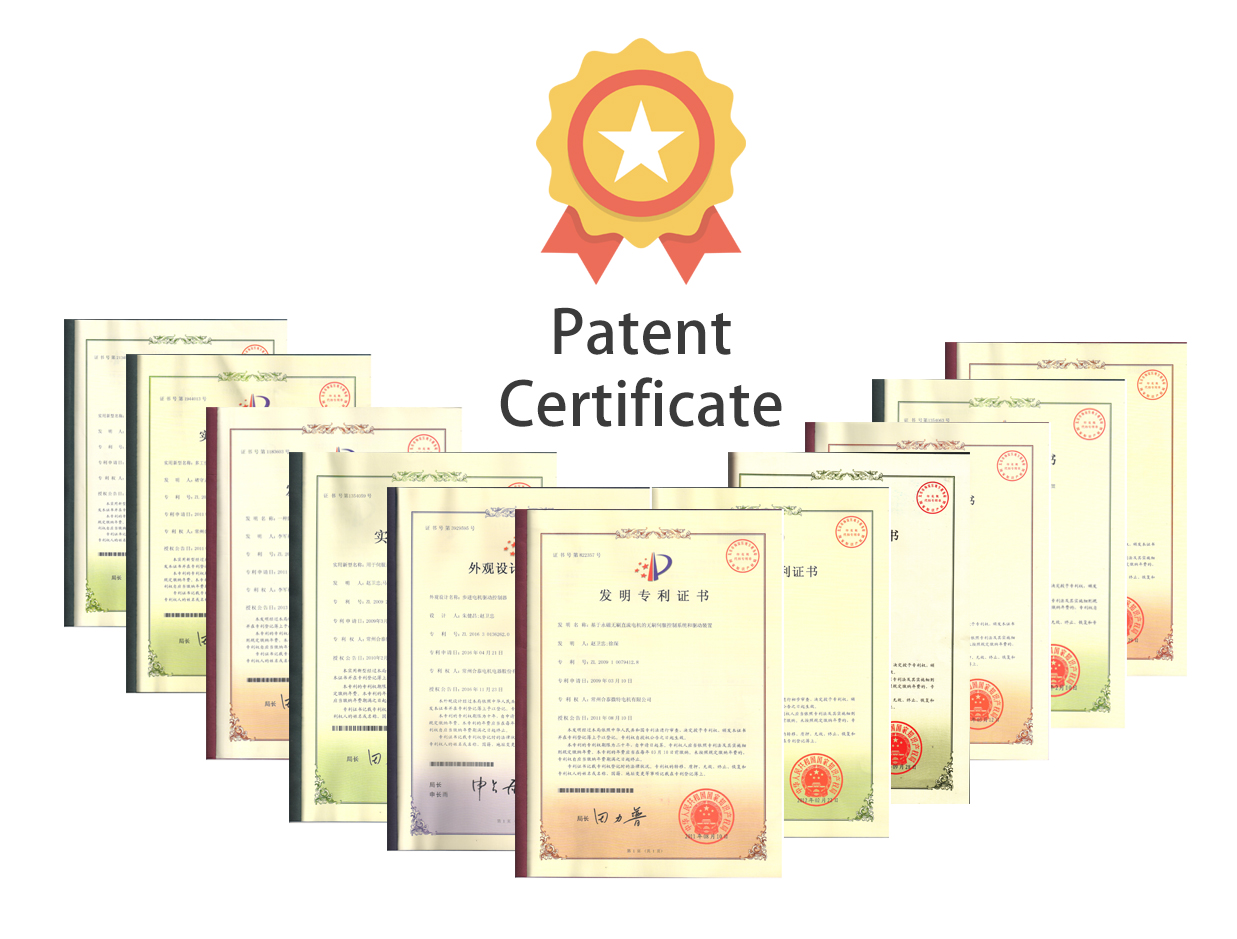

Hetai has got 11 patent certificates since it founded in 1999. The strength in engineering design has offered our customer most suitable product. Our technical team includes three 10 years + experience engineers, which allow us to provide professional automation strategies for customers.
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery,intelligent logistics equipment and so on.


Find

Our team can help you find most suitable motor for the application from our vast selection of motors.

Customise

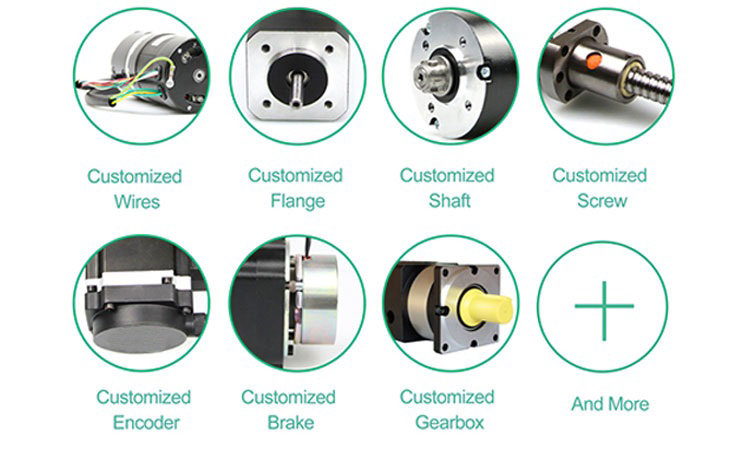

We can design and customise the performance and exterior for your specific use or assembly.

Optimise

For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.


Laboratory Equipment

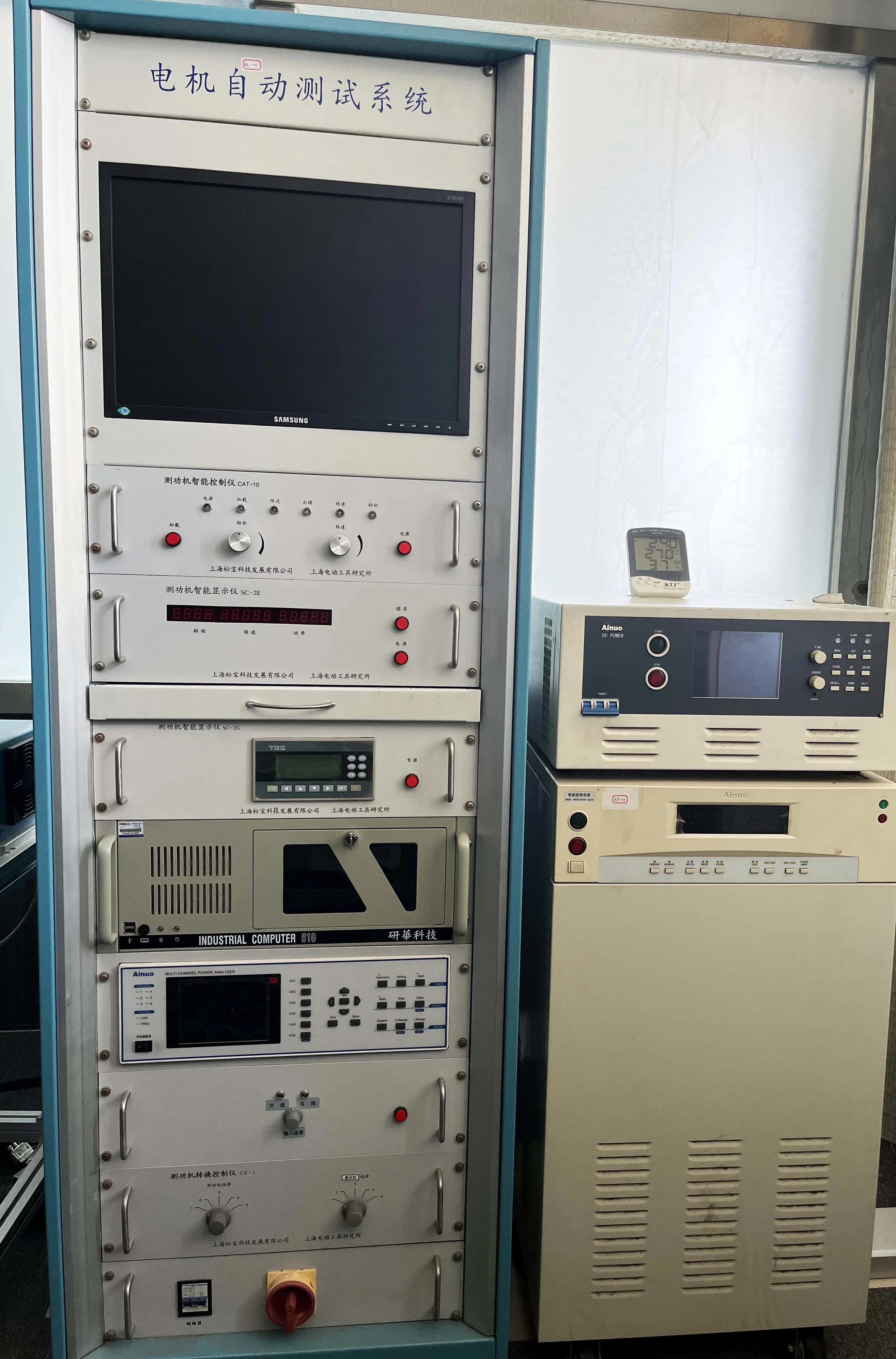

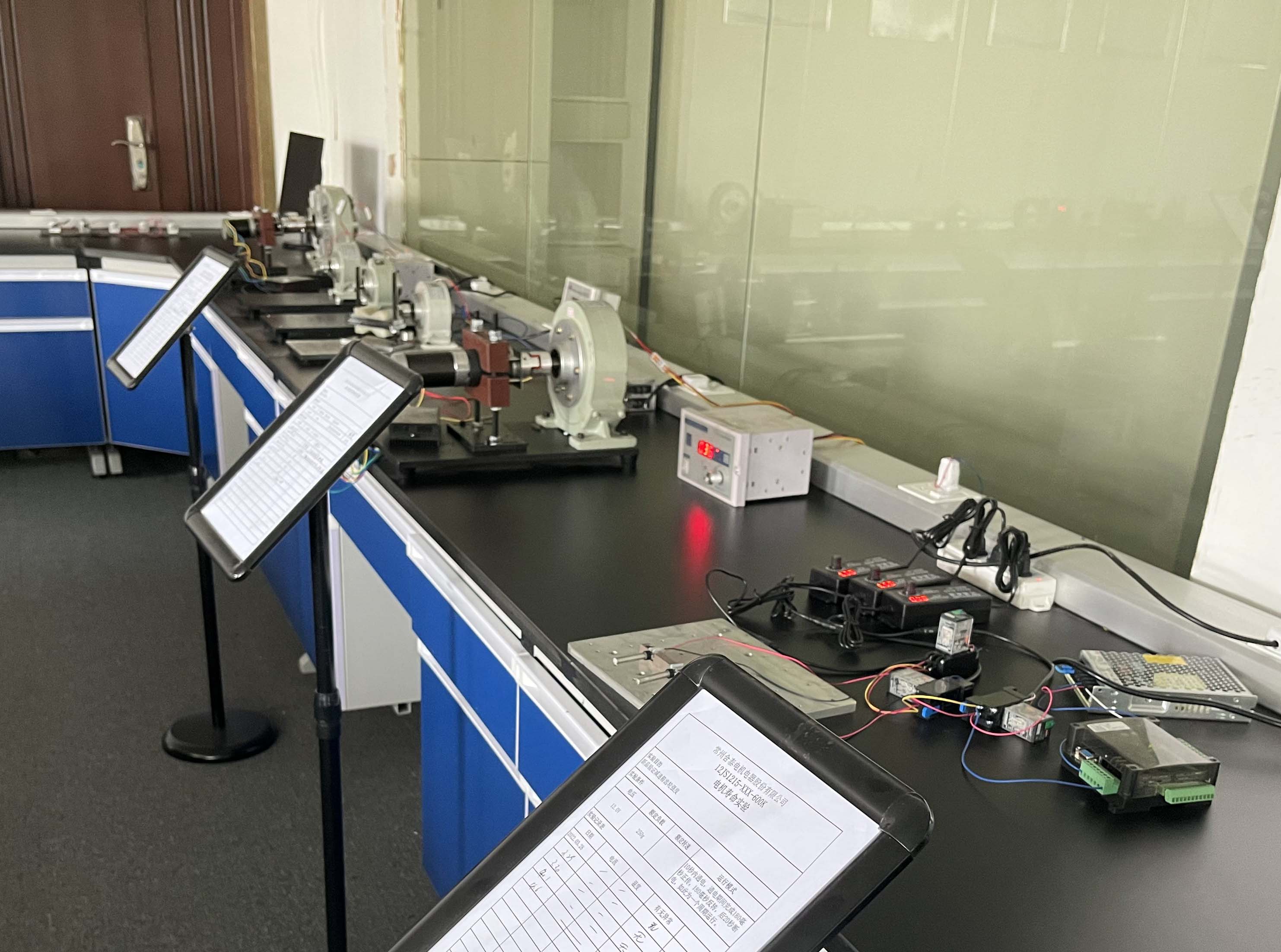

Motor automatic test system
Laboratory Equipment

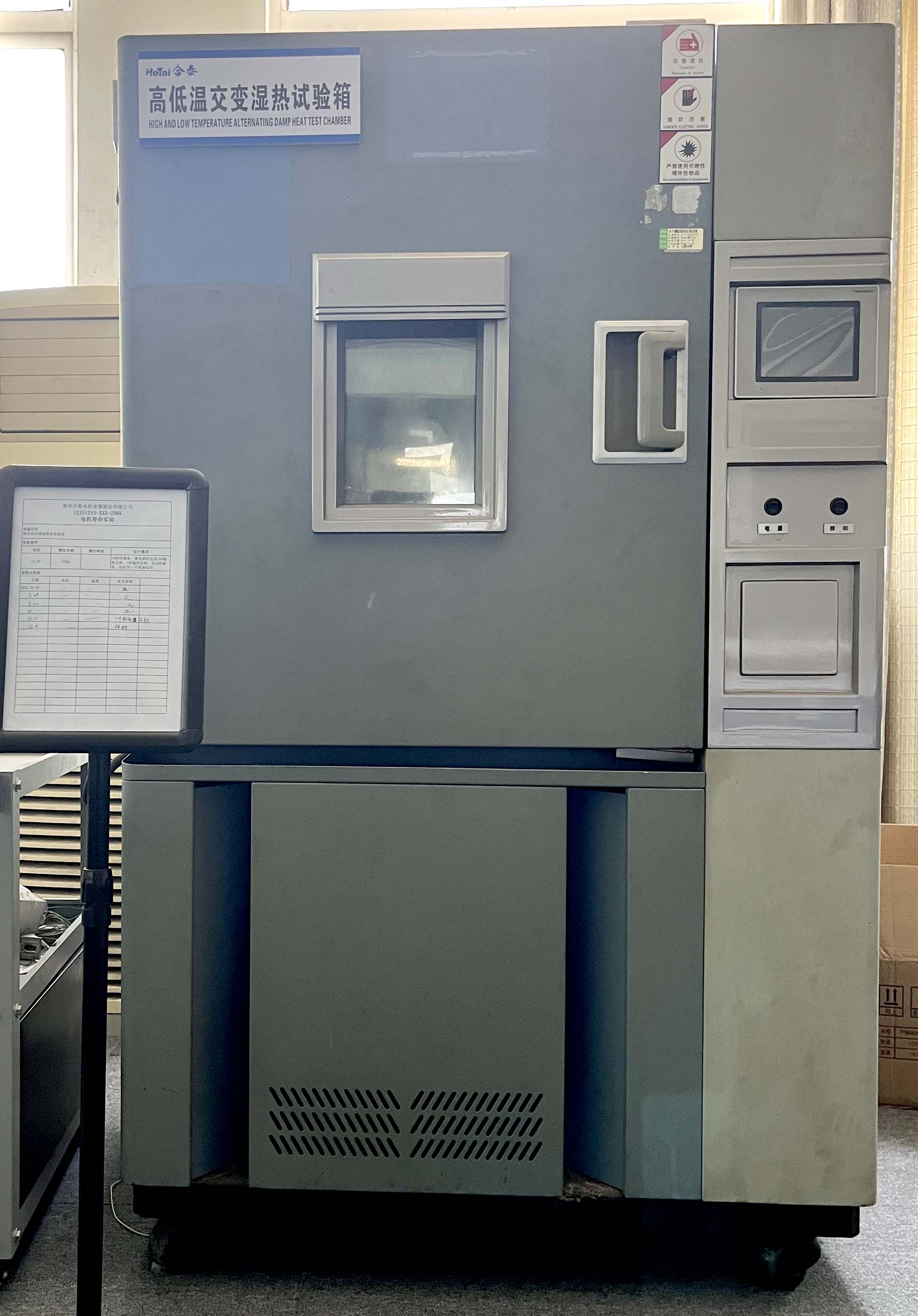

High and low temperature test chamber
Laboratory Equipment
Lifespan Test


Mass Production Advantage




Large-scale production

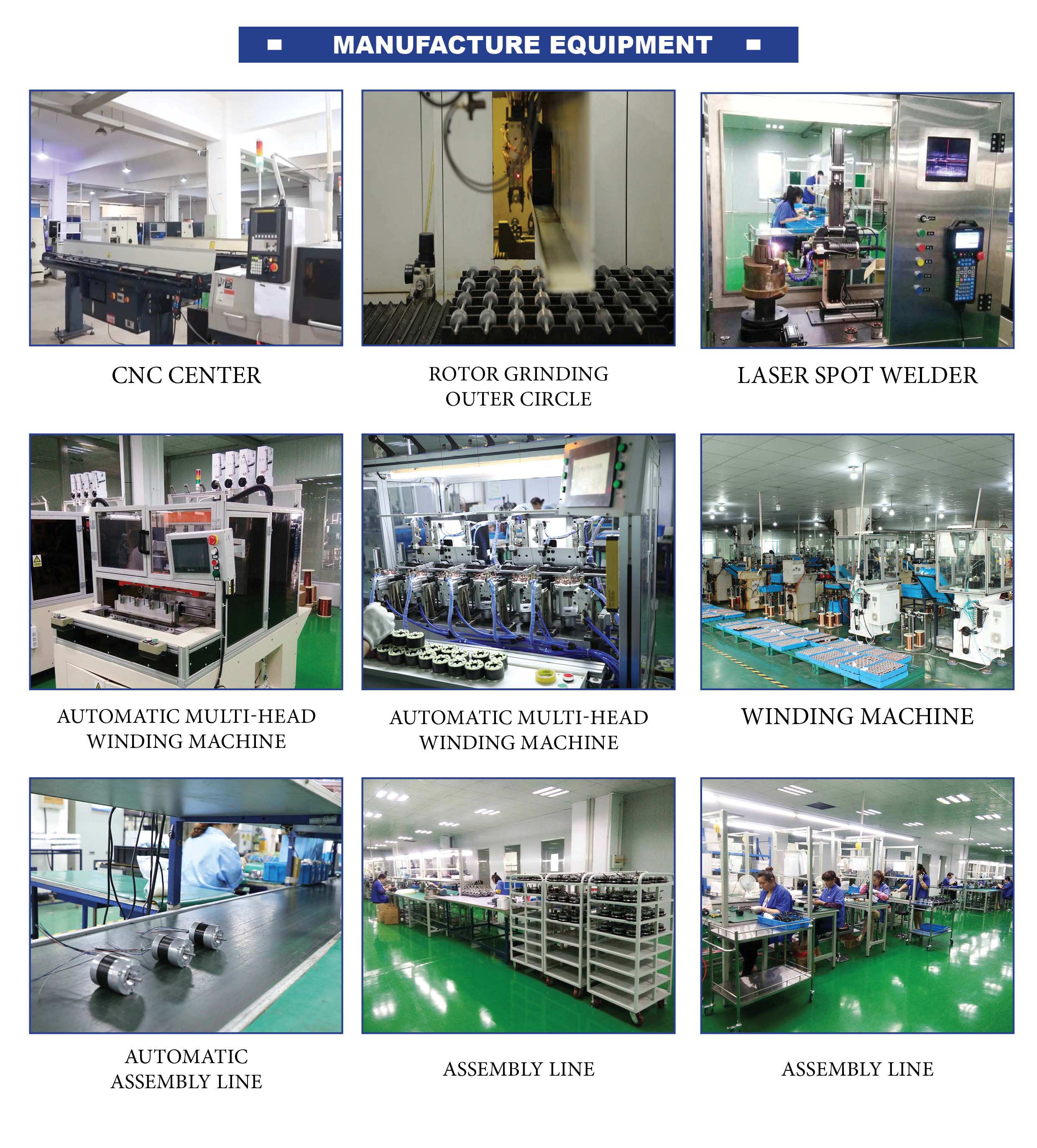

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.

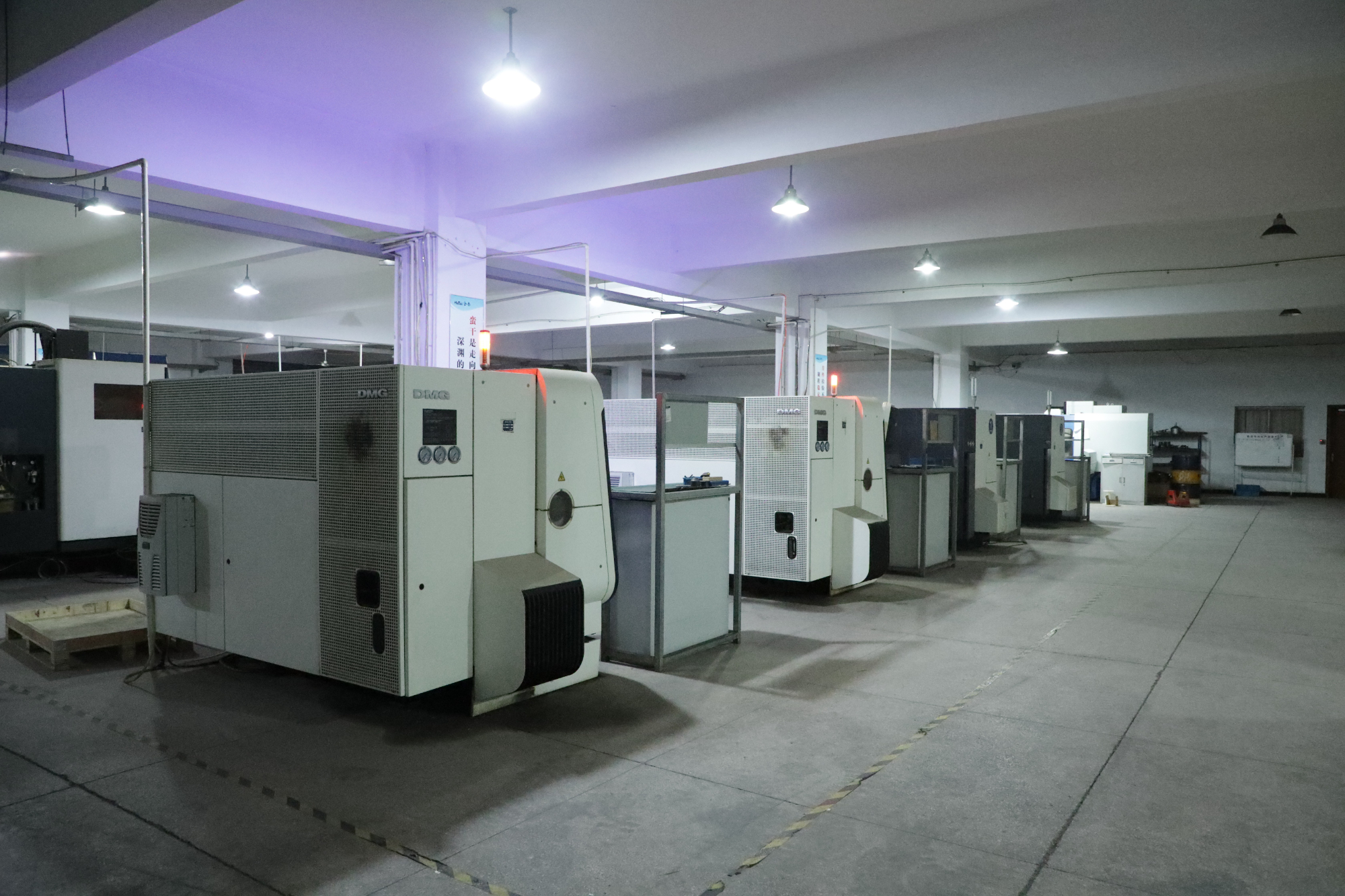

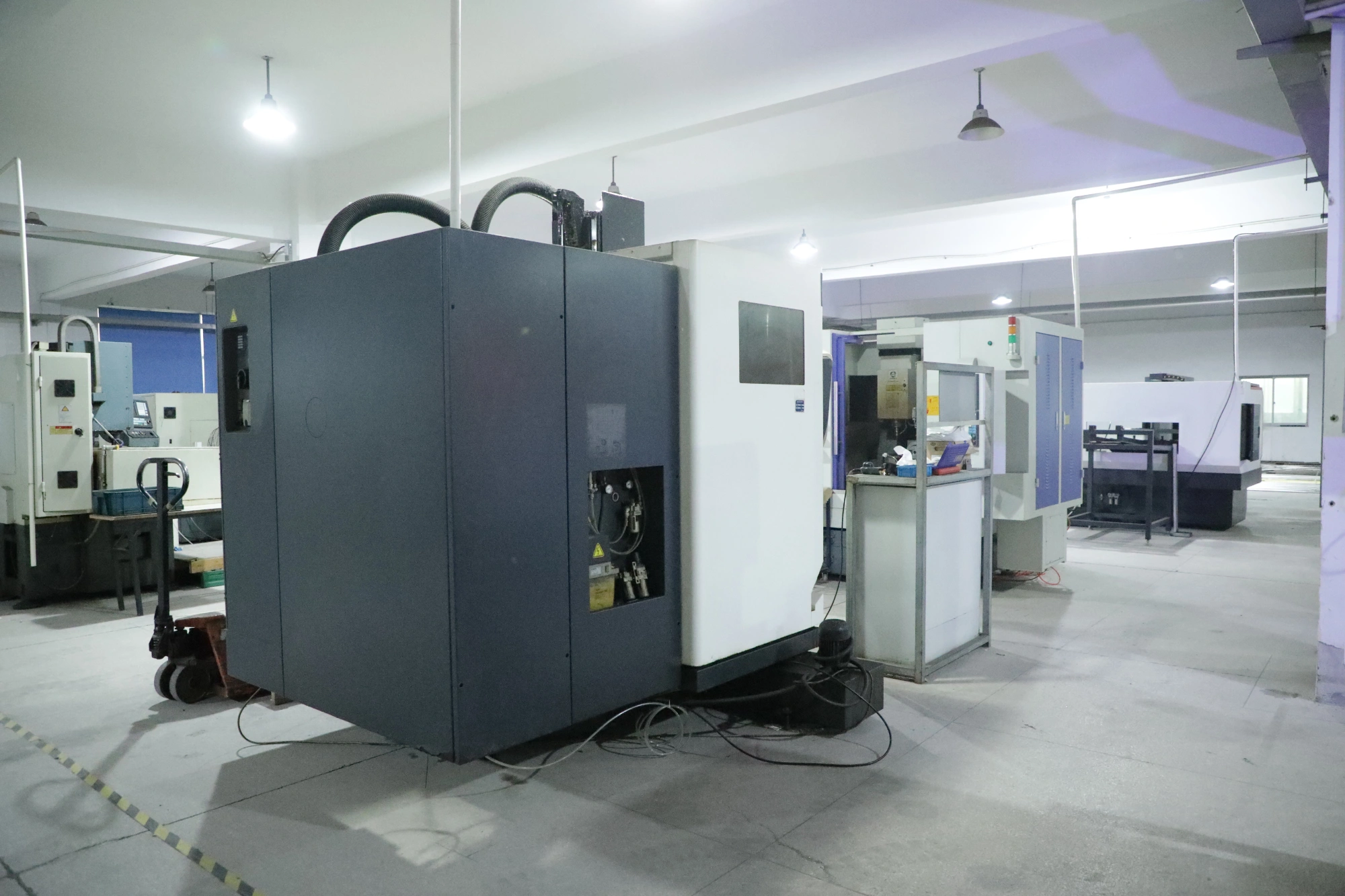

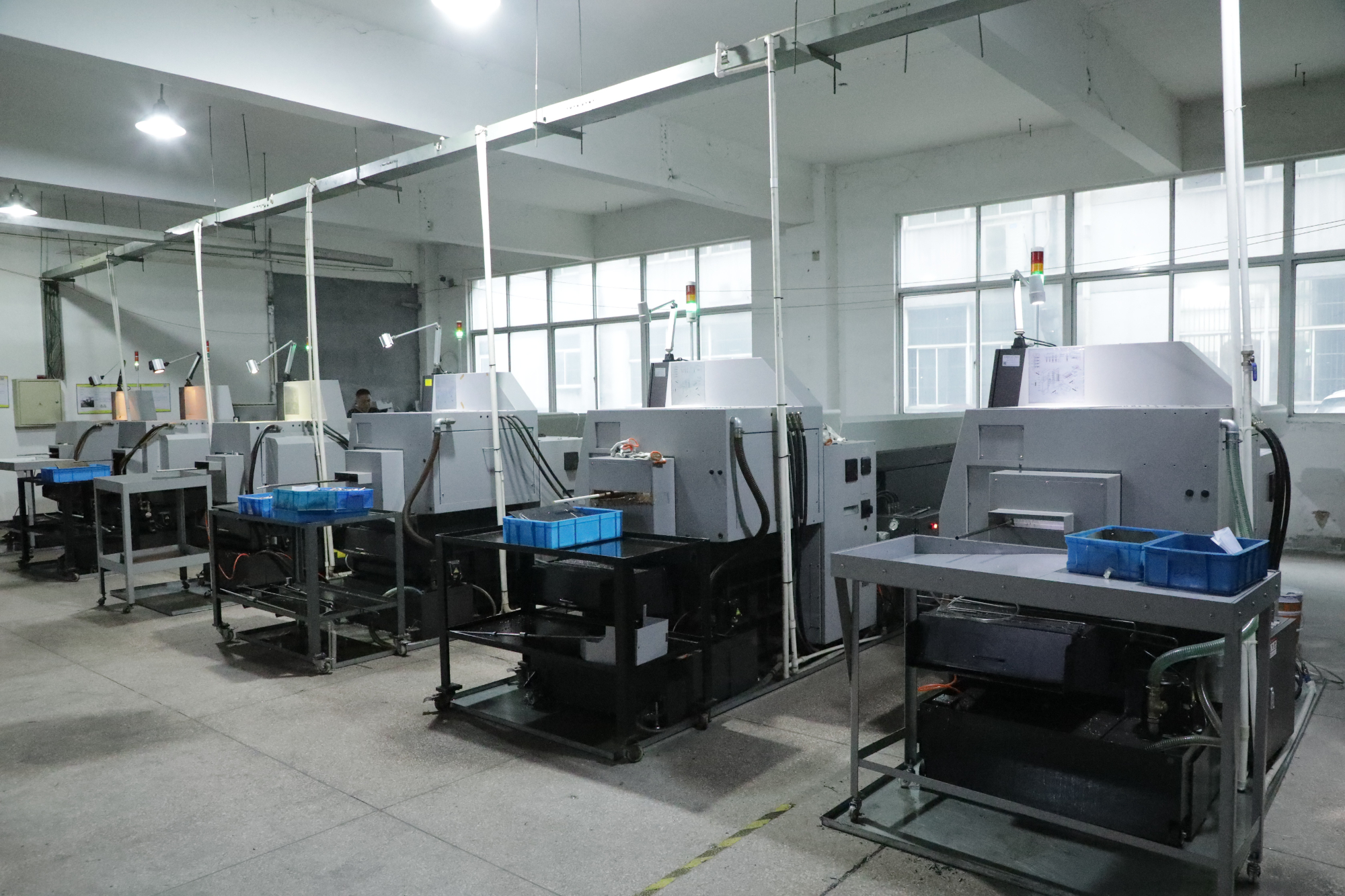

CNC CENTER
EightCNC PRECISION AUTOMATIC LATHES
CNC CENTER
Seven CNC AUTOMATIC MACHINING CENTERS
Seven CNC AUTOMATIC MACHINING CENTERS

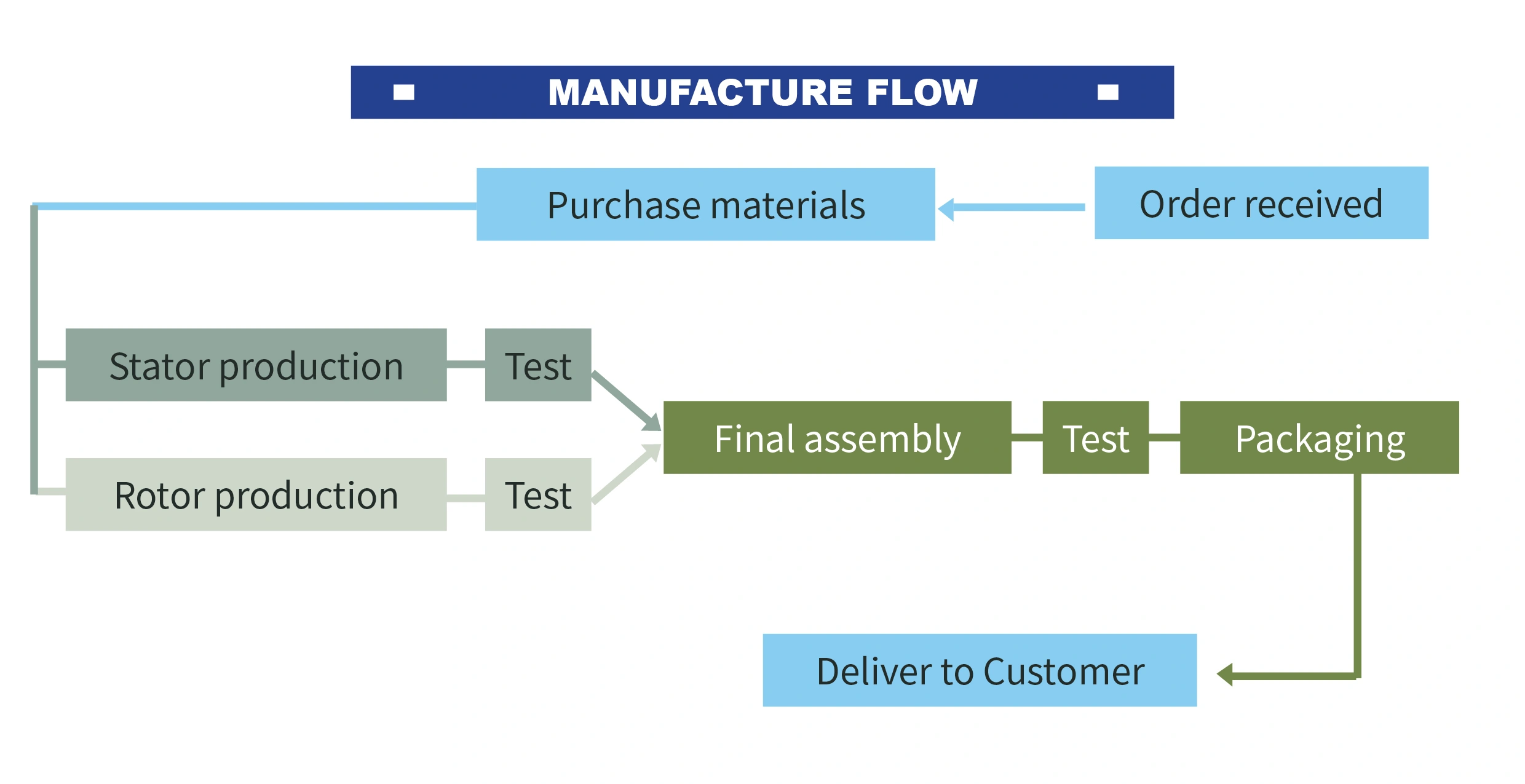

Quality Control Process
