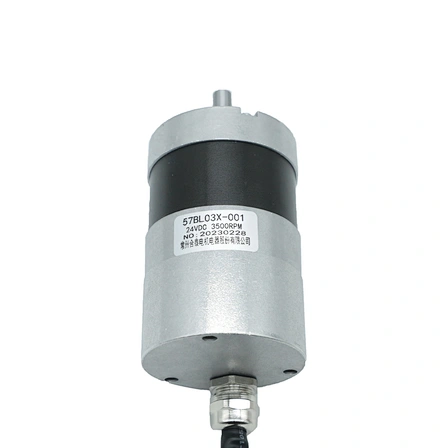

Model No: 57BL03X-001BD

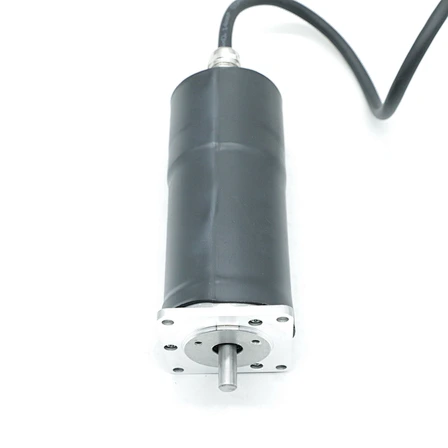

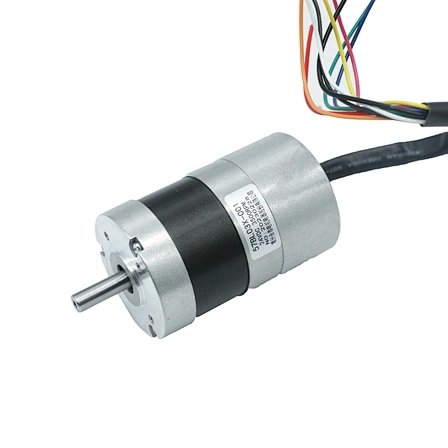

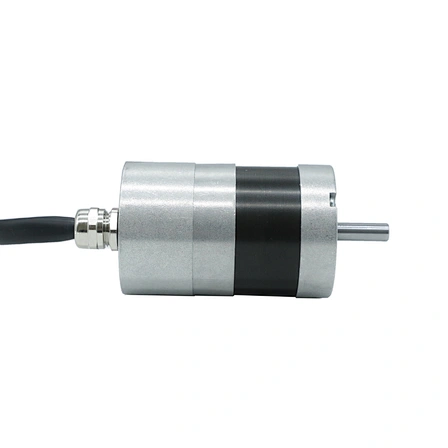

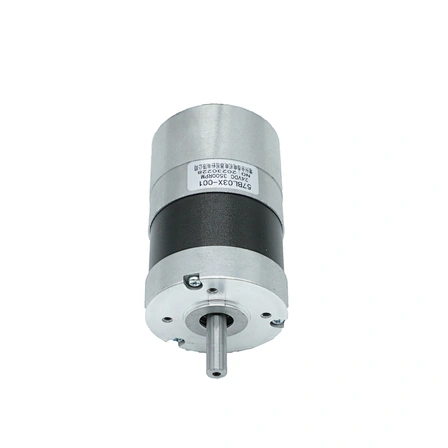

Hetai nema23 bldc motor small size high performance brushless motor with integrated driver for automatic fans
minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
- Warranty:3months-1year
- Place of Origin:Jiangsu, China
- Brand Name:Hetai
- Model Number:57BL03X-001BD
- Usage:BOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME, lawn mower
- Type:Micro Motor
- Torque:0.18 N.m, 0.18 N.m
- Construction:Permanent Magnet
- Commutation:Brushless
- Protect Feature:IP40
- Speed(RPM):3500±10% RPM
- Continuous Current(A):1A MAX
- Efficiency:IE 1
- Product Name:Brushless motor
- Dielectric Strength:500V AC 1minute
- Weight:0.56 kg
- Max Radial load:75N (10mm from front flange)
- Shaft axial load:15N
- Winding type:Star
- Hall effect angle:120° electrical angle
- Ip level:IP40 IP54
- Length:116.5 mm

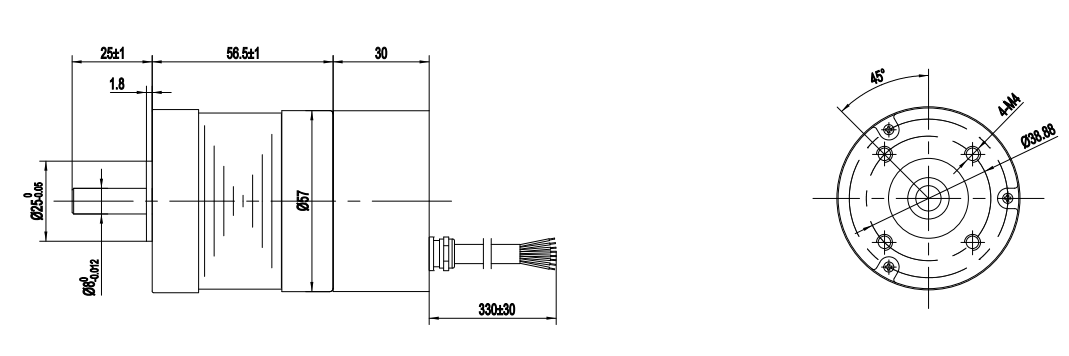

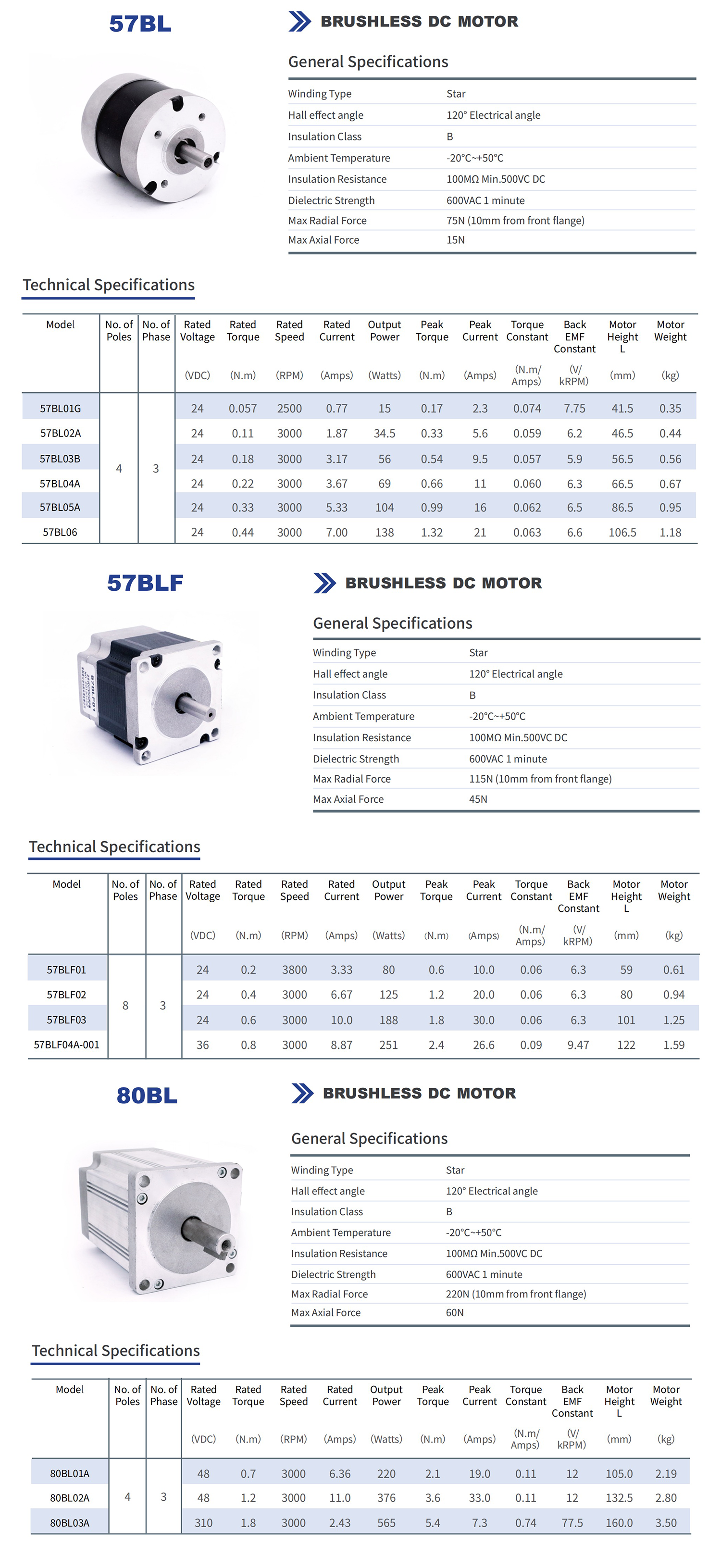

Specification
Product Name: | Brushless Motor |
Dielectric Strength: | 500V AC 1minute |
Ambient Temperature: | -20℃~50℃ |
Insulation resistance: | 100MΩ Min.500V DC |
Voltage(VDC): | 24(VDC) |
Power(W): | 66 |
Rated Speed(RPM): | 3500 |
Rated torque（N.M): | 0.18 |
Advantage of Motor Controller
◆ High torque, high speed output;
◆ Speed regulation mode: 0-5V analog quantity (100 Hz -1000Hz PWM speed regulation can be set according to customer requirements);
◆ There are BK (brake), FR (direction), EN (enable) and other signal input terminals;
◆ It has protection functions such as overcurrent, overvoltage, undervoltage, and motor stall;
◆ ALARM alarm signal can be output for user detection;
◆ Speed regulation mode: 0-5V analog quantity (100 Hz -1000Hz PWM speed regulation can be set according to customer requirements);
◆ There are BK (brake), FR (direction), EN (enable) and other signal input terminals;
◆ It has protection functions such as overcurrent, overvoltage, undervoltage, and motor stall;
◆ ALARM alarm signal can be output for user detection;

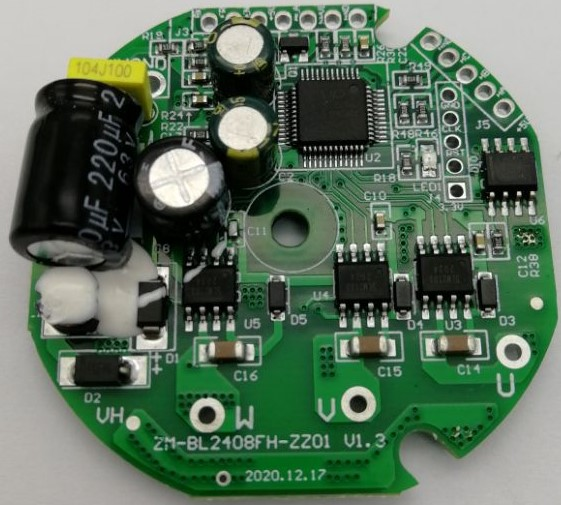

Electrical Properties of integrated drive | Electrical characteristics of the Integrated Drive | |||
Power Supply | DC24V～50V (Depend on motor power) | |||
Rated Current | ≤8A | |||
Rated Power | MAX 384W | |||
Suitable for motor | Suitable for motors with output power ≤144W | |||
Insulation resistance | >500MΩ at room temperature | |||
Dielectric strength | 0.5KV at normal temperature and pressure, 1 minute | |||
Function | ALARM | Can report fot overcurrent, overvoltage, undervoltage, and motor stall | ||
BK | Motor brake control | |||
FR | Control CW or CCW | |||
EN | Motor Enable control | |||
+5V | Control signal power positive (built-in power output) | |||
ALM | ALARM output | |||
SPVI | External speed control signal can adjust the speed of the motor | |||
GND | Control Signal Power ground | |||
Company Profile
Changzhou Hetai Motors
Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡.Since Hetai founded in 1999, Hetai has dedicated to provide professional electrical integration design and automation strategies for customers.
Experienced Manufacturer
ChangZhou Hetai Motors is an experienced motor manufacturer for more than 20 years.The factory has variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and individual CNC machining centers as well.

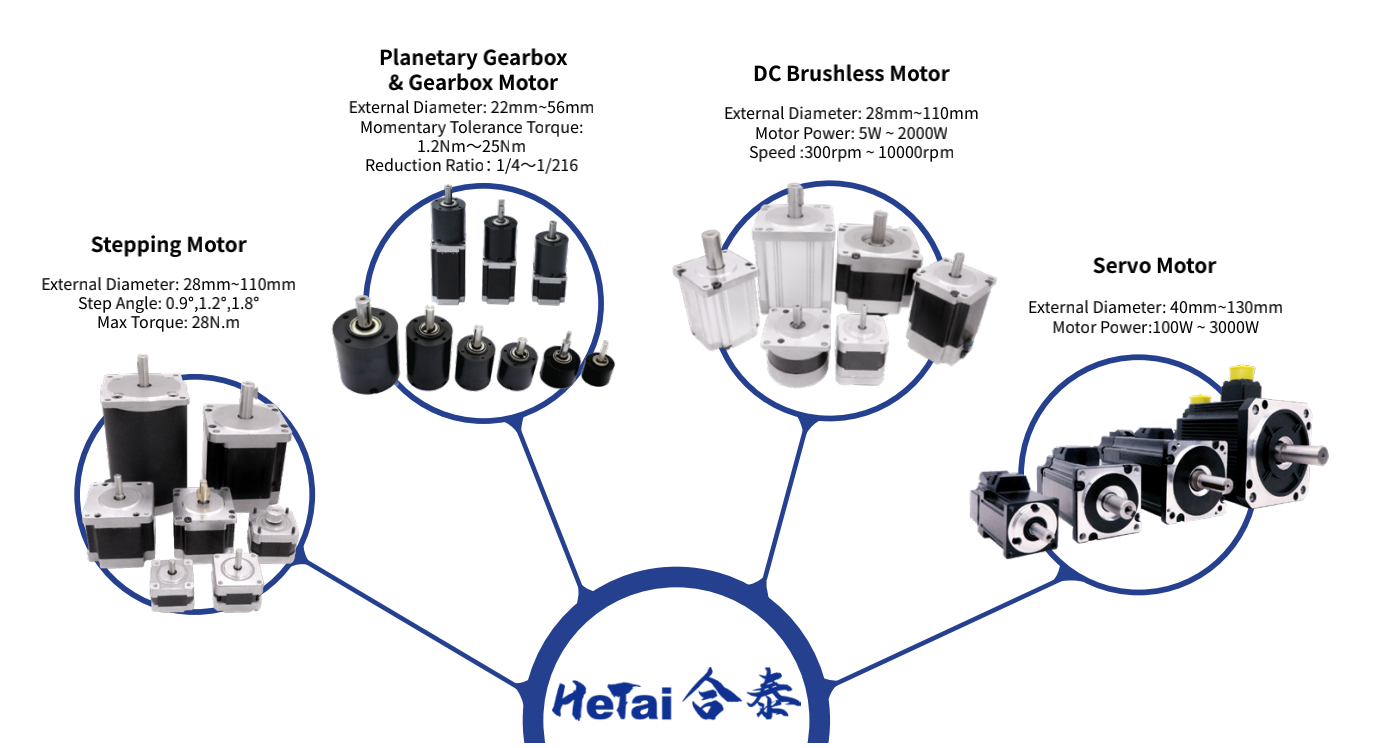

Product Range
Certificate
Quality insurance
When it comes to quality aspect, Hetai was qualified by ISO Certificate, CE and Rohs. The product quality has also been recognized by many customers. Hetai is also proud of its research and develop strength. With the support of professional laboratory and experienced technicians, Hetai gained 13 Utility Patents and high-tech enterprise Award as well as other awards during the years.
CE Of DC Brushless Motor
Date of expire:09 April 2023
CE Of Hybrid Stepping Motor
Date of expire:09 April 2023

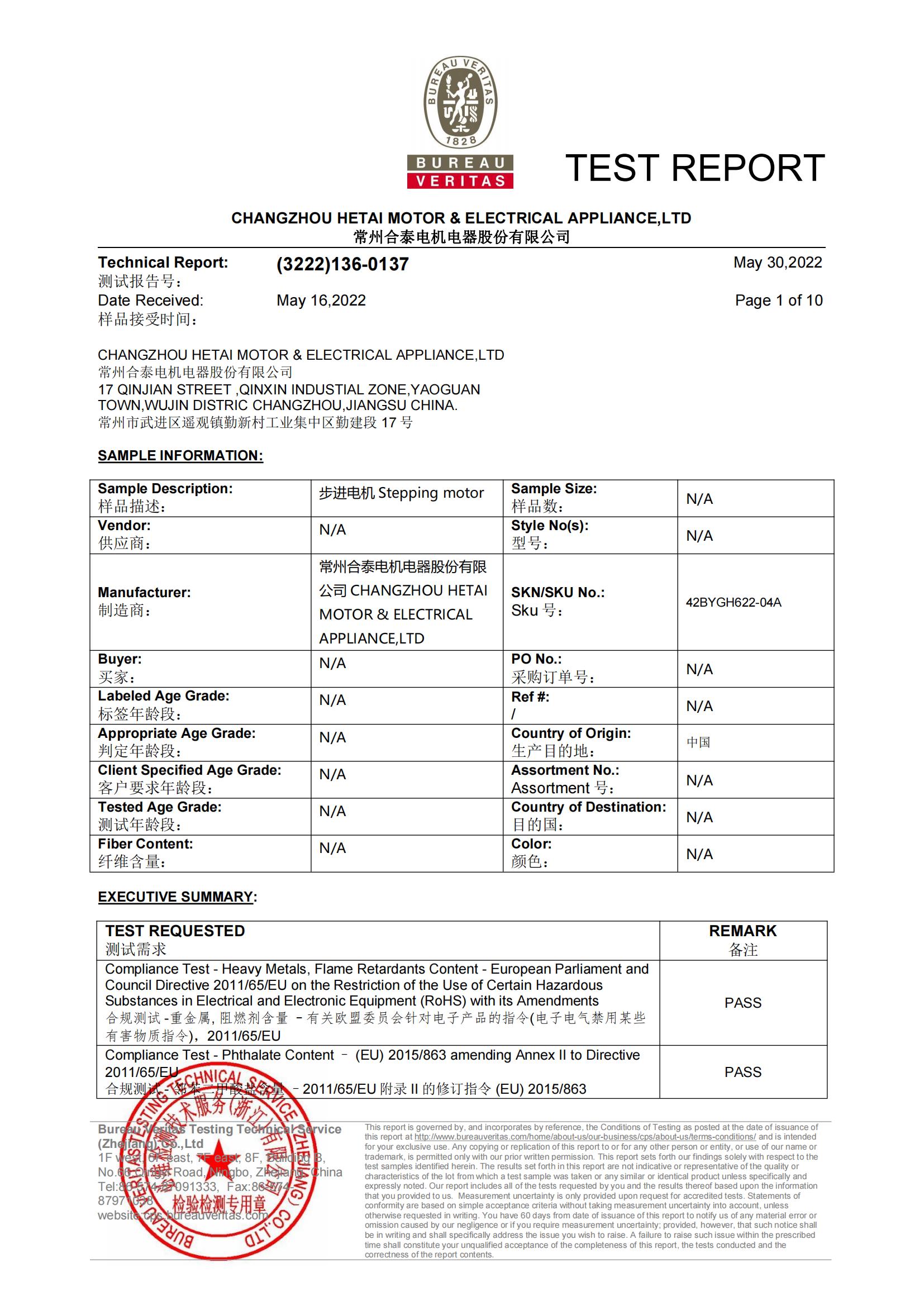

BLDC Motor ROHS report
Date: May 16, 2022
Stepper motor ROHS report
Date: May 16, 2022
Alibaba Gold Plus Supplier
SGS Verified
Alibaba Gold Plus Supplier
SGS Verified
ISO 9001:2015
Valid until: 02 June 2024
IATF 16949:2016
Valid until: 02 June 2024
Why Choose Us
Hetai can offer：
Specialised/customised design and product
Good quality products
Valuable Service
Engineering Support
Hetai has got 11 patent certificates since it founded in 1999. The strength in engineering design has offered our customer most suitable product. Our technical team includes three 10 years + experience engineers, which allow us to provide professional automation strategies for customers.
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery,intelligent logistics equipment and so on.
Find
Our team can help you find most suitable motor for the application from our vast selection of motors.

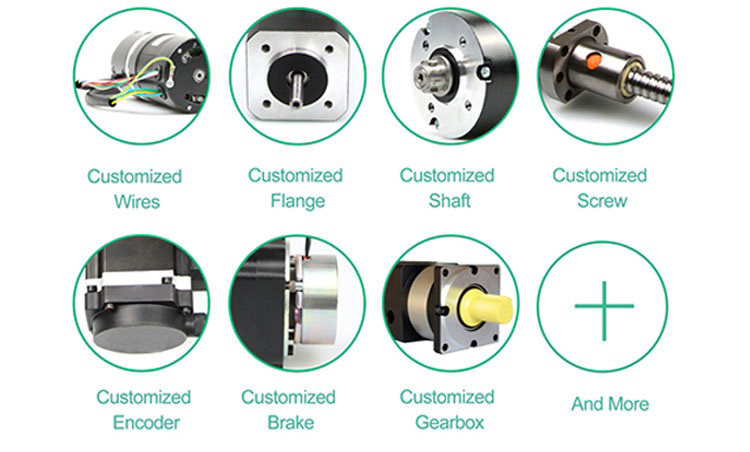

Customise
We can design and customise the performance and exterior for your specific use or assembly.
Optimise
For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.
Laboratory Equipment

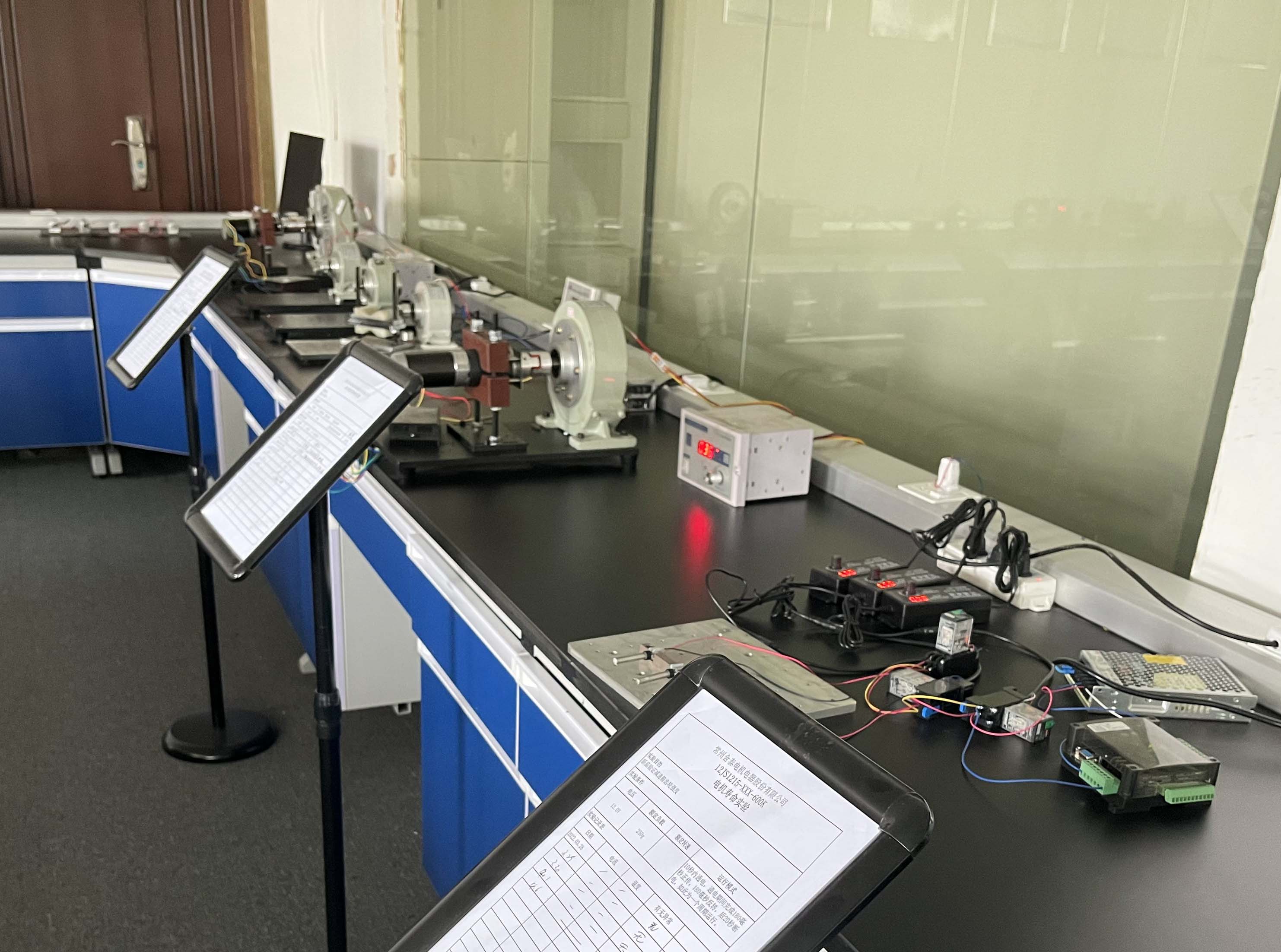

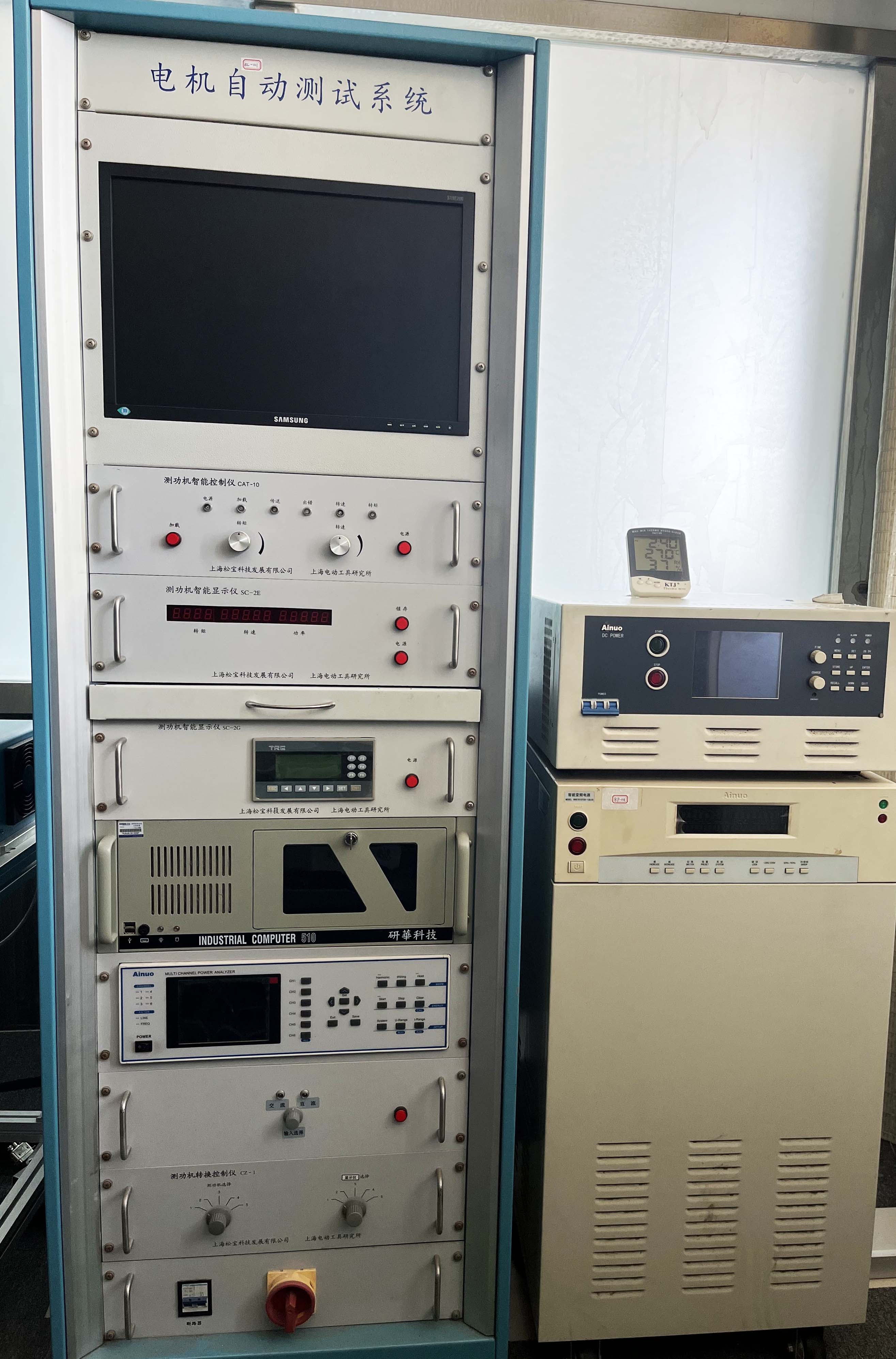

Motor automatic test system
Laboratory Equipment

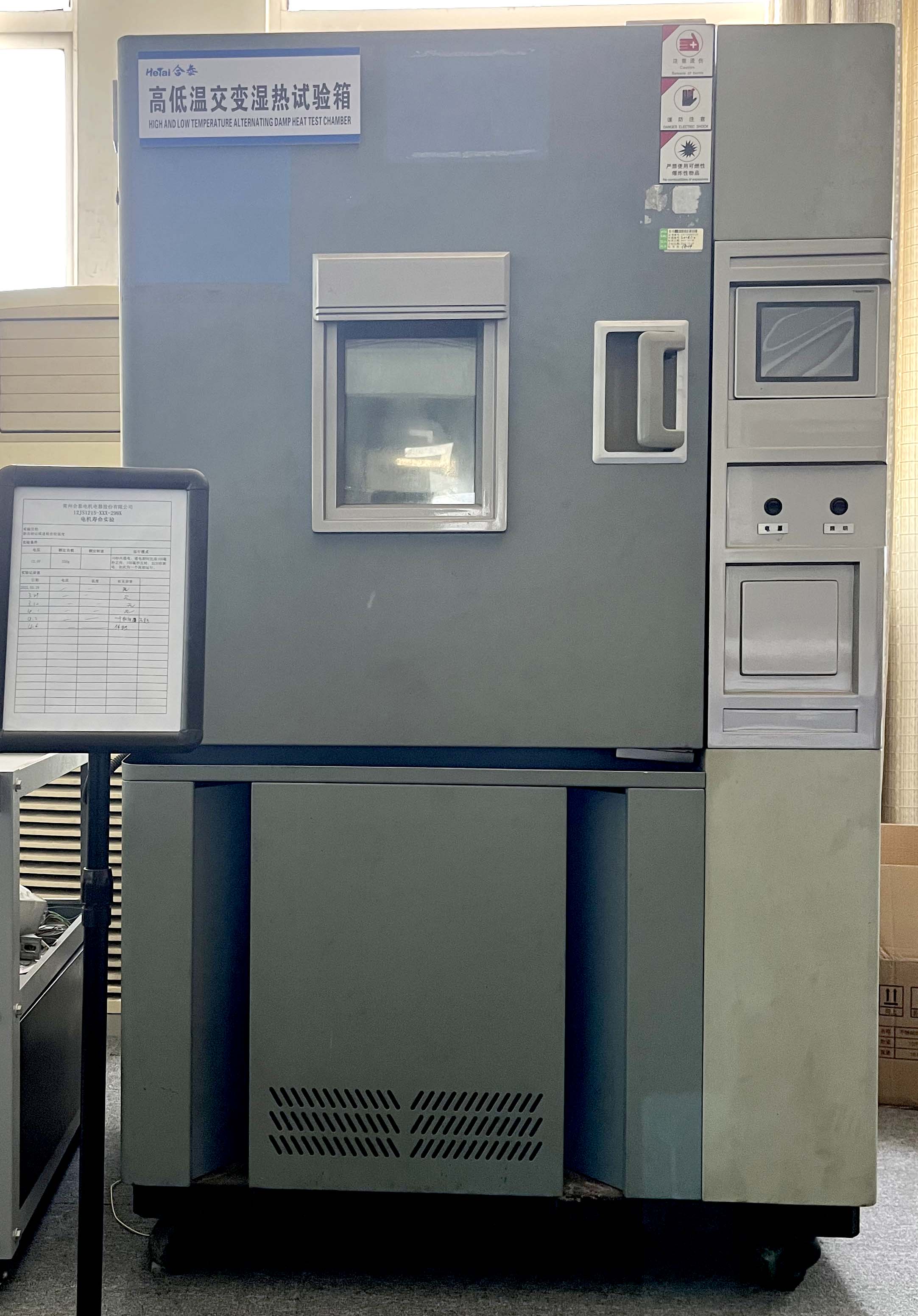

High and low temperature test chamber
Laboratory Equipment
Lifespan Test

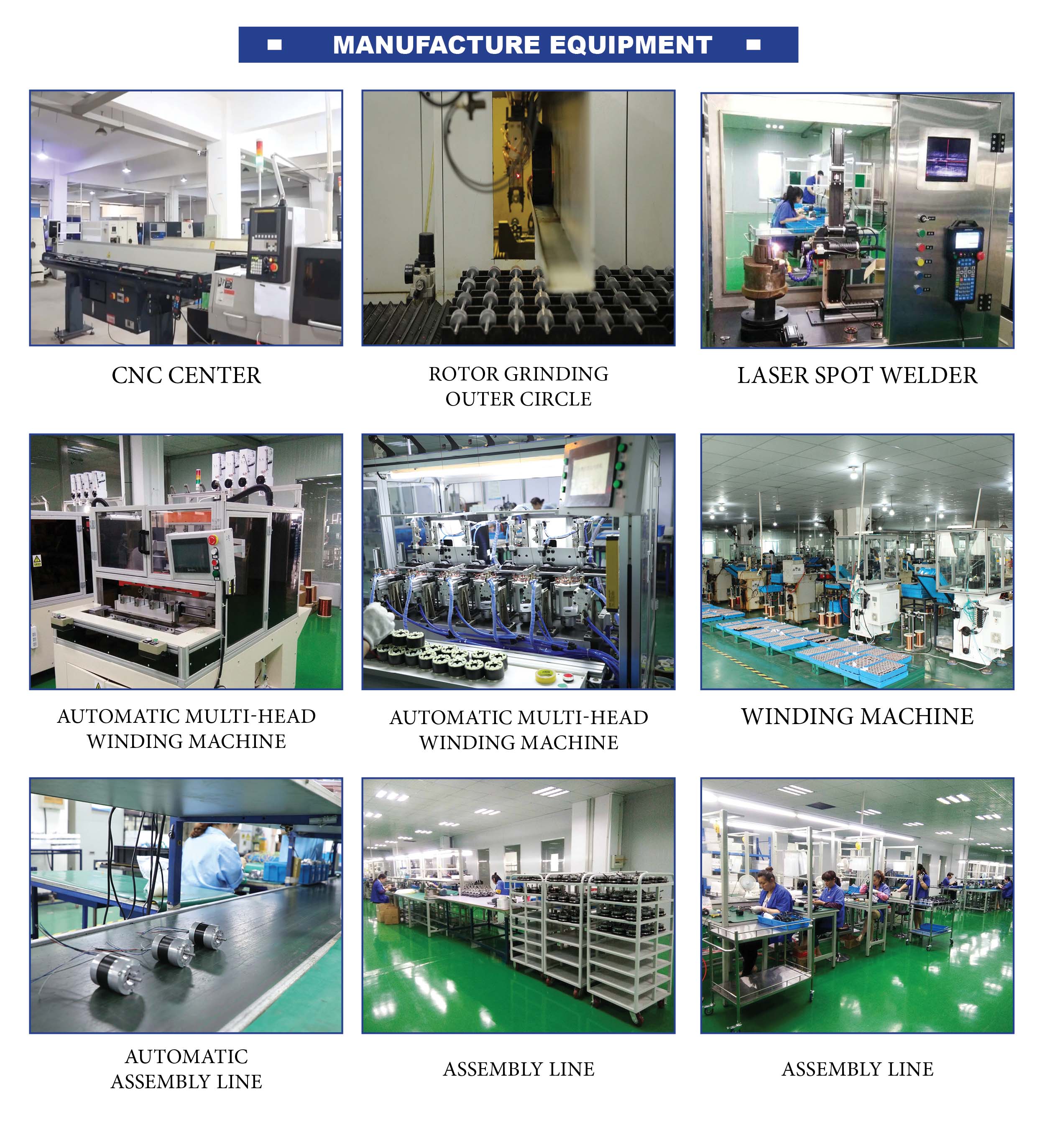

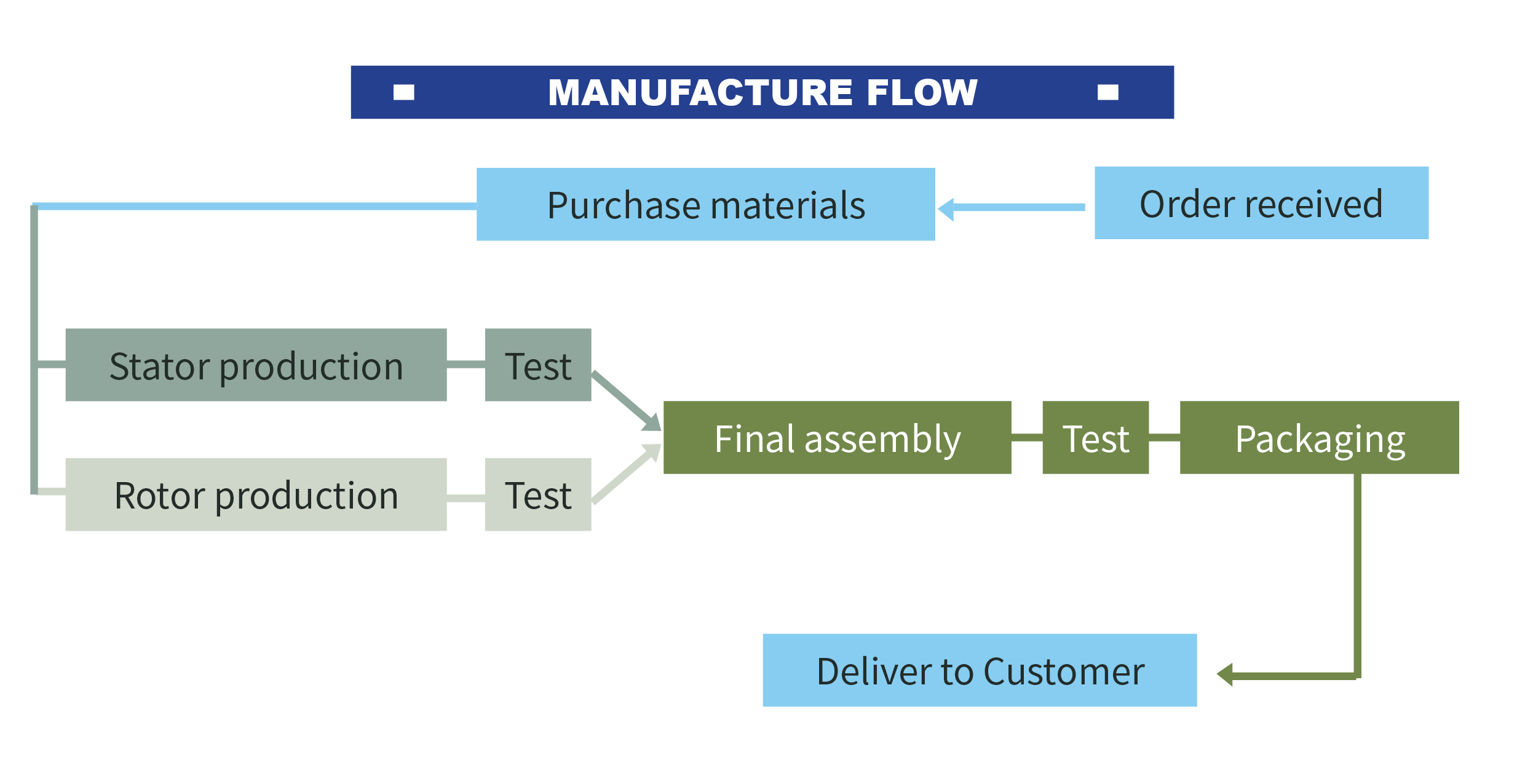

Mass Production Advantage
Large-scale production

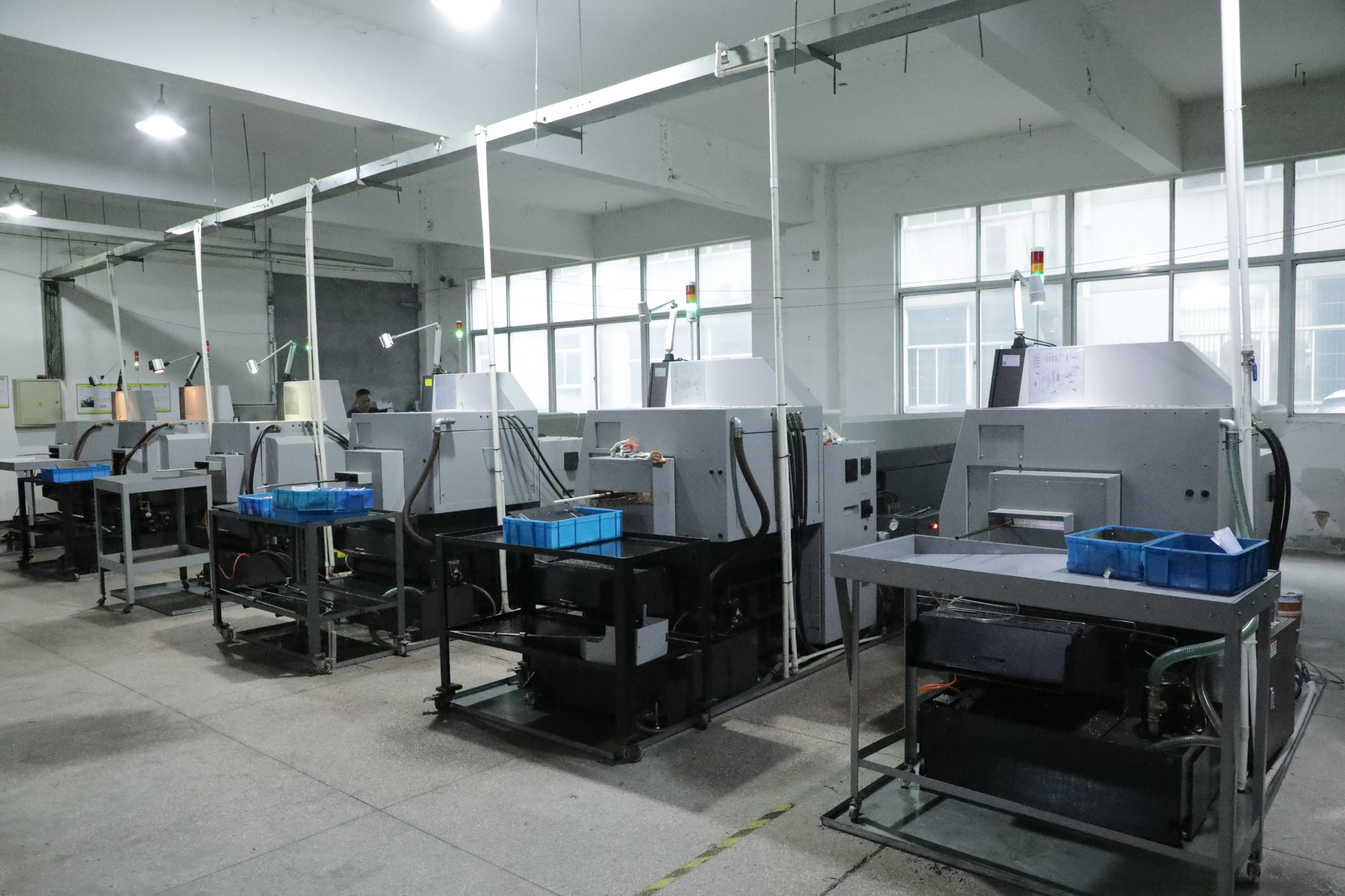

Our Factory was founded in 1999 and the workshop area is over 15,000㎡. We have own manufacturing line and CNC machining center, including precision CNC universal grinder brand name (Sweden) , CNC brand name (Germany), DMG lathe and milling, DMG lathe, Mahr measuring instrument, Chinese precision cylindrical grinding machine, CNC lathe machine, automatic multi-head winding machine, automatic assembling line and so on.
CNC CENTER
EightCNC PRECISION AUTOMATIC LATHES
CNC CENTER
Seven CNC AUTOMATIC MACHINING CENTERS
Seven CNC AUTOMATIC MACHINING CENTERS

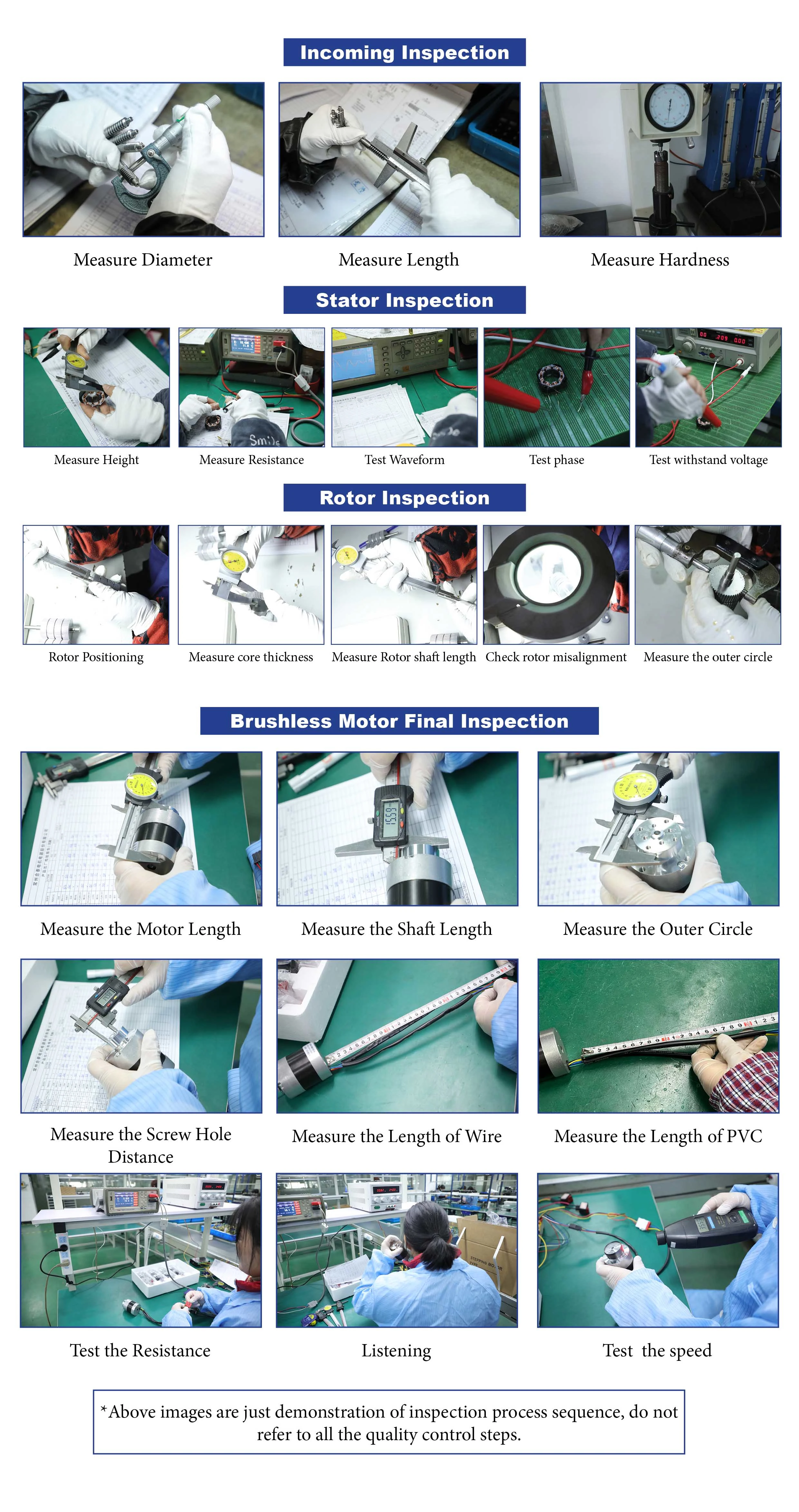

Quality Control Process
