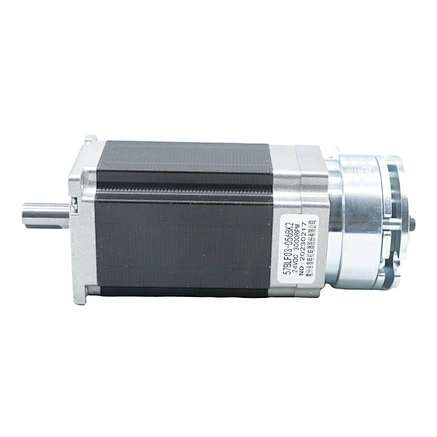

Model No: 57BLF03-XXBK2
Hetai hot selling nema23 dc brushless motor 57mm dc motor with brake
minimum order :
1 piece
Country of Origin :
SHANGHAI
Quantity :
- Warranty:3months-1year
- Place of Origin:Jiangsu, China
- Brand Name:Hetai
- Model Number:57BLF03-XXBK2
- Type:Micro Motor
- Torque:0.6 N.M
- Construction:Permanent Magnet
- Commutation:Brushless
- Protect Feature:IP40
- Speed(RPM):3000RPM
- Continuous Current(A):1.6A
- Efficiency:IE 1
- Product Name:Brushless motor
- Rated torque:0.6Nm
- Length:156 mm
- Speed:3000-5000rpm
- Rated Current:1.6A
- Max Radial load:75N (10mm from front flange)
- Shaft axial load:15N
- No.of Poles:8
- Insulation Resistance:100MΩ Min.500V DC
- Certification:CE RoHS ISO
Product Description

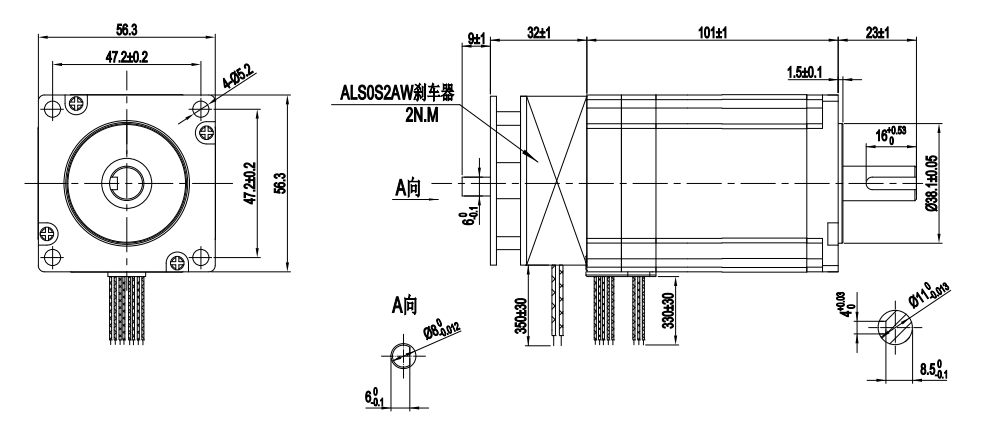

57BLF03-XXBK2
Brushless DC motor
High-efficiency, Low noise

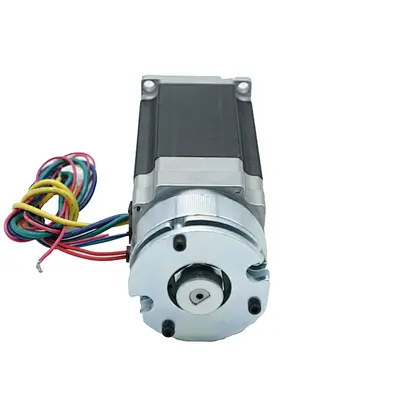

With power on/ power off brake
Product Name: | Brushless Motor |
Dielectric Strength: | 500V AC 1minute |
Ambient Temperature: | -20℃~50℃ |
Insulation Class: | B |
Voltage(VDC): | 24(VDC) |
Power(W): | 188 |
Rated Speed(RPM): | 3000 |
Rated Torque（N.M): | 0.6 |
Rated Current(A): | 1.6 |

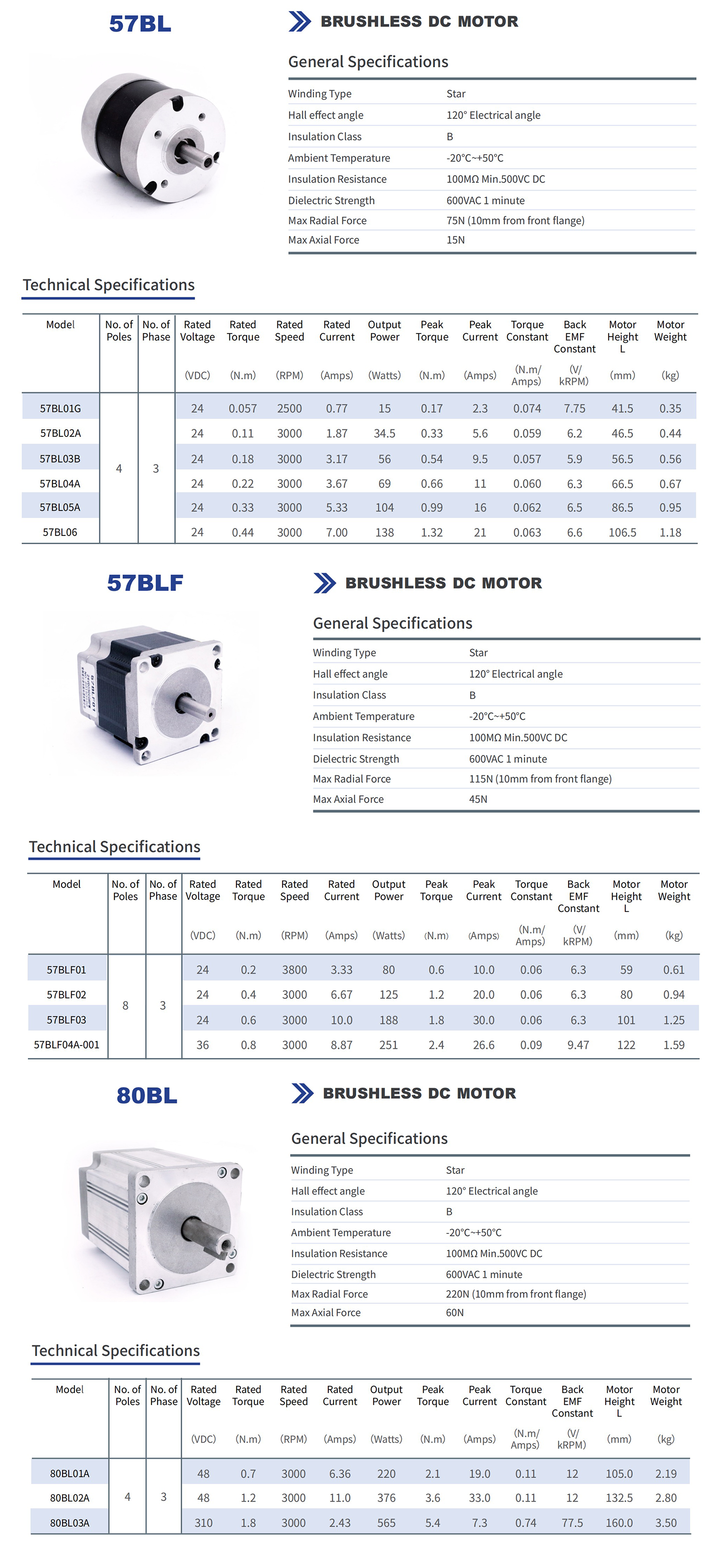

Product Introduction
Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length (mm) | ||||||
42mm BLDC Motor | 4 or 8 | 12/24/36/48v | 4000rpm | 0.063~0.25N.m | 26~106w | 42~100 | ||||||
57mm BLDC Motor | 4 or 8 | 24/36/48v | 3000rpm | 0.057~0.8N.m | 15~251w | 42~122 | ||||||
80mm BLDC Motor | 4 | 48/310v | 3000rpm | 0.7~1.8N.m | 220~565w | 105~160 | ||||||
86mm BLDC Motor | 8 | 48v/310v | 3000rpm | 1.4~2.1N.m | 440~660w | 94~124 | ||||||
110mm BLDC Motor | 8 | 310v | 3000rpm | 3.5~6.5N.m | 1100~2040w | 156~216 | ||||||
130mm BLDC Motor | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~160 | ||||||
Above only for standard products, products of special request can be made according to the customer request. | ||||||||||||
Company Profile
Changzhou Hetai Motors

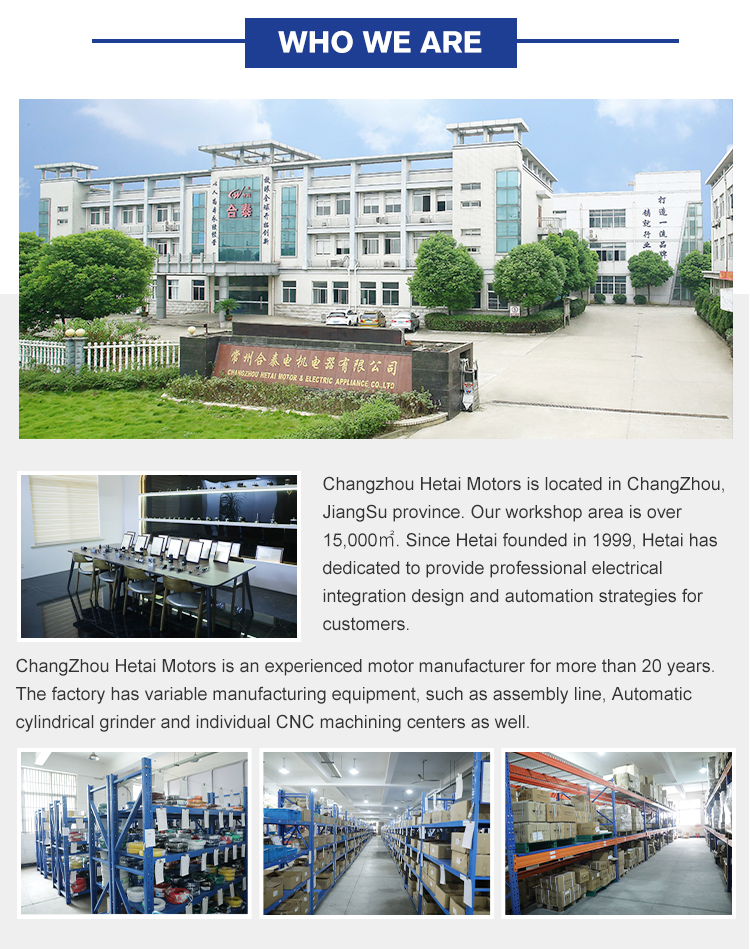

Hetai is located in ChangZhou, JiangSu province. Our workshop area is over 15,000㎡.Since Hetai founded in 1999, Hetai has dedicated to provide professional electrical integration design and automation strategies for customers.
Experienced Manufacturer

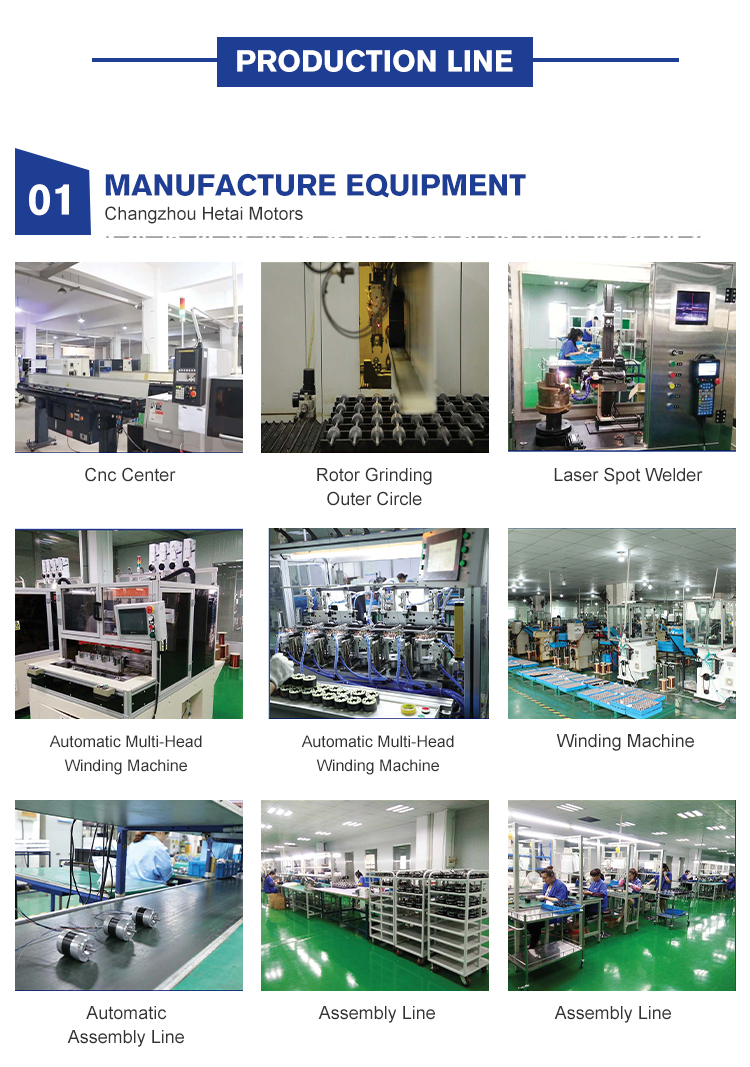

ChangZhou Hetai Motors is an experienced motor manufacturer for more than 20 years.The factory has variable manufacturing equipment, such as assembly line, Automatic cylindrical grinder and individual CNC machining centers as well.

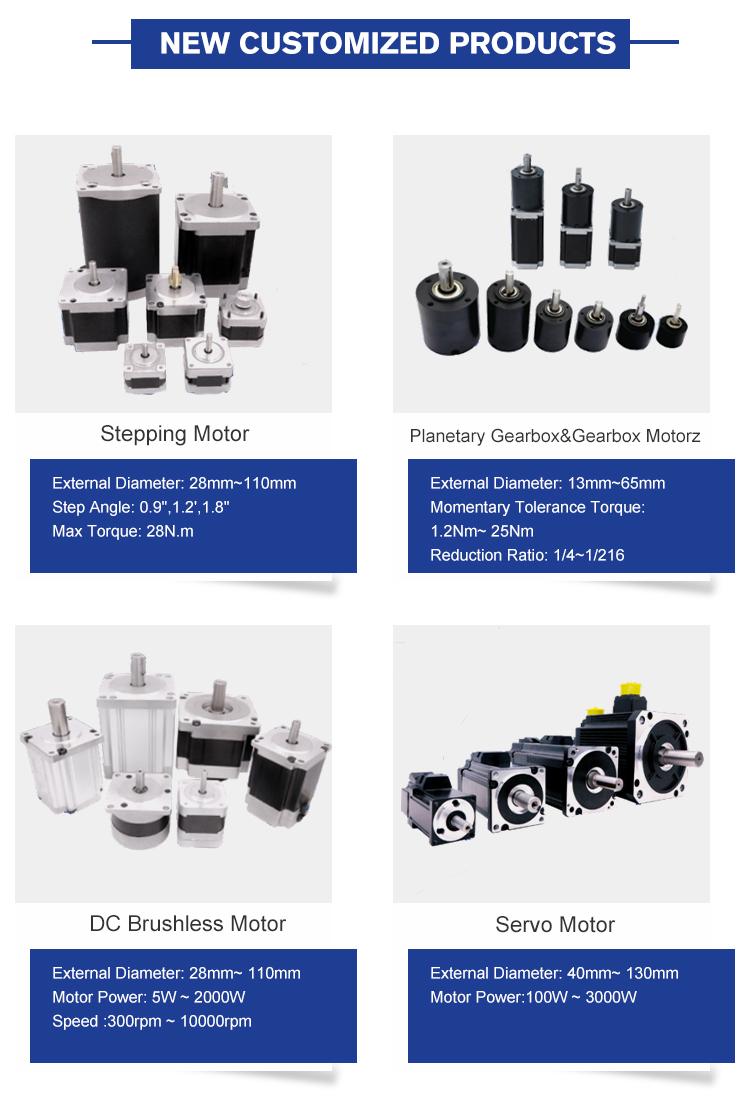

Product Range
Based on all this advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.
Our advantage
Hetai can offer：
Specialised/customised design and product
Good quality products
Valuable Service
Engineering Support
Hetai has got 11 patent certificates since it founded in 1999. The strength in engineering design has offered our customer most suitable product. Our technical team includes three 10 years + experience engineers, which allow us to provide professional automation strategies for customers.
Our professional team can help you to find right and suitable motor for you. Our engineers have rich experience of motion control products in various industries, such as: robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment and so on.
Find
Our team can help you find most suitable motor for the application from our vast selection of motors.

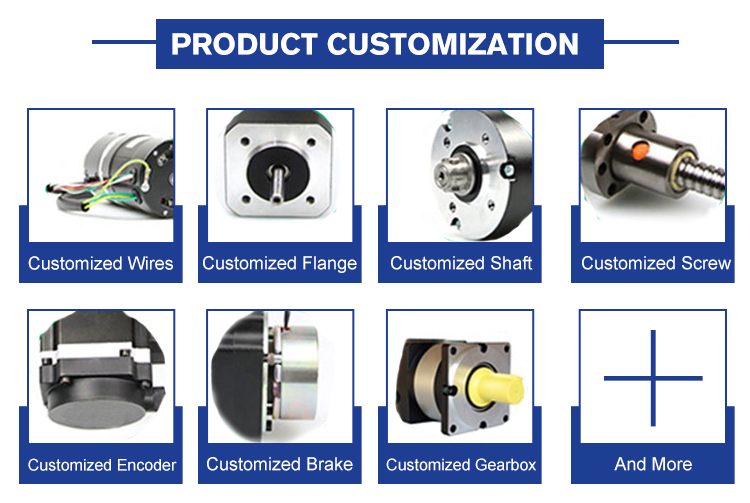

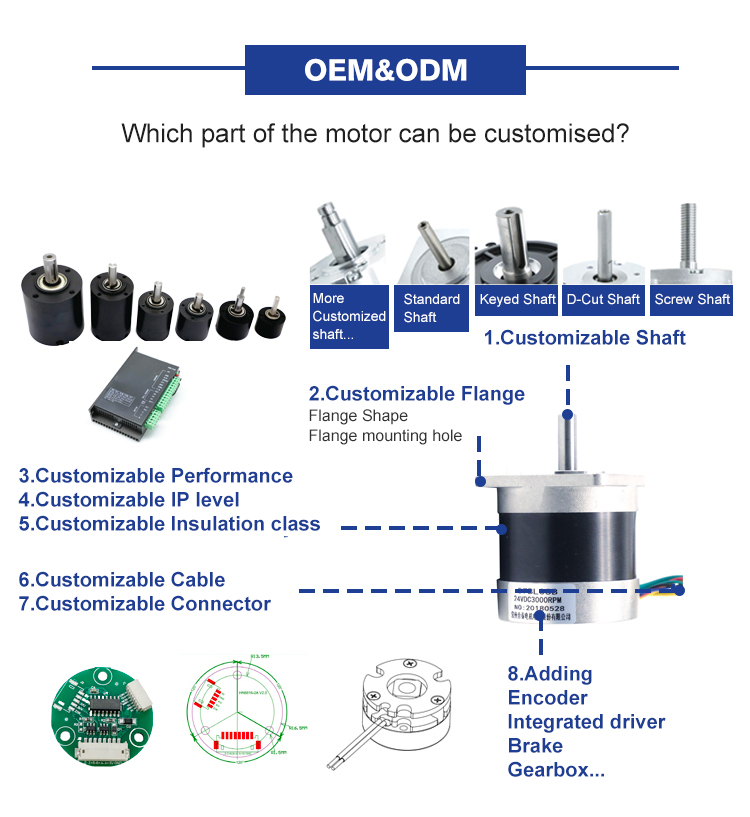

Customise
We can design and customise the performance and exterior for your specific use or assembly.
Optimise
For OEM projects, we have over 15 years' experience of solving different problems in various application. We improve our product together with our customer.
Mass Production Advantage
1.Are you factory?
Yes, we are factory. Our brand name Hetai is a well-known micro motor manufacturer for more than 20 years in China. Main product including hybrid stepper motor, brushless DC motor, servo motor and planetary gearbox.
2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com
2. Do you have Other contact info?
Yes, please email us: info@ht-motor.com
3. How can we get your catalog?
Please visit below website http://www.hetaimotor.comto download it.
4.Can I test sample?
Yes, samples and freight are charged.
5.Can I get Customized product?
Sure, all the products can be customized based in special request.
6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.
9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
Please visit below website http://www.hetaimotor.comto download it.
4.Can I test sample?
Yes, samples and freight are charged.
5.Can I get Customized product?
Sure, all the products can be customized based in special request.
6.How do you ship the goods?
We normally ship goods by express(DHL/UPS/FEDEX/TNT), by sea and by air, also accept freight forwarder.
7. What are the payment terms?
T/T(bank transfer), Paypal(0.5% paypal charges), ALIBABA assurance order accept
8. Is this your final price? May i have the discount?
Our price is the factory price. If you have large quantity, we can negotiate about the discount.
9.What is the Warranty for your products?
Our warranty is for one year. If any quality problems occured on our side during this period, we will take on the shipping cost and replacement. please note damage caused by improper use of the product is not covered by the warranty.
