Model No: VAL-MS BE

Type 2 surge protection base element - 2817741

Base element for type 2 arresters of the VALVETRAB MS series of products. Design: 1-channel
minimum order :
1 piece
Quantity :
Contact Now

2817741 VAL-MS BE Phoenix Contact Type 2 Surge Protector Base


The Type 2 Surge Protector Base is a protective device that is installed in a circuit. It protects wiring and equipment from overvoltages and currents, thereby extending the life of the equipment and protecting the company's assets. This protective device is important for electrical equipment used in high-risk areas such as commercial buildings, schools, hospitals and factories. It also reduces the need for equipment repairs and replacements, which reduces your organization's operating costs and equipment losses. The Type 2 Surge Protector Base is a great choice if you need to protect your electrical equipment from voltage surges and current surges. It can help you protect your equipment and maintain business continuity.

  • Place of Origin:China
  • Brand Name:Phoenix Contact
  • Model Number:VAL-MS BE
  • Number of Pole:2
  • Rated Voltage:/
  • Product name:2817741 VAL-MS BE Phoenix Contact Type 2 Surge Protector Base
  • Order NO: 2817741
  • Stock: Available
  • Quality: 100% Brand
  • Condition: 100%Original and new
  • Delivery time: 1- 50pcs ,3-7 days,51-100 pcs,7-10days
  • Electrical properties: 50Hz
  • Color: Copper

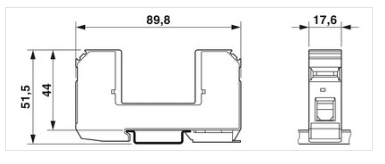

Dimensional drawing

Width

17.6mm

Height

89.8mm

Depth

51.5 mm (incl. DIN rail 7.5 mm)

Horizontal pitch

1 Div.

Flammability rating according to UL 94

V-0

CTI value of material

600

Insulating material

PA 6.6

Material group

I

Housing material

PA 6.6

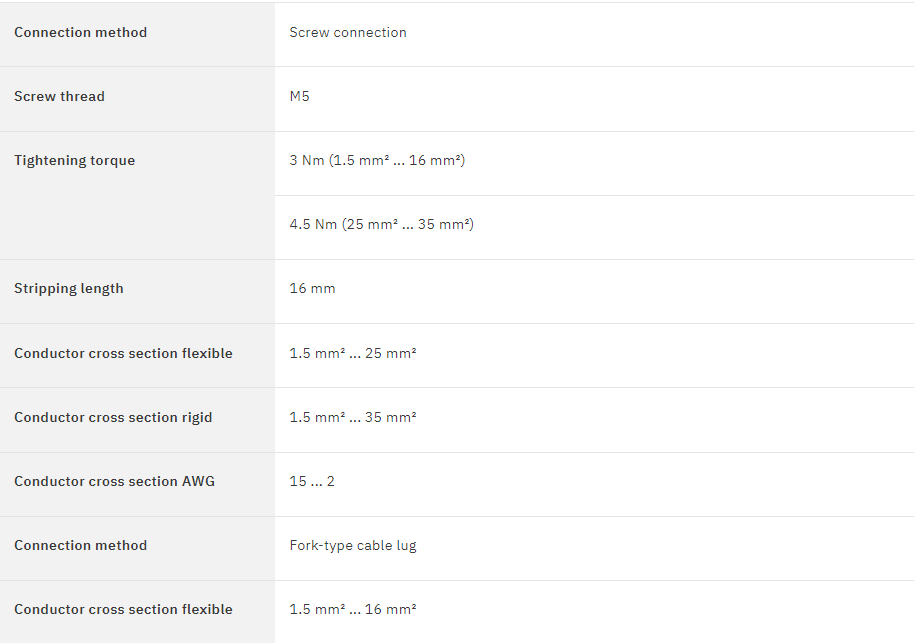

Connection data


Connection data

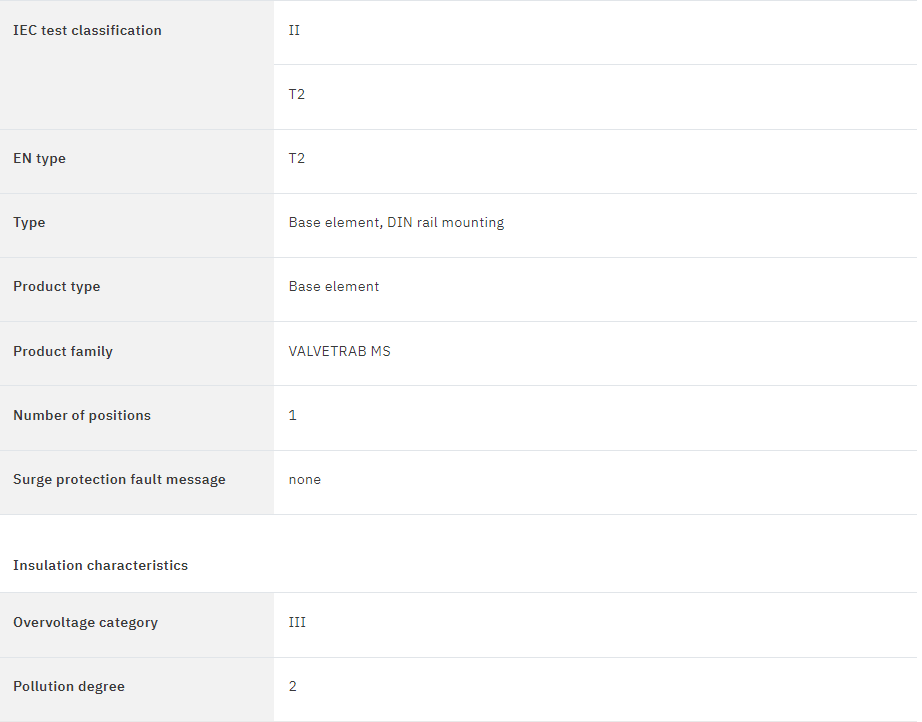

Product Properties


Product Properties

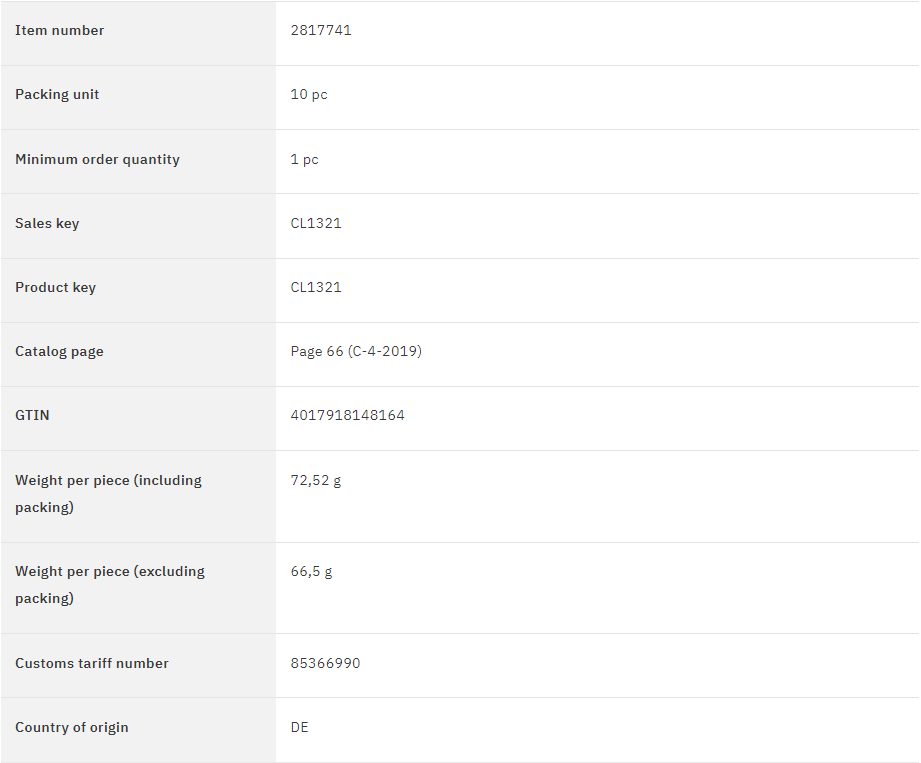

Commercial Data

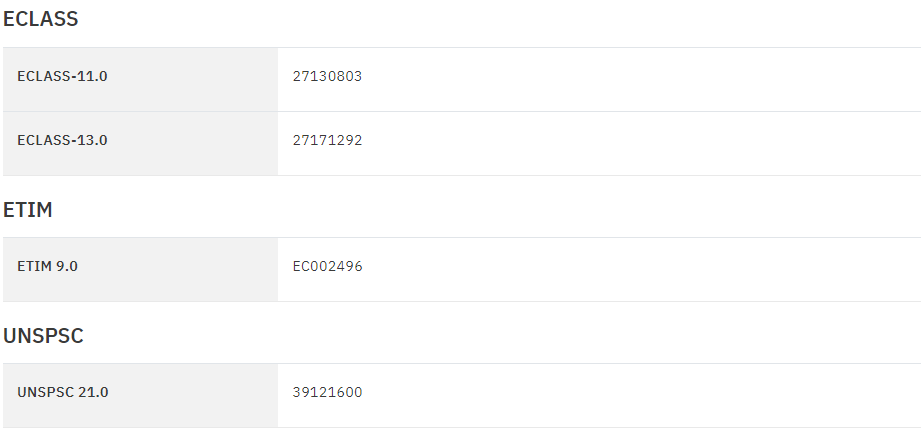

Classifications




Warehouse



Warehouse             Warehouse




Packing & Delivery



Packing & Delivery
