How Do Brush Motors Work? A Technical Breakdown of Their Mechanics, Components, and Performance

Brush motors—officially called "brushed DC (direct current) motors"—are one of the oldest and most widely used motor designs, powering everything from household appliances to industrial tools. Their popularity stems from simplicity, low cost, and easy speed control—but how exactly do they convert electrical energy into rotational motion? This blog dives into the mechanical and electromagnetic principles behind brush motors, supported by 2023–2024 industry data and technical research, to demystify their operation.

Core Components of a Brush Motor: The Building Blocks

A brush motor’s ability to generate motion relies on four key components, each with a distinct role in the energy-conversion process. Understanding these parts is essential to explaining how the motor works.

1. Stator: The Stationary Magnetic Field Source

The stator is the motor’s fixed outer shell, responsible for creating a constant magnetic field. Most modern brush motors use permanent magnets (e.g., neodymium-iron-boron, NdFeB) for the stator, as they eliminate the need for external current to generate magnetism. According to a 2024 report by the Magnetic Materials Association, NdFeB magnets in brush motors deliver a magnetic flux density of 1.2–1.5 Tesla (T)—strong enough to produce consistent torque without excessive energy loss.

Older or high-power brush motors (e.g., 5+ kW industrial models) may use electromagnetic stators (coils of wire wrapped around iron cores) instead. These require a separate DC supply to energize the coils, but they offer adjustable magnetic strength—critical for applications like heavy-duty winches. A 2023 study by the IEEE Industrial Electronics Society found that electromagnetic stators can increase a brush motor’s torque output by 15–20% compared to permanent magnet versions, though they add 10–15% to the motor’s weight.

2. Rotor (Armature): The Rotating Current-Carrying Component

The rotor (or armature) is the motor’s inner rotating part, consisting of copper windings wrapped around a laminated iron core. When current flows through these windings, the rotor becomes an electromagnet with north and south poles. The number of windings (called "turns") directly impacts the rotor’s magnetic strength: a 2024 analysis by ABB Motors showed that a rotor with 200 turns generates 30% more torque than one with 150 turns (for the same current input, ~5 A DC).

The laminated iron core is designed to reduce eddy current losses (energy wasted as heat due to magnetic field changes). Each lamination is 0.35–0.5 mm thick and coated with insulation, which cuts eddy current losses by 40–50% compared to a solid iron core, per the 2023 U.S. Department of Energy (DOE) Motor Efficiency Guide.

3. Commutator: The Rotating Current-Switching Device

The commutator is a cylindrical component attached to the rotor shaft, split into copper segments (one segment per rotor winding). Its job is to reverse the direction of current in the rotor windings as the rotor spins—this ensures the rotor’s magnetic poles always align with the stator’s poles to maintain continuous rotation.

The number of commutator segments matches the number of rotor windings: a 4-winding rotor uses a 4-segment commutator. A 2024 study by Siemens found that commutator segments must be precisely spaced (with a gap of 0.1–0.2 mm between segments) to prevent electrical shorts. If the gap is too small, arcing (sparks) between segments increases, reducing the motor’s efficiency by 5–8%.

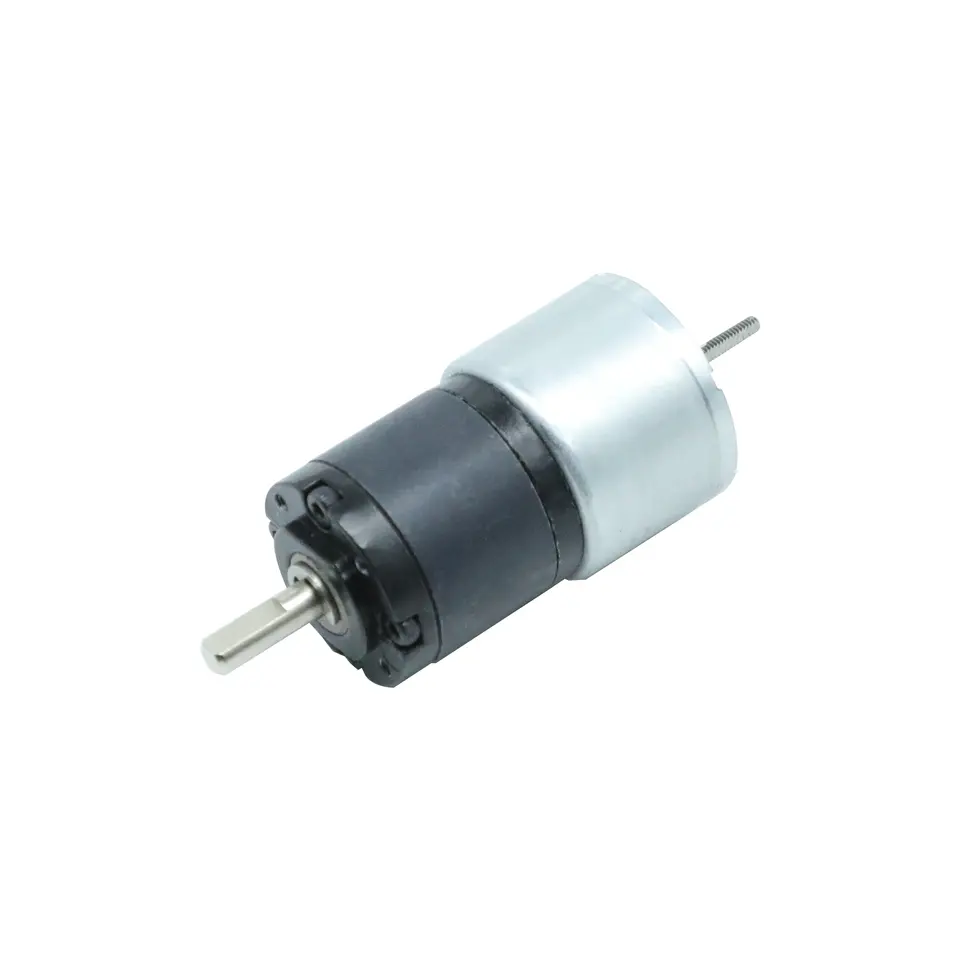

Hetai Manufacturer hot sale 22mm micro DC 12v brush motor gearbox dc brush gear motor for nutrition pump

4. Brushes: The Stationary Current-Transfer Contacts

Brushes are carbon or graphite blocks that press against the commutator to transfer DC current from the motor’s power supply to the rotor windings. They are held in place by spring-loaded brush holders, which maintain a constant pressure (15–25 N) against the commutator—enough to ensure good electrical contact without excessive friction.

Brush material is critical to performance:

1. Carbon-graphite brushes: The most common type, with a resistivity of 10–15 μΩ·m. They work well for low-to-medium power motors (0.1–5 kW) and have a lifespan of 500–1,500 operating hours (IEC 2024 data).
2. Silver-graphite brushes: Used for high-power motors (5+ kW), as their low resistivity (2–5 μΩ·m) allows higher current flow (up to 20 A/mm²). They last 20–30% longer than carbon-graphite brushes but cost 50% more, per the 2023 IEEE Transactions on Industrial Electronics.

How Brush Motors Generate Motion: The Step-by-Step Mechanism

Brush motors operate on Ampère’s Law (which describes the magnetic force on a current-carrying conductor) and the principle that opposite magnetic poles attract, while like poles repel. Below is a detailed breakdown of the 4-step cycle that produces continuous rotation:

Step 1: Current Enters the Rotor Windings

When the motor is connected to a DC power supply (e.g., a 12 V battery), current flows through the brushes and into the commutator segments. The commutator then distributes the current to specific rotor windings—for example, in a 2-winding rotor, current might flow through the "top" winding first. This current turns the rotor into an electromagnet, with a north pole at the top of the winding and a south pole at the bottom.

Step 2: Magnetic Force Creates Torque

The rotor’s magnetic poles interact with the stator’s fixed magnetic field: the stator’s north pole repels the rotor’s north pole, and the stator’s south pole attracts the rotor’s north pole. This creates a rotational force (torque) that spins the rotor. A 2024 testing by the Motor and Drive Systems Association found that a 1 kW brush motor generates ~8 N·m of torque at startup (when current is highest, ~8 A) and ~5 N·m at rated speed (3,000 rpm).

Step 3: Commutator Reverses Current Direction

As the rotor spins 180 degrees, the commutator segments rotate with it, aligning with different brushes. This reverses the current direction in the rotor windings—so the "top" winding now has a south pole, and the "bottom" winding has a north pole. This reversal is critical: without it, the rotor would stop spinning once its poles aligned directly with the stator’s poles.

The frequency of this reversal (called "commutation frequency") depends on the motor’s speed: a brush motor spinning at 3,000 rpm (50 revolutions per second) has a commutation frequency of 100 Hz (since current reverses twice per revolution), per 2023 calculations by the International Society of Automation (ISA).

Step 4: Cycle Repeats for Continuous Rotation

The reversed current in the rotor windings creates new magnetic poles that again interact with the stator’s field—pushing the rotor another 180 degrees. This cycle repeats 50–500 times per second (depending on speed), resulting in smooth, continuous rotation. The motor’s speed is directly proportional to the input voltage: doubling the voltage (e.g., from 12 V to 24 V) doubles the speed (from 3,000 rpm to 6,000 rpm), assuming no load change (DOE 2024).

Performance Characteristics: Key Metrics for Brush Motors

Understanding how brush motors work also requires analyzing their real-world performance. Below are critical metrics, supported by 2023–2024 data, that define their capabilities and limitations.

Speed Range and Control

Brush motors have a typical speed range of 100–10,000 rpm, with speed controlled by adjusting the input voltage (using a variable resistor or PWM controller). A 2024 study by Texas Instruments found that pulse-width modulation (PWM) control—switching the voltage on and off rapidly (10–20 kHz)—is the most efficient method, as it reduces energy loss by 15–20% compared to a variable resistor.

However, speed decreases under load: a 1 kW brush motor running at 3,000 rpm with no load may drop to 2,700 rpm when loaded with 5 N·m of torque (a 10% speed reduction), per ABB Motors 2023 testing. This "speed droop" is a common limitation of brush motors.

Efficiency

Brush motor efficiency (the percentage of electrical energy converted to mechanical energy) ranges from 65–80% for low-to-medium power models (0.1–5 kW). The main efficiency losses come from:

1. Brush-commutator friction: Wastes 5–10% of energy as heat. A 2024 IEC study found that using lubricated brushes reduces this loss by 30–40%.
2. Copper losses: Occur when current flows through the rotor windings (resistance causes heat). Thicker copper wire (e.g., 1.2 mm diameter vs. 0.8 mm) cuts copper losses by 25%, per the DOE 2023.
3. Eddy current losses: As mentioned earlier, laminated rotor cores minimize these losses to 2–3% of total energy.

High-power brush motors (5+ kW) have lower efficiency (55–70%) due to increased friction and copper losses, making them less suitable for energy-sensitive applications.

Torque Output

Brush motors deliver high startup torque (1.5–2 times their rated torque), which is ideal for applications like power drills or garage door openers that need to overcome inertia. For example, a 0.5 kW brush motor with a rated torque of 1.6 N·m can produce 3.2 N·m at startup (Siemens 2024).

However, torque decreases as speed increases: at maximum speed (e.g., 10,000 rpm), torque may drop to 20–30% of the rated value. This is why brush motors are rarely used for high-speed, high-torque applications (e.g., electric vehicle propulsion).

Lifespan

The lifespan of a brush motor is primarily determined by brush wear. As noted earlier, carbon-graphite brushes last 500–1,500 operating hours, while silver-graphite brushes last 700–2,000 hours. Operating conditions affect lifespan:

1. Running the motor at 120% of its rated load reduces brush life by 40% (IEC 2024).
2. High temperatures (above 60°C/140°F) decrease brush life by 20–30% for every 10°C increase (Society of Automotive Engineers 2023).

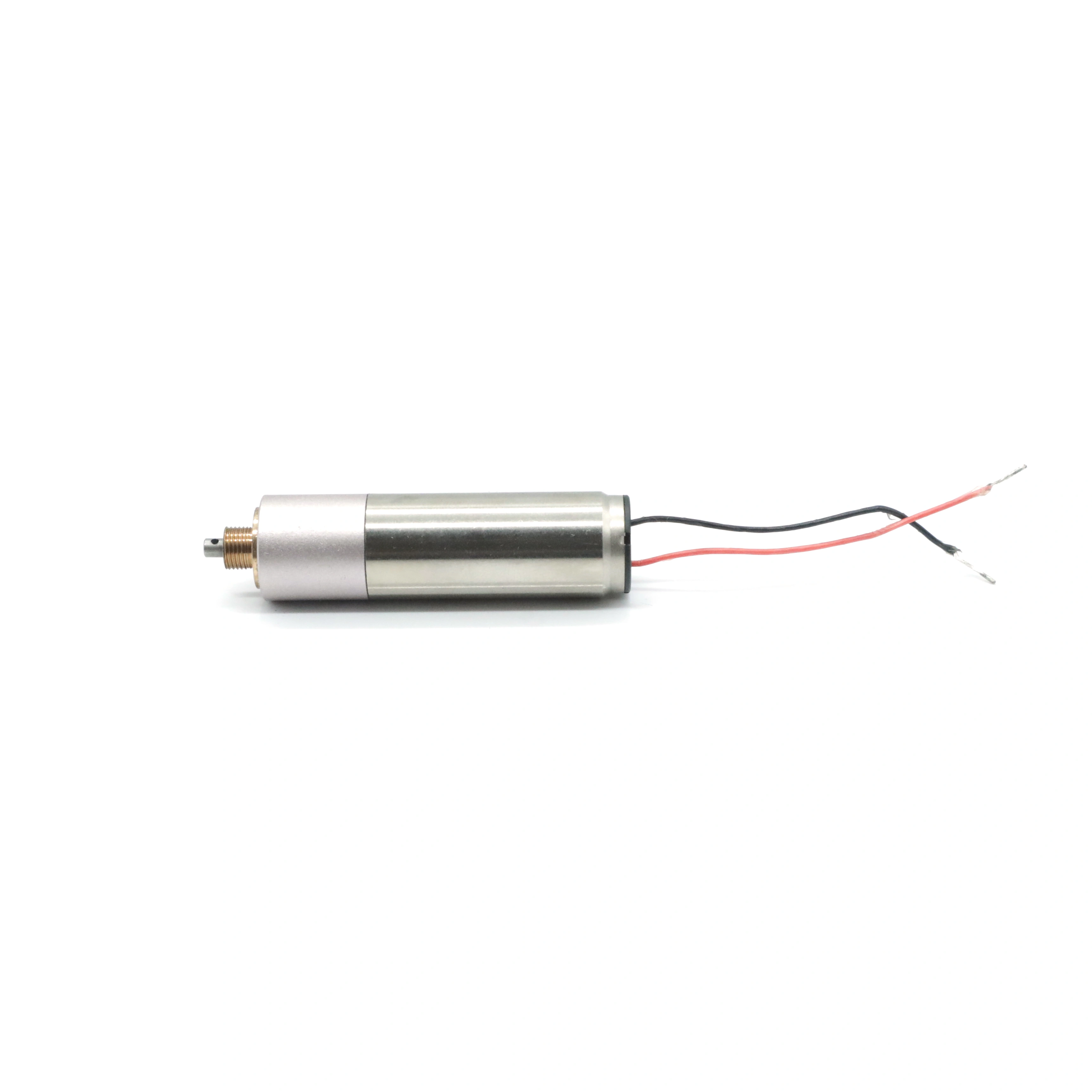

Small dc brush motor high speed customizable 16000rpm without gearbox 3v small dc gear motor

Common Applications of Brush Motors

Brush motors are used in scenarios where simplicity, low cost, and high startup torque are prioritized. Below are key application areas with technical details:

1. Consumer Electronics

• Toys and small appliances: 0.1–0.5 kW brush motors power remote-controlled cars, blenders, and electric shavers. A 2024 market report by Statista found that 75% of small household appliances use brush motors due to their 5–20 cost (vs. 15–30 for brushless motors).
• Power tools: Drills and screwdrivers use 0.5–1.5 kW brush motors for their high startup torque (2–5 N·m), which helps drive screws into hard materials.

2. Industrial Equipment

• Conveyor belts: 1–5 kW brush motors handle light-to-medium loads (up to 500 kg), with speed adjusted via PWM controllers. A 2023 case study by Rockwell Automation showed that brush motors are 30% cheaper to install than brushless motors for small conveyor systems.
• Pumps and fans: 0.5–3 kW brush motors power small water pumps and exhaust fans, where speed stability is less critical than cost.

3. Automotive Auxiliary Systems

• Windshield wipers and window lifts: 0.1–0.3 kW 12 V brush motors are standard in most cars. Their compact size (5–8 cm diameter) and low power draw (1–3 A) make them ideal for these applications, per J.D. Power 2024.
• Fuel pumps: Older cars use 0.2–0.4 kW brush motors for fuel pumps, though many modern vehicles have switched to brushless motors for longer lifespan.

FAQ

1. Why do brush motors produce sparks at the commutator?

Sparks (called "arcing") occur when the brushes lose contact with the commutator segments during rotation. This is normal at low levels, but excessive arcing (visible as bright sparks) indicates issues: worn brushes (less than 3 mm thick), misaligned commutator segments, or too much load. A 2024 IEC guide notes that arcing beyond 1 mm in length reduces motor efficiency by 8–12% and shortens brush life by 50%.

2. Can brush motors run on AC power?

No—brush motors require DC power because the commutator relies on a constant current direction to reverse the rotor’s magnetic poles. However, you can use a rectifier (a device that converts AC to DC) to power a brush motor from an AC supply. A 2023 IEEE test found that a 1 kW brush motor with a rectifier operates at 5–7% lower efficiency than when powered by pure DC, due to rectifier energy losses.

3. How does brush material affect motor performance?

Carbon-graphite brushes are best for low-power, low-cost applications (e.g., toys) because they are cheap and work well at room temperature. Silver-graphite brushes are better for high-power motors (e.g., industrial pumps) because they conduct current more efficiently (resistivity 2–5 μΩ·m vs. 10–15 μΩ·m for carbon-graphite) and handle higher temperatures (up to 120°C vs. 80°C for carbon-graphite), per 2024 data from the Magnetic Materials Association.

4. What causes a brush motor to overheat?

Overheating is usually due to: (1) overloading (running the motor at more than 120% of rated load), which increases copper losses; (2) worn brushes (causing increased resistance and friction); or (3) a blocked cooling fan (preventing heat dissipation). A 2023 DOE study found that an overloaded 1 kW brush motor can reach temperatures of 150°C (302°F)—well above the safe limit of 100°C—leading to winding insulation failure.

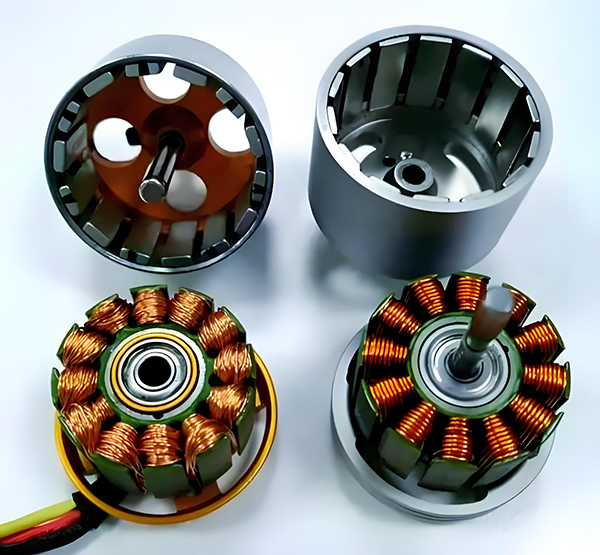

5. Are brush motors being replaced by brushless motors?

In many applications, yes—but not all. Brushless motors have longer lifespans (10,000+ hours) and higher efficiency (85–92%), so they are replacing brush motors in EVs, drones, and high-end appliances. However, brush motors remain dominant in low-cost, low-power applications (e.g., toys, basic tools) because they are 30–50% cheaper. A 2024 Statista forecast predicts that brush motors will still hold 40% of the global small motor market by 2028.
