Model No: MHMF022L1U2M
Panasonic MHMF022L1U2M | MINAS A6 Family Servo Motor
50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz
Quantity :
Panasonic MHMF022L1U2M | MINAS A6 Family Servo Motor
The Panasonic MHMF022L1U2M Servo Motor is a high-precision, high-reliability servo motor. The motor utilizes advanced magnet technology and features precise positioning, high speed response and long life. Whether in industrial production, automation equipment or robotics, the motor is able to operate stably and efficiently, contributing to productivity and quality improvement.Panasonic MHMF022L1U2M Servo Motor not only offers excellent performance, but also breakthroughs in energy saving, environmental protection, and safety, which makes it a satisfactory product.
- Warranty:3months-1year
- Place of Origin:Guangdong, China
- Brand Name:Pana
- Part Number:MSMF022L1U2M
- Type:SERVO MOTOR
- Details: High inertia, Lead wire type
- Product name: MINAS A6 Family Servo Motor
- Protection class: IP65
- Holding brake: without
- Rated rotational speed (r/min): 3000-6500
- Rated torque (N ⋅ m): 0.64
- Momentary Max. peak torque (N ⋅ m): 2.23
- Mass (kg): 0.78

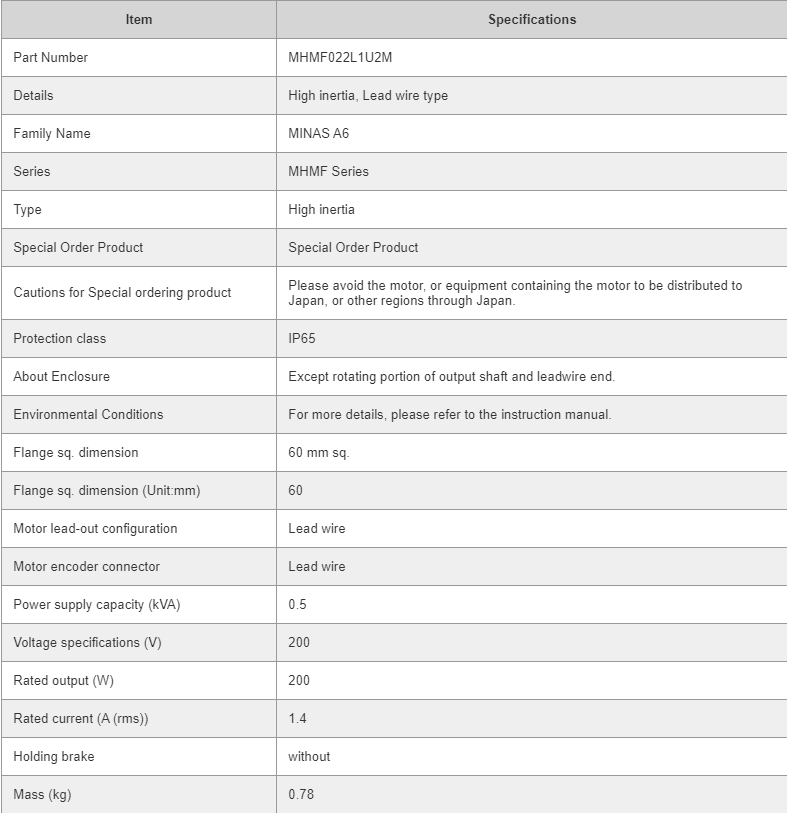

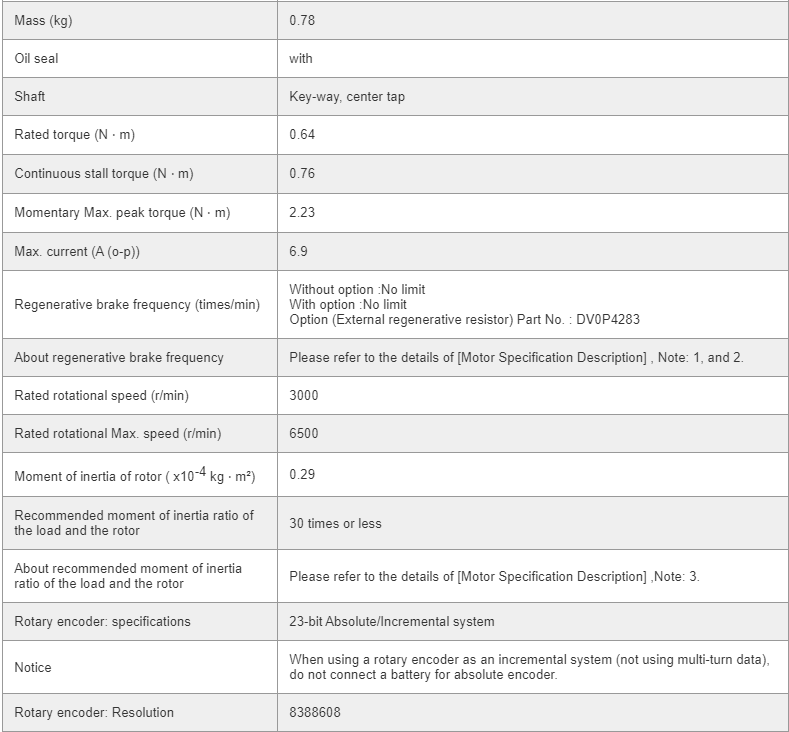

Spec Detail

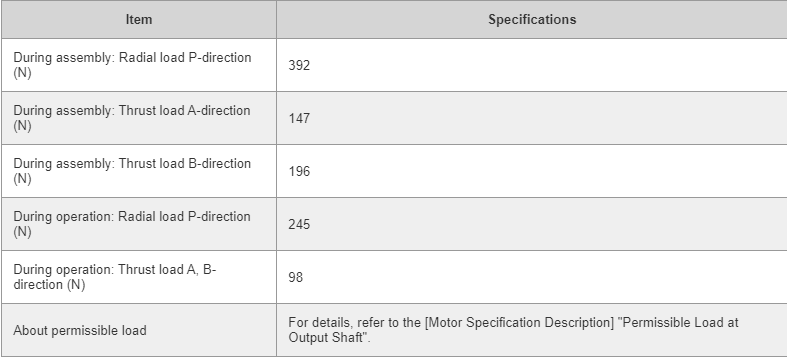

Permissible load

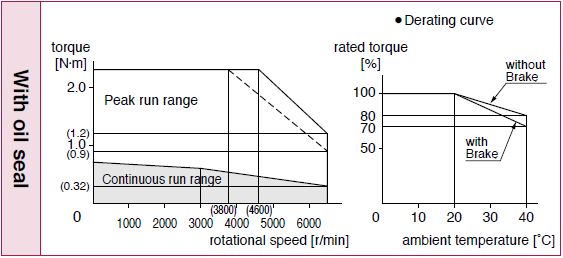

Torque charactristics

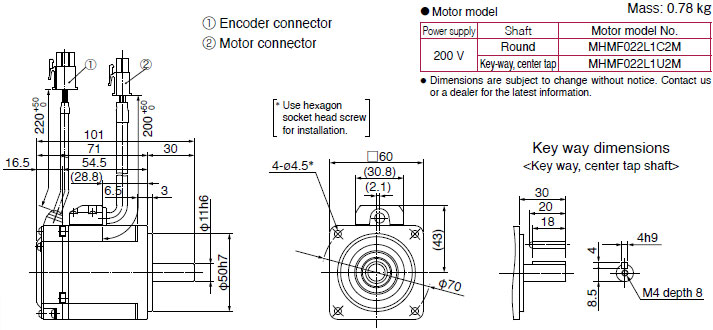

Dimensions
