Model No: MSMF012L1V2M

Panasonic MSMF012L1V2M | MINAS A6 Family Servo Motor

50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz
Quantity :
Contact Now

Panasonic MSMF012L1V2M | MINAS A6 Family Servo Motor


Panasonic MSMF012L1V2M is a state-of-the-art servo motor known for its exceptional performance and durability. This motor comes equipped with a compact body and high torque output, making it ideal for a wide range of industrial applications. Its precision motion control ensures outstanding accuracy, while its built-in encoder provides precise positioning. With its low vibrations and noise, this servo motor is an ideal choice for high-speed operation. Overall, the Panasonic MSMF012L1V2M is a reliable and efficient option for anyone looking for quality and performance in their servo motor.
  • Warranty:3months-1year
  • Place of Origin:Guangdong, China
  • Brand Name:Pana
  • Part Number:MSMF012L1V2M
  • Type:SERVO MOTOR
  • Details: Low inertia, Lead wire type
  • Product name: MINAS A6 Family Servo Motor
  • Protection class: IP65
  • Holding brake: with
  • Rated rotational speed (r/min): 3000-6000
  • Rated torque (N ⋅ m): 0.64
  • Momentary Max. peak torque (N ⋅ m): 0.95
  • Mass (kg): 0.68

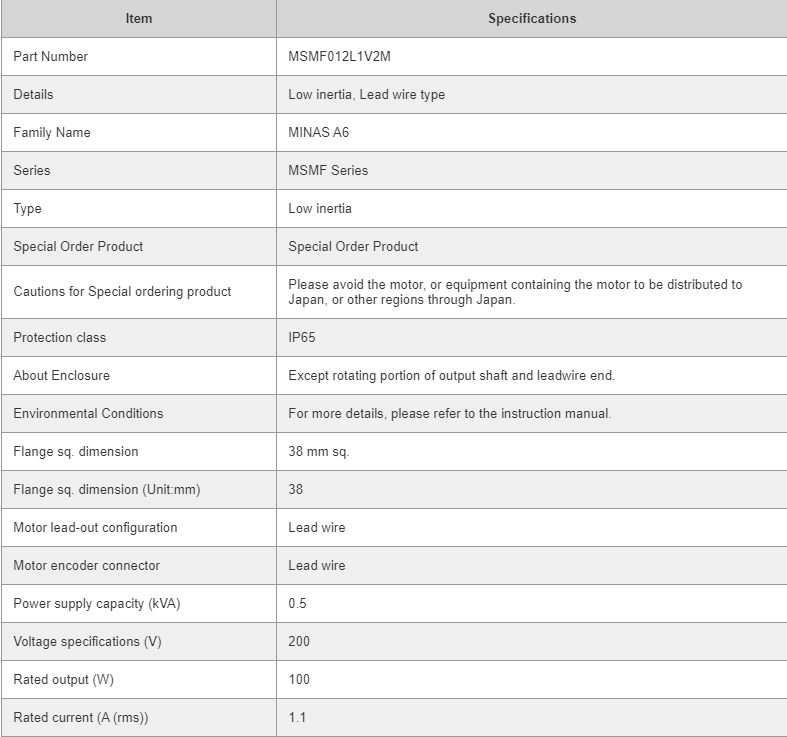

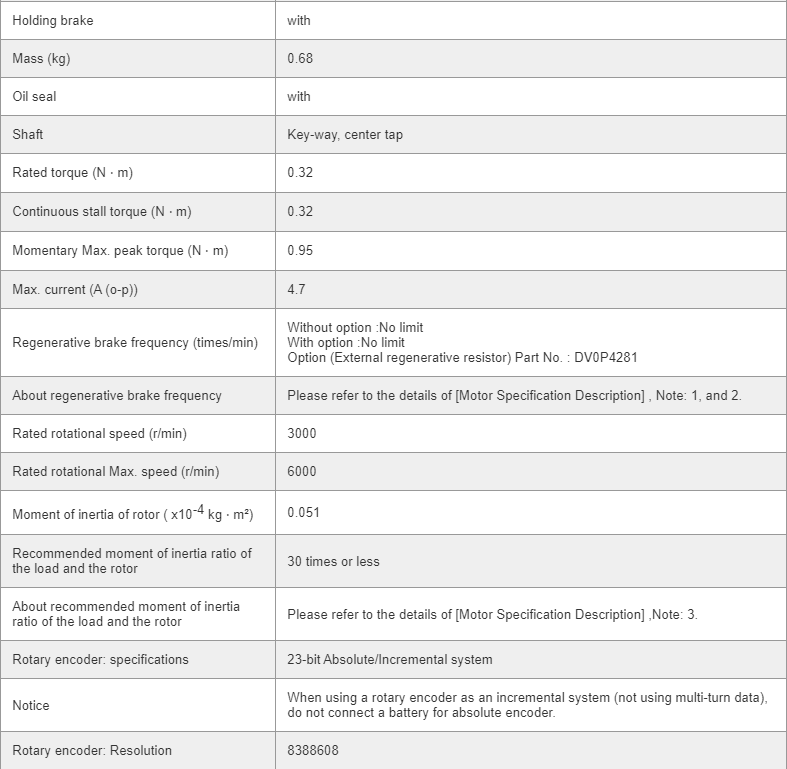

Spec Detail


Spec Detail
Spec Detail

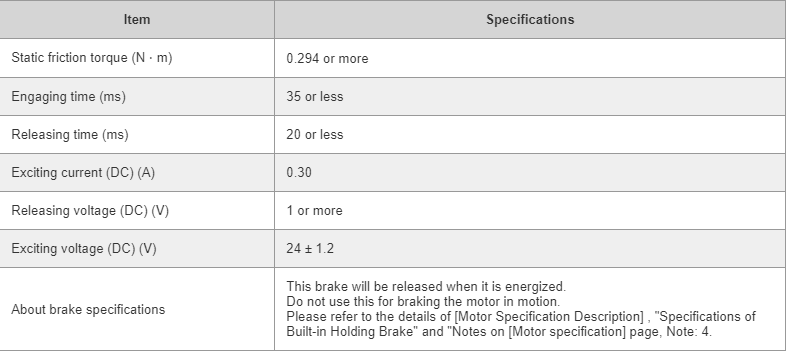

Brake specifications


Brake specifications

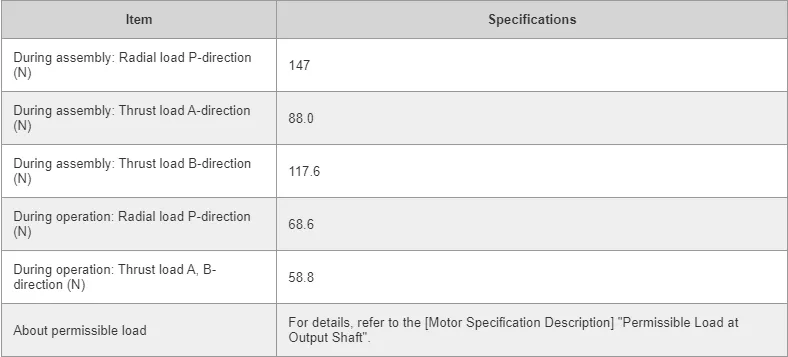

Permissible load


Permissible load

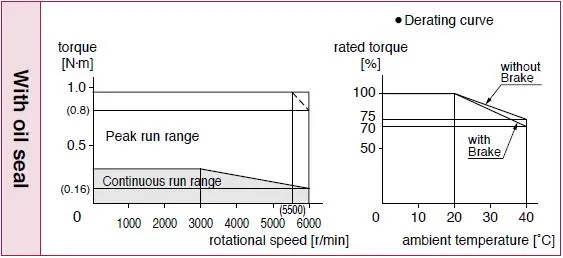

Torque charactristics


Torque charactristics

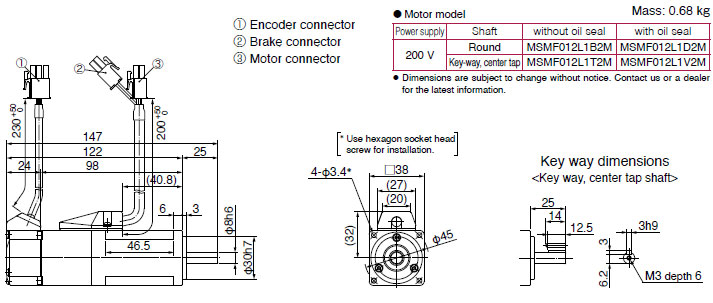

Dimensions


Dimensions


Warehouse



Warehouse             Warehouse


Packing & Delivery



Packing & Delivery
