Model No: MSMF022L1V2M

Panasonic MSMF022L1V2M | MINAS A6 Family Servo Motor

50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz. Low inertia, Lead wire type.
Quantity :
Contact Now

Panasonic MSMF022L1V2M | MINAS A6 Family Servo Motor


Panasonic MSMF022L1V2M Servo Motor is a high-quality servo motor with high efficiency, stability, and precision performance characteristics. It can be used in various industrial automation fields, such as CNC machine tools, robots, automated production lines, electronic equipment, medical equipment, etc. It is important because it can provide high speed, high torque, and high accuracy for various equipment. Its importance is reflected in its ability to provide high-speed, high-torque, high-precision and high-reliability power output for various equipments, thus improving the productivity and quality of the equipments.

Firstly, Panasonic MSMF022L1V2M Servo Motor adopts advanced magnet technology, which gives it higher output power and torque, and also reduces heat loss and energy consumption of the motor. Secondly, it is very accurate, capable of high-speed and high-precision positioning and control, providing precise control of various complex processes on the production line and ensuring the stability of product quality. In addition, the motor's response speed is also very fast, which greatly improves the equipment's reaction speed and provides better real-time performance for applications such as robotics and automation equipment.

As an excellent motor product, the Panasonic MSMF022L1V2M Servo Motor, in addition to its excellent performance, also offers long life, low noise and low vibration, which are ideal features sought by users. As a result, it has become one of the top choices for many users in the industrial control field.

Overall, Panasonic MSMF022L1V2M Servo Motor is a motor product with high efficiency, stable and precise performance characteristics, which can provide first-class power output and precise control for various industrial automation fields. The excellent features it possesses not only improve productivity and product quality, but also bring more convenience to our life.
  • Warranty:3months-1year
  • Place of Origin:Guangdong, China
  • Brand Name:Pana
  • Model Number:MSMF022L1V2M
  • Type:SERVO MOTOR

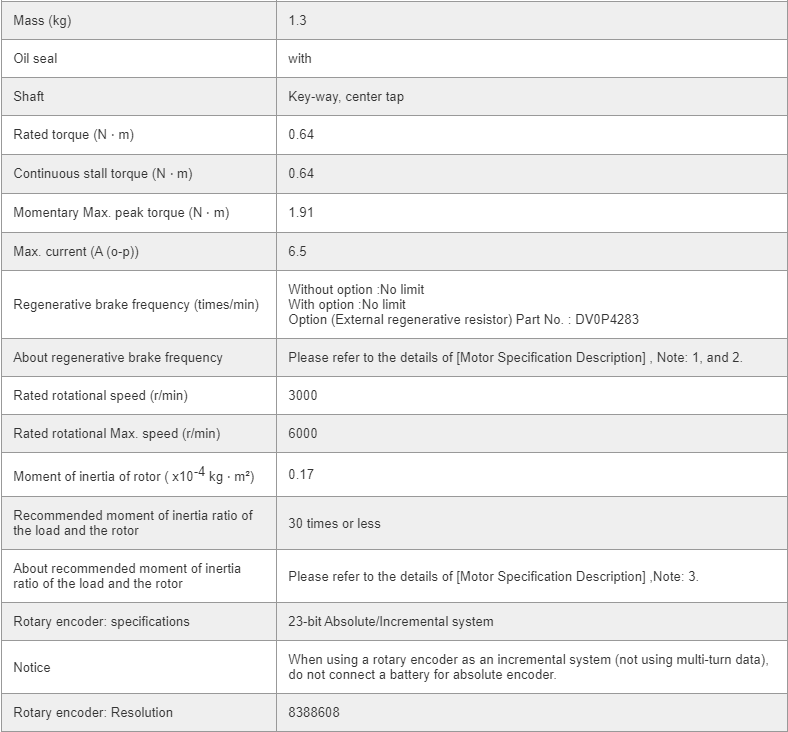

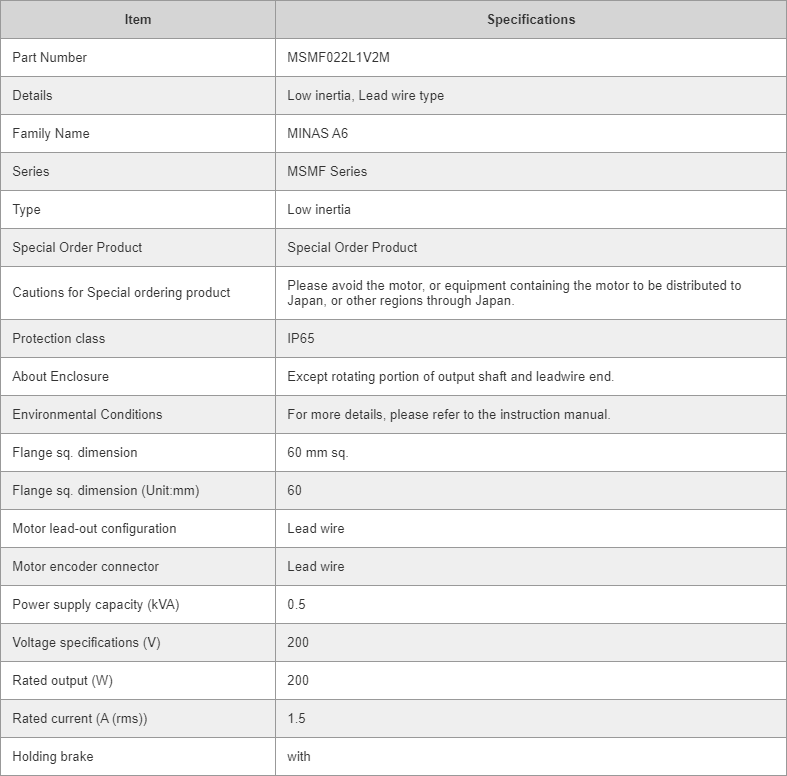

Spec Detail


Spec Detail
Spec Detail

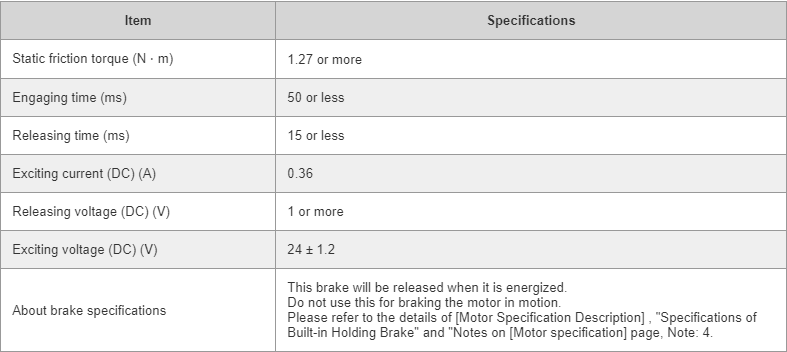

Brake specifications


Brake specifications

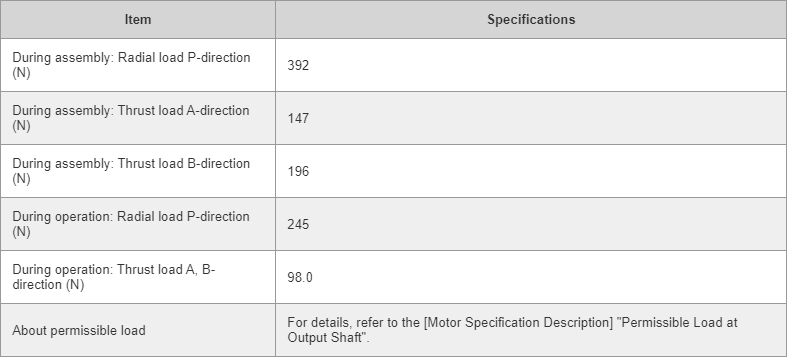

Permissible load


Permissible load

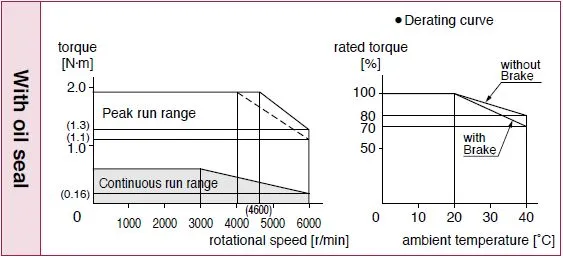

Torque charactristics


Torque charactristics

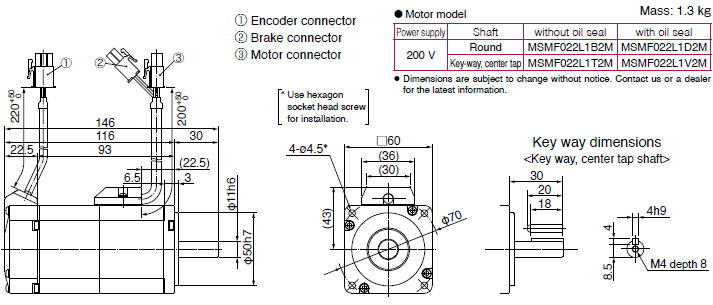

Dimensions


Dimensions
