Model No: MHMF022L1V2M

Panasonic MHMF022L1V2M | MINAS A6 Family Servo Motor

50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz
Quantity :
Contact Now

Panasonic MHMF022L1V2M | MINAS A6 Family Servo Motor


Panasonic MHMF022L1V2M Servomotor is a high-performance electromechanical device, which is carefully designed and manufactured with advanced technology and craftsmanship. With its exquisite appearance, solid structure, rapid response and high efficiency, it is widely used in robotics, CNC machining, automation control and other fields. The motor has the advantages of high reliability, strong anti-interference, long life, etc. It can meet the needs of automation control in different fields, and is your ideal choice.
  • Warranty:3months-1year
  • Place of Origin:Guangdong, China
  • Brand Name:Pana
  • Part Number:MHMF022L1V2M
  • Type:SERVO MOTOR
  • Details: High inertia, Lead wire type
  • Product name: MINAS A6 Family Servo Motor
  • Protection class: IP65
  • Holding brake: with
  • Rated rotational speed (r/min): 3000-6500
  • Rated torque (N ⋅ m): 0.64
  • Momentary Max. peak torque (N ⋅ m): 2.23
  • Mass (kg): 1.2

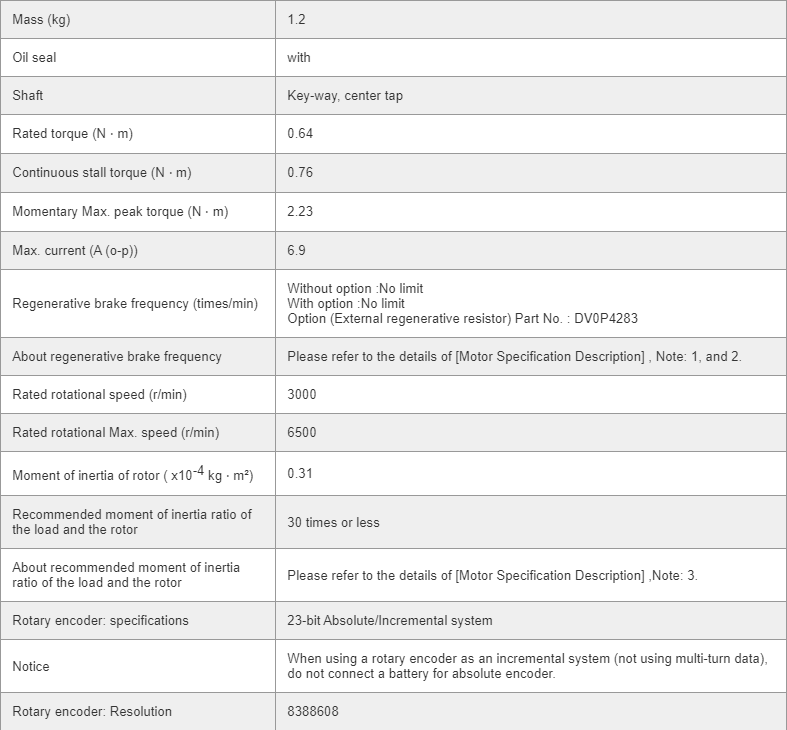

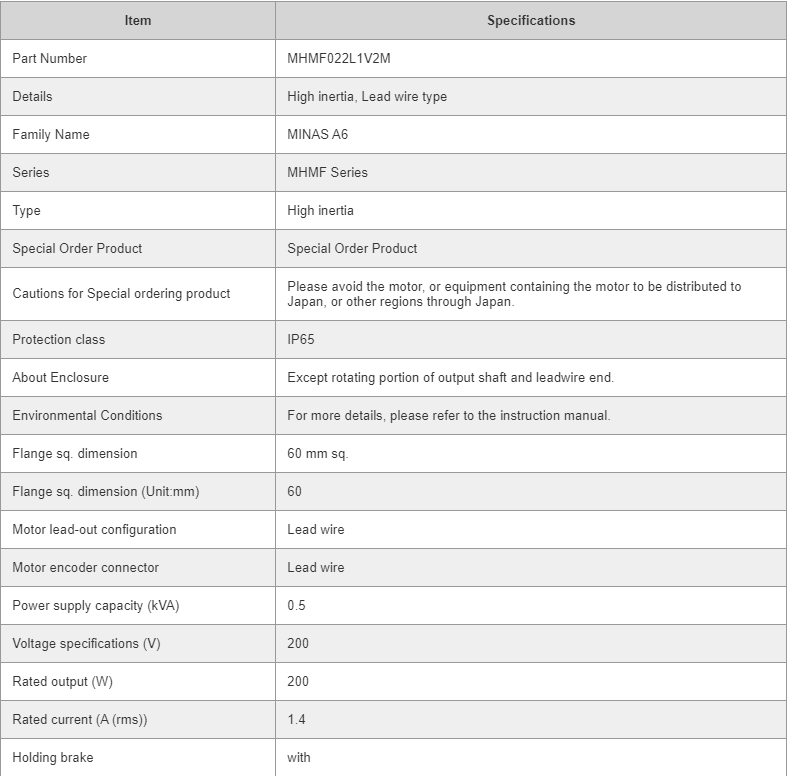

Spec Detail


Spec Detail
Spec Detail

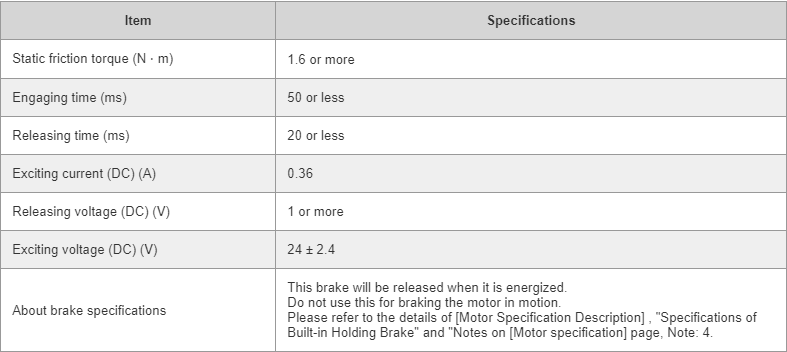

Brake specifications


Brake specifications

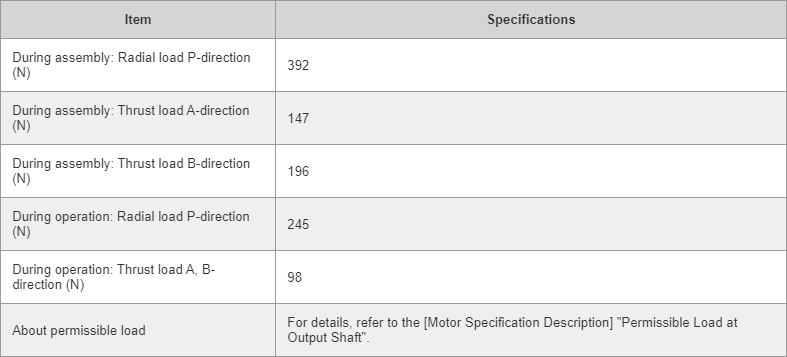

Permissible load


Permissible load

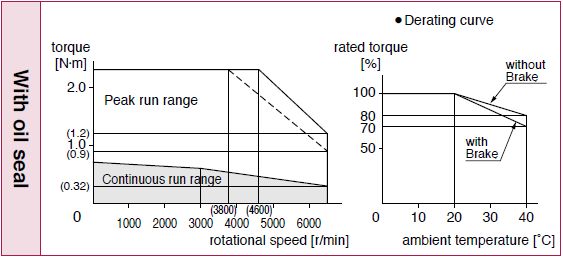

Torque charactristics


Torque charactristics

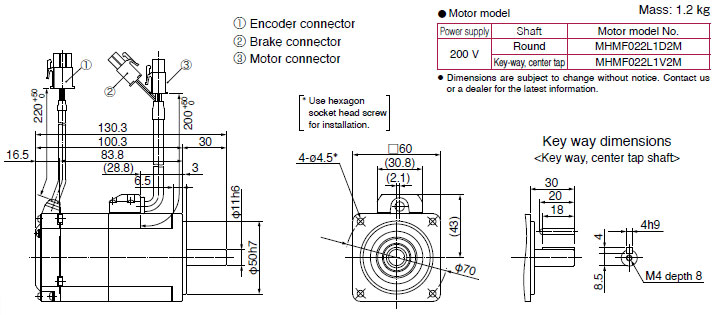

Dimensions


Dimensions
