Model No: DF/DE/DS/DA/DT/PU
Cam Indexing Table
A Cam Indexing Drive is a powerful technology used in manufacturing for precise and reliable motion control. It utilizes a cam mechanism to position machine components with high accuracy and repeatability.

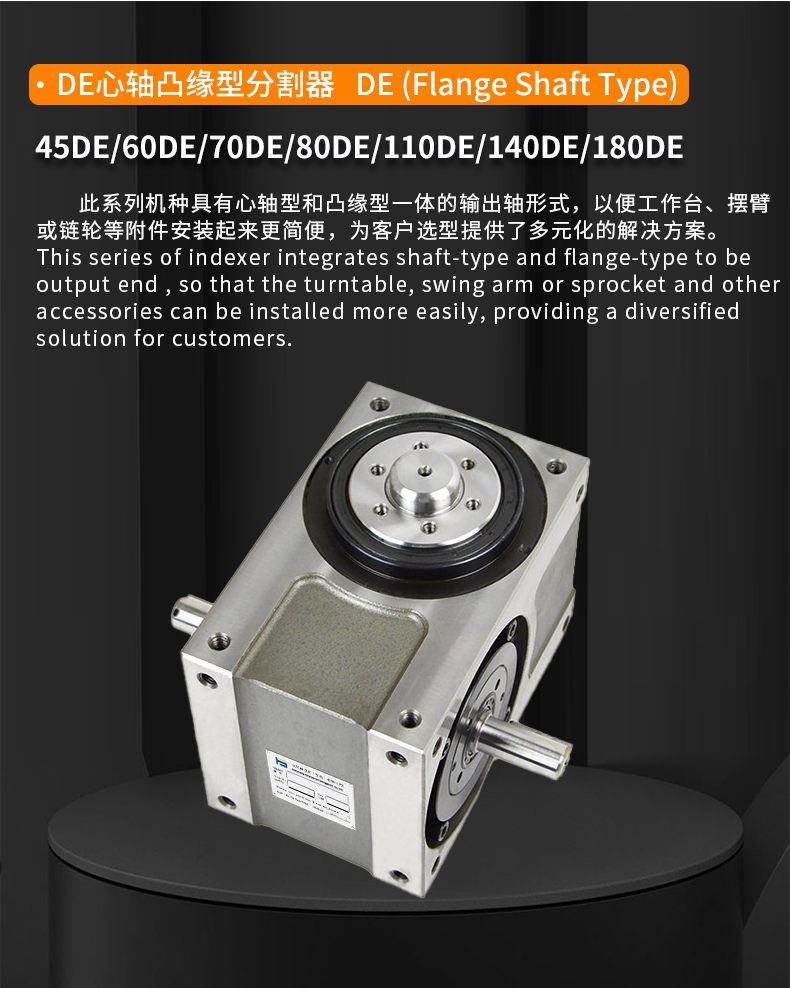

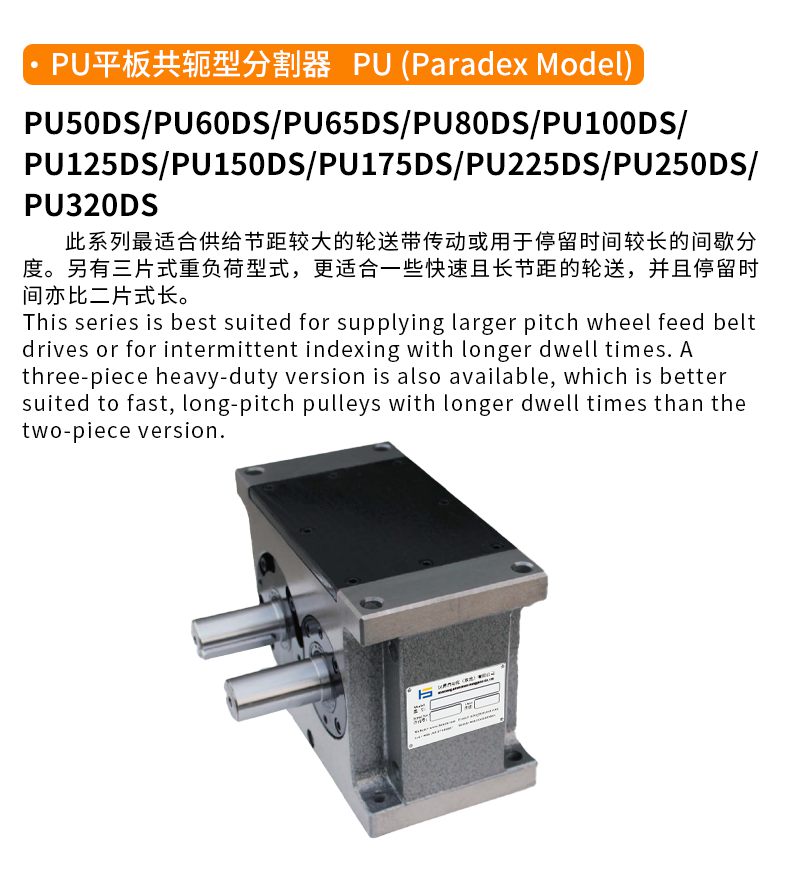

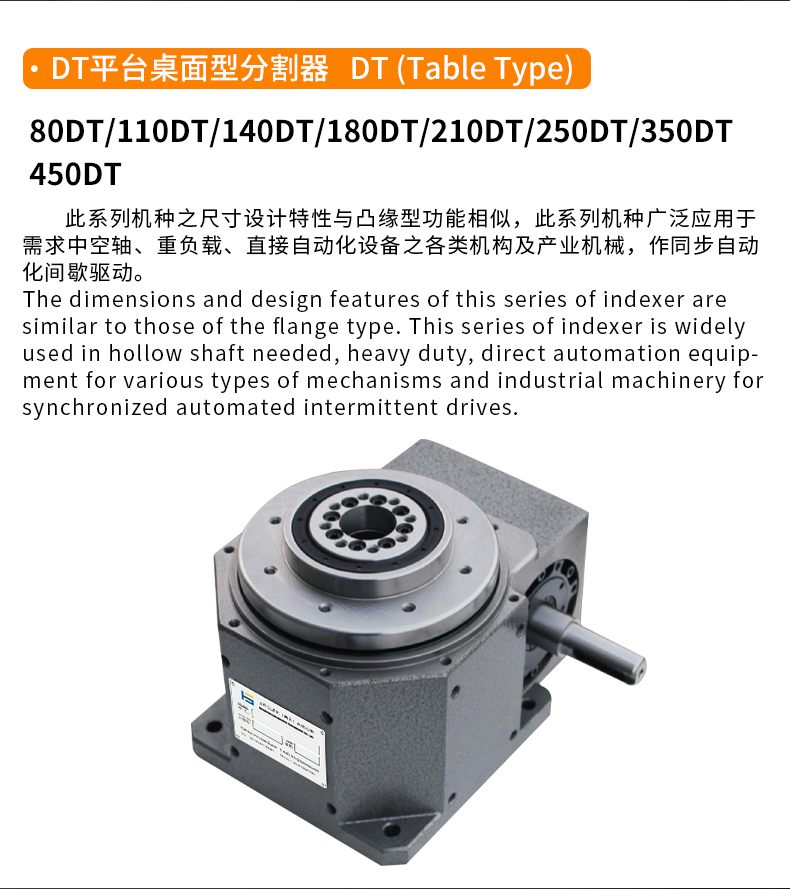

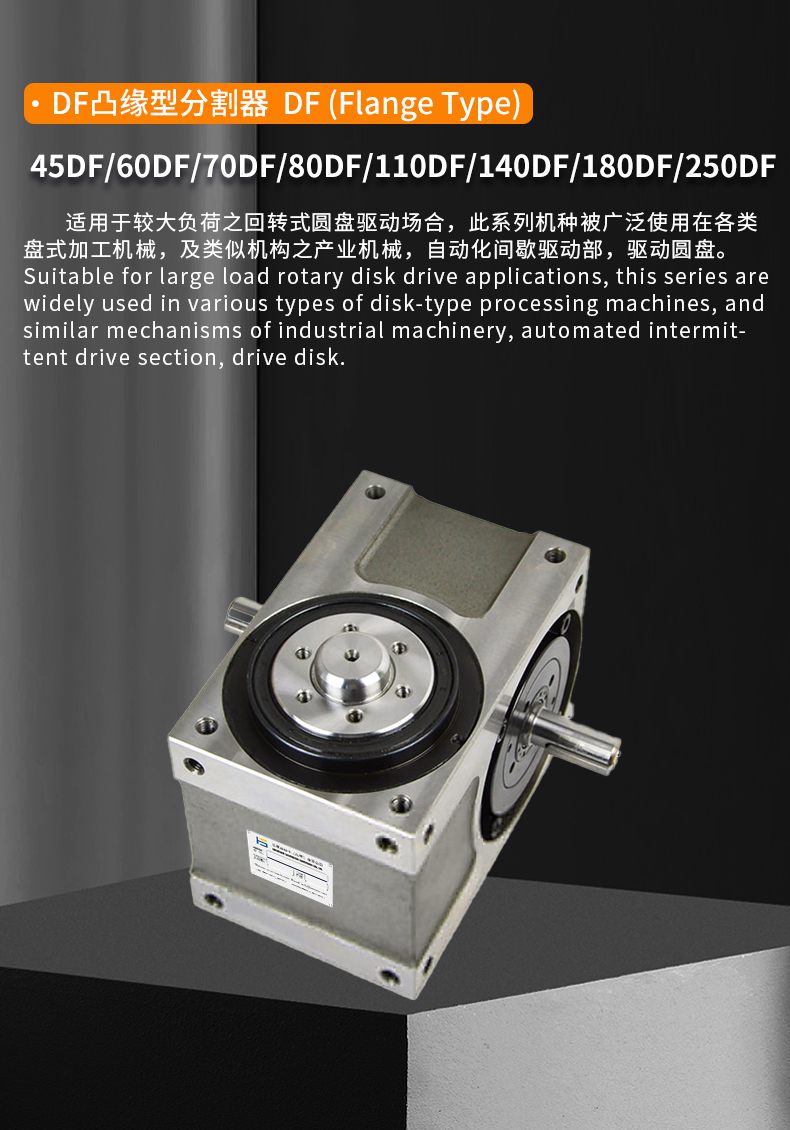

Hansheng Cam Index Drives are classified into the following six types with the configurations of the output portions: Shaft Output Model (DS), Flange Output Model (DF), Flange Shaft Output Model (DE), Table Model (DT), Ultrathin Table Model (DA), Paradex Model (PU).
We also support special dimension custom service and special cam production.
Hansheng Cam Index Drives are classified into the following six types with the configurations of the output portions: Shaft Output Model (DS), Flange Output Model (DF), Flange Shaft Output Model (DE), Table Model (DT), Ultrathin Table Model (DA), Paradex Model (PU).
We also support special dimension custom service and special cam production.
Quantity :
Cam Indexing Table
Cam Indexing Table is a common precision mechanical transmission device, which is widely used in various automated production lines and related industries. As a mechanical precision transmission device, it can be driven by an input motor to rotate to a specified angle and stay in a certain position, relying on the internal fixed cams and dynamic cams to complete the corresponding dynamic control.
Cam Indexer has high accuracy and reliability, can realize high repeatability, and has high efficiency. Therefore, it is widely used in various automated production lines, such as automatic painting, packaging and assembly lines, etc., and can meet the various requirements of different industries.Cam Indexing Drive can combine the transmission of mechanical force and precise position control, which can help enterprises to improve the production efficiency and quality of production, thus realizing cost-effectiveness.
Moreover, Cam Indexer has relatively low cost and long service life, which can realize long time continuous production, and also has many advantages such as easy maintenance and refurbishment. As a result, it has become an indispensable element in modern industrial automation.

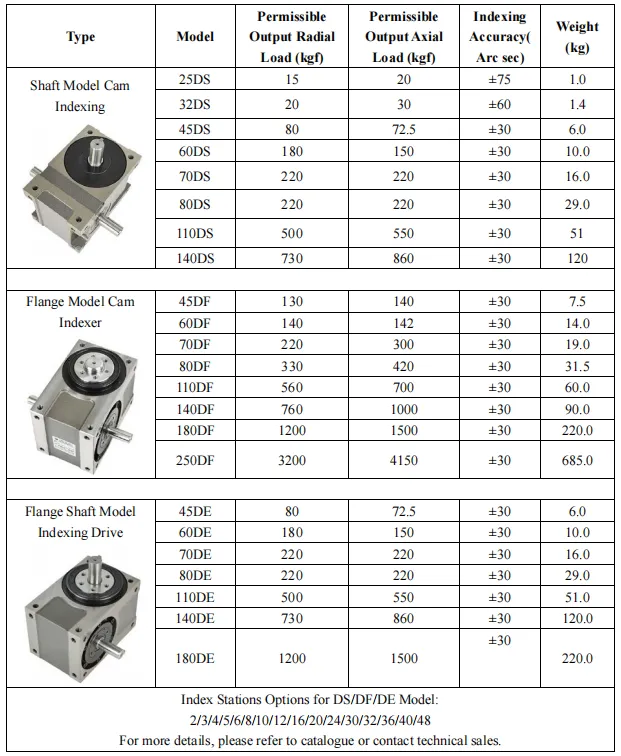

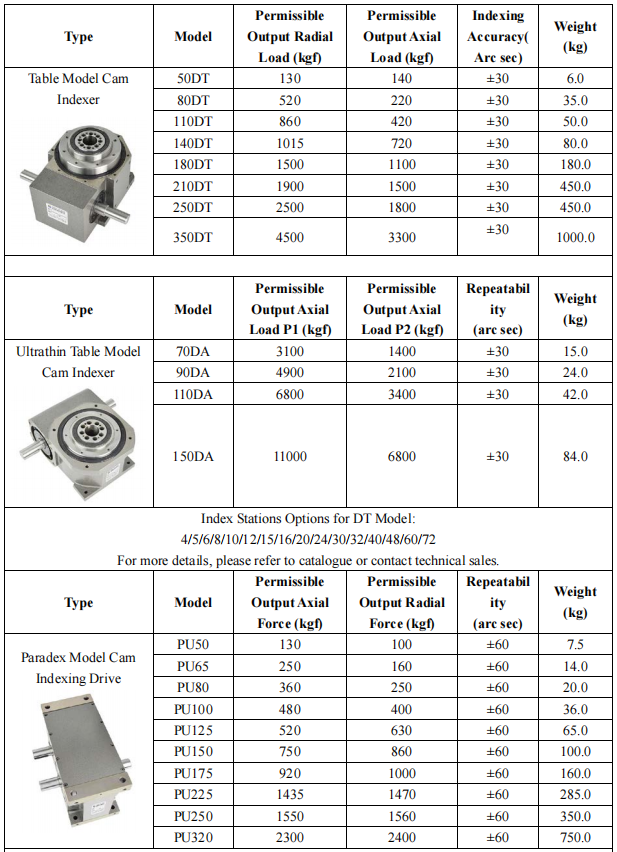

Technical Parameters
Cam Index Drives are classified into the following six types with the configurations of the output portions: Shaft Output Model (DS), Flange Output Model (DF), Flange Shaft Output Model (DE), Table Model (DT), Ultrathin Table Model (DA), Paradex Model (PU).
We also support special dimension custom service and special cam production.

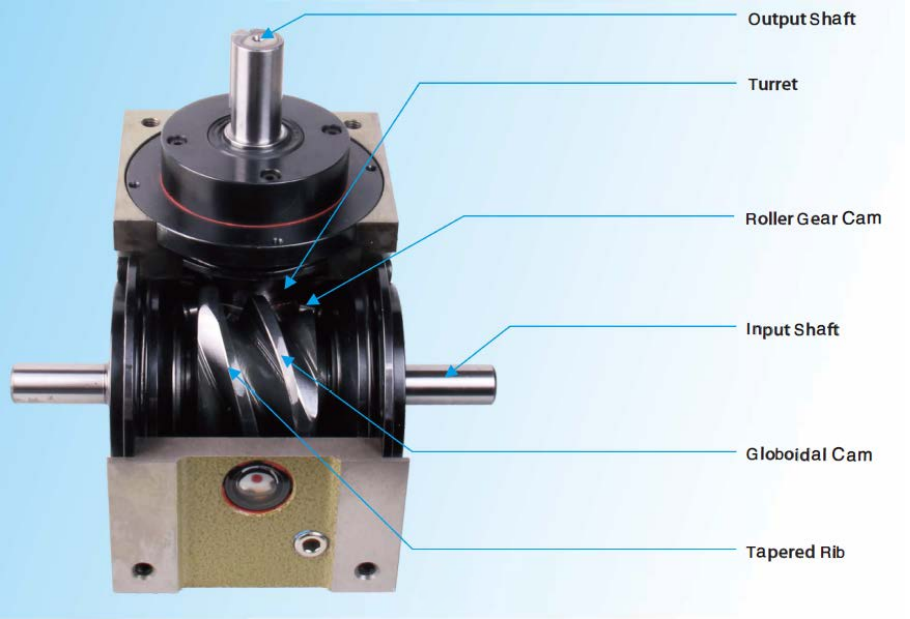

Mechanism and Structure of Hansheng Cam Indexer

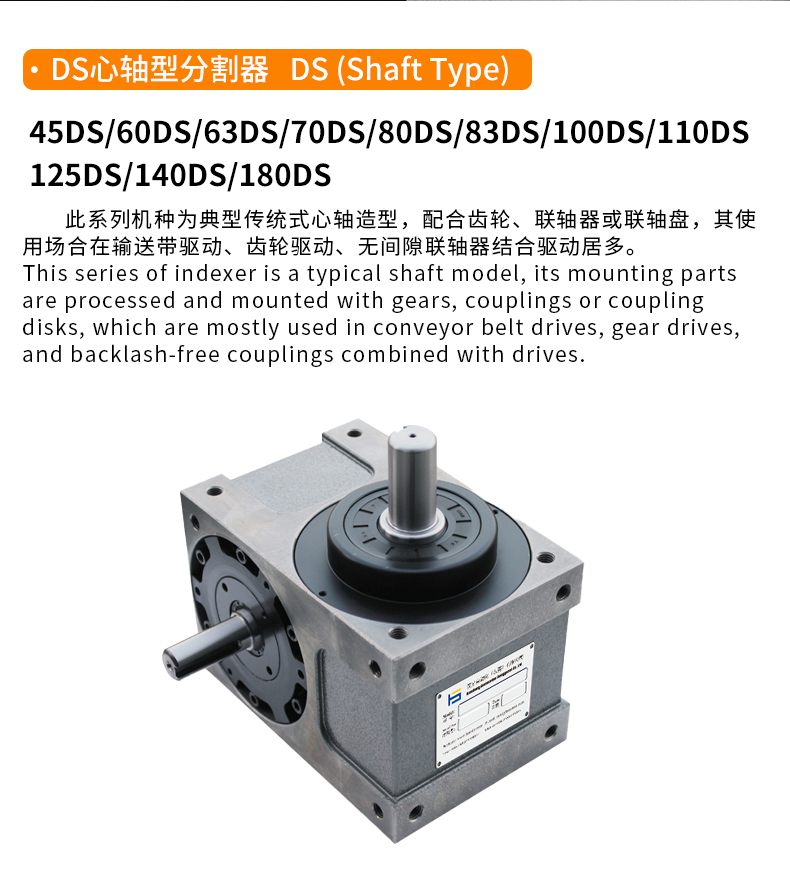

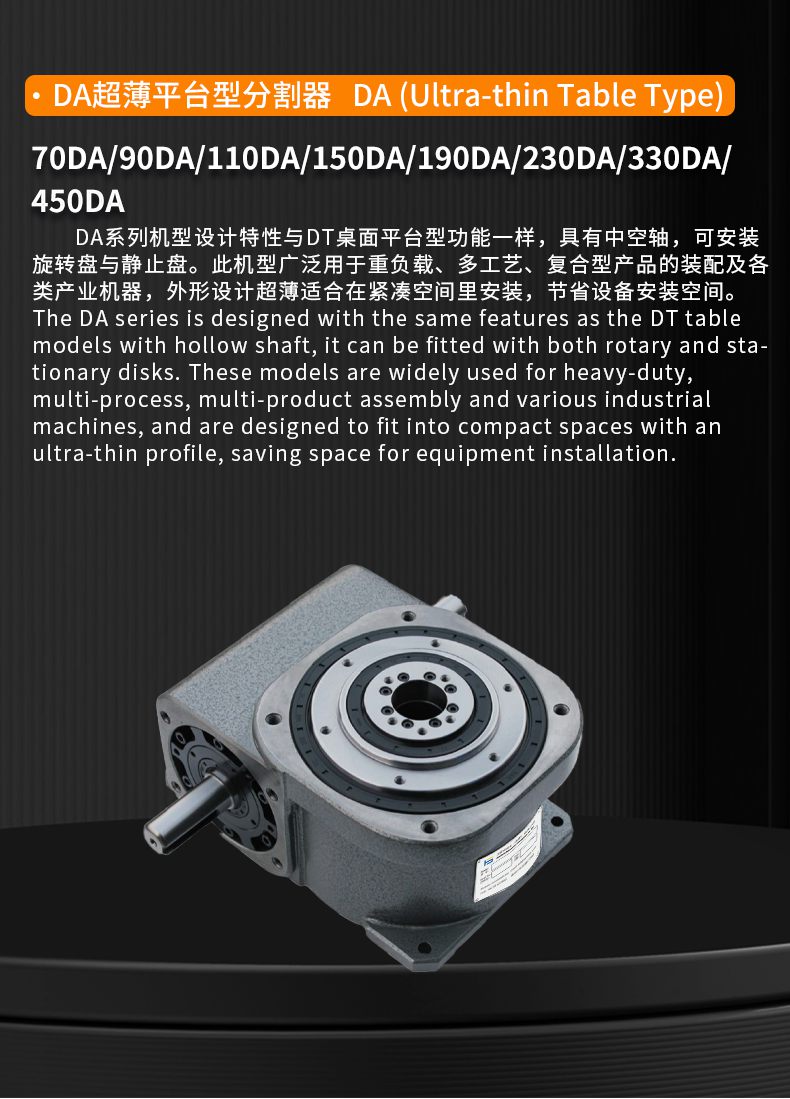

Types of Cam Indexer

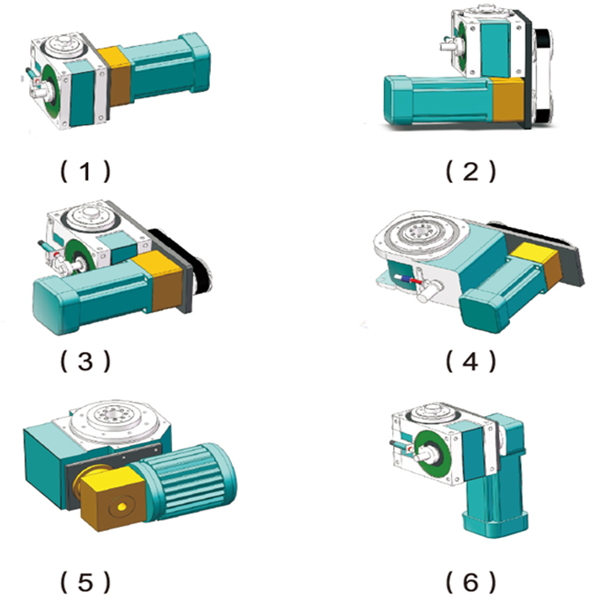

Installation Example of Indexer, Motor and Accessories
Customers

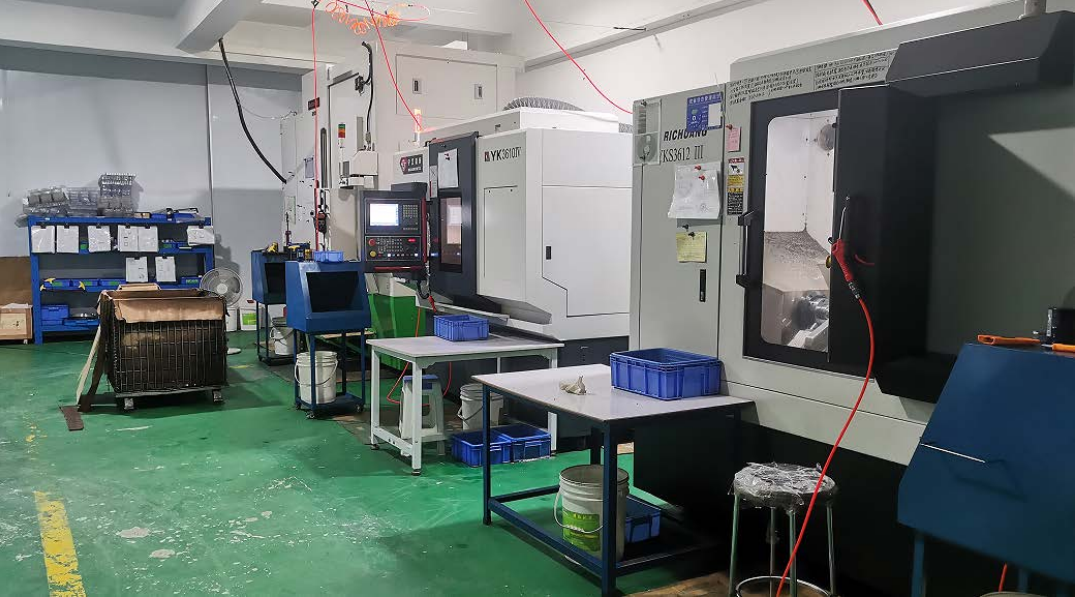

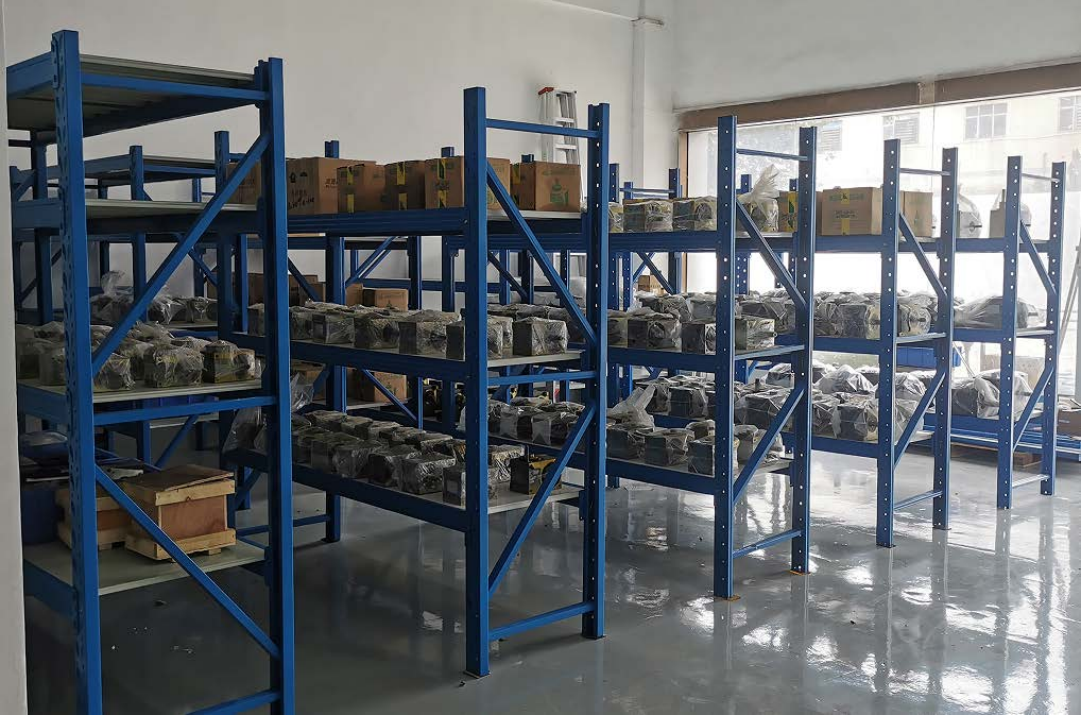

Workshop & Warehouse
FAQ
1. What is a Cam Indexing Table?
A Cam Indexing Table is a mechanical rotating device that is rotated and precisely positioned by means of a cam mechanism and an indexing mechanism.
2. What are the application areas of Cam Indexing Table?
Cam Indexing Table is widely used in automation engineering, production lines, robots, etc. It can rotate and position precisely and efficiently to improve production efficiency.
3. What are the advantages of Cam Indexing Table?
Cam Indexing Table has the advantages of precise positioning, efficient rotation, good stability and long service life. It can ensure the accuracy of rotation, stopping and positioning, improve production efficiency, reduce manual intervention, and reduce production costs.
4. How to maintain and care for Cam Indexing Table?
Cam Indexing Table needs to be lubricated and cleaned regularly during use, and the screws and fasteners of the equipment should be checked for looseness. At the same time, pay attention to avoid overloading, overheating, overspeed and other conditions to ensure the normal operation of the equipment.
5. What factors affect the service life of the Cam Indexing Table?
The service life of the Cam Indexing Table is affected by a number of factors, including the environment in which it is used, how often it is used, and how well it is maintained. In order to prolong the service life of Cam Indexing Table, you should pay attention to rational use, regular maintenance and standardized operation.
