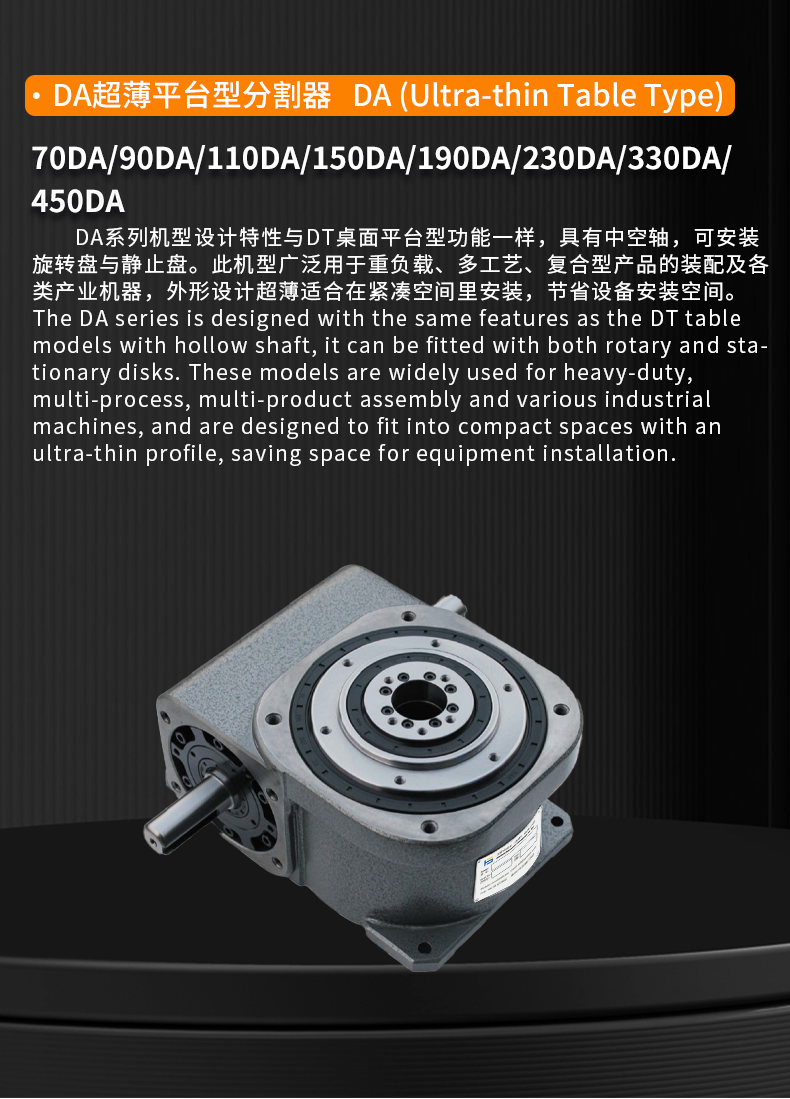

Model No: 70/90/110/150/190/230/330/450

Ultrathin Table Model Cam Indexer

As a professional DA series (Ultrathin Table Model) indexer manufacturer and supplier in China. We are able to supply a full range of indexers: 80/110/140/180/210/250/350/450. we adopt German 5-axis linkage CNC, computerized program control, cam 360° curve with perfect zero backlash!

Quantity :

Contact Now

Ultrathin Table Model Cam Indexer

Ultrathin Table Model Cam Indexer.Our team has put hundreds of hours of research and development into the design and manufacture of this stunning rotating part. We are confident that it is one of the best solutions on the market, no matter which angle and accuracy you need.

The best thing about this product is its slim design, which means that it can be installed in the smallest of spaces and perform the most complex control tasks without taking up too much machine space. One of the biggest benefits of the Ultra-thin Platform cam indexer is that it can control various types of equipment, such as packaging machinery, printing presses, and more, for a variety of your applications. It also offers excellent durability and long life, which makes our products an integral part of your manufacturing success.

We are confident that this Ultra-Thin Table Type Cam Indexing Drive will become a market-leading control component and meet all your expectations. We will continue to invest our team's energy and enthusiasm in producing the best solutions to meet your every need. If you would like to know more about our products, we have a professional staff at your disposal. Let's build a successful partnership together.

Technical Parameters

Model	70DA	90DA	110DA	150DA	190DA	230DA	330DA	450DA
Matched Motor Power（KW）	0.12/0.15	0.15/0.2	0.4/0.75	0.75/1.5	1.5/2.2	2.2/3.7	3.7	5.5
HollowAperture Diameter	17	34	45	57	100	127	100	120
Permissible Output Radial Load (kgf)	316	500	700	1200	1840	2800	3560	4850
Permissible Output Axial Load (kgf)	142	215	350	700	920	1300	3430	4160
Indexing Accuracy (Arc sec)	±30	±30	±30	±30	±30	±30	±30	±30
Weight (kg)	15	28	42	86	185	285	1000	1600
Station Numbers	2、3、4、5、6、8、10、12、15、16、20、24、30、32、36、40、48
Installation Surface	Refer to drawing
Speed of Input Shaft (RPM）	5~400（Up to actual loading）Pls inform in advance if high speed using
Note	2-12 stations are R1 single lead Above 16 stations are R2.R3.R4 multi leads

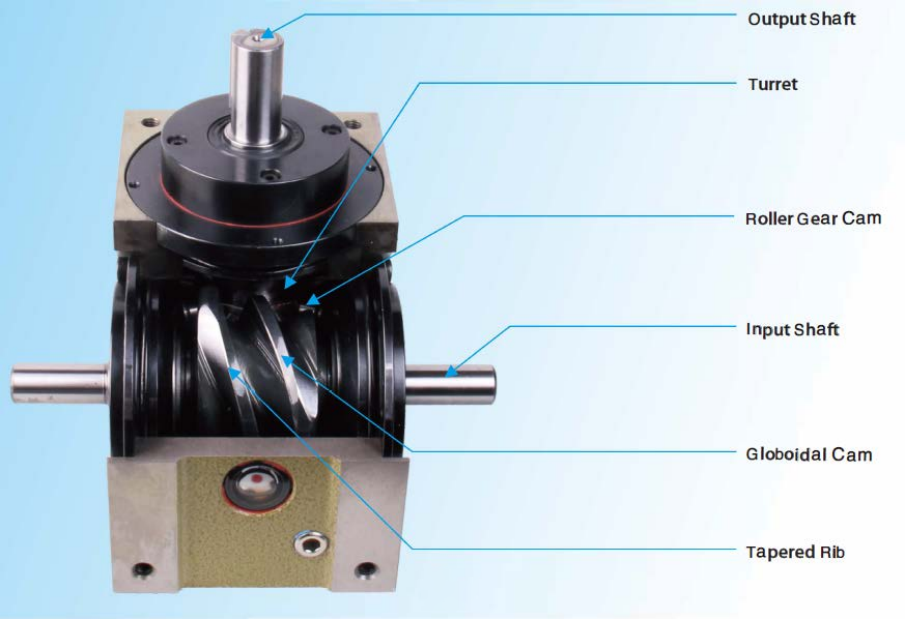

Mechanism and Structure of Hansheng Cam Indexer

Product Description

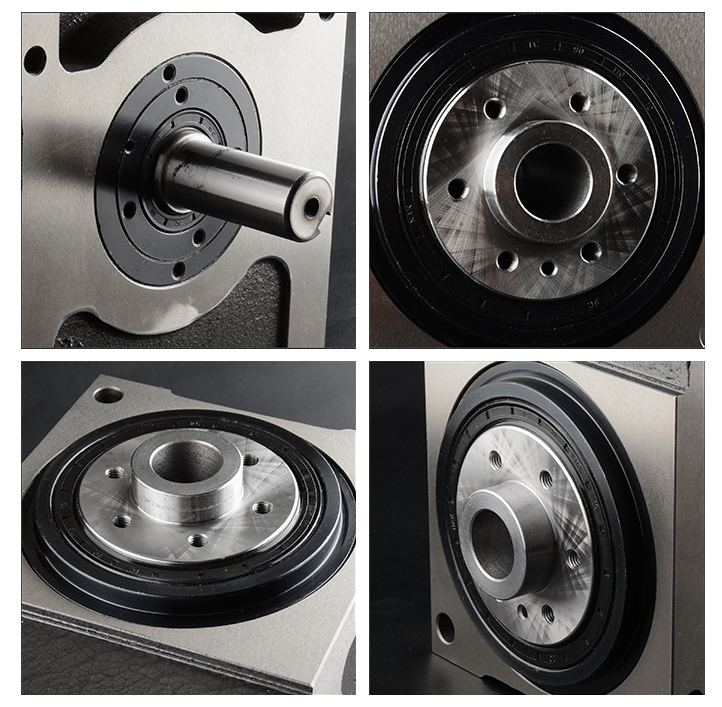

Detail

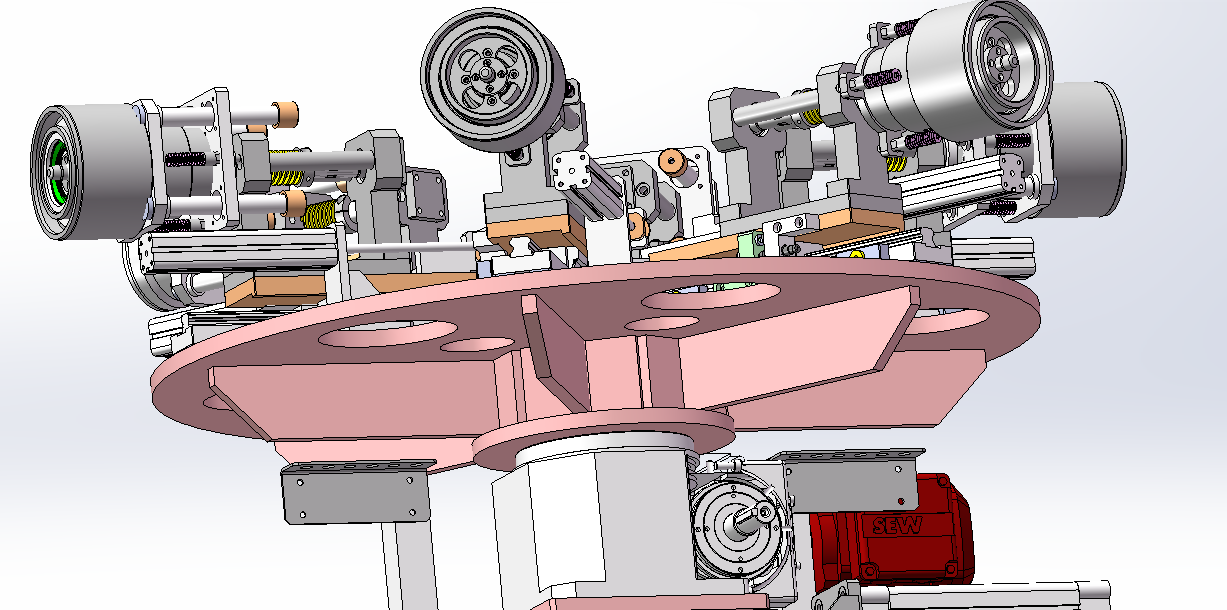

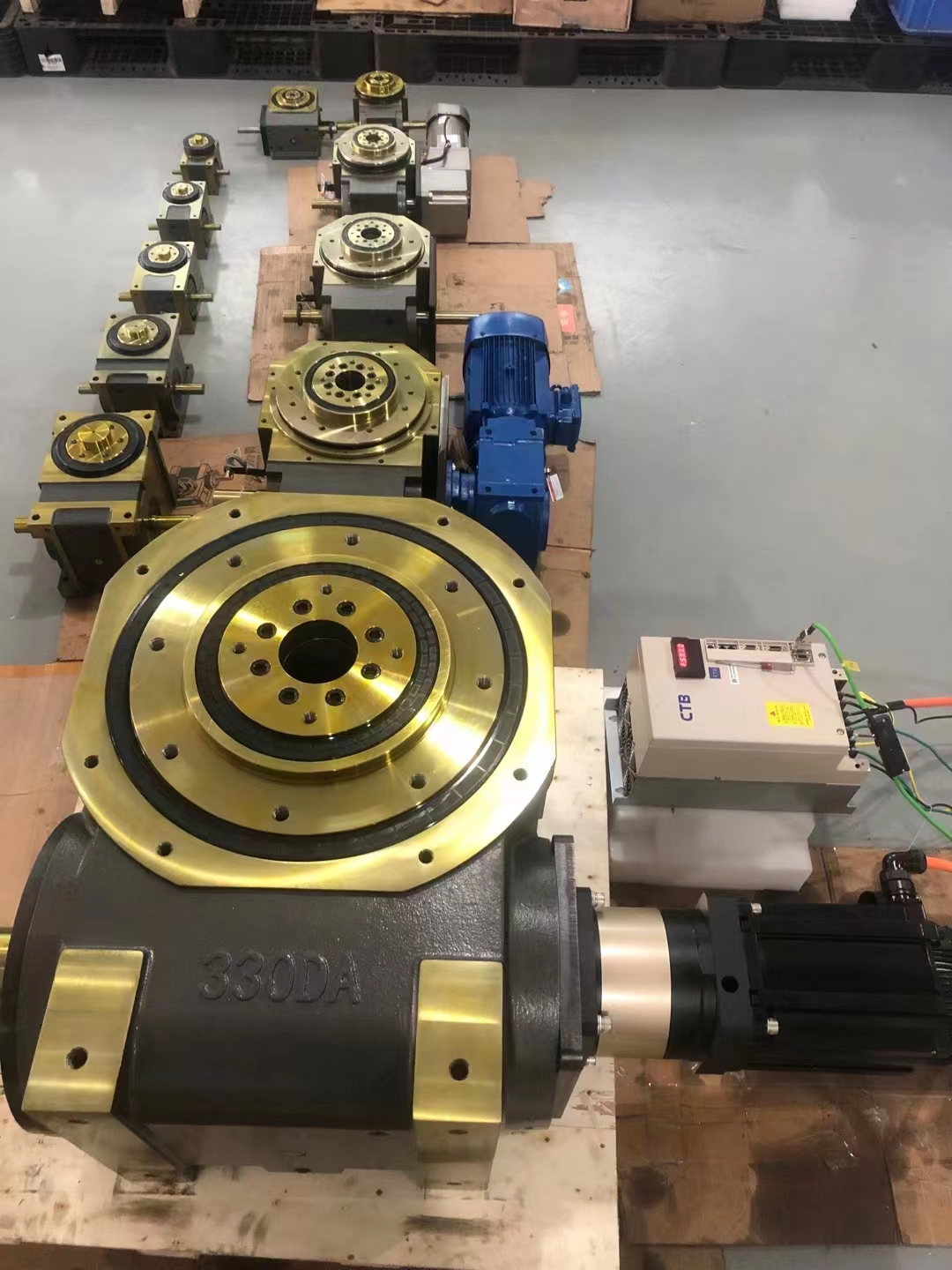

Installation Example of Indexer, Motor and Accessories
