Model No: 80/110/140/180/210/250/350/450

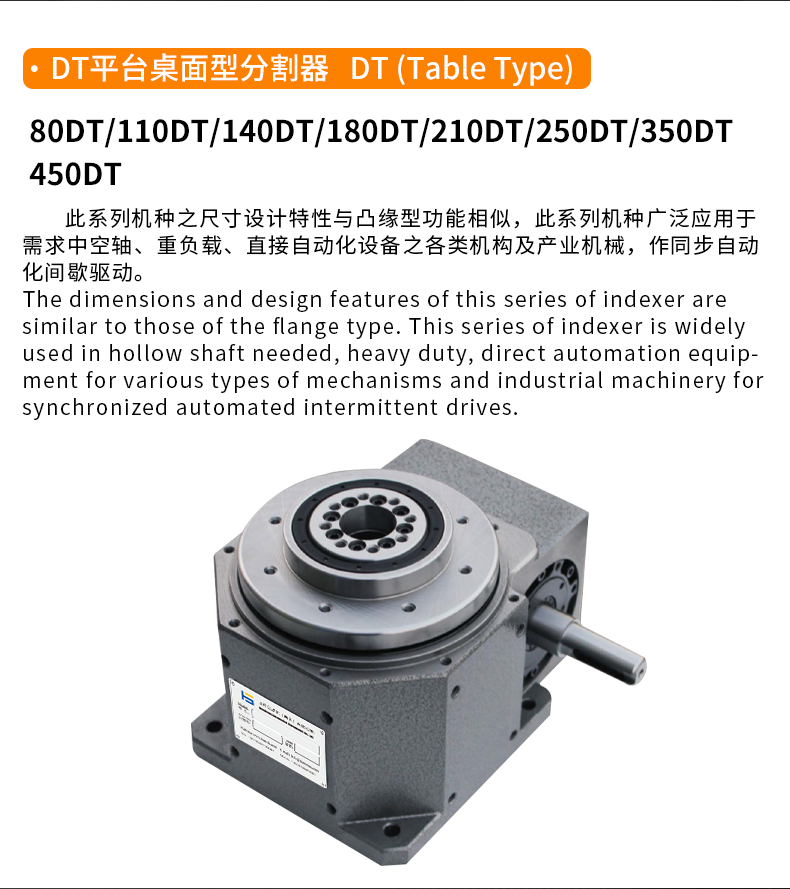

Table Type Indexing Drive

As a professional DT series (Table Type) indexer manufacturer and supplier in China. We are able to supply a full range of indexers: 80/110/140/180/210/250/350/450. we adopt German 5-axis linkage CNC, computerized program control, cam 360° curve with perfect zero backlash!

Quantity :

Contact Now

Table Type Indexing Drive

In recent years, with the development of machine automation and intelligence, various types of indexing drives have been emerging. Among these indexing drives, the Table Type Indexing Drive (also known as a rotary table) has attracted much attention for its high precision, high efficiency, and reliability. As a high-quality motion control device, we offer Table Type Indexing Drive, which is designed to provide customers with high-quality machine automation solutions.

Table Type Indexing Drive is mainly made of high-strength aluminum alloy and imported gearbox parts, with simple structure, reasonable components and scientific design. Among them, the gears are formed by the latest technology and process, with high strength, wear resistance and other performance indicators to ensure high-density, high-quality operation of the performance characteristics. The gears are accurately positioned when the drive rotates, making rotation simple and accurate.

The Table Type Indexing Drive we offer has the following features:
Firstly, high precision to meet the needs of customers in a variety of complex machine automation applications. Secondly, high efficiency, capable of high-speed rotation to improve productivity. Furthermore, it is highly reliable, adopting advanced technology to ensure reliable and stable product quality.

In addition, the Table Type Indexing Drive features an integrated controller and is lightweight and portable to meet customers' automation control needs. In addition, it is very convenient to use, characterized by simple operation and easy maintenance, which can help customers complete machining and production more conveniently.

Technical Parameters

型号Model	80DT	110DT	140DT	180DT	210DT	250DT	350DT	450DT
Matched Motor Power（KW）	0.12/0.2	0.2/0.4	0.4/0.75	0.75/1.5	0.75/1.5	1.5/2.2	2.2/3.7	3.7
HollowAperture Diameter	30	40	50	60	115	80	125	180
Permissible Output Radial Load (kgf)	520	860	1050	1500	1950	2500	4500	6500
Permissible Output Axial Load (kgf)	220	420	720	1100	1520	1800	3300	4500
Indexing Accuracy (Arc sec)	±30	±30	±30	±30	±30	±30	±30	±30
Weight (kg)	20	50	85	190	450	500	1200	2240
Station Numbers	2、3、4、5、6、8、10、12、15、16、20、24、30、32、36、40、48
Installation Surface	Reference Drawings
Speed of Input Shaft (RPM）	5~400（Up to actual loading）Pls inform in advance if high speed using
Note	2-12 stations are R1 single lead Above 16 stations are R2.R3.R4 multi leads
型号Model	80DT	110DT	140DT	180DT	210DT	250DT	350DT	450DT
Matched Motor Power（KW）	0.12/0.2	0.2/0.4	0.4/0.75	0.75/1.5	0.75/1.5	1.5/2.2	2.2/3.7	3.7
HollowAperture Diameter	30	40	50	60	115	80	125	180
Permissible Output Radial Load (kgf)	520	860	1050	1500	1950	2500	4500	6500
Permissible Output Axial Load (kgf)	220	420	720	1100	1520	1800	3300	4500
Indexing Accuracy (Arc sec)	±30	±30	±30	±30	±30	±30	±30	±30
Weight (kg)	20	50	85	190	450	500	1200	2240
Station Numbers	2、3、4、5、6、8、10、12、15、16、20、24、30、32、36、40、48
Installation Surface	Reference Drawings
Speed of Input Shaft (RPM）	5~400（Up to actual loading）Pls inform in advance if high speed using
Note	2-12 stations are R1 single lead Above 16 stations are R2.R3.R4 multi leads

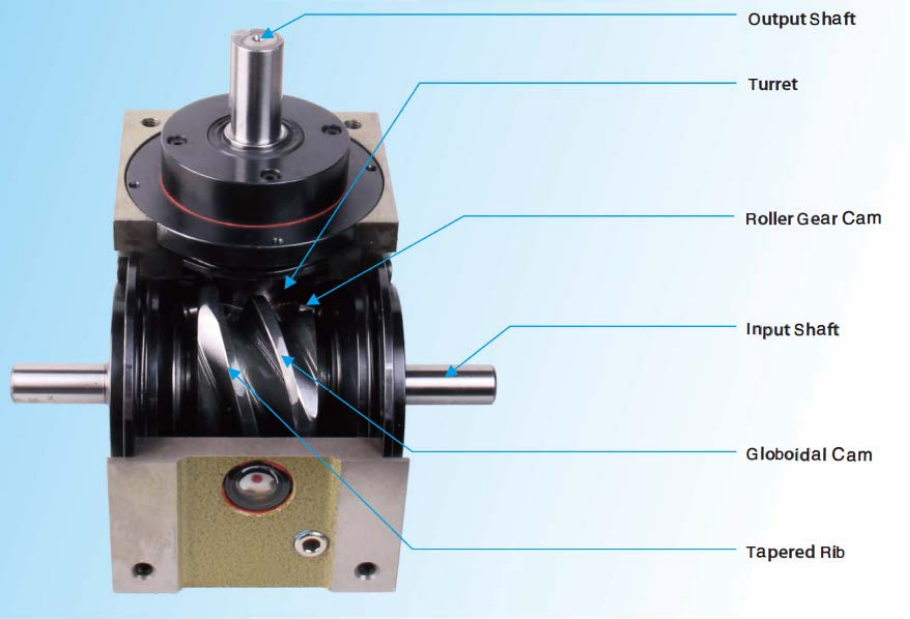

Mechanism and Structure of Hansheng Cam Indexer

Product Description

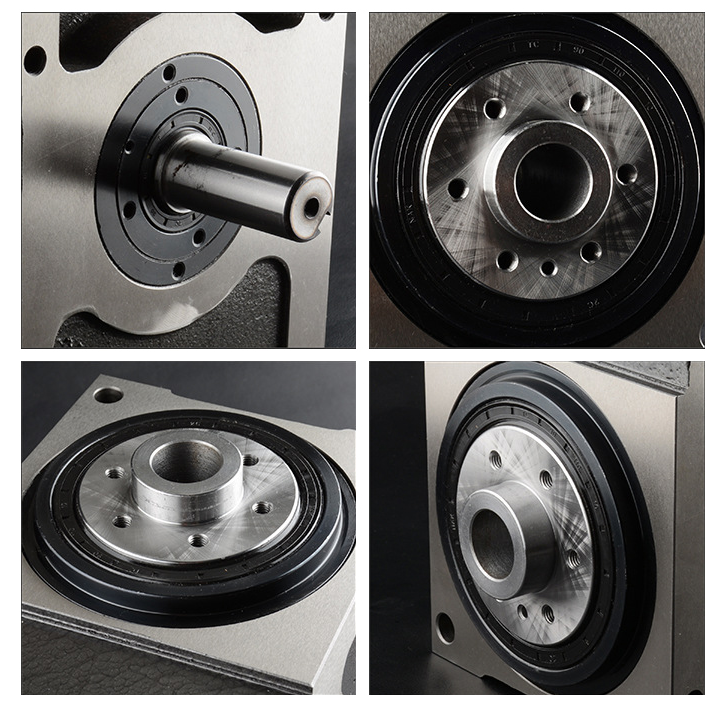

Detail

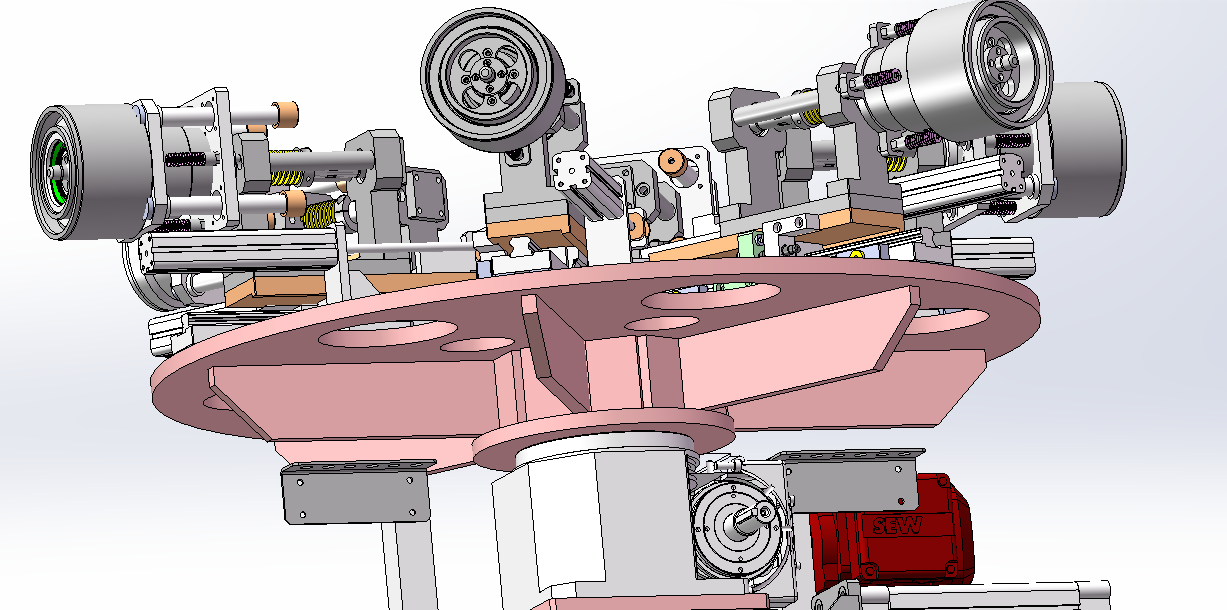

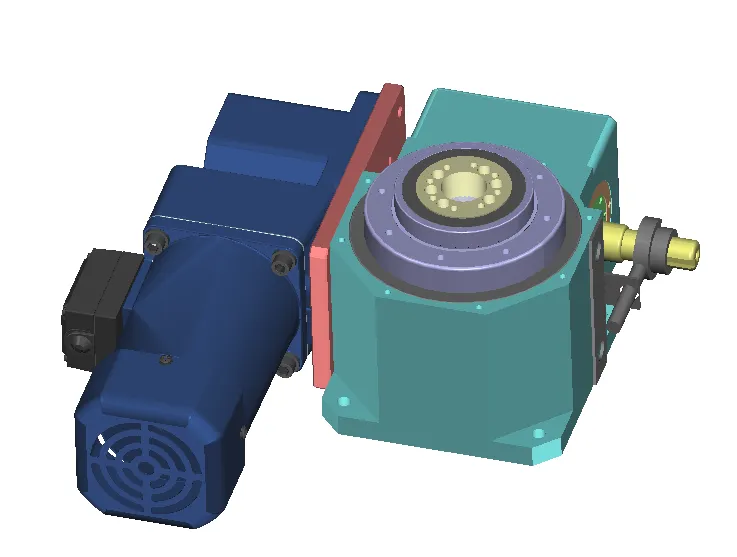

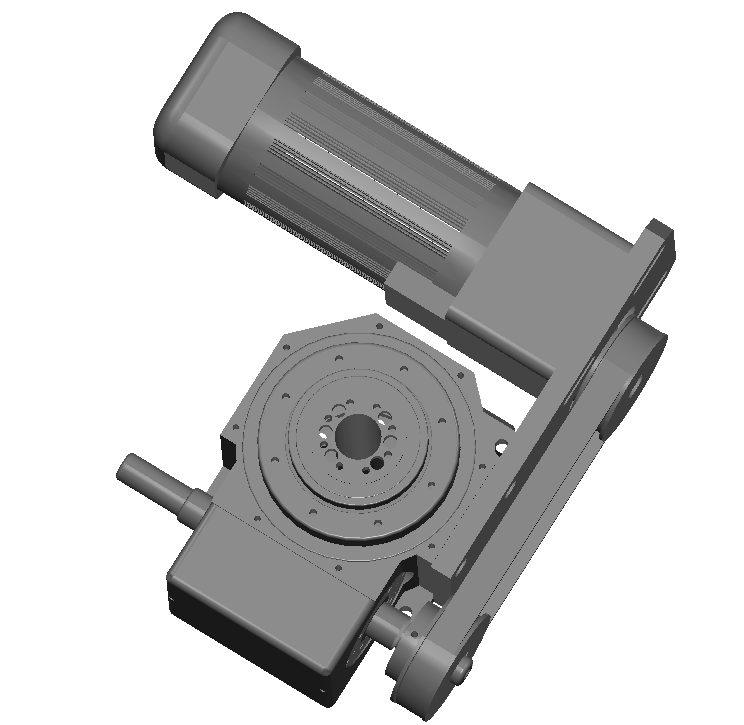

Installation Example of Indexer, Motor and Accessories

Application

Customers

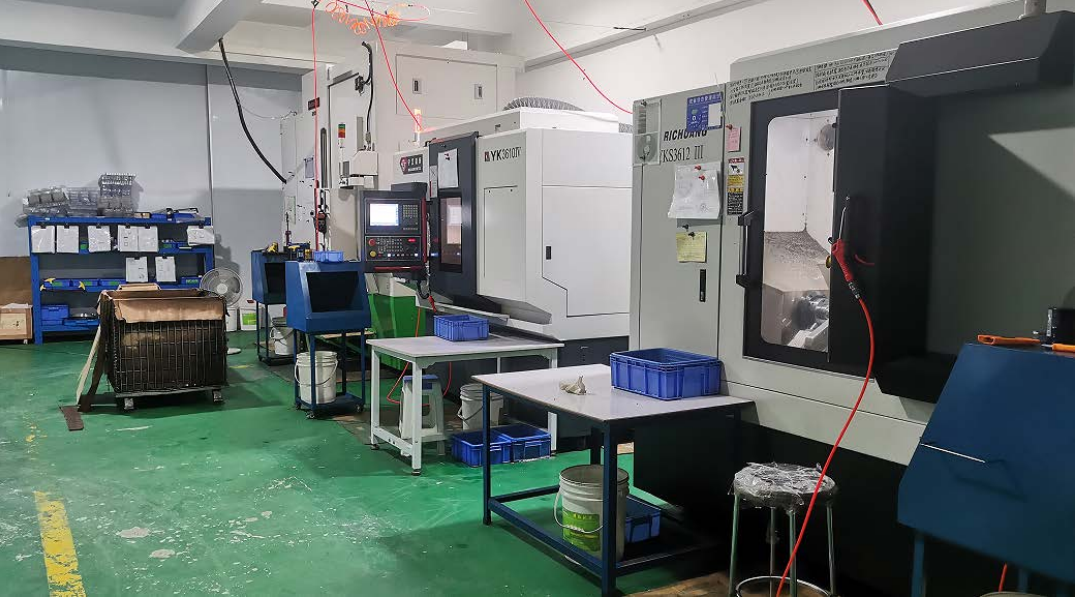

Manufacturing Equipment

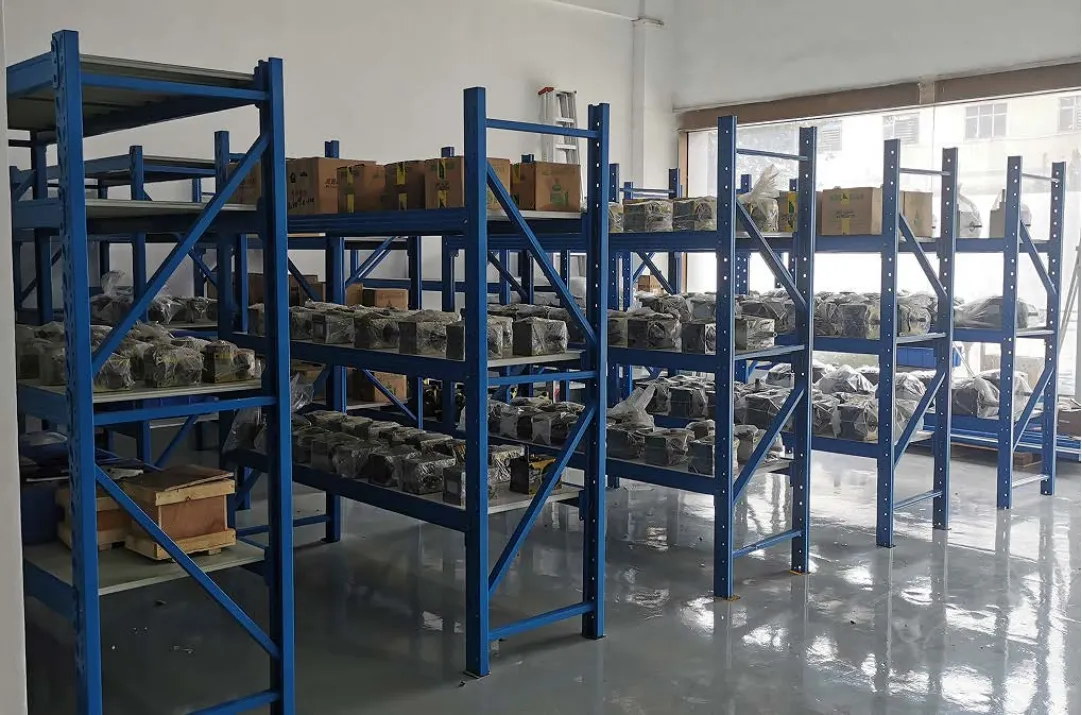

Workshop & Warehouse

FAQ

1. What is a Table Type Indexing Drive?

A Table Type Indexing Drive is a mechanical drive used to control motion and position changes. It enables industrial equipment and robots to operate and position themselves in a reliable and precise manner.

2. What are the applications of Table Type Indexing Drive?

Table Type Indexing Drives are widely used in semiconductor, medical, automotive, aerospace, pharmaceutical and food processing applications. In these areas, Table Type Indexing Drives are used for tasks such as processing, testing, packaging, assembly and transportation.

3. What are the advantages of Table Type Indexing Drive?

The advantage of the Table Type Indexing Drive is that it makes movements and position changes more reliable and precise. It reduces errors and scrap while increasing productivity and quality. In addition, the design of the Table Type Indexing Drive allows it to be adapted to a variety of environments and application scenarios.

4. What do I need to pay attention to with Table Type Indexing Drive?

When using a Table Type Indexing Drive, there are a number of issues to be aware of, such as keeping it well maintained and serviced, avoiding overloading and overuse, as well as proper safety training and operation. In addition, it is necessary to select the appropriate model and configuration for the specific application requirements.
