Model No: 45/60/70/80/110/140/180
Flange Shaft Indexing Tables
As a professional DE series (Flange Shaft) indexer manufacturer and supplier in China. We are able to supply a full range of indexers: 45/60/70/80/110/140/180. we adopt German 5-axis linkage CNC, computerized program control, cam 360° curve with perfect zero backlash!
Quantity :
Flange Shaft Indexing Tables
Flange Shaft Indexing Tables are a kind of high-precision and high-efficiency rotary equipment, widely used in various industrial production fields. The equipment has a precise transmission structure, can carry out high-speed rotation and precise positioning operations, and also has the advantages of high load-bearing capacity and durability, which is one of the indispensable equipments in the modern production line.
Flange Shaft Indexing Tables are made of solid materials with high precision and play an important role in industrial production, machine building, aerospace, automation engineering and many other fields. Driven by precise indexing dials, the equipment is capable of angular rotation, high-speed positioning and precise clamping of various workpieces, and at the same time can carry out high-load, high-precision work requirements.
Flange Shaft Indexing Tables are being used more and more widely in various industrial production fields. For example, in the manufacturing industry, the common automatic assembly line needs to carry out positioning and clamping, rotary accuracy requirements of high occasions, at this time Flange Shaft Indexing Tables can be perfectly competent. Flange Shaft Indexing Tables also play an important role in machine tool processing. For example, when high precision machining requires multi-faceted machining and positioning, Flange Shaft Indexing Tables are able to provide 360 degree positioning to ensure that the quality of the machining meets the requirements.
Flange Shaft Indexing Tables also play an important role in aerospace and automation engineering. For example, in the aerospace industry, Flange Shaft Indexing Tables are used for precise positioning and clamping to ensure high precision measurements. In automated production lines, Flange Shaft Indexing Tables can be rotated and positioned as needed to increase productivity.
All in all, Flange Shaft Indexing Tables are important equipments in modernized production lines, which have the advantages of high precision, high efficiency, high load capacity, strong durability, etc., and have been widely used in many fields such as industrial production, machinery manufacturing, aerospace, automation engineering, etc. We believe that with the continuous progress of science and technology, Flange Shaft Indexing Tables will be more and more widely used and make more important contributions to the development of industrial production.
Technical Parameters
型号Model | 45DE | 60DE | 70DE | 80DE | 110DE | 140DE | 180DE |
Matched Motor Power（KW） | 0.06/0.09 | 0.09/0.12 | 0.12/0.15 | 0.15/0.37 | 0.37/0.75 | 0.75/1.5 | 1.5/2.2 |
Permissible Output Radial Load (kgf) | 130 | 140 | 220 | 330 | 560 | 760 | 1200 |
Permissible Output Axial Load (kgf) | 140 | 142 | 300 | 420 | 700 | 1000 | 1500 |
Indexing Accuracy (Arc sec) | ±30 | ±30 | ±30 | ±30 | ±30 | ±30 | ±30 |
Weight (kg) | 7.0 | 13.0 | 18.0 | 32.0 | 65.0 | 90.0 | 220.0 |
Station Numbers | 2、3、4、5、6、8、10、12、15、16、20、24、30、32、36、40、48 | ||||||
Installation Surface | VW 1-6 any surface mounting | ||||||
Speed of Input Shaft (RPM） | 5~800（Up to actual loading）Pls inform in advance if high speed using | ||||||
Note | 2-12 stations are R1 single lead Above 16 stations are R2.R3.R4 multi leads | ||||||

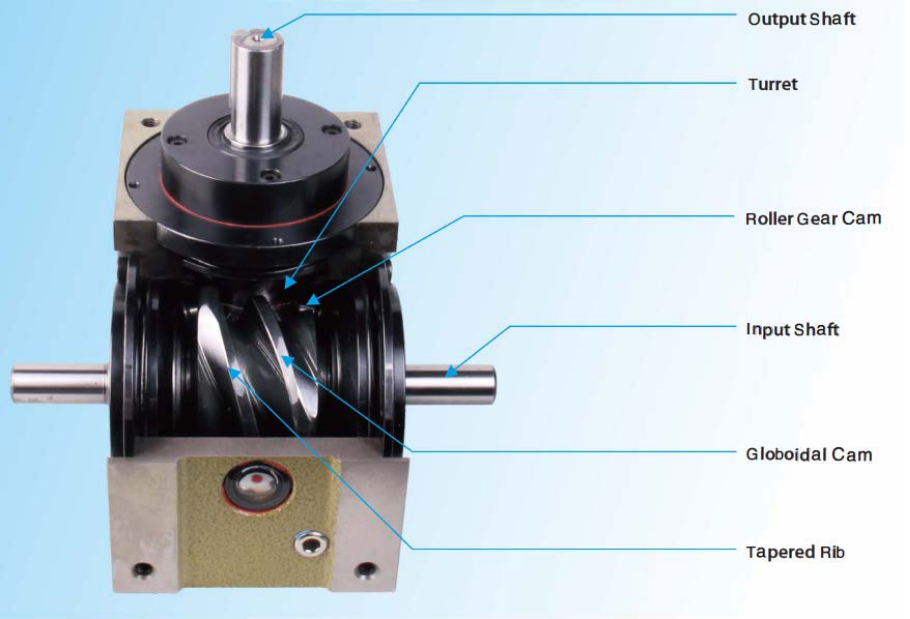

Mechanism and Structure of Hansheng Cam Indexer
Product Description

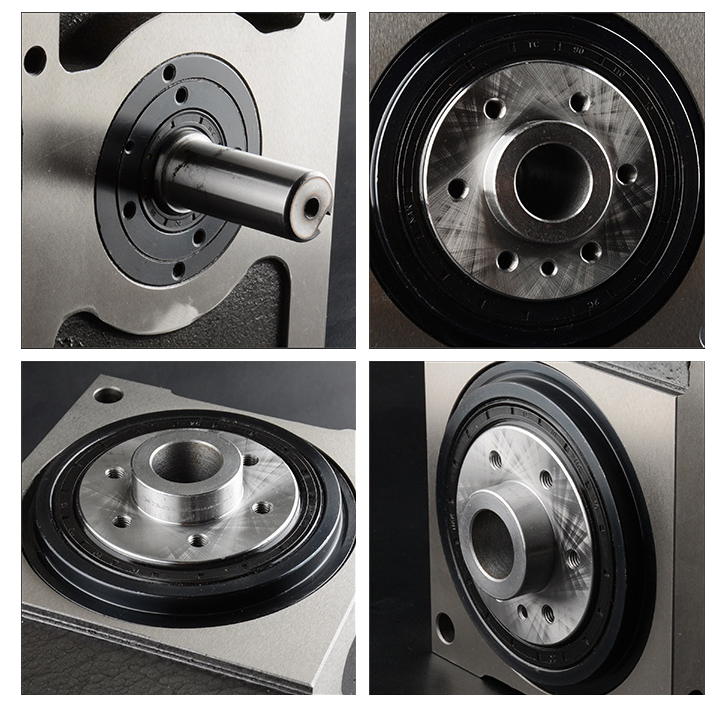

Detail

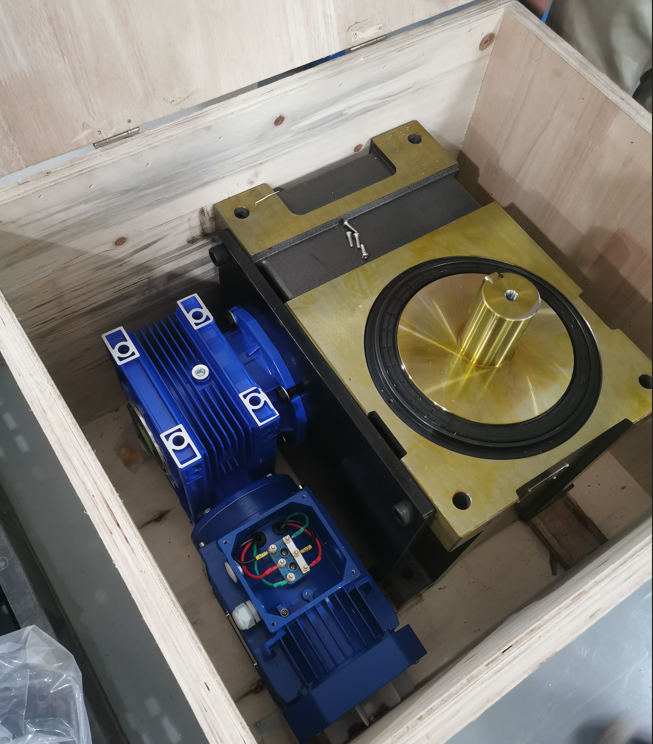

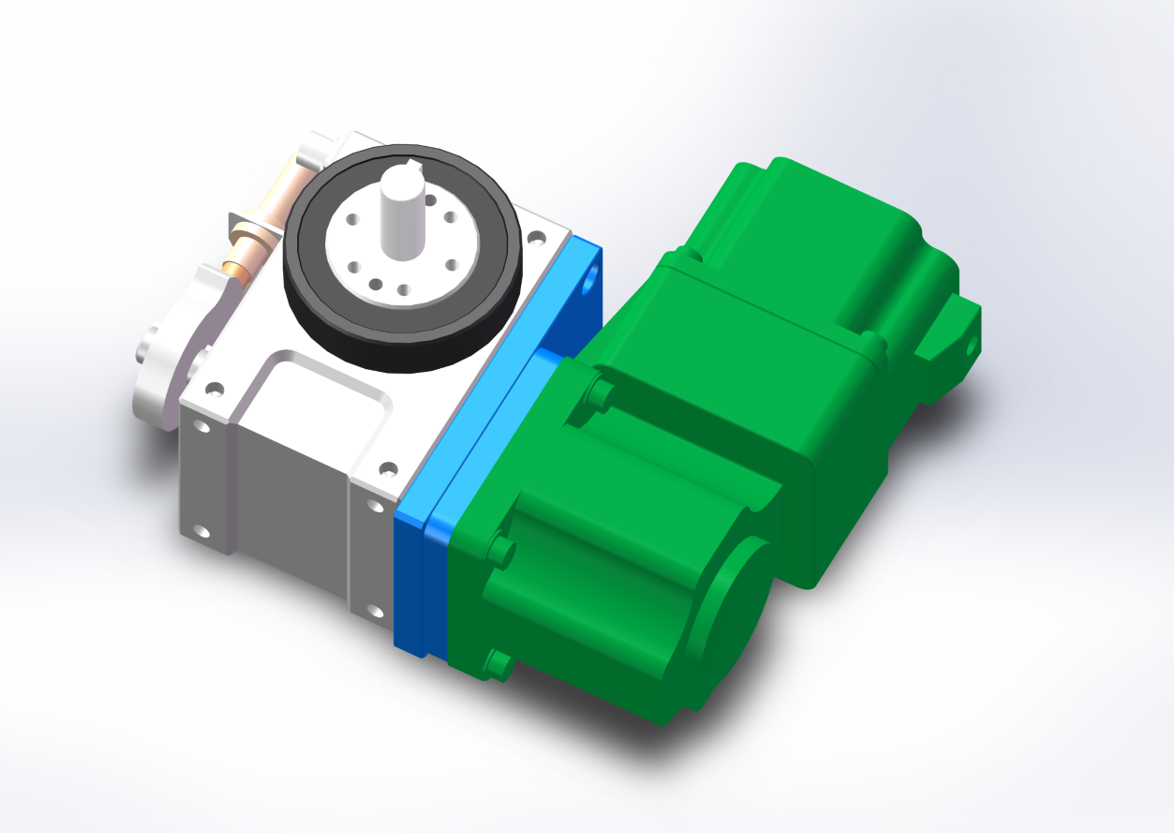

Installation Example of Indexer, Motor and Accessories
Application
Customers
Manufacturing Equipment

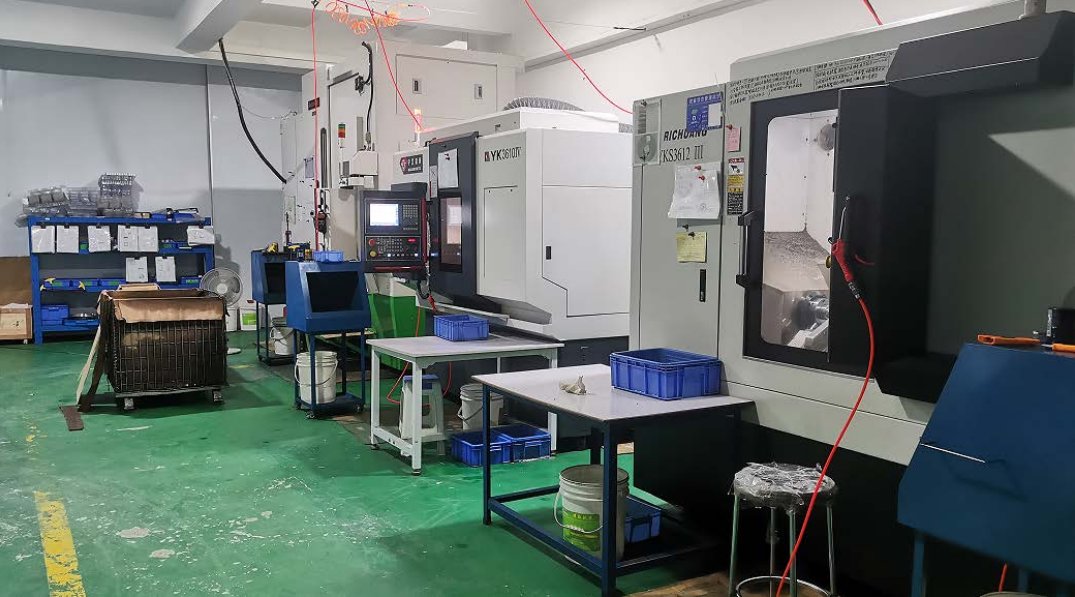

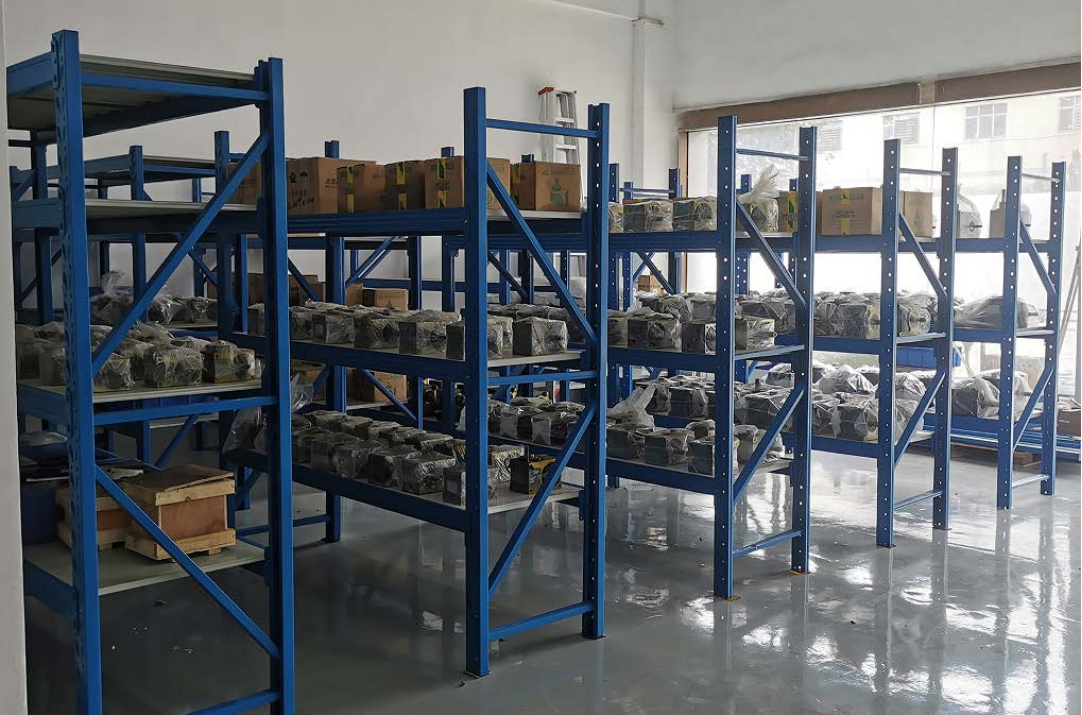

Workshop & Warehouse
