Model No: 45/60/63/70/80/83/100/110/125/140/180

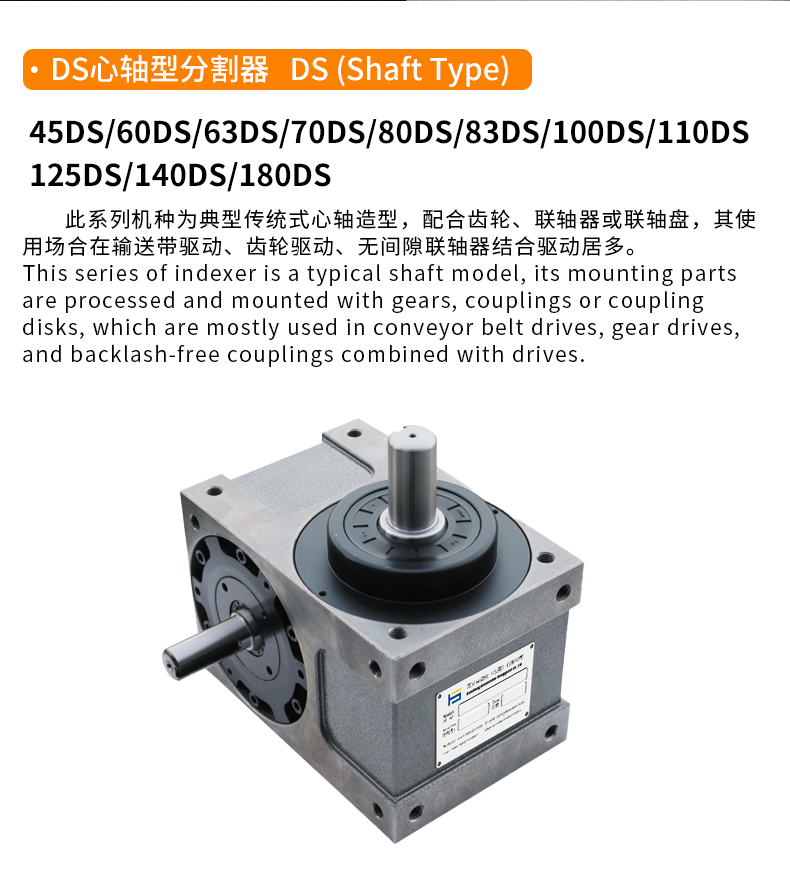

Shaft Model Cam Indexer

As a professional ds series (shaft type) indexer manufacturer and supplier in China. We are able to supply a full range of indexers: 45/60/63/70/80/83/100/110/125/140/180. we adopt German 5-axis linkage CNC, computerized program control, cam 360° curve with perfect zero backlash!

Quantity :

Contact Now

Shaft Model Cam Indexer

Shaft Model Indexing Table is a precision device that is used to position and index components in automated manufacturing processes. It is designed with a cam and shaft mechanism that allows for accurate indexing of components, making it ideal for high-speed production lines. The shaft model cam indexer is made with advanced technologies that ensure its durability, precision, and efficiency. The Indexing Drive comes in various sizes and configurations, making it adaptable to different manufacturing needs. It simplifies processes that are tedious for humans, and eliminates errors and inconsistencies in production. Its positive impact on production processes makes it an indispensable tool in modern-day manufacturing.

Technical Parameters

Model	45DS	60DS	63DS	70DS	80DS	83DS	100DS	110DS	125DS	140DS	180DS
Matched Motor Power（KW）	0.06/0.09	0.09/0.12	0.09/0.12	0.12/0.15	0.15/0.37	0.15/0.37	0.37/0.75	0.37/0.75	0.75/1.5	0.75/1.5	1.5/2.2
Permissible Output Radial Load (kgf)	80	180	180	220	220	330	400	500	600	730	1200
Permissible Output Axial Load (kgf)	72.5	150	150	220	220	420	450	550	630	860	1500
Indexing Accuracy (Arc sec)	±30	±30	±30	±30	±30	±30	±30	±30	±30	±30	±30
Weight (kg)	7.0	13.0	15.0	18.0	32.0	26.5	50.0	65.0	75.0	90.0	220.0
Special Requirement for DS Model	Add length for Input Shaft and Output Shaft
Station Numbers	2、3、4、5、6、8、10、12、15、16、20、24、30、32、36、40、48
Installation Surface	VW 1-6 any surface mounting
Speed of Input Shaft (RPM）	5~800（Up to actual loading）Please inform in advance if high speed using
Note	Above 16 stations are R2.R3.R4 multi leads

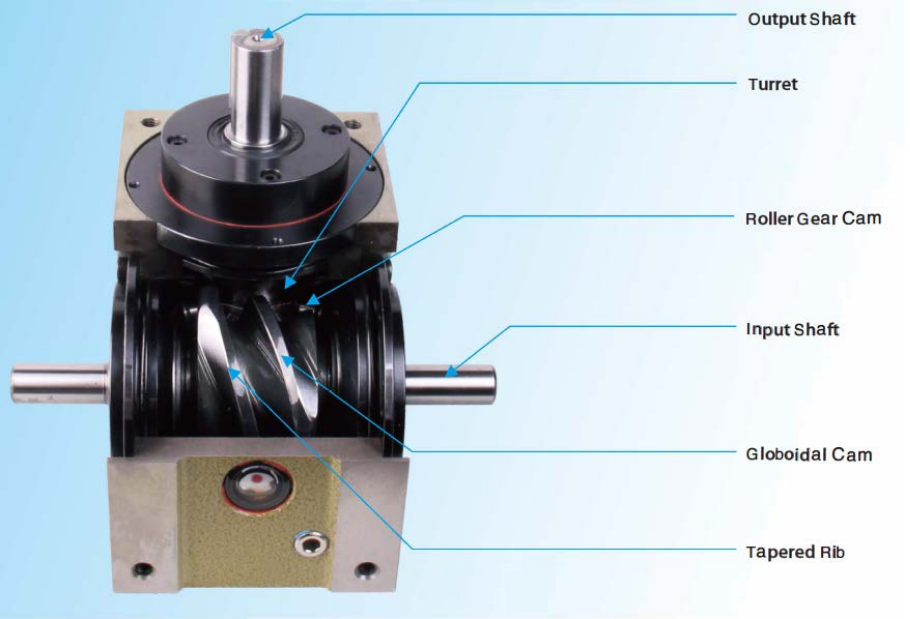

Mechanism and Structure of Hansheng Cam Indexer

Product Description

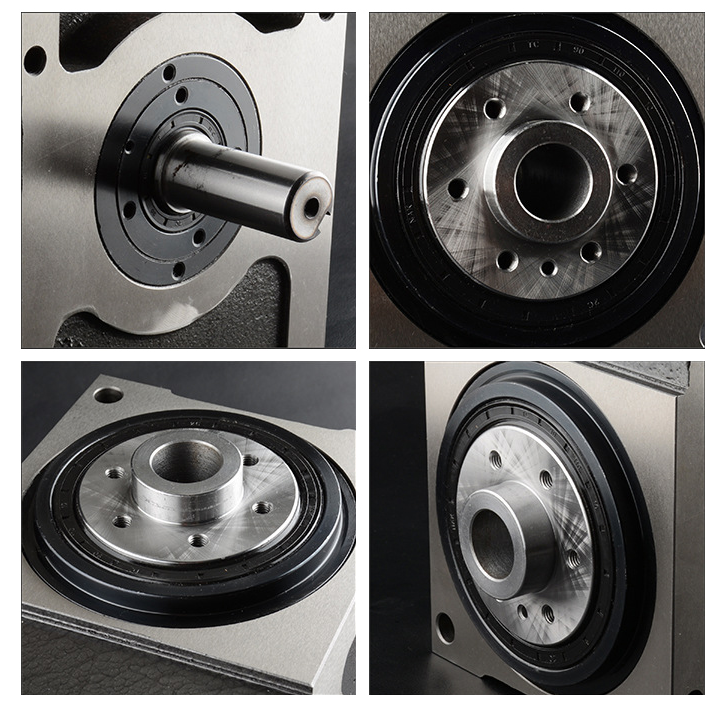

Detail

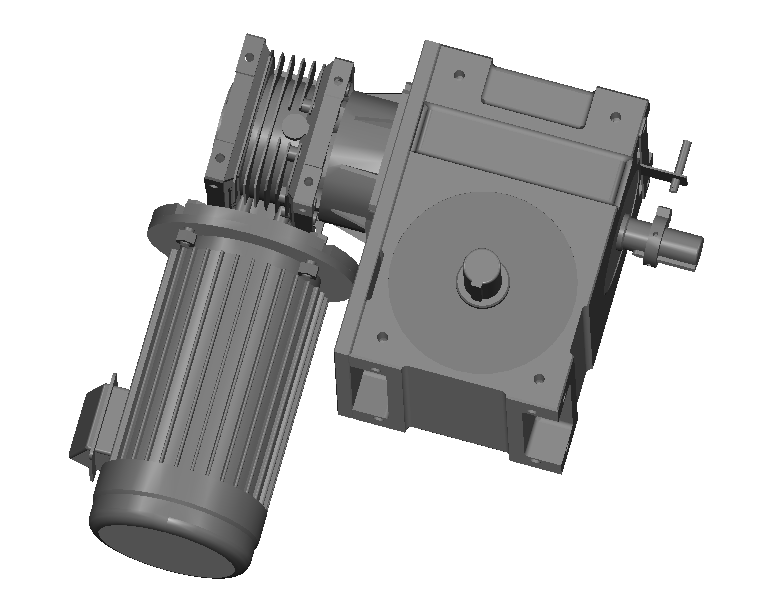

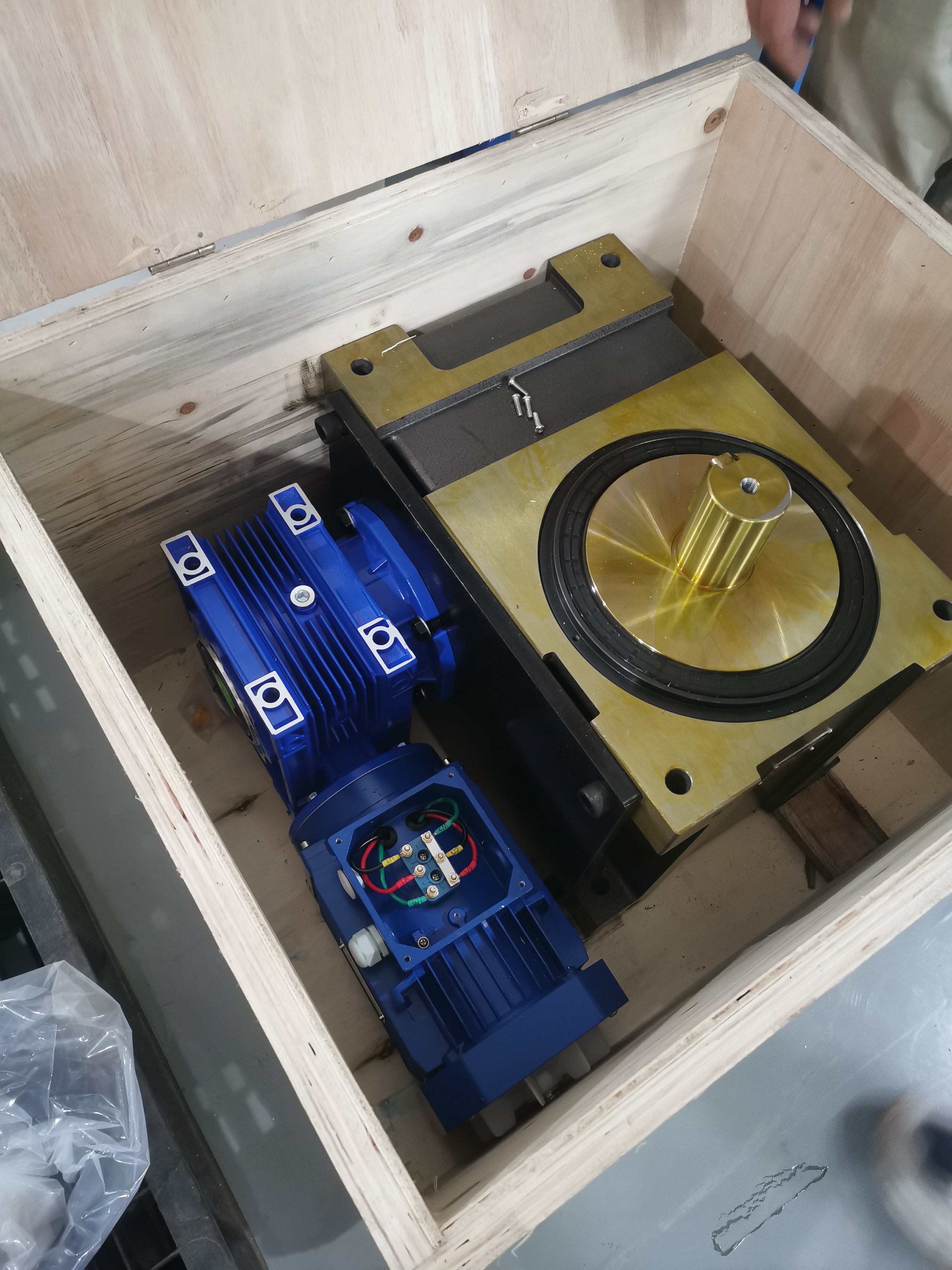

Installation Example of Indexer, Motor and Accessories

Application

Customers

Manufacturing Equipment

Workshop & Warehouse

FAQ

1. What is the Shaft Model Cam Indexer?

A Shaft Model Cam Indexer is a mechanical device used to control the position of a rotary motion and stop it at a fixed angle. It typically uses a cam mechanism to control shaft rotation and can be highly accurate and reliable.

2. What are the advantages of the Shaft Model Cam Indexer?

The main advantages of the Shaft Model Cam Indexer are accuracy and reliability. It is able to control the position of rotary movements with a very high degree of accuracy and can be operated for long periods of time without much maintenance. In addition, Shaft Model Cam Indexer is so versatile that it can be used in any application where rotary or translational motion position control is required.

3. What are the five Shaft Model Cam Indexer models used for?

Each of the five Shaft Model Cam Indexer models can be used to control the position of rotational or translational motion. They can control the rotational position in different ways and stop when a specific position is reached. These models are widely used in industries such as machine automation and assembly lines.

4. What are the applications of Shaft Model Cam Indexer?

Shaft Model Cam Indexer can be used in any application that requires control of rotational position or transfer position. It is used in automated production lines, the packaging industry, industrial robotics, medical devices, and many other areas. This device can control the speed and position of machine operation and increase productivity.

5. What do I need to pay attention to the maintenance of Shaft Model Cam Indexer?

Maintenance of the Shaft Model Cam Indexer is very simple. Typically, regular cleaning and lubrication is all that is required. Care should be taken not to over-wear or overload it during use. If you notice anything unusual during use, stop using it immediately and contact a professional for repair.
