Knowledge of base fixing clips
1. What is the support base fixing clip
Strut clamps allow one to fasten and link struts either parallel or perpendicular. The opening action locks the locking mechanism using the bolt after the shaft hole is matched, therefore fixing the pillar.
Applied for many fastening and support systems, the base for the bracket is a supporting product for pillars and fixing clips, with functions of connection, support, and separation.

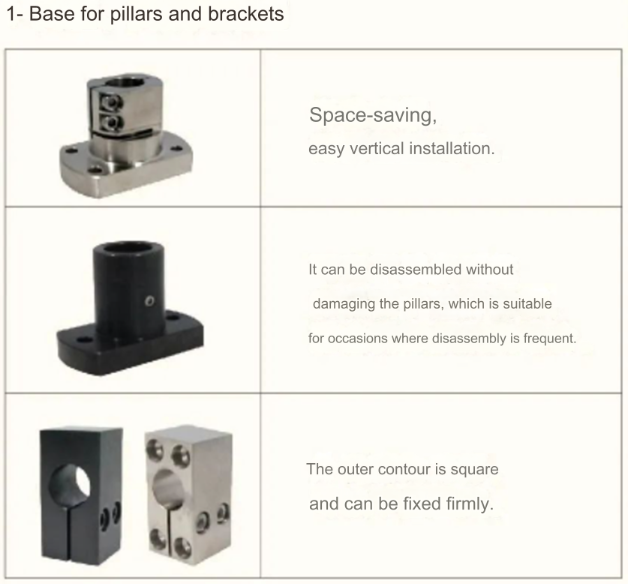

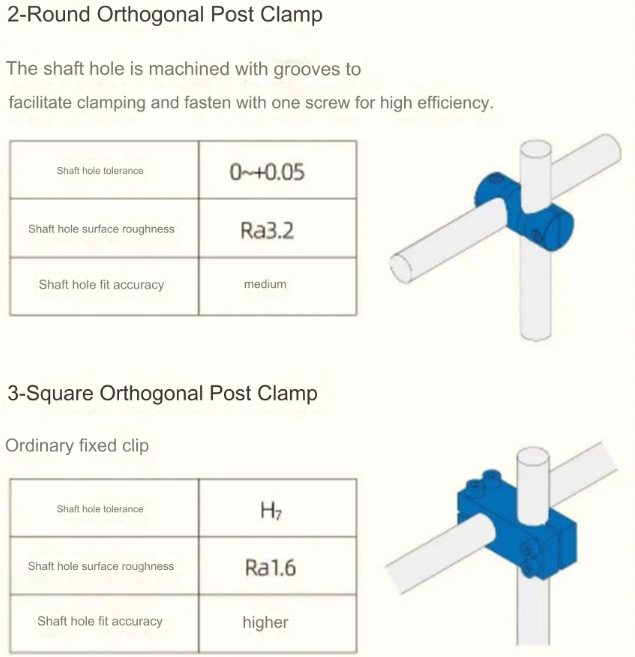

2. Product features

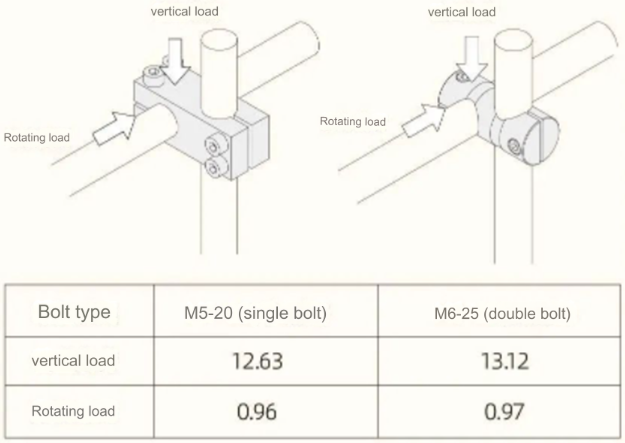

3. Load direction
4. The type of pillar fixing clip
Diameter strut clips, various warp pillar clips, round pillar clips, square pillar clips, round hole pillar clips, square hole pillar clips, detached pillar clips, cantilever pillar clips.
5. Material and surface treatment
Materials include 45 steel, aluminum alloy, Q235, stainless steel.
Surface treatment may be done depending on the material using black (natural) anodizing, electroless nickel plating, and ferric oxide protective layer.
6. Product selection
1) Choose the inner hole of the attaching clip to correspond with the strut's employed shaft diameter.
2) The two pillars' employed shaft sizes should be known; so, the coaxial diameter can be chosen using the same diameter fixing clip; the reducer may be chosen depending on the respective shaft diameters.
3) Based on the orientation of the two axes, ascertain the parallel, rotating, orthogonal strut clamp either parallel, perpendicular, or arbitrary angle.
4) Based on the form of the shaft, choose a round or square hole retener.
