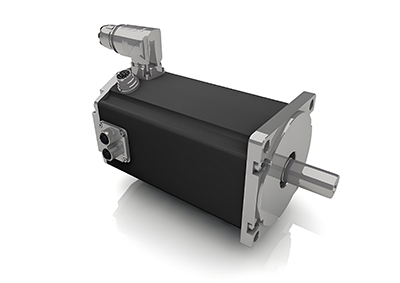

How Does a DC Motor Work

DC (Direct Current) motors are an integral part of our modern technological landscape. From the small motors that power the fans in our laptops to the large ones used in electric vehicles, DC motors play a crucial role in converting electrical energy into mechanical energy. Understanding how these motors work not only satisfies our technical curiosity but also helps in applications ranging from DIY projects to industrial maintenance. In this comprehensive blog post, we will take a deep dive into the inner workings of DC motors, exploring their fundamental principles, key components, and the step - by - step process of how they operate.

Basic Concepts

Direct Current (DC)

Before delving into the operation of DC motors, it's essential to understand what direct current is. Unlike alternating current (AC), which periodically changes its direction, direct current flows in a single, constant direction. In a DC electrical system, the voltage remains at a relatively steady level, providing a unidirectional flow of electric charge. This characteristic of DC is what gives DC motors their unique operating characteristics and makes them suitable for a wide variety of applications.

Electric Motors - A General Overview

An electric motor, in its essence, is a device that converts electrical energy into mechanical energy. The operation of all electric motors is based on the interaction between magnetic fields and electric currents. When an electric current passes through a conductor placed in a magnetic field, a force is exerted on the conductor according to the Lorentz force law. This force is the foundation for the rotational motion generated by electric motors. DC motors specifically utilize the properties of direct current to create and control this interaction for efficient mechanical output.

Key Components of a DC Motor

Stator

The stator is the stationary part of a DC motor. It consists of a permanent magnet or an electromagnet. In the case of a permanent - magnet DC motor, powerful permanent magnets are used to create a fixed magnetic field. For electromagnet - based DC motors, the stator contains field coils. When an electric current is passed through these field coils, they generate a magnetic field. The role of the stator is to provide the external magnetic field against which the rotor will interact to produce motion.

Rotor

The rotor, also known as the armature, is the rotating part of the DC motor. It is made up of a core of laminated iron to reduce eddy current losses, and it has multiple coils of wire wound around it. These coils are connected to a commutator, which is a crucial component for the proper functioning of the DC motor. As the rotor rotates, the coils within it experience changes in the magnetic field, which is essential for generating the necessary forces to keep the motor running.

Commutator

The commutator is a cylindrical device made up of segments, usually made of copper, that are insulated from each other. It is attached to the rotor shaft and rotates along with the rotor. The commutator's main function is to reverse the direction of the current in the rotor coils at the appropriate times. This reversal of current is necessary to ensure that the forces acting on the rotor always act in a way that causes continuous rotation. Each segment of the commutator is connected to a specific coil on the rotor, and as the commutator rotates, it makes contact with the brushes, which supply the electrical current.

Brushes

Brushes are typically made of carbon or graphite and are used to transfer electrical current from the stationary power source to the rotating commutator. They are positioned in contact with the commutator segments and slide over them as the commutator rotates. The brushes ensure a continuous flow of current to the rotor coils, allowing the motor to operate smoothly. Over time, brushes may wear out due to the friction and electrical arcing, and they may need to be replaced to maintain the motor's performance.

How a DC Motor Works: The Step - by - Step Process

Establishing the Magnetic Fields

When a DC power source is connected to the motor, current flows through the field coils in the stator (in the case of an electromagnet - based stator) or the permanent magnets in the stator create a fixed magnetic field. At the same time, current also flows through the brushes and into the commutator, which then distributes the current to the rotor coils.

Interaction of Magnetic Fields and Current - Carrying Conductors

According to the Lorentz force law, when the current - carrying coils in the rotor are placed within the magnetic field of the stator, a force is exerted on these coils. The direction of this force can be determined using the right - hand rule. For a simple DC motor with a single coil in the rotor, when the current flows through the coil, one side of the coil experiences a force that pushes it in one direction, while the other side experiences a force that pushes it in the opposite direction. This creates a torque, which causes the rotor to start rotating.

The Role of the Commutator

As the rotor begins to rotate, the commutator plays a vital role in maintaining the rotation. When the coil in the rotor reaches a certain position (usually when it is perpendicular to the magnetic field of the stator), the commutator reverses the direction of the current in the coil. This reversal of current changes the direction of the forces acting on the coil, ensuring that the torque continues to act in the same rotational direction. As the commutator segments pass under the brushes, the current in the rotor coils is continuously reversed at the appropriate intervals, allowing the rotor to keep rotating.

Continuous Rotation

With the continuous reversal of current in the rotor coils by the commutator and the continuous supply of current through the brushes, the rotor experiences a continuous torque, resulting in continuous rotation. The speed of the rotation depends on several factors, including the strength of the magnetic field in the stator, the magnitude of the current flowing through the rotor coils, and the number of turns in the rotor coils.

Controlling the Speed and Direction of a DC Motor

Speed Control

The speed of a DC motor can be controlled in several ways. One common method is by varying the voltage supplied to the motor. According to the motor's speed - voltage relationship, increasing the voltage increases the speed of the motor, and decreasing the voltage reduces the speed. This can be achieved using variable power supplies or electronic speed controllers. Another method is by changing the strength of the magnetic field in the stator. In motors with electromagnet - based stators, adjusting the current through the field coils can change the magnetic field strength, thereby affecting the motor's speed.

Direction Control

To change the direction of a DC motor, the direction of the current flowing through the rotor coils needs to be reversed. This can be accomplished by simply reversing the connections of the DC power source to the motor. When the positive and negative terminals of the power supply are swapped, the current direction in the rotor coils changes, which in turn changes the direction of the torque and the rotation of the motor.

Applications of DC Motors

DC motors are used in a vast array of applications due to their precise control and reliable operation. In household appliances, they are found in devices such as blenders, vacuum cleaners, and fans. In the automotive industry, DC motors are used in starter motors, windshield wipers, and in electric and hybrid vehicles for powering various components and even as the main drive motors. They are also widely used in robotics, where their ability to provide controlled motion and torque is essential for tasks such as robotic arm movement and locomotion. Additionally, DC motors play a crucial role in industrial automation, in conveyor systems, and in various types of machinery that require accurate speed and direction control.

Conclusion

DC motors are remarkable devices that have revolutionized the way we convert electrical energy into mechanical motion. Through the interaction of magnetic fields, electric currents, and key components such as the commutator and brushes, DC motors are able to produce continuous and controlled rotation. Understanding how DC motors work, from the establishment of magnetic fields to the role of each component, is essential for anyone working with these motors, whether it's for designing new applications, troubleshooting issues, or optimizing their performance. As technology continues to advance, DC motors will likely remain a fundamental and important part of our electrical and mechanical systems.
