What Do Power Inverters Do?

In today's world, where electricity powers nearly every aspect of our lives, power inverters play a crucial yet often overlooked role. From solar energy systems to emergency backup setups, these devices bridge the gap between direct current (DC) and alternating current (AC) power sources. But what exactly do power inverters do? This blog will delve into their functions, working principles, types, applications, and key technical details to provide a thorough understanding.

Understanding Power Inverters: The Basics

At its core, a power inverter is an electronic device that converts direct current (DC) into alternating current (AC). DC power, which flows in a single direction, is produced by sources such as batteries, solar panels, and fuel cells. AC power, on the other hand, alternates direction periodically and is the standard form of electricity used in homes, businesses, and industries worldwide.

Power inverters act as the critical link between these two types of electrical current, enabling DC-powered systems to interface with AC-dependent devices and infrastructure. Without them, the vast array of DC energy sources we rely on would be unable to power the majority of our everyday electronics and machinery.

Core Functions of Power Inverters

Converting DC to AC: The Primary Function

The most fundamental task of a power inverter is to transform DC electricity into AC electricity. This conversion is essential because approximately 90% of electrical devices in residential, commercial, and industrial settings operate on AC power. For example, solar panels generate DC electricity with typical voltages ranging from 12V to 48V, while household appliances require 110V or 220V AC (depending on the region). A power inverter facilitates this transition efficiently, with modern models achieving conversion efficiencies between 85% and 95% under rated load conditions, and top-tier industrial inverters reaching up to 97%.

Maintaining Stable Output Voltage

Another key function of power inverters is to ensure a stable AC output voltage, regardless of fluctuations in the input DC voltage or changes in the load. This stability is vital for the safe and proper operation of electrical devices, as voltage variations can cause malfunctions, reduced performance, or even permanent damage. Most quality inverters maintain output voltage within a tolerance of ±2% of the nominal voltage, with advanced models achieving ±1% stability. For instance, a 110V inverter will keep its output between 107.8V and 112.2V under varying conditions.

Providing Waveform Regulation

Power inverters are responsible for generating AC power with the appropriate waveform. The standard for household and industrial power is a pure sine wave, which closely matches the waveform of utility grid power. Inverters achieve this through sophisticated electronic circuitry that modulates the DC input to produce the smooth, oscillating sine wave. This is particularly important for sensitive electronics like computers, medical equipment, and variable speed motors, which can suffer from reduced efficiency or damage when powered by non-sinusoidal waveforms.

Offering Protection Mechanisms

Modern power inverters incorporate various protection features to safeguard both the inverter itself and the connected devices. These include:

How Power Inverters Work: A Technical Breakdown

The Conversion Process

The operation of a power inverter involves several key stages:

Efficiency Considerations

The efficiency of a power inverter is a critical performance metric, defined as the ratio of AC output power to DC input power, expressed as a percentage. Efficiency varies with the load, typically peaking at 70-80% of the rated load. For example, a 1000W inverter might achieve 92% efficiency at 700-800W loads, dropping to 85% at 100W and 90% at full 1000W load. This is why it's important to match the inverter's capacity to the intended load for optimal efficiency.

Types of Power Inverters and Their Specific Roles

Pure Sine Wave Inverters

These are the highest quality inverters, producing AC power with a pure sine wave output that is indistinguishable from utility grid power. They are suitable for all types of electrical devices, including sensitive electronics and appliances with motors. Pure sine wave inverters have efficiencies ranging from 85% to 97% and are available in sizes from 100W to several megawatts. They are commonly used in solar power systems, off-grid homes, and critical applications like hospitals and data centers.

Modified Sine Wave Inverters

Also known as quasi-sine wave or square wave inverters, these produce a waveform that approximates a sine wave but with distinct steps. They are less expensive than pure sine wave inverters but are only suitable for resistive loads like lights, heaters, and some simple appliances. Modified sine wave inverters may cause issues with sensitive electronics, including increased noise in audio equipment, reduced efficiency in motors, and potential damage to devices with variable speed drives. Their efficiency typically ranges from 75% to 85%.

Grid-Tie Inverters

Designed specifically for use in renewable energy systems like solar PV installations, grid-tie inverters convert DC power from solar panels into AC power that is synchronized with the utility grid. They allow excess energy to be fed back into the grid, often earning the system owner credits through net metering programs. Modern grid-tie inverters feature advanced monitoring capabilities and must meet strict safety standards, including anti-islanding protection (automatically disconnecting from the grid during power outages). They have efficiencies up to 98% and are available in sizes from 250W to 100kW or more for commercial installations.

Off-Grid Inverters

Used in standalone power systems not connected to the utility grid, off-grid inverters typically work in conjunction with batteries to provide a reliable power source. They must handle the full load of the connected devices and often include a battery charger to replenish the battery bank from an alternative power source like a generator. Off-grid inverters are available in both pure sine wave and modified sine wave versions, with capacities ranging from 300W to 50kW.

Microinverters

A relatively new type of inverter, microinverters are small devices installed directly on each solar panel in a PV system. Each microinverter converts the DC power from its associated panel into AC power individually, rather than having a single central inverter for the entire system. This approach offers several advantages, including higher overall system efficiency (especially in partially shaded conditions), simplified installation, and enhanced monitoring of individual panel performance. Microinverters typically have capacities from 200W to 600W per unit and efficiencies up to 96.5%.

Practical Applications Across Industries

Renewable Energy Systems

Power inverters are a critical component of solar photovoltaic (PV) and wind energy systems. In solar systems, inverters convert the DC electricity generated by solar panels into usable AC power. The global solar inverter market was valued at approximately \(17.5 billion in 2023 and is projected to reach \)38.2 billion by 2030, growing at a CAGR of 11.8%. Wind turbines also use inverters to convert the variable-frequency AC generated by the turbine's generator into stable, grid-compatible AC power.

Transportation

Inverters play a key role in electric and hybrid vehicles, converting DC power from the battery pack into AC power to drive the electric motor. They also provide power for the vehicle's auxiliary systems. Electric vehicle inverters must be highly efficient (typically 95% or higher) and capable of handling high power levels – up to 200kW or more in modern electric cars. Inverters are also used in trains, ships, and aircraft for various power conversion needs.

Backup Power Systems

Uninterruptible Power Supply (UPS) systems rely on inverters to provide seamless backup power during utility grid outages. When the grid is operational, the UPS charges its battery while passing grid power through to the connected devices. When the grid fails, the inverter instantly converts battery power to AC, ensuring no interruption in power. UPS inverters are designed for fast response times (typically less than 10 milliseconds) and are available in sizes from 300VA for home use to several megavolt-amperes for data centers and industrial facilities.

Remote and Off-Grid Locations

In areas without access to the utility grid, power inverters are essential for utilizing DC power sources like batteries and generators. This includes remote cabins, telecommunications towers, mining operations, and military outposts. In these applications, inverters must be rugged, reliable, and capable of operating in extreme environmental conditions. They often work in conjunction with renewable energy sources to provide sustainable power.

Industrial Applications

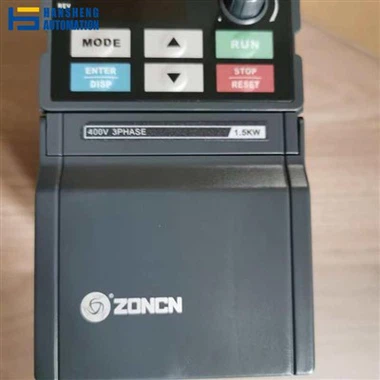

Industrial inverters are used in a wide range of manufacturing and processing applications, particularly for controlling electric motors. Variable Frequency Drives (VFDs), which are specialized inverters, allow precise control of motor speed by varying the frequency of the AC power. This enables energy savings (up to 50% in pump and fan applications) and improved process control. Industrial inverters handle power levels from a few kilowatts to hundreds of kilowatts and are designed to withstand the harsh conditions of industrial environments, including high temperatures, vibration, and electrical noise.



Key Technical Parameters to Consider

When selecting a power inverter, several technical parameters are important to consider:

Power Rating

This is the maximum power the inverter can deliver continuously, measured in watts (W) or kilowatts (kW). It's crucial to choose an inverter with a power rating that exceeds the total power requirements of the connected devices. For example, a system with a total load of 800W should use a 1000W inverter to provide a safety margin. Inverters also have a peak power rating, which is the maximum power they can deliver for short periods (typically 1-5 seconds) to handle startup currents of motors and other devices with high inrush current.

Input Voltage

The DC voltage that the inverter requires. Common input voltages include 12V, 24V, 48V for smaller inverters, and higher voltages (120V, 240V, 600V, etc.) for larger industrial models. The input voltage must match the voltage of the DC power source (battery, solar panel array, etc.).

Output Voltage and Frequency

The AC voltage and frequency produced by the inverter. These must match the requirements of the connected devices and the regional electrical standard (e.g., 110V/60Hz in North America, 230V/50Hz in Europe and most of the rest of the world).

Efficiency

As discussed earlier, inverter efficiency is the ratio of output power to input power. Higher efficiency means less energy is wasted as heat, resulting in lower operating costs and reduced cooling requirements. Efficiency curves show how the inverter's efficiency varies with load – most inverters are most efficient at 50-80% of their rated load.

Harmonic Distortion

This measures how much the inverter's output waveform deviates from a pure sine wave, expressed as Total Harmonic Distortion (THD). Lower THD is better, with pure sine wave inverters typically having THD less than 3% – comparable to utility power. Modified sine wave inverters may have THD of 10% or higher.

Conclusion

Power inverters are versatile and essential devices that perform the critical function of converting DC power to AC power, enabling the use of countless electrical devices and systems in our daily lives and industries. From their core functions of power conversion, voltage regulation, and waveform shaping to their various protection mechanisms, inverters play a vital role in modern power systems.

With different types designed for specific applications – from small household inverters to large industrial models and specialized grid-tie and microinverters – there is a power inverter solution for nearly every power conversion need. Understanding how inverters work, their key functions, and technical parameters is essential for selecting the right inverter for any application, ensuring efficient, reliable, and safe operation of connected devices and systems.
