What Is an Inverter Generator?

In recent years, inverter generators have revolutionized portable power solutions, offering unprecedented efficiency, portability, and power quality. Unlike traditional generators, these advanced devices use cutting-edge electronics to produce clean, stable electricity suitable for sensitive equipment. This guide will explore what inverter generators are, how they work, their technical specifications, and why they’ve become the preferred choice for both recreational and professional use.

Defining Inverter Generators: Core Functionality

An inverter generator is a type of portable generator that converts AC power to DC and back to AC through an electronic inverter, resulting in a stable, clean sine wave output. This process distinguishes it from conventional generators, which produce raw AC power directly from the alternator without electronic conditioning.

The key components of an inverter generator include:

According to industry standards, a true inverter generator must maintain voltage fluctuation within ±2% and frequency variation within ±0.5 Hz, even under varying loads. This level of stability makes them uniquely suited for powering electronics sensitive to power quality, such as laptops, smartphones, and medical equipment.

How Inverter Generators Work: The Technical Process

Step 1: Initial AC Generation

The process begins with the engine driving an alternator, which produces high-frequency alternating current (AC) – typically 200-400 Hz, significantly higher than the 50-60 Hz used in household electricity. This high-frequency output allows for a smaller, lighter alternator design; for example, a 2,000-watt inverter generator alternator weighs 30-40% less than a conventional alternator of equal power.

Step 2: Conversion to DC Power

A rectifier circuit converts the high-frequency AC to direct current (DC), storing it temporarily in capacitors to smooth out fluctuations. This DC power acts as a stable intermediate stage, enabling precise voltage regulation. Modern rectifiers in premium models (like Honda’s iGX series) achieve conversion efficiencies of 95-98%.

Step 3: Inversion to Clean AC

The inverter module then converts the DC back to 50 or 60 Hz AC, shaping the output into a pure sine wave. Entry-level models may produce modified sine waves (with total harmonic distortion, THD, between 3-6%), while premium units achieve THD below 3% – comparable to utility grid power. For reference, the International Electrotechnical Commission (IEC) requires THD <5% for safe operation of sensitive electronics.

Step 4: Load-Dependent Speed Regulation

Unlike traditional generators, which run at a fixed speed (typically 3,600 RPM for 60 Hz power), inverter generators adjust engine speed based on load. At 50% load, most models reduce RPM to 2,400-2,800, cutting fuel consumption by 30-50% and lowering noise output. This variable speed technology is why inverter generators can run 8-12 hours on a single tank of fuel at 25% load, compared to 4-6 hours for conventional models of the same size.

Inverter vs. Traditional Generators: Key Differences

Specification	Inverter Generator	Conventional Generator
Power Output	1,000-10,000 watts (continuous)	2,000-15,000 watts (continuous)
THD (Total Harmonic Distortion)	<3% (pure sine wave)	5-15% (modified sine wave)
Noise Level	50-65 dB(A) at 25% load	65-85 dB(A) at 25% load
Fuel Efficiency	0.1-0.3 gal/hour (25% load)	0.3-0.8 gal/hour (25% load)
Weight	25-150 lbs	100-300+ lbs
Engine Speed	Variable (2,000-3,600 RPM)	Fixed (3,600 RPM)

Notably, inverter generators excel in portability. The Honda EU2200i, a popular 2,200-watt model, weighs just 47 lbs and measures 20.5 x 11.4 x 16.7 inches, making it easily transportable. In contrast, a 2,000-watt conventional generator typically weighs 80-100 lbs and has a larger footprint.

Technical Specifications: Performance Metrics Explained

Power Ratings

Inverter generators are rated by two key metrics:

Fuel Efficiency

Modern inverter generators achieve specific fuel consumption rates of 0.25-0.4 lbs/kWh (gasoline), compared to 0.5-0.7 lbs/kWh for conventional generators. This translates to significant cost savings: at \(3.50/gallon, a 2,000W inverter generator costs approximately \)1.05/hour to run at 50% load, versus $2.10/hour for a traditional model.

Noise Levels

Noise output is measured in decibels (dB(A)) at a distance of 23 feet (7 meters). Budget models like the Champion 2000W produce 59 dB(A) at 25% load, while premium units like the Generac GP3000i feature sound-dampening enclosures to reach 51 dB(A) – quieter than a normal conversation (60 dB(A)).

Voltage and Frequency Regulation

High-quality inverter generators maintain 120V ±2V (in North America) and 60Hz ±0.3Hz regardless of load changes from 0-100%. This stability prevents damage to sensitive equipment like LED TVs (which require 110-130V) and laptop chargers (vulnerable to frequency fluctuations).

Applications: Where Inverter Generators Excel

Recreational Use

Campers and RV enthusiasts favor inverter generators for their quiet operation and portability. A 1,000-2,000W model can power a mini-fridge (600W), LED lights (50W), and a coffee maker (800W) simultaneously without disturbing the campsite. Many models also feature parallel capability, allowing two units to connect for double the power (e.g., two 2,000W generators combining for 4,000W).

Home Backup Power

During power outages, 3,000-5,000W inverter generators can run essential home systems: a sump pump (1,200W), furnace blower (800W), and several household lights (200W). Their clean power ensures devices like CPAP machines (300-600W) and smart home systems operate safely.

Professional Settings

Contractors use 5,000-10,000W inverter generators to power tools like angle grinders (1,200W), air compressors (1,500W), and laptops for job site management. The ability to run sensitive electronics alongside power tools makes them invaluable in construction and events.

Maintenance and Longevity

To ensure optimal performance, inverter generators require regular maintenance:

With proper maintenance, inverter generators have a service life of 1,500-3,000 hours – comparable to the engine life of a small car.

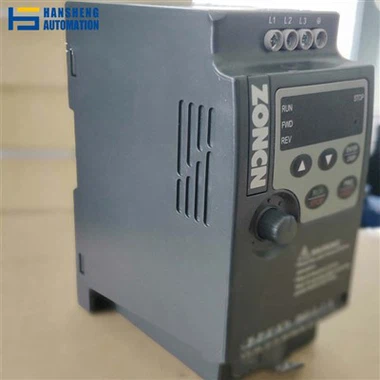

ZONCN Z2400-7R5G/11P Frequency Converter

Choosing the Right Inverter Generator: Key Considerations

When selecting an inverter generator, evaluate:

Conclusion: The Future of Portable Power

Inverter generators represent a significant advancement in portable power technology, blending efficiency, reliability, and versatility. Their ability to produce clean power in a compact, quiet package has made them indispensable for both leisure and emergency use. As battery technology improves, hybrid inverter generators (combining gas engines with lithium-ion batteries) are emerging, offering even greater fuel efficiency and lower emissions – a testament to the ongoing innovation in this field.
