Model No: MHMF042L1U2M

Panasonic MHMF042L1U2M | MINAS A6 Family Servo Motor

50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz
Quantity :
Contact Now

Panasonic MHMF042L1U2M | MINAS A6 Family Servo Motor


The Panasonic MHMF042L1U2M servo Motor is a high-performance servo motor that offers superior speed and accuracy to meet a variety of industrial control needs. The motor utilizes advanced technology to achieve fast response and precise position control, bringing users higher productivity and higher product quality.

The motor adopts advanced control algorithms and sensor technology, which can realize high-precision position control and maintain stable performance in high-speed movement. At the same time, the motor has high torque and output power, which can meet various control requirements. In addition, the motor also adopts professional heat dissipation design, which can improve the stability and life of the motor.

The motor has a variety of control interfaces and signal outputs, which are convenient for users to integrate and control. The motor also features efficient operation modes and automatic adjustment functions, which allow for flexible control and adjustment according to different application needs.
In conclusion, Panasonic MHMF042L1U2M servo motor is a powerful servo motor with excellent performance, which can meet various industrial control needs and bring users higher productivity and higher product quality. We believe that in the future market competition, this motor will have a wide range of applications and good market prospects.
  • Warranty:3months-1year
  • Place of Origin:Guangdong, China
  • Brand Name:Pana
  • Model Number:MHMF042L1U2M
  • Type:SERVO MOTOR

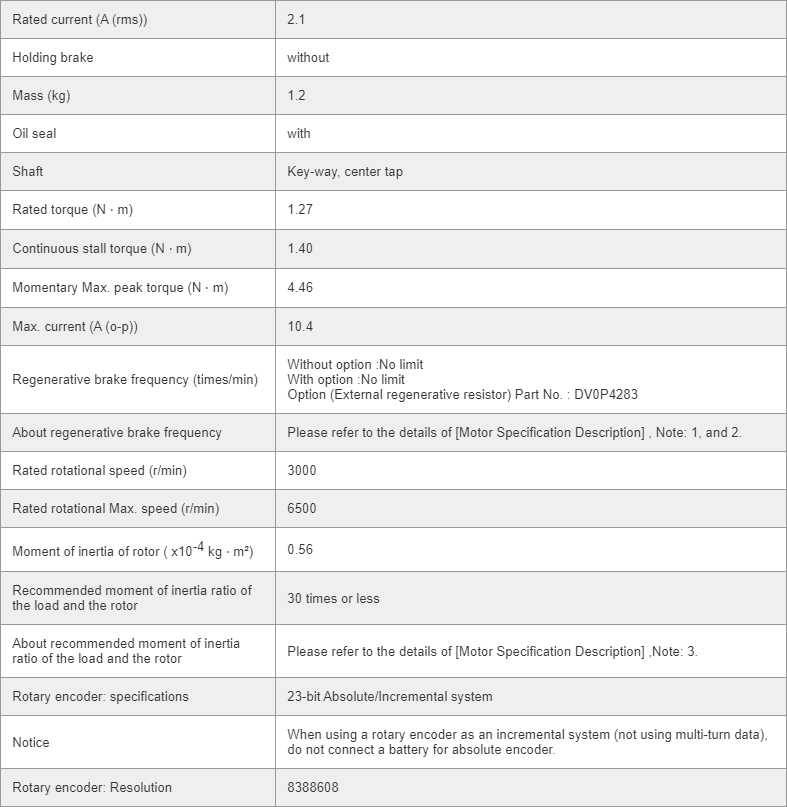

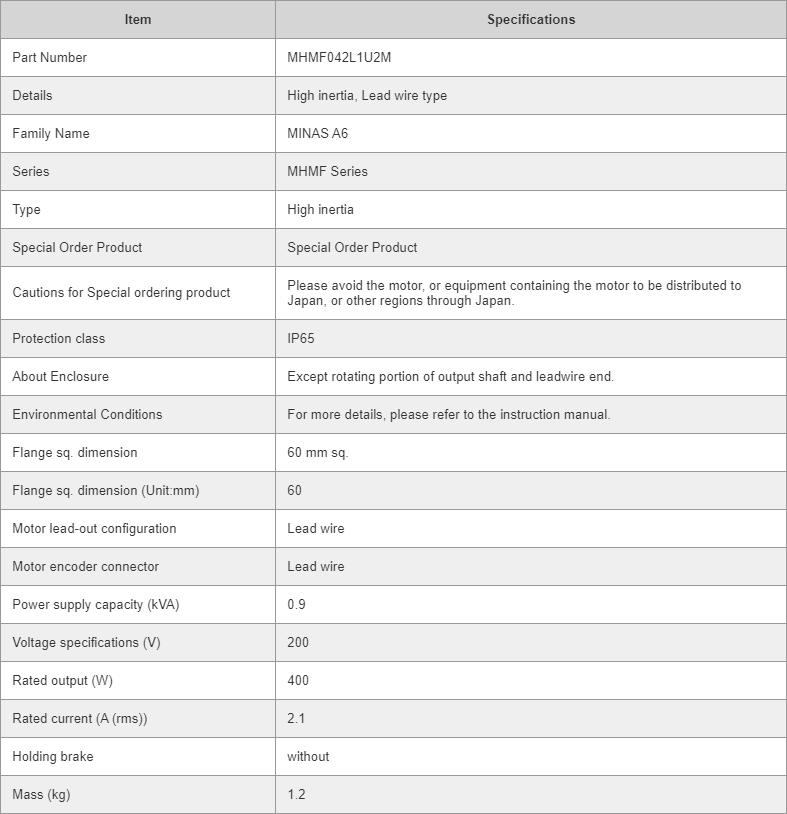

Spec Detail


Spec Detail
Spec Detail


Basic Specifications

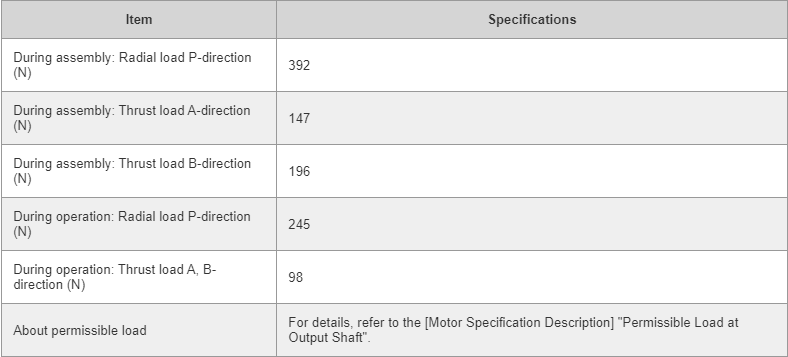

Permissible load

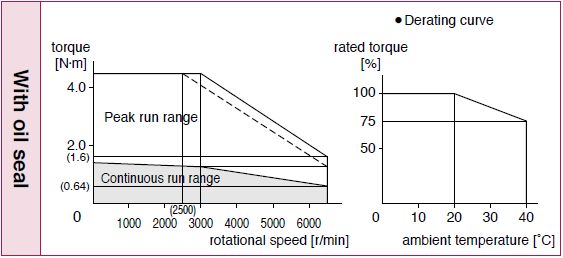

Torque charactristics


Torque charactristics

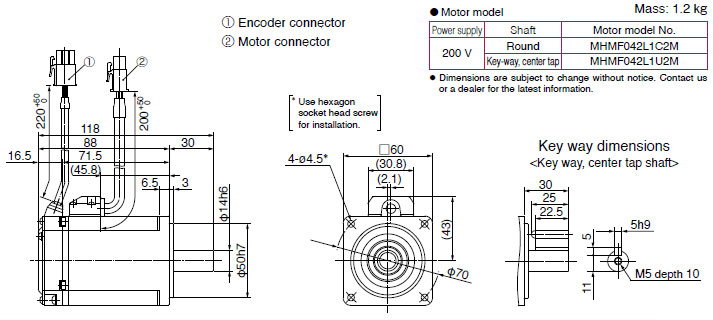

Dimensions


Dimensions


Warehouse



Warehouse             Warehouse


Packing & Delivery



Packing & Delivery

FAQ


1. What are the environmental requirements for Panasonic MHMF042L1U2M servo motors?

A. Panasonic MHMF042L1U2M servo motor requires to be used in an environment where the temperature is between 0-40℃ and the humidity is not more than 90%RH, and at the same time, it should be avoided from the influence of strong magnetic field and electromagnetic interference.

2. How to install Panasonic MHMF042L1U2M servo motor correctly?

A: When installing, you must make sure that the motor is positioned correctly, mounted axially downward, and that the motor wiring is connected correctly. Overheating of the motor due to prolonged operation should be avoided and it should be used according to the specified parameters. You can refer to the relevant instruction manual or contact the manufacturer's technical staff for more detailed installation instructions.

3. How to troubleshoot Panasonic MHMF042L1U2M servo motor?

A: If the Panasonic MHMF042L1U2M servo motor is abnormal, you can try to check the power supply of the motor, control signals and mechanical transmission device, and then troubleshoot the problem together with the related solutions. You can also contact the manufacturer's customer service for technical support and assistance.
