Model No: MHMF082L1V2M

Panasonic MHMF082L1V2M | MINAS A6 Family Servo Motor

50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz. High inertia, Lead wire type.
Quantity :
Contact Now

Panasonic MHMF082L1V2M | MINAS A6 Family Servo Motor


The Panasonic MHMF082L1V2M Servomotor is a high performance motor designed and manufactured using the most advanced technology and materials, resulting in excellent precision and reliability. This servo motor is suitable for a variety of applications including robotics, automated production equipment, medical equipment, and more.

Panasonic MHMF082L1V2M servo motor has the following features:

1. High precision: This motor utilizes a high-precision encoder, which provides extremely high control precision and positional feedback capability, enabling it to perform a variety of motions quickly and accurately.
2. high reliability: the motor adopts high-quality materials and technology, and undergoes rigorous testing and verification during the design and manufacturing process to ensure its stable operation for a long time.
3. High efficiency: the motor adopts unique electromagnetic design and control technology, which has the advantages of high efficiency and low noise, and can improve the working efficiency and stability of the equipment.
4. Easy Maintenance: The simple structure of the motor is easy to maintain and install, which can reduce the maintenance cost and downtime.

In conclusion, Panasonic MHMF082L1V2M servo motor is a high performance, high reliability, high efficiency and easy maintenance motor product. It provides reliable power support for a variety of applications and promotes the development of industrial automation and production equipment.
  • Warranty:3months-1year
  • Place of Origin:Guangdong, China
  • Brand Name:Pana
  • Model Number:MHMF082L1V2M
  • Type:SERVO MOTOR

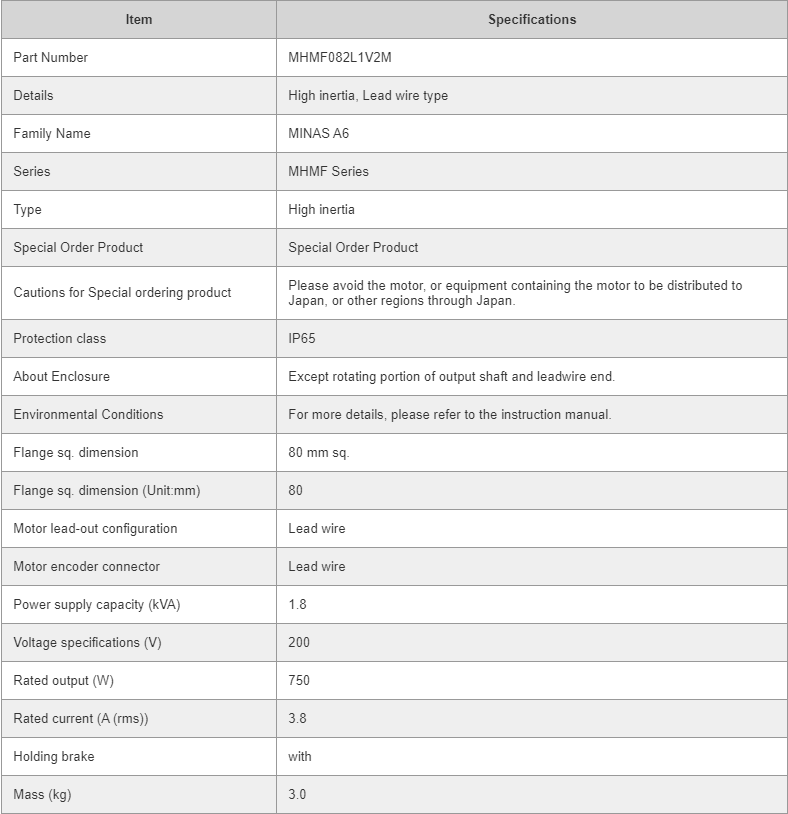

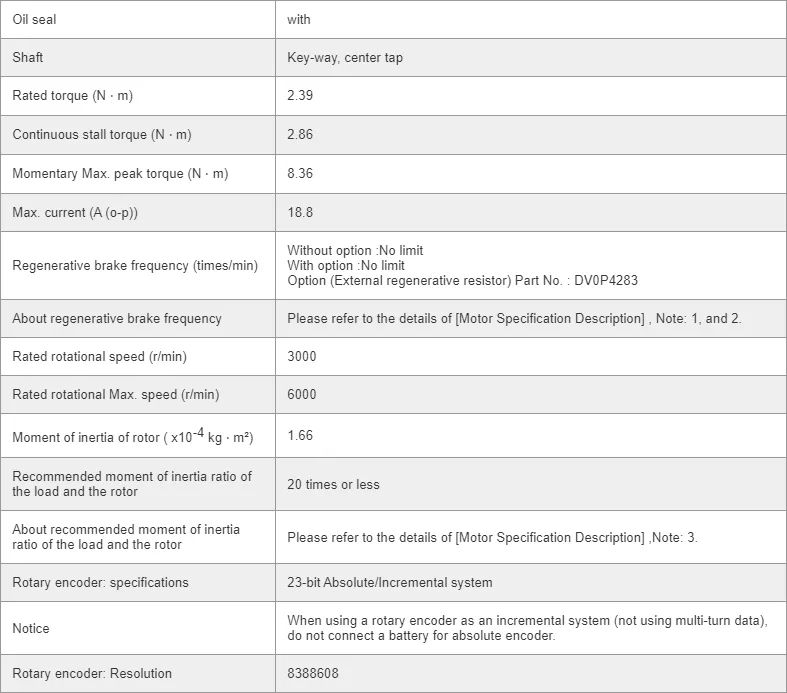

Spec Detail


Spec Detail
Spec Detail

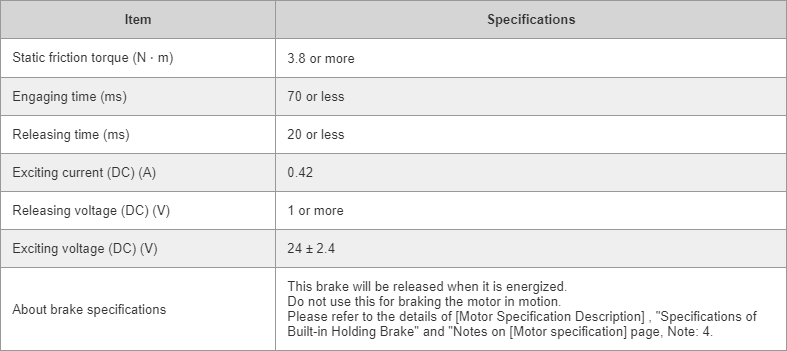

Brake specifications


Brake specifications

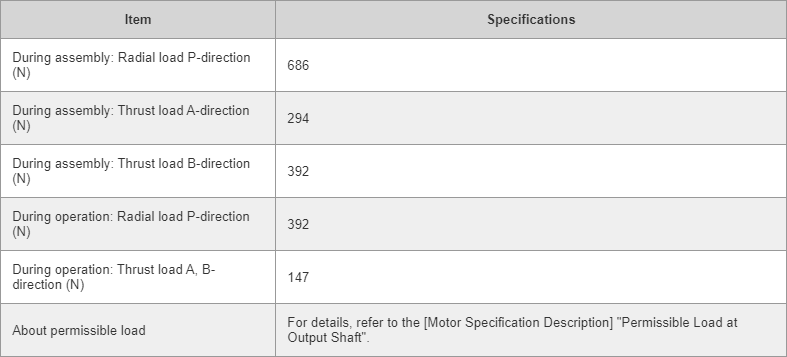

Permissible load


Permissible load

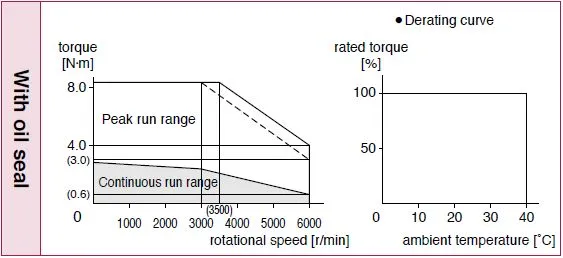

Torque charactristics


Torque charactristics

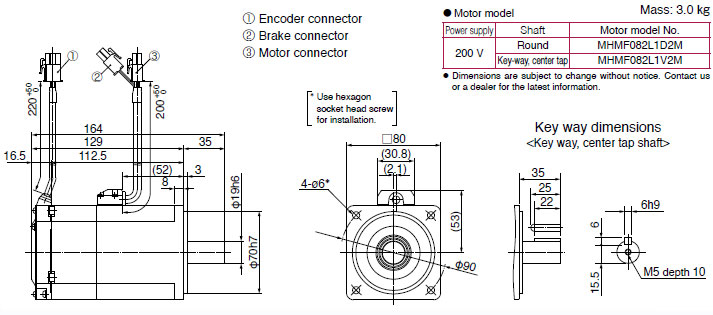

Dimensions


Dimensions


Warehouse



Warehouse             Warehouse


Packing & Delivery



Packing & Delivery

FAQ


1. Q: What are the benefits of Panasonic MHMF082L1V2M servo motor?

A: The Panasonic MHMF082L1V2M servo motor has many benefits. Firstly, it has high precision and high performance. Secondly, it has good control response speed and adjustable performance. Further, it has strong load capacity and high speed response. Finally, it has many advantages such as long life and high reliability.

2. Q: In what fields can Panasonic MHMF082L1V2M servo motor be used?

A: Panasonic MHMF082L1V2M servo motor is widely used in robotics, automated production lines, medical equipment, semiconductor equipment, test equipment, spraying machinery, packaging machinery, textile equipment and other industries, which can improve productivity and processing accuracy, and reduce product loss and cost.

3. Q: How to use Panasonic MHMF082L1V2M servo motor correctly?

A: Proper use of the Panasonic MHMF082L1V2M servo motor requires the following points: First, select the correct power supply voltage and capacity to prevent overloading the power supply and damaging the motor. Second, use the proper governor to ensure the stability and efficiency of the motor. Further, avoid using the environment beyond the rated load to avoid damaging the motor. Finally, regular maintenance and servicing should be performed to ensure long life and high performance of the motor.
