Model No: MCDLT35SF

Panasonic MCDLT35SF | MINAS A6S Series Servo Driver

A6SF series Multifunction type (Pulse analog full-closed) with the safety function. Swifter, smarter and easier to use Powered Up compact driver.
Country of Origin :
China /Singapore
Quantity :
Contact Now

Panasonic MCDLT35SF | MINAS A6S Series Servo Driver


The A6S series servo driver is a high-precision, high-reliability motor controller. It adopts the most advanced digital control technology and motor control algorithm, and has the advantages of fast response, high precision and stable performance. At the same time, the A6S series servo driver also has multiple functions such as switching value, analog input and output, communication interface, etc., and can be widely used in automation control, robots, CNC machine tools and other fields.

A6S series servo drives have the following features:
1. High response speed: The A6S series servo driver adopts a high-speed digital signal processor (DSP), which can achieve a high-speed response of 1us and adapt to the needs of high-speed precision motion control.

2. High-precision control: The A6S series servo driver adopts a high-resolution and high-precision encoder feedback system, which can achieve more precise motion control and meet high-precision processing, measurement and other requirements.

3. Quick debugging: A6S series servo drives are equipped with simple and easy-to-use debugging tools. Users can complete various parameter adjustments through simple operations, shortening debugging time.

4. High reliability: A6S series servo drives adopt professional control algorithms and high-quality electronic components, which have high reliability and long life.

5. Multiple functions: The A6S series servo driver also has multiple functions such as switching value, analog input and output, communication interface, etc., which can easily connect and communicate with external devices.

In short, the A6S series servo driver is a high-quality, high-performance motor controller and one of the indispensable devices in the field of modern automation control and motion control. We should actively promote the use of this excellent equipment to promote the development and progress of various industries.
  • Place of Origin:Guangdong, China
  • Brand Name:Panasonic
  • Model Number:MCDLT35SF
  • Type:SERVO MOTOR
  • Phase:Single-phase
  • Protect Feature:Drip-proof
  • AC Voltage:115/120 V
  • Efficiency:IE 1
  • MCDLT35SF:panasonic ac servo motor

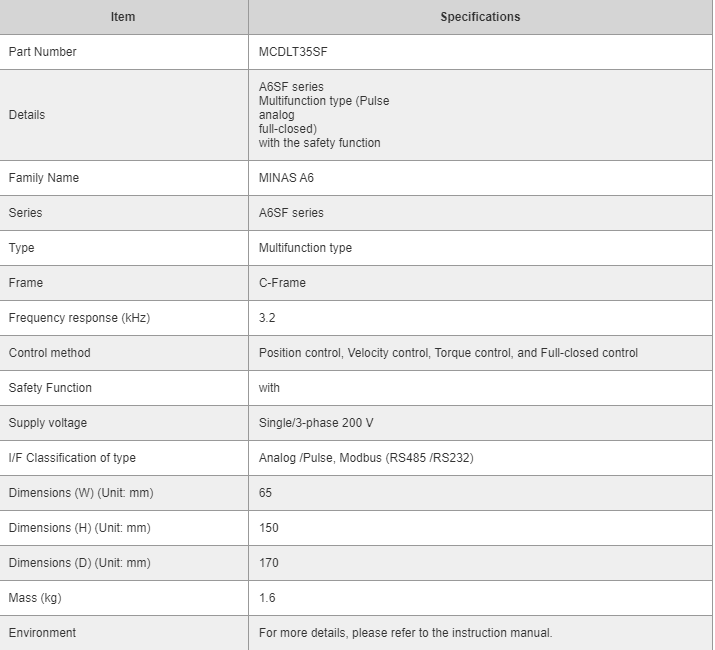

Spec Detail


Spec Detail

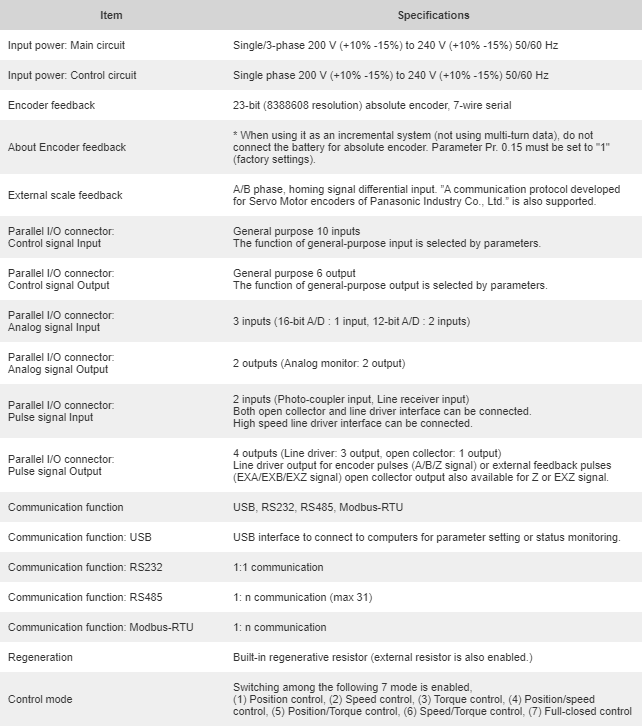

Basic Specifications


Basic Specifications

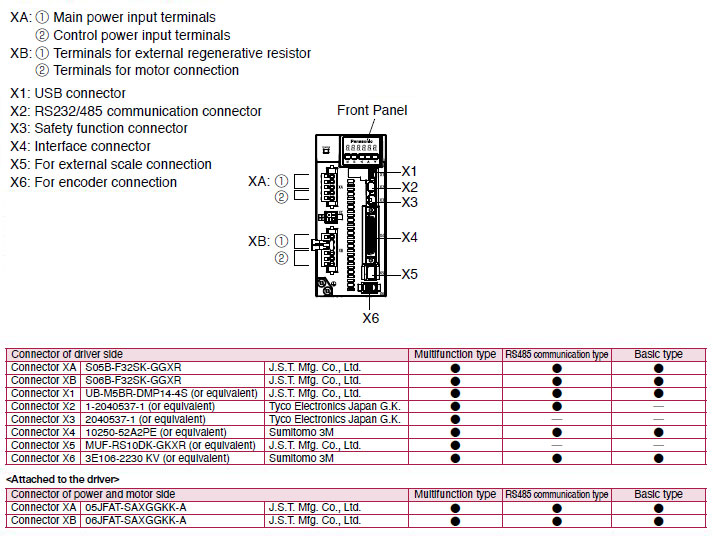

Connector specification


Connector specification

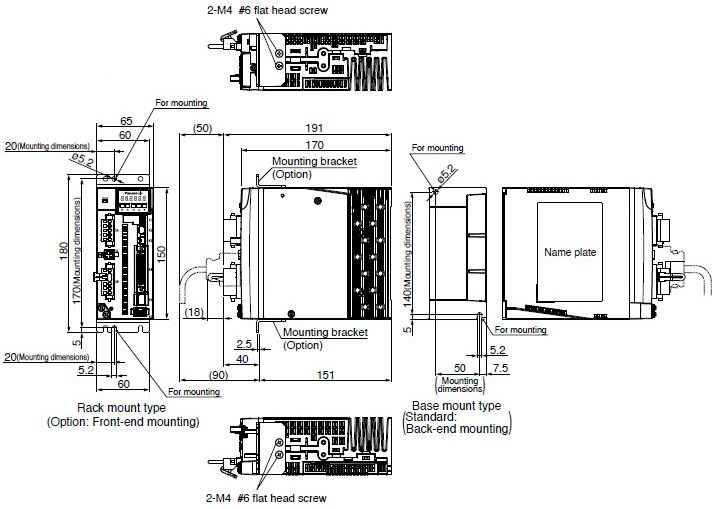

Dimensions


Dimensions


Warehouse



Warehouse             Warehouse


Packing & Delivery



Packing & Delivery

FAQ


1. What are the benefits of using the A6S Series Servo Driver in my application?

The A6S Series Servo Driver offers a number of advantages, including high precision control, fast response times, and the ability to handle both high torque and high speed applications. It also features a compact design, easy installation and setup, and compatibility with a variety of feedback devices and communication protocols.

2. How do I ensure the A6S Series Servo Driver is properly configured for my application?

To ensure optimal performance, it is important to select the appropriate model based on the specific requirements of your application. Additionally, careful attention should be paid to the setup and configuration of the driver, including tuning the control parameters and configuring the communication settings. The user manual and technical support resources provided by the manufacturer can be helpful in this regard.

3. What maintenance is required for the A6S Series Servo Driver?

The A6S Series Servo Driver is designed for reliable operation with minimal maintenance requirements. Regular inspection of the unit and its connections is recommended to ensure proper functioning, and any necessary repairs or replacements should be carried out promptly. Additionally, periodic calibration and adjustment of the control parameters may be necessary to maintain optimal performance.
